Whirlpool WGD4950HW0 gas dryer Parts

The Whirlpool WGD4950HW0 is a gas dryer. It uses a gas burner for heat, but it still plugs into a standard 120-volt grounded outlet for the motor, controls, and ignition system; see the WGD4950HW0 installation guide.

How you can confirm it on the dryer

• Check the rating plate in the door well; it lists the gas type and burner information.
• Look behind the dryer for a gas supply line connection.
• Verify the dryer plugs into a 120V outlet (not a 240V electric-dryer outlet).
• If your home uses LP (propane), confirm the dryer is properly set up for LP by a qualified technician.

What “gas dryer” means for hookups

Feature	Gas dryer (WGD4950HW0)	Electric dryer (typical)
Heat source	Gas burner	Electric heating element
Electrical supply	120V, 15 or 20 amp	240V (usually 30 amp)
Venting	Vented to outside	Vented to outside

Why it matters

Knowing it is gas helps you buy the right parts and troubleshoot correctly. For example, “no heat” on a gas dryer often points to ignition or gas supply issues, not a 240V power problem.

Related parts that affect heating (gas models)

If the drum turns but there is no heat, these model-compatible parts are commonly involved:

• Igniter 279311
• Dryer radiant sensor WP338906
• Gas burner W10823508

Last updated: February 2026

A Whirlpool dryer typically lasts 10 to 13 years. For your Whirlpool WGD4950HW0 gas dryer, consistent maintenance (especially lint and vent care) and avoiding overloads are the biggest factors that keep the motor, belt, and heat system running reliably; see the WGD4950HW0 owner's manual.

What affects dryer lifespan the most

• Vent restriction (long runs, too many elbows, crushed or kinked vent) increases heat stress and run time.
• Lint buildup in the lint screen area and exhaust path reduces airflow.
• Overloading strains the drum support, belt, and drive motor.
• High heat on delicate loads can increase wear and cause overdrying.
• Worn drum support parts can lead to noise and extra drag on the motor.

Maintenance checklist (best ROI)

• Clean the lint screen before every load (the manual recommends rolling lint off; do not wash it).
• Check the venting for crushing, kinks, excessive length, or too many turns.
• Use the lowest effective temperature for the fabric; adjust dryness level if loads are too damp or too dry.
• Keep loads balanced; avoid packing the drum tight.
• If you hear squealing or thumping, plan a wear-parts refresh such as the dryer repair kit 4392065.

Common wear items and what they usually mean

Symptom	Most common cause	Typical fix
Drum not turning, motor runs	Broken or slipped belt	Replace the belt 341241
Squeal, rumble, scraping	Worn rollers/idler/bearing surfaces	Install a maintenance kit (often includes rollers and idler)
Long dry times	Airflow restriction	Clean/shorten venting; clear lint buildup

Why it matters

A dryer that dries in fewer minutes runs cooler and with less strain. Good airflow and correct cycle settings reduce stress on key components like the drive motor, operating thermostat, and gas heat system, which is what most often determines whether you get 10 years or 13 years.

Last updated: February 2026

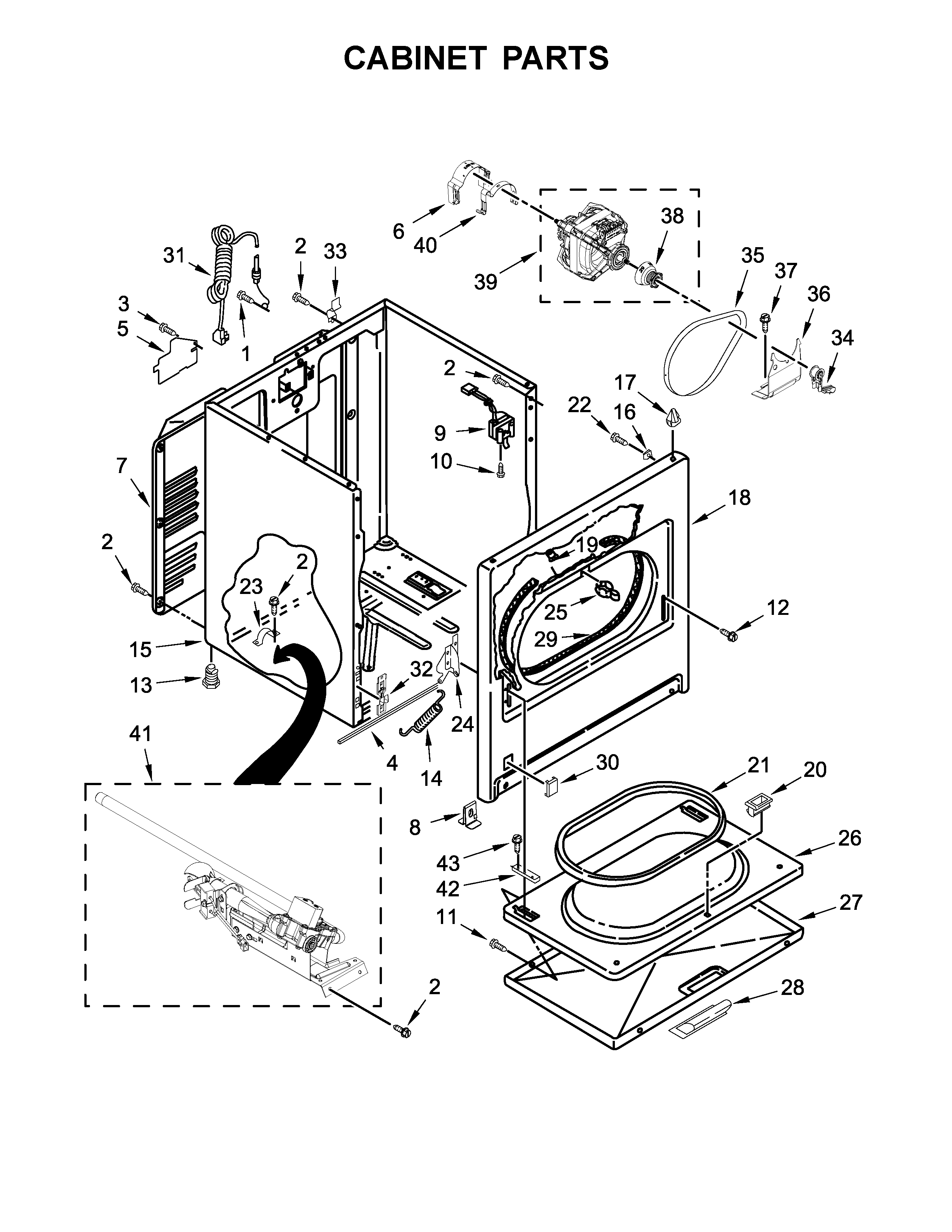

To remove the front panel on your Whirlpool gas dryer model WGD4950HW0, we start by disconnecting power, then releasing the top so we can access and remove the front-panel mounting screws and clips. This gives safe access to internal parts like the drum, belt, and idler pulley.

Safety first (gas dryer)

Before any disassembly, we follow the same safety approach used for service and moving steps in the documentation.

• Unplug the dryer (or switch off the breaker)
• Shut off the gas supply valve to the dryer
• Let the dryer cool completely if it was recently running
• Protect the finish with a towel on top of the cabinet
• Keep screws organized by location for reassembly

For model-specific safety notes and handling, use the WGD4950HW0 installation guide.

Front panel removal steps (typical Whirlpool cabinet)

Control panels and fastener locations can vary slightly by revision, but this is the standard approach for WGD4950HW0-STYLE Whirlpool cabinets.

1. Remove the lint screen (and the screws under its housing, if present).
2. Release the top panel:

• Remove screws at the rear of the top (if equipped), then slide the top back and lift.
• If your top uses spring clips, insert a flat screwdriver under the front corners to release the clips.

3. Disconnect the door switch wiring (so the front panel can come off cleanly).
4. Remove front panel screws (commonly inside the cabinet near the top corners, and sometimes along the bottom).
5. Lift the front panel up and off the lower retaining tabs, then pull it forward.

What you can access once the front panel is off

Removing the front panel is usually done to reach wear items and moving parts.

Symptom	Common area to inspect	Example part for this model
Squealing or grinding	Idler pulley, drum support	Dryer idler pulley WP691366
Drum not turning	Belt, motor	Belt 341241
Thumping or rubbing	Drum seals, drum support	Drum edges and seals

Why it matters

On a gas dryer like the Whirlpool WGD4950HW0, correct panel removal prevents cabinet damage and avoids pulling on wiring. It also makes it easier to reinstall the drum belt correctly and confirm the drum turns freely before restoring gas and power.

For diagrams, screw locations, and reassembly checks, use the WGD4950HW0 owner's manual.

Last updated: February 2026

To hard reset your Whirlpool WGD4950HW0 gas dryer, we recommend a simple power reset: unplug the dryer (or switch the breaker off) for 1 minute, then restore power and start a cycle. This clears many control glitches without changing any settings.

Safe hard reset steps (WGD4950HW0)

• Turn the dryer OFF.
• Unplug the power cord (or turn the circuit breaker OFF).
• Wait 60 seconds.
• Plug back in (or turn the breaker ON).
• Close the door fully, then press and hold PUSH to START until the drum begins turning.
• If the dryer still will not run, check the door latch engagement and power supply.

If the dryer still will not start after the reset

A reset will not fix a failed switch, blown fuse, or a tripped breaker. These are the most common next checks:

• Door not fully closed: confirm the door closes firmly.
• Breaker/fuse issue: reset the breaker; if it trips again, have the circuit checked.
• Start not held long enough: hold PUSH to START until you hear the drum moving.
• Door switch problem: a bad switch can prevent starting; consider testing or replacing the dryer door switch WP3406107.

Quick troubleshooting guide

Symptom	What it usually means	What to do next
No lights, no response	No power to dryer	Check breaker, outlet, cord
Lights on, won’t start	Door/start circuit issue	Close door firmly; hold start
Starts then stops quickly	Safety device or control issue	Recheck venting and door switch

Why it matters

A power reset is the fastest way to clear a temporary control lockup. If the dryer still will not run, the problem is usually a power, door switch, or start circuit issue, not something a reset can correct.

For model-specific operating steps and safety guidance, use the WGD4950HW0 owner’s manual.

Last updated: February 2026

For your Whirlpool WGD4950HW0 gas dryer, “size” usually means either the exterior dimensions (to confirm fit) or the drum capacity (to compare drying volume). The most reliable way is to use the model-specific dimensions listed in the WGD4950HW0 installation guide.

Identify which “size” you need

• Will it fit the space? Use exterior height, width, and depth plus required clearances
• Will it handle your laundry loads? Use drum capacity (cubic feet)
• Ordering parts: use the exact model number WGD4950HW0
• Planning venting: use vent size and routing guidance from the install instructions

Model-specific exterior dimensions for WGD4950HW0

The installation instructions list these dimensions:

Measurement	Dimension
Height	50 3/4 in.
Width	28 1/4 in.
Depth	29 in.

Clearance notes that affect “fit”

Use these common fit checks from the installation and use-and-care guidance:

• Leave room for the door to fully open
• Add space around the cabinet to reduce noise transfer
• Closet installs need top and bottom door openings for airflow
• Plan vent routing so the vent is not crushed or kinked

Where to find the model tag

On Whirlpool dryers like WGD4950HW0, the model and serial tag is typically:

• On the door opening (door jamb area)
• On the front frame just inside the door
• Occasionally on the cabinet opening behind the door

Why it matters

Using the correct “size” prevents a dryer that will not fit your laundry space, helps maintain proper airflow for drying performance, and ensures you match parts and accessories to the correct Whirlpool model.

Last updated: February 2026

Yes. The Whirlpool WGD4950HW0 gas dryer includes a Wrinkle Shield™ feature that helps prevent wrinkles by periodically tumbling the load after the cycle ends when you cannot unload right away. Details and control settings are shown in the WGD4950HW0 owner's manual.

How Wrinkle Shield works on this model

Wrinkle Shield is designed to keep clothes from sitting still in a warm drum after the cycle finishes.

• Provides up to 90 minutes of heat-free periodic tumbling at the end of a cycle
• You can turn the Wrinkle Shield control On or Off any time before the cycle ends
• If Cycle Signal is On, the dryer can sound a tone every 5 minutes while Wrinkle Shield is active
• Works best when you still remove clothes promptly when you can

Where to find the setting on the controls

On the WGD4950HW0, Wrinkle Shield is an option you select at the console (it is not a separate “cycle” you must choose).

Control/setting	What it does	When to use it
Wrinkle Shield On	Periodic tumbling after the cycle	When you cannot unload right away
Wrinkle Shield Off	Cycle ends normally	When you will unload promptly
Cycle Signal On	End-of-cycle tone (plus reminders with Wrinkle Shield)	Helpful if the dryer is out of sight

Quick tips for fewer wrinkles

• Do not overload; clothes need room to tumble freely
• Use the correct cycle (ACCUDRY/Automatic Dry for most everyday loads)
• Remove items like shirts and synthetics as soon as possible
• If you often forget loads, keep Wrinkle Shield set to On

Why it matters

Wrinkles set when warm fabrics sit compressed. Wrinkle Shield reduces that “sitting time” by intermittently fluffing the load, which can cut down on ironing and re-washing.

Last updated: February 2026
