Kenmore Elite
Washer

Model # 79641472210 Official Kenmore Elite washer

Here are the diagrams and repair parts for Official Kenmore Elite 79641472210 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 119 parts  |

Washer Drain Pump (replaces 4681ea1007g, 4681ea2001d, 4681ea2001u) 4681EA2001T
#K340

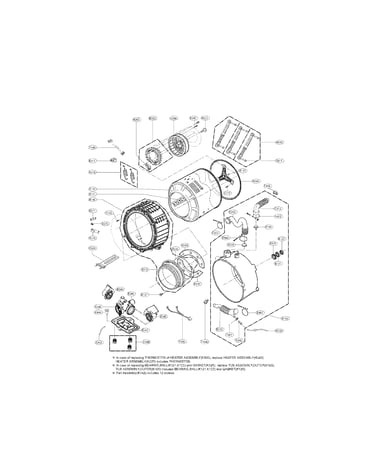

Drum and tub assembly parts diagram

Washer drain pump (replaces 4681ea1007g, 4681ea2001d, 4681ea2001u)

Part #4681EA2001T

BEST SELLER
$61.32
8% OFF Phone Price : $66.32
In Stock
Washer Magnetic Door Plunger (replaces Meg61961401) AGM73610701
#A156

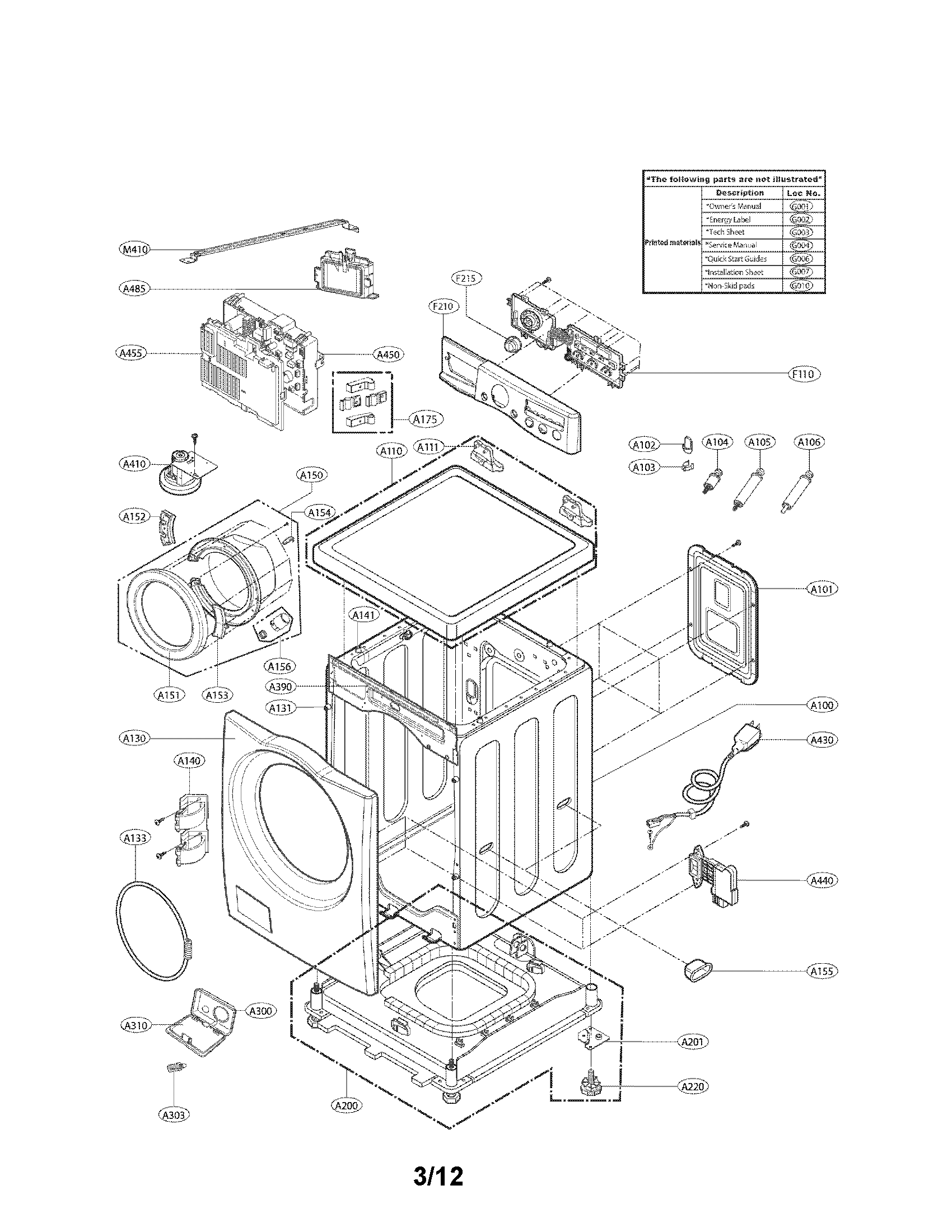

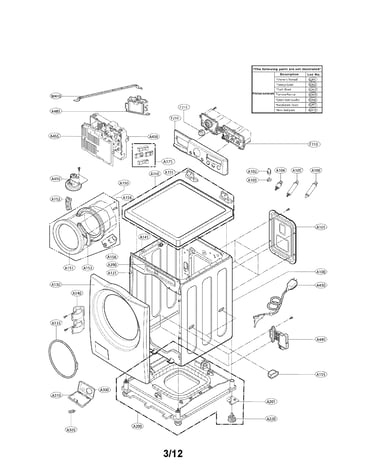

Cabinet and control panel assembly parts diagram

Washer magnetic door plunger (replaces meg61961401)

Part #AGM73610701

BEST SELLER
$25.17
17% OFF Phone Price : $30.17
In Stock
Washer Single-solenoid Water Inlet Valve (replaces 5220fr1280f, 5220fr2006l) 5220FR2006H
#F170

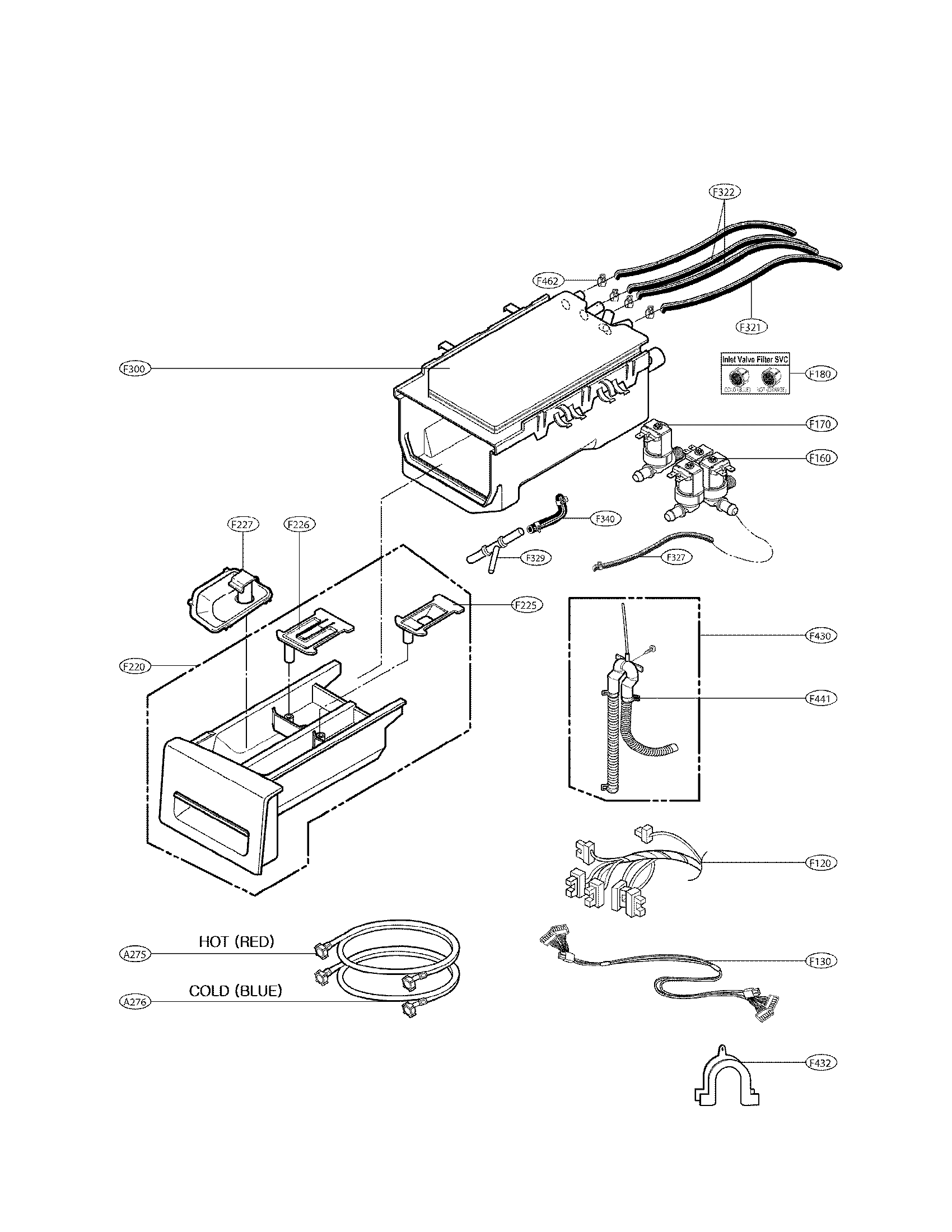

Dispenser assembly parts diagram

Washer single-solenoid water inlet valve (replaces 5220fr1280f, 5220fr2006l)

Part #5220FR2006H

BEST SELLER
$20.75
19% OFF Phone Price : $25.75
In Stock
Washer Tub Bearing, Rear MAP62554001
#K121

Drum and tub assembly parts diagram

Washer tub bearing, rear

Part #MAP62554001

Replaced by #4280FR4048N

?
Manufacturer substitution
This part replaces MAP62554001. Substitute parts can look different from the original.
BEST SELLER
$41.78
11% OFF Phone Price : $46.78
In Stock
Washer Door Boot Spring Clamp, Outer (replaces 4861en3004j) 4861ER2001J
#K530

Drum and tub assembly parts diagram

Washer door boot spring clamp, outer (replaces 4861en3004j)

Part #4861ER2001J

BEST SELLER
$20.47
20% OFF Phone Price : $25.47
In Stock
Washer Rear Tub Gasket (replaces 4036er3002a) 4036ER2004A
#K125

Drum and tub assembly parts diagram

Washer rear tub gasket (replaces 4036er3002a)

Part #4036ER2004A

BEST SELLER
$29.19
15% OFF Phone Price : $34.19
In Stock
Ball Bearing MAP62554002
#K122

Drum and tub assembly parts diagram

Ball bearing

Part #MAP62554002

Replaced by #MAP61913707

?
Manufacturer substitution
This part replaces MAP62554002. Substitute parts can look different from the original.
BEST SELLER
$35.13
12% OFF Phone Price : $40.13
In Stock
Washer Door Boot Spring Clamp (replaces 4861en3004l, Aca56078802) ACA56078801
#A133

Cabinet and control panel assembly parts diagram

Washer door boot spring clamp (replaces 4861en3004l, aca56078802)

Part #ACA56078801

BEST SELLER
$17.12
10% OFF Phone Price : $19.12
In Stock
Washer Drain Pump Filter Drain Hose Plug 5006ER3009A
#A303

Cabinet and control panel assembly parts diagram

Washer drain pump filter drain hose plug

Part #5006ER3009A

Replaced by #5006EN3015A

?
Manufacturer substitution
This part replaces 5006ER3009A. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.98
20% OFF Phone Price : $4.98
In Stock
Washer Dispenser Hose 4738ER1004B
#F310

Drum and tub assembly parts diagram

Washer dispenser hose

Part #4738ER1004B

BEST SELLER
$27.20
16% OFF Phone Price : $32.20
In Stock
