Model # DV218AEW/XAA-00 Official Samsung dryer

Here are the diagrams and repair parts for Official Samsung DV218AEW-XAA-00 dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

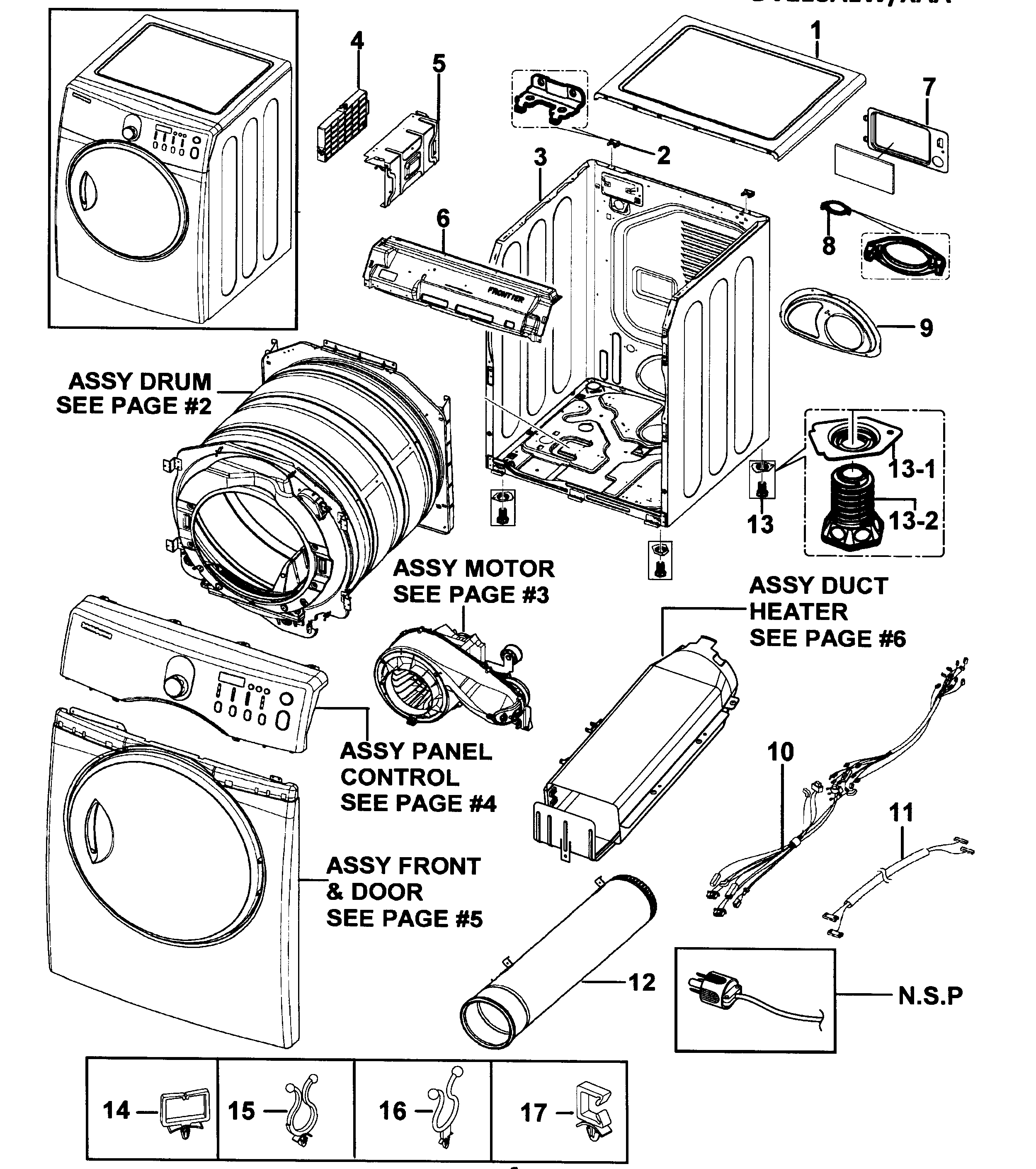

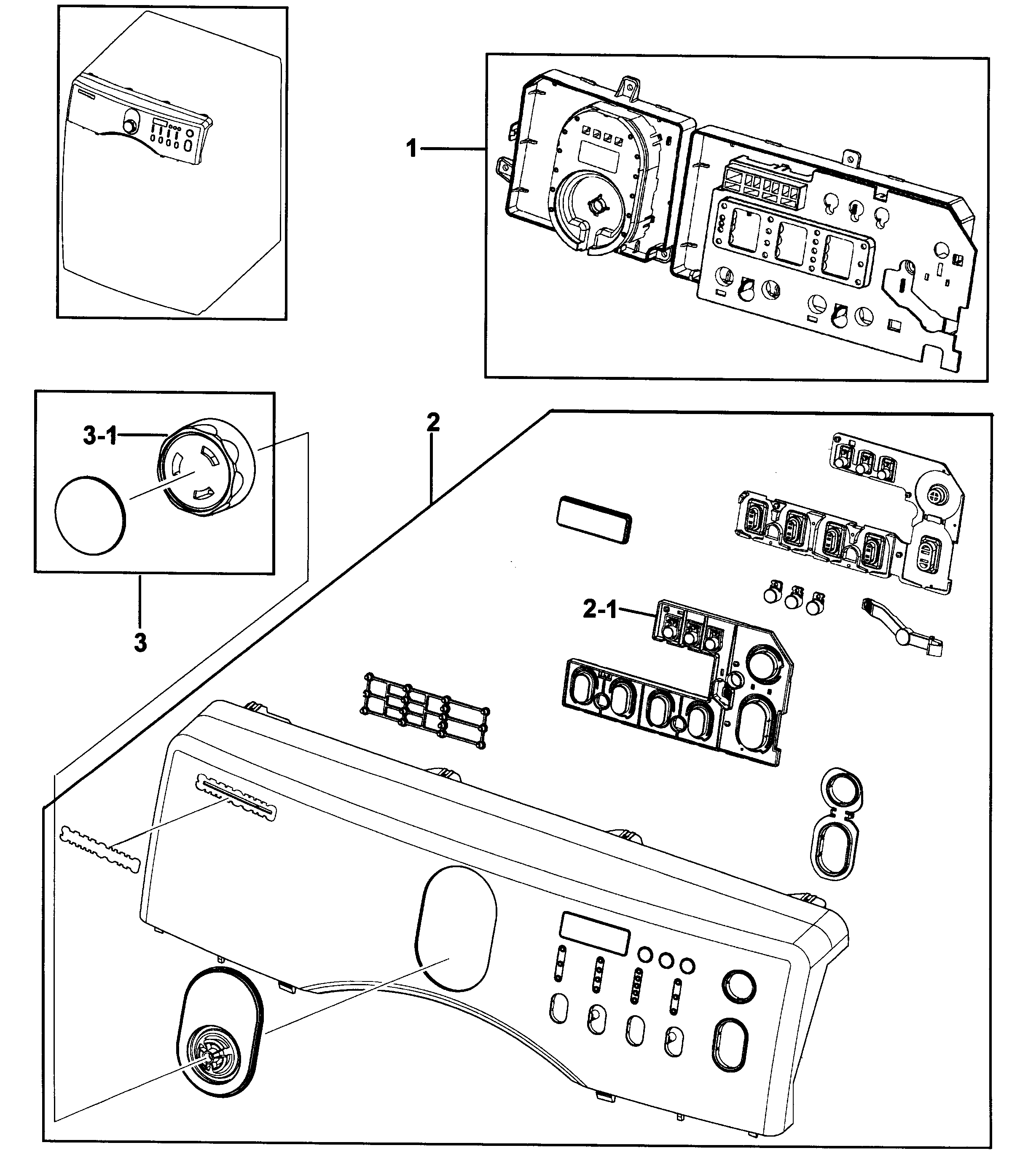

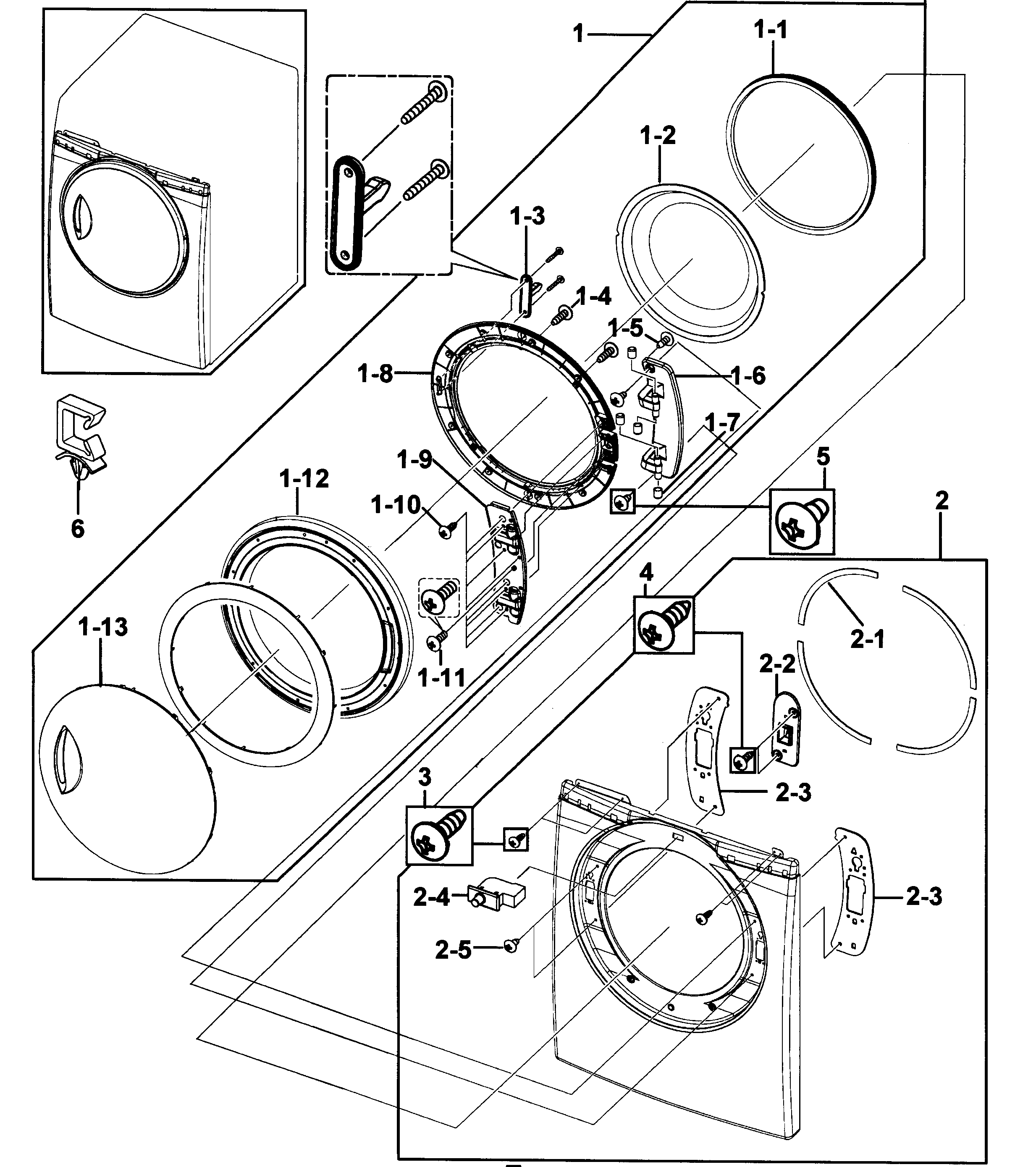

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 111 parts  |

Dryer Heating Element Assembly (replaces Dc97-08891a, Dc97-14486d) DC97-14486A
#1

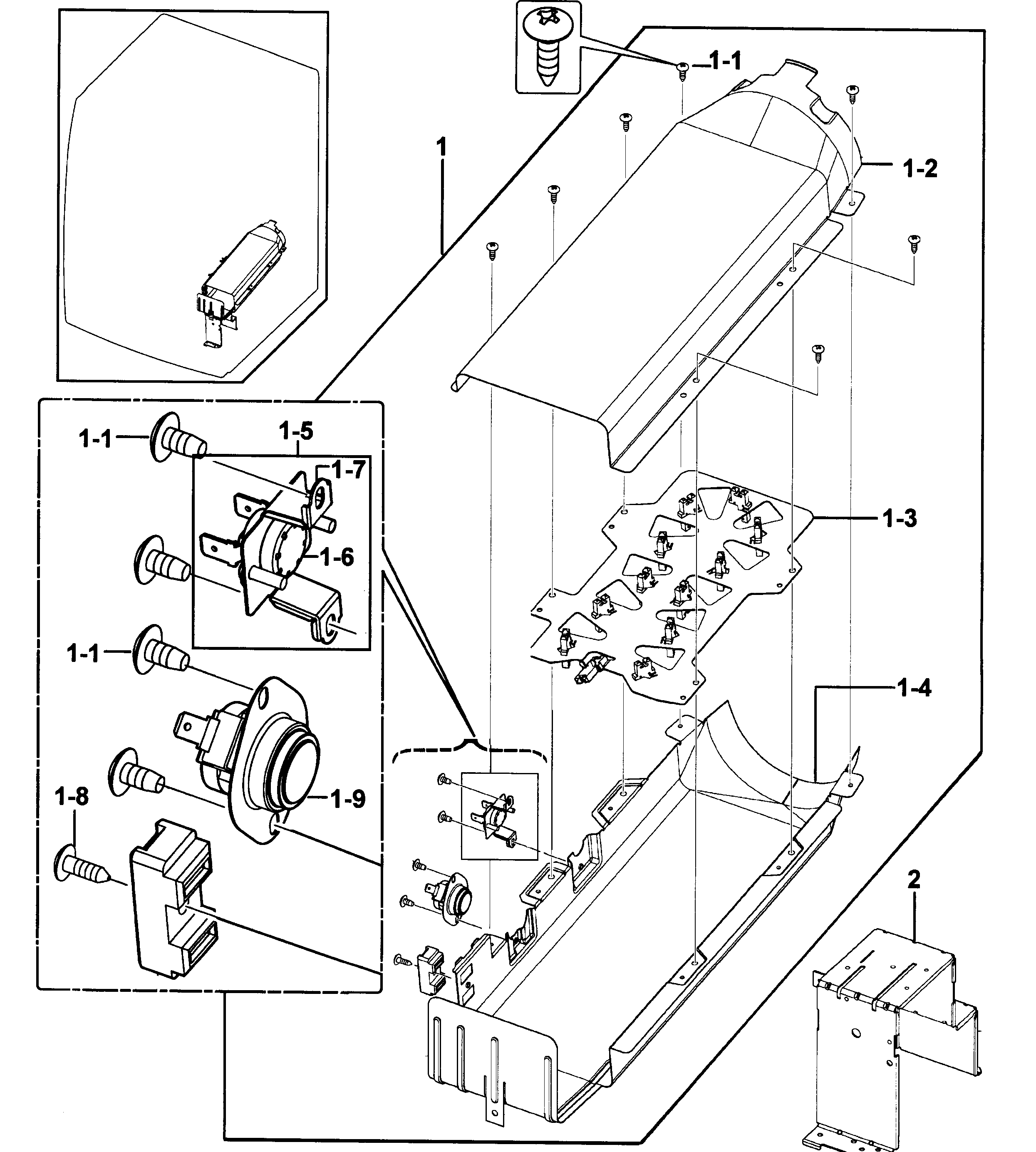

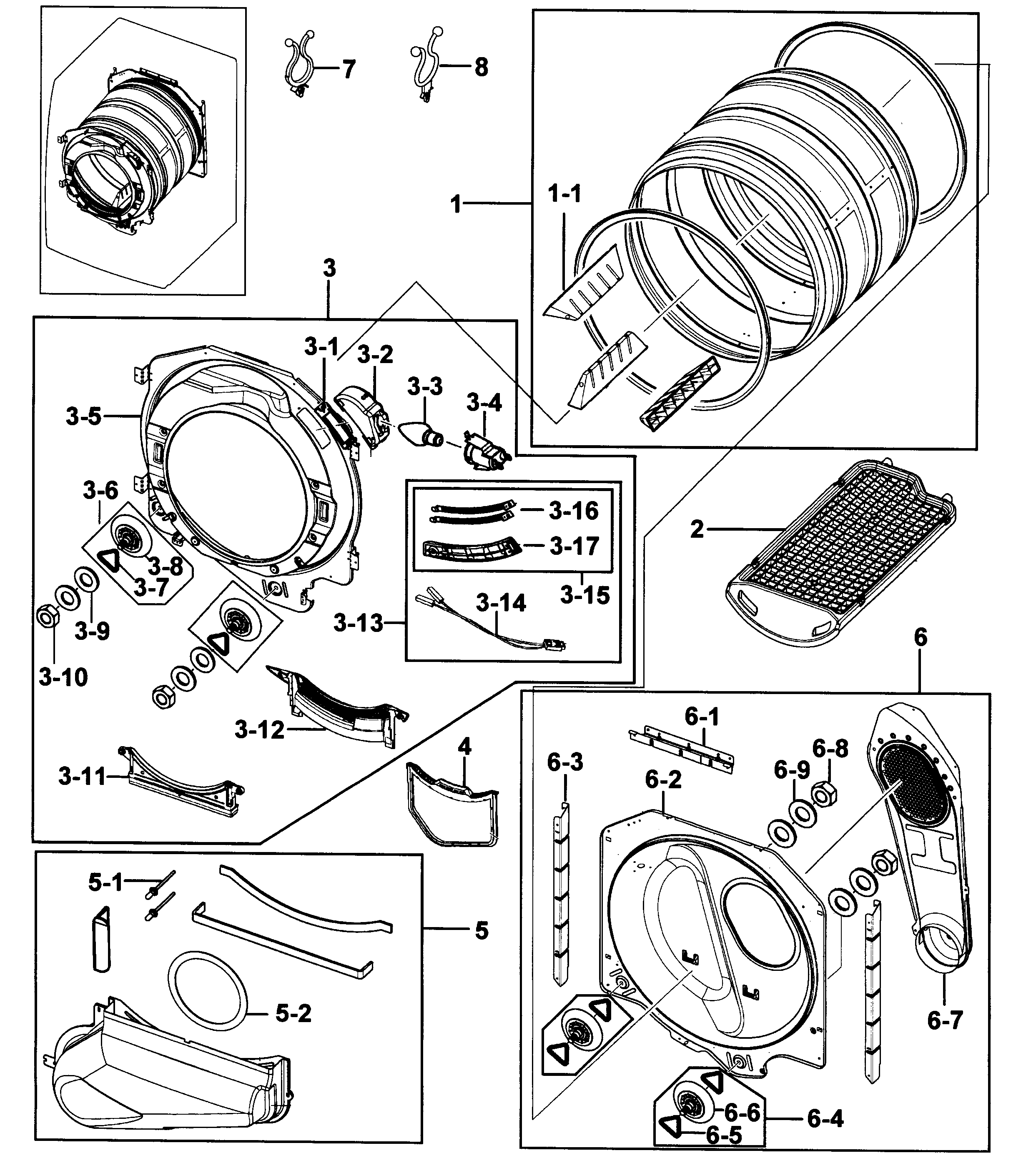

Heater diagram

Dryer heating element assembly (replaces dc97-08891a, dc97-14486d)

Part #DC97-14486A

BEST SELLER
$212.69
$10.00 OFF Phone Price : $222.69
In Stock
Dryer Idler Assembly DC96-00882C
#1-17

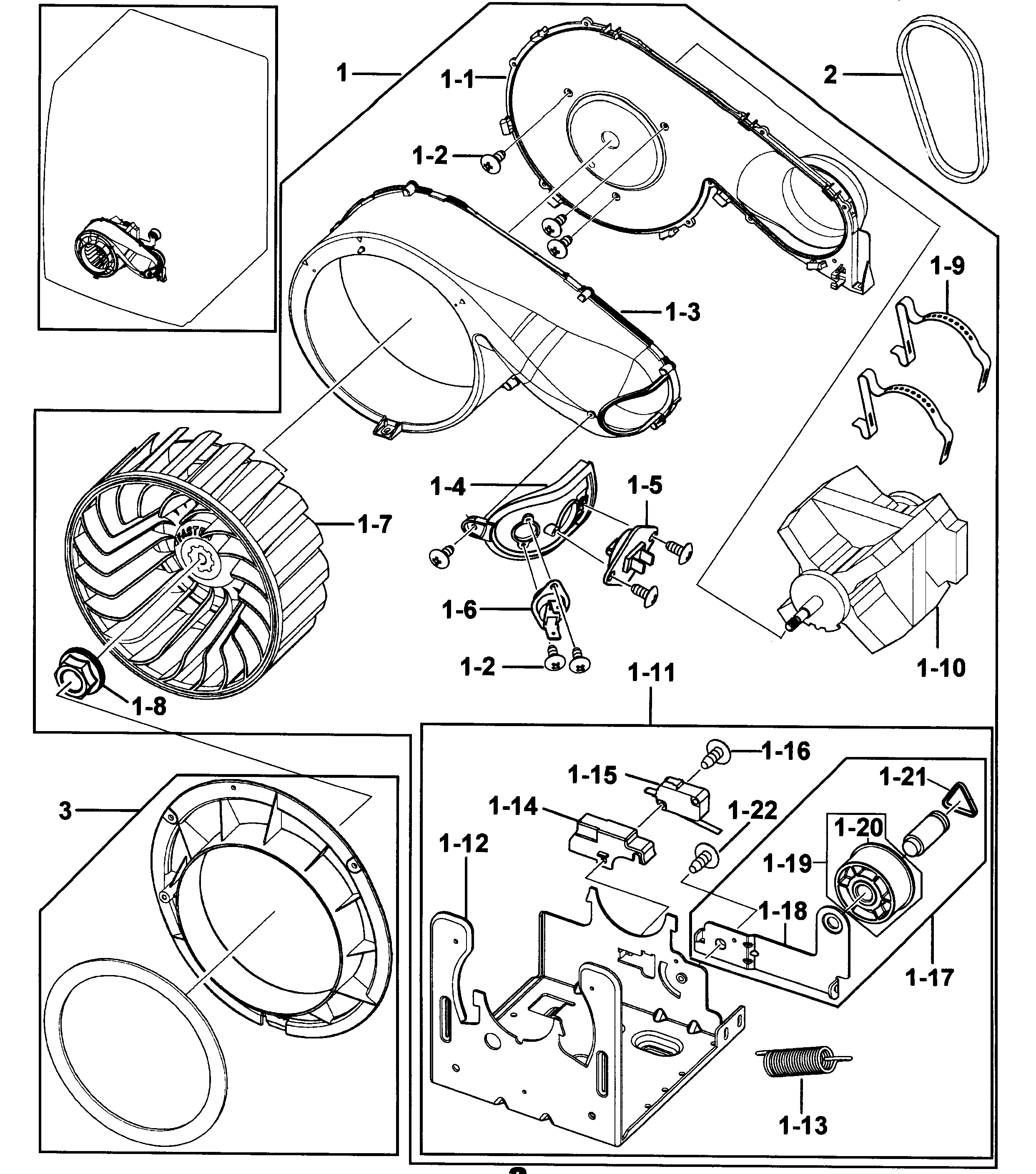

Motor assy diagram

Dryer idler assembly

Part #DC96-00882C

Replaced by #DC93-00634A

?
Manufacturer substitution
This part replaces DC96-00882C. Substitute parts can look different from the original.
BEST SELLER
$53.39
9% OFF Phone Price : $58.39
In Stock
Dryer Drum Support Roller (replaces Dc97-07523a, Dc97-07523b) DC97-16782A
Dryer drum support roller (replaces dc97-07523a, dc97-07523b)

Part #DC97-16782A

BEST SELLER
$40.55
11% OFF Phone Price : $45.55
In Stock
Dryer Drum Belt (replaces 6602-001314) 6602-001655
#2

Motor assy diagram

Dryer drum belt (replaces 6602-001314)

Part #6602-001655

BEST SELLER
$35.79
12% OFF Phone Price : $40.79
In Stock
Dryer Heating Element (replaces D47-00019a) DC47-00019A
#1-3

Heater diagram

Dryer heating element (replaces d47-00019a)

Part #DC47-00019A

BEST SELLER
$129.77
7% OFF Phone Price : $139.77
In Stock
Dryer Thermistor (replaces Dc32-0007a) DC32-00007A
#1-5

Motor assy diagram

Dryer thermistor (replaces dc32-0007a)

Part #DC32-00007A

BEST SELLER
$27.09
16% OFF Phone Price : $32.09
In Stock
Dryer Thermal Cut-off Thermostat DC47-00016A
#1-6

Motor assy diagram

Dryer thermal cut-off thermostat

Part #DC47-00016A

BEST SELLER
$23.72
17% OFF Phone Price : $28.72
In Stock
Dryer Thermal Cut-off Fuse DC96-00887A
#1-5

Heater diagram

Dryer thermal cut-off fuse

Part #DC96-00887A

Replaced by #DC96-00887C

?
Manufacturer substitution
This part replaces DC96-00887A. Substitute parts can look different from the original.
BEST SELLER
$53.93
8% OFF Phone Price : $58.93
In Stock
Dryer Thermal Cut-off Fuse, 320-degree F DC47-00015A
#1-6

Heater diagram

Dryer thermal cut-off fuse, 320-degree f

Part #DC47-00015A

BEST SELLER
$35.02
12% OFF Phone Price : $40.02
In Stock
Dryer Idler Spring (replaces Dc61-01215a) DC61-01215B
#1-13

Motor assy diagram

Dryer idler spring (replaces dc61-01215a)

Part #DC61-01215B

This item is not returnable
$7.10
12% OFF Phone Price : $8.10
In Stock
