Dryer Heating Element Assembly - Dryer Part By Samsung undefined

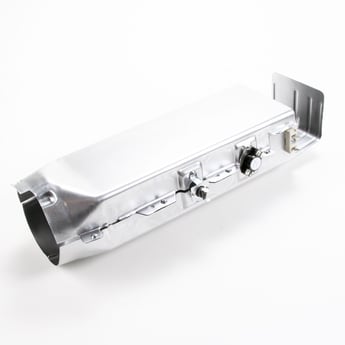

Dryer Heating Element Assembly - Dryer Part by Samsung DC97-14486A

Part #DC97-14486A

Dryer Heating Element Assembly - Dryer Part by Samsung DC97-14486A

Part #DC97-14486A
Online Only Price
$240.95
5% OFF Phone Price : $252.95Info Icon
In Stock
Qty
Minus Item
Plus Item

Zip Codes Near

Edit

Return Policy

60-day return policy
Learn more
Shipping

If you place your order today, your part(s) will arrive by:

Confirm this part fits
Previous part numbers
Part #DC97-08891A
This Part Also Fits
Part Information

Basic Information

  • Part Name: Dryer Heating Element Assembly
  • Manufacturer: Samsung
  • Category: Dryer Replacement Parts
  • Primary Function: This component is responsible for generating the heat required to dry clothes in a Samsung dryer.

Technical Specifications

  • Dimensions: The assembly is approximately 12 inches in length, 11 inches in width, and 7 inches in height.
  • Power Rating: Typically rated at 240 volts and can consume around 5300 watts.
  • Material: Constructed primarily from metals such as nickel and chromium (for the heating element) and durable plastic and metal for the housing and supports.

Installation & Compatibility

  • Compatible Models: Fits a variety of Samsung dryer models including, but not limited to, DV210AEW/XAA, DV42H5200EP/A3, DV42H5000EW/A3, DV45H7000EW/A2.
  • Installation Difficulty: Medium - Installation requires disassembling the dryer, removing the previous heating element, and securing the new one in place. It is recommended for individuals with some DIY experience or technical knowledge.
  • Tools Required: Standard screwdriver set, needle-nose pliers, and possibly a multimeter for testing.

Additional Information

The DC97-14486A Dryer Heating Element Assembly is a complete and ready-to-install unit that includes the heating element, housing, ducts, and thermostats/thermal fuses pre-assembled. It is a common replacement part for Samsung dryers that no longer produce heat or produce insufficient heat. When installing, ensure the power to the dryer is disconnected to maintain safety. It's also advisable to clean the lint and debris from the dryer's ducts to prevent future heating issues or potential fire hazards. After installation, verify the proper operation by running a test cycle. If the dryer still does not heat up, there may be additional issues with the thermal fuse, wiring, or electronic control board.

Frequently Bought Together

We have 15,000+ available parts

Samsung Dryer Idler Assembly DC93-00634A

Samsung Dryer Idler Assembly

Part #DC93-00634A
In Stock
$62.69
9% OFF Phone Price : $68.69
Minus Item
Qty
Plus Item
Dryer Thermal Cut-off Thermostat DC47-00016A

Dryer Thermal Cut-off Thermostat

Part #DC47-00016A
In Stock
$23.52
20% OFF Phone Price : $29.52
Minus Item
Qty
Plus Item
Dryer High-limit Thermostat DC47-00018A

Dryer High-limit Thermostat

Part #DC47-00018A
In Stock
$39.35
13% OFF Phone Price : $45.35
Minus Item
Qty
Plus Item
Samsung Dryer Drum Belt 6602-001655

Samsung Dryer Drum Belt

Part #6602-001655
In Stock
$42.25
12% OFF Phone Price : $48.25
Minus Item
Qty
Plus Item
Samsung Dryer Idler Assembly DC97-07509B

Dryer Idler Pulley

Part #DC97-07509B

Replaced by #DC93-00634A

Info Icon
Manufacturer substitution
This part replaces DC97-07509B. Substitute parts can look different from the original.
In Stock
$62.69
9% OFF Phone Price : $68.69
Minus Item
Qty
Plus Item
Samsung Dryer Drum Support Roller DC97-16782A

Samsung Dryer Drum Support Roller

Part #DC97-16782A
In Stock
$42.23
12% OFF Phone Price : $48.23
Minus Item
Qty
Plus Item
Reviews

0 Reviews

So far, so good
December 21, 2024|Liza, Salem, Or

The heating element burned out on my Samsung dryer after about 8 years. Shipping was a few days faster than predicted, the part was very easy to install. Here's to another decade of convenient laundry drying.

Ease of InstallationEasy
Duration of Installation30 minutes - 1 hour

Verified Customerverified customer

Yes, I would recommend this to a friend

Was this review helpful?

Perfect Replacement
December 18, 2023|Juan, Elko, NV

Old heating element fried. Bought this one based on reports that non-OEM replacements do not last. New one fit perfectly. Be ready for an initial burning smell for first few cycles after replacement.

Ease of InstallationEasy
Duration of InstallationLess than 30 minutes

Verified Customerverified customer

Yes, I would recommend this to a friend

2 people thought this review was helpful.

Easy DIY and saved the hassle of a repair man.
January 26, 2023|Nigel, VA

Our dryer stopped making heat. I have never touched or worked on an appliance before. After finding videos online I figured this was more than likely the cause of the no heat. Surprisingly it was not hard to take off the back/front panels to the dryer. Sure enough the heating element was broken. I ended up buying this entire assembly because I figured the two other parts associated with the element are 10+ years old so why not just completely replace the entire unit... (drop in). Overall this was an easy install and very manageable for someone at home. Be careful with the edges though, they are sharp and I did end up cutting up my hand in places.

Ease of InstallationVery Easy
Duration of Installation30 minutes - 1 hour

Verified Customerverified customer

Yes, I would recommend this to a friend

3 people thought this review was helpful.

Dryer Heater Unit - simple plug and play
January 07, 2023|Bob G, Fishers, Indiana

Removed the old burned-out unit and installed the new unit, connected the terminals and the dryer is back up and running. Thank You, Bob

Ease of InstallationVery Easy
Duration of Installation30 minutes - 1 hour

Yes, I would recommend this to a friend

1 person thought this review was helpful.

Worked great, shipping was fast
December 30, 2022|Kevin, Denver, CO

One day my dryer stopped drying the clothes. So I opened it up and tested continuity on the heater assembly and sure enough the element went out. I could either replace the element for $145 or the sensor, fuse, and element for $150, so I bought this part. It fit perfectly, part worked right away and shipping was fast. Very happy to get the family dryer back up and running. Cheaper than a new dryer.

Back up and running with the old assembly sitting on top. Make sure to reconnect everything. I forgot the door, and had to take it most of the way apart again.
Broken coil, which was the problem.
Note the order of the wires. Take a picture.
Have to tear down most of the dryer
Ease of InstallationModerate
Duration of Installation30 minutes - 1 hour

Yes, I would recommend this to a friend

11 people thought this review was helpful.

Best parts
December 04, 2022|Ronald, Azle, TX

Perfect fit and fixed the issue. Much cheaper than a new dryer.

Ease of InstallationModerate
Duration of Installation30 minutes - 1 hour

Verified Customerverified customer

Yes, I would recommend this to a friend

1 person thought this review was helpful.

Heating Element
November 06, 2022|Jordan T, DFW, Texas

Easy to install, no need to put anything together as it came as one piece, and worked great.

Ease of InstallationModerate
Duration of Installation30 minutes - 1 hour

Verified Customerverified customer

1 person thought this review was helpful.

Dryer Heating Element
July 27, 2022|James S, Klamath Falls, Oregon

Perfect Part! I have replaced this part with non-OEM parts twice and they last about 3 months. We have four sons so we do a lot of laundry. Hope this OEM part lasts longer than 3 months. I put these in so often I can put them in 15 minutes. Make sure to line up the dryer drum belt.

Ease of InstallationVery Easy
Duration of InstallationLess than 30 minutes

Verified Customerverified customer

2 people thought this review was helpful.
