Samsung DV45H6300EG/A3-00 dryer Parts

Most Samsung dryers average 10 to 15 years of service life with normal household use. For your Samsung DV45H6300EG dryer, consistent airflow maintenance (lint filter and venting) and avoiding overloads are the biggest factors that push lifespan toward the high end; see the DV45H6300EG owner's manual for care and safety guidance.

What affects dryer lifespan the most

A dryer’s life is usually determined by heat stress, airflow restriction, and wear on moving parts.

• Airflow and venting: restricted exhaust makes the heater and thermostats run hotter and longer
• Lint filter habits: cleaning every load reduces heat buildup and motor strain
• Load size: chronic overloading wears the drum support system and belt faster
• Install conditions: an unlevel dryer increases vibration and mechanical wear
• Cycle choices: frequent high-heat cycles add stress compared to sensor or lower-heat cycles

What “end of life” looks like (common symptoms)

These are the most common signs a dryer is nearing the end of its typical lifespan.

Symptom	Most common cause	What we recommend first
Long dry times	Vent restriction, lint buildup	Clean vent path and confirm strong airflow
No heat or weak heat	Heater circuit protection opening	Check airflow; then test heat components
Squealing, thumping, rumbling	Worn drum support parts	Inspect rollers and belt condition
Won’t start	Door switch, motor, control issue	Verify door switch and power supply

Parts that commonly wear before the dryer is “done”

Replacing a few wear items often restores performance and extends service life.

• Samsung dryer drum belt 6602-001655 (drum won’t tumble, slipping, burning rubber smell)

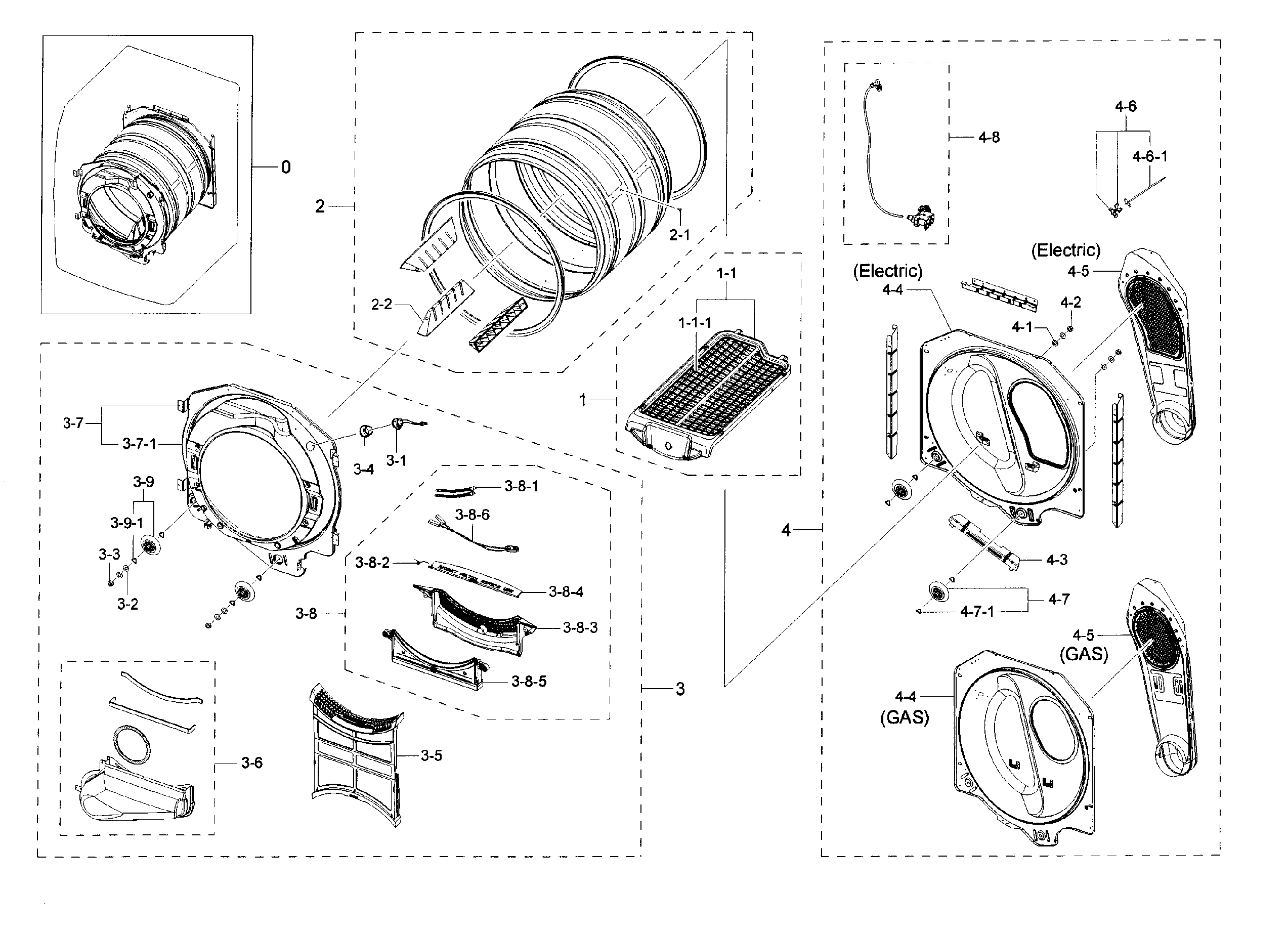

• Samsung dryer drum support roller DC97-16782A (thumping, squeal, drum drag)

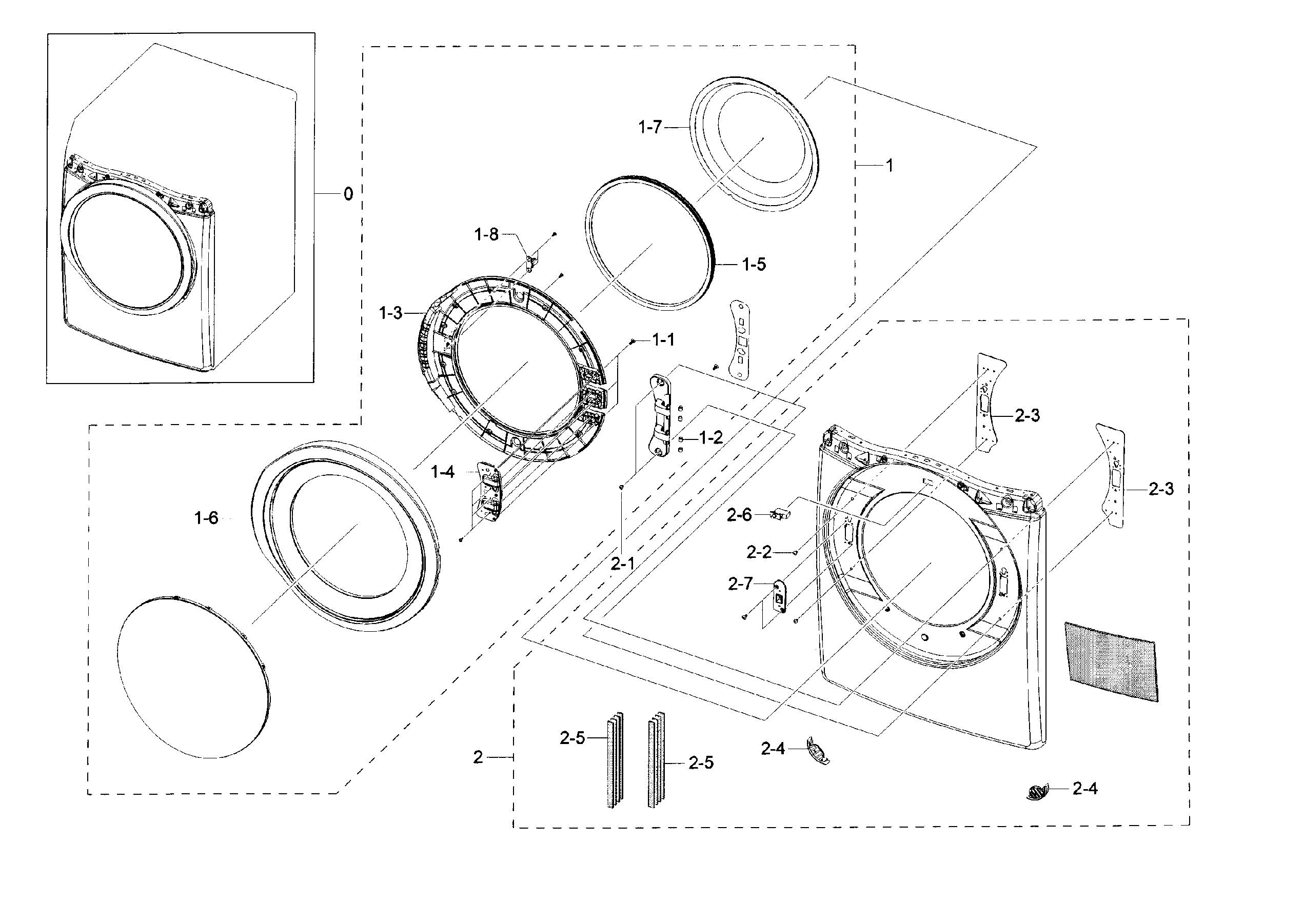

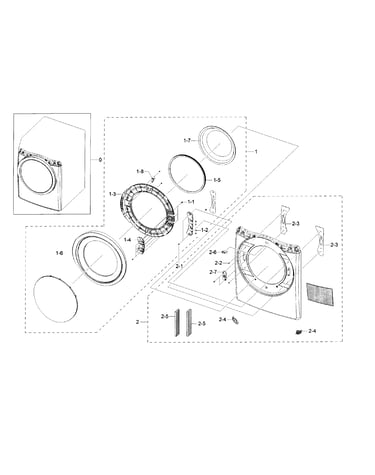

• Dryer door switch DC64-00828B (won’t start when door is closed)

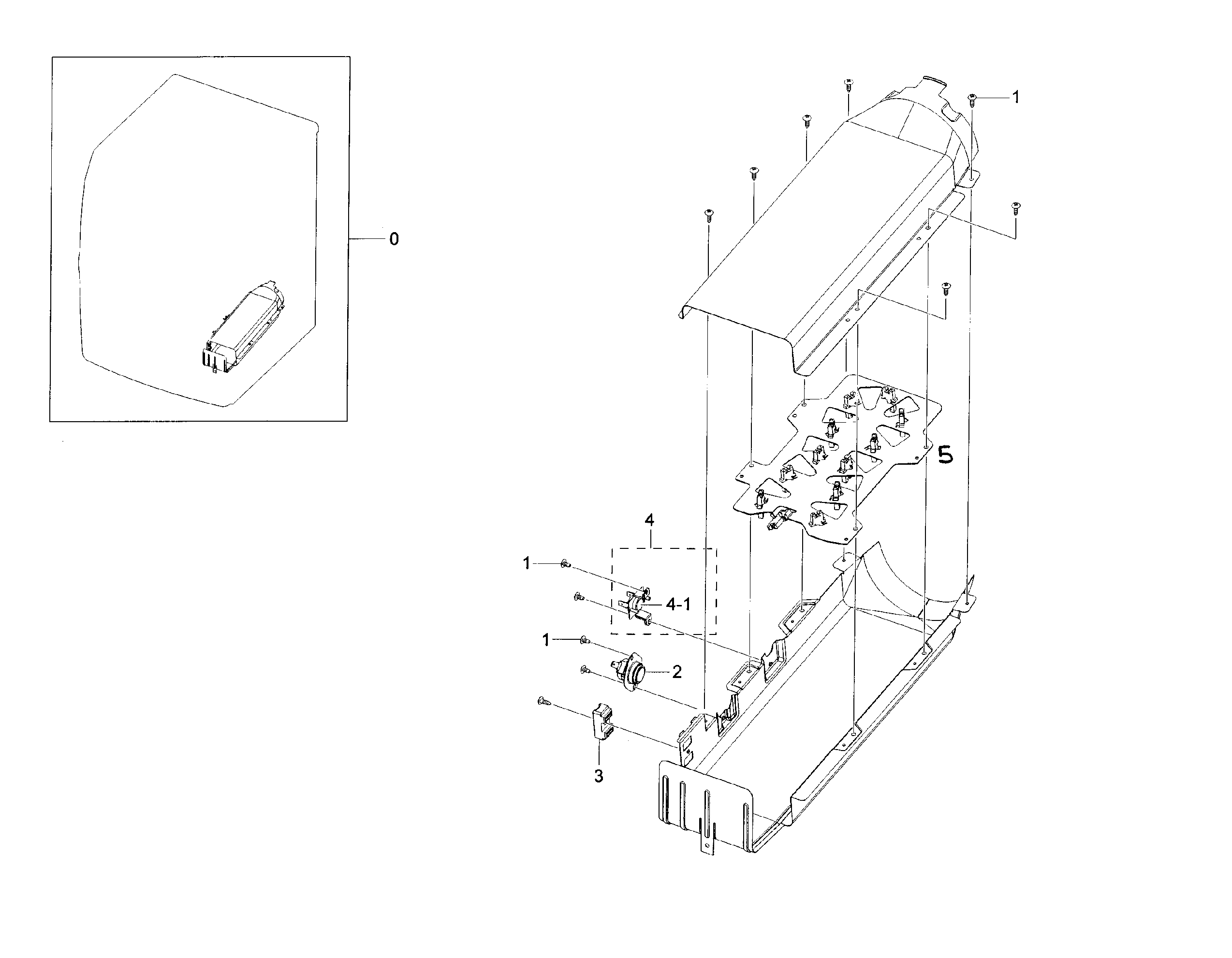

• Samsung dryer heating element assembly DC93-00154A (runs but won’t heat, after airflow is confirmed)

Why it matters

A dryer that struggles to move air runs hotter and longer, which shortens the life of the heating system, thermostats, and motor. Keeping airflow strong is the simplest way to protect performance and maximize the DV45H6300EG’s lifespan.

Last updated: February 2026

Yes, replacing the heating element in your Samsung DV45H6300EG dryer is usually worth it when the dryer tumbles but won’t heat, because the part cost is typically far less than replacing the dryer. It’s most cost-effective when the rest of the dryer is in good condition and airflow is not restricted.

When replacement makes sense

Replacing the heater is a good call when you’ve confirmed the dryer has proper power, good airflow, and the heat circuit is the real failure.

• The drum turns normally but clothes stay cold or damp
• The dryer heats briefly, then stops heating mid-cycle
• You’ve cleaned the lint filter and verified strong vent airflow
• The dryer is otherwise quiet and running smoothly (no squealing or thumping)
• You’re comfortable doing basic electrical testing and a moderate DIY repair

For model-specific disassembly, wiring routing, and safety steps, follow the DV45H6300EG owner’s manual.

Don’t replace the element until you rule out common look-alikes

On Samsung dryers, several safety and temperature-sensing parts can mimic a “bad element” symptom. If one of these opens, the dryer can run but not heat.

Symptom	Common non-element cause	Example part for this model
Runs but no heat	Thermal cut-off or fuse open	Dryer thermal cut-off fuse, 320-degree f DC47-00015A
Overheats then shuts heat off	High-limit thermostat tripping	Dryer high-limit thermostat DC47-00018A
Heat is erratic or cycles oddly	Temperature sensor issue	Dryer thermistor DC32-00007A

Why it matters

If you replace a heating element without fixing the root cause (most often poor venting), the new element and safety thermostats can fail again. The manual’s ducting guidance (4-inch ducting, avoid non-metallic flexible duct, and keep runs short) directly affects heating performance and part life.

Quick cost and decision guide

• DIY repair: Usually the best value if you already have basic tools (screwdriver, nut driver, multimeter).
• Service call: Makes sense if you suspect wiring damage, control board issues, or you can’t safely access the heater housing.
• Replace the dryer: Choose this when the dryer has multiple major symptoms (noisy drum support, weak motor, repeated no-heat failures).

Last updated: February 2026

To find the correct part number for your Samsung dryer, we match parts to the exact model number first. On Samsung model DV45H6300EG, the model and serial tag is typically on the front frame behind the door; if it’s missing, check the back of the dryer. Use the model number when looking up parts.

Where to look for the model tag

Check these common locations on Samsung dryers:

• Front frame behind the dryer door opening (most common)
• Back panel of the dryer cabinet
• Inside the door area near the opening (around the frame)
• On the side panel near the bottom edge (less common)

How to use the model number to get the right part number

Once you have DV45H6300EG, use it to identify the exact part listing and then confirm the part by name and where it installs.

• Find the part category (heating, drum, controls, door)
• Compare the part name to what you’re replacing
• Confirm the part fits your symptom (no heat, noisy drum, won’t start)
• Cross-check the part description against your dryer’s configuration

Common examples for this model

Symptom	Part type to check	Example part number (if it matches your issue)
Loud thumping or squealing	Drum support roller	DC97-16782A
Dryer won’t heat or overheats	High-limit thermostat or thermal cut-off	DC47-00018A or DC47-00016A
Drum not turning	Drum belt	6602-001655

Why it matters

Samsung dryers often have multiple similar-looking parts that vary by revision. Using the exact model number (and the tag’s version code, if shown) prevents ordering a thermostat, belt, or control part that mounts differently or has different wiring.

Helpful references

• Use the exploded views and part lists in the DV45H6300EG owner’s manual to confirm component names and locations.

Last updated: February 2026
