Kenmore 10650023211 refrigerator Parts

The most common problems we see on Kenmore refrigerators like model 10650023211 are cooling issues, water leaks, ice maker or dispenser failures, and unusual noises. These usually trace back to airflow restrictions, defrost system trouble, worn door seals, or a failing water or fan component; use the 10650023211 owner's manual for model-specific checks.

Quick symptom-to-cause guide

• Not cooling or warm temps: dirty condenser coil, evaporator fan issue, defrost failure, control problem
• Water under the fridge: clogged defrost drain, leaking water line, valve seepage
• No ice or small cubes: restricted filter, low water pressure, inlet valve problem, ice maker failure
• Loud humming, rattling, or clicking: fan blade hitting ice, condenser area vibration, compressor start issues
• Frost buildup in freezer: door not sealing, defrost heater/thermostat problem

Parts that commonly fix these problems (when symptoms match)

Symptom	Common part involved	Example part for 10650023211
No ice or no water dispense	Water inlet valve	Refrigerator water inlet valve WPW10179146

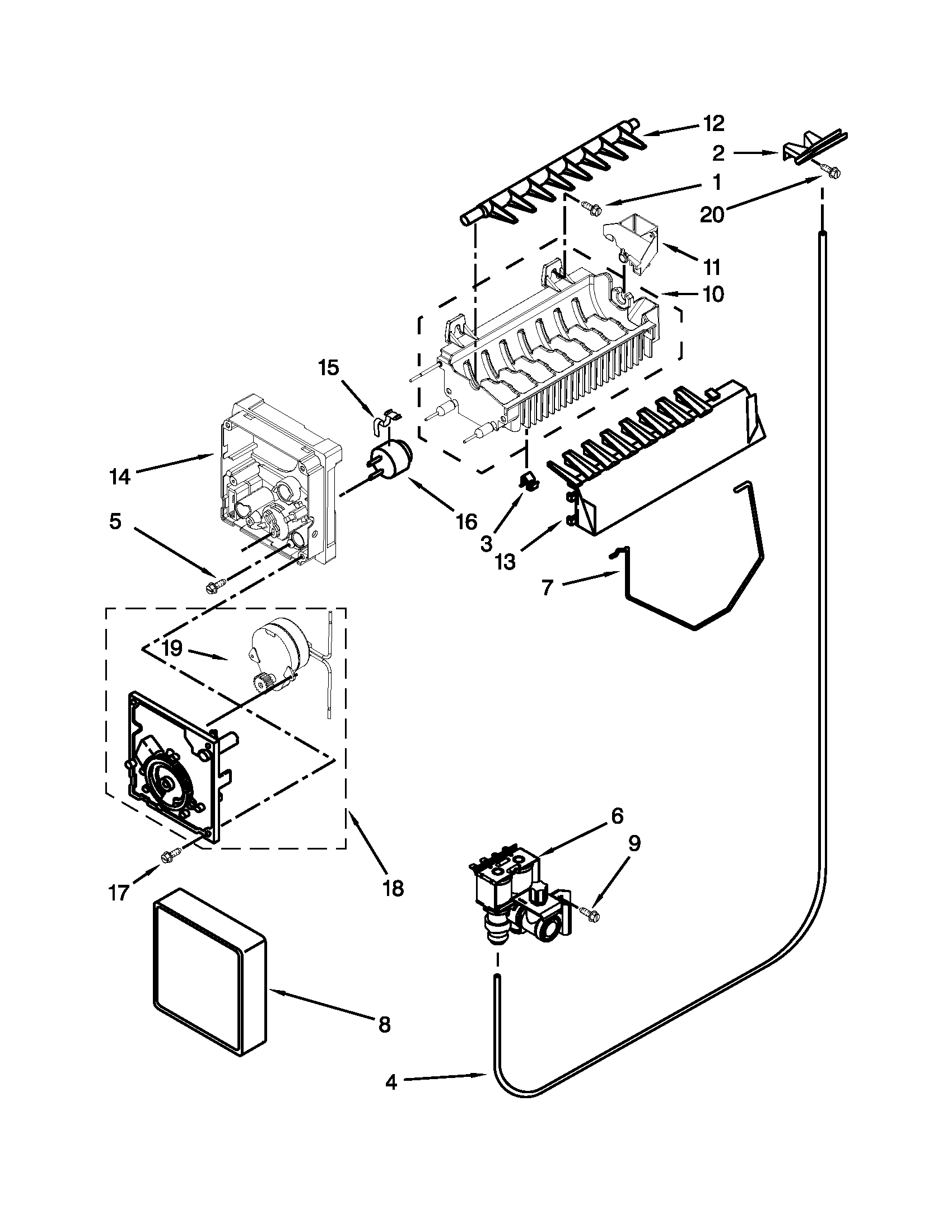

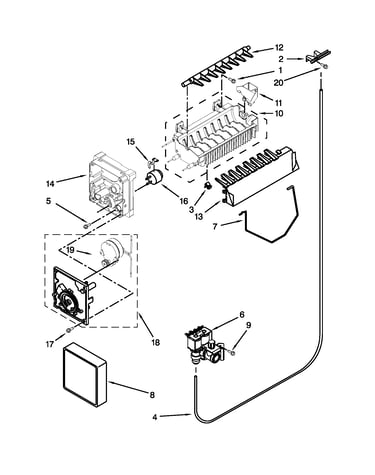

Poor ice production, no ice harvest	Ice maker	Refrigerator ice maker assembly WPW10300022
Frost buildup, warm fridge section	Defrost system	Refrigerator heater WP2323198 and refrigerator defrost bi-metal thermostat WPW10225581
Weak water flow, bad taste/odor	Water filter	Kenmore refrigerator water filter 9081

What we recommend checking first (fast, no special tools)

• Confirm the temperature settings and allow 24 hours after changes.
• Make sure vents inside the fresh food and freezer sections are not blocked.
• Clean dust from the condenser area (restricted airflow is a top cause of warm temps).
• Inspect door gaskets for gaps, tears, or areas that do not grip paper.
• If you have a dispenser, replace the filter on schedule and purge air from the line after changes.

Why it matters

Most “big” refrigerator failures start as small airflow, sealing, or water-supply problems. Catching them early helps protect food temperatures, prevents ice buildup, and reduces strain on the compressor and control system.

Related DIY help

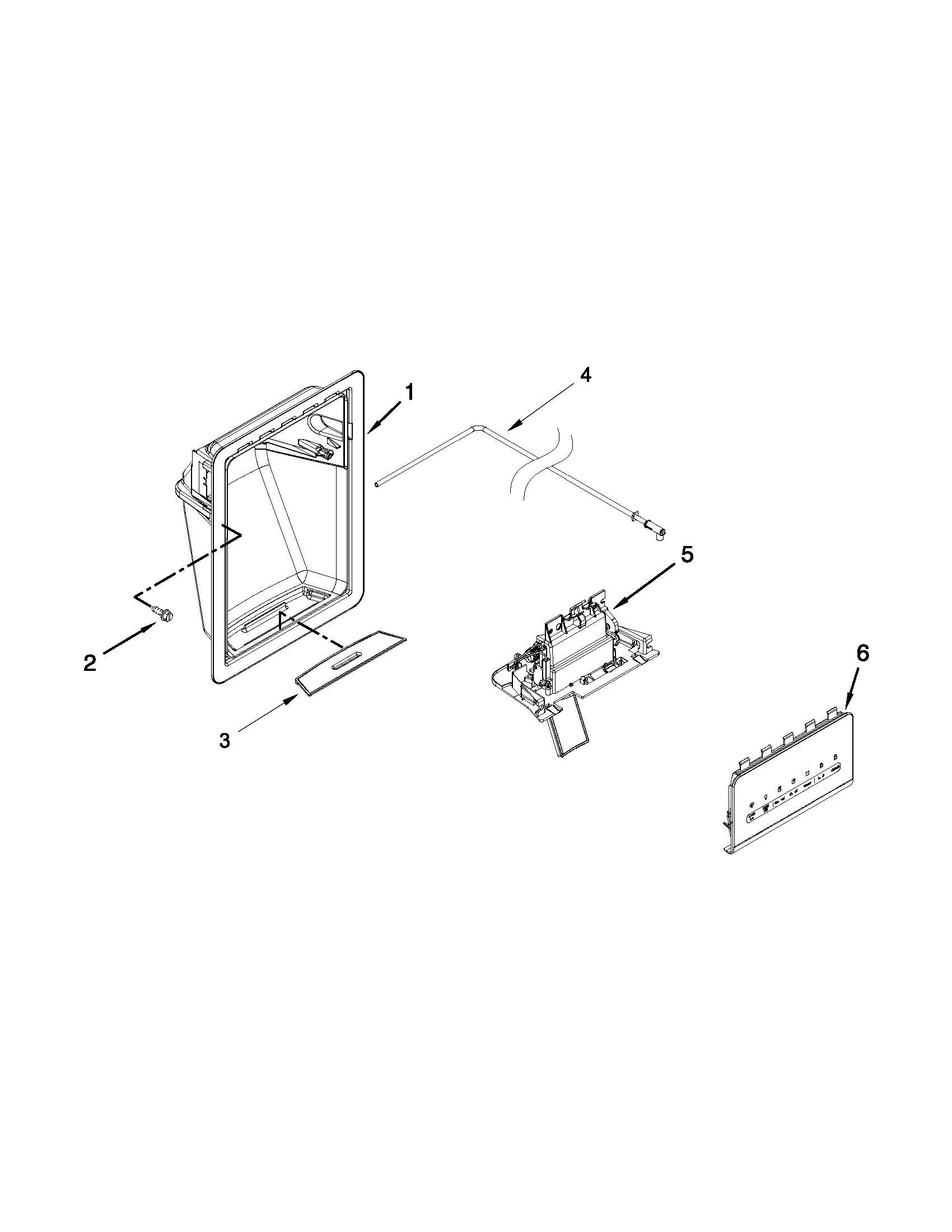

For dispenser-related issues, follow how to disassemble a Kenmore refrigerator dispenser. For filter selection and replacement steps, use how to replace the water filter in a Kenmore refrigerator.

Last updated: February 2026

Your Kenmore side-by-side refrigerator model 10650023211 has an approximate total capacity of 21.9 cubic feet. This is the overall interior volume (fresh food plus freezer) used for comparing refrigerator sizes.

How to confirm the capacity for your exact configuration

We recommend checking the model’s specifications section in the 10650023211 owner’s manual. Capacity can vary slightly by revision, shelving, and ice maker setup.

• Look for “Capacity”, “Total volume”, or “Total capacity”
• Confirm it lists total, refrigerator, and freezer volumes
• Match the model number 10650023211 exactly
• If your unit has an in-door ice bin, note that usable space can feel smaller

What “21.9 cu. ft.” means in real use

Capacity is measured as interior volume, not how much food fits comfortably. Features like an ice maker, air ducts, and shelving reduce usable storage space.

Measurement	What it represents	Why it matters
Total capacity (cu. ft.)	Fresh food + freezer combined	Helps compare overall size
Fresh food capacity	Refrigerator compartment only	Impacts everyday storage
Freezer capacity	Freezer compartment only	Impacts frozen storage

Why it matters

Knowing cubic feet helps when you are planning a kitchen layout, comparing replacement refrigerators, or deciding if storage issues are caused by organization versus an actual space limitation.

If you are also troubleshooting ice or water performance that affects usable space, we often see improvements after routine maintenance such as replacing the Kenmore refrigerator water filter 9081.

Last updated: February 2026

Most Kenmore refrigerators average 10 to 15 years of service life. For a Kenmore side-by-side like model 10650023211, steady maintenance and quick fixes for airflow, sealing, and ice and water issues are what most often push lifespan toward the high end of that range (or beyond). See the 10650023211 owner’s manual for model-specific care and operating guidance.

Typical lifespan by refrigerator style

Lifespan varies more by design and usage than by badge on the door.

Refrigerator type	Typical lifespan	Notes
Top freezer	12 to 18 years	Simplest design, fewer components
Side-by-side	10 to 15 years	More door use; ice and water systems add wear points
French door	9 to 14 years	More electronics and door seals to maintain

What helps a Kenmore refrigerator last longer

We see these maintenance habits make the biggest difference:

• Clean condenser coils regularly to reduce compressor run time and heat stress.
• Keep door gaskets sealing so the unit does not run constantly.
• Replace the water filter on schedule to protect water flow and the ice maker.
• Maintain airflow; do not block vents with food packages.
• Level the refrigerator so doors close fully and consistently.

Quick “wear item” checklist (common on side-by-sides)

If you are troubleshooting performance or trying to extend life, these parts are frequent culprits:

• Water quality and flow: Kenmore refrigerator water filter 9081
• Ice production issues: refrigerator ice maker assembly WPW10300022
• Water dispensing or slow fill: refrigerator water inlet valve WPW10179146
• Frost buildup and warm temps: refrigerator defrost bi-metal thermostat WPW10225581 and refrigerator heater WP2323198

Why it matters

A refrigerator that runs longer than it should (from dirty coils, air leaks, or defrost problems) puts extra load on the compressor and controls. Fixing those “efficiency killers” early is the most reliable way to extend overall lifespan.

Last updated: February 2026

Kenmore refrigerator model 10650023211 is made by Whirlpool. Kenmore model numbers that start with 106 are Whirlpool-built units, so parts, service procedures, and many internal components commonly cross-reference to Whirlpool designs (while still ordering by the Kenmore model number).

How to confirm it on your refrigerator

Check the model and serial tag inside the fresh food compartment (often on a side wall or ceiling area). Use these quick checks:

• The model number begins with 106 (Whirlpool source code)
• The full model number matches 10650023211 exactly
• The tag lists Kenmore as the brand, even though Whirlpool built the unit
• Use the model number when looking up parts to ensure correct fit

For model-specific diagrams and part lookups, use the 10650023211 owner's manual.

What the “106” prefix means

Kenmore is a brand name; different manufacturers built Kenmore appliances over the years. The first three digits of many Kenmore model numbers identify the original manufacturer.

Kenmore model prefix	Common manufacturer
106	Whirlpool
110	Whirlpool
665	Whirlpool

Why it matters when ordering parts

Knowing Whirlpool built your Kenmore 10650023211 helps you troubleshoot and choose the right replacement parts faster, especially for common systems like the ice maker, water filtration, and defrost.

If you are replacing filtration parts, match by model and the existing filter style; the refrigerator water filter 9081 is a common replacement item listed for this model.

Last updated: February 2026
