Model # WT7300CW/00 Official LG washer

Here are the diagrams and repair parts for Official LG WT7300CW-00 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 73 parts  |

Washer Washplate (replaces AGZ72909701, AGZ72909702, AGZ72909713)

#K020

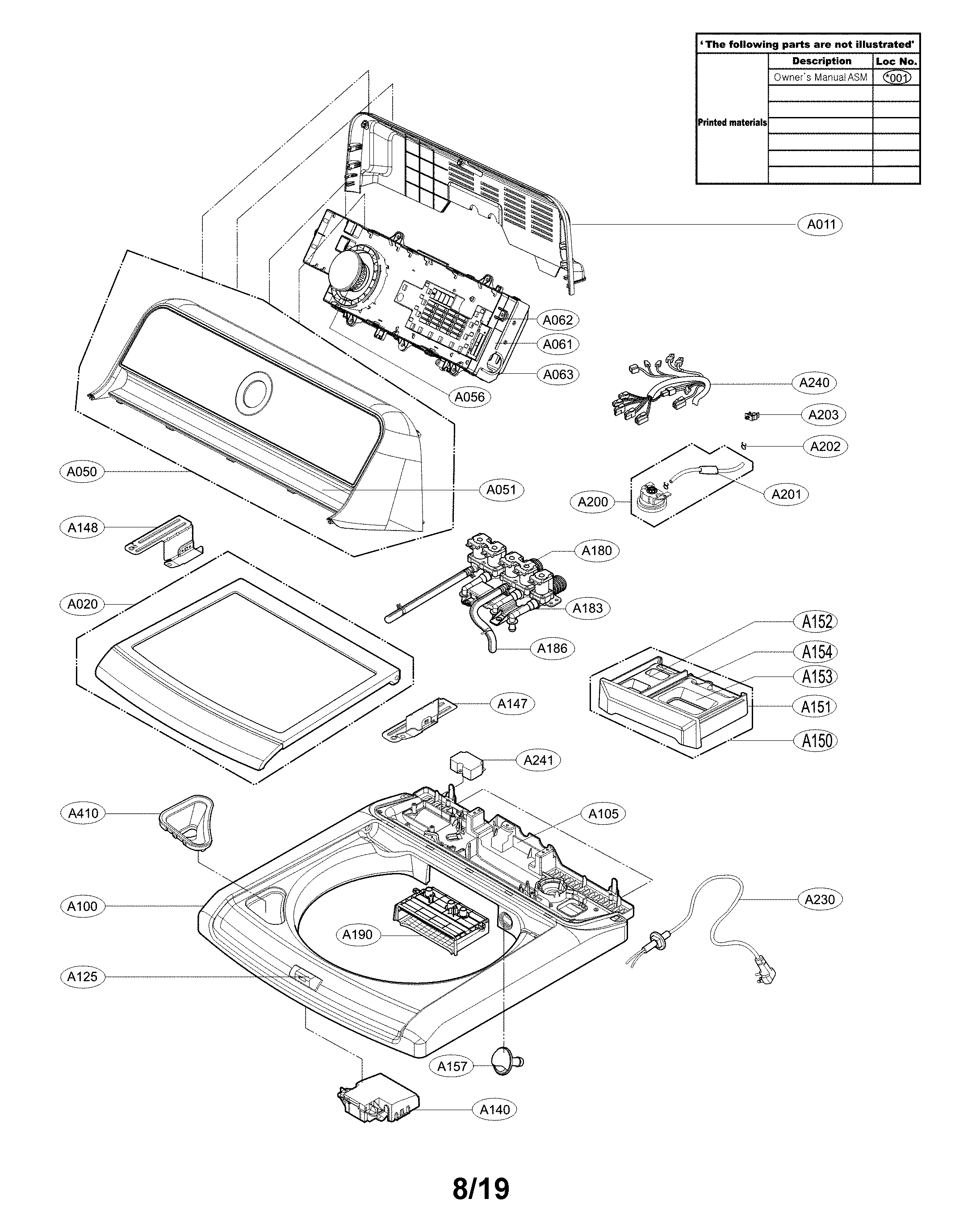

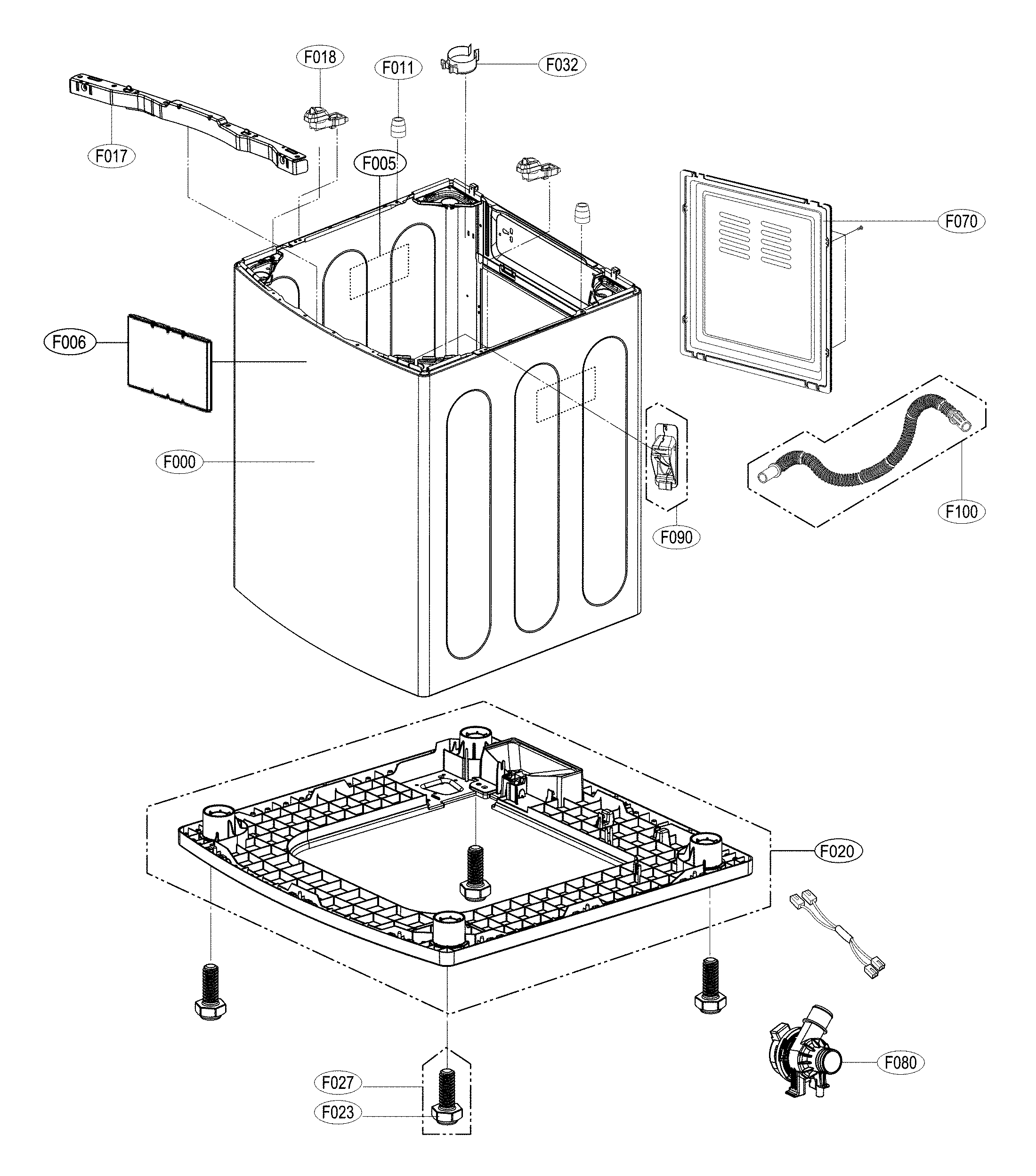

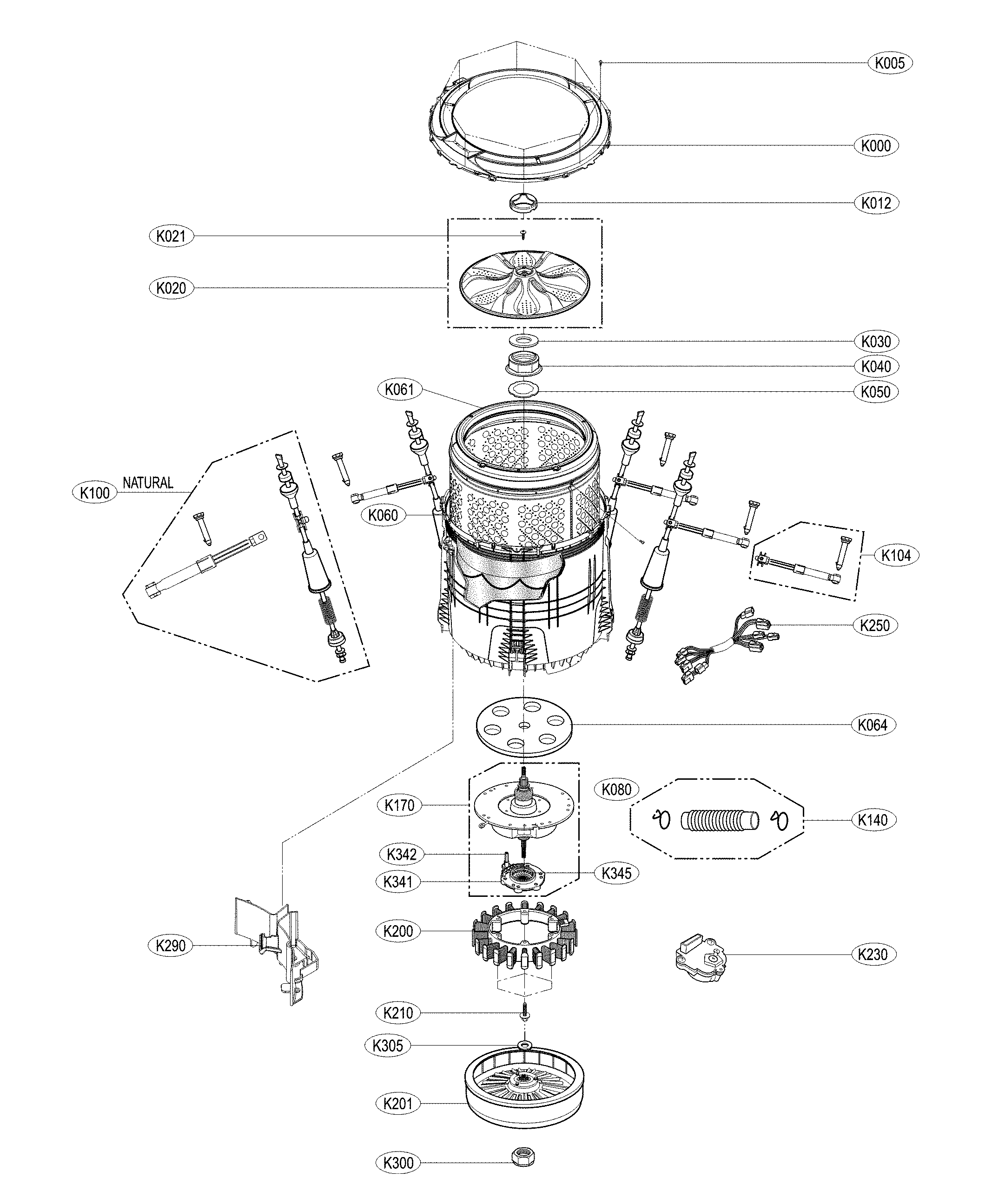

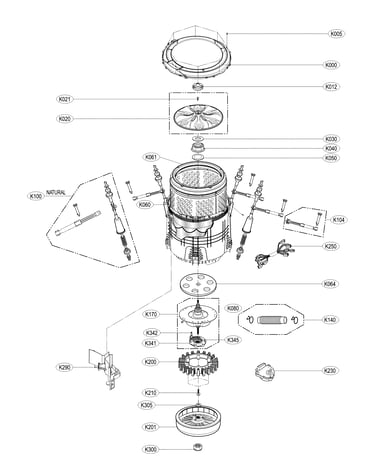

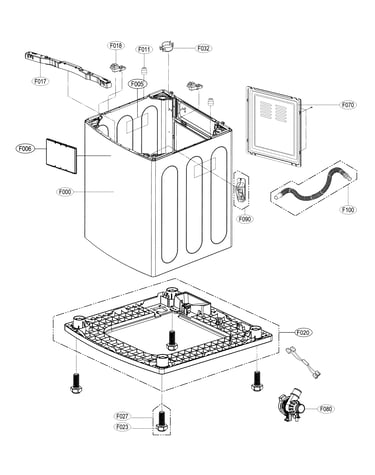

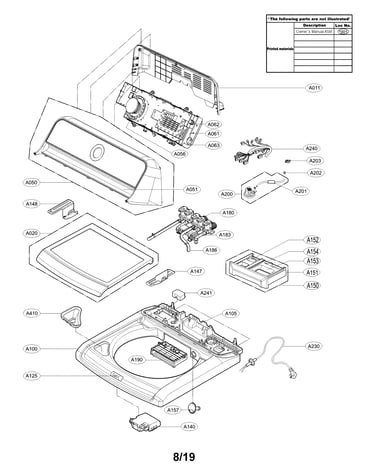

All parts diagram

Washer washplate

Part #AGZ72909701

Replaced by #AGZ72909711

?
Manufacturer substitution
This part replaces AGZ72909701. Substitute parts can look different from the original.
BEST SELLER
In Stock
Washer Water Inlet Valve Assembly (replaces 5221EA1008S)

#A180

All parts diagram

Washer water inlet valve assembly (replaces 5221ea1008s)

Part #AJU75152602

BEST SELLER
$83.91
7% OFF Phone Price : $90.14
In Stock
Washer Shifter Coupling (replaces MCJ61941202)

#K345

All parts diagram

Washer shifter coupling (replaces mcj61941202)

Part #MCJ61861201

BEST SELLER
$20.47
6% OFF Phone Price : $21.68
In Stock
Washer Water-Level Pressure Switch

#A200

All parts diagram

Washer water-level pressure switch

Part #6501EA1001R

BEST SELLER
$43.12
25% OFF Phone Price : $57.68
In Stock
Washer Drain Hose (replaces 5251FA1699P, AEM73652901)

#K140

All parts diagram

Washer drain hose (replaces 5251fa1699p, aem73652901)

Part #AEM73213001

BEST SELLER
$37.29
9% OFF Phone Price : $41.17
In Stock
Washer Screw

#K021

All parts diagram

Washer screw

Part #FAB30598601

BEST SELLER
$10.06
17% OFF Phone Price : $12.06
In Stock
Washer Top Panel (replaces MCK67395505)

#A100

All parts diagram

Washer top panel (replaces mck67395505)

Part #MCK62185510

BEST SELLER
$152.34
9% OFF Phone Price : $167.05
In Stock
Washer Lid Lock and Switch Assembly (replaces EBF60665201)

#A140

All parts diagram

Washer lid lock and switch assembly (replaces ebf60665201)

Part #EBF61674802

BEST SELLER
$110.88
11% OFF Phone Price : $124.31
In Stock
Washing Machine Washer

#K030

All parts diagram

Washing machine washer

Part #FAF30369201

BEST SELLER
$13.56
13% OFF Phone Price : $15.56
In Stock
Washer Leveling Leg (replaces 4263FA3933A, AFC73529601, AFC73529602)

#F027

All parts diagram

Washer leveling leg (replaces 4263fa3933a, afc73529601, afc73529602)

Part #4263FA3933C

BEST SELLER
$18.32
5% OFF Phone Price : $19.27
In Stock
