Model # WORKMATE 400 Official Black & Decker workbench

Here are the diagrams and repair parts for Official Black & Decker WORKMATE-400 workbench, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 43 parts  |

Nut 8-32 407-00
#4

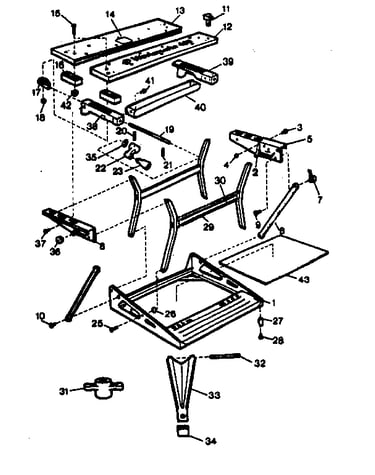

Unit parts diagram

Nut 8-32

Part #407-00

The manufacturer no longer makes this part, and there's no substitute part

Swivel Grip 135693-00
#11

Unit parts diagram

Swivel grip

Part #135693-00

The manufacturer no longer makes this part, and there's no substitute part

Handle 134387-00
#23

Unit parts diagram

Handle

Part #134387-00

The manufacturer no longer makes this part, and there's no substitute part

Jaw Belt 978951-01
#15

Unit parts diagram

Jaw belt

Part #978951-01

The manufacturer no longer makes this part, and there's no substitute part

Knob 237617-00
#36

Unit parts diagram

Knob

Part #237617-00

The manufacturer no longer makes this part, and there's no substitute part

Top Blocks 978965-02
#16

Unit parts diagram

Top blocks

Part #978965-02

The manufacturer no longer makes this part, and there's no substitute part

Leg 977996-03
#33

Unit parts diagram

Leg

Part #977996-03

The manufacturer no longer makes this part, and there's no substitute part

H-frame Label 237662-00
#30

Unit parts diagram

H-frame label

Part #237662-00

The manufacturer no longer makes this part, and there's no substitute part

Filler Brd 237608-00
#43

Unit parts diagram

Filler brd

Part #237608-00

The manufacturer no longer makes this part, and there's no substitute part

H-frame 976009-03
#29

Unit parts diagram

H-frame

Part #976009-03

The manufacturer no longer makes this part, and there's no substitute part
