Kenmore Pro
Gas Cooktop

Model # 79031013600 Official Kenmore Pro gas cooktop

Here are the diagrams and repair parts for Official Kenmore Pro 79031013600 gas cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

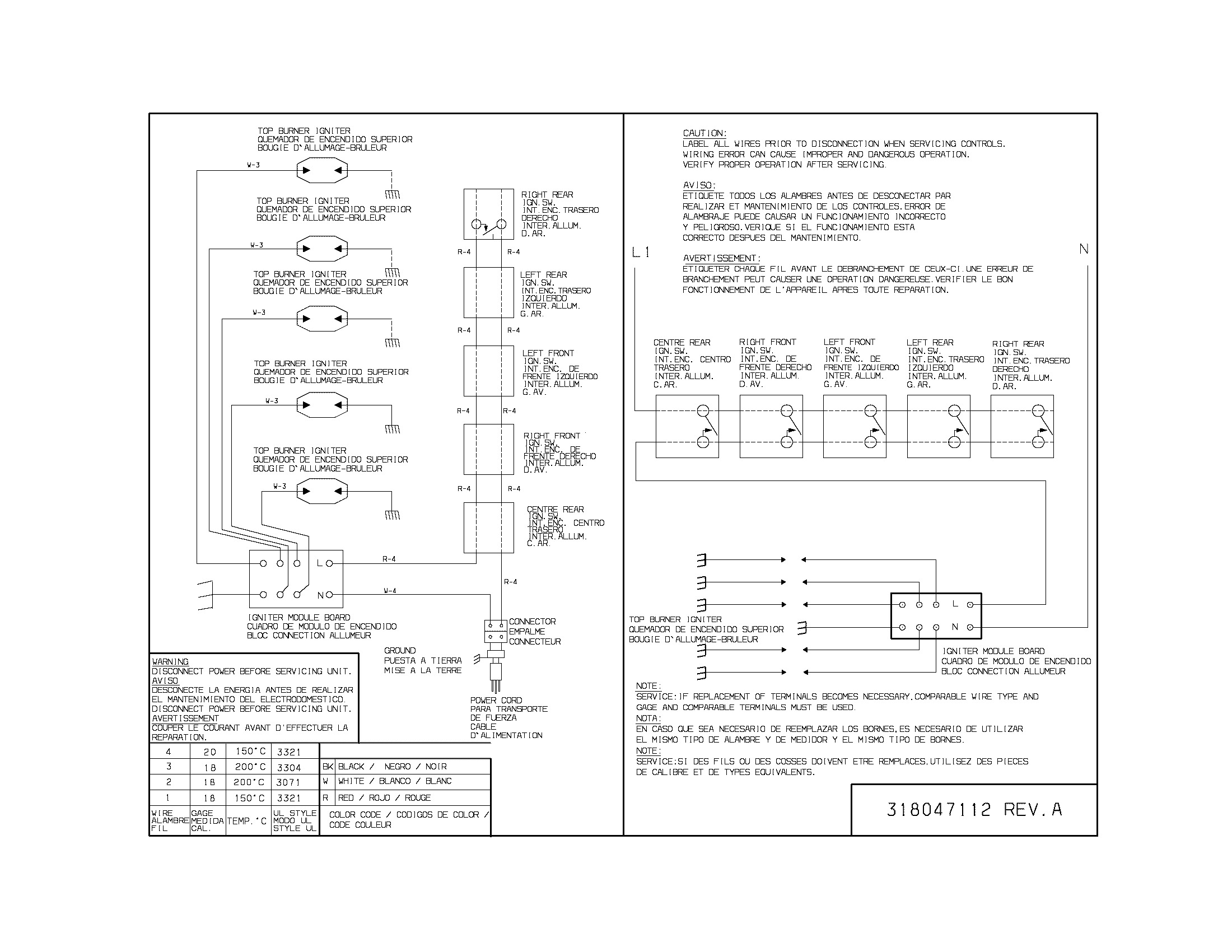

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 75 parts  |

Range Screw (replaces 5304472956, 7316240600) 316240600
#37

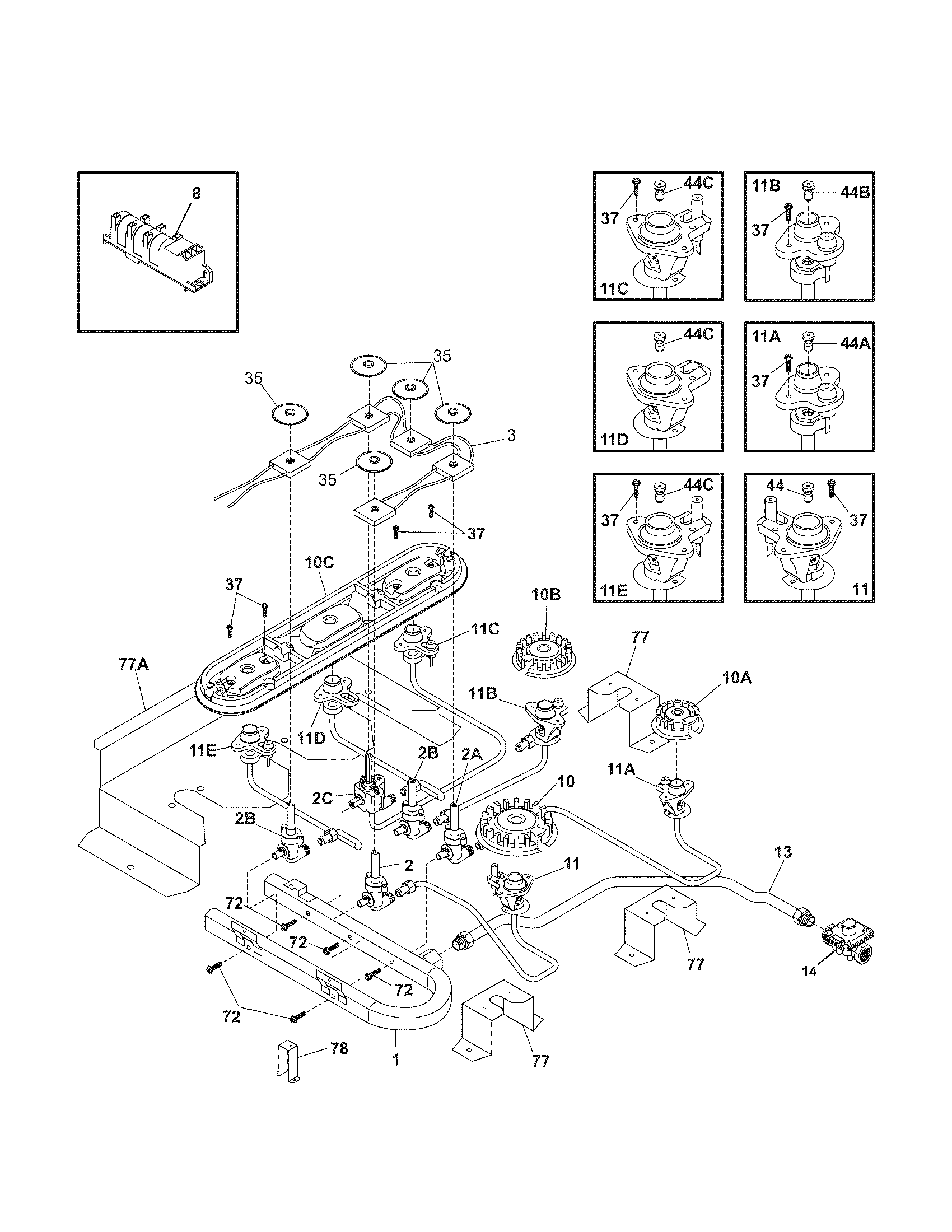

Burner diagram

Range screw (replaces 5304472956, 7316240600)

Part #316240600

BEST SELLER
$11.54
18% OFF MSRP : $14.00
In Stock
Range Spark Module 318079001
#8

Burner diagram

Range spark module

Part #318079001

Replaced by #808608804

?
Manufacturer substitution
This part replaces 318079001. Substitute parts can look different from the original.
BEST SELLER
$62.83
7% OFF Phone Price : $67.83
In Stock
Range Surface Burner Head (replaces 7316212400) 316212400
#10B

Burner diagram

Range surface burner head (replaces 7316212400)

Part #316212400

BEST SELLER
$28.71
15% OFF Phone Price : $33.71
In Stock
Range Sealed Burner Assembly 316206400
#10A

Burner diagram

Range sealed burner assembly

Part #316206400

Replaced by #316206401

?
Manufacturer substitution
This part replaces 316206400. Substitute parts can look different from the original.
$58.89
8% OFF Phone Price : $63.89
In Stock
Range Surface Burner Head (replaces 7316223300) 316223300
#10

Burner diagram

Range surface burner head (replaces 7316223300)

Part #316223300

$98.64
9% OFF Phone Price : $108.64
In Stock
Appliance Stainless Steel Cleaner, 1-oz 316136900
#NI

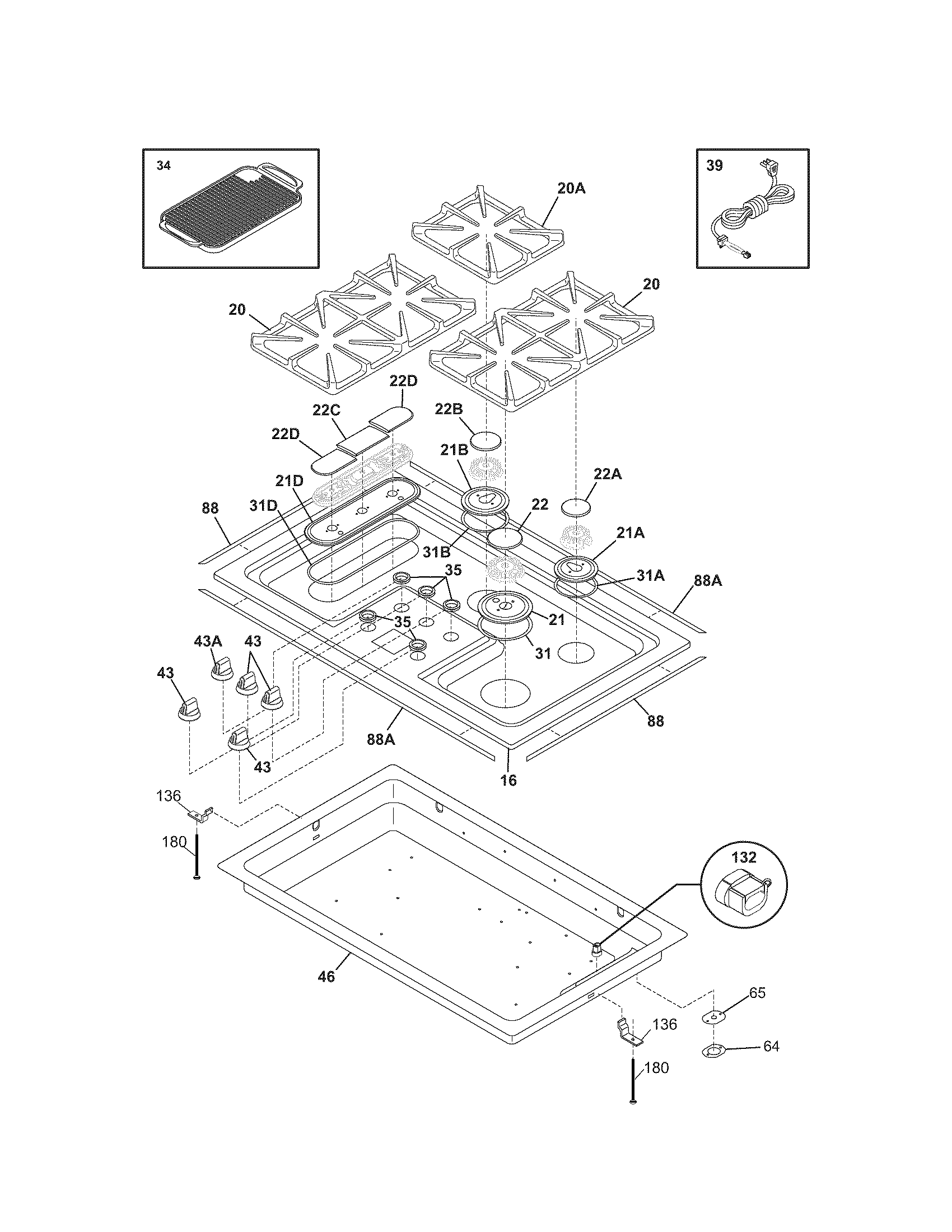

Maintop diagram

Appliance stainless steel cleaner, 1-oz

Part #316136900

$26.59
16% OFF Phone Price : $31.59
In Stock
Range Surface Burner Seal 316242003
#31A

Maintop diagram

Range surface burner seal

Part #316242003

$11.53
15% OFF Phone Price : $13.53
In Stock
Range Surface Burner Knob 318602604
#43A

Maintop diagram

Range surface burner knob

Part #318602604

$95.50
9% OFF Phone Price : $105.50
In Stock
Range Surface Burner Cap (replaces 7316271904) 316271904
#22

Maintop diagram

Range surface burner cap (replaces 7316271904)

Part #316271904

$156.76
6% OFF Phone Price : $166.76
In Stock
Wiring Harness 318199743
#NI

Burner diagram

Wiring harness

Part #318199743

Replaced by #318199780

?
Manufacturer substitution
This part replaces 318199743. Substitute parts can look different from the original.
$58.50
8% OFF Phone Price : $63.50
In Stock
