Kenmore Elite
Washer

Model # 79631523211 Official Kenmore Elite washer

Here are the diagrams and repair parts for Official Kenmore Elite 79631523211 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 90 parts  |

Washer Water Inlet Valve Assembly AJU73213301
#A180

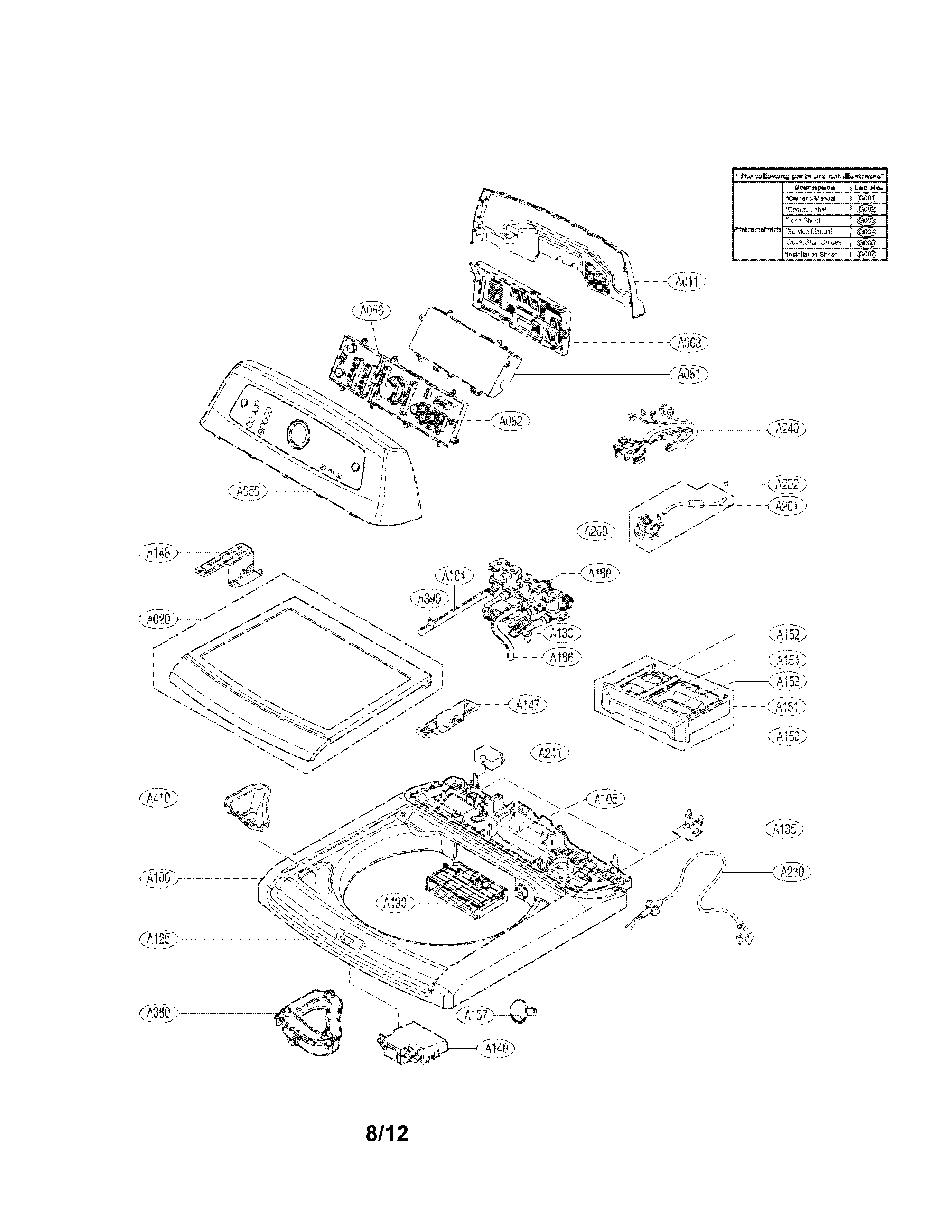

Top cover assembly parts diagram

Washer water inlet valve assembly

Part #AJU73213301

BEST SELLER
$64.17
7% OFF Phone Price : $69.17
In Stock
Washer Motor Rotor Position Sensor 6501KW2002A
#K351

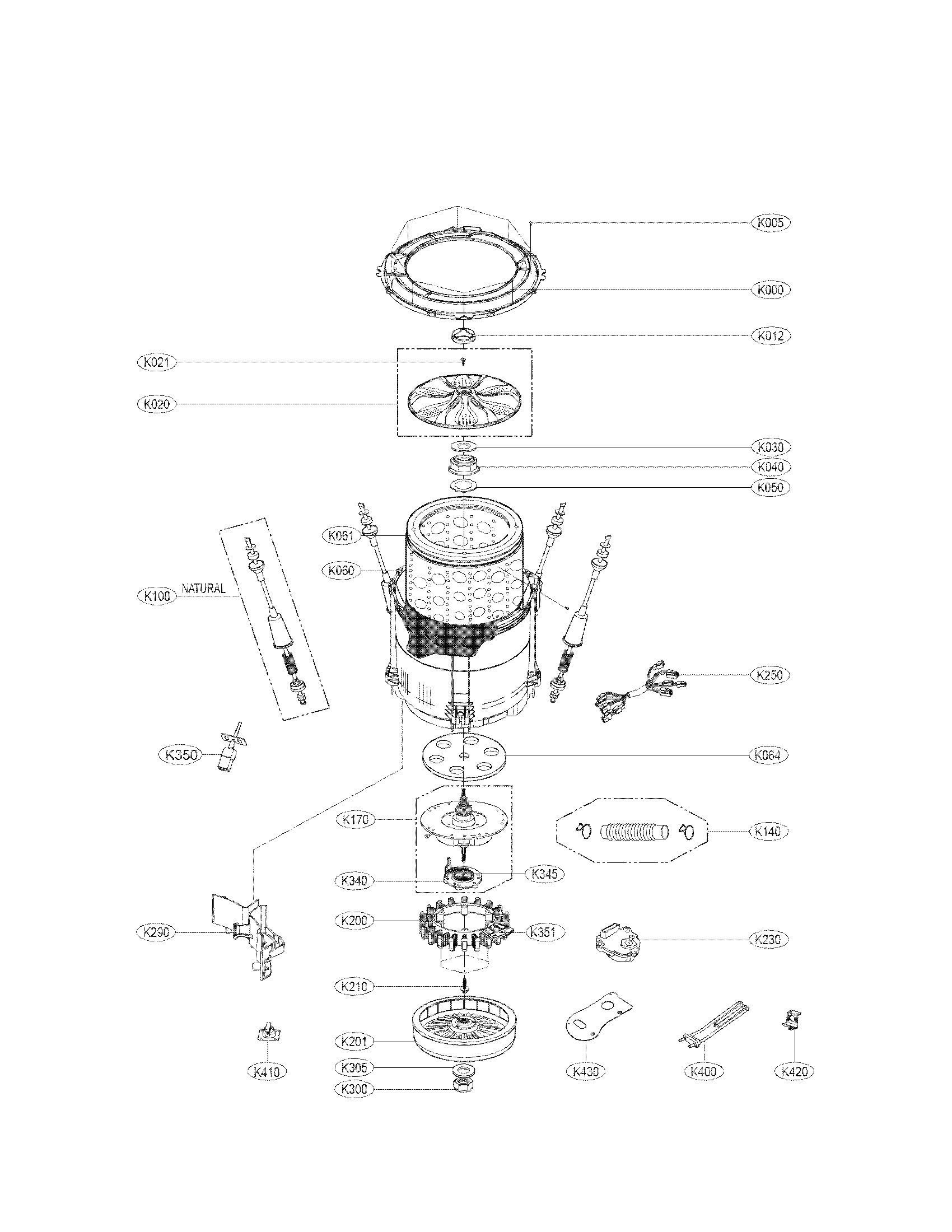

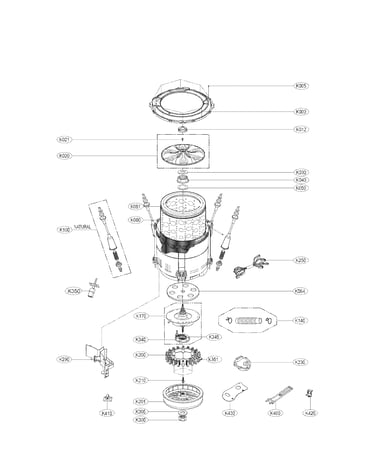

Tub assembly parts diagram

Washer motor rotor position sensor

Part #6501KW2002A

Replaced by #6501KW2002B

?
Manufacturer substitution
This part replaces 6501KW2002A. Substitute parts can look different from the original.
BEST SELLER
$36.78
12% OFF Phone Price : $41.78
In Stock
Washer Washplate AGZ72909702
#K020

Tub assembly parts diagram

Washer washplate

Part #AGZ72909702

Replaced by #AGZ72909711

?
Manufacturer substitution
This part replaces AGZ72909702. Substitute parts can look different from the original.
BEST SELLER
$168.29
6% OFF Phone Price : $178.29
In Stock
Washer Drive Shaft And Shifter Assembly 3661EA1009F
#K170

Tub assembly parts diagram

Washer drive shaft and shifter assembly

Part #3661EA1009F

Replaced by #AEN73131406

?
Manufacturer substitution
This part replaces 3661EA1009F. Substitute parts can look different from the original.
BEST SELLER
$202.17
5% OFF Phone Price : $212.17
In Stock
Washer Water-level Pressure Switch 6501EA1001R
#A200

Top cover assembly parts diagram

Washer water-level pressure switch

Part #6501EA1001R

BEST SELLER
$41.84
11% OFF Phone Price : $46.84
In Stock
Washer Drain Pump (replaces Aha74333302) 5859EA1004G
#F080

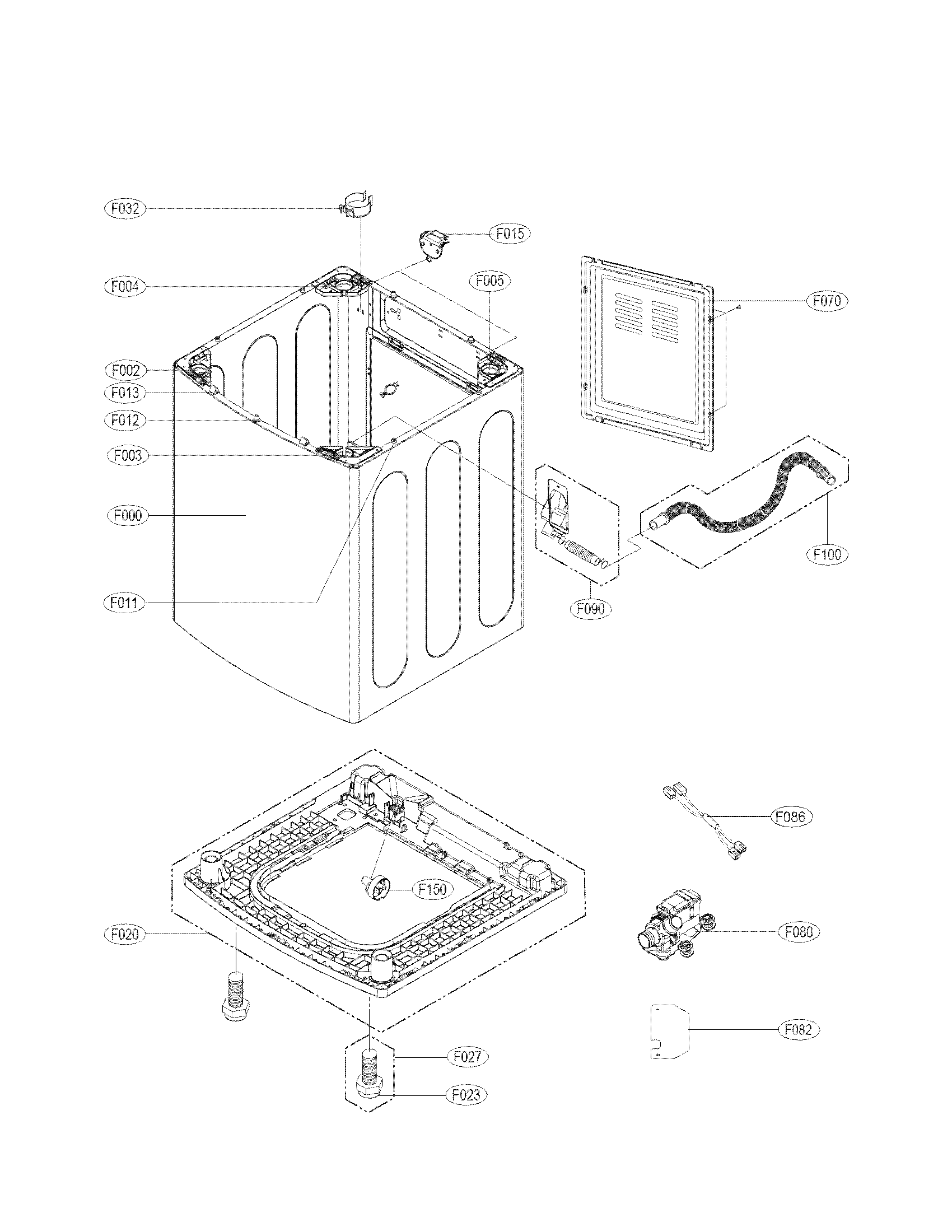

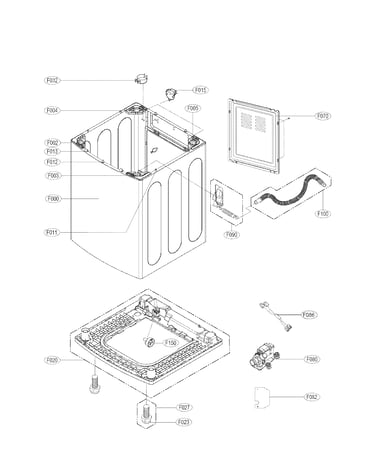

Out case assembly parts diagram

Washer drain pump (replaces aha74333302)

Part #5859EA1004G

BEST SELLER
$110.02
8% OFF Phone Price : $120.02
In Stock
Washer Motor Stator (replaces 4417ea1002x) 4417EA1002K
#K200

Tub assembly parts diagram

Washer motor stator (replaces 4417ea1002x)

Part #4417EA1002K

BEST SELLER
$264.78
$10.00 OFF Phone Price : $274.78
In Stock
Washer Suspension Rod And Spring Assembly 4902EA1002E
#K100

Tub assembly parts diagram

Washer suspension rod and spring assembly

Part #4902EA1002E

BEST SELLER
$23.37
18% OFF Phone Price : $28.37
In Stock
Washer Drain Hose (replaces 5251fa1699p, Aem73652901) AEM73213001
#K140

Tub assembly parts diagram

Washer drain hose (replaces 5251fa1699p, aem73652901)

Part #AEM73213001

BEST SELLER
$36.11
12% OFF Phone Price : $41.11
In Stock
Washer Drain Hose 5215EA1001A
#F100

Out case assembly parts diagram

Washer drain hose

Part #5215EA1001A

Replaced by #AEM73732901

?
Manufacturer substitution
This part replaces 5215EA1001A. Substitute parts can look different from the original.
BEST SELLER
$37.26
12% OFF Phone Price : $42.26
In Stock

Most common symptoms to help you fix your washers

Choose a symptom to see related washer repairs.

Main causes: water heater failure, bad water temperature switch, faulty control board, bad water valve, faulty water tem…

Main causes: leaky water inlet valve, faulty water-level pressure switch, bad electronic control board…

Main causes: lack of electrical power, wiring failure, bad power cord, electronic control board failure, bad user interf…

Main causes: broken lid switch or lid lock, bad pressure switch, broken shifter assembly, faulty control system…

Main causes: worn agitator dogs, bad clutch, broken motor coupler, shifter assembly failure, broken door lock, suspensio…

Main causes: no water supply, bad water valves, water-level pressure switch failure, control system failure, bad door lo…

Main causes: bad lid switch or door lock, bad timer or electronic control board, wiring failure, bad water inlet valve a…

Main causes: clogged drain hose, house drain clogged, bad drain pump, water-level pressure switch failure, bad control b…

Main causes: unbalanced load, loose spanner nut, worn drive block, broken shock absorber or suspension spring, debris in…
