Model #11060702990 Kenmore electric dryer

Here are the diagrams and repair parts for Kenmore 11060702990 electric dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

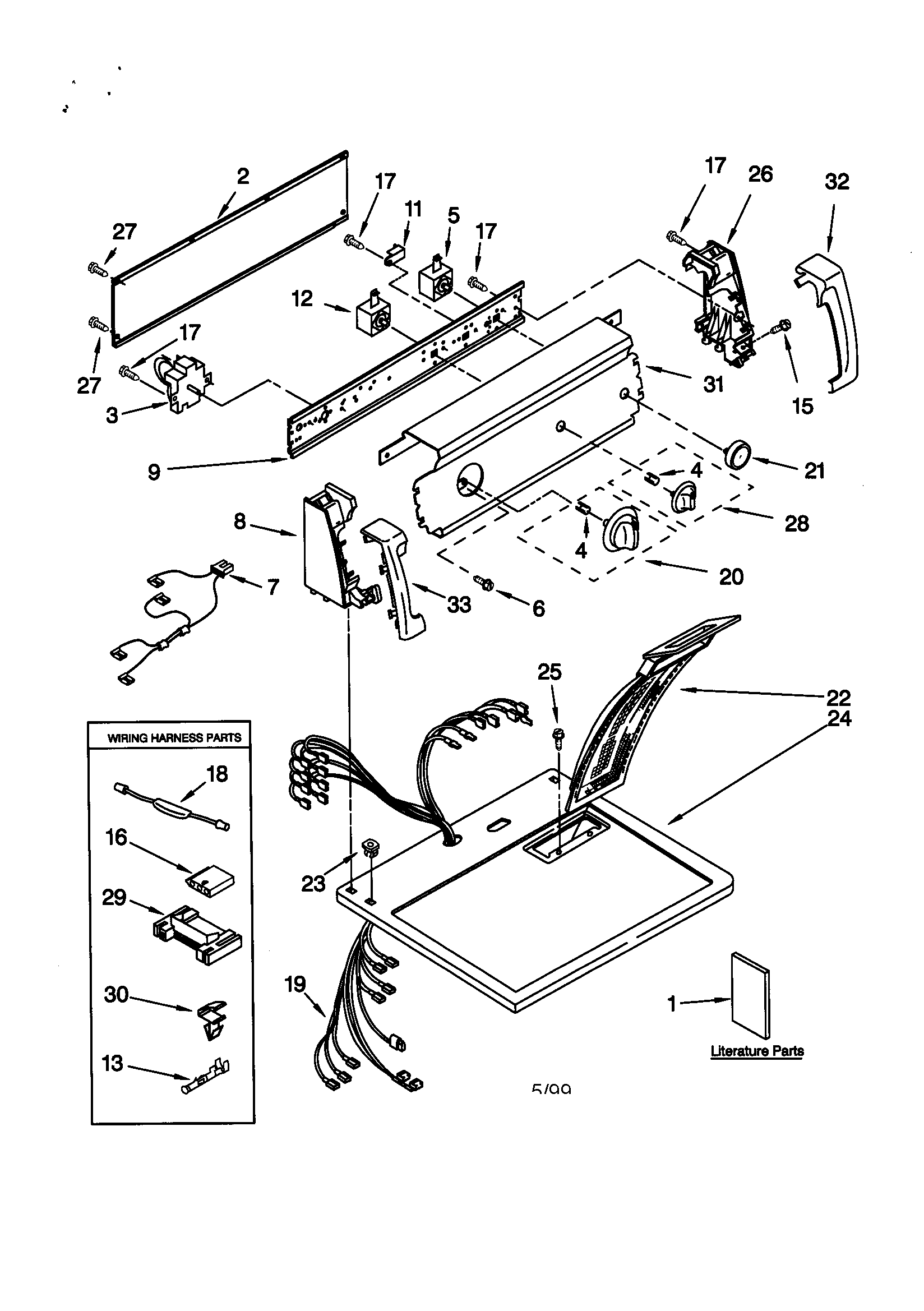

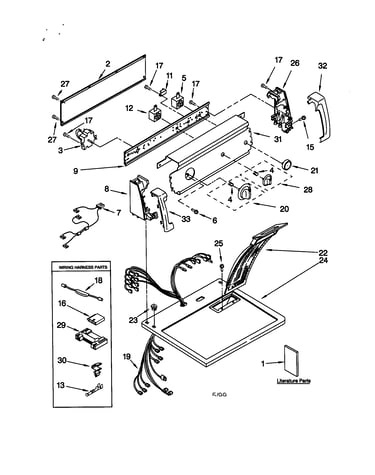

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

    Showing 10 of 124 parts

    Dryer Drum Belt#30

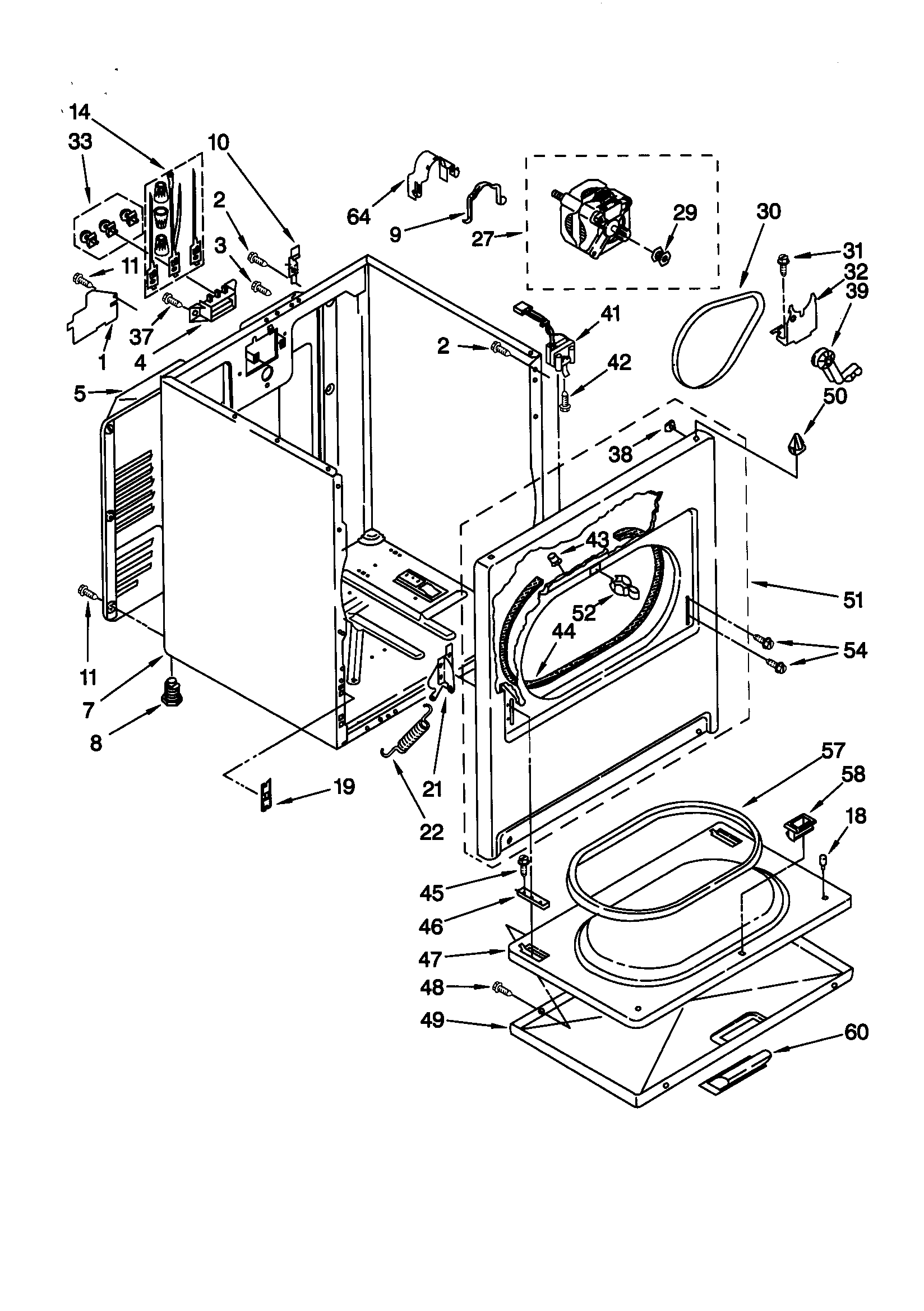

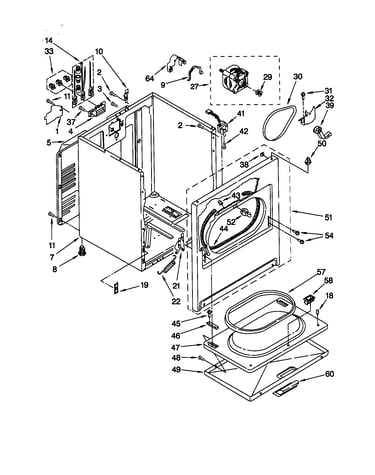

    Cabinet Diagram

    Drum belt

    Part #660996
    Replaced by #341241
    ?
    Manufacturer substitution
    This part replaces 660996. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $17.49
    Dryer Heating Element#14

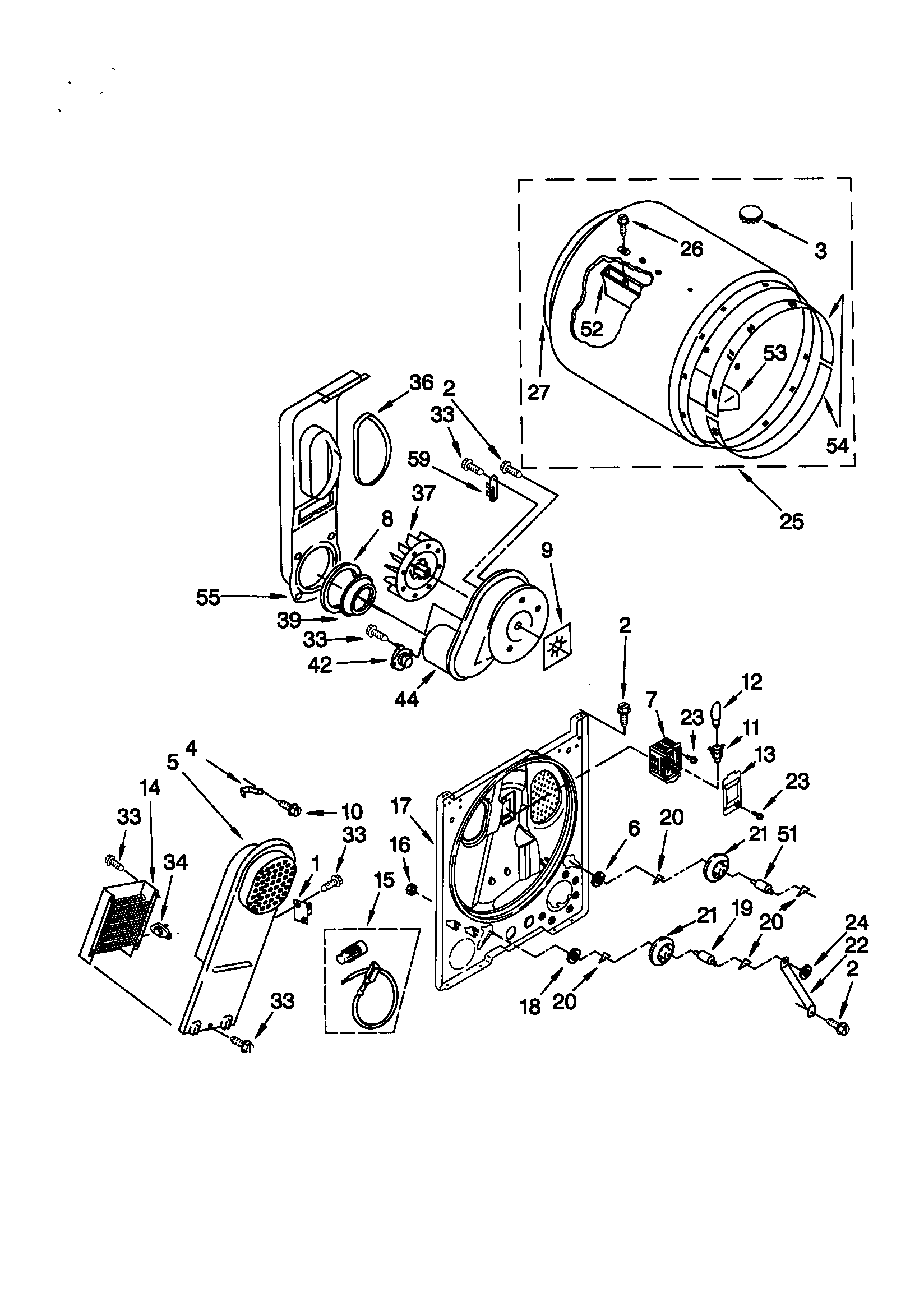

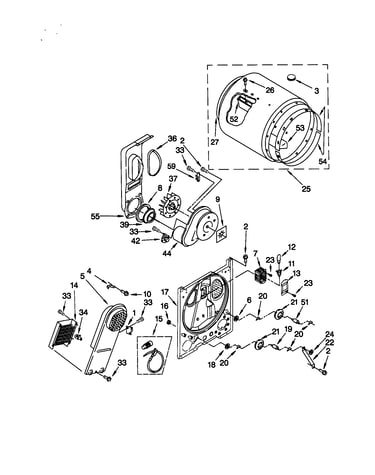

    Bulkhead Diagram

    Dryer element

    Part #3403585
    Replaced by #279838
    ?
    Manufacturer substitution
    This part replaces 3403585. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $67.49
    Dryer Thermal Fuse, 195-degree F#59

    Bulkhead Diagram

    Dryer thermal fuse

    Part #3392519
    Replaced by #WP3392519
    ?
    Manufacturer substitution
    This part replaces 3392519. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $19.29
    Dryer Drum Support Roller Kit#21

    Bulkhead Diagram

    Support

    Part #3397588
    Replaced by #349241T
    ?
    Manufacturer substitution
    This part replaces 3397588. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $21.99
    Dryer Door Switch#41

    Cabinet Diagram

    Dryer door switch

    Part #3406107
    Replaced by #WP3406107
    ?
    Manufacturer substitution
    This part replaces 3406107. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $27.89
    Dryer Door Latch Kit#52

    Cabinet Diagram

    Strike

    Part #696144
    Replaced by #279570
    ?
    Manufacturer substitution
    This part replaces 696144. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    In Stock
    $6.19 |
    52% OFF
    MSRP: $13.00
    Dryer Drive Motor#27

    Cabinet Diagram

    Motor

    Part #3976707
    Replaced by #279827
    ?
    Manufacturer substitution
    This part replaces 3976707. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $106.39 |
    18% OFF
    MSRP: $130.00
    Dryer Idler Pulley#39

    Cabinet Diagram

    Dryer idler pulley

    Part #691366
    Replaced by #WP691366
    ?
    Manufacturer substitution
    This part replaces 691366. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $21.39
    Dryer Thermal Cut-Off Fuse Kit, 309-degree F#1

    Bulkhead Diagram

    Cut-off kit

    Part #3399848
    Replaced by #279816
    ?
    Manufacturer substitution
    This part replaces 3399848. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $44.59
    Dryer Operating Thermostat#42

    Bulkhead Diagram

    Dryer operating thermostat

    Part #3387134
    Replaced by #WP3387134
    ?
    Manufacturer substitution
    This part replaces 3387134. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $27.69

    Symptoms common to all dryers

    Choose a symptom to see related dryer repairs.

    Main causes: bad drum support roller, damaged idler pulley, broken blower fan blade, worn drum glide bearing, bad drive motor
    Main causes: bad gas valve coils, broken heating element, tripped safety thermostat or fuse, bad operating thermostat, control failure
    Main causes: bad timer or electronic control board, door switch failure
    Main causes: lack of electrical power, bad power cord, wiring failure, bad control board, blown thermal fuse, bad door switch
    Main causes: clogged exhaust vent, bad motor relay, loose dryer door catch, bad door switch, control system failure, faulty drive motor
    Main causes: damaged door strike, worn door catch
    Main causes: door switch failure, lack of power, broken belt, blown thermal fuse, bad drive motor, control system failure
    Main causes: clogged exhaust system, heating system failure, deposits on moisture sensor, control system failure
