Bosch HMV5051U/01 microwave Parts

Here are the diagrams and repair parts for Bosch HMV5051U/01 microwave, as well as links to manuals and error code tables, if available.

Bosch HMV5051U/01 microwave
By Schematic

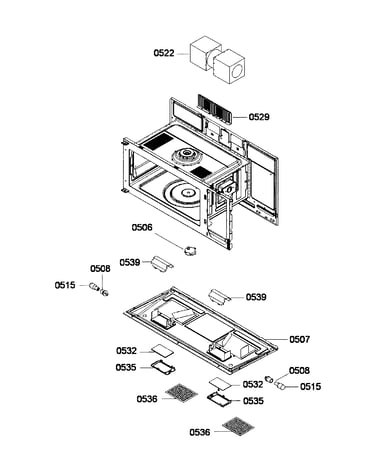

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for HMV5051U/01 Microwave

  • Microwave Door Interlock Switch for Bosch HMV5051U/01 - Part 00617229

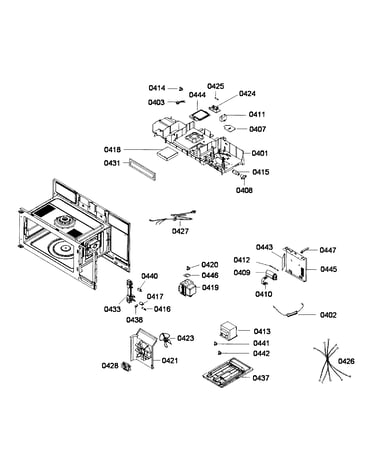

    Cabinet 2 diagram

    Microwave Switch

    Part #617229

    Replaced by #00617229

    Info Icon
    Manufacturer substitution
    This part replaces 617229. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $22.58
    21% OFF Phone Price : $28.58Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Door Latch for Bosch HMV5051U/01 - Part 00648909

    Cabinet 2 diagram

    Latch

    Part #648909

    Replaced by #00648909

    Info Icon
    Manufacturer substitution
    This part replaces 648909. Substitute parts can look different from the original.
    In Stock
    $19.69
    9% OFF Phone Price : $21.69Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Fuse for Bosch HMV5051U/01 - Part 00631389

    Cabinet 2 diagram

    Fuse

    Part #617219

    Replaced by #00631389

    Info Icon
    Manufacturer substitution
    This part replaces 617219. Substitute parts can look different from the original.
    In Stock
    $38.44
    Minus Item
    Qty
    Plus Item
  • Microwave Door Handle Support for Bosch HMV5051U/01 - Part 00617262

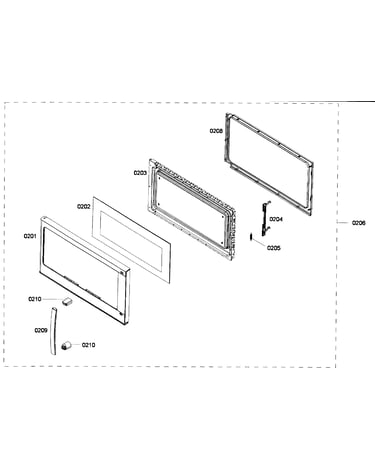

    Door assy diagram

    Microwave Door Handle Support

    Part #617262

    Replaced by #00617262

    Info Icon
    Manufacturer substitution
    This part replaces 617262. Substitute parts can look different from the original.
    In Stock
    $27.23
    18% OFF Phone Price : $33.23Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave High-voltage Capacitor for Bosch HMV5051U/01 - Part 00617248

    Cabinet 2 diagram

    Cap.h.v.

    Part #617248

    Replaced by #00617248

    Info Icon
    Manufacturer substitution
    This part replaces 617248. Substitute parts can look different from the original.
    In Stock
    $34.80
    15% OFF Phone Price : $40.80Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Door Handle for Bosch HMV5051U/01 - Part 00648940

    Door assy diagram

    Door Handle

    Part #648940

    Replaced by #00648940

    Info Icon
    Manufacturer substitution
    This part replaces 648940. Substitute parts can look different from the original.
    In Stock
    $55.26
    10% OFF Phone Price : $61.26Info Icon
    Minus Item
    Qty
    Plus Item
  • Thermostat for Bosch HMV5051U/01 - Part 00617233

    Cabinet 2 diagram

    Regulator

    Part #617233

    Replaced by #00617233

    Info Icon
    Manufacturer substitution
    This part replaces 617233. Substitute parts can look different from the original.
    In Stock
    $41.28
    Minus Item
    Qty
    Plus Item
  • Microwave Door Outer Frame for Bosch HMV5051U/01 - Part 00683861

    Door assy diagram

    Door

    Part #683861

    Replaced by #00683861

    Info Icon
    Manufacturer substitution
    This part replaces 683861. Substitute parts can look different from the original.
    In Stock
    $190.81
    6% OFF Phone Price : $202.81Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Turntable Tray Support for Bosch HMV5051U/01 - Part 00648876

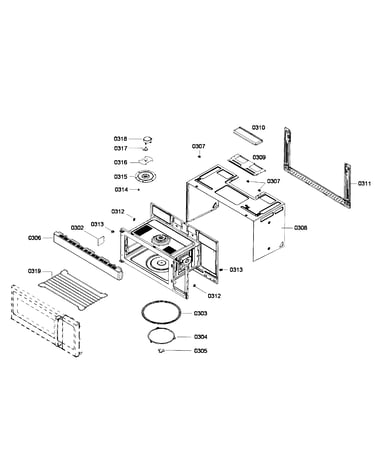

    Cabinet 1 diagram

    Microwave Ring

    Part #648876

    Replaced by #00648876

    Info Icon
    Manufacturer substitution
    This part replaces 648876. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $46.73
    Minus Item
    Qty
    Plus Item
  • Drive Shaft for Bosch HMV5051U/01 - Part 00620527

    Cabinet 1 diagram

    Shaft Drve

    Part #620527

    Replaced by #00620527

    Info Icon
    Manufacturer substitution
    This part replaces 620527. Substitute parts can look different from the original.
    In Stock
    $38.41
    Minus Item
    Qty
    Plus Item
