Frigidaire
Electric Cooktop

Model # FPEC3085KSA Official Frigidaire cooktop

Here are the diagrams and repair parts for Official Frigidaire FPEC3085KSA cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

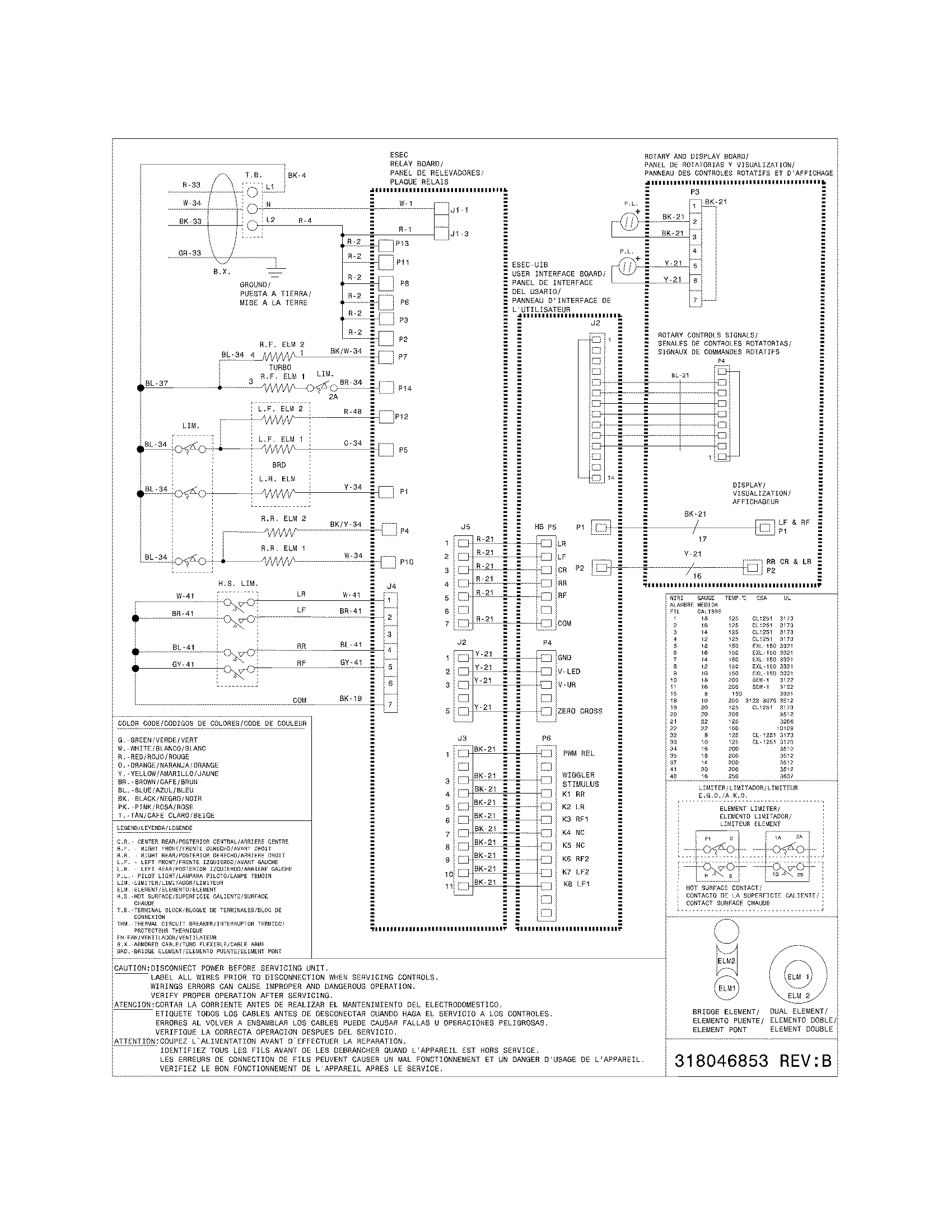

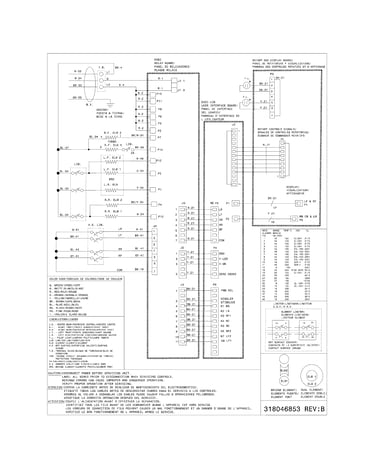

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 50 parts  |
Terminal Block 316056000
#62

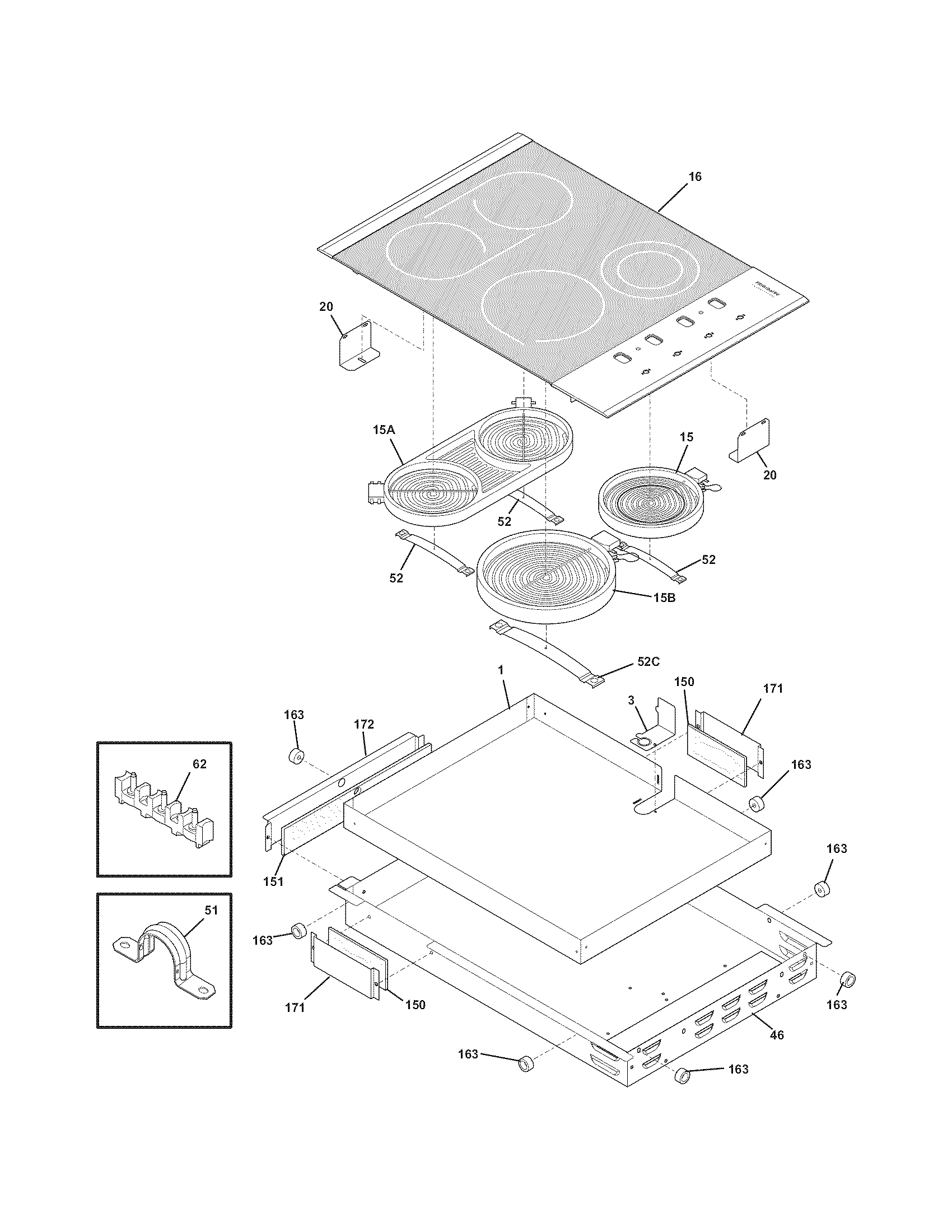

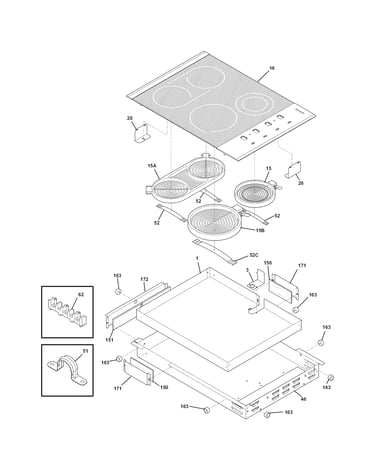

Maintop diagram

Terminal block

Part #316056000

Replaced by #5304409888

?
Manufacturer substitution
This part replaces 316056000. Substitute parts can look different from the original.
BEST SELLER
$9.64 |
9% OFF Phone Price : $10.64
In Stock
Range Radiant Surface Element 316530000
#15B

Maintop diagram

Range radiant surface element

Part #316530000

Replaced by #316530001

?
Manufacturer substitution
This part replaces 316530000. Substitute parts can look different from the original.
BEST SELLER
$180.16 |
5% OFF Phone Price : $190.16
In Stock
Cooktop Element 318198936
#15

Maintop diagram

Cooktop element

Part #318198936

Replaced by #318198952

?
Manufacturer substitution
This part replaces 318198936. Substitute parts can look different from the original.
$159.27 |
6% OFF Phone Price : $169.27
In Stock
Range Radiant Bridge Surface Element (replaces 7318258203) 318258203
#15A

Maintop diagram

Range radiant bridge surface element (replaces 7318258203)

Part #318258203

$278.73 |
$10.00 OFF Phone Price : $288.73
In Stock
Range Nut 5303323144
#NI

Maintop diagram

Range nut

Part #5303323144

$8.83
In Stock
Range Screw 5303307980
Range screw

Part #5303307980

$21.34 |
19% OFF Phone Price : $26.34
In Stock
Spring 318122008
#52

Maintop diagram

Spring

Part #318122008

$62.04
In Stock
Range Power Control Board Support 316114100
#77A

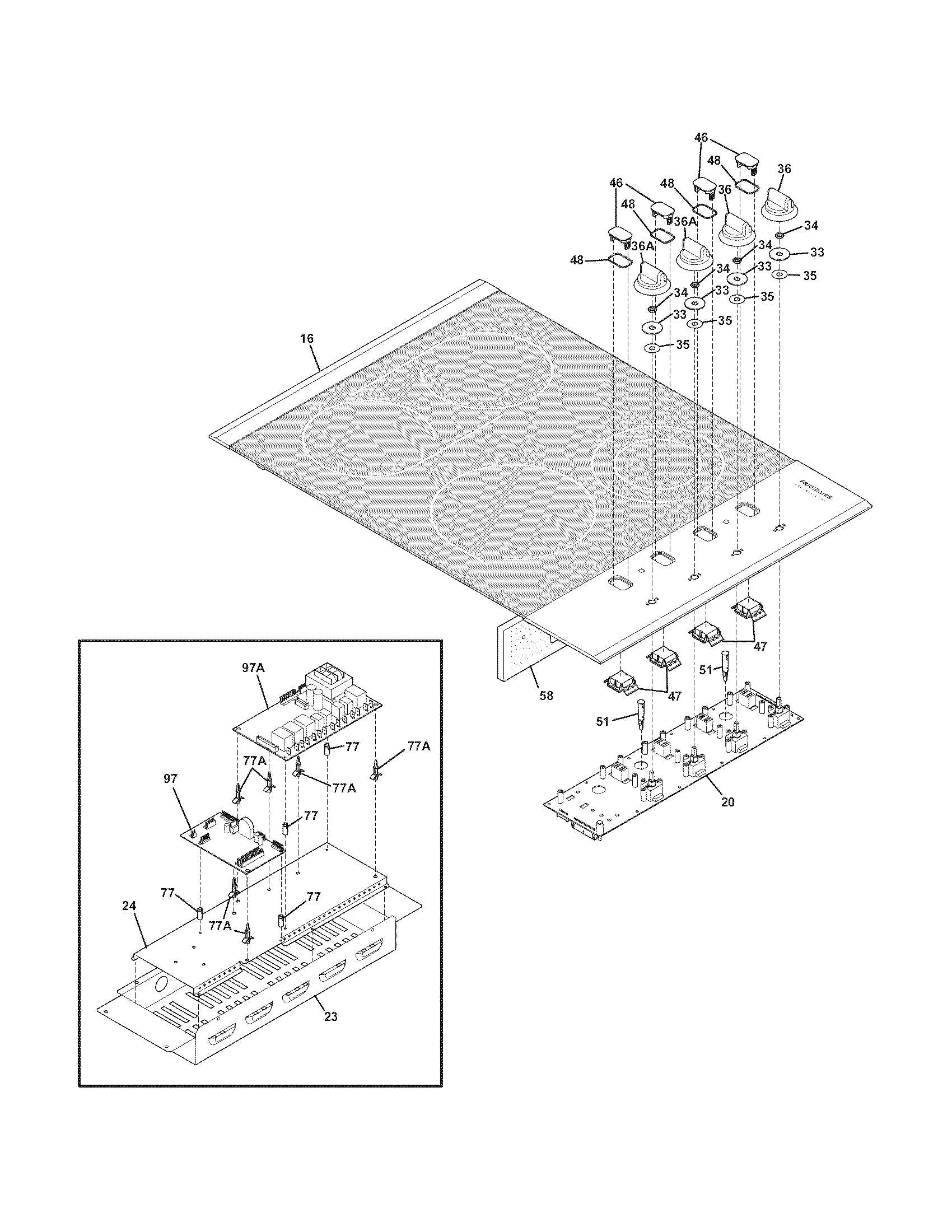

Control panel diagram

Range power control board support

Part #316114100

$52.42 |
9% OFF Phone Price : $57.42
In Stock
Cooktop Element Control Knob Bushing 318146012
#33

Control panel diagram

Cooktop element control knob bushing

Part #318146012

$15.37
In Stock
Range Screw, 8 X 18 X 0.406-in 5304415832
#NI

Control panel diagram

Range screw, 8 x 18 x 0.406-in

Part #5304415832

This item is not returnable
$14.41 |
12% OFF Phone Price : $16.41
In Stock
