Model # 31-460 Official Delta disc sander - type 2

Here are the diagrams and repair parts for Official Delta 31-460 disc sander - type 2, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 86 parts  |

Cord 1341566
#160

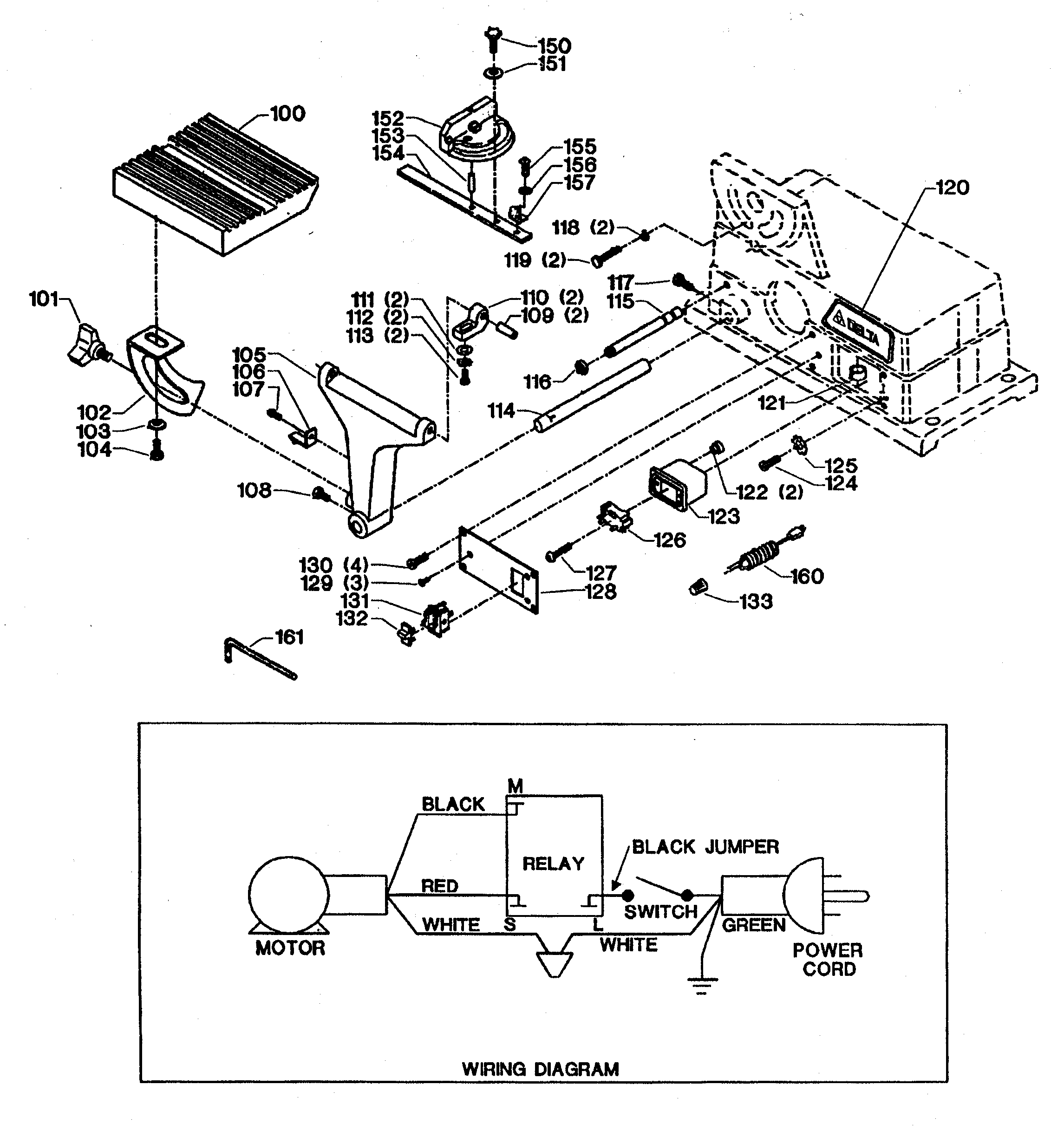

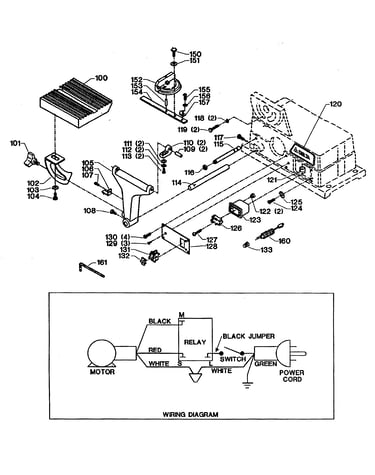

Sander parts 2/wring diagram diagram

Cord

Part #1341566

The manufacturer no longer makes this part, and there's no substitute part

Twist-on Wire Connector 1341198
#133

Sander parts 2/wring diagram diagram

Twist-on wire connector

Part #1341198

The manufacturer no longer makes this part, and there's no substitute part

Sander Drive Belt 1341559
#6

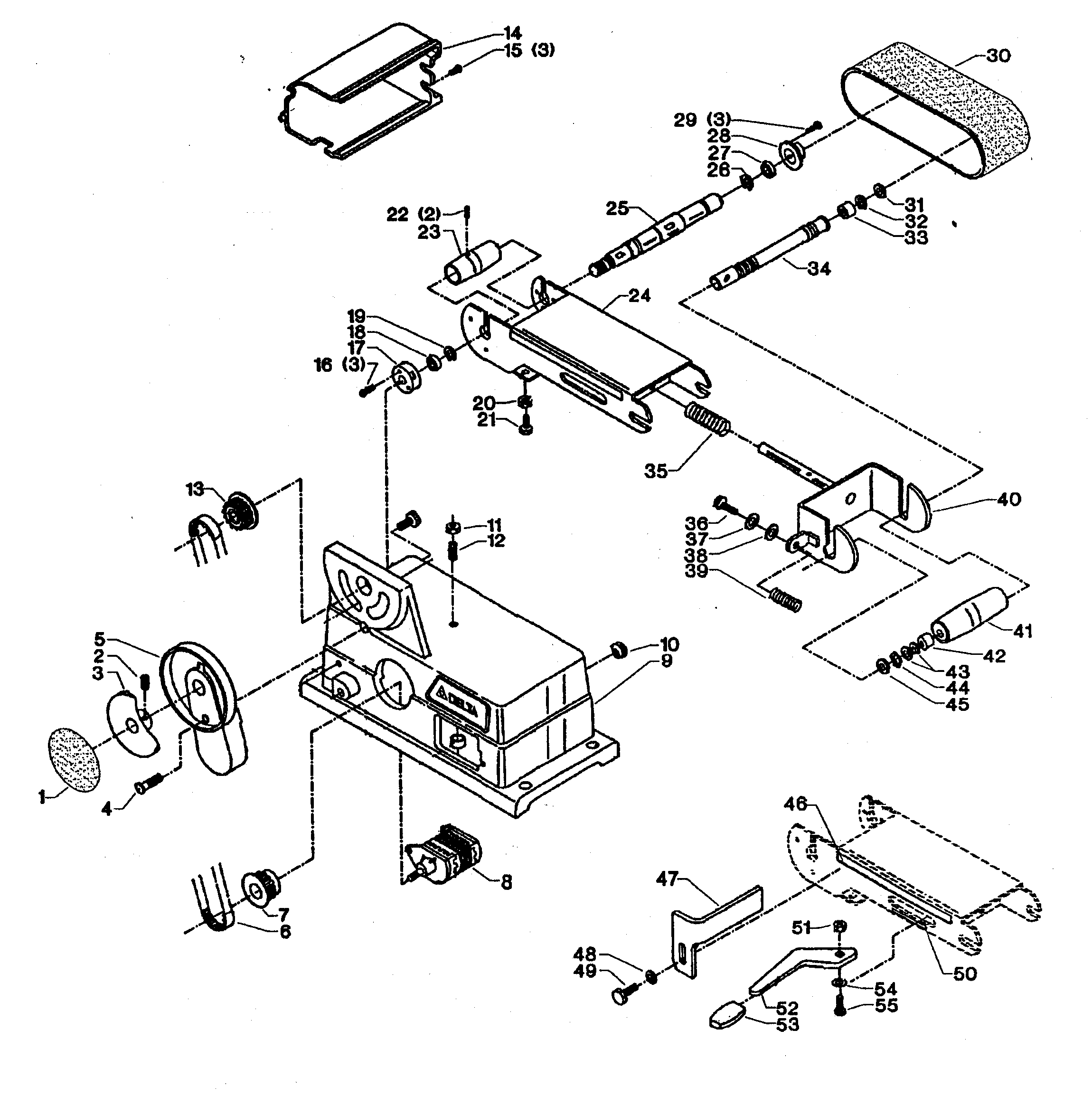

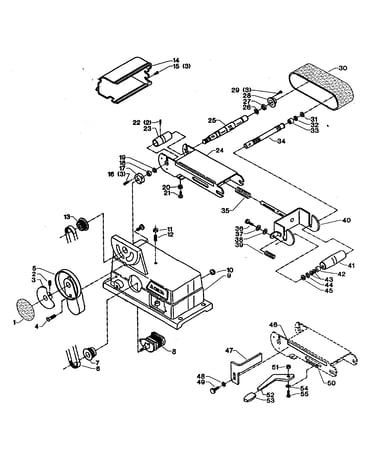

Sander parts 1 diagram

Sander drive belt

Part #1341559

The manufacturer no longer makes this part, and there's no substitute part

Washer 904-03-030-1795
Washer

Part #904-03-030-1795

The manufacturer no longer makes this part, and there's no substitute part

Grommet 1341544
#10

Sander parts 1 diagram

Grommet

Part #1341544

The manufacturer no longer makes this part, and there's no substitute part

Cover 1341569
#128

Sander parts 2/wring diagram diagram

Cover

Part #1341569

The manufacturer no longer makes this part, and there's no substitute part

Set Screw 901-04-150-0296
#12

Sander parts 1 diagram

Set screw

Part #901-04-150-0296

The manufacturer no longer makes this part, and there's no substitute part

Spring 1341537
#39

Sander parts 1 diagram

Spring

Part #1341537

The manufacturer no longer makes this part, and there's no substitute part

Ring 1341547
#116

Sander parts 2/wring diagram diagram

Ring

Part #1341547

The manufacturer no longer makes this part, and there's no substitute part

Scale 1341556
#102

Sander parts 2/wring diagram diagram

Scale

Part #1341556

The manufacturer no longer makes this part, and there's no substitute part
