Kenmore
Bottom-Mount Refrigerator

Model # 79572032112 Official Kenmore refrigerator

Here are the diagrams and repair parts for Official Kenmore 79572032112 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

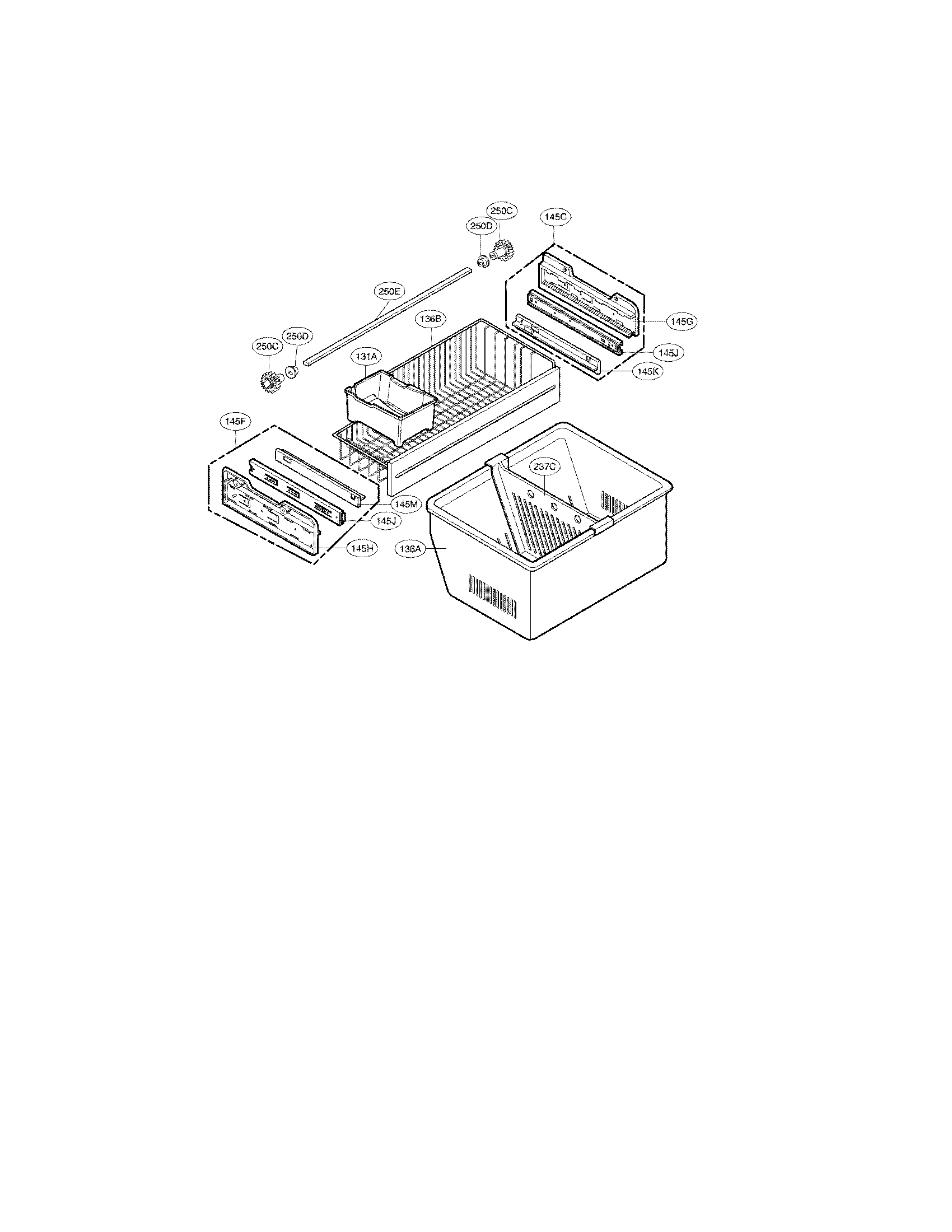

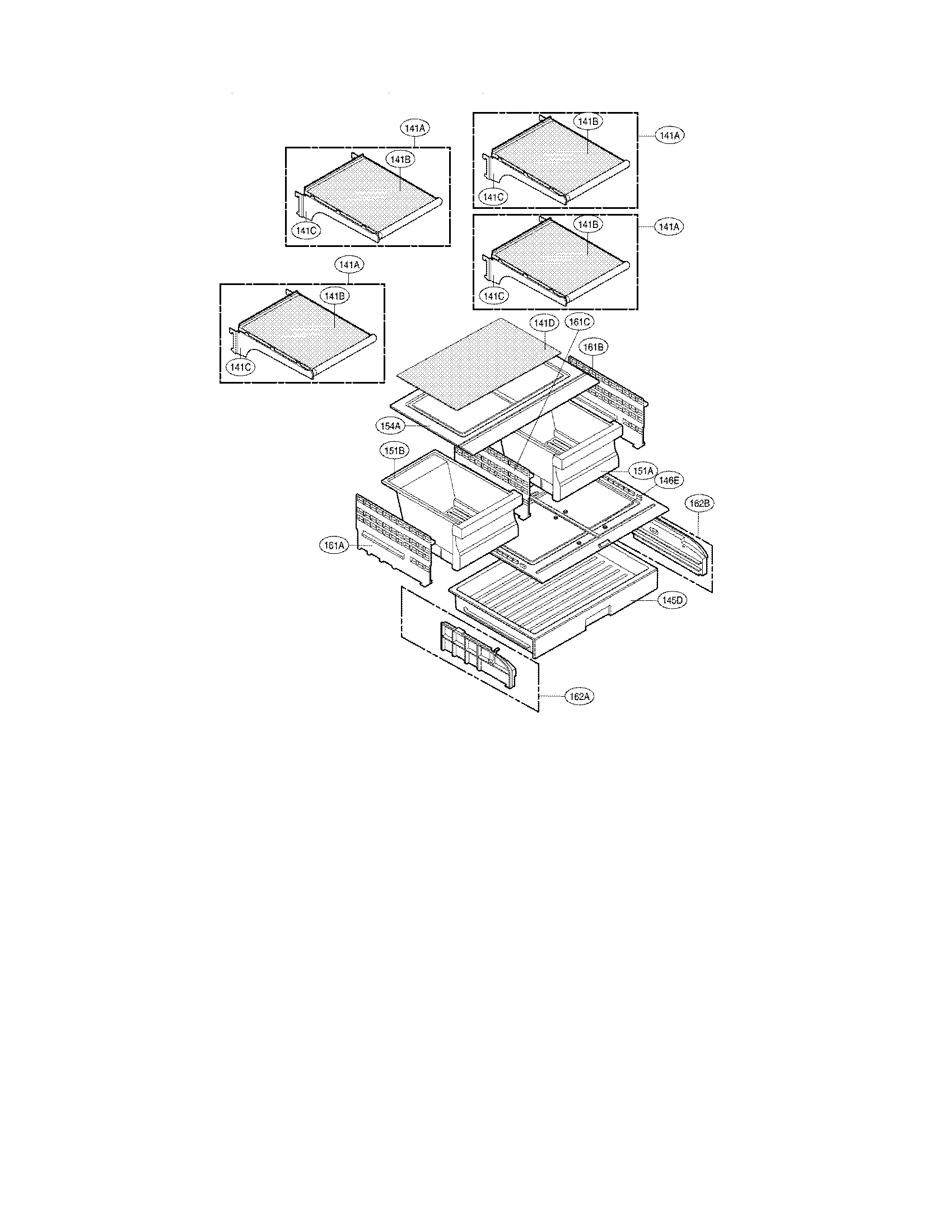

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 199 parts  |

Genuine Kenmore Refrigerator Water Filter 9690 ADQ36006102
#624A

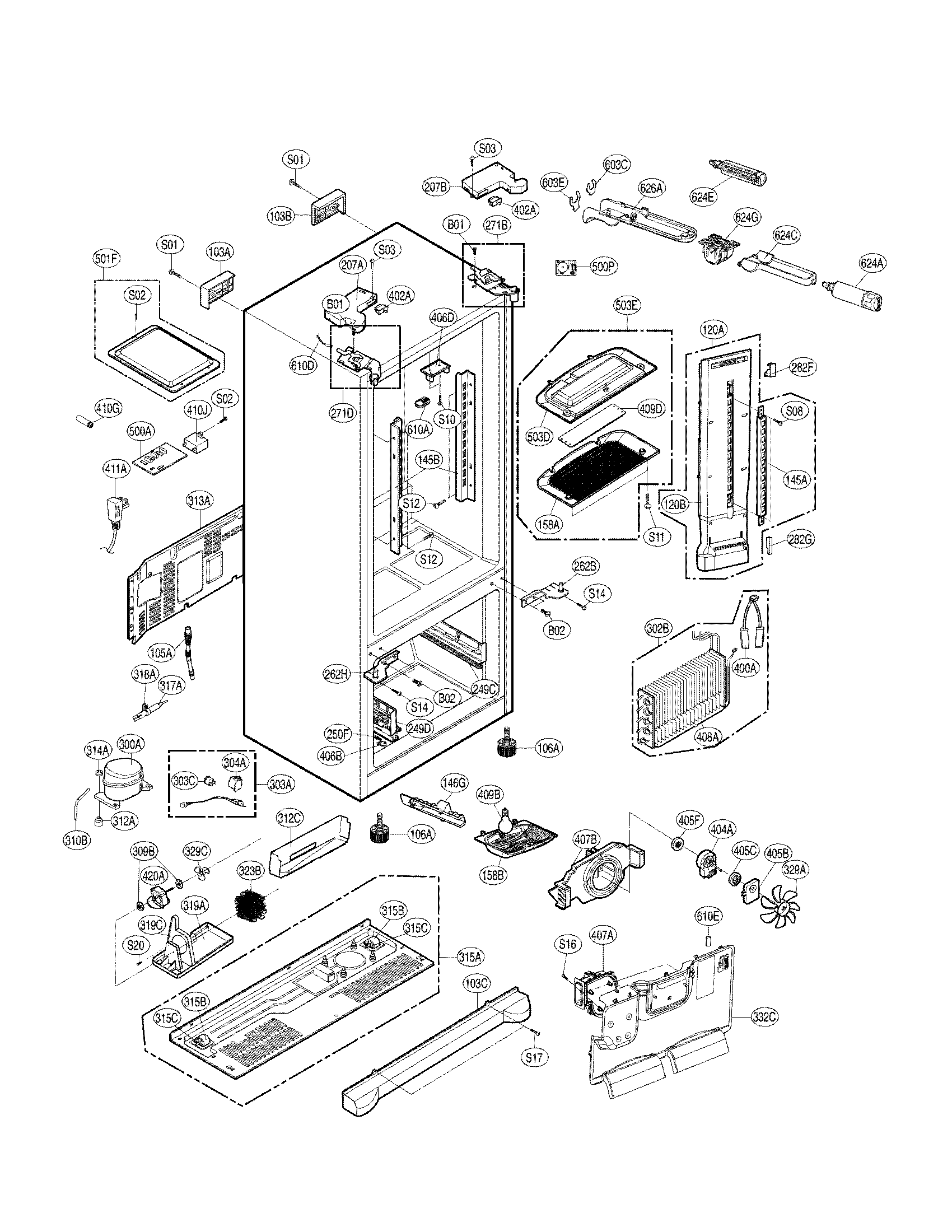

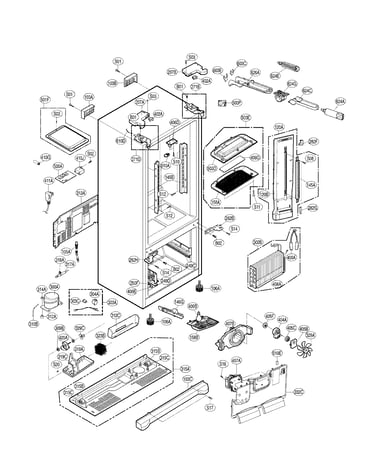

Case parts diagram

Genuine kenmore refrigerator water filter 9690

Part #ADQ36006102

Replaced by #ADQ36006114

?
Manufacturer substitution
This part replaces ADQ36006102. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

In Stock
Refrigerator Filter Dryer 5851JA2007E
#317A

Case parts diagram

Refrigerator filter dryer

Part #5851JA2007E

Replaced by #ADH73150210

?
Manufacturer substitution
This part replaces 5851JA2007E. Substitute parts can look different from the original.
BEST SELLER
$69.19
9% OFF Phone Price : $76.33
In Stock
Refrigerator Door Switch 6600JB1010K
#406B

Case parts diagram

Refrigerator door switch

Part #6600JB1010K

Replaced by #6600JB1010A

?
Manufacturer substitution
This part replaces 6600JB1010K. Substitute parts can look different from the original.
BEST SELLER
$21.71
21% OFF Phone Price : $27.38
In Stock
Refrigerator Flipper Assembly AGU73530708
#235A

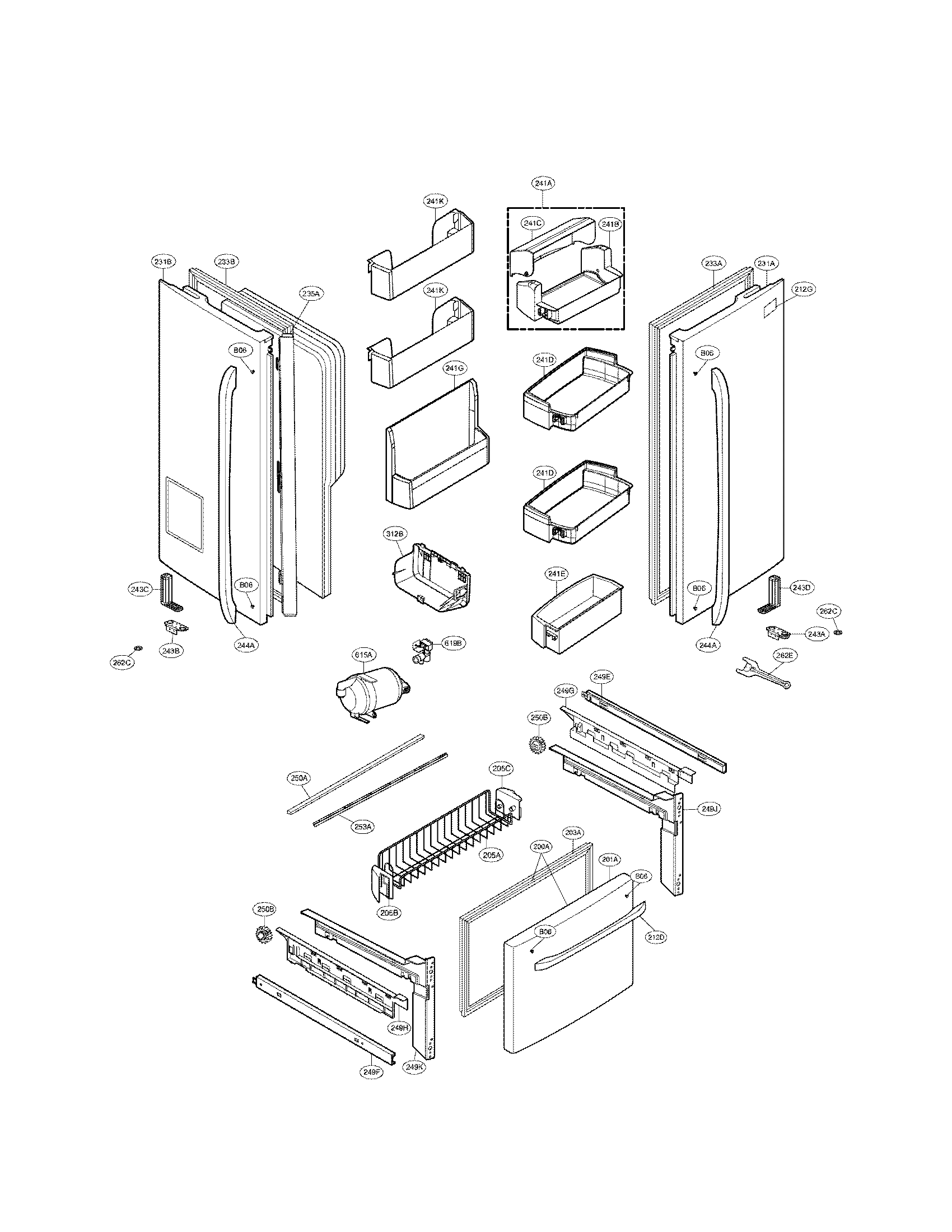

Door parts diagram

Refrigerator flipper assembly

Part #AGU73530708

Replaced by #AGU75188619

?
Manufacturer substitution
This part replaces AGU73530708. Substitute parts can look different from the original.
BEST SELLER
$141.77
$5.87 OFF Phone Price : $147.64
In Stock
Refrigerator Ice Maker Assembly (replaces Aeq73110206, Aeq73110209) AEQ73110203
#600A

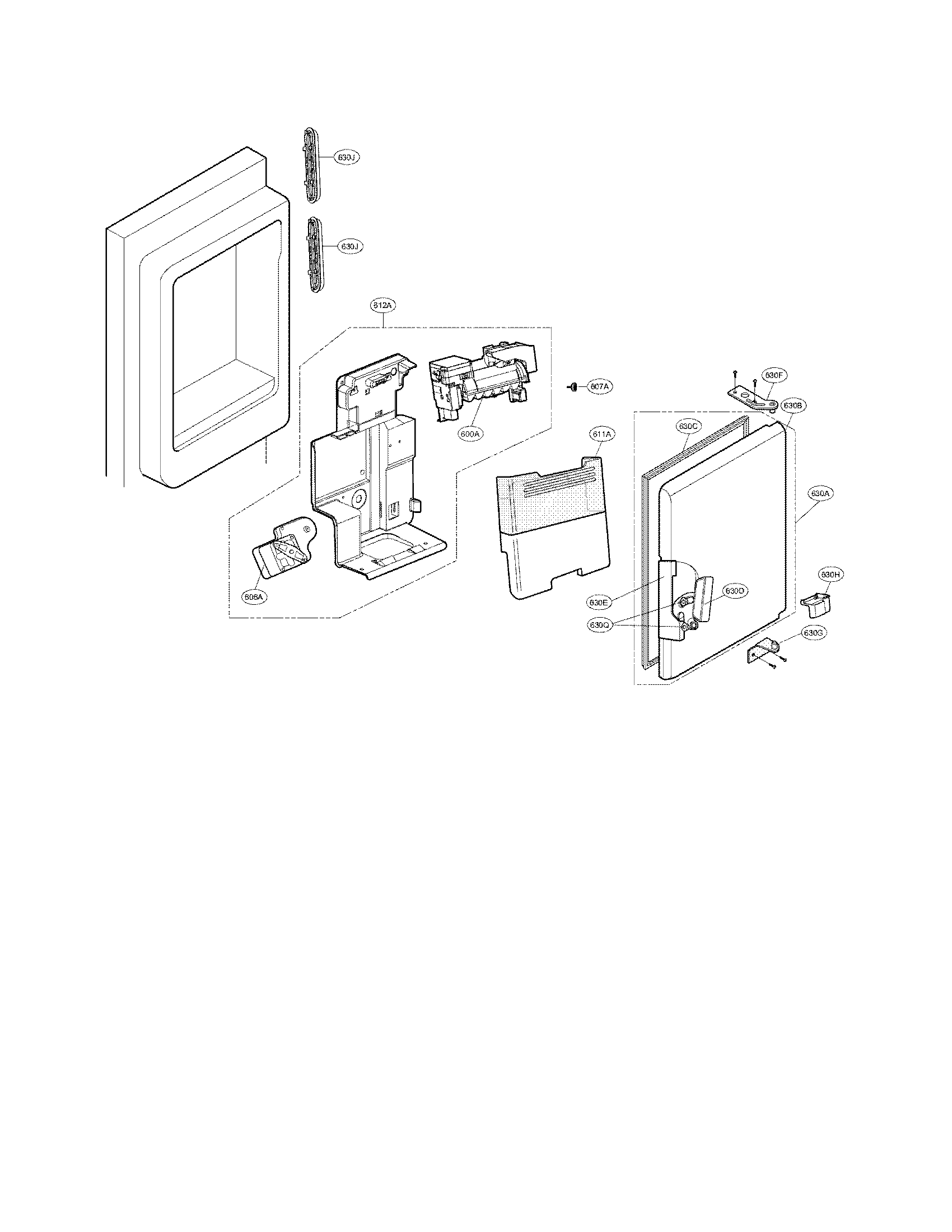

Ice maker and ice bank parts diagram

Refrigerator ice maker assembly (replaces aeq73110206, aeq73110209)

Part #AEQ73110203

BEST SELLER
In Stock
Refrigerator Water Tubing MJU62070601
#616F

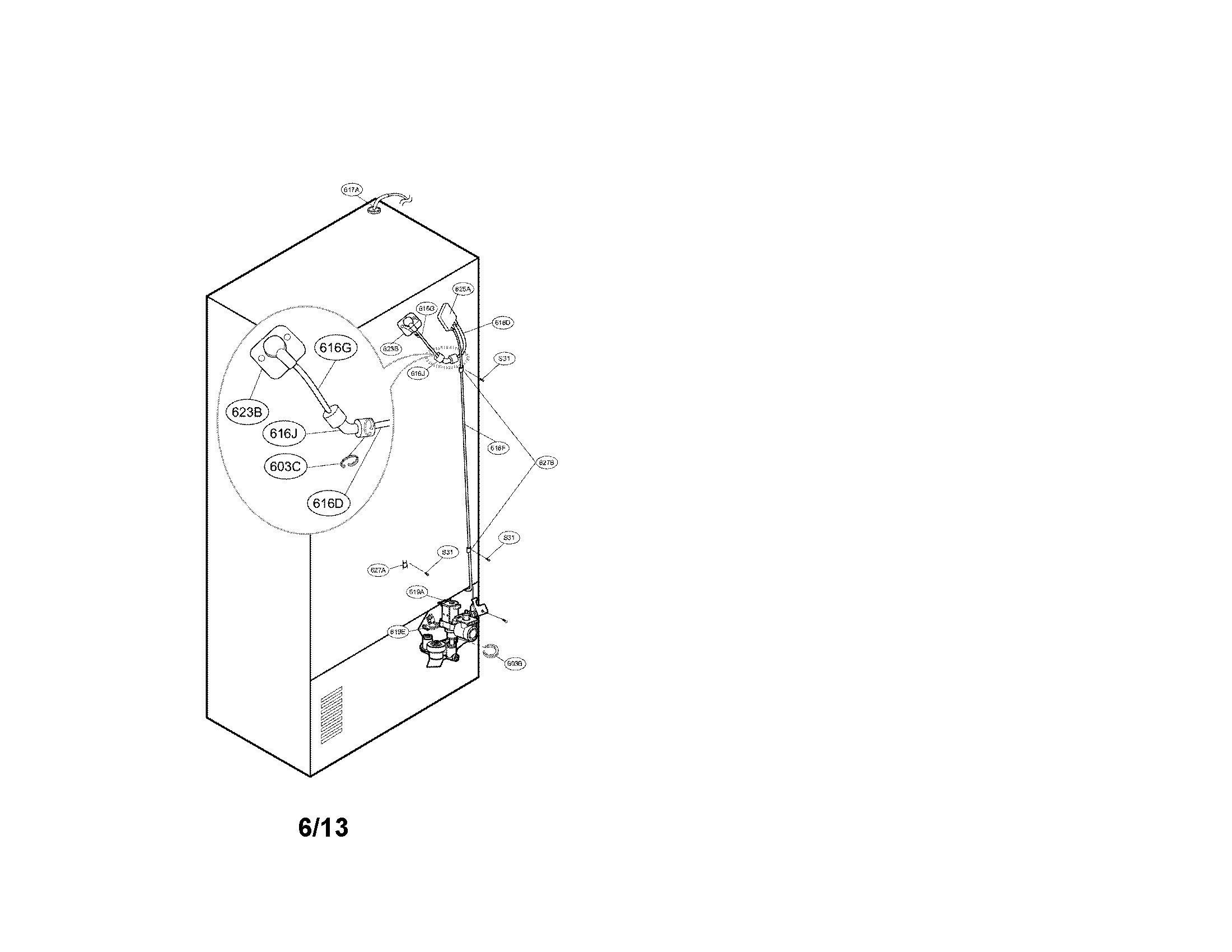

Valve and water tube parts diagram

Refrigerator water tubing

Part #MJU62070601

Replaced by #MJU62070602

?
Manufacturer substitution
This part replaces MJU62070601. Substitute parts can look different from the original.
BEST SELLER
$15.53
9% OFF Phone Price : $17.08
In Stock
Refrigerator Dispenser Switch (replaces 6600jb3001b, 6600jb3001h) 6600JB3001C
#402C

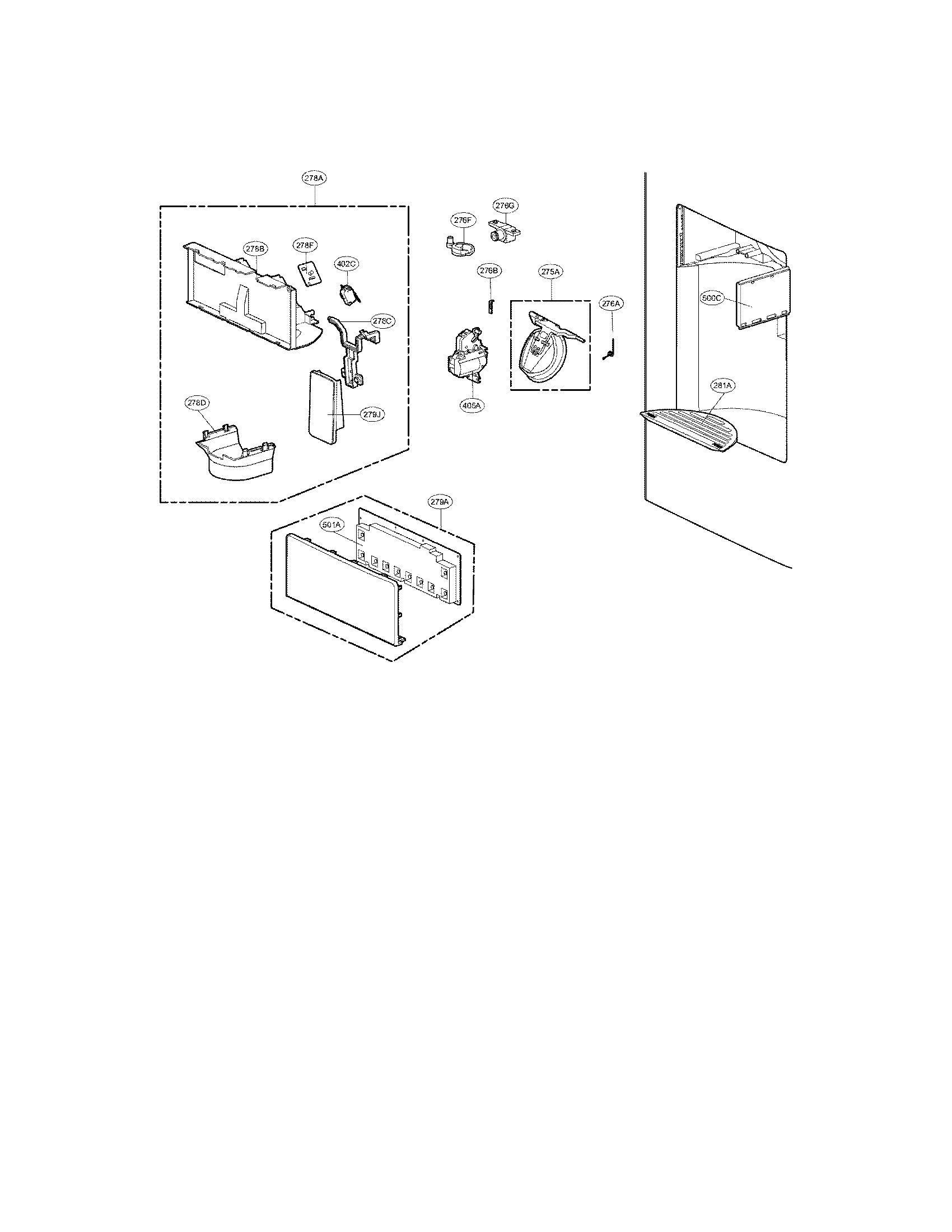

Dispenser parts diagram

Refrigerator dispenser switch (replaces 6600jb3001b, 6600jb3001h)

Part #6600JB3001C

BEST SELLER
$32.25
16% OFF Phone Price : $38.25
In Stock
Refrigerator Water Inlet Valve (replaces 5221ja2011p, Aju72992606, Ebd60664501) AJU72992601
#619A

Valve and water tube parts diagram

Refrigerator water inlet valve (replaces 5221ja2011p, aju72992606, ebd60664501)

Part #AJU72992601

BEST SELLER
In Stock
Refrigerator Freezer Door Gasket MDS38201401
#203A

Door parts diagram

Refrigerator freezer door gasket

Part #MDS38201401

Replaced by #MDS38201426

?
Manufacturer substitution
This part replaces MDS38201401. Substitute parts can look different from the original.
BEST SELLER
In Stock
Refrigerator Dispenser Ice Chute Door Motor (replaces Eau59551201, Eau59551202, Eau59551203, Eau59551205, Eau59551207) EAU59551204
#405A

Dispenser parts diagram

Refrigerator dispenser ice chute door motor (replaces eau59551201, eau59551202, eau59551203, eau59551205, eau59551207)

Part #EAU59551204

BEST SELLER
$54.80
11% OFF Phone Price : $61.49
In Stock

Most common symptoms to help you fix your refrigerators

Choose a symptom to see related refrigerator repairs.

Main causes: water valve leaking, frozen or broken defrost drain tube, overflowing drain pan, cracked water system tubin…

Main causes: blocked air vents, compressor problems, condenser or evaporator fan not working, control system failure, se…

Things to do: clean condenser coils, replace the water filter, clean the interior, adjust doors to prevent air leaks, cl…

Main causes: control board or cold control failure, broken compressor start relay, compressor motor failure, defrost tim…

Main causes: leaky door gasket, defrost system failure, evaporator fan not running, dirty condenser coils, condenser fan…

Main causes: blocked vents, defrost system problems, evaporator fan failure, dirty condenser coils, bad sensors, condens…

Main causes: jammed ice cubes, broken ice maker assembly, dirty water filter, kinked water line, bad water valve, freeze…

Main causes: damaged door seal, faulty defrost sensor or bi-metal thermostat, broken defrost heater, bad defrost timer o…
