Bosch RH540M hammer drill Parts

Here are the diagrams and repair parts for Bosch RH540M hammer drill, as well as links to manuals and error code tables, if available.

Bosch RH540M hammer drill
By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for RH540M Power Tools

  • Hood Covering for Bosch RH540M - Part 1619P10168

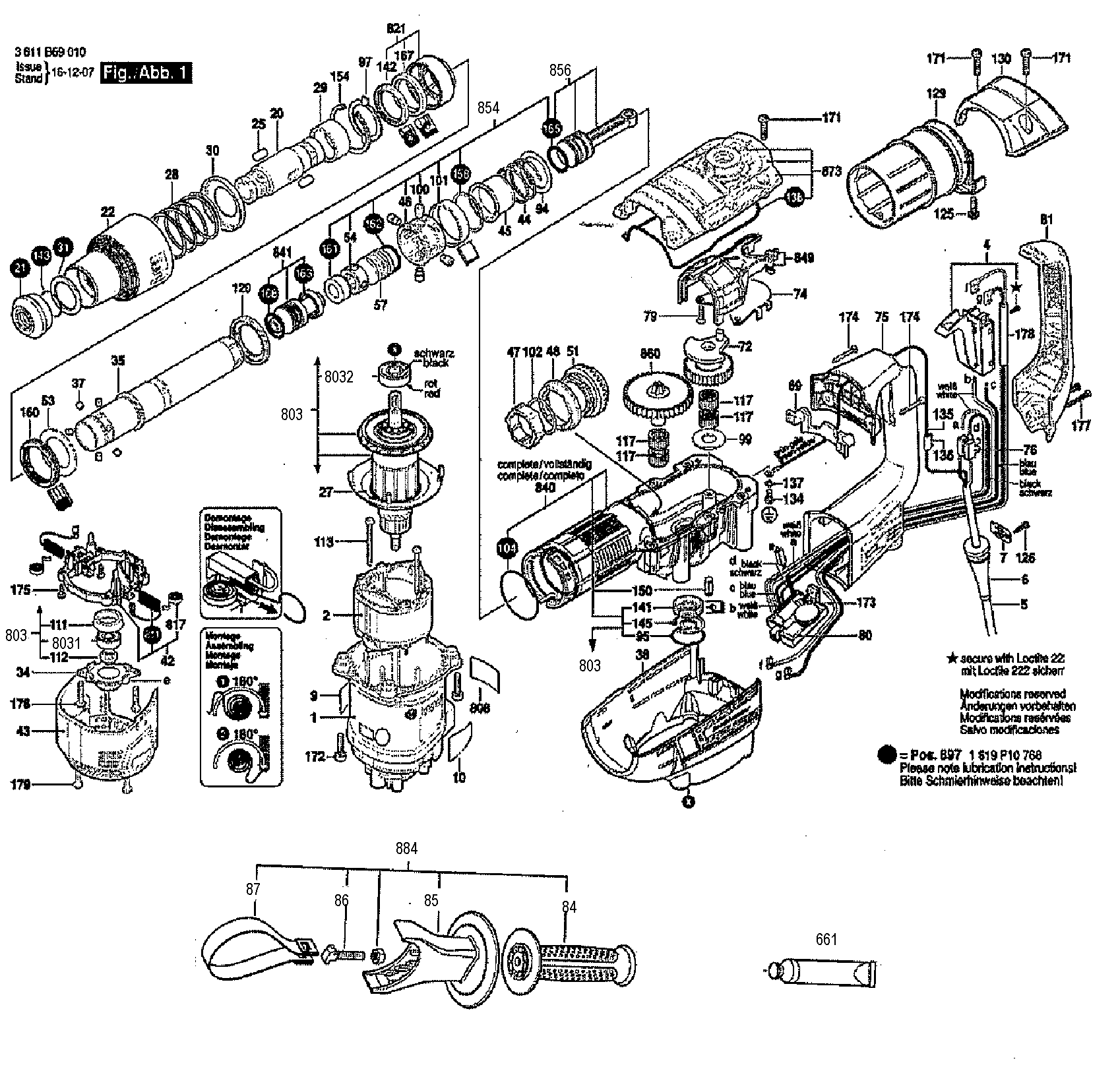

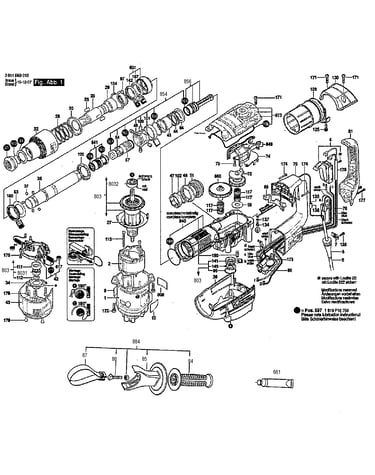

    Hammer drill diagram

    Hood Covering

    Part #1619P10168

    The manufacturer no longer makes this part, and there's no substitute part

  • Bosch Label for Bosch RH540M - Part 1619P10844

    Hammer drill diagram

    Bosch Label

    Part #1619P10844

    The manufacturer no longer makes this part, and there's no substitute part

  • Ball Bearing for Bosch RH540M - Part 1610905041

    Hammer drill diagram

    Ball Bearing

    Part #1610905041

    The manufacturer no longer makes this part, and there's no substitute part

  • Support Disc for Bosch RH540M - Part 1610102059

    Hammer drill diagram

    Support Disc

    Part #1610102059

    The manufacturer no longer makes this part, and there's no substitute part

  • Stop Sleeve for Bosch RH540M - Part 1610590019

    Hammer drill diagram

    Stop Sleeve

    Part #1610590019

    The manufacturer no longer makes this part, and there's no substitute part

  • Retaining Ring for Bosch RH540M - Part 1610499073

    Hammer drill diagram

    Retaining Ring

    Part #1610499073

    The manufacturer no longer makes this part, and there's no substitute part

  • Hammer Piston for Bosch RH540M - Part 1619P10765

    Hammer drill diagram

    Hammer Piston

    Part #1619P10765

    The manufacturer no longer makes this part, and there's no substitute part

  • Switch for Bosch RH540M - Part 1619P10396

    Hammer drill diagram

    Switch

    Part #1619P10396

    The manufacturer no longer makes this part, and there's no substitute part

  • Motor Housing for Bosch RH540M - Part 1619P07704

    Hammer drill diagram

    Motor Housing

    Part #1619P07704

    The manufacturer no longer makes this part, and there's no substitute part

  • Handle for Bosch RH540M - Part 1619P10176

    Hammer drill diagram

    Handle

    Part #1619P10176

    The manufacturer no longer makes this part, and there's no substitute part
