Briggs & Stratton
Lawn & Garden Engine

Model # 407777-0128 Official Briggs & Stratton engine

Here are the diagrams and repair parts for Official Briggs & Stratton 407777-0128 engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

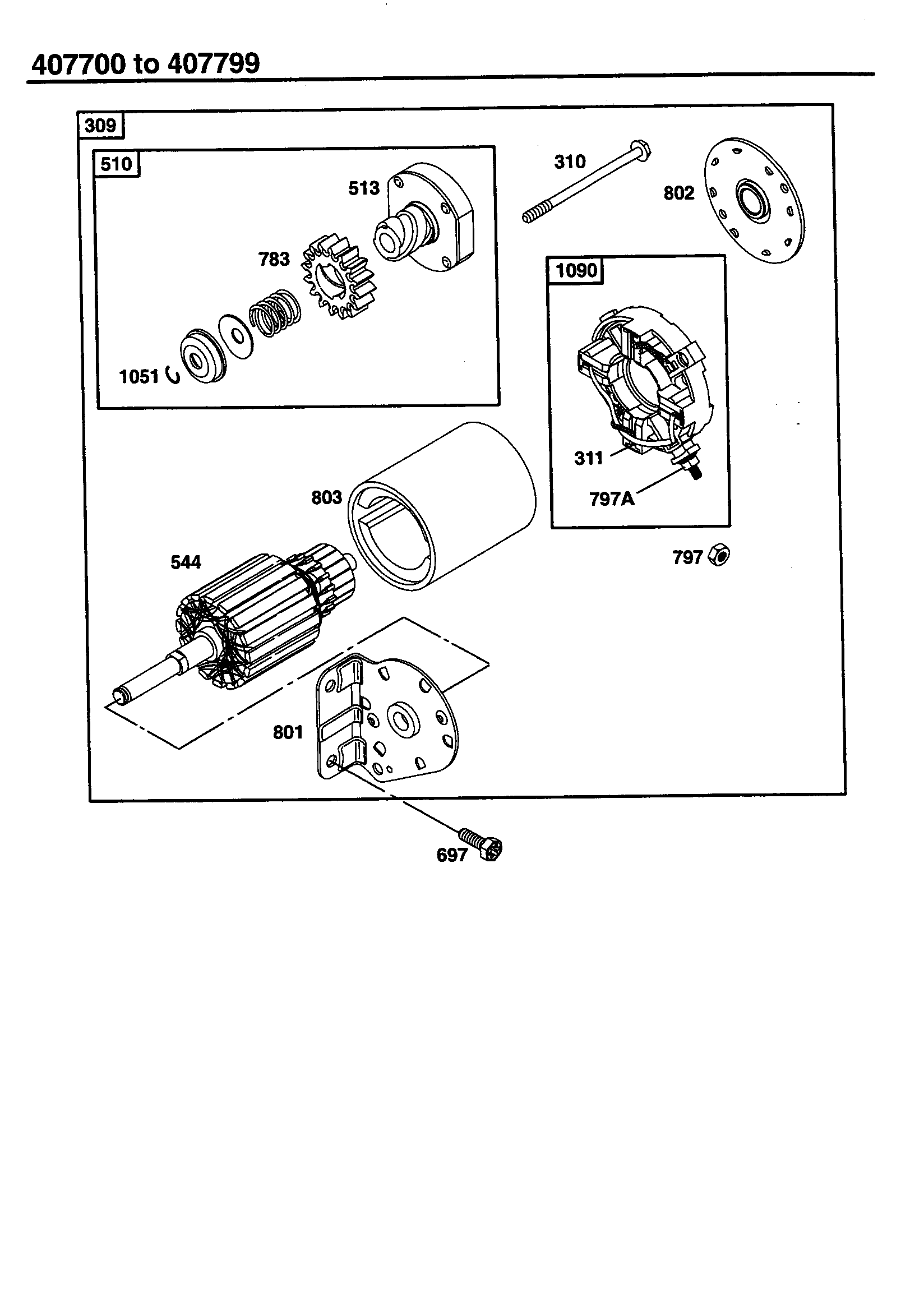

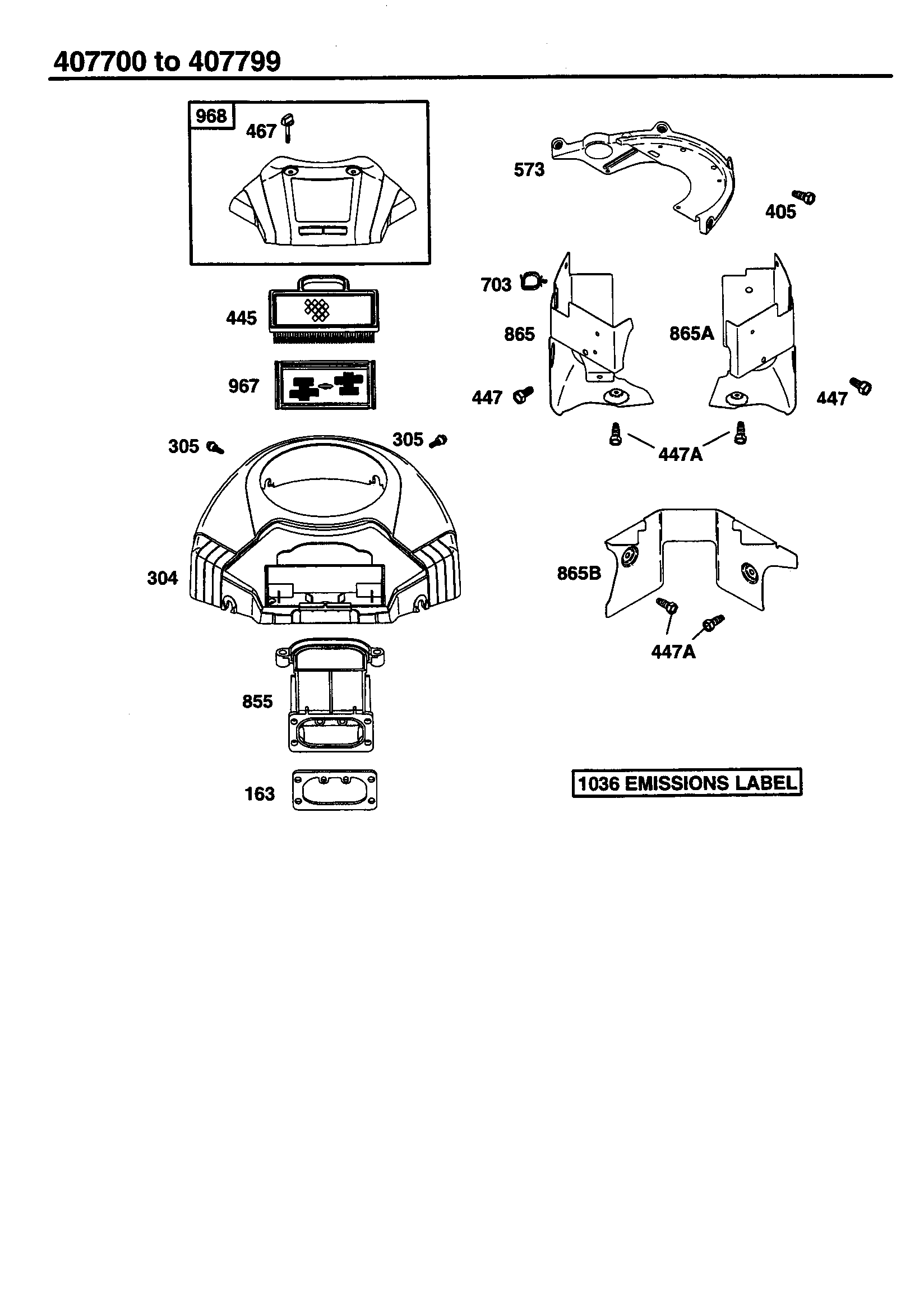

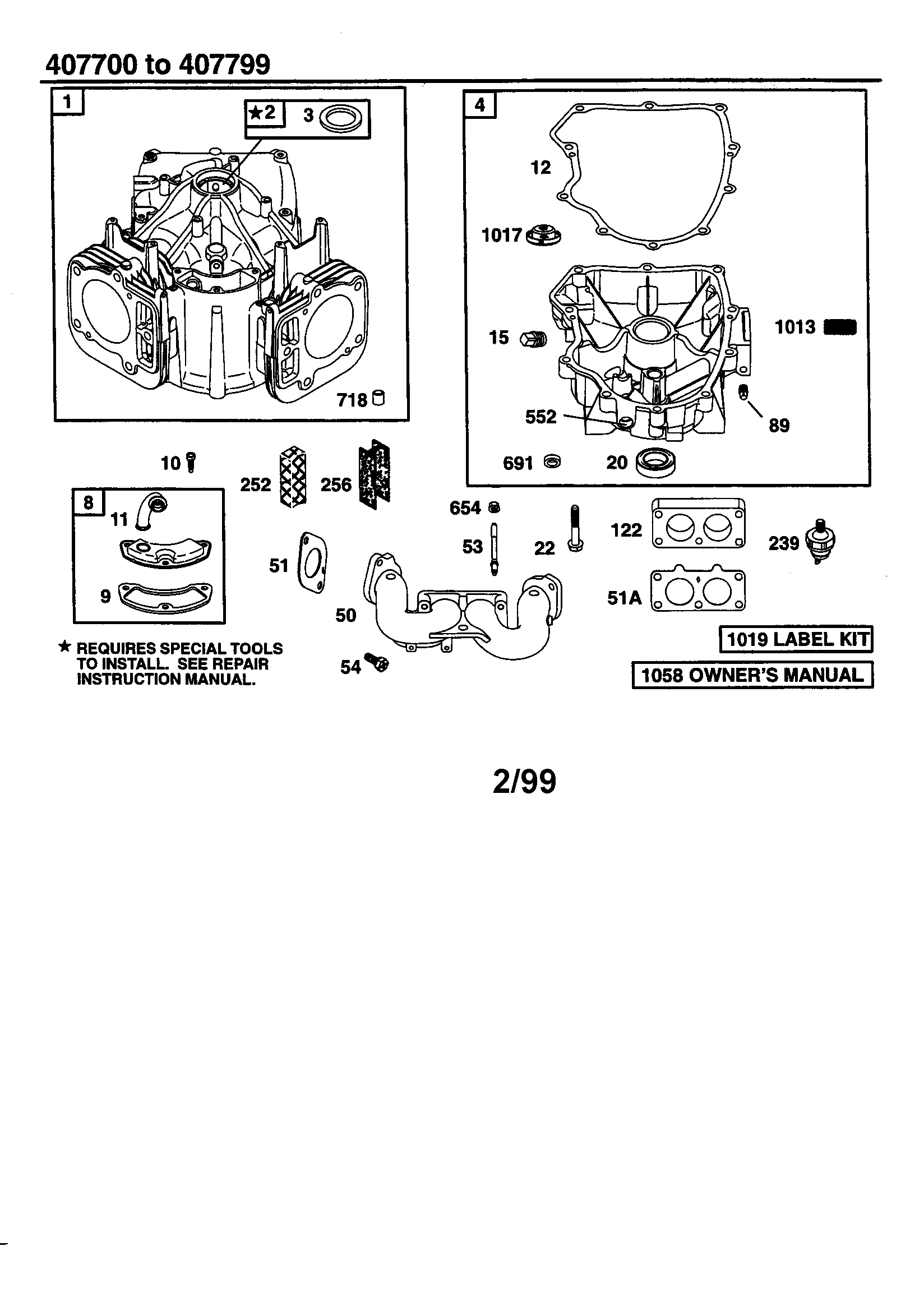

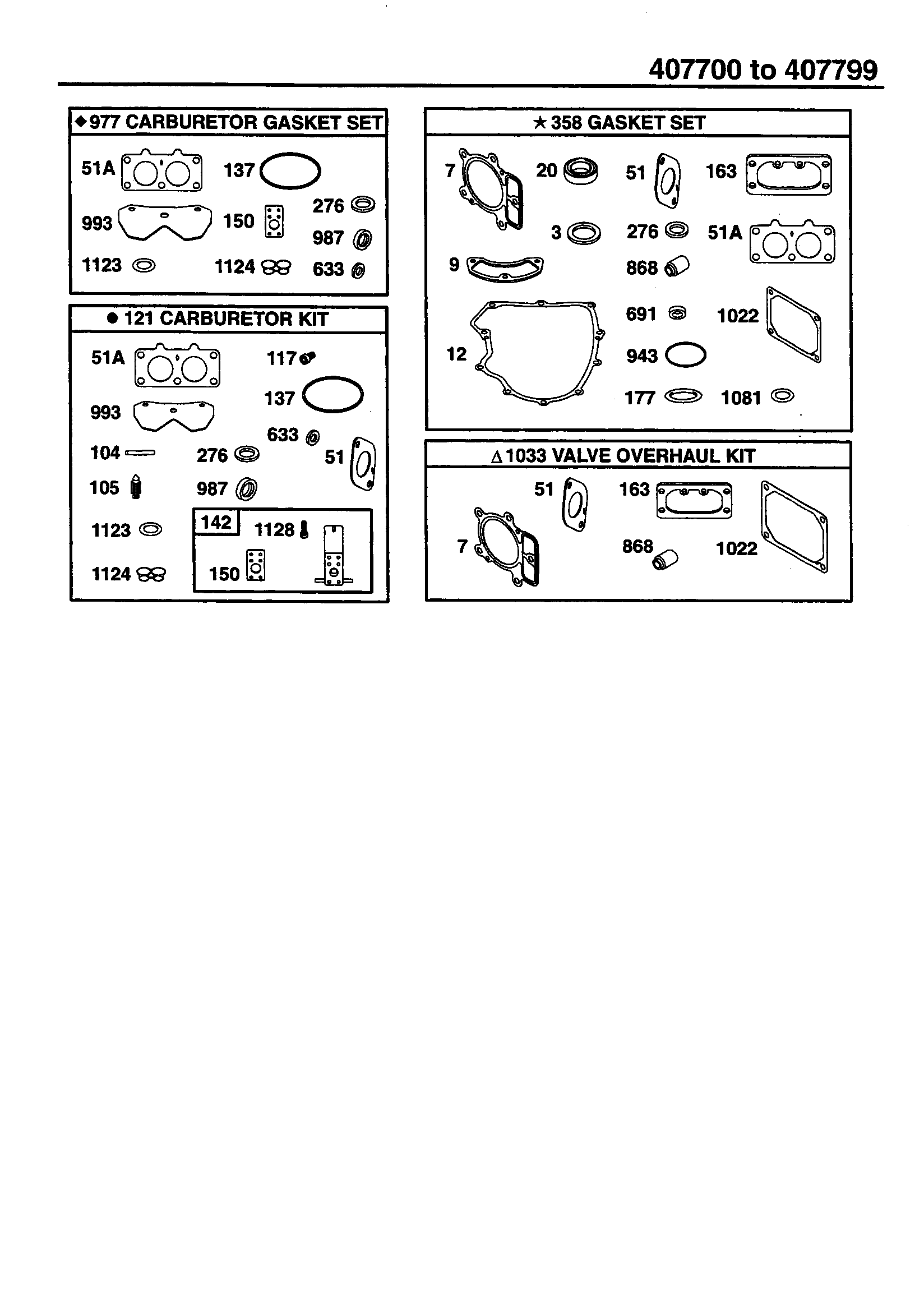

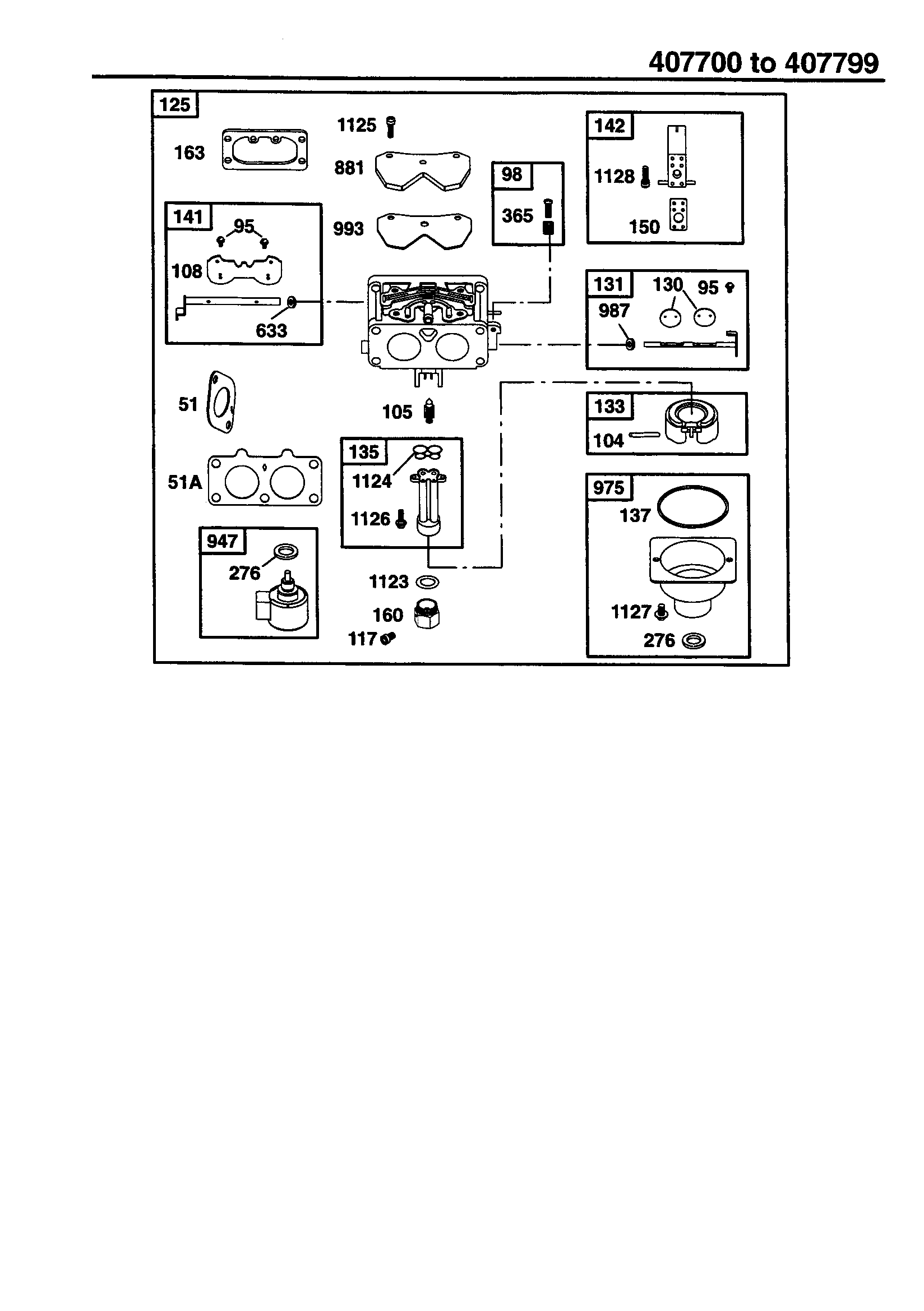

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 211 parts  |

Lawn & Garden Equipment Engine Inline Fuel Filter (replaces 691035, 80025019)
#240

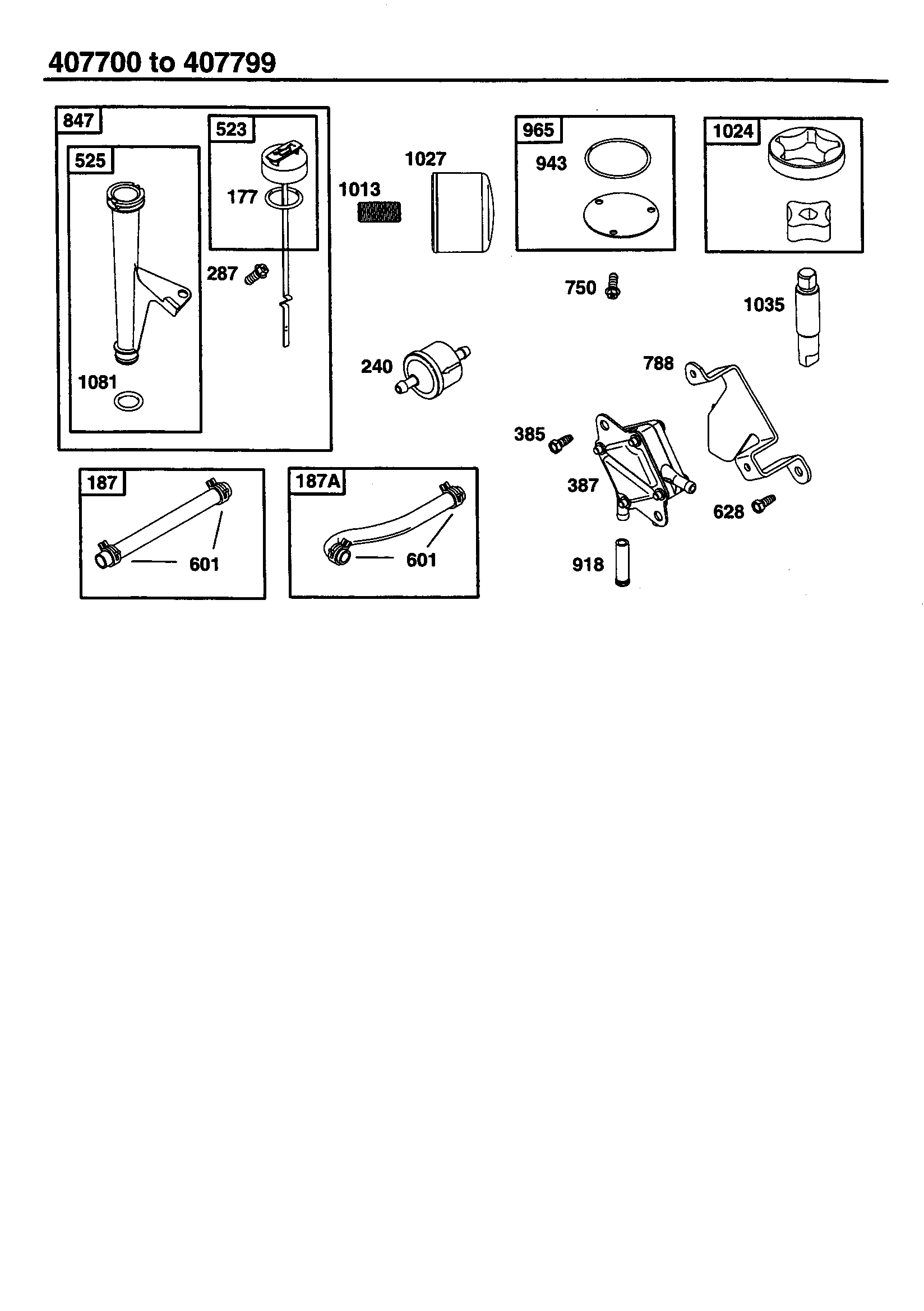

Dipstick and tube assembly diagram

Fuel filter

Part #493629

Replaced by #84001895

?
Manufacturer substitution
This part replaces 493629. Substitute parts can look different from the original.
BEST SELLER
In Stock
Lawn & Garden Equipment Engine Oil Filter (replaces 24603, 492932, 691041, 7045184YP, BS-492932S)
#1027

Dipstick and tube assembly diagram

Oil filter

Part #492932

Replaced by #492932S

?
Manufacturer substitution
This part replaces 492932. Substitute parts can look different from the original.
BEST SELLER
$14.42
7% OFF Phone Price : $15.45
In Stock
Lawn & Garden Equipment Engine Fuel Line (replaces 1734994SM, 327290MA, 691050, 7012638YP, 7032016YP, 7032956YP, 7041996YP, 7076272YP, 7077351YP, 791866, 798512, 809322, 809499)
#187

Dipstick and tube assembly diagram

Fuel line

Part #298049

Replaced by #791766

?
Manufacturer substitution
This part replaces 298049. Substitute parts can look different from the original.
BEST SELLER
$7.83
11% OFF Phone Price : $8.83
In Stock
Lawn & Garden Equipment Engine Spark Plug (replaces BS-691043)
#337

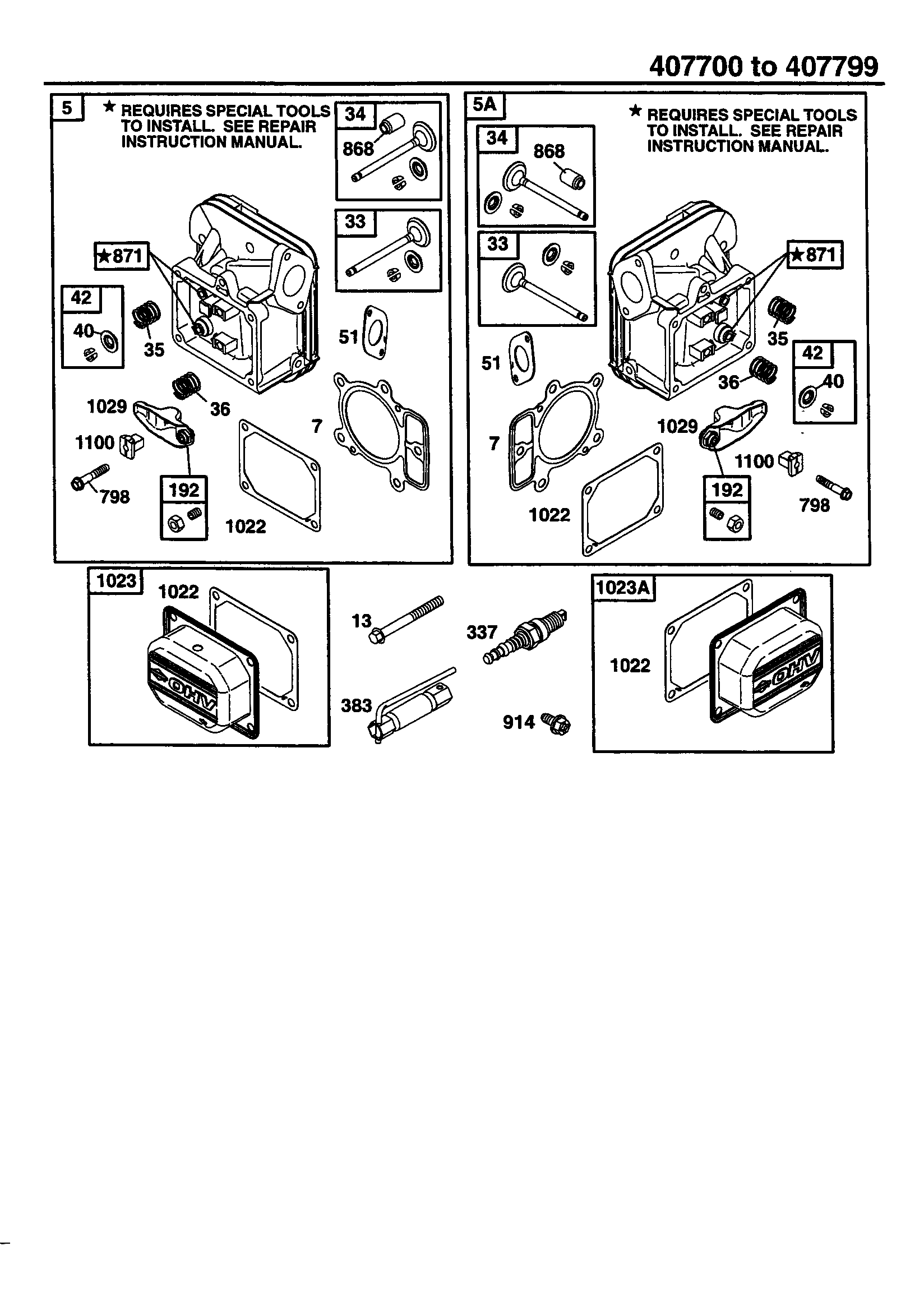

Cylinder head diagram

Lawn & garden equipment engine spark plug (replaces bs-691043)

Part #691043

BEST SELLER

Get free shipping with Automatic Reorder

$7.27
12% OFF Phone Price : $8.27
In Stock
Lawn & Garden Equipment Engine Fuel Pump (replaces 808656)
#387

Dipstick and tube assembly diagram

Fuel pump

Part #808281

Replaced by #597338

?
Manufacturer substitution
This part replaces 808281. Substitute parts can look different from the original.
BEST SELLER
$30.44
14% OFF Phone Price : $35.44
In Stock
Lawn & Garden Equipment Engine Flywheel Key (replaces 222698, 690974, BS-222698S)
#24

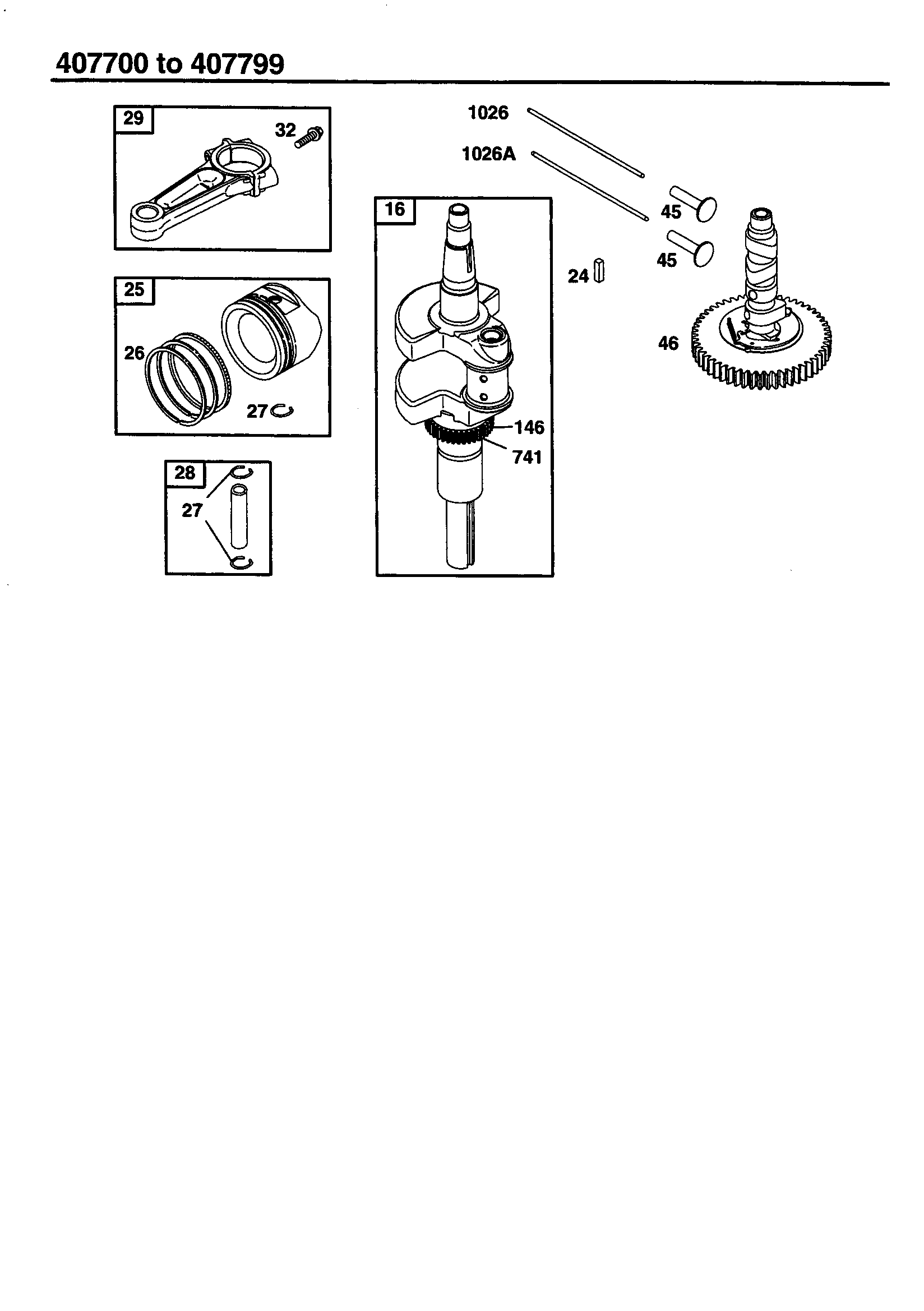

Crankshaft diagram

Key

Part #222698

Replaced by #222698S

?
Manufacturer substitution
This part replaces 222698. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.49
29% OFF Phone Price : $3.49
In Stock
Lawn & Garden Equipment Engine Governor Gear (replaces 698231)
#219

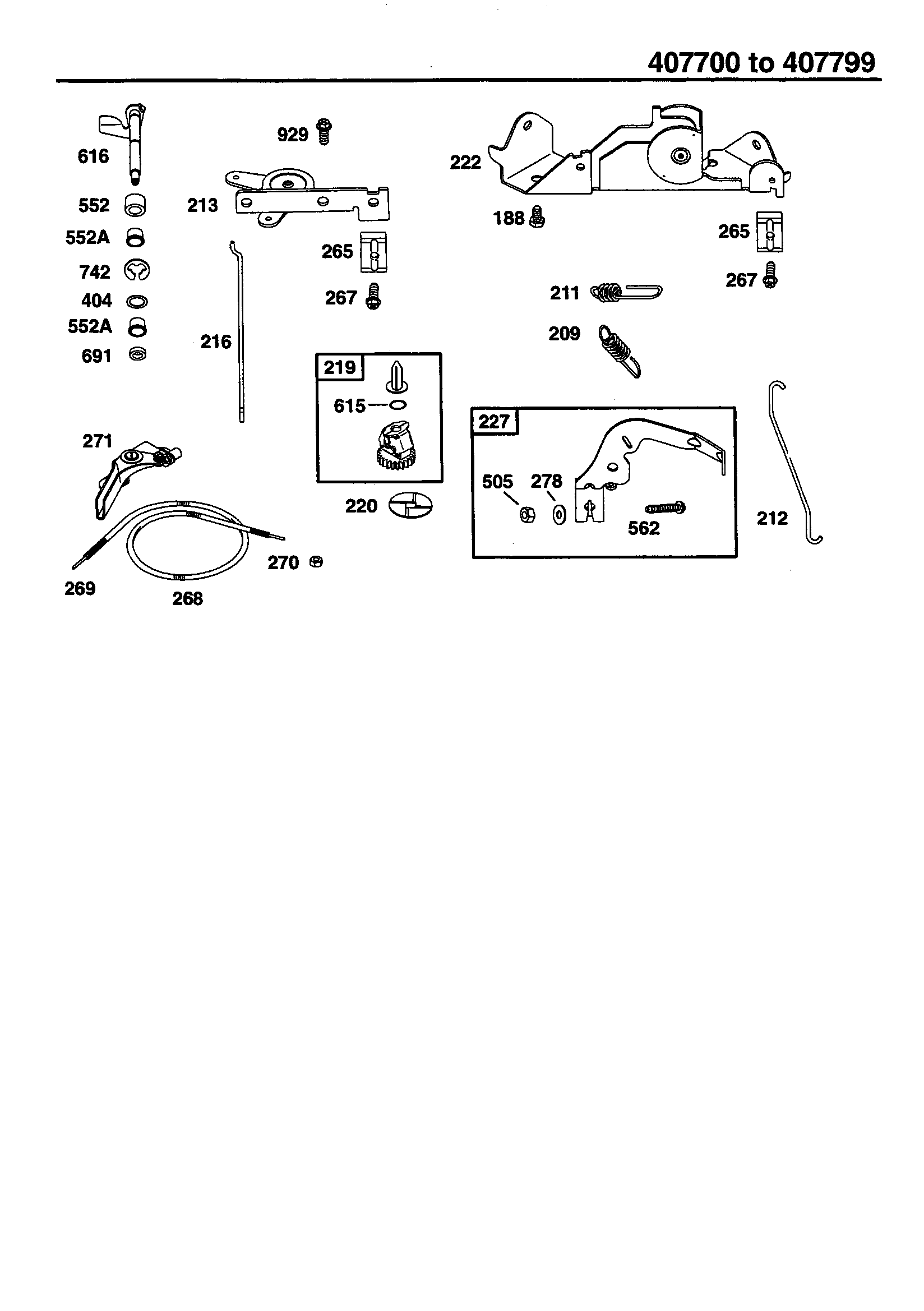

Governor diagram

Gear

Part #394348

Replaced by #793338

?
Manufacturer substitution
This part replaces 394348. Substitute parts can look different from the original.
BEST SELLER
$32.45
13% OFF Phone Price : $37.45
In Stock
Lawn & Garden Equipment Engine Oil Seal (replaces 791892, BS-795387)
Oil seal

Part #690947

Replaced by #795387

?
Manufacturer substitution
This part replaces 690947. Substitute parts can look different from the original.
BEST SELLER
$8.46
8% OFF Phone Price : $9.21
In Stock
Lawn & Garden Equipment Engine Ignition Coil (replaces 799651)
#333

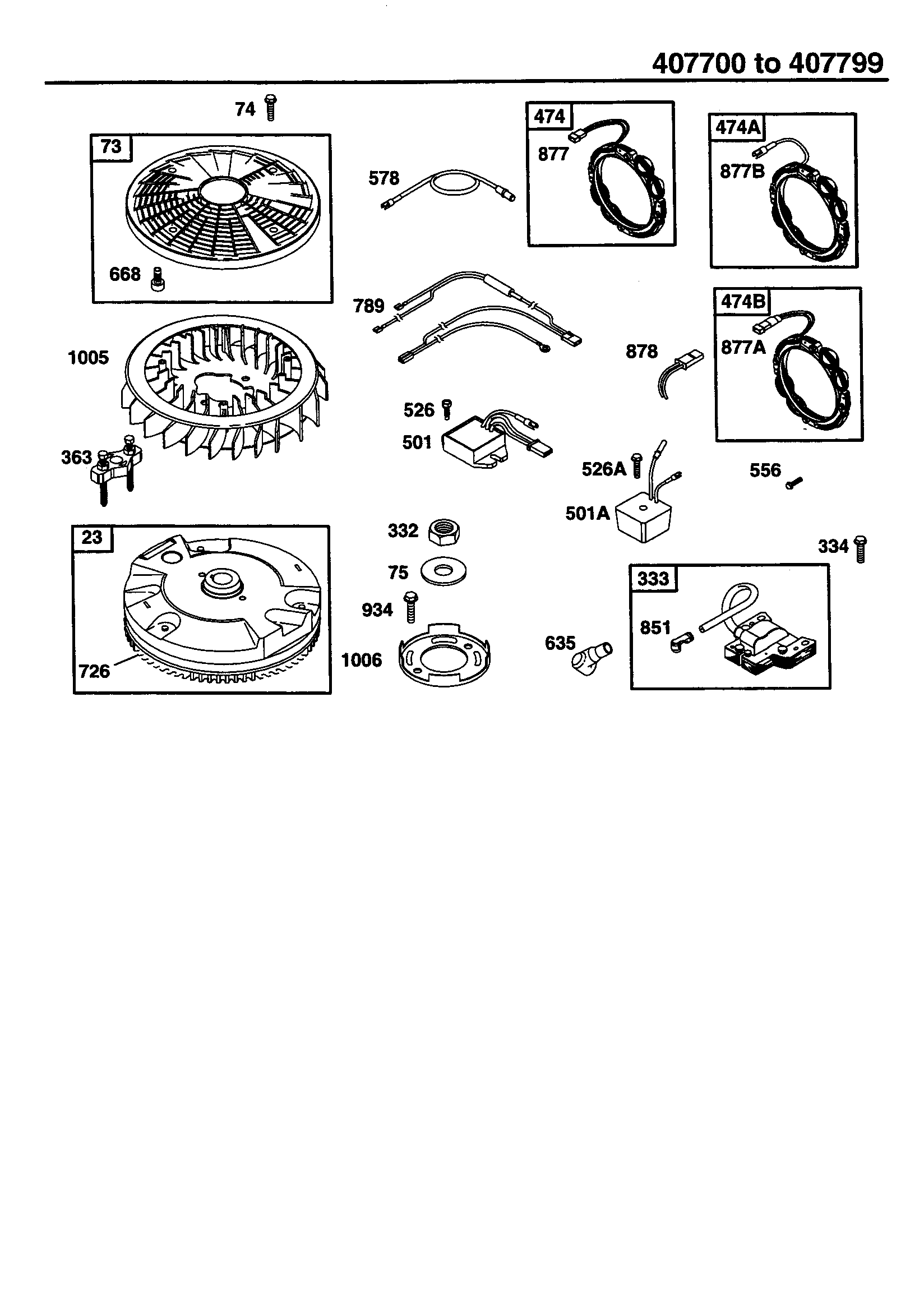

Armature and flywheel diagram

Lawn & garden equipment engine ignition coil

Part #691060

Replaced by #592846

?
Manufacturer substitution
This part replaces 691060. Substitute parts can look different from the original.
BEST SELLER
In Stock
Lawn & Garden Equipment Engine Intake Valve Push Rod (replaces 498746)
#1026A

Crankshaft diagram

Push rod

Part #498746

Replaced by #690982

?
Manufacturer substitution
This part replaces 498746. Substitute parts can look different from the original.
BEST SELLER
$10.55
16% OFF Phone Price : $12.55
In Stock
