Kenmore Elite
Bottom-Mount Refrigerator

Model #79571053012 Official Kenmore Elite refrigerator

Here are the diagrams and repair parts for Kenmore Elite 79571053012 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

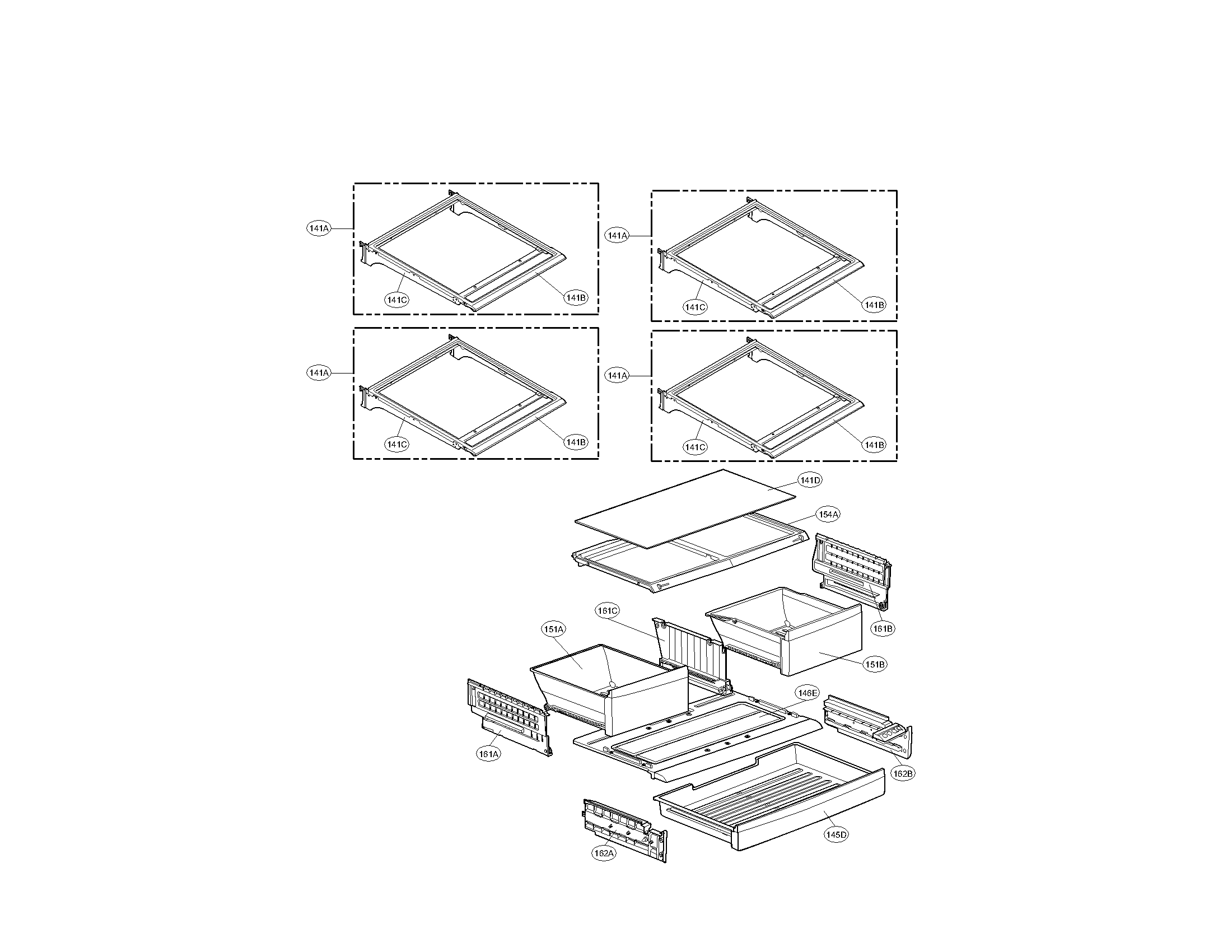

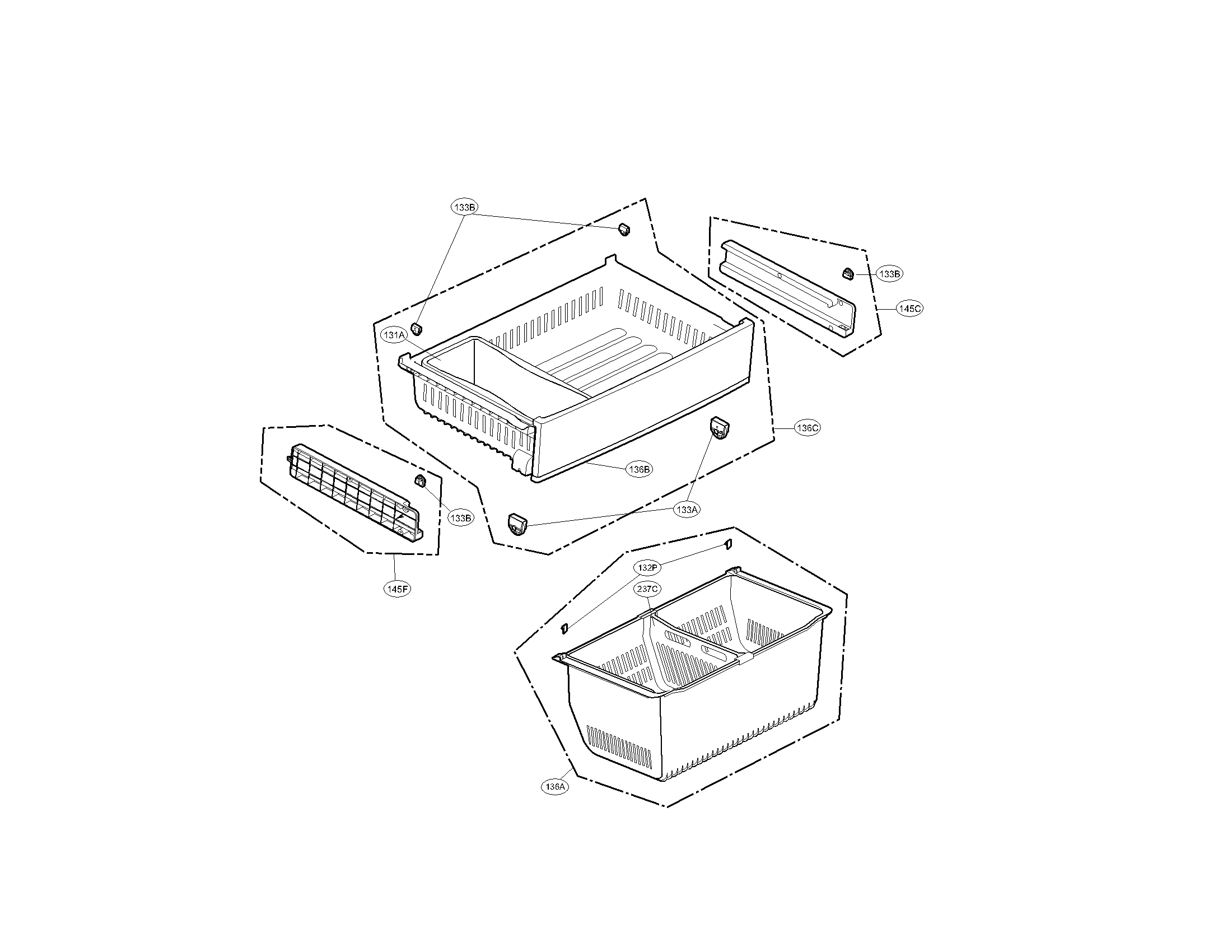

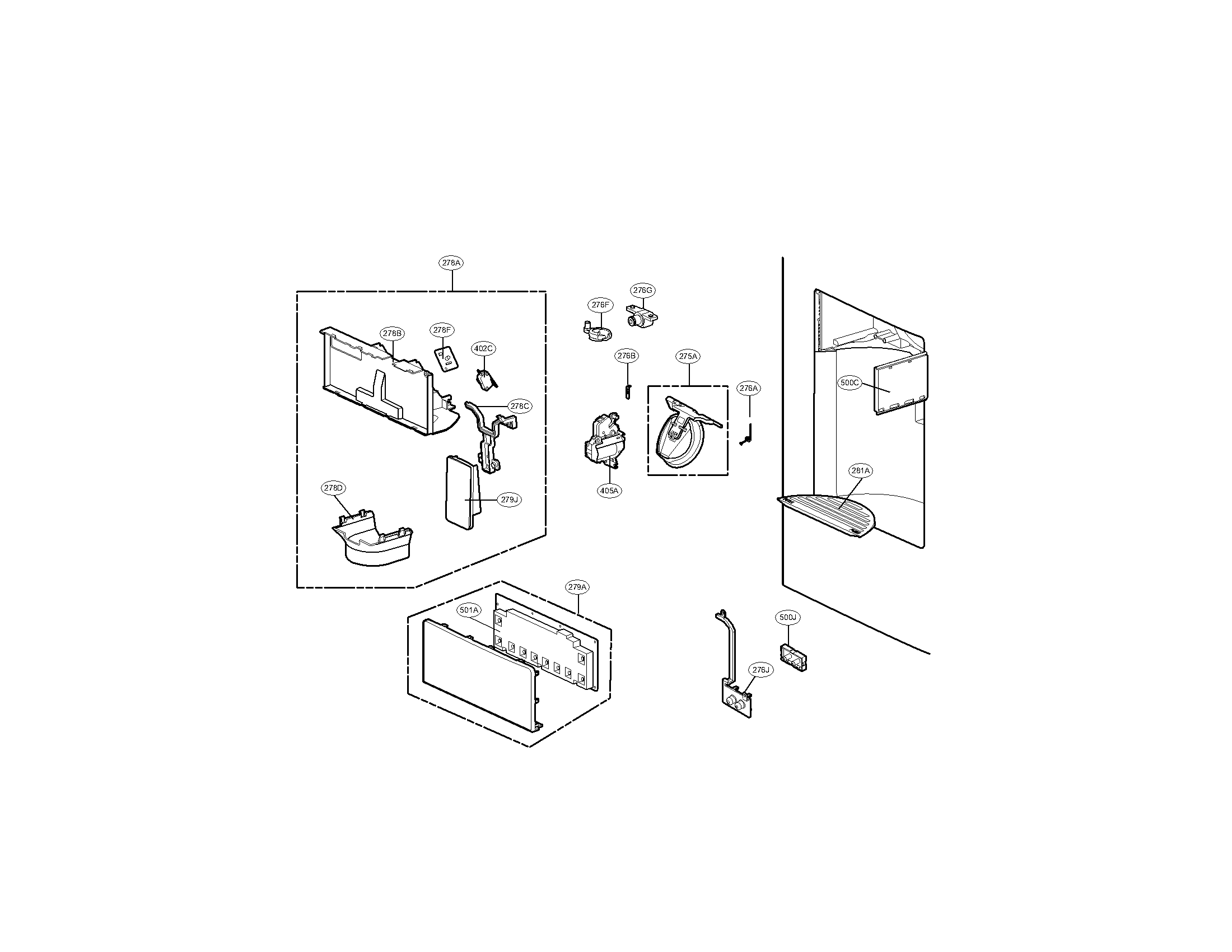

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manualError Codes
Search within this model
Parts List

Showing 10 of 205 parts

Genuine Kenmore Refrigerator Water Filter 9690#624A

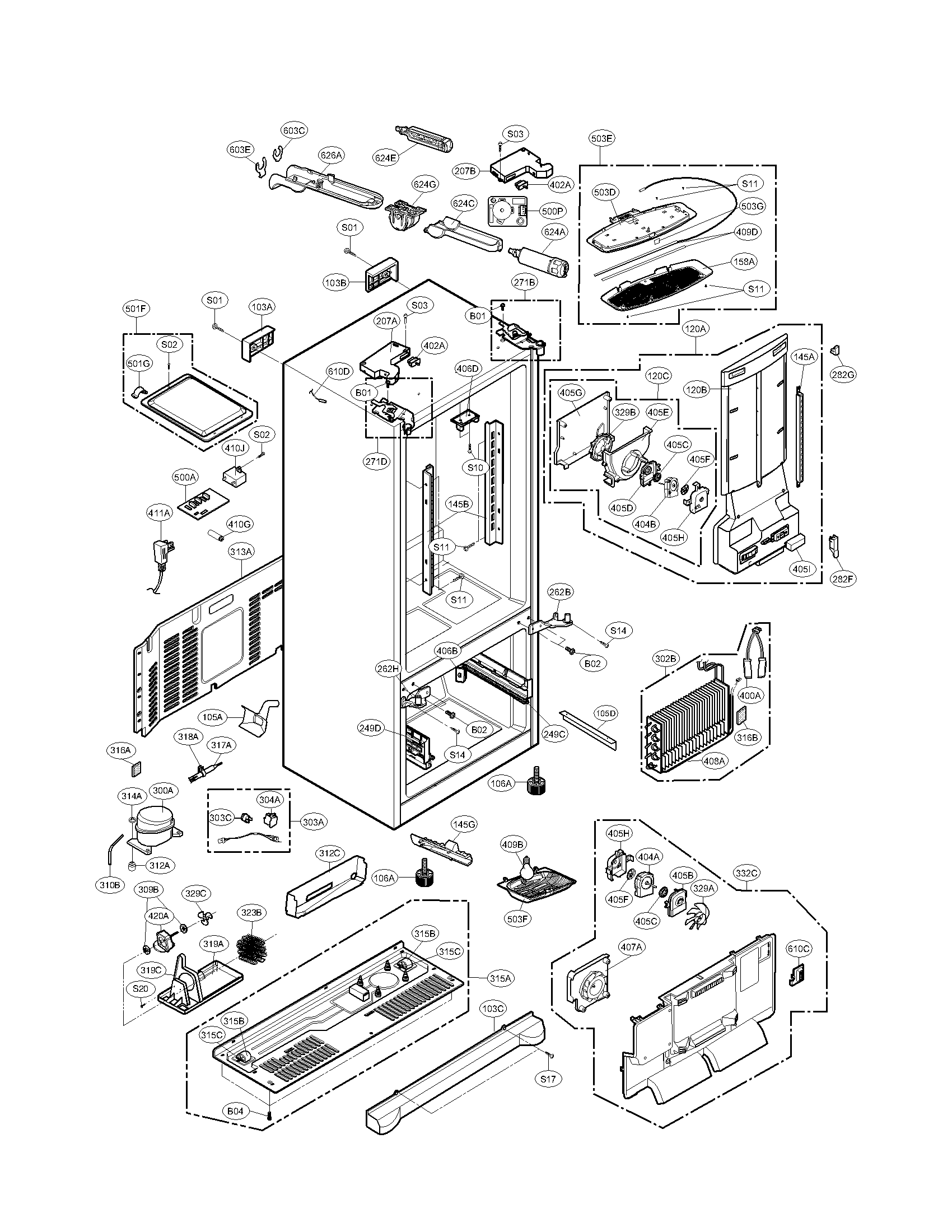

Case parts Diagram

Genuine kenmore refrigerator water filter 9690

Part #ADQ36006102
Replaced by #ADQ36006114
?
Manufacturer substitution
This part replaces ADQ36006102. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

In Stock
$67.95
Refrigerator Compressor (replaces TCA35271203, TCA35893202, TCA38091801)#300A

Case parts Diagram

Refrigerator compressor

Part #TCA35271201
Replaced by #TCA38151706
?
Manufacturer substitution
This part replaces TCA35271201. Substitute parts can look different from the original.
BEST SELLER
In Stock
$365.75 |
$10.00 OFF
Phone Price: $375.75
Refrigerator Door Bin (replaces AAP72909208)#241D

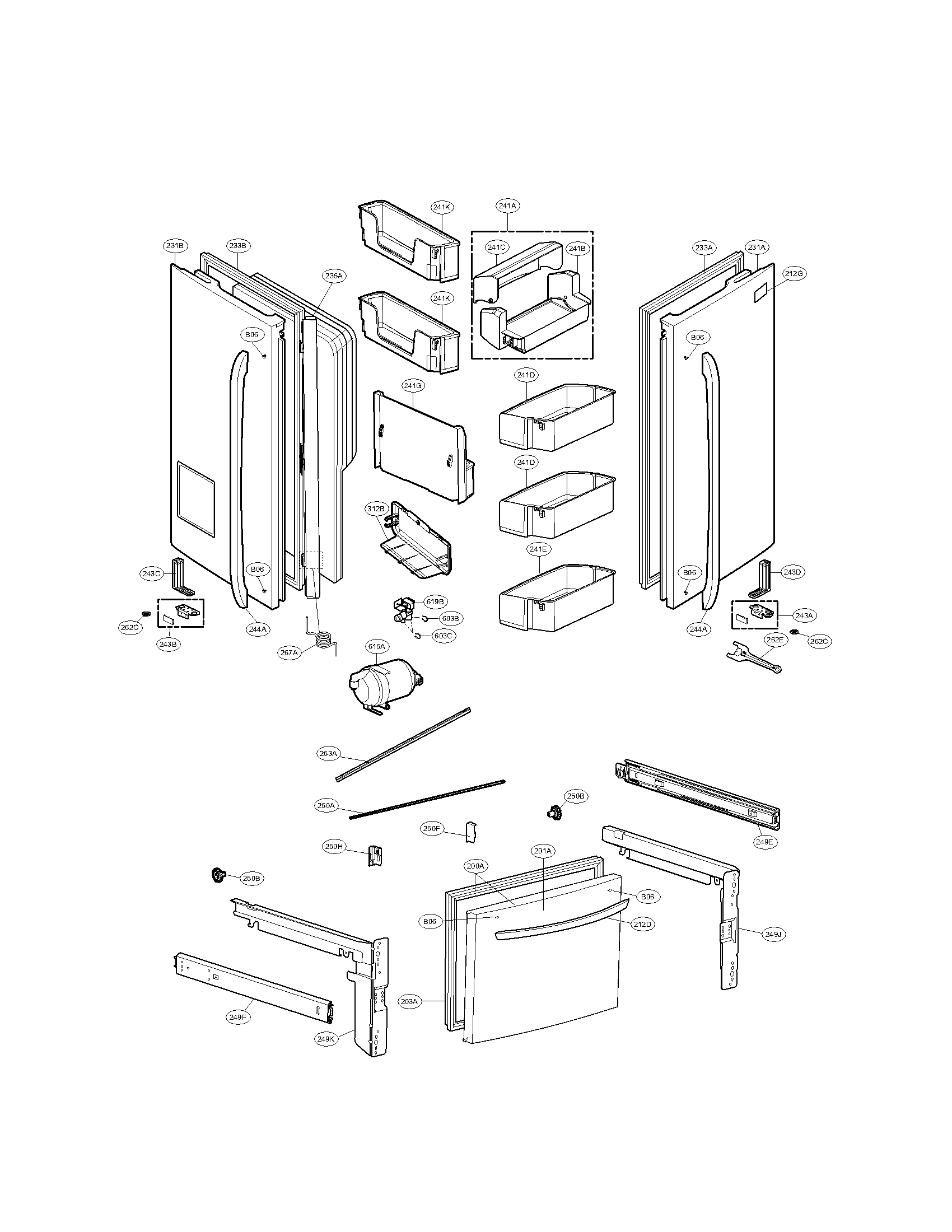

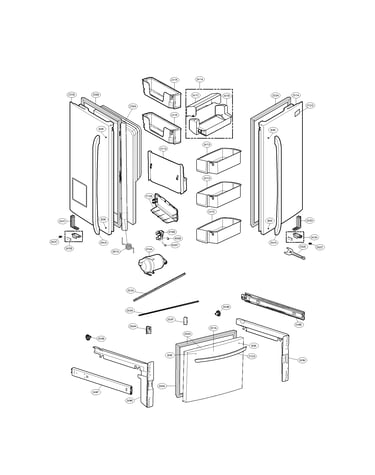

Door parts Diagram

Refrigerator door bin

Part #AAP72909208
Replaced by #AAP73631503
?
Manufacturer substitution
This part replaces AAP72909208. Substitute parts can look different from the original.
BEST SELLER
In Stock
$36.09 |
12% OFF
Phone Price: $41.09
Refrigerator Flipper Assembly (replaces AGU73530705, AGU73530708, AGU73530710, AGU73530711, AGU74110901, AGU74110904, AGU75188613, AGU75188618)#235A

Door parts Diagram

Refrigerator flipper assembly

Part #AGU72969102
Replaced by #AGU75188619
?
Manufacturer substitution
This part replaces AGU72969102. Substitute parts can look different from the original.
BEST SELLER
In Stock
$113.66 |
8% OFF
Phone Price: $123.66
Refrigerator Water Tubing (replaces 5210JA3004U, 5210JA3029U, MJU62070601, MJU62070606, MJU62070611, MJU62070615)#616F

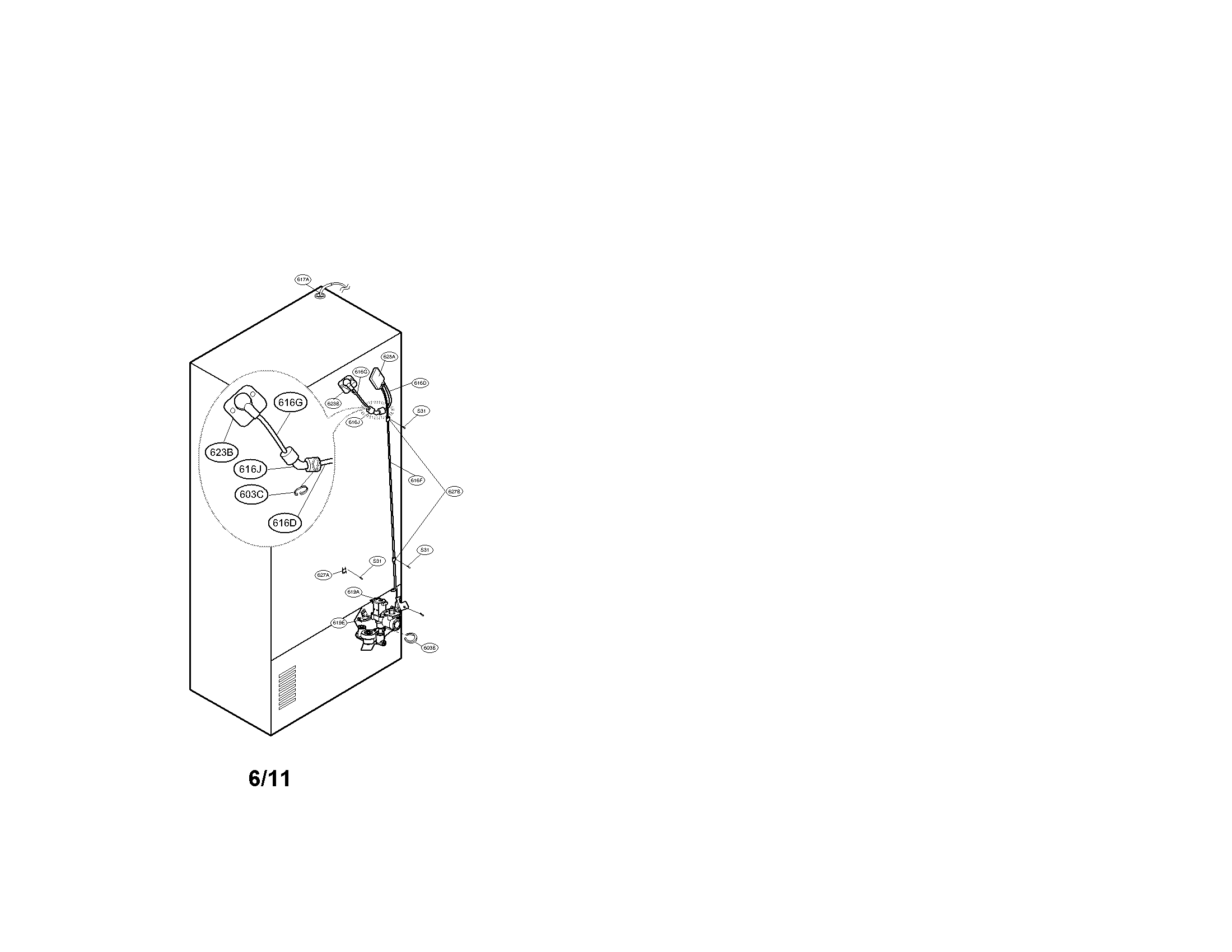

Valve and water tube parts Diagram

Refrigerator water tubing

Part #5210JA3029U
Replaced by #MJU62070602
?
Manufacturer substitution
This part replaces 5210JA3029U. Substitute parts can look different from the original.
BEST SELLER
In Stock
$8.85 |
10% OFF
Phone Price: $9.85
Refrigerator Ice Maker (replaces AEQ72910401, AEQ72910405, AEQ72910406, AEQ72910408)#600A

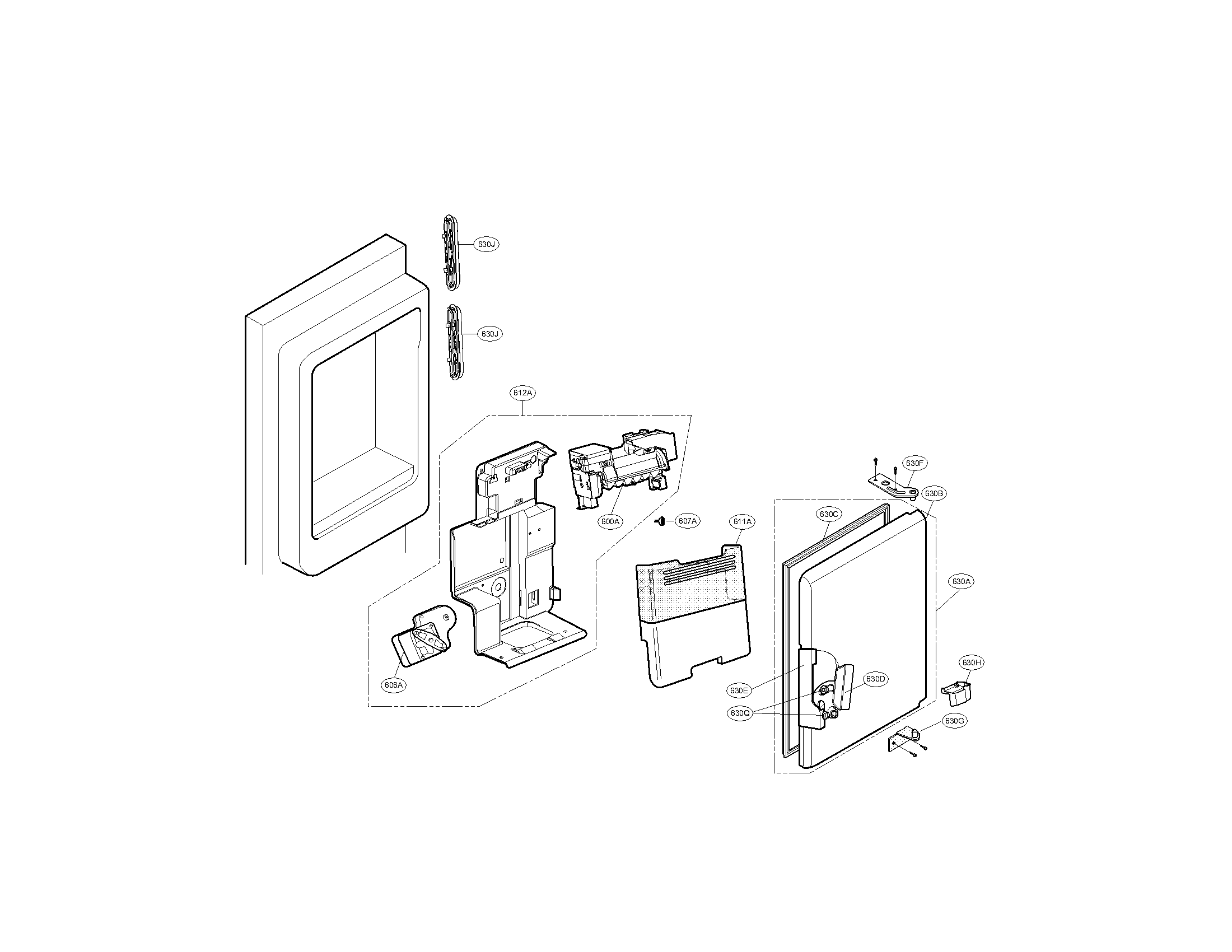

Icemaker and ice bin parts Diagram

Refrigerator ice maker assembly

Part #AEQ72910408
Replaced by #AEQ73110205
?
Manufacturer substitution
This part replaces AEQ72910408. Substitute parts can look different from the original.
BEST SELLER
In Stock
$161.24 |
6% OFF
Phone Price: $171.24
Refrigerator Spring (replaces MHY62044103)#267A

Door parts Diagram

Refrigerator spring (replaces mhy62044103)

Part #MHY62044106
BEST SELLER
In Stock
$8.54 |
10% OFF
Phone Price: $9.54
Refrigerator Door Bin#241E

Door parts Diagram

Refrigerator door bin

Part #AAP72909212

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Door Gasket, Right (replaces ADX72930405, ADX72930424)#233A

Door parts Diagram

Refrigerator door gasket, right

Part #ADX72930405
Replaced by #ADX73550624
?
Manufacturer substitution
This part replaces ADX72930405. Substitute parts can look different from the original.
BEST SELLER
In Stock
$40.52 |
11% OFF
Phone Price: $45.52
Refrigerator Door Gasket, Left (replaces ADX72930401, ADX72930421)#233B

Door parts Diagram

Gasket asy,d

Part #ADX72930401
Replaced by #ADX73550621
?
Manufacturer substitution
This part replaces ADX72930401. Substitute parts can look different from the original.
BEST SELLER
In Stock
$50.27 |
9% OFF
Phone Price: $55.27

Symptoms common to all refrigerators

Choose a symptom to see related refrigerator repairs.

Main causes: jammed ice cubes, broken ice maker assembly, dirty water filter, kinked water line, bad water valve, freezer not cold enough
Main causes: damaged door seal, faulty defrost sensor or bi-metal thermostat, broken defrost heater, bad defrost timer or control board
Main causes: leaky door gasket, defrost system failure, evaporator fan not running, dirty condenser coils, condenser fan not running
Main causes: control board or cold control failure, broken compressor start relay, compressor motor failure, defrost timer problems
Main causes: water valve leaking, frozen or broken defrost drain tube, overflowing drain pan, cracked water system tubing, leaking door seal
Things to do: clean condenser coils, replace the water filter, clean the interior, adjust doors to prevent air leaks, clean the drain pan
Main causes: blocked air vents, compressor problems, condenser or evaporator fan not working, control system failure, sensor problems
Main causes: blocked vents, defrost system problems, evaporator fan failure, dirty condenser coils, bad sensors, condenser fan not working
