Samsung DV431AEP/XAA-02 dryer Parts

To find the correct part number for your Samsung dryer, start by confirming the full model number from the rating label (for this page, the model is DV431AEP). Then match your symptom or the part location to the parts list for that model, or cross-reference diagrams and notes in the owner's manual.

On most Samsung dryers like DV431AEP, the model and serial label is typically found in one of these places:

• On the front frame behind the dryer door (open the door and check the cabinet opening)
• On the door opening area near the lint screen housing (varies by design)
• On the back panel of the dryer cabinet
• On the side panel near the rear (less common)

Samsung often uses similar-looking dryers with different internal parts. Using the exact model number prevents ordering a belt, heating element, or thermostat that does not fit your specific configuration.

Use the part category and the symptom to narrow it down:

• No heat or weak heat: check heating and temperature-sensing parts
• Squealing, thumping, or drum not turning: check drum support and drive parts
• Overheating or shutting off: check safety thermostats and thermal fuses
• Long dry times: check airflow first (lint screen, venting, blower wheel)

• Match the model number exactly (DV431AEP) before selecting a part
• Compare the part name and part number to your old part when possible
• If multiple similar parts appear (for example, thermal fuses), match by location and temperature rating
• Check for related parts that are commonly replaced together (belt with rollers, thermal fuse with vent cleaning)

Last updated: February 2026

Yes. For a Samsung DV431AEP dryer, replacing the heating element is usually worth it when the dryer otherwise runs normally (drum turns, controls work) because a failed element is a common, fixable cause of “no heat” and costs far less than replacing the dryer.

We recommend replacing the heating element when you see heat-related symptoms but the dryer is in good overall condition:

• Dryer tumbles but clothes stay cold or take much longer to dry
• No burning smell from wiring, and no repeated shutdowns
• You have steady airflow at the exhaust (after cleaning lint and venting)
• The problem is consistent across cycles and temperature settings
• The dryer is not showing multiple unrelated issues (noise, intermittent power, door problems)

A good starting point is the diagnostic and access steps in the DV431AEP owner's manual.

On electric dryers, “no heat” can be the element itself or a safety device that opened because of overheating or restricted airflow.

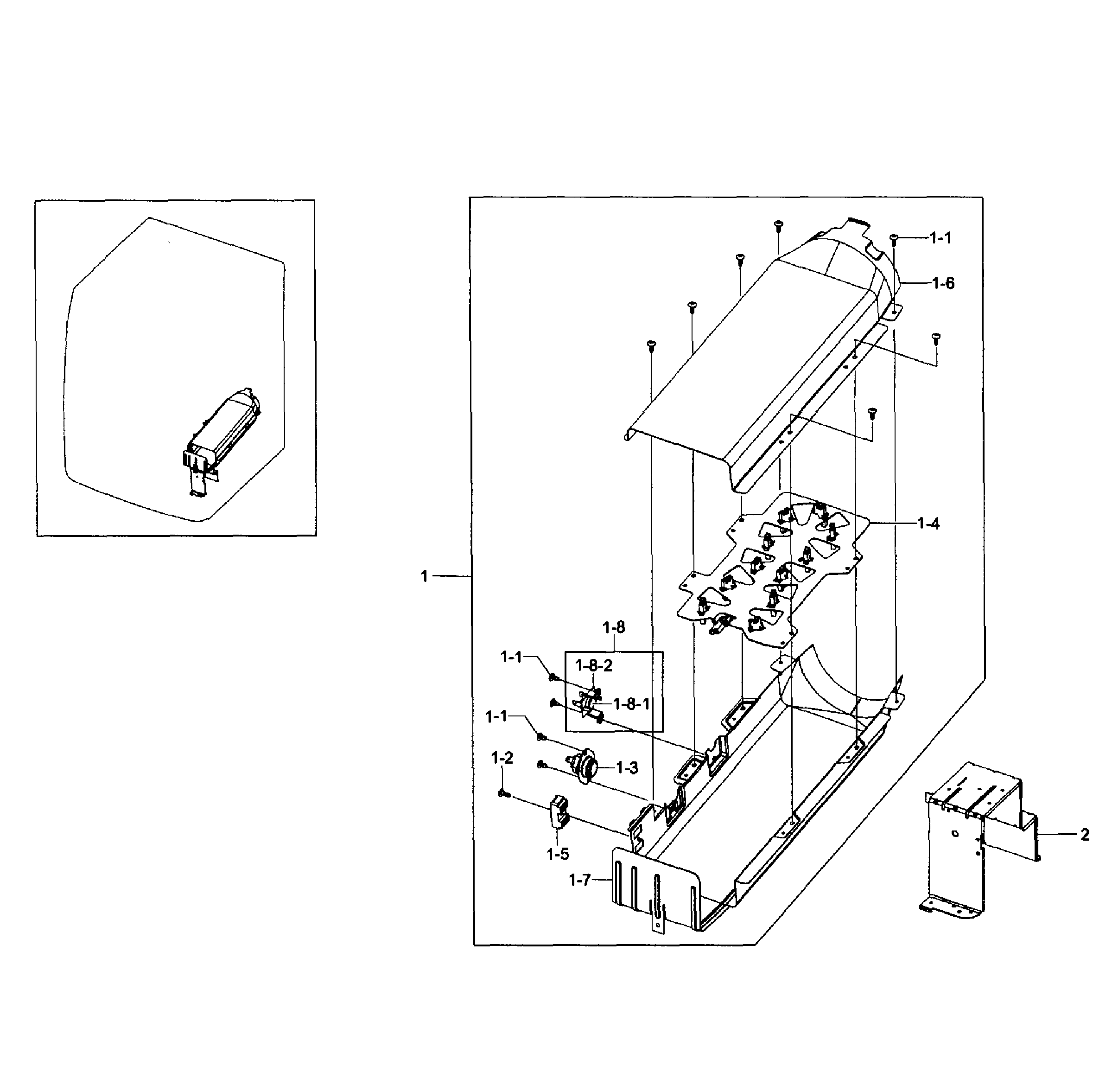

• Samsung dryer heating element DC47-00019A
• Dryer high-limit thermostat DC47-00018A
• Dryer thermal cut-off fuse, 320-degree f DC47-00015A
• Dryer thermistor DC32-00007A

A heating element often fails from age and heat stress, but overheating is frequently caused by lint buildup or a restricted vent. Fixing airflow at the same time helps the new part last longer and improves drying performance.

Use this checklist to avoid repeat failures:

• Clean the lint screen and lint screen housing
• Inspect and clear the vent duct to the outside
• Confirm the dryer is on the correct power supply (electric dryers need full 240V to heat)
• Check for signs of overheating at connections (discolored terminals)

For step-by-step troubleshooting, we also use the Samsung dryer error codes guide when an error is displayed.

Last updated: February 2026

Common problems we see with Samsung dryers like model DV431AEP are no heat, long dry times, the drum not turning, loud squealing or thumping, and the dryer stopping mid-cycle. Most of these issues trace back to airflow restrictions, normal wear on drum-drive parts, or failed heating and safety components.

• No heat or weak heat: failed heating circuit parts (heater, thermostat, thermal cut-off) or poor airflow
• Takes too long to dry: clogged lint screen, blocked venting, weak blower airflow, or incorrect cycle settings

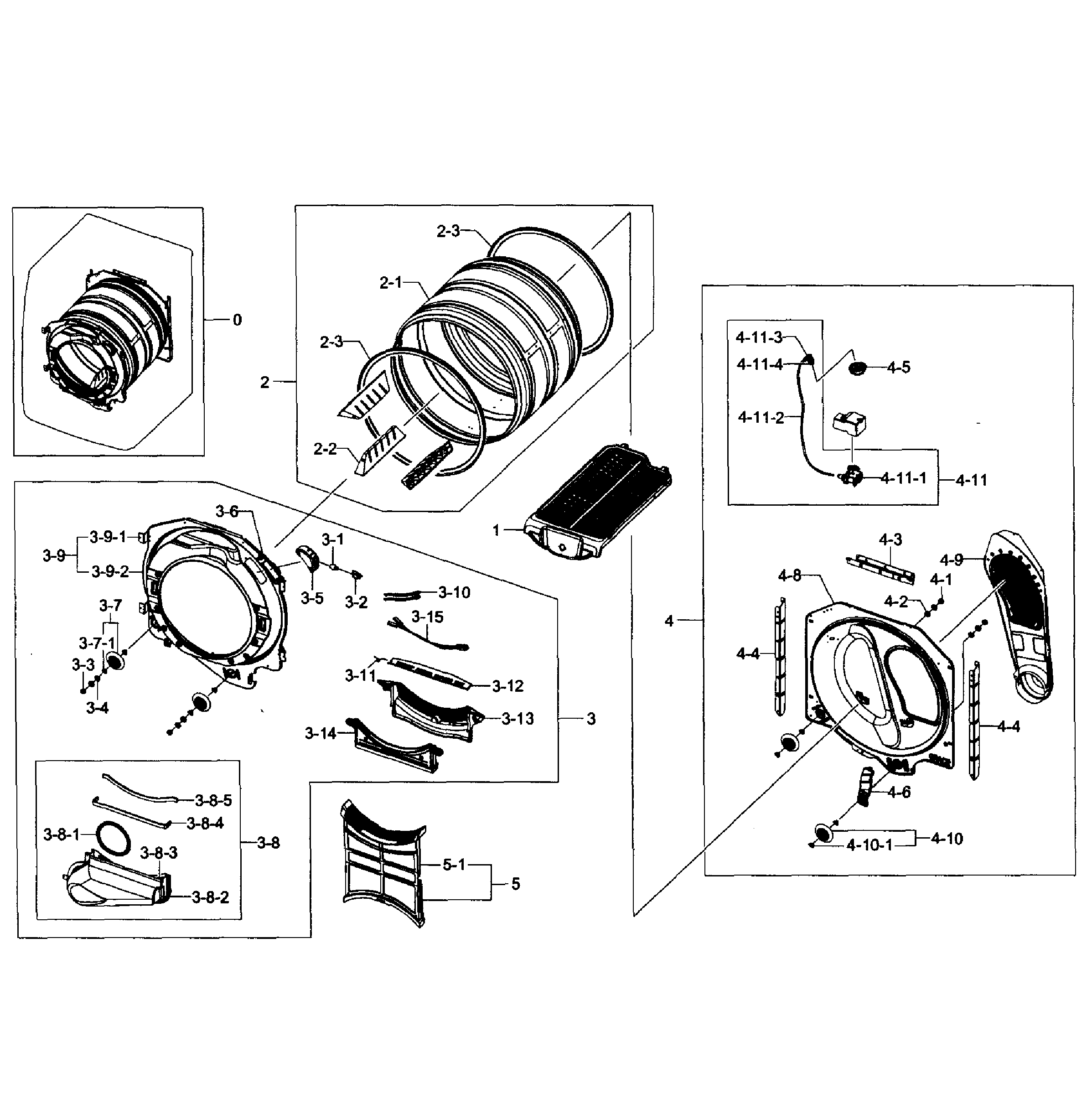

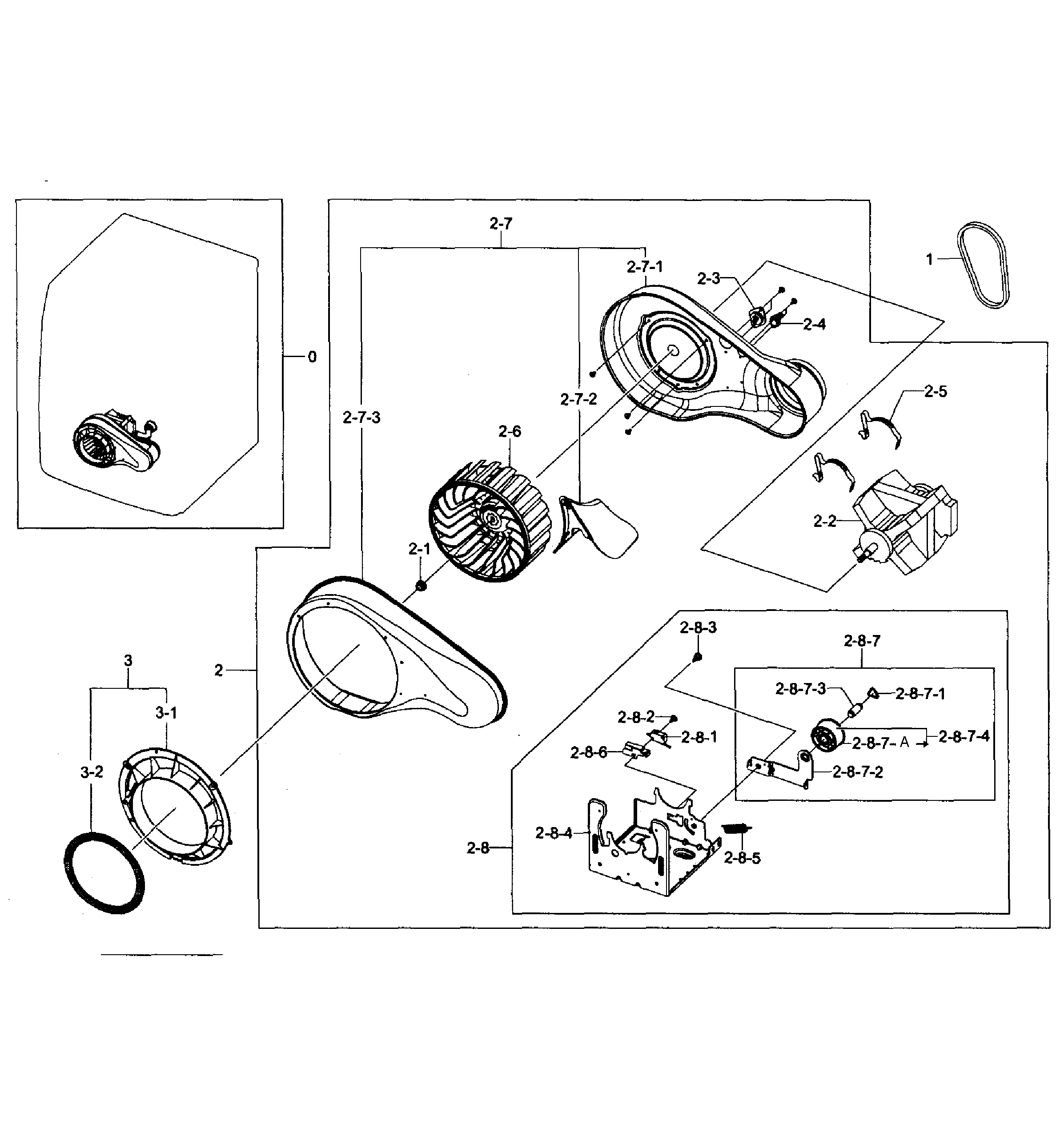

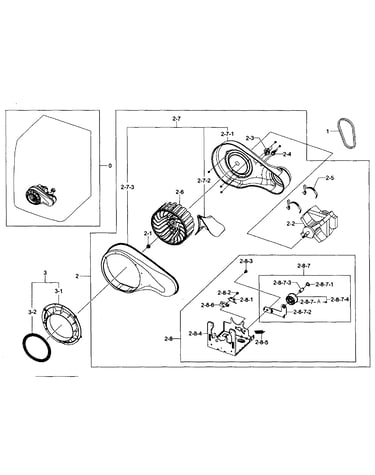

• Drum not spinning: worn or broken belt, seized drum rollers, or a failing drive motor
• Loud squeal, rumble, or thump: worn drum support rollers, drum seal wear, or blower wheel damage
• Shuts off mid-cycle: overheating from restricted venting or a temperature-sensing problem

If your troubleshooting points to a failed component, these are common replacements for this model:

1. Clean the lint screen and confirm the housing is not packed with lint.
2. Check airflow at the outside vent hood; weak airflow usually means a restriction.
3. Avoid overloading; heavy loads strain the belt, rollers, and motor.
4. Listen for the type of noise (squeal vs. thump vs. scraping) to narrow the likely wear part.
5. Review cycle and temperature settings to match the fabric load.

A restricted vent can cause long dry times and overheating, which can repeatedly trip thermal safety parts. Fixing airflow first often prevents repeat failures and helps the heater and thermostats last longer.

For model-specific disassembly notes, wiring references, and diagnostic guidance, use the DV431AEP owner’s manual.

Last updated: February 2026

A Samsung dryer typically lasts 10 to 14 years. For your Samsung DV431AEP, regular airflow maintenance (lint screen and venting) and prompt repair of wear items like the drum belt and rollers are the biggest factors in reaching that lifespan.

• Vent restriction (long dry times, overheating, extra strain on the heater and thermostats)
• Lint buildup inside the cabinet and blower housing
• Overloading (accelerates belt, roller, and motor wear)
• Heat stress from poor airflow (can trip thermal cut-offs)
• Ignoring early noises (thumping or squealing often points to rollers or belt issues)

• Clean the lint screen every load.
• Inspect and clean the vent path regularly; keep the run short and free of kinks.
• Do not run the dryer with a crushed or clogged vent; overheating shortens heater and thermostat life.
• If drying times increase, address airflow first before replacing parts.
• Follow the care and cleaning schedule in the owner's manual.

Most “dryer died early” situations come from overheating due to restricted airflow, which can damage the heating circuit and safety devices. Keeping airflow strong reduces stress on parts like the heating element, high-limit thermostat, and thermal cut-off.

Last updated: February 2026
