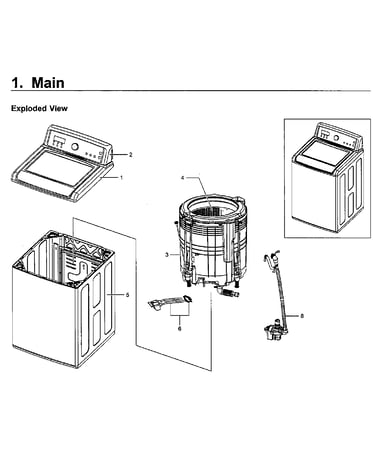

Samsung WA5471ABP/XAA-01 washer Parts

The Samsung WA5471ABP washer has a 4.7 cu. ft. capacity, which is considered a large-capacity top-load washer for handling bulky loads like comforters and towels. For cycle and load-size guidance specific to your washer, use the WA5471ABP owner's manual.

What 4.7 cu. ft. means for everyday loads

A 4.7 cu. ft. tub is designed for fewer loads per week and better handling of bulky items.

• Wash bulky items (comforters, blankets) with more room to move
• Fit larger mixed loads (jeans, towels, sweatshirts) more comfortably
• Reduce overfilling, which helps spin performance and rinse results
• Improve cleaning by allowing proper water and detergent circulation

Load sizing tips (to protect the washer)

Even with a large capacity, loading technique matters.

• Load items loosely; do not pack them down
• Keep the top of the load below the tub rim
• Mix large and small items to balance the basket
• For heavy items, wash 1 bulky item at a time when possible
• If the washer bangs or stops during spin, reduce the load and rebalance

Quick reference

Item type	Typical guidance in a 4.7 cu. ft. top-load washer	What to watch for
Towels	Large load	Avoid packing; balance for spin
Bedding	Bulky load	Keep it loose so it can circulate
Jeans/heavy cottons	Medium to large load	Overloading can cause out-of-balance

Why it matters

Using the right load size helps your WA5471ABP drain and spin correctly, reduces vibration, and can extend the life of key components like the drain system and drive parts. If you are troubleshooting draining or spin issues, parts such as the washer drain pump DC97-16778A are commonly involved.

Last updated: February 2026

A Samsung washing machine like the WA5471ABP typically lasts 10 to 15 years with normal household use and basic maintenance. Consistent cleaning, correct loading, and fixing drain or spin problems early are the biggest factors that keep a washer in that range.

Typical lifespan and what changes it

Most washers reach their full life when they avoid chronic vibration, standing water, and repeated overloads.

• Usage frequency: daily loads shorten life compared to 3 to 5 loads per week
• Load size: overloading strains the drive system and suspension
• Water quality: hard water increases residue and odor buildup
• Drain health: slow draining stresses the drain pump and can cause error codes
• Leveling: an unlevel cabinet increases wear and noise

Quick maintenance that extends washer life

These steps prevent the most common long-term issues (odor, poor draining, and out-of-balance spinning). For model-specific cleaning and cycle guidance, follow the WA5471ABP owner's manual.

• Run a monthly tub-clean routine (hot water cycle if available)
• Leave the lid open after loads to dry the tub
• Use the right amount of HE detergent (too much causes buildup)
• Check pockets to reduce coins and debris entering the drain path
• Keep the washer level; replace damaged feet such as the DC61-01722B leveling leg when needed

Common wear items and what they affect

If performance changes, replacing a worn part early often prevents bigger failures.

Symptom	Often related to	Example part on this model page
Won’t drain, drains slowly	Drain pump or drain hose restriction	Washer drain pump DC97-16778A
Loud vibration, walking	Leveling, load balance, cabinet stability	DC61-01722B leveling leg
Spin issues or unusual motor behavior	Motor sensing or drive components	DC31-00098A sensor, DC31-00124B stator

Why it matters

A washer that is draining well and spinning smoothly runs cooler, vibrates less, and puts less stress on the motor, clutch, and control boards. That is the difference between a washer that reaches 10 years and one that reaches 15.

Ordering the right replacement part

We recommend matching parts to Samsung WA5471ABP using the parts list for this model; you can also search by model number on Sears PartsDirect.

Last updated: February 2026

On the Samsung WA5471ABP washer, the most common service issue is a fill or water-level problem: the washer fills slowly, won’t fill, overfills, or stops because incoming water flow or water-level sensing is not what the control expects. Use the WA5471ABP owner's manual for model-specific checks.

Quick checks first (no parts needed)

• Make sure both hot and cold supply valves are fully open.
• Straighten inlet hoses; remove kinks or crushing behind the washer.
• Clean the inlet hose screens at the faucet ends (sediment restricts flow).
• Verify the drain hose is not pushed too far into the standpipe (prevents siphoning).
• Run a test cycle empty; too many suds can disrupt sensing.

Symptoms and what they usually mean

Symptom	Most likely cause	Next step
Won’t fill or fills very slowly	Restricted supply or clogged screens	Check valves, hoses, screens
Fills then immediately drains	Drain hose siphoning	Correct hose height/placement
Stops mid-cycle with water behavior	Intermittent flow or oversudsing	Recheck supply, reduce suds
Won’t spin because water won’t drain	Drain problem (not fill)	Inspect drain path and pump

When it is really a drain issue

A “water problem” complaint is often slow or no draining. If the tub stays full, focus on the drain system.

• Listen for the pump during drain.
• Check the drain hose for a blockage or pinch.
• If the pump runs but flow is weak, inspect the internal hose and pump.

Model-matched parts that commonly relate to drain symptoms include the washer drain pump DC97-16778A and washer tub-to-pump hose DC97-16781A.

Why it matters

Correct fill and water-level sensing prevents overflow, short cycling, and long wash times; it also helps the control make accurate agitation and spin decisions.

You can order replacement parts for your Samsung WA5471ABP from the parts list for this model, or search by model number on Sears PartsDirect.
