How to replace an in-door ice maker on a French door refrigerator

By Lyle Weischwill
How to replace an in-door ice maker on a French door refrigerator

This refrigerator repair guide shows how to replace the ice maker assembly in a Kenmore Trio refrigerator and a LG French door refrigerator with an in-door ice maker. If the ice maker isn't making ice, replace it with the manufacturer-approved replacement ice maker that fits your model. Follow the step-by-step instructions below to learn how to replace the ice machine and visit our refrigerator repair help page for more repair help and troubleshooting tips.

This repair procedure works for Kenmore Trio and other Kenmore French door refrigerators, as well as LG French door refrigerators. The same basic procedure can also be used to replace in-door ice makers on some Whirlpool, KitchenAid and Maytag French door refrigerators.

Quick links
Tools required
Phillips screwdriver
Work gloves
Repair difficulty
Time required
30 minutes or less
Repair difficulty
Time required
30 minutes or less

Instructions

  1. 01.

    Disconnect electrical power

    Unplug the refrigerator or shut off the circuit breaker for the refrigerator. Move highly perishable food to a cooler or other cooled space. The refrigerator will be without power for about 30 minutes, which shouldn't affect most refrigerated or frozen foods.

  2. 02.

    Remove the ice bucket

    Open the ice maker compartment door to access the ice maker assembly.  Grip the handle at the bottom of the ice bin and pull it up and out of the ice compartment housing.

    Tip: Refer to the installation manual for additional help with this step, if needed.
    Open the door to the ice maker.

    Open the door to the ice maker.

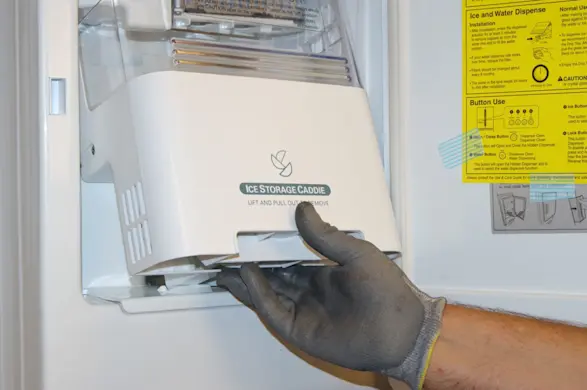

    Remove the ice bin.

    Remove the ice bin.

  3. 03.

    Detach the ice maker assembly

    While supporting the ice maker so it doesn't drop, use a Phillips screwdriver to remove the 2 mounting screws that secure the refrigerator ice maker assembly to the ice compartment. Set the screws aside.

    Remove the 2 mounting screws that secure the ice maker module to the door.

  4. 04.

    Remove the ice maker assembly

    Carefully pull the refrigerator's ice maker down slightly and flip it upside down to access the wire harness and ground wire connections.  Push in the locking tab on the wire harness and pull the wire harness out of the connection plug.

    Remove the screw that secures the green ground wire to the bottom of the ice maker assembly and set the screw aside. Remove the ice maker and set it aside for disposal.

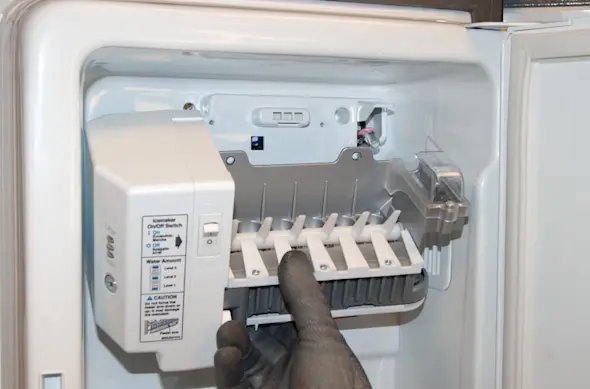

    Lower and flip the ice maker to access its wiring harness.

    Lower and flip the ice maker to access its wiring harness.

    Locate the ice maker wire harness plug.

    Locate the ice maker wire harness plug.

    Unplug the ice maker wire harness.

    Unplug the ice maker wire harness.

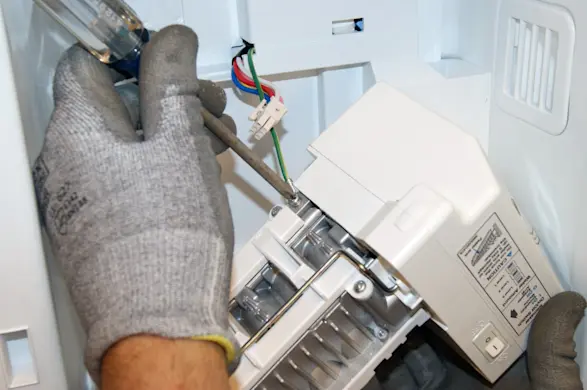

    Loosen the ground wire mounting screw.

    Loosen the ground wire mounting screw.

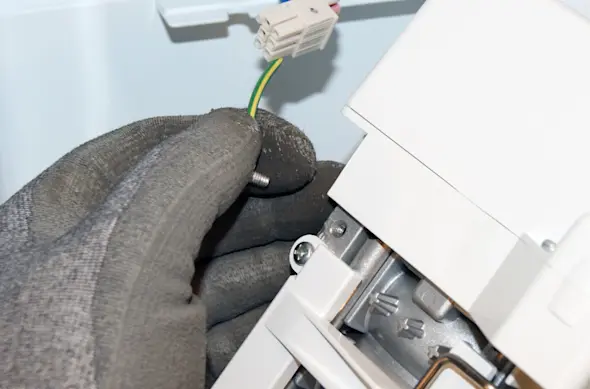

    Release the ground wire.

    Release the ground wire.

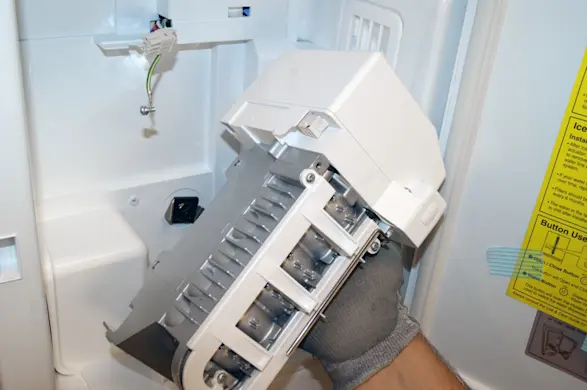

    Remove the ice maker.

    Remove the ice maker.

  5. 05.

    Attach the ground wire

    Position the new ice maker assembly in the ice maker compartment and attach the green ground wire to the new ice maker assembly. Tighten the screw firmly.

  6. 06.

    Plug in the wire harness

    Insert the wire harness into the new ice maker assembly connection plug and push it in until the locking tab snaps into the locked position.

  7. 07.

    Attach the new ice maker

    Flip the ice maker assembly right side up and position it in the ice maker compartment so that the mounting holes are lined up. Insert the mounting screws and tighten them firmly.

    Tip: Don't overtighten the mounting screws. Turn the screws until they stop and then give them a reasonably firm twist to secure them.
  8. 08.

    Reinstall the ice bucket

    Slant the top of the ice bin forward slightly and push the ice bin into the ice compartment. Close the compartment door and the freezer door.

    Tip: Refer to the owner's manual for additional help with this step, if needed.
  9. 09.

    Restore electrical power

    Plug in the refrigerator or turn on the house circuit breaker to restore power.

Warning: Undertaking repairs to appliances can be hazardous. Use the proper tools and safety equipment noted in the guide and follow all instructions. Don’t proceed until you’re confident that you understand all the steps and are capable of completing the repair. Some repairs should only be performed by a qualified technician.
