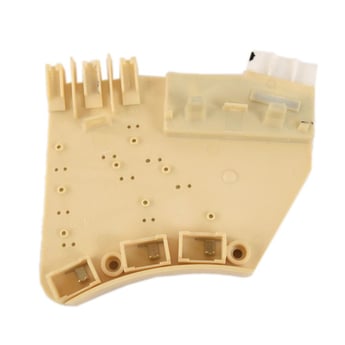

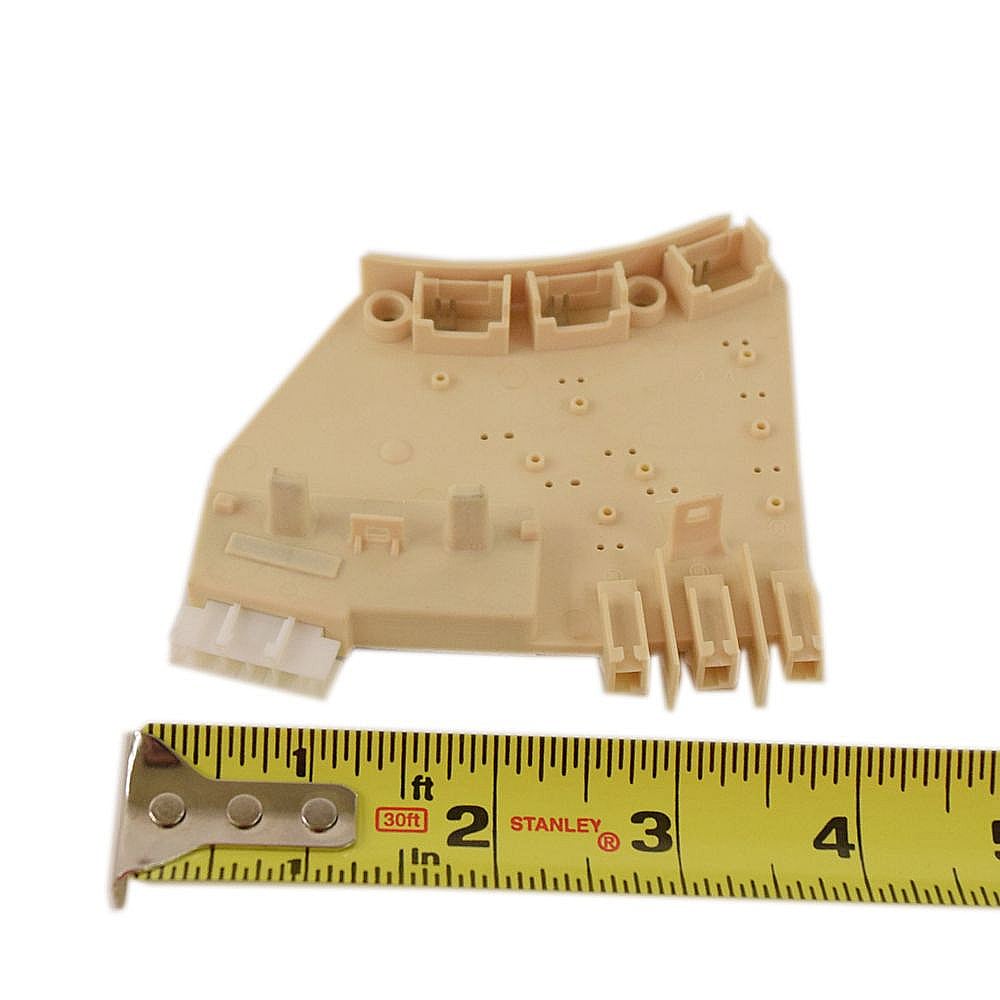

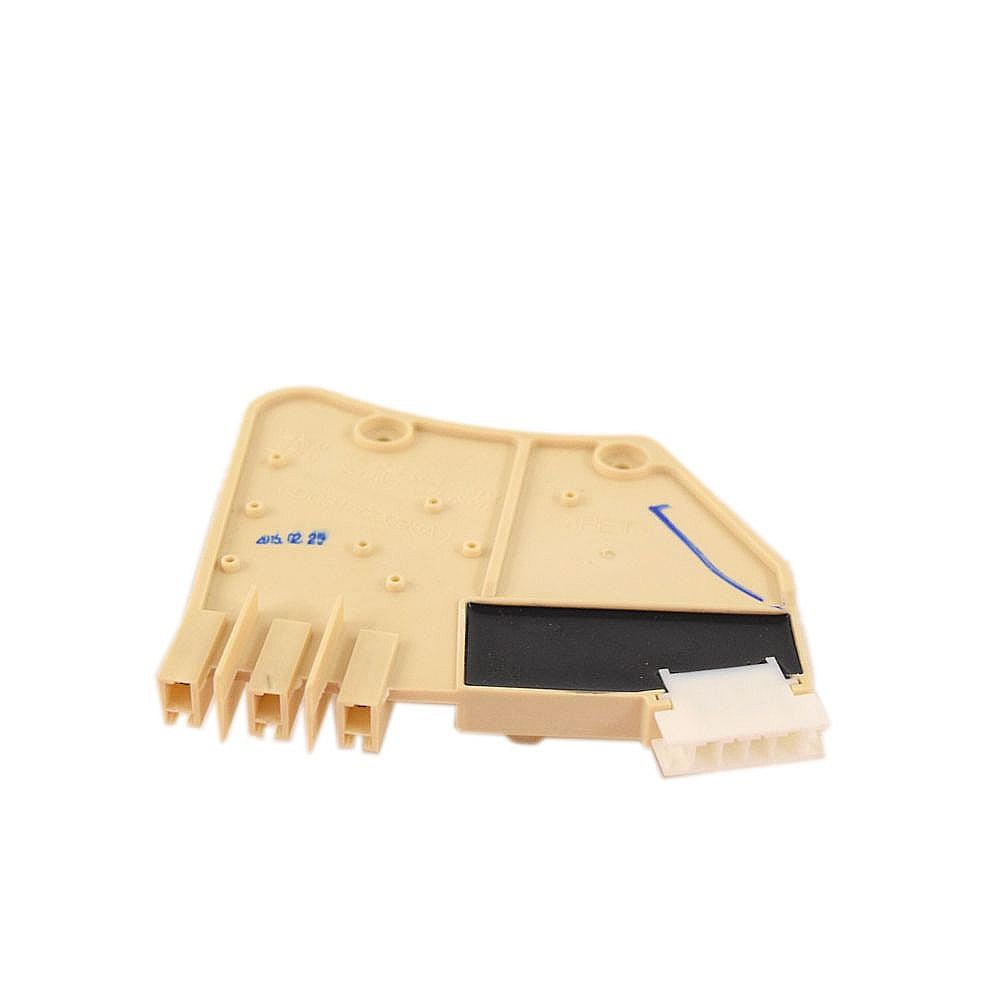

Washer Motor Rotor Position Sensor DC31-00098A

★★★★★★★★★★
5
2
4
0
3
0
2
0
1
1
BEST SELLER

Part #DC31-00098A

Online price
$56.79
In Stock
For ZIP codes near Edit
60-day return policy
This part fits

Part Information

This motor rotor position sensor (part number DC31-00098A) is for washers.

Motor rotor position sensor DC31-00098A monitors the direction and speed of the spinning rotor and communicates this information to the electronic control board.

Unplug the appliance before installing this part. Wear work gloves to protect your hands.

Top models using the same part

Model NameModel NumberDiagram Name
Model #WF457ARGSGR/A2-00 Samsung washerWF457ARGSGR/A2-00
Tub & drum
Model #WF405ATPASU/AA-00 Samsung washerWF405ATPASU/AA-00
Tub assy
Model #WF395BTPASU/A2-00 Samsung washerWF395BTPASU/A2-00
Tub & drum
Model #WF350ANP/XAA-03 Samsung washerWF350ANP/XAA-03
Tub & drum
Model #WF448AAP/XAA-05 Samsung washerWF448AAP/XAA-05
Tub & drum
Model #WF448AAW/XAA-05 Samsung washerWF448AAW/XAA-05
Tub & drum
Model #WF457ARGSGR/AA-01 Samsung washerWF457ARGSGR/AA-01
Tub/drum assy
Model #WF395BTPARA/A2-00 Samsung washerWF395BTPARA/A2-00
Tub & drum
Model #WF42H5400AF/A2-00 Samsung washerWF42H5400AF/A2-00
Tub & drum
Model #WF56H9100AW/A2-01 Samsung washerWF56H9100AW/A2-01
Tub parts

Reviews

1-3 of 3 reviews
sa.tis.fied
VAReviews 2Votes 1
★★★★★★★★★★
• 3 years ago
sa.tis.fied• 3 years ago
hall sensor installed based on 3E2 error code

WF455ARGSWR/A2 washer. this part is a bit harder to access, but can be easily tested without accessing - if u have a multimeter with piercing probes. for this particular model, i read 1.2volts off each of the two sensors on the above mentioned functioning washer. (machine needs to be plugged in. does not need to be turned on. CN3 on the power control assembly. 1 probe on the orange wire (pin 4), and 1 probe on the red/blue (pins 3&2) wires. turn the drum slowly. watch the meter for maximum voltage.) don't know where CN3 is? on the back of your washer there probably is a small technical booklet. it will show you where. otherwise, search the interweb! sears direct has a youtube video on a similar washer that shows you how to access this part on a similar samsung washer, so i won't describe replacing it here.

noteworthy: the metal drum covering the stator has many strong magnets on it -- you'll have some resistance sliding it out!

sears direct had a fair price. good shipping. recommend!

Kent 1
Elk Grove, CaReviews 1Votes 2
★★★★★★★★★★
• 4 years ago
Kent 1• 4 years ago
Spin cycle load balance issue fixed!

Easy fix. Try this fix before replacing the 4 shock dampers.

Fredrickdgl
Amsterdam NYReviews 1Votes 0
★★★★★★★★★★
• 2 years ago
Fredrickdgl• 2 years ago
Wrong part listed for my washer (site failure)

Incorrect part listed as being compatible with my Samsung wf330 washer...and I didn’t get refunded the shipping cost despite it being this websites fault
