Side-By-Side Refrigerator

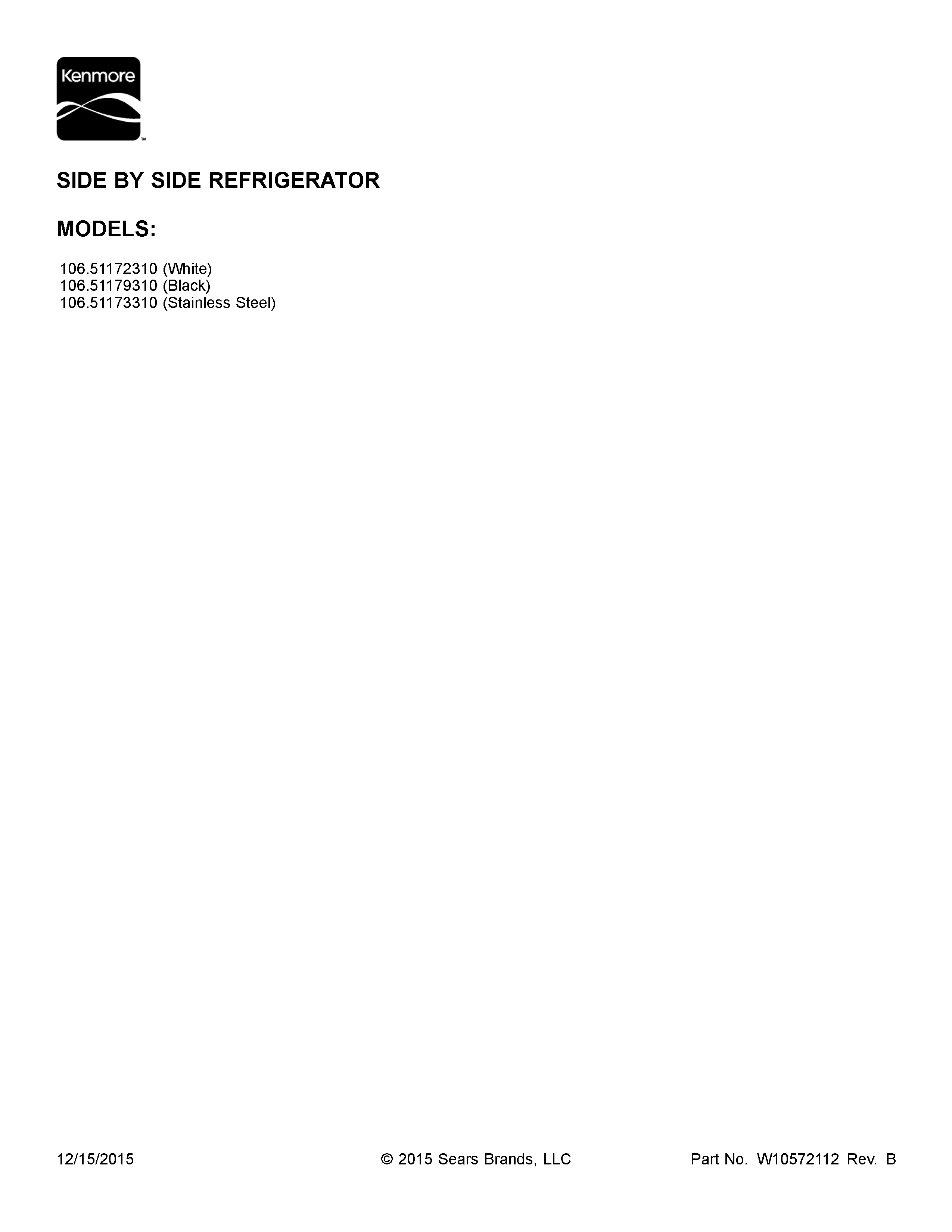

Model # 10651173310 Official Kenmore Elite refrigerator

Here are the diagrams and repair parts for Official Kenmore Elite 10651173310 refrigerator, as well as links to manuals and error code tables, if available.

By Schematic
By Part

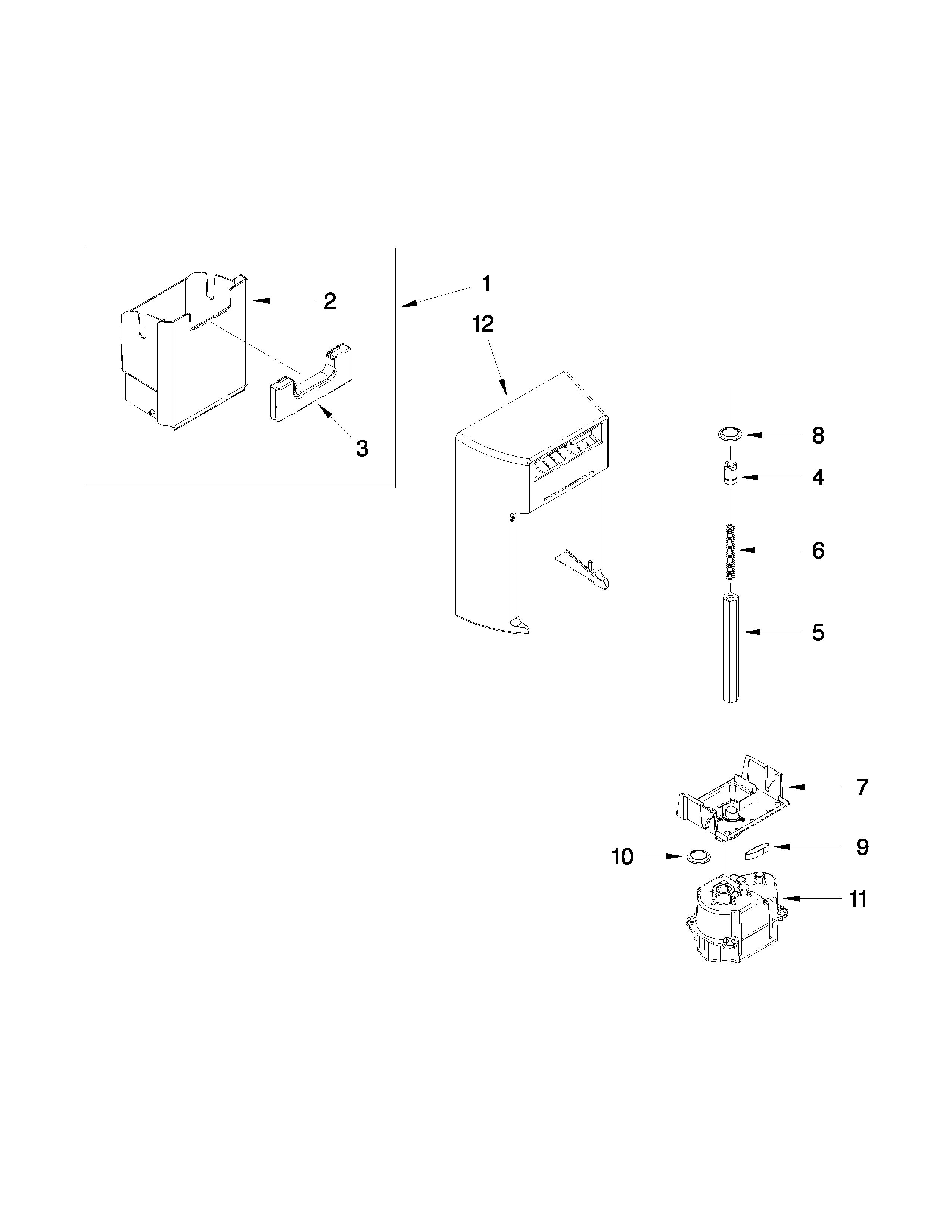

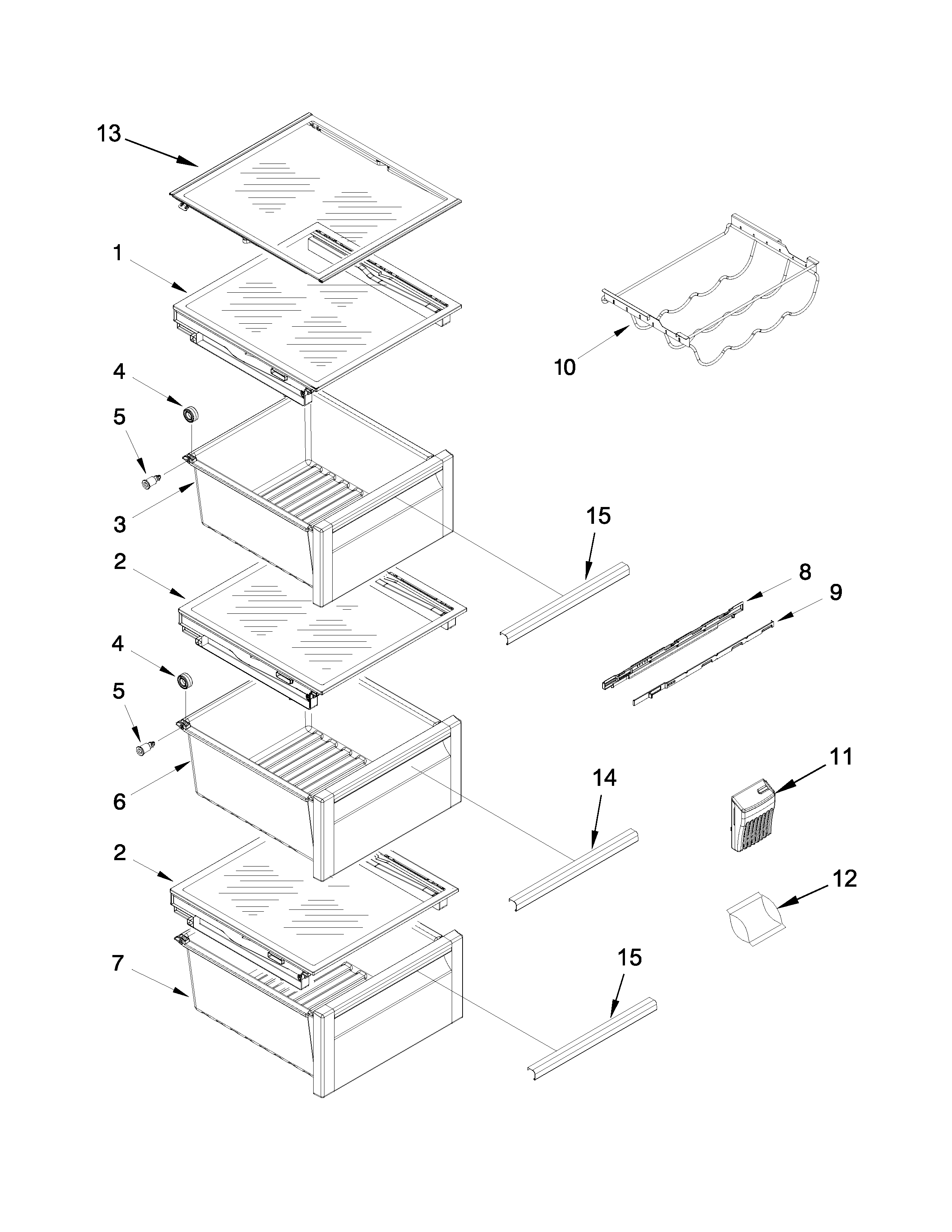

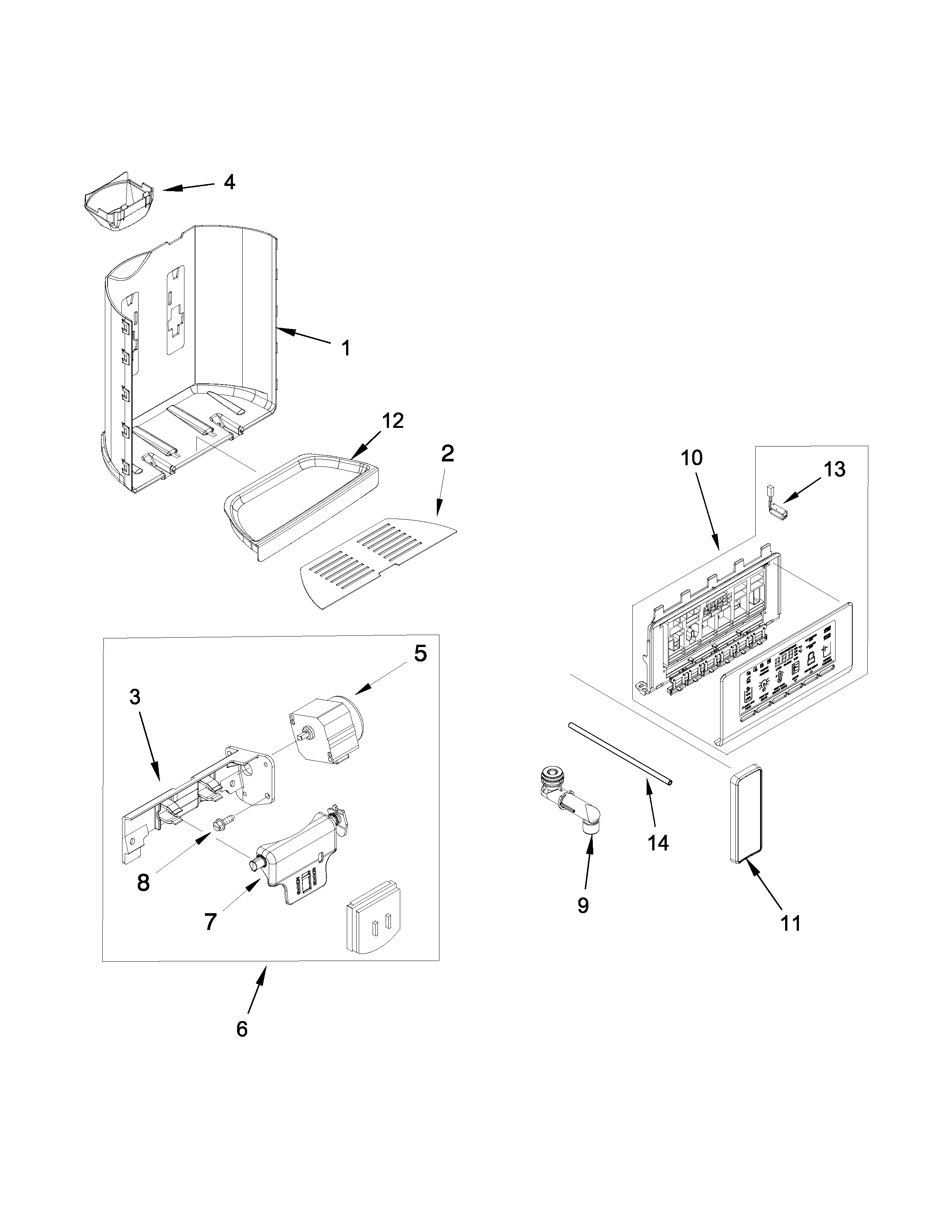

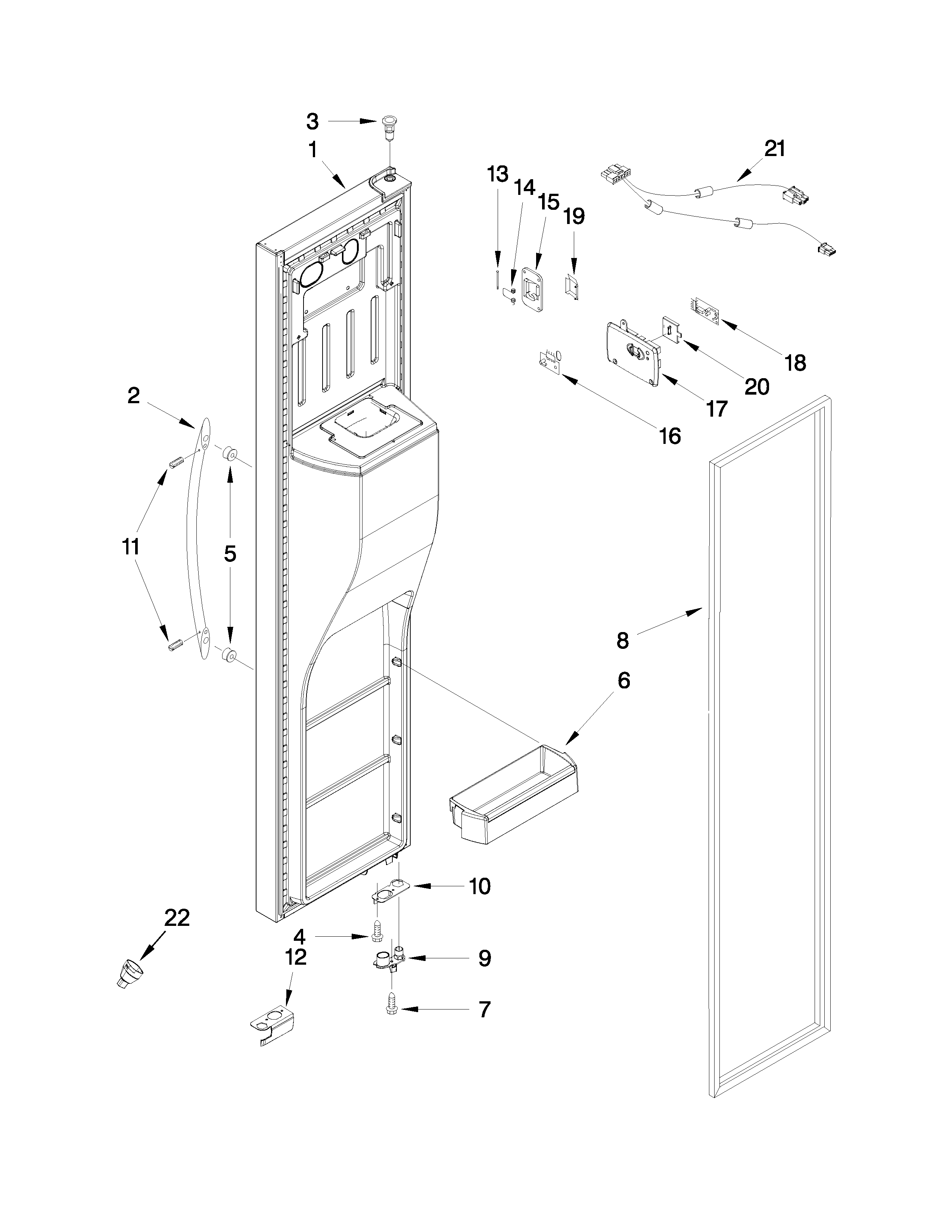

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for10651173310 Refrigerators

  • Refrigerator Air Filter W10335147
    #11

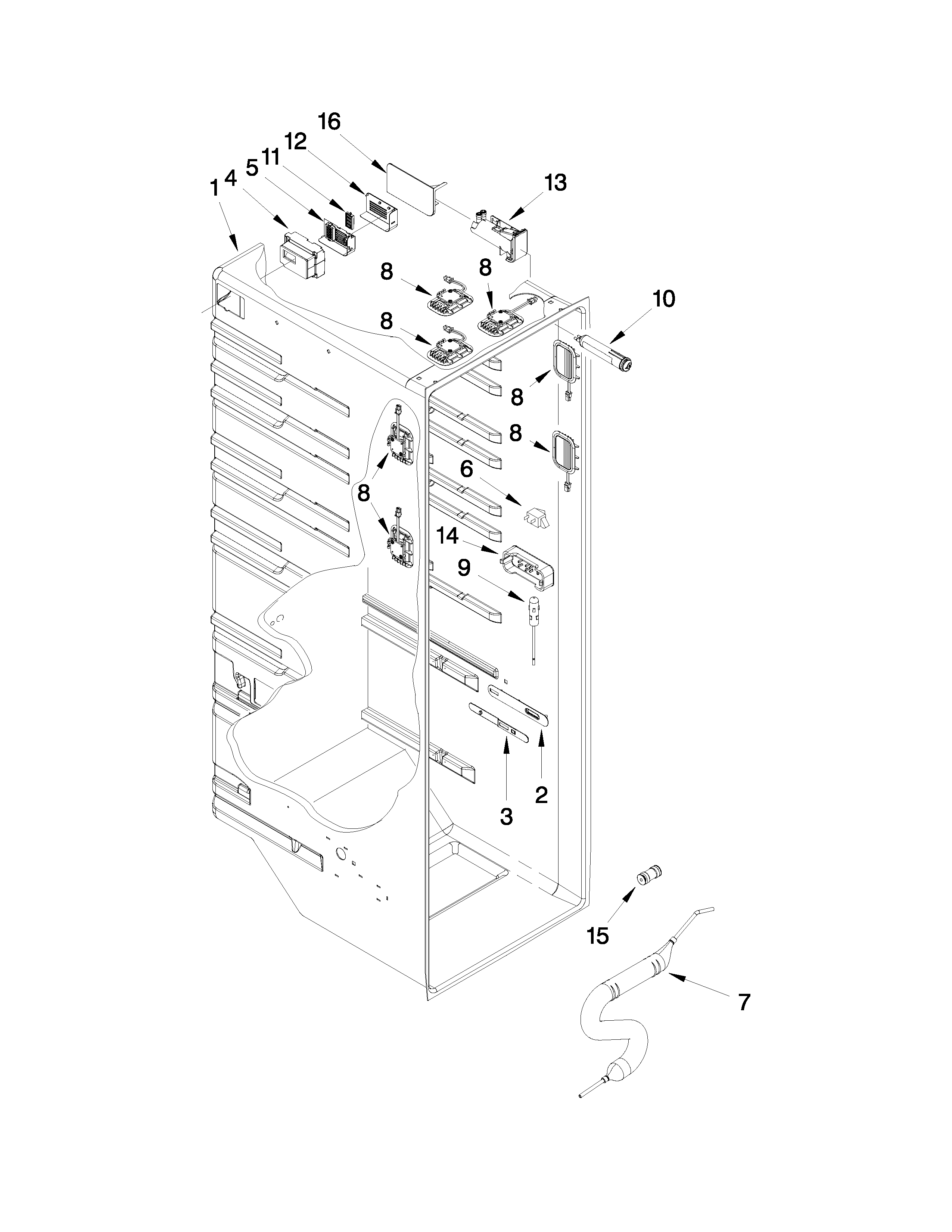

    Refrigerator liner parts diagram

    Refrigerator air filter

    Part #W10335147

    Replaced by #W10311524

    ?
    Manufacturer substitution
    This part replaces W10335147. Substitute parts can look different from the original.
    BEST SELLER

    Get free shipping with Automatic Reorder

    $15.90 |
    11% OFF Phone Price : $17.90
    In Stock
  • Refrigerator Drier Assembly W10771114
    #21

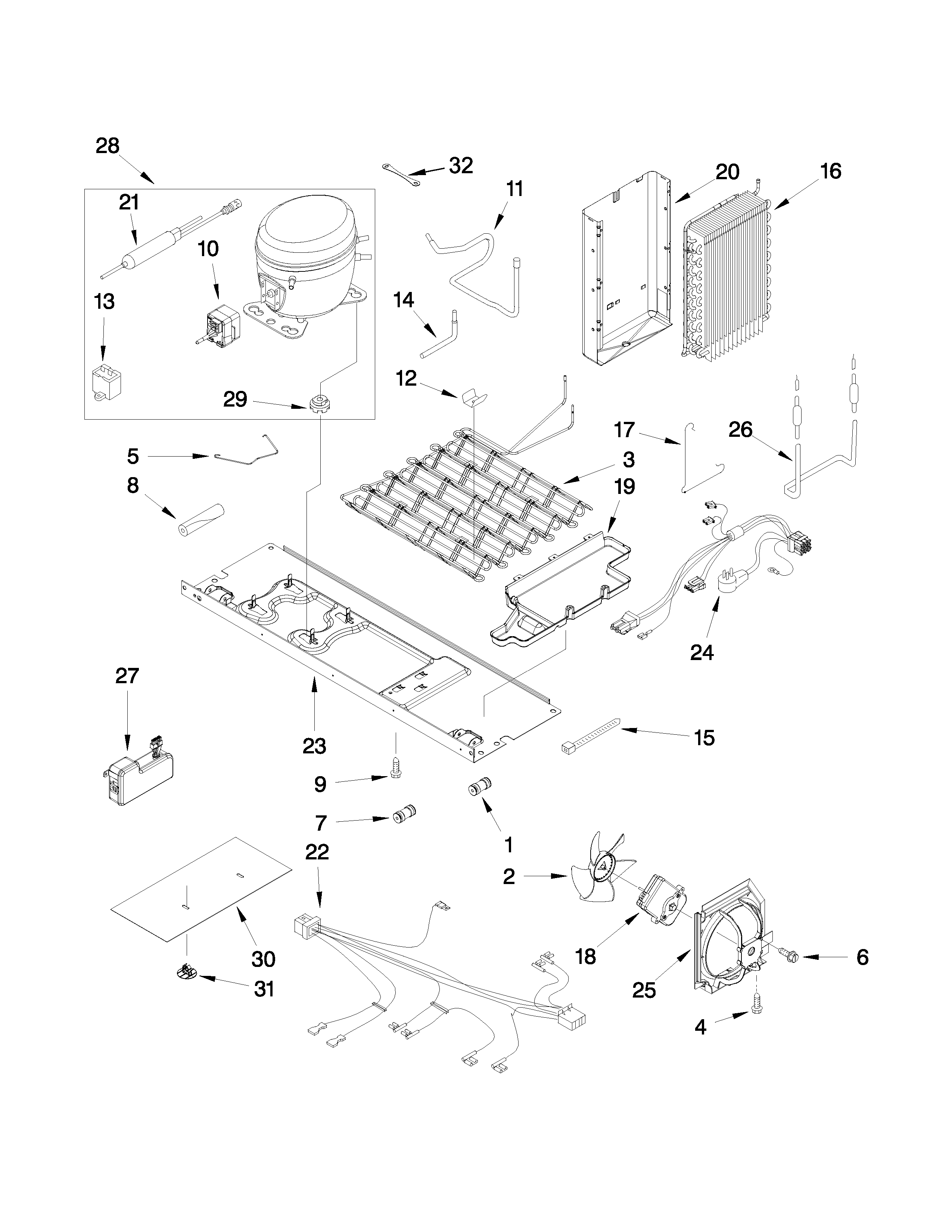

    Unit parts diagram

    Refrigerator drier assembly

    Part #W10771114

    Replaced by #WPW10143759

    ?
    Manufacturer substitution
    This part replaces W10771114. Substitute parts can look different from the original.
    BEST SELLER
    $20.04 |
    23% OFF Phone Price : $26.04
    In Stock
  • Refrigerator Defrost Bi-metal W10260437
    #4

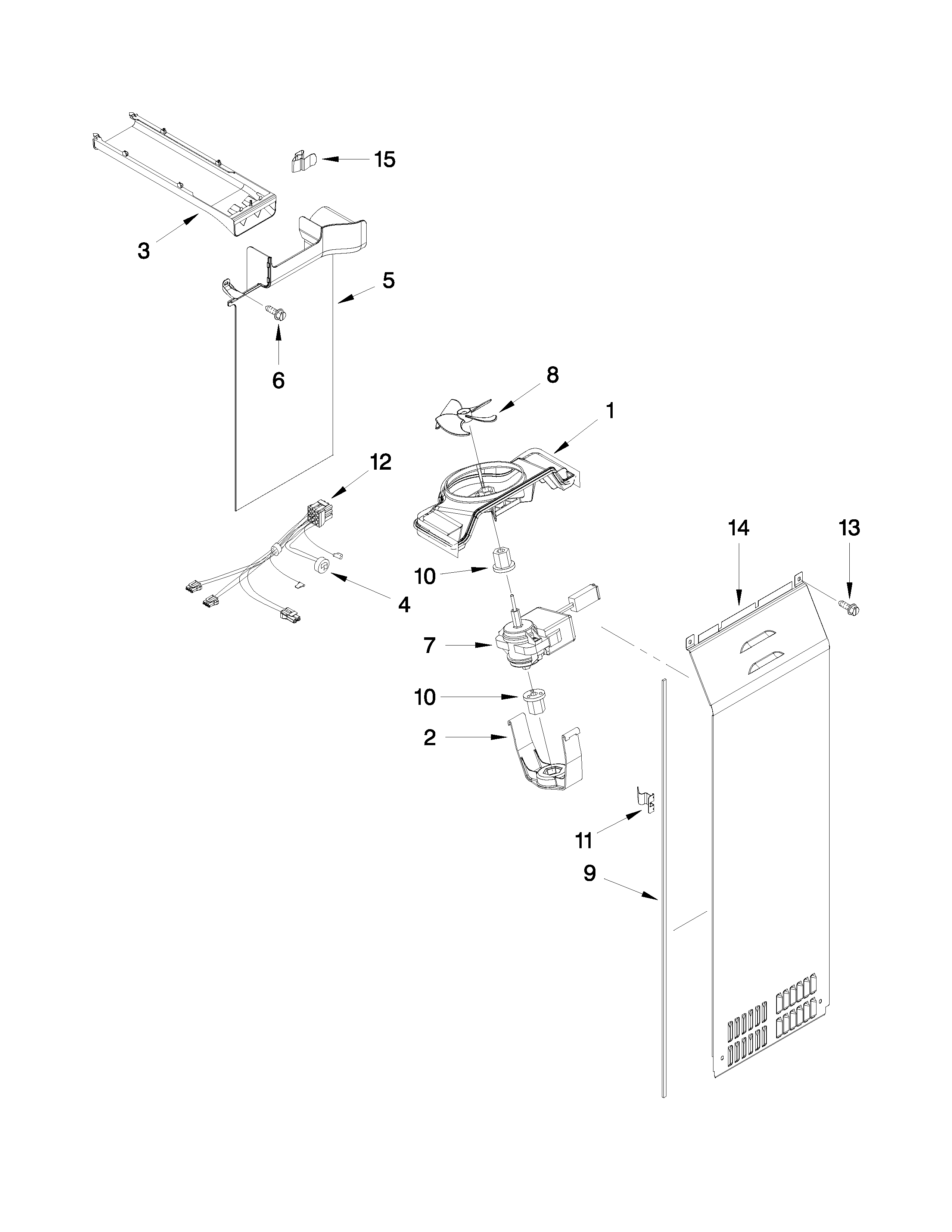

    Air flow parts diagram

    Refrigerator defrost bi-metal

    Part #W10260437

    Replaced by #WPW10225581

    ?
    Manufacturer substitution
    This part replaces W10260437. Substitute parts can look different from the original.
    BEST SELLER
    $28.51 |
    17% OFF Phone Price : $34.51
    In Stock
  • Refrigerator Door Bin W10570338
    #4

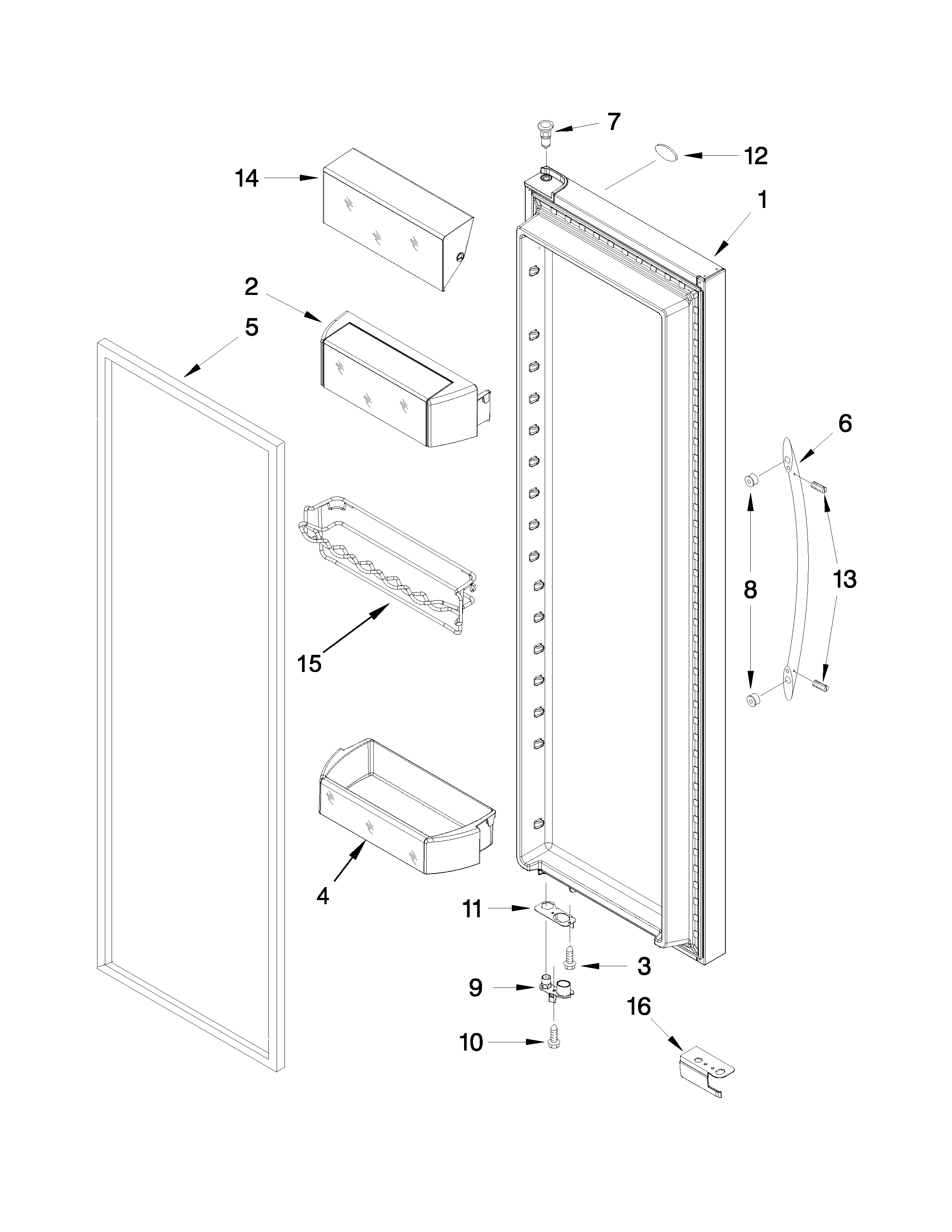

    Refrigerator door diagram

    Refrigerator door bin

    Part #W10570338

    Replaced by #WPW10160952

    ?
    Manufacturer substitution
    This part replaces W10570338. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    $46.20 |
    11% OFF Phone Price : $52.20
    In Stock
  • Refrigerator Door Switch W10656773
    #6

    Refrigerator liner parts diagram

    Refrigerator door switch

    Part #W10656773

    Replaced by #W11384469

    ?
    Manufacturer substitution
    This part replaces W10656773. Substitute parts can look different from the original.
    BEST SELLER
    $20.49 |
    23% OFF Phone Price : $26.49
    In Stock
  • Refrigerator Evaporator Fan Motor 2315549
    #7

    Air flow parts diagram

    Refrigerator evaporator fan motor

    Part #2315549

    Replaced by #WP2315549

    ?
    Manufacturer substitution
    This part replaces 2315549. Substitute parts can look different from the original.
    BEST SELLER
    $147.55 |
    8% OFF Phone Price : $159.55
    In Stock
  • Refrigerator Evaporator Fan Blade 2169142
    #8

    Air flow parts diagram

    Refrigerator evaporator fan blade

    Part #2169142

    Replaced by #WP2169142

    ?
    Manufacturer substitution
    This part replaces 2169142. Substitute parts can look different from the original.
    BEST SELLER
    $25.00 |
    19% OFF Phone Price : $31.00
    In Stock
  • Refrigerator Water Inlet Valve W10341320
    #5

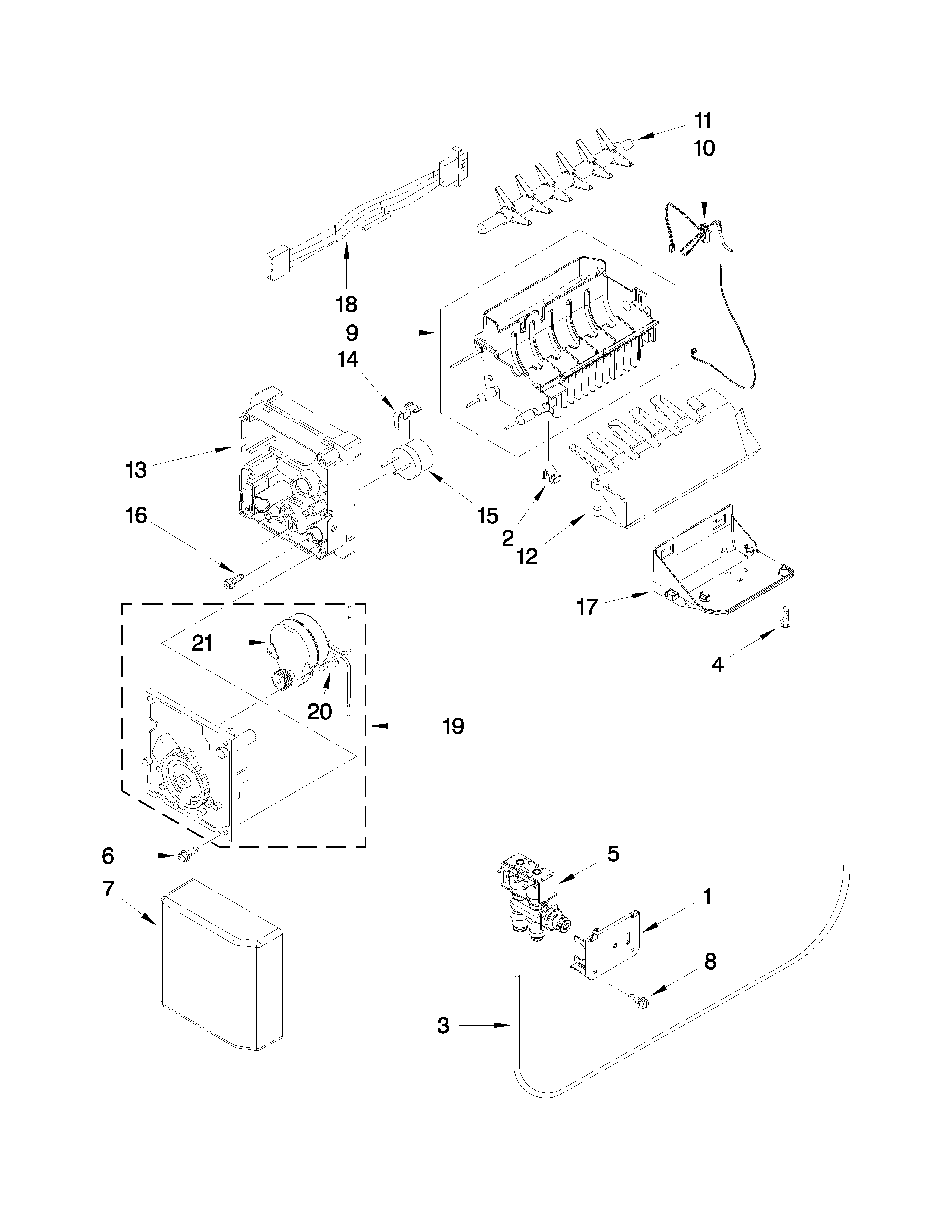

    Ice maker diagram

    Refrigerator water inlet valve

    Part #W10341320

    Replaced by #WPW10341320

    ?
    Manufacturer substitution
    This part replaces W10341320. Substitute parts can look different from the original.
    BEST SELLER
    $137.94 |
    8% OFF Phone Price : $149.94
    In Stock
  • Refrigerator Inlet Valve W10498992
    #11

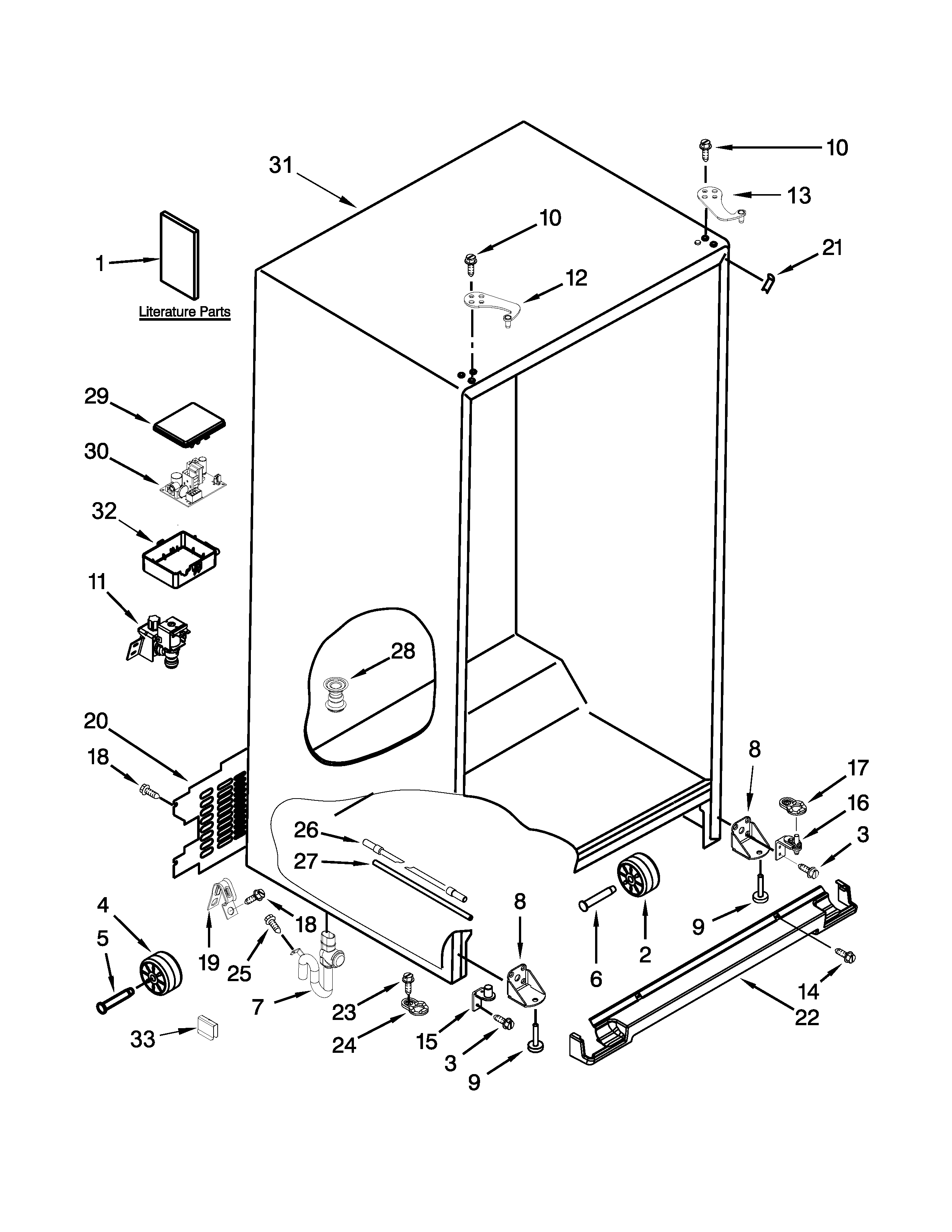

    Cabinet parts diagram

    Refrigerator inlet valve

    Part #W10498992

    Replaced by #WPW10238100

    ?
    Manufacturer substitution
    This part replaces W10498992. Substitute parts can look different from the original.
    BEST SELLER
    $100.70 |
    11% OFF Phone Price : $112.70
    In Stock
  • Refrigerator Light Switch W10656771
    #10

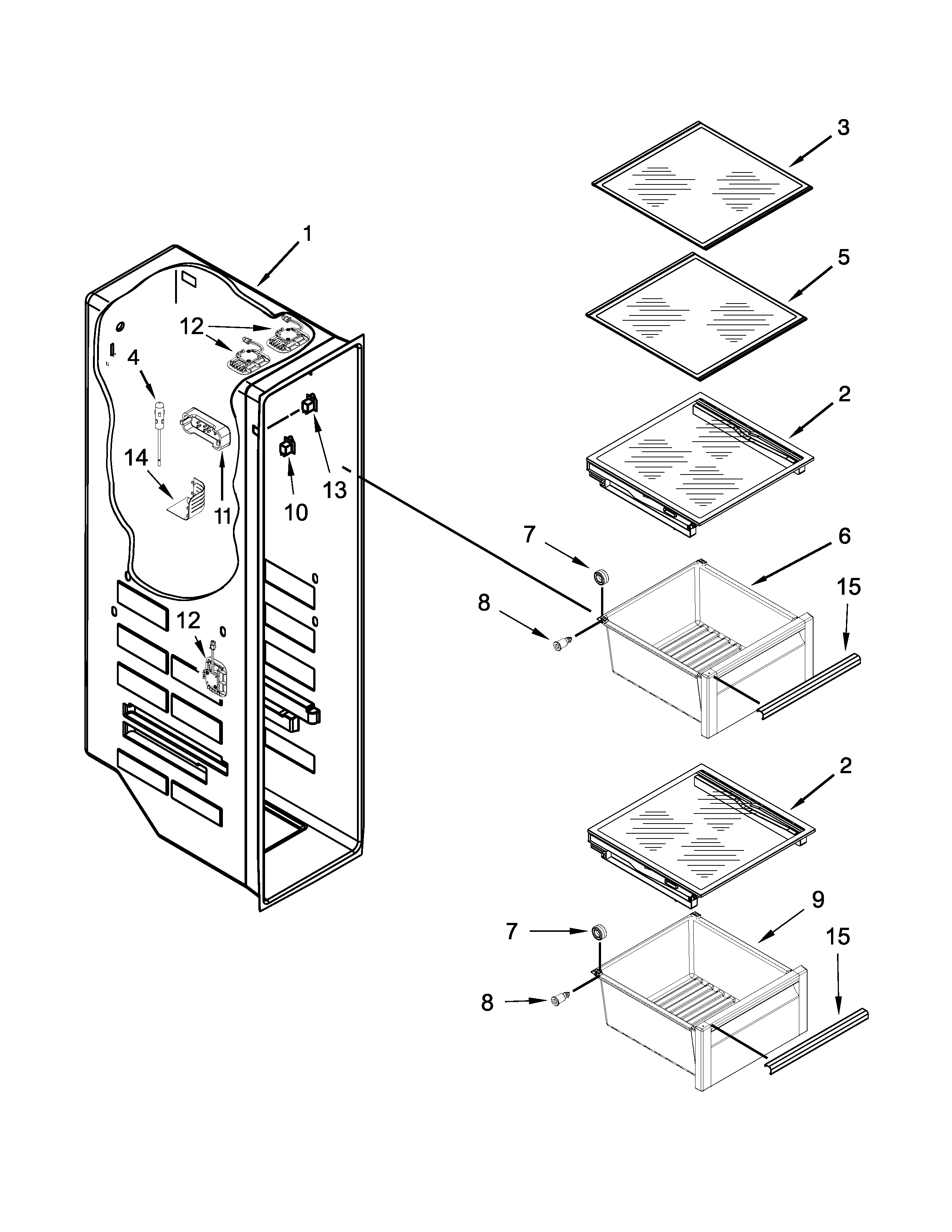

    Freezer liner parts diagram

    Refrigerator light switch

    Part #W10656771

    Replaced by #W11396033

    ?
    Manufacturer substitution
    This part replaces W10656771. Substitute parts can look different from the original.
    BEST SELLER
    $20.16 |
    23% OFF Phone Price : $26.16
    In Stock
