Kenmore 66513249K900 dishwasher Parts

Yes. We still carry replacement parts for many Kenmore dishwashers, including Kenmore model 66513249K900. The key is matching parts by the full model number so you get the correct fit for items like the drain pump, door seal, water inlet valve, and heating element.

How to find the right part for your Kenmore dishwasher

Use the model number 66513249K900 when you shop and when you compare part IDs. Your 66513249K900 owner's manual also helps you identify features and maintenance items that commonly need replacement.

• Confirm the model number from the rating label (usually on the tub frame near the door).
• Match by part ID (not just a description like “pump” or “seal”).
• Replace wear items proactively if you see leaks, poor draining, or weak wash performance.
• If you are installing a dishwasher or reconnecting lines, follow the 66513249K900 installation guide for correct routing and clearances.
• Keep your old part until the replacement arrives so you can compare connectors and mounting points.

Common Kenmore 66513249K900 parts customers replace

Here are examples of model-matched parts we commonly see replaced on this dishwasher:

Symptom	Likely part to check	Example model-matched part

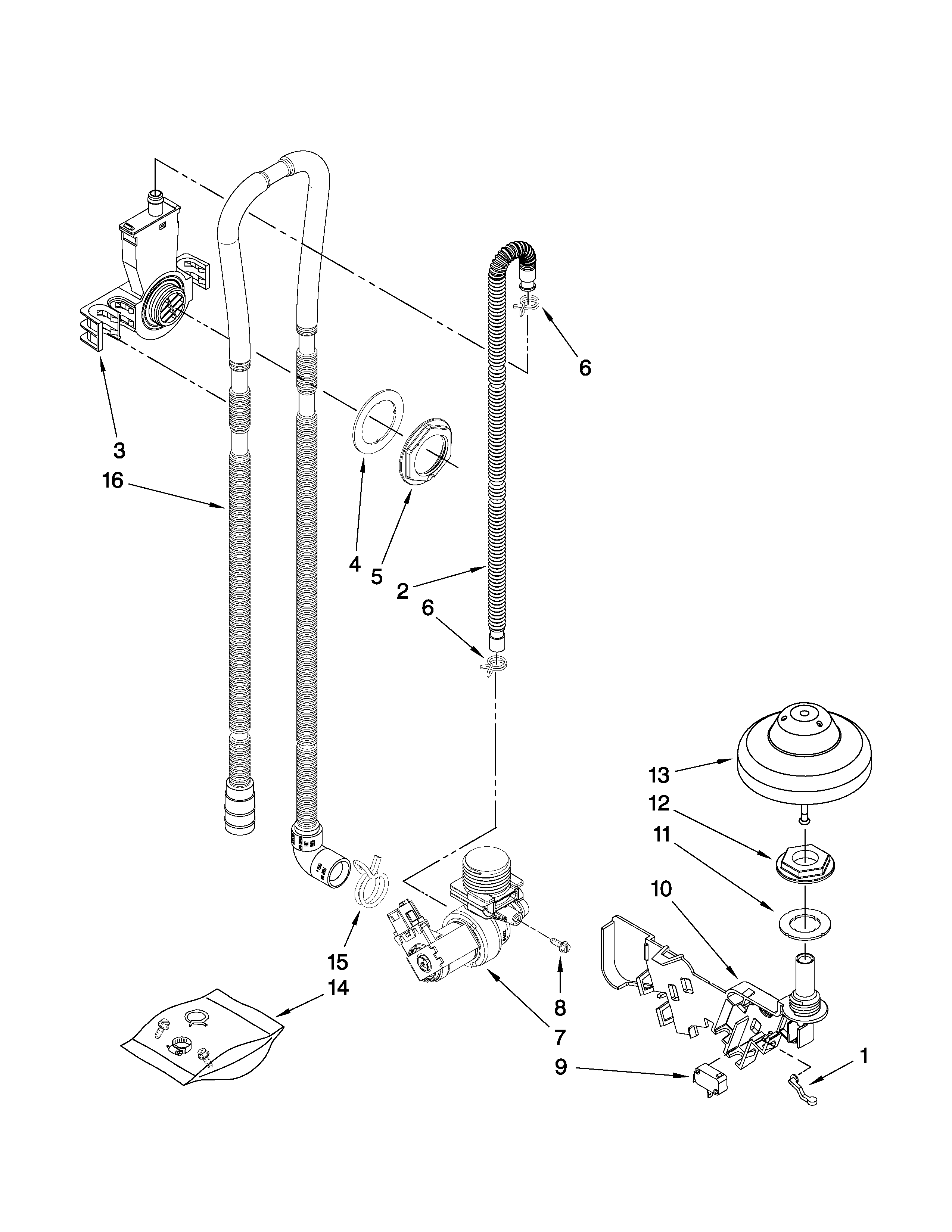

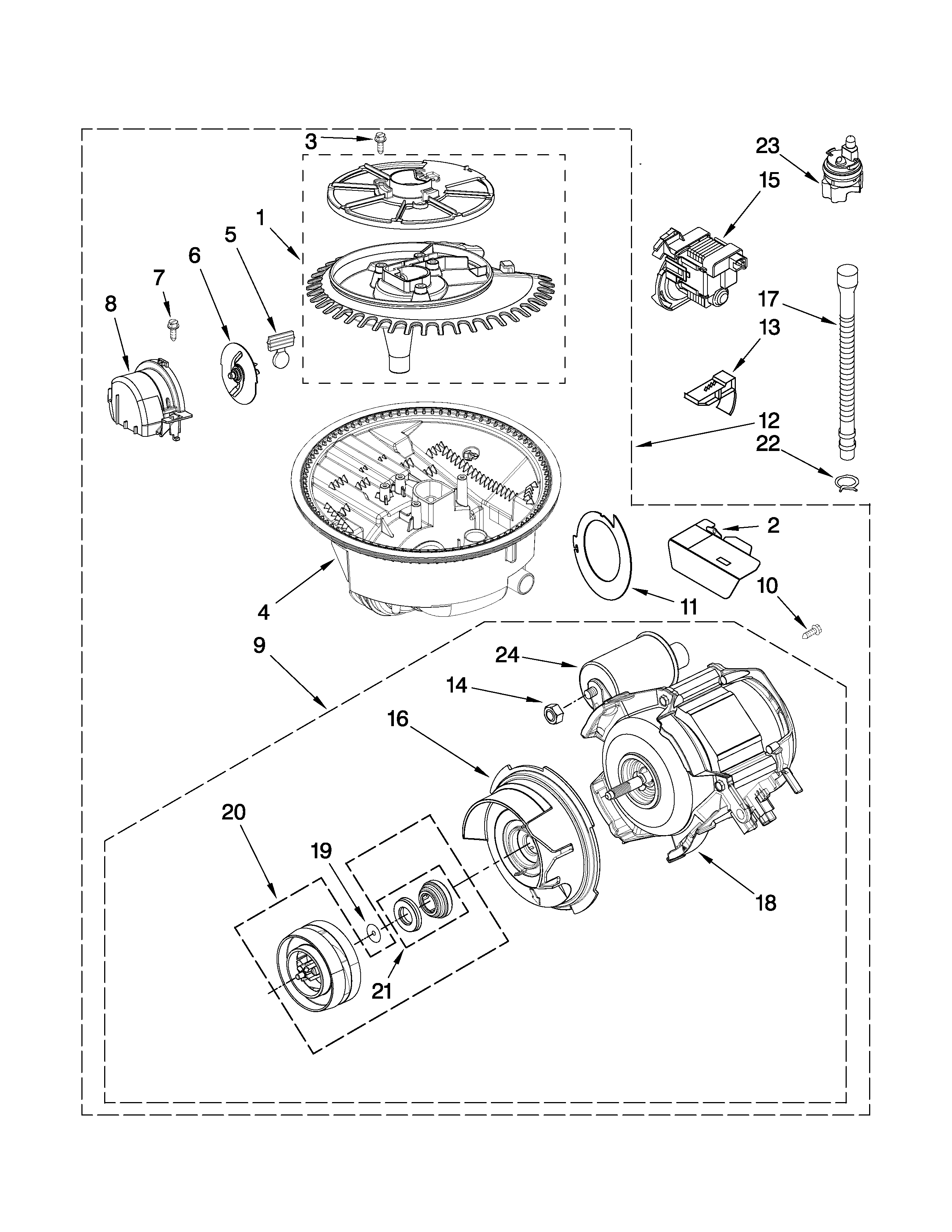

Water left in tub	Drain system	Dishwasher drain pump WPW10348269

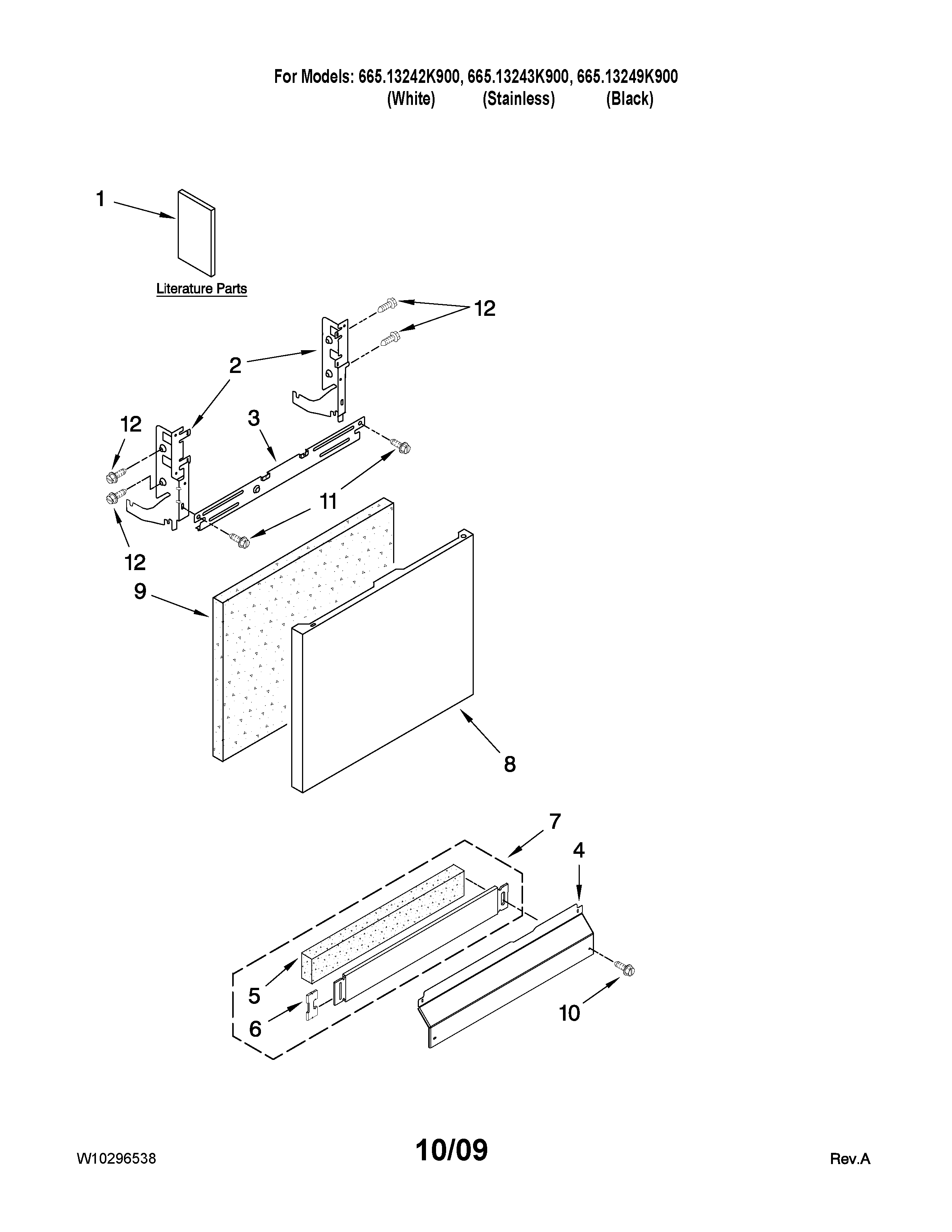

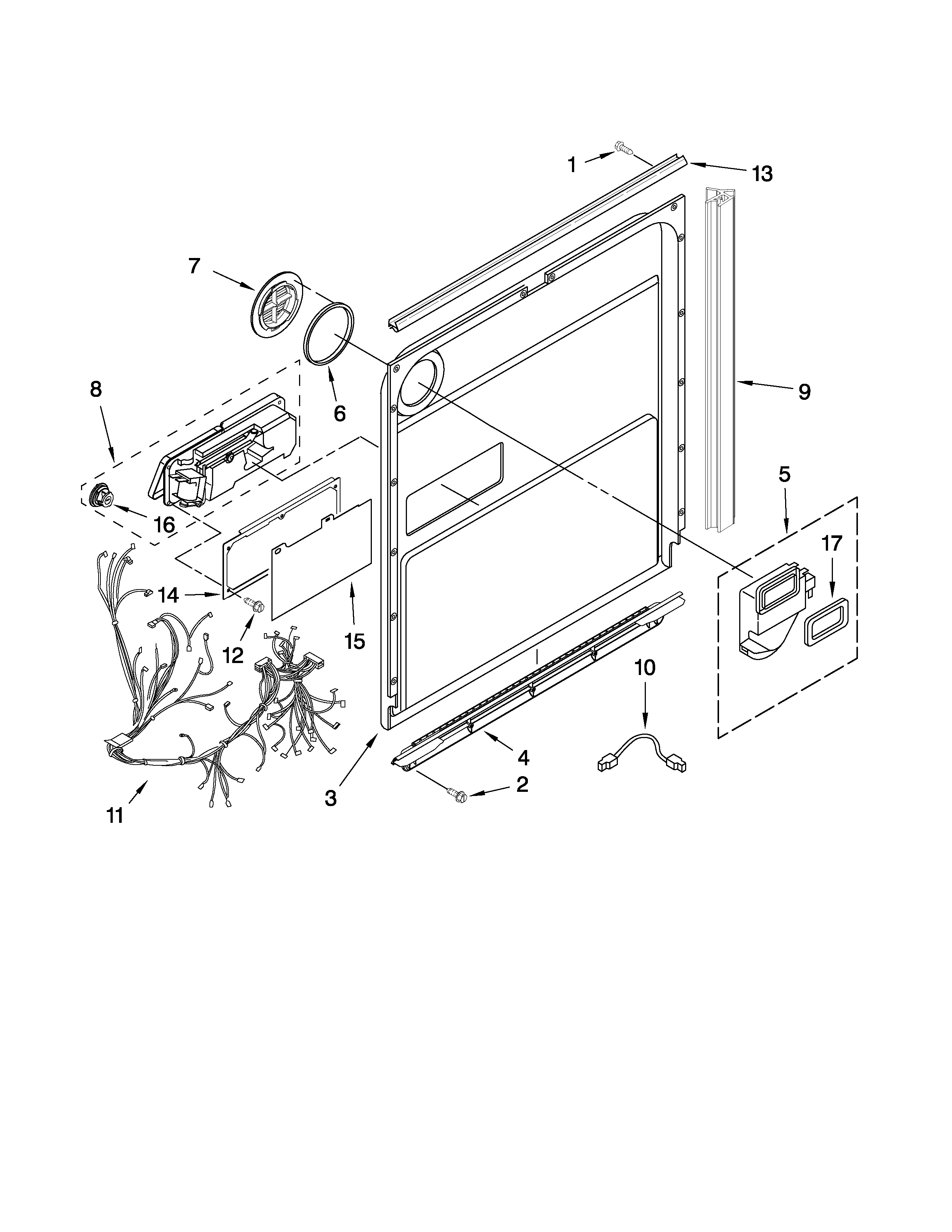

Leaks at the door	Door sealing	Dishwasher door seal W11196317
No fill or slow fill	Water supply	Dishwasher water inlet valve W10648041
Dishes not drying	Heating circuit	Heater element WPW10082892

Why it matters

Kenmore dishwashers are built to be serviceable; using the exact model number and correct part ID prevents returns, repeat repairs, and issues like leaks or poor cleaning caused by mismatched components.

Last updated: February 2026

On a Kenmore dishwasher, an E09 code is a heating circuit problem; the dishwasher is not heating the water correctly, so drying and wash performance can suffer. On model 66513249K900, the most common fix is checking the heater circuit and testing the heater element.

What to check first (fast, no parts)

• Reset power: turn the breaker off for 1 minute, then back on.
• Confirm the cycle and options: heated dry or high temp options can trigger the code sooner if heating fails.
• Make sure the tub can fill normally (water supply valve fully open).
• Check for a stuck overfill protection float (it can prevent proper fill and heating).
• Run hot water at the sink for 30 seconds before starting a cycle.

Likely causes and what they affect

Likely cause	What you may notice	Common next step

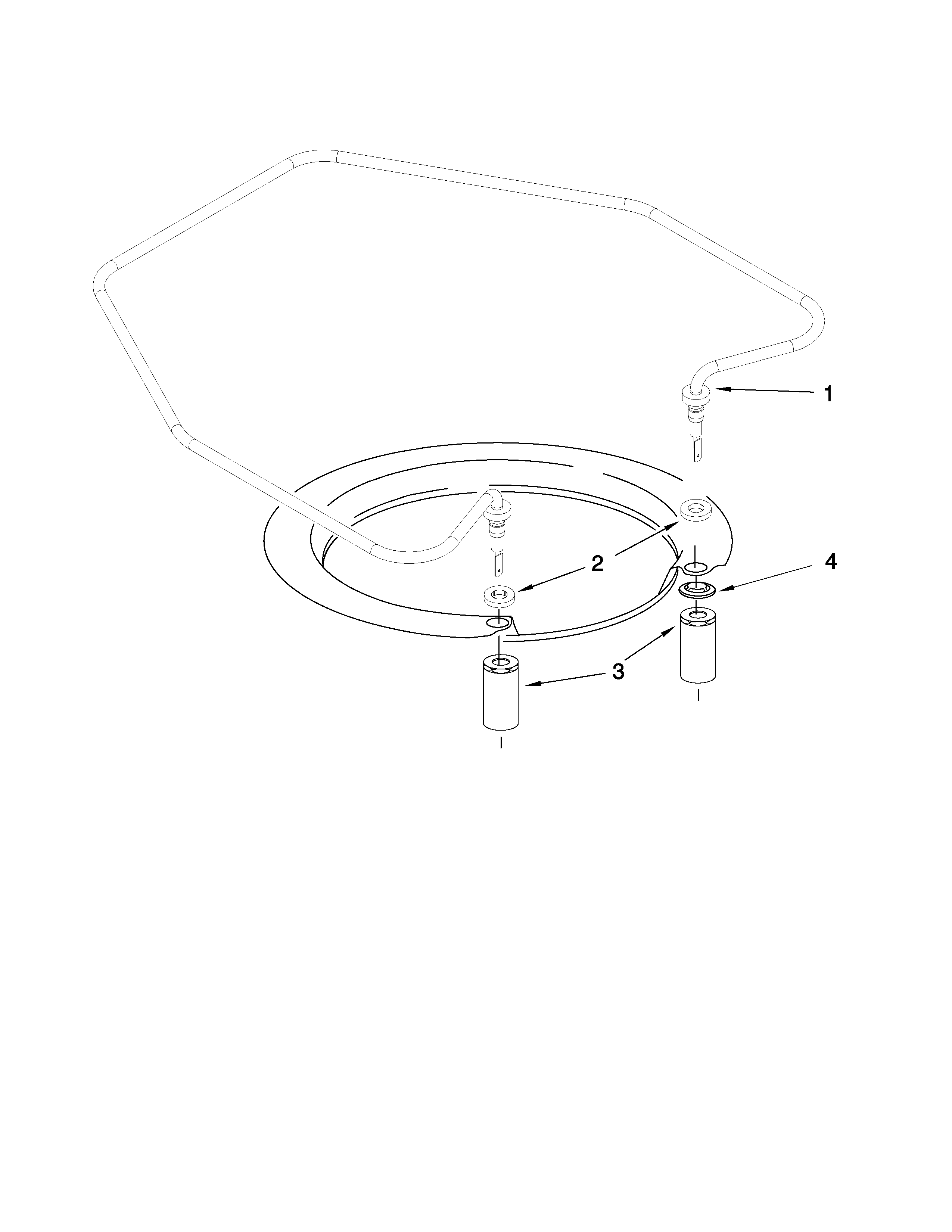

Failed heating element	Water stays cool; poor drying	Test and replace heater element WPW10082892
Wiring/connection issue in heater circuit	Intermittent heat; code comes and goes	Inspect connectors for heat damage, looseness

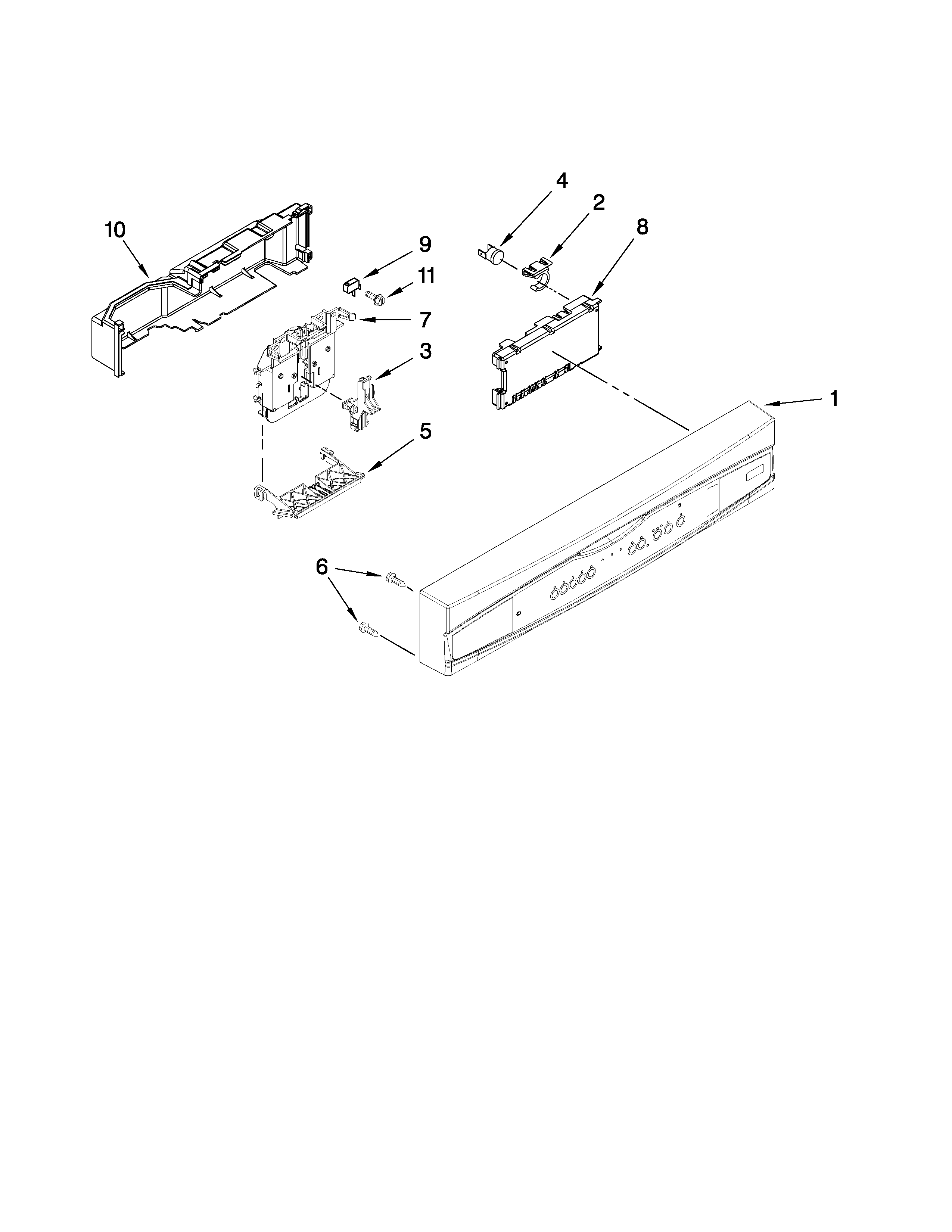

Control not sending power to heater	No heat even with good element	Diagnose control output; may involve dishwasher electronic control board WPW10285180
Poor wash water circulation	Dishes dirty; heater may shut down	Check pump/sump for clogs, circulation issues

How we recommend diagnosing E09 safely

1. Disconnect power at the breaker.
2. Use the wiring diagram and heater test procedure in the 66513249K900 owner’s manual.
3. If the heater tests open (no continuity), replace the heater.
4. If the heater tests good, inspect the harness and connections, then move to control diagnostics.

Why it matters

Heating is what helps dissolve detergent, control wash temperature, and improve drying. When the heater circuit fails, you can get cloudy glassware, greasy residue, and consistently wet dishes at the end of the cycle.

Last updated: February 2026

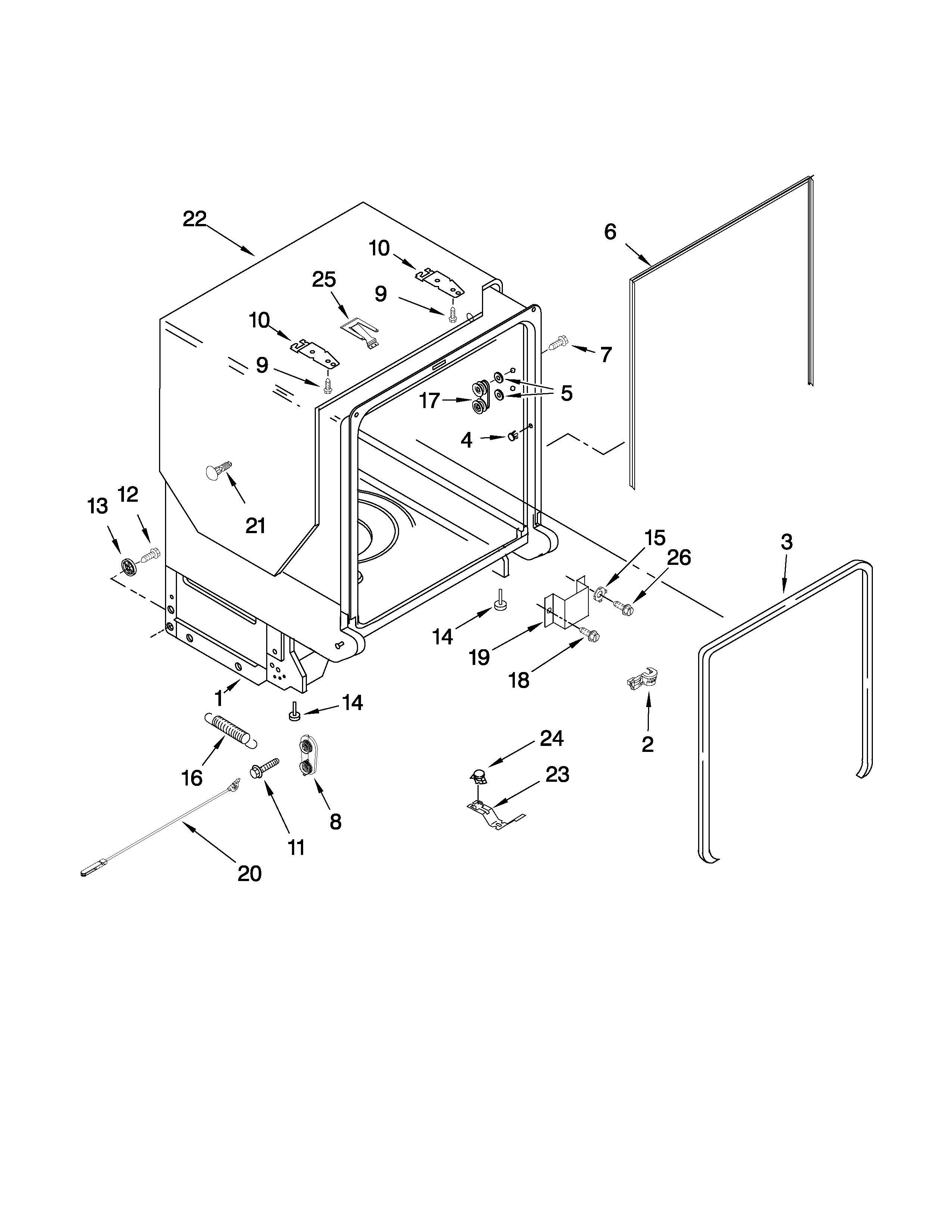

On Kenmore dishwasher model 66513249K900, the model number is printed on the model and serial number label located just inside the door opening on the tub frame. Open the door fully and look along the inside edge of the tub (commonly the left side).

Quick steps to locate the label

• Open the dishwasher door and keep it fully lowered.
• Look for a rectangular rating label on the tub frame, not on the outer door panel.
• Check the left inside edge first; then check the right edge if you do not see it.
• Wipe the area with a damp cloth; soap film can hide the print.
• Record both the model number and serial number for parts lookup and service.

What the label is used for (and what it looks like)

The label is the appliance identification tag. It typically lists the model number, serial number, and other manufacturing details.

Item on label	Why you need it
Model number	Ensures you get the correct Kenmore dishwasher parts for your exact design
Serial number	Helps match production changes and confirm compatible replacement parts
Purchase date (your record)	Useful for maintenance history and service calls

Why it matters

Kenmore dishwashers can look similar across multiple series, but internal parts like the electronic control board, drain pump, and door seal can vary by model. Using the exact label information prevents ordering the wrong part and speeds up troubleshooting.

Helpful reference

For a diagram showing where the model/serial label is located on the tub, see the 66513249K900 owner's manual.

Last updated: February 2026
