Craftsman
Front-Engine Lawn Tractor

Model # 917289220 Official Craftsman tractor yts3000

Here are the diagrams and repair parts for Official Craftsman 917289220 tractor yts3000, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

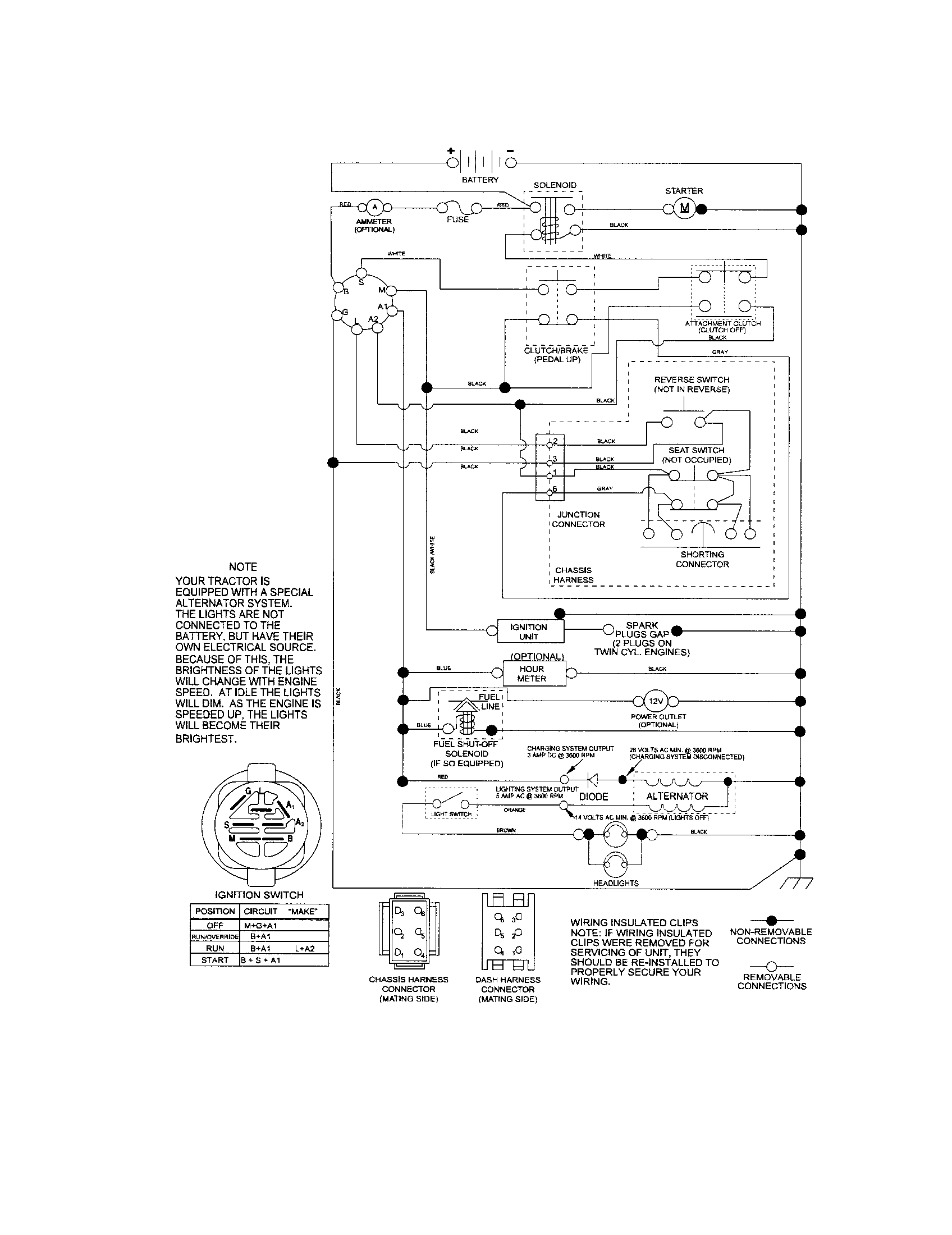

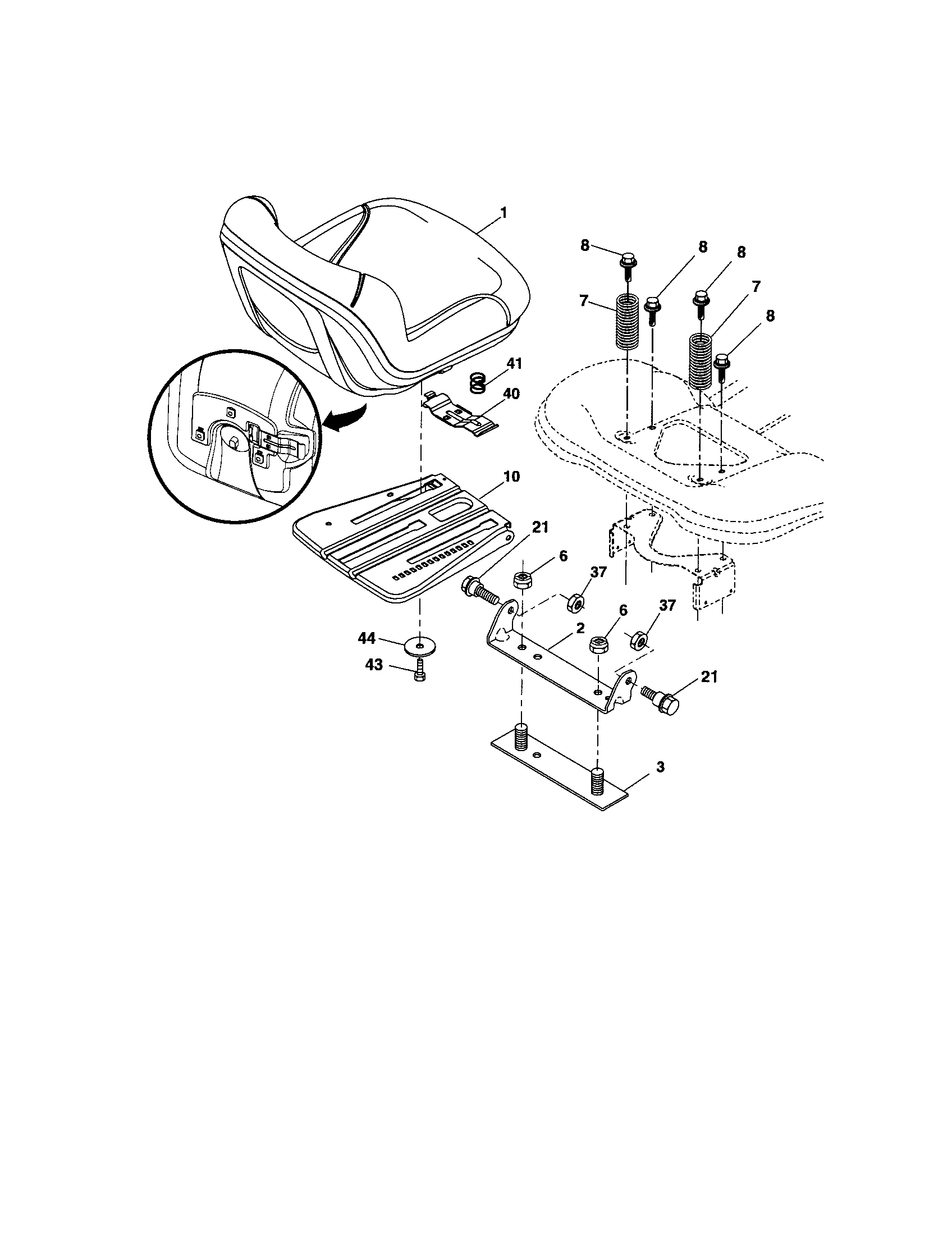

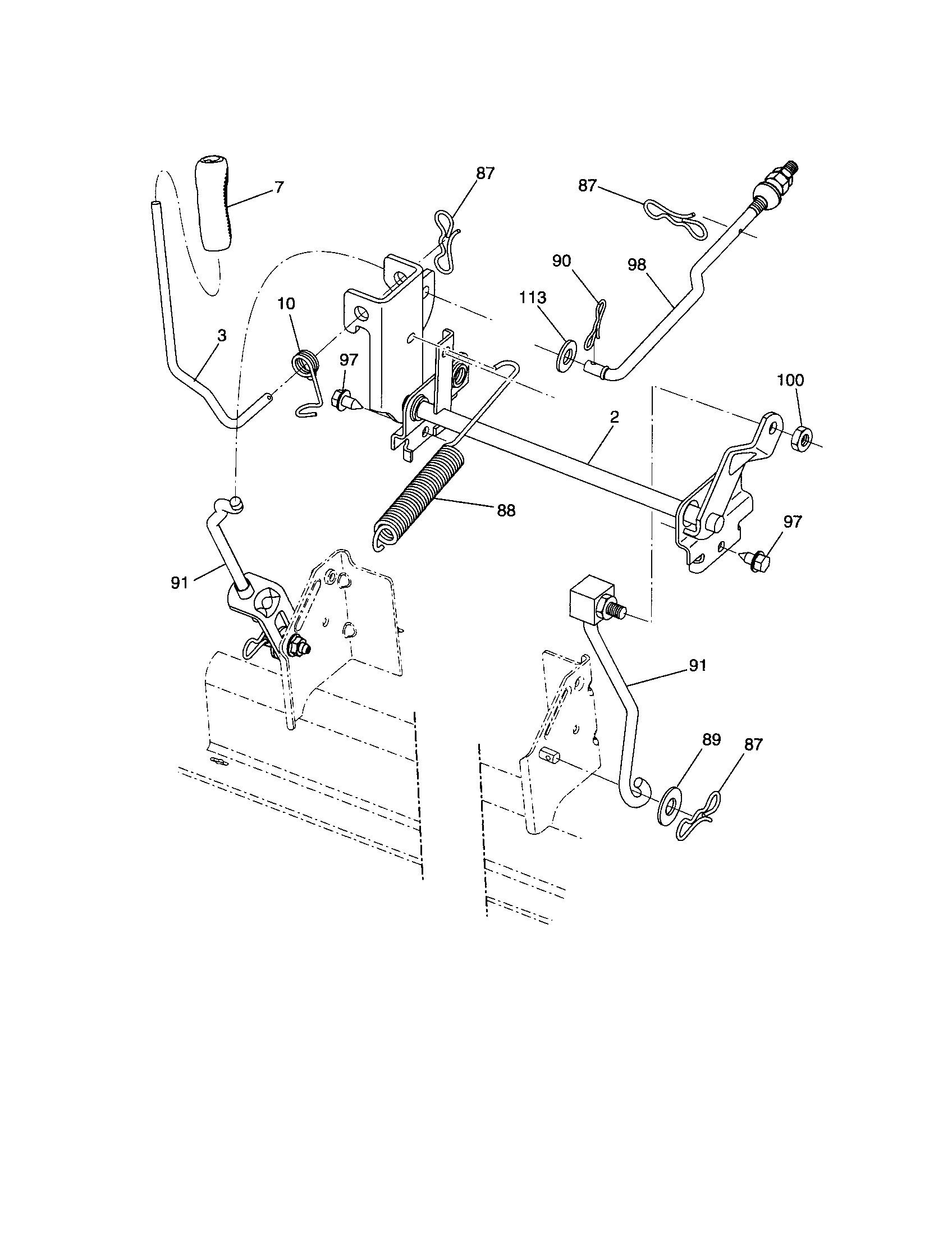

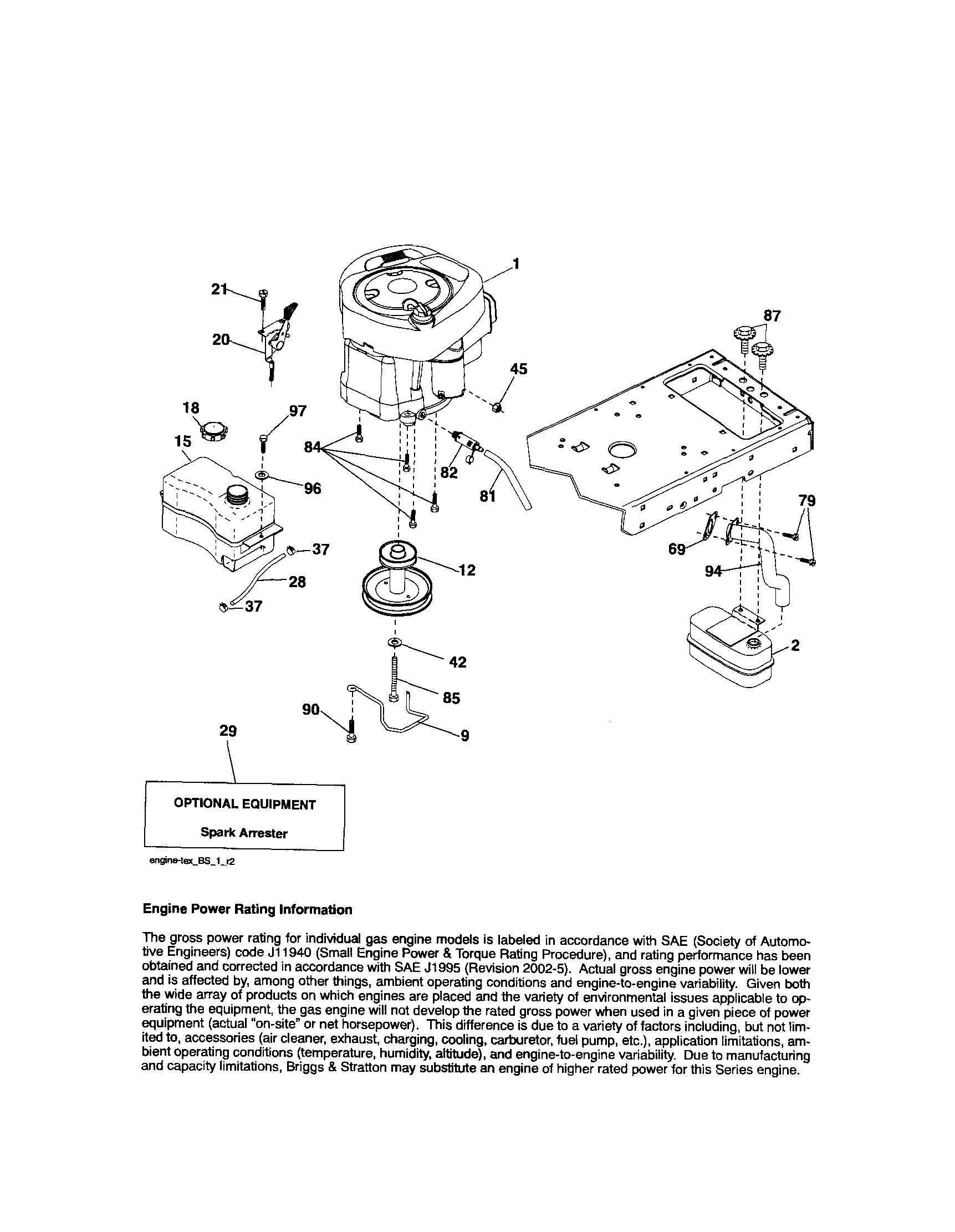

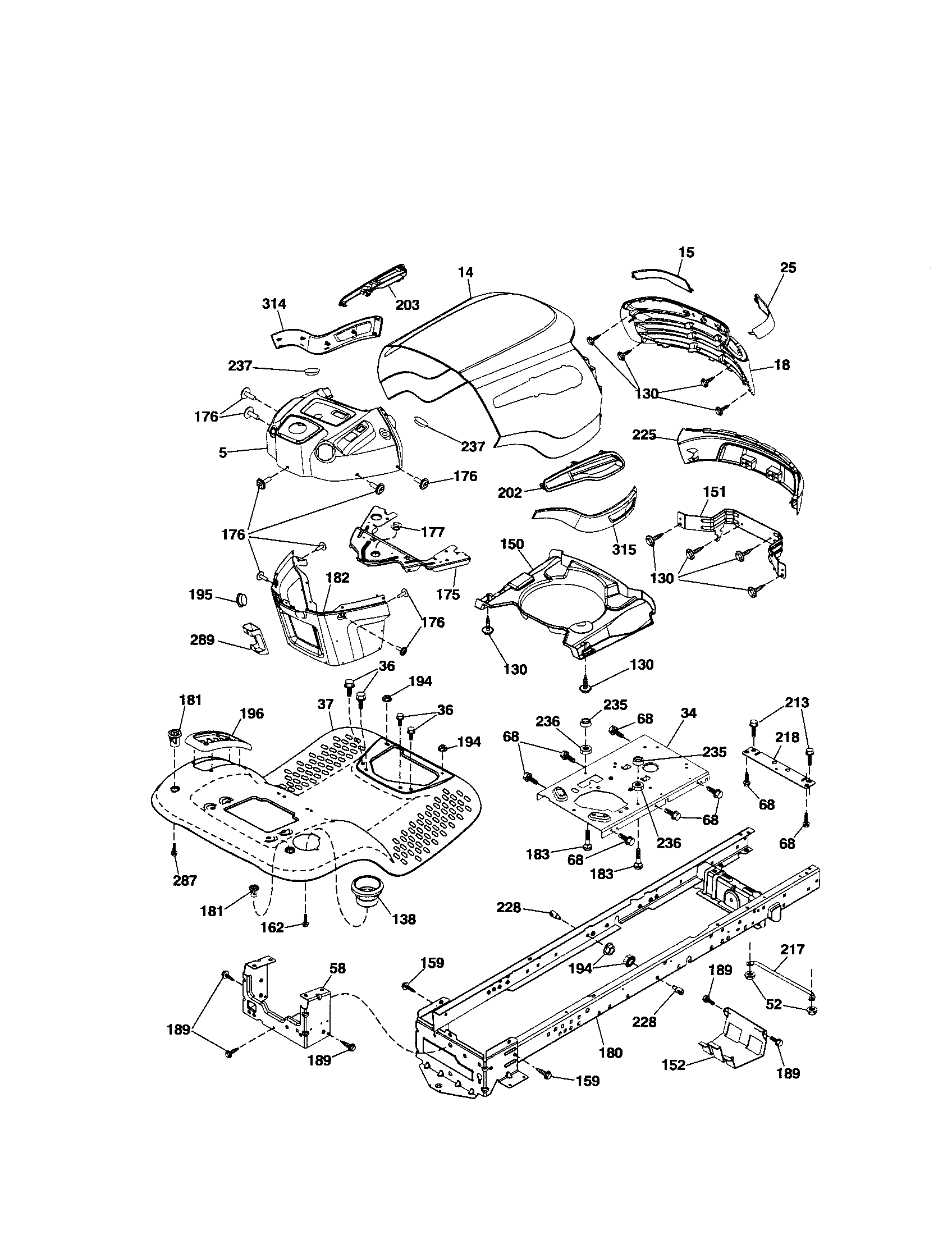

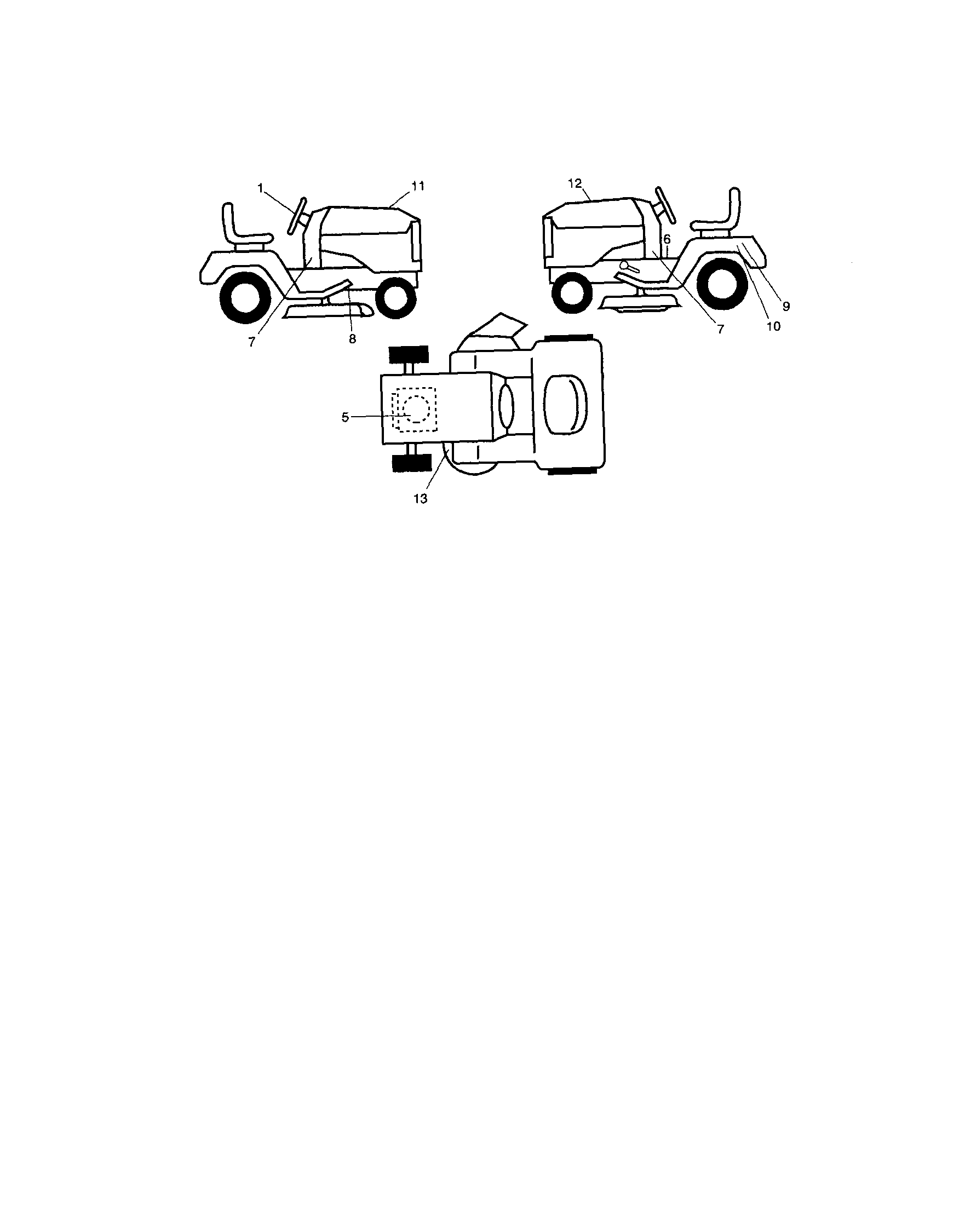

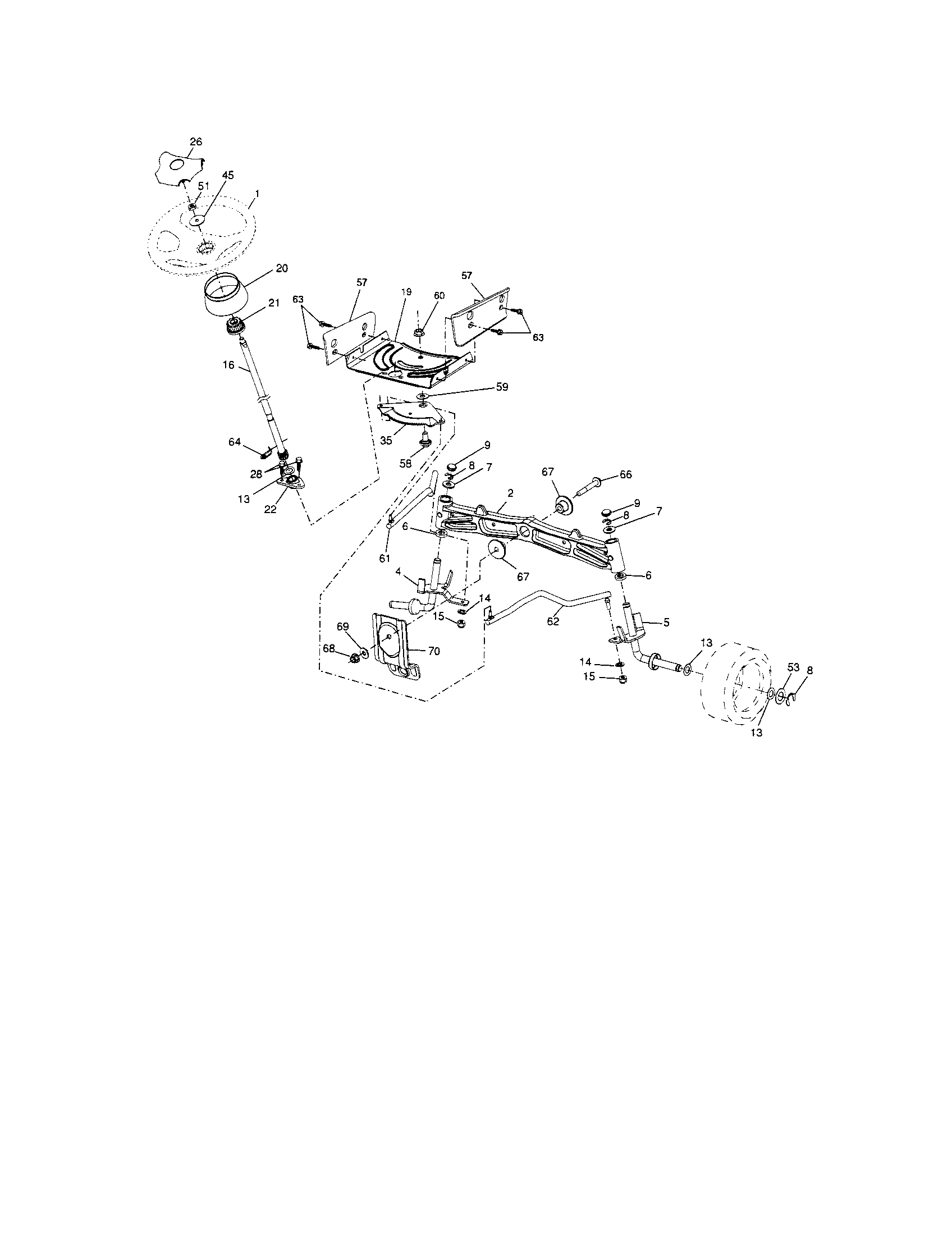

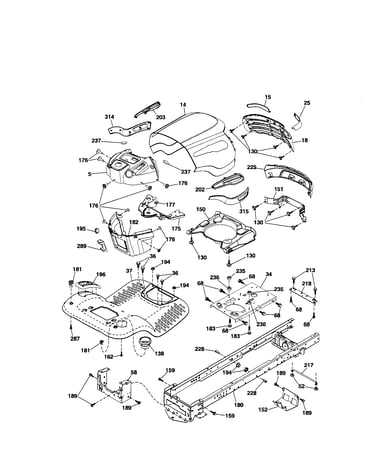

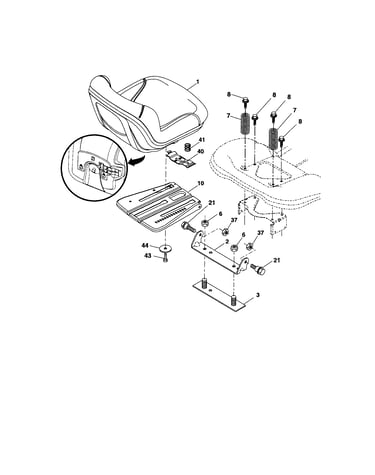

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 549 parts  |

Lawn Tractor Mandrel Shaft Assembly 192872
#13

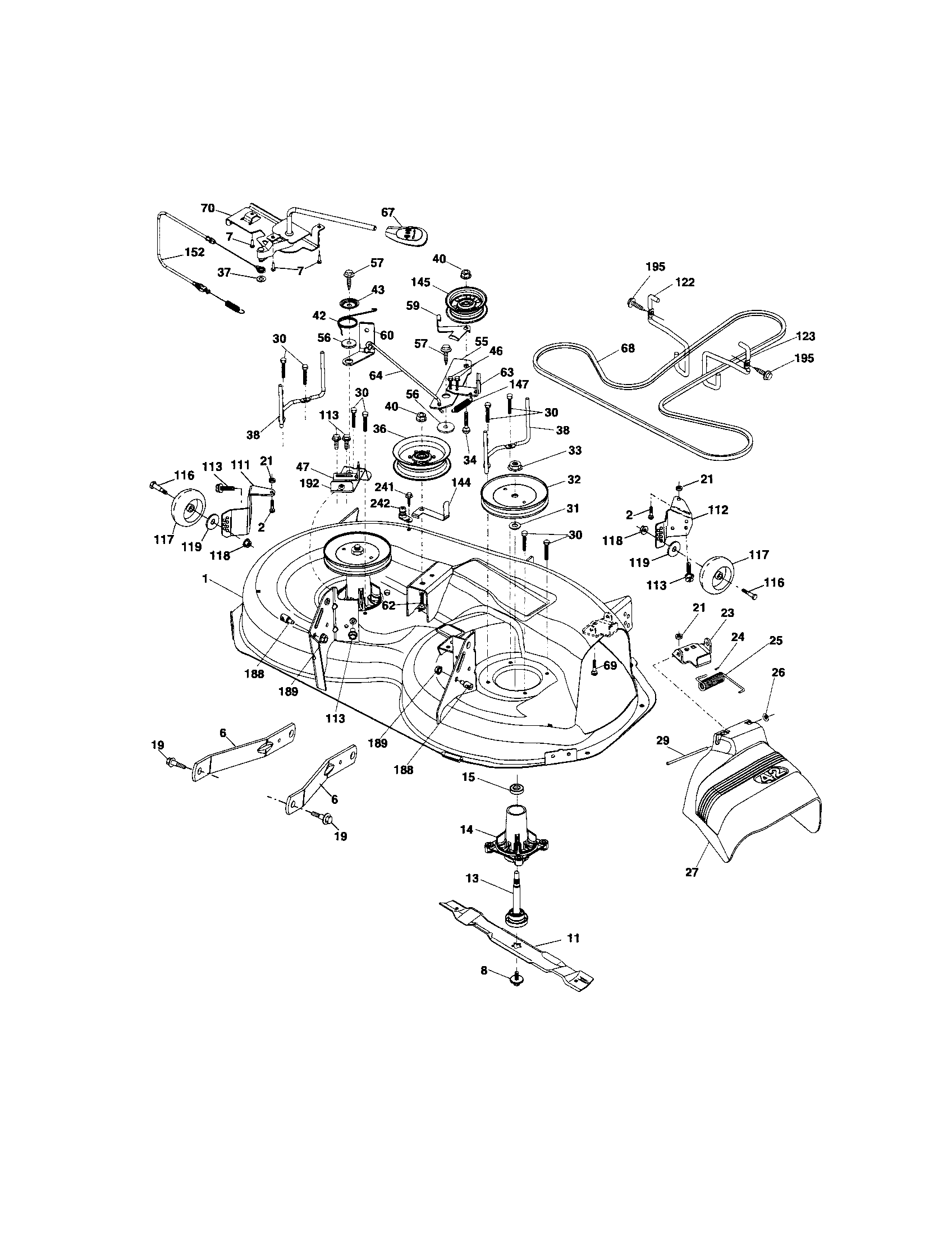

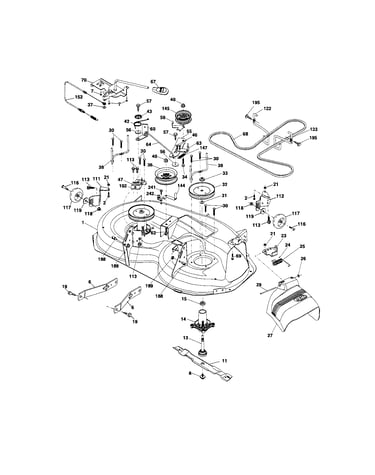

Mower deck diagram

Lawn tractor mandrel shaft assembly

Part #192872

Replaced by #587819701

?
Manufacturer substitution
This part replaces 192872. Substitute parts can look different from the original.
BEST SELLER
$48.44
11% OFF Phone Price : $54.44
In Stock
Lawn Tractor Mandrel Housing 187281
#14

Mower deck diagram

Lawn tractor mandrel housing

Part #187281

Replaced by #587819701

?
Manufacturer substitution
This part replaces 187281. Substitute parts can look different from the original.
BEST SELLER
$48.44
11% OFF Phone Price : $54.44
In Stock
Lawn Tractor Mulching Blade 134149
#11B

Mower deck diagram

Lawn tractor mulching blade

Part #134149

Replaced by #532134149

?
Manufacturer substitution
This part replaces 134149. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$22.14
21% OFF Phone Price : $28.14
In Stock
Lawn Tractor 42-in Deck High-lift Blade 138971
#11A

Mower deck diagram

Lawn tractor 42-in deck high-lift blade

Part #138971

Replaced by #532138971

?
Manufacturer substitution
This part replaces 138971. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$22.14
21% OFF Phone Price : $28.14
In Stock
Lawn Tractor Belt, 1/2 X 101-1/6-in 197253
#68

Mower deck diagram

Lawn tractor belt, 1/2 x 101-1/6-in

Part #197253

Replaced by #592855001

?
Manufacturer substitution
This part replaces 197253. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$32.30
16% OFF Phone Price : $38.30
In Stock
Lawn Tractor Axle Cap 104757X428
#8

Wheels and tires diagram

Lawn tractor axle cap

Part #104757X428

Replaced by #532104757

?
Manufacturer substitution
This part replaces 104757X428. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31
16% OFF Phone Price : $6.31
In Stock
Lawn Tractor Drive Belt 125907X
#56

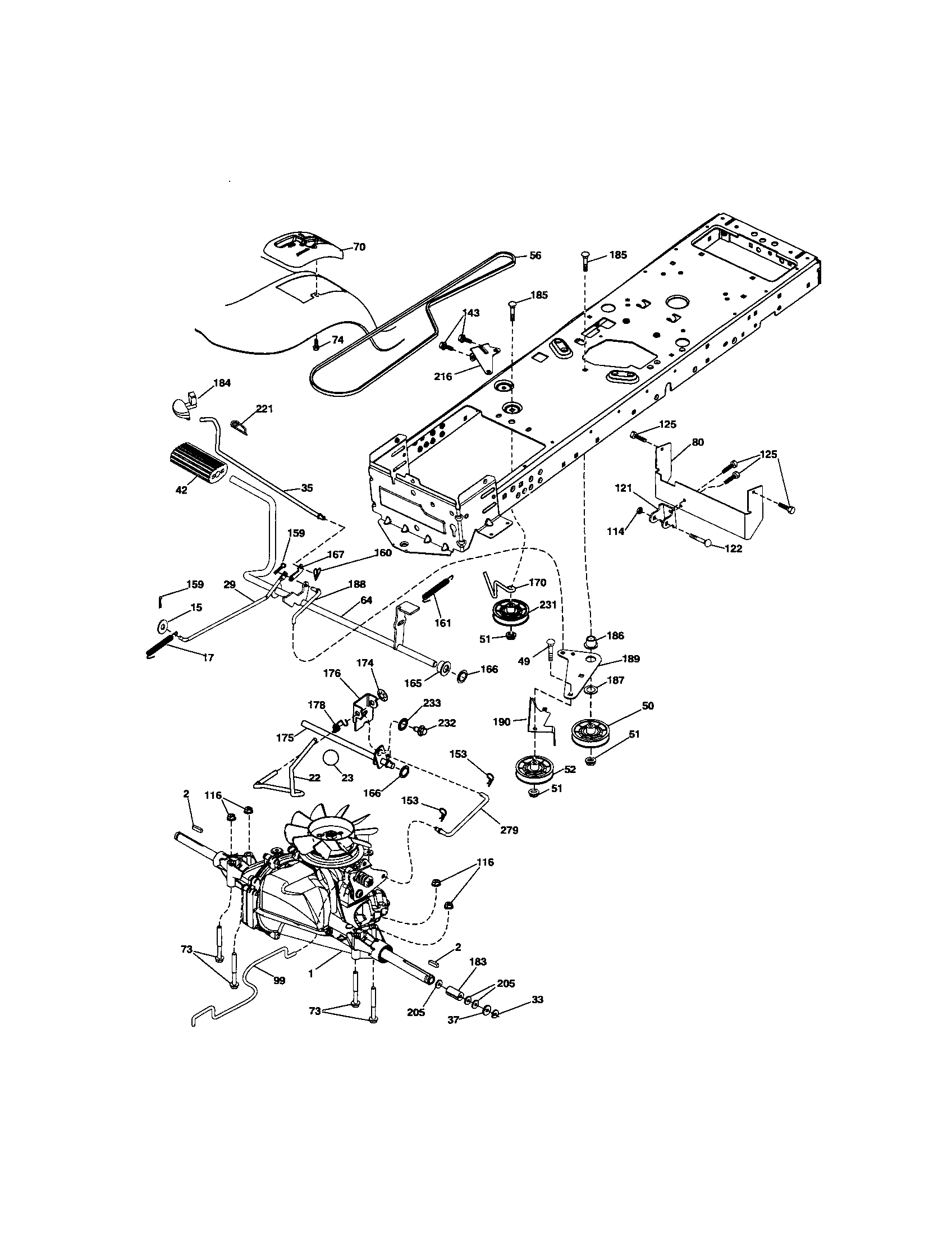

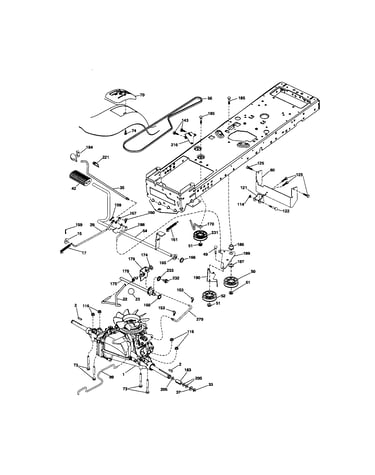

Ground drive diagram

Lawn tractor drive belt

Part #125907X

Replaced by #532125907

?
Manufacturer substitution
This part replaces 125907X. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$32.30
16% OFF Phone Price : $38.30
In Stock
Lawn Tractor Bolt 173984
#30

Mower deck diagram

Lawn tractor bolt

Part #173984

Replaced by #584953901

?
Manufacturer substitution
This part replaces 173984. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31
16% OFF Phone Price : $6.31
In Stock
Lawn Tractor Starter Solenoid 192507
#43

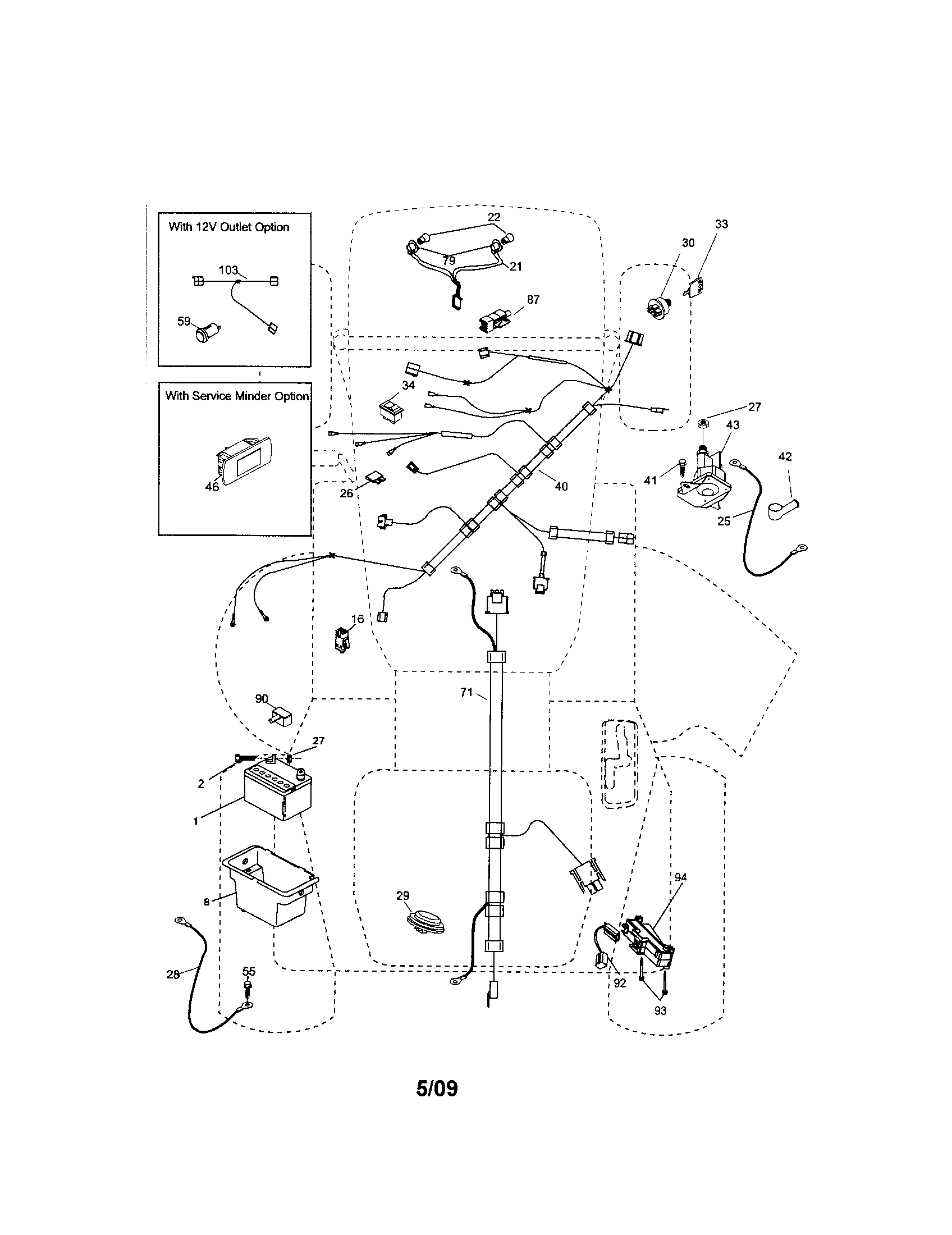

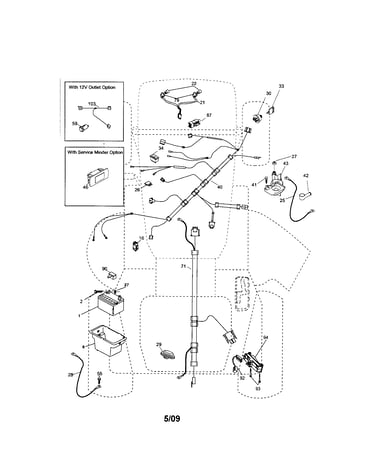

Electrical diagram

Lawn tractor starter solenoid

Part #192507

Replaced by #582042802

?
Manufacturer substitution
This part replaces 192507. Substitute parts can look different from the original.
BEST SELLER
$30.64
16% OFF Phone Price : $36.64
In Stock
Lawn Tractor Deflector Shield Hinge Rod 131491
#29

Mower deck diagram

Lawn tractor deflector shield hinge rod

Part #131491

Replaced by #595297001

?
Manufacturer substitution
This part replaces 131491. Substitute parts can look different from the original.
BEST SELLER
$7.05
12% OFF Phone Price : $8.05
In Stock
