How to replace a riding lawn mower fuel filter

By Lyle Weischwill
How to replace a riding lawn mower fuel filter

This step-by-step riding mower repair guide shows how to replace the fuel filter in a riding lawn mower. The fuel filter keeps dirt from getting into the carburetor. A clogged or dirty fuel filter doesn’t let enough fuel reach the carburetor, so the engine run roughs or stops running completely. Remove the old fuel filter and install a new one when you tune up your lawn tractor each year, using a manufacturer-approved replacement part.

This procedure works for common Briggs & Stratton engines that power Craftsman, MTD, Husqvarna, Murray, Toro, Troybilt, Snapper, Yard-Man, Ariens, Poulan and John Deere riding mowers and lawn tractors.

Quick links
Tools required
2 hose pinch-off pliers
Pliers
Shop rag
Work gloves
Repair difficulty
Time required
15 minutes or less
Repair difficulty
Time required
15 minutes or less
Replacing a fuel filter on a riding lawn mower

This video explains how to replace the fuel filter on a riding lawn mower.

Instructions

  1. 01.

    Disconnect the spark plug

    Park the tractor on a level surface in a well-ventilated area.

    Set the parking brake.

    Turn the ignition switch off and remove the key.

    Let the engine cool.

    Wear work gloves to protect your hands.

    Lift the tractor hood and disconnect the spark plug wire.

    Tip: Disconnect both spark plug wires if your tractor has 2 cylinders.
    Disconnect the spark plug.

    Disconnect the spark plug.

  2. 02.

    Remove the old fuel filter

    Remove the lower dash fastener and pull off the lower dash.

    Clamp hose pinch-off pliers onto the fuel line on each side of the fuel filter to block the flow of fuel.

    Position the shop rag under the fuel filter to catch drips.

    Release the hose clamps and remove the hose from each side of the fuel filter.

    Wipe up any spilled fuel.

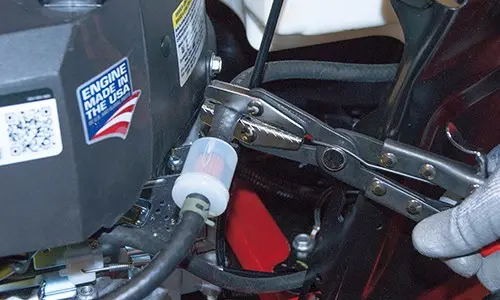

    Clamp off the fuel line.

    Clamp off the fuel line.

  3. 03.

    Install the new fuel filter

    Connect the hose on each side of the new fuel filter using the hose clamps.

    Release the hose pinch-off pliers from each side of the fuel filter.

    Reinstall the lower dash and secure it with the fastener.

    Install the new fuel filter.

    Install the new fuel filter.

  4. 04.

    Reconnect the spark plug

    Reconnect the spark plug wire and lower the tractor hood.

    Tip: Reconnect both spark plug wires if your engine has 2 cylinders.
Warning: Undertaking repairs to lower lawn-care equipment can be hazardous. Use the proper tools and safety equipment noted in the guide and follow all instructions. Do not proceed until you are confident that you understand all of the steps and are capable of completing the repair. Some repairs should only be performed by a qualified technician.
