April 1, 2014

How to replace a dishwasher thermal fuse

By Lyle Weischwill
How to replace a dishwasher thermal fuse

This dishwasher repair guide explains how to replace the bi-metal thermal fuse in the control panel. The thermal fuse is a safety device that shuts power to the controls off— making the control panel unresponsive to commands— if there's a short circuit in the wire harness. The fuse can also blow or trip due to a failure of a major component such as the heating element or pump. You can replace the thermal fuse in less than 30 minutes, using a manufacturer-approved replacement part.

These instructions work for replacing the thermal fuse in Kenmore 665-series, Whirlpool and KitchenAid dishwashers.

Quick links
Tools required
Torx screwdriver
Slot screwdriver
Work gloves
Repair difficulty
Time required
30 minutes or less
Repair difficulty
Time required
30 minutes or less

Instructions

  1. 01.

    Shut off electrical power

    Flip the house circuit breaker switch to the Off position to completely disconnect electrical power to the dishwasher (some older homes instead have a fuse that you remove from the fuse box). To verify that power is disconnected, make sure the display on the control panel can't be activated.

  2. 02.

    Release the control panel

    Remove the Torx screws from the inner door panel that secures the control panel to the front of the dishwasher door.

    Fold the control panel forward and down for access to the thermal fuse. You don't have to completely remove the panel.

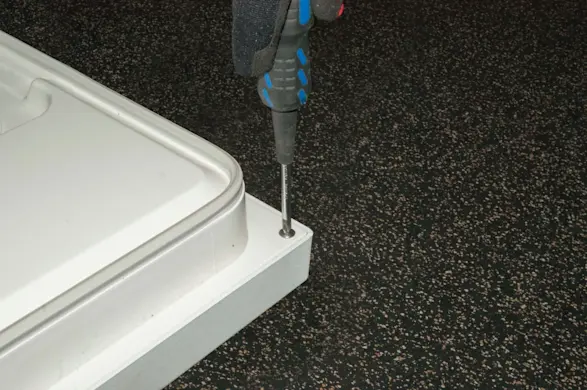

    Remove screws from the inner door panel.

    Remove screws from the inner door panel.

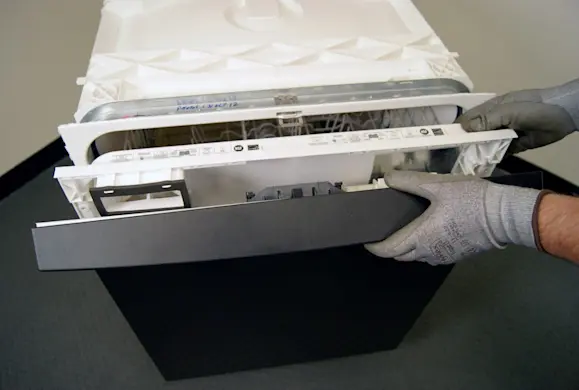

    Release the control panel from the dishwasher door.

    Release the control panel from the dishwasher door.

  3. 03.

    Remove the thermal fuse from the control circuit board

    The thermal fuse is mounted on the control board housing. Push down the main release tab to release the fuse from the locking tabs. Pull the thermal fuse forward and out from under the other tabs.

    Release the locking tabs on the thermal fuse.

    Release the locking tabs on the thermal fuse.

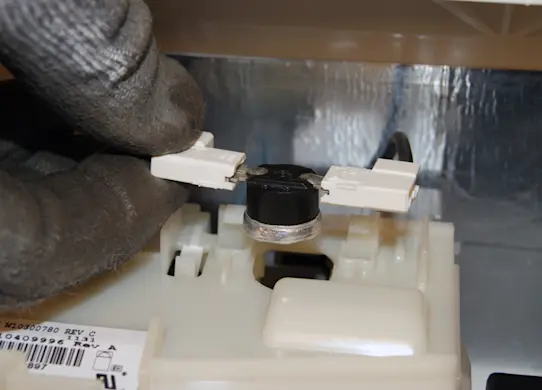

    Pull the thermal fuse out of the board.

    Pull the thermal fuse out of the board.

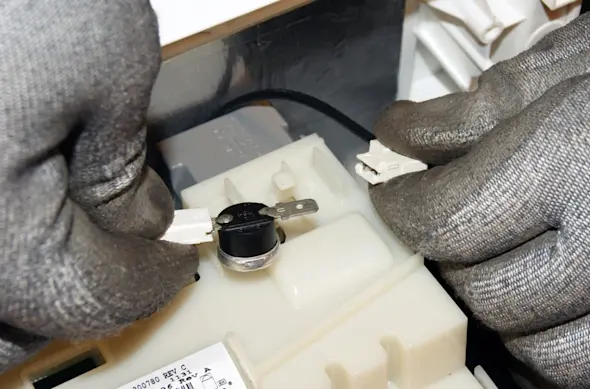

    Remove the wires from the thermal fuse.

    Remove the wires from the thermal fuse.

  4. 04.

    Install the new thermal fuse

    Connect the wires to the new thermal fuse. Position the thermal fuse under the locking tabs and push it into place.

  5. 05.

    Reattach the inner door panel

    Install the screws in the inner door panel. Firmly tighten the screws but don't overtighten, which could strip the threads.

  6. 06.

    Restore electrical power

    Flip the house circuit breaker switch to the On position to restore electrical power to the dishwasher. The dishwasher display should light up after you restore electricity. Test that the dishwasher control buttons work.

Warning: Undertaking repairs to appliances can be hazardous. Be sure to use the proper tools and safety equipment notes in the guide and follow all instructions. Do not proceed until you are confident that you understand all of the steps and are capable of completing the repair. Some repairs should only be performed by a qualified technician.
