Craftsman 917296040 rear-tine tiller Parts

Yes. Craftsman rear-tine tillers are a strong choice for homeowners who need real digging power and consistent soil breakup. The Craftsman model 917296040 is built around dual rotating tines and a 17-inch tine width; performance stays “good” when it’s operated and maintained to the specs in the 917296040 owner’s manual.

What “good” looks like in real use

A rear-tine tiller earns its keep when it digs without excessive bouncing, belt slip, or rapid tine wear.

• Till in passes; avoid trying to go too deep too fast
• Use the drag stake correctly to control forward pull
• Keep guards and shields installed for control and safety
• Check fasteners and wear points regularly
• Replace shear pins when you hit roots or rocks (they are designed to break first)

Common issues and what to check

Many “not good” experiences trace back to wear items or adjustments.

Symptom	What it usually indicates	First check
Poor drive or slipping	Belt wear or cable out of adjustment	Drive belt and cable tension
Tiller surges in hard ground	Tines catching and overloading	Reduce depth, slow ground speed
Shallow tilling	Worn or bent tines	Tine condition and spacing
Frequent pin breakage	Obstacles or overloading	Correct shear pins, proper depth

Maintenance that makes the biggest difference

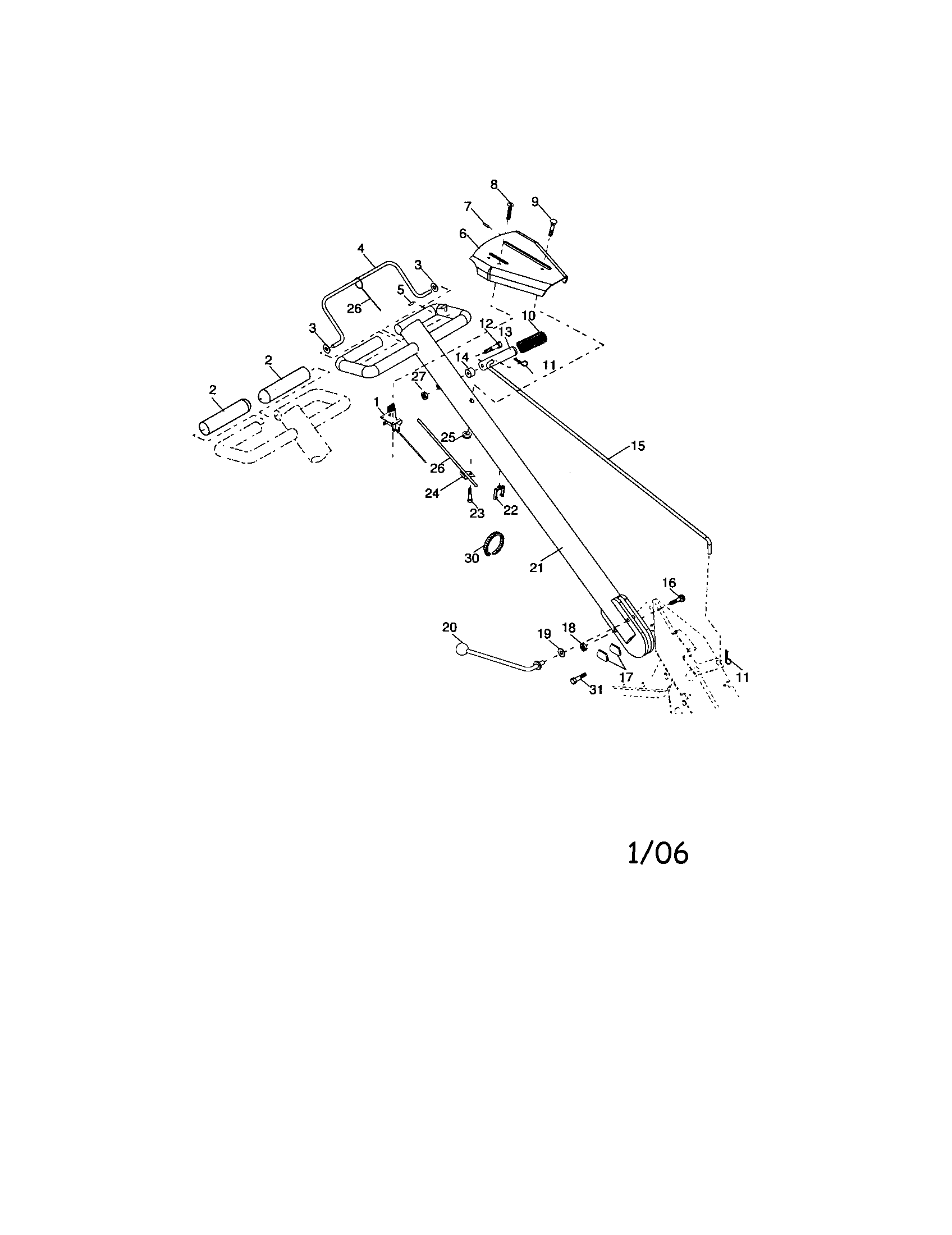

• Set drive control cable tension to the manual’s spec (about 5/8-inch stretch when engaged)

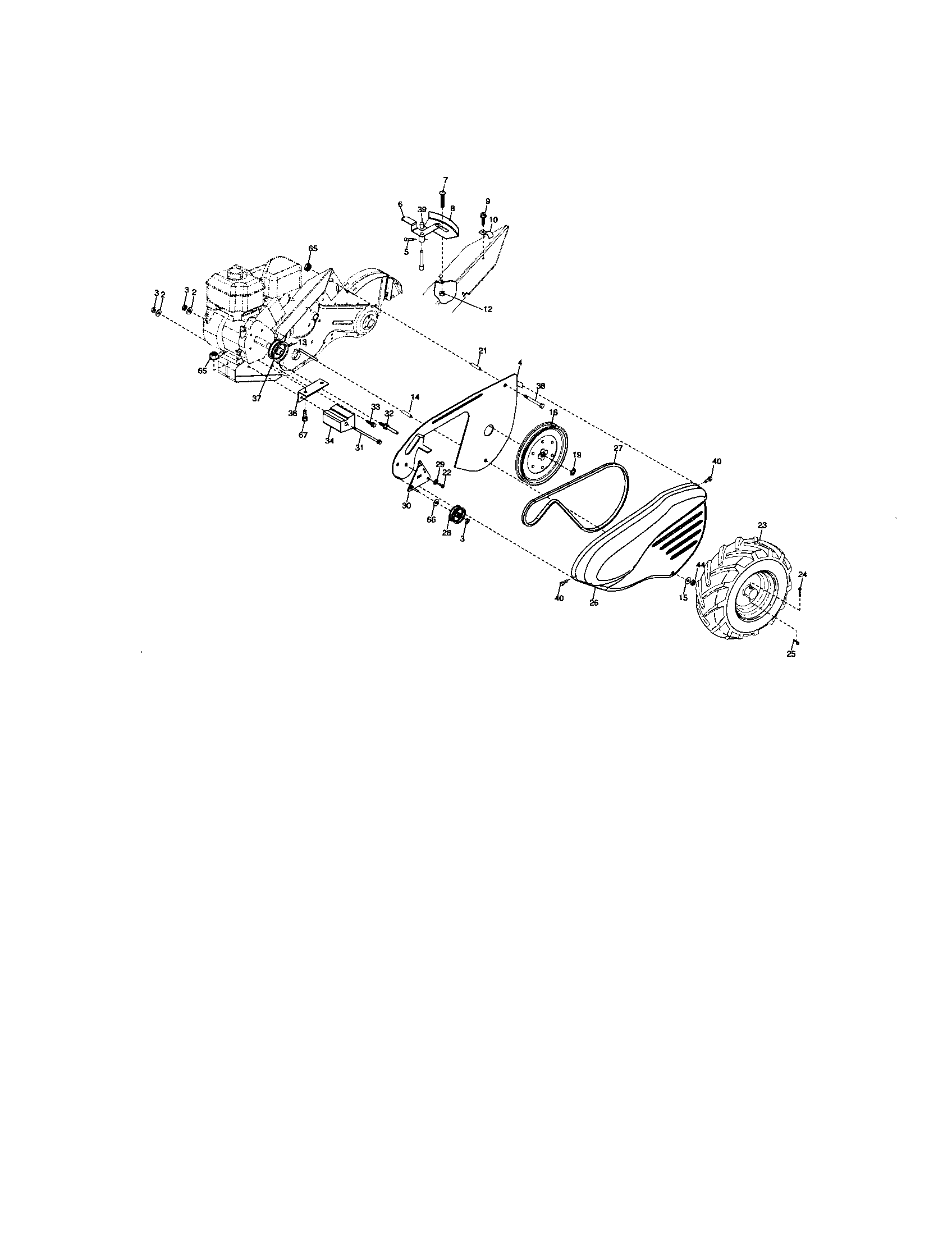

• Replace a worn belt with the correct belt for this model, such as the husqvarna rear-tine tiller drive belt 591372401
• Replace a stretched or damaged cable, such as the tiller clutch cable 532110675

Why it matters

Rear-tine tillers transfer heavy load through the belt, clutch cable, and tines. When those wear items are out of spec, the tiller feels weak or hard to control even with a strong engine.

Last updated: February 2026

The Craftsman rear-tine tiller model 917296040 is a heavy, steel-framed garden tiller; most rear-tine tillers in this 7 HP, 17-inch tine-width class weigh roughly 180 to 230 lb. For the exact shipped and assembled weight for your unit, check the specifications section in the 917296040 owner's manual.

How to find the exact weight for model 917296040

We recommend using the model-specific documentation first because weight can vary by engine configuration, tires, and attachments.

• Look for a “Specifications” or “Product specifications” section
• Check for separate values for shipping weight vs assembled/operating weight
• If the manual lists engine details (this model uses a Briggs engine family), match that to your machine
• If you have added accessories (counterweight, bumper, etc.), include them in your total

Typical weight ranges (what to expect)

Rear-tine tillers are designed for traction and tine penetration, so they weigh much more than front-tine models.

Tiller type	Typical weight	What that means for you
Front-tine tiller	90 to 140 lb	Easier to lift and transport
Rear-tine tiller (like 917296040)	180 to 230 lb	Better traction, harder to load
Rear-tine with added weights	210 to 260 lb	More stability, more strain on ramps

Why it matters

Knowing the weight helps you choose the right loading ramps, tie-down points, and transport method (pickup bed, trailer, or hitch carrier). It also helps prevent damage to the wheels, gear case, and handle controls when moving the tiller.

Moving and loading tips for a heavy rear-tine tiller

• Use two ramps rated above the tiller’s weight (plus a safety margin)
• Keep the tiller in a low gear and walk it up under control; do not free-roll it
• Secure with two ratchet straps minimum (front and rear)
• Avoid lifting by control cables; protect the tiller clutch cable routing

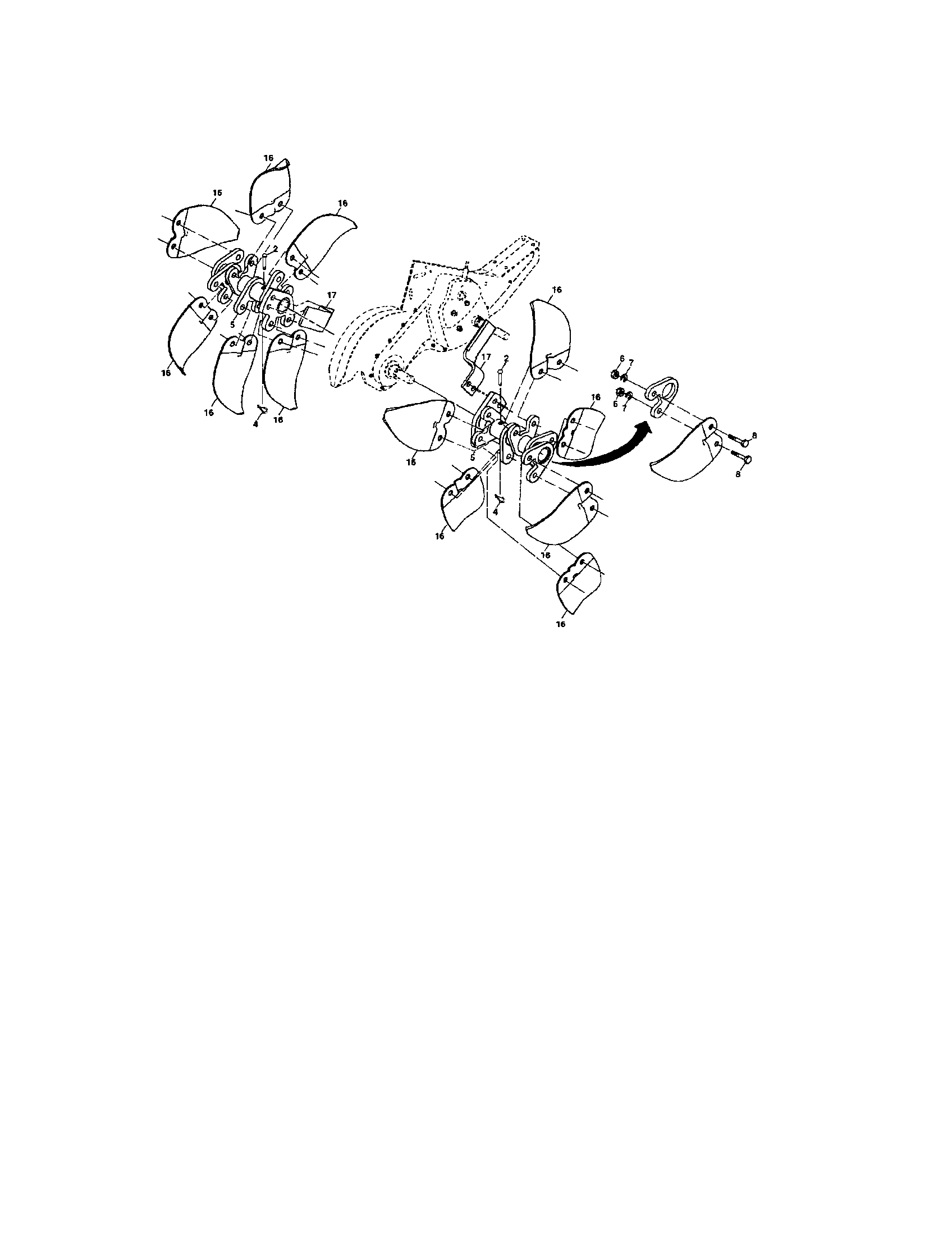

• If you are servicing the tine area, remove the tine assemblies and retainers such as the spring retainer 532003146 as needed and reinstall correctly

Last updated: February 2026

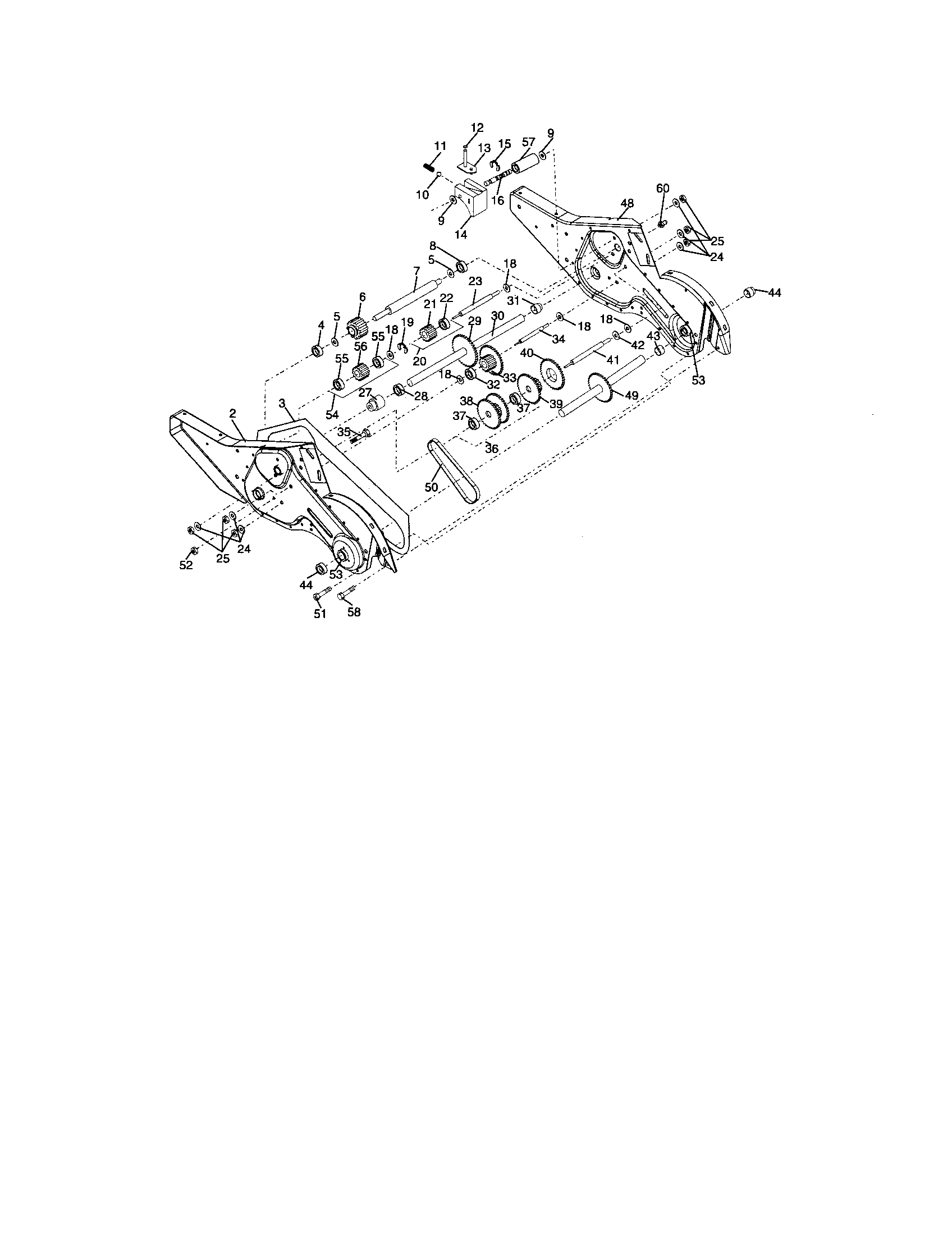

For the Craftsman rear-tine tiller model 917296040, grease the transmission at the right-hand gear case grease fitting once per season using 1 oz. of EP #1 grease. This keeps the gear case lubricated and helps prevent premature wear.

Where to grease (917296040)

Use the lubrication points and intervals shown in the 917296040 owner's manual. For this model, the manual calls out the right-hand gear case grease fitting as the seasonal greasing point.

• Locate the grease fitting on the right-hand side of the transmission gear case
• Wipe dirt off the fitting before attaching the grease gun
• Pump in 1 oz. EP #1 grease (do not overfill)
• Wipe away excess grease after pumping
• Grease once per season (more often if used heavily in dusty conditions)

Quick steps (safe, clean method)

1. Shut the engine off and let the tiller cool.
2. Disconnect the spark plug wire so the engine cannot start accidentally.
3. Clean around the grease fitting.
4. Attach a grease gun and add the specified amount.
5. Reconnect the spark plug wire when finished.

Grease vs. oil: what goes where

Maintenance item	What to use	Typical interval
Gear case grease fitting	EP #1 grease (1 oz.)	Once per season
Engine crankcase	SAE 30 motor oil (API SG-SL)	Check before use; change per schedule

Why it matters

Greasing the gear case fitting keeps the transmission gears properly lubricated, which reduces heat and metal-to-metal wear. That directly improves tine drive reliability and extends the life of the gear case.

Last updated: February 2026

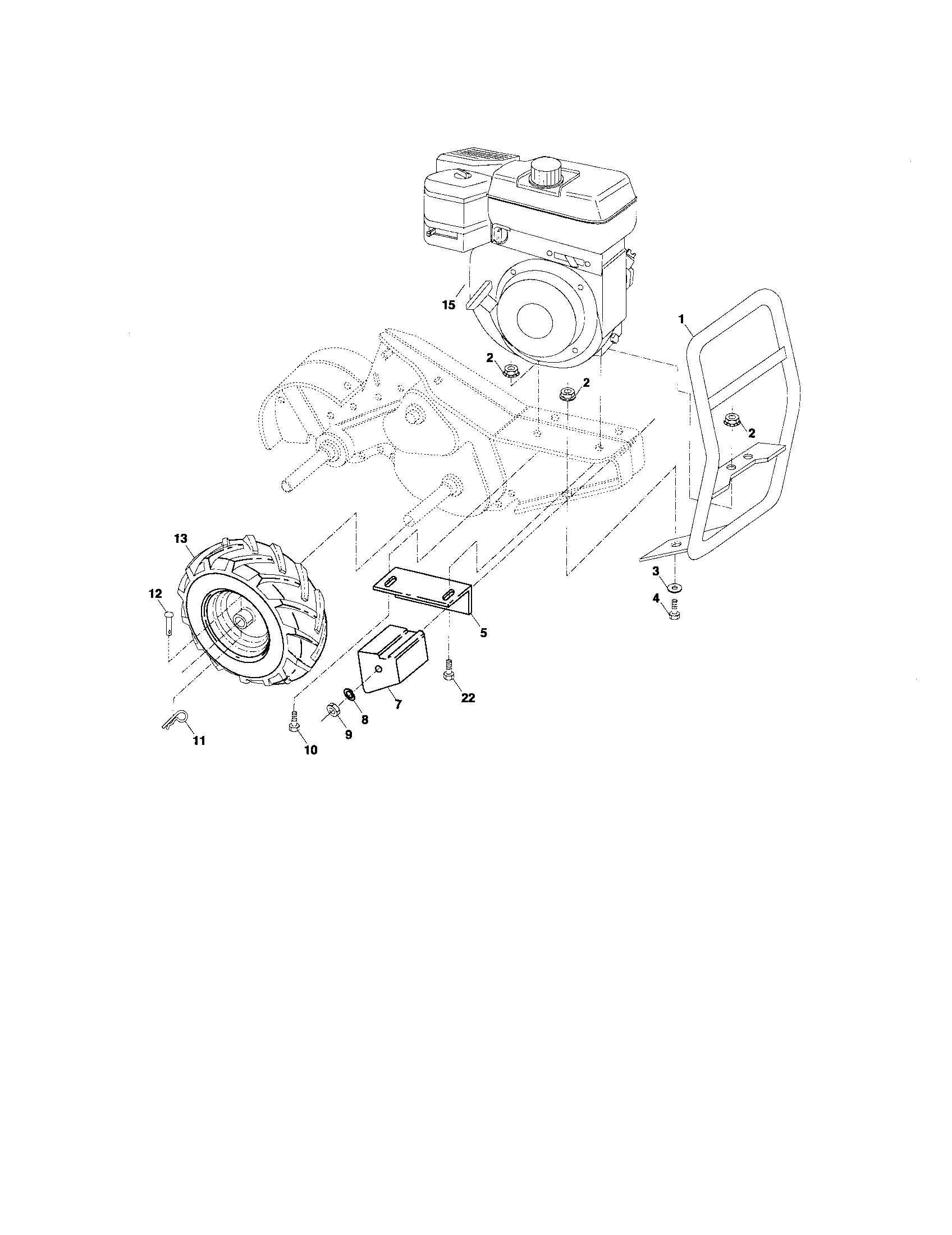

The Craftsman rear-tine tiller model 917296040 uses a Briggs & Stratton engine; the engine model number shown for this tiller is 122002-0394-E1. For the exact engine identification details and operating specs, use the 917296040 owner's manual.

How to confirm the engine on your specific tiller

We recommend matching what is stamped on your engine to the manual and your unit.

• Check the engine shroud or valve cover area for the Briggs & Stratton label
• Locate the engine model/type/code stamping (often on the blower housing)
• Compare the stamping to the engine listing in the manual for 917296040
• Verify your tiller model tag reads 917296040 (usually on the frame)
• If you are ordering drive parts, match by tiller model first (not just engine)

What “engine model number” means

On this Craftsman tiller, the manual lists the engine as Briggs & Stratton 122002-0394-E1. That identifier helps you match engine-specific items like carburetor kits, gaskets, and ignition parts.

Item	Where it applies	Example for this tiller
Tiller model number	Whole machine (frame, transmission, tines)	917296040
Engine model number	Engine-only components	122002-0394-E1

Why it matters for parts and troubleshooting

Using the correct engine identification prevents wrong-part returns and speeds up repairs. For example, a drive issue on the tiller is often handled with tiller drive components such as the husqvarna rear-tine tiller drive belt 591372401, while fuel or starting issues typically point to engine-specific parts.

Last updated: February 2026

For the Craftsman rear-tine tiller model 917296040, use a high-quality detergent 4-cycle engine oil with API service classification SG-SL. Use SAE 30 above 40°F and SAE 5W-30 or 10W-30 below 40°F; fill to the dipstick mark (do not guess the amount). See the 917296040 owner's manual for the exact fill procedure and specifications.

Oil type and viscosity (what to buy)

Choose oil based on the temperature where you start and run the tiller:

• Above 40°F: SAE 30
• Below 40°F: SAE 5W-30 or SAE 10W-30
• Oil quality: detergent oil rated API SG-SL
• Engine type: 4-cycle (no fuel and oil mixing)

Quick reference table

Temperature at use	Recommended oil	What to watch
Above 40°F	SAE 30	Stable viscosity for warm-weather tilling
Below 40°F	SAE 5W-30 or 10W-30	Easier starting; check level more often

How to fill and check oil (avoid overfilling)

We use this method to get the level right every time:

• Park the tiller on a level surface.
• Remove the oil fill cap/dipstick and wipe it clean.
• Add oil slowly, then reinsert the dipstick to check the level.
• Stop when oil reaches the full mark on the dipstick.
• Tighten the filler plug securely after checking.

Oil change interval

For this Craftsman tiller, change the engine oil:

• After every 50 hours of operation, or
• At least once per year

Why it matters

Correct viscosity and the right fill level protect the engine under heavy load. Multi-viscosity oils help cold starts, but they can increase oil consumption in warmer conditions, so checking the dipstick prevents running low.

Last updated: February 2026

If you’re specifically looking for a tiller made in the USA, Mantis tillers are a well-known option that are designed, engineered, and manufactured in the United States. Your Craftsman rear-tine tiller model 917296040 is a different product line; we use the 917296040 owner's manual to match the correct specs, maintenance items, and parts for your machine.

How to confirm where a specific tiller is made

Country of origin can vary by brand, model, and production run. For the most reliable confirmation, we recommend checking:

• The product ID plate or decal on the tiller frame (often near the engine or handle support)
• The carton label (if you still have it)
• The owner’s manual cover and identification pages
• The engine label (engine origin can differ from the tiller assembly origin)
• The parts list and model number format used for ordering parts

Why this matters when you’re buying parts

Even when two rear-tine tillers look similar, the drive system and tine assembly can be different. Matching the exact model number (917296040) helps ensure the right fit for wear items like belts, cables, and drivetrain hardware.

Common parts that must match the model include:

• Drive belt and pulley sizes
• Clutch cable length and end fittings
• Tine and shear pin style
• Chain and sprocket pitch
• Gear case components

Quick examples for Craftsman 917296040 parts matching

What you’re replacing	What to match	Example part for this model
Tiller won’t drive or slips	Belt size and routing	Husqvarna rear-tine tiller drive belt 591372401
Tines won’t engage	Cable length and adjustment	Tiller clutch cable 532110675
Drivetrain noise or binding	Chain pitch and length	Tiller chain, #25-50 532102134

Last updated: February 2026

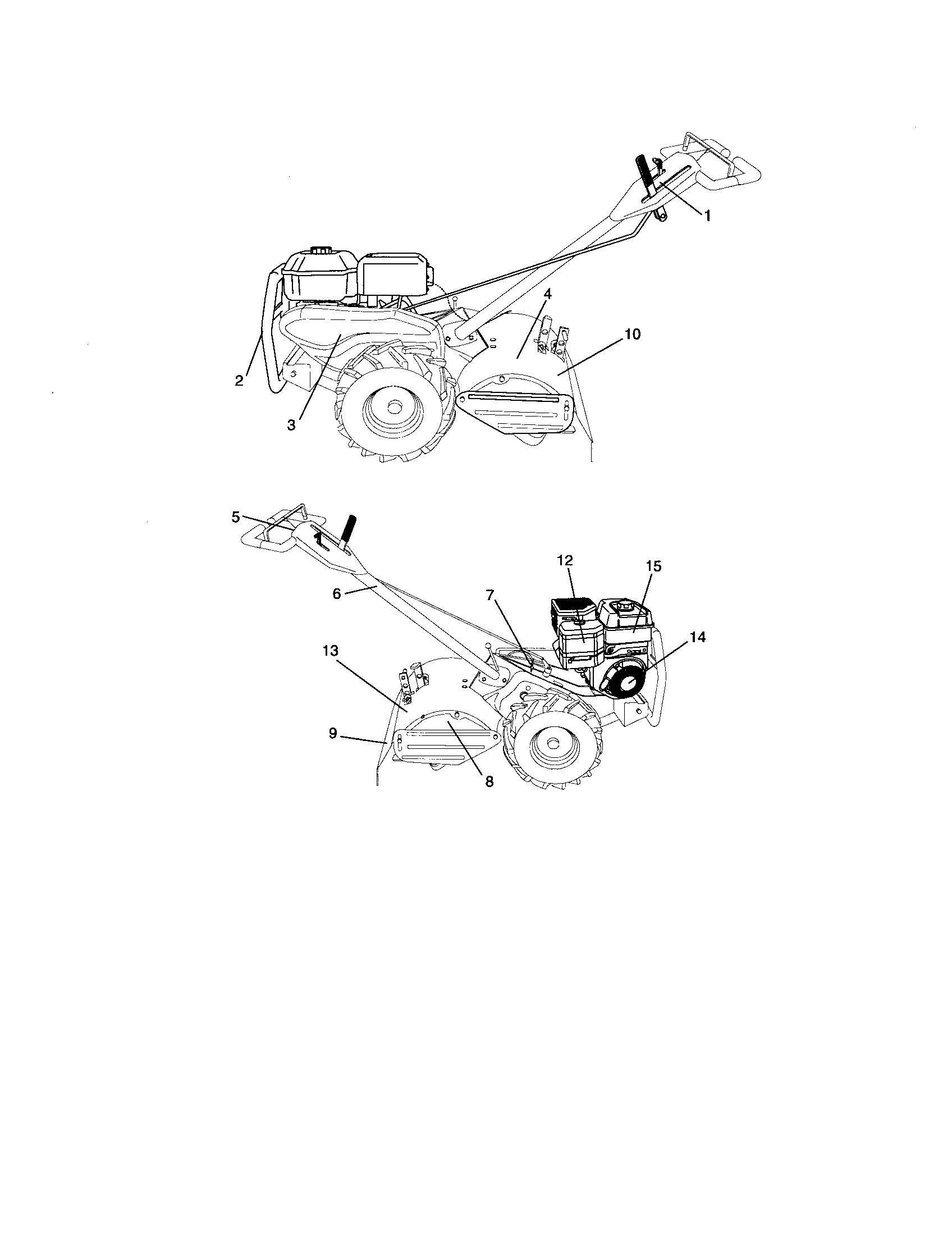

On the Craftsman rear-tine tiller model 917296040, the model number is printed on the product identification label (a sticker or metal tag) attached to the tiller frame. We most often see it on the tine shield/guard area or on the main frame near the engine.

Common places to check first

Look for a label that shows “Model No. 917.296040” (sometimes the dots are omitted on the sticker). Use the diagrams and label callouts in the 917296040 owner's manual to match what you see on your machine.

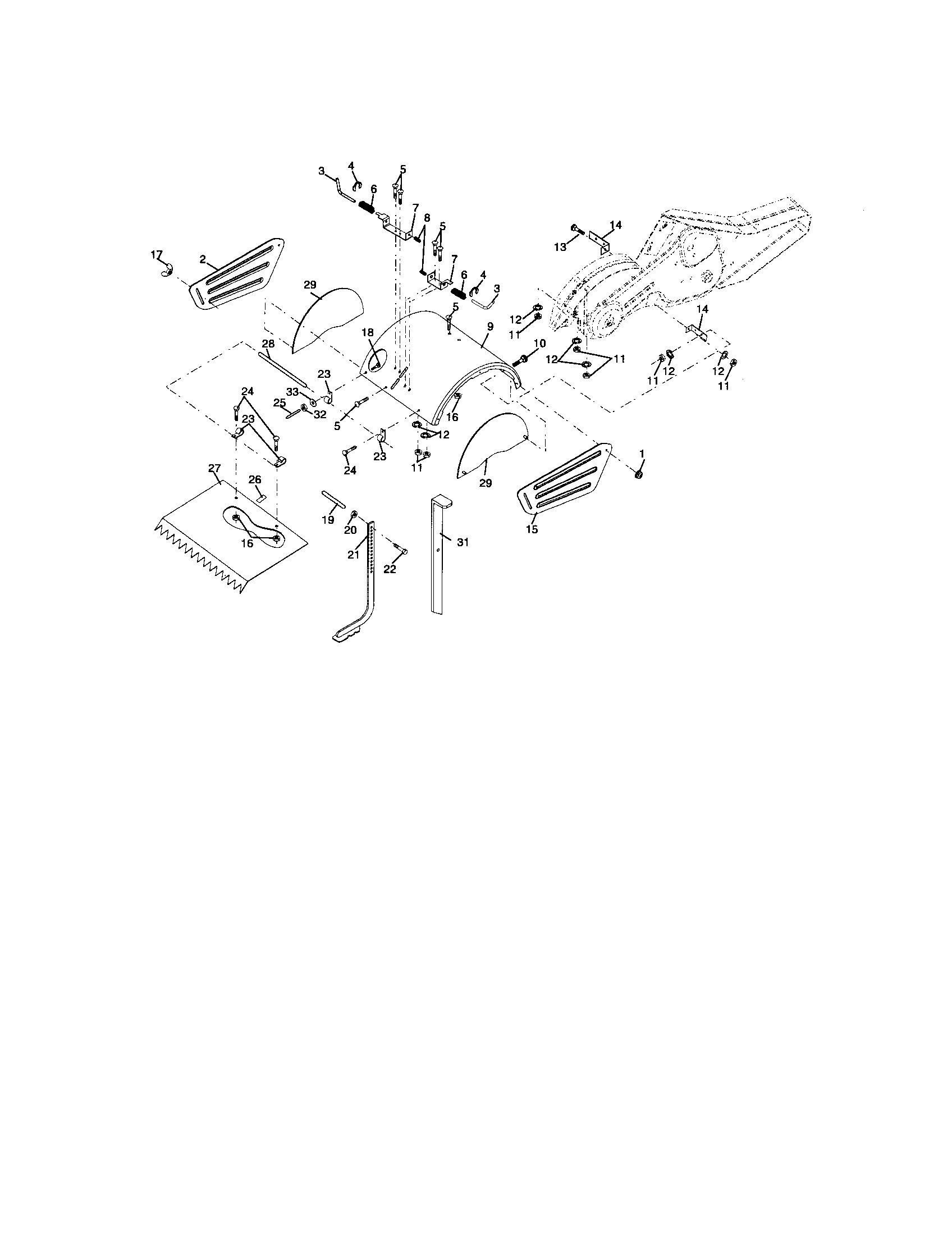

• On the tine shield or tine guard (near the tines)
• On the main frame rail (left or right side)
• Near the engine mounting area or belt guard
• On the front frame section (facing forward from the handles)
• Near the depth stake bracket area

Quick tips to find it faster

Dirt and vibration can make the label hard to spot; a quick cleaning usually helps.

• Wipe the frame and tine shield with a damp rag; then dry it
• Use a flashlight and look along flat frame surfaces and guards
• Check for a rectangular sticker outline or rivet holes where a tag mounts
• Take a photo and zoom in; faint printing is easier to read on a phone
• Write down the full model number before ordering parts (example: 917296040)

Why the model number matters

We use the model number to pull the correct parts diagrams and ensure you get the right belt, cable, chain, or hardware for your exact Craftsman rear-tine tiller configuration.

What you’re doing	What to use	Why it helps
Ordering parts	Model number (917296040)	Matches the correct parts list
Looking up diagrams	Model number + section (tine shield, mainframe)	Confirms placement and fasteners
Checking specs	Owner’s manual	Verifies operating and maintenance info

Last updated: February 2026
