Gas Walk-Behind Mower

Model # 917376470 Official Craftsman lawn mower

Here are the diagrams and repair parts for Official Craftsman 917376470 lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

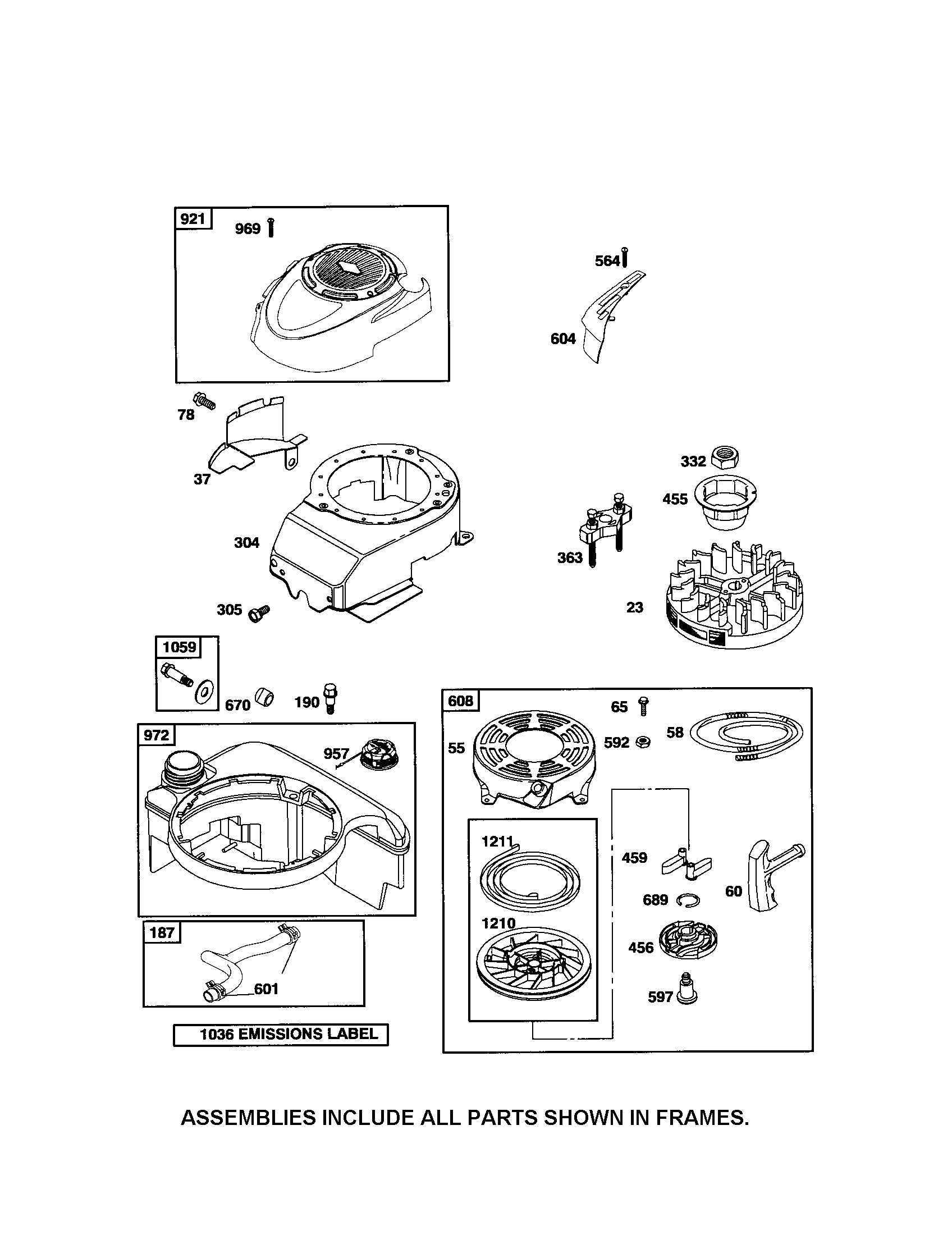

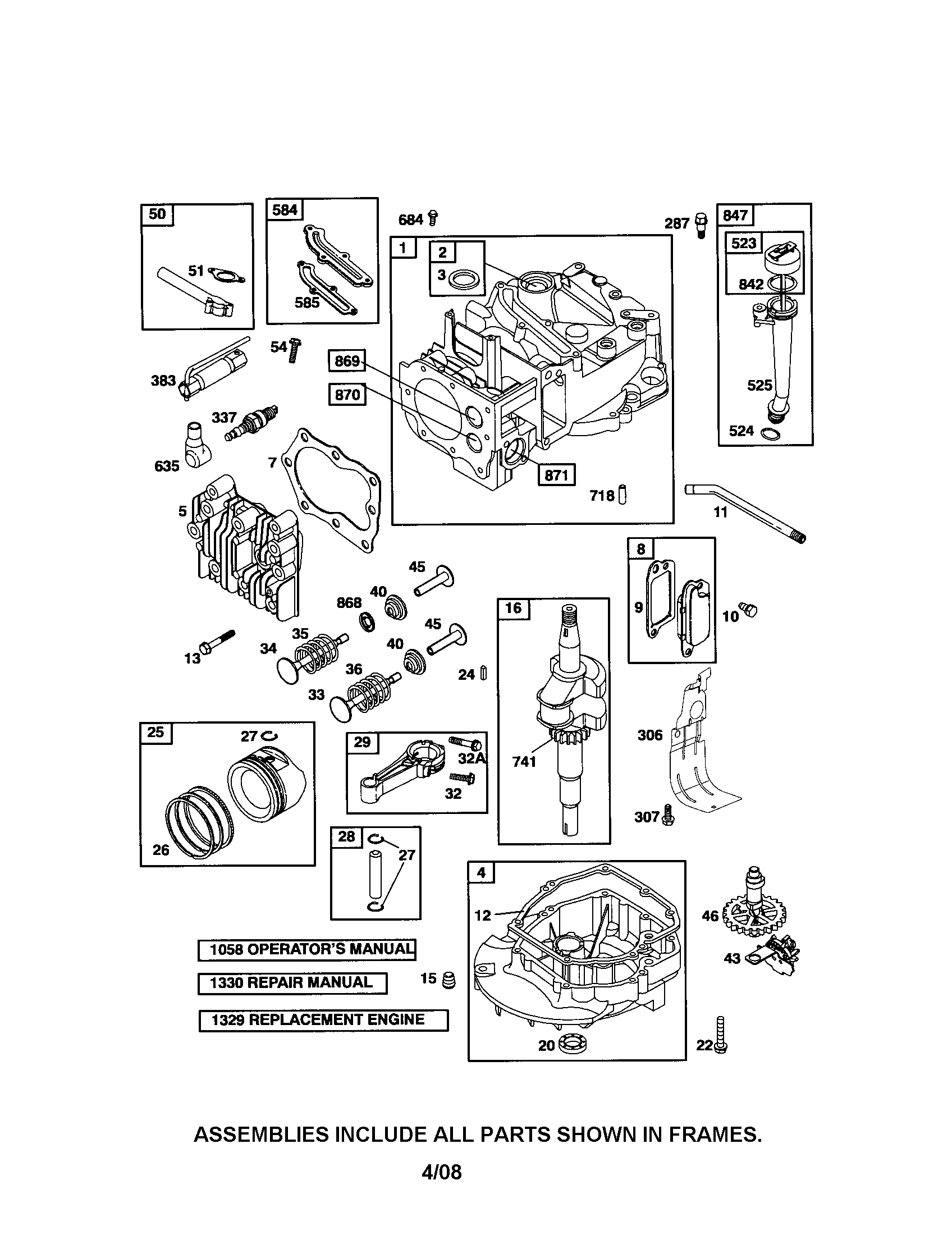

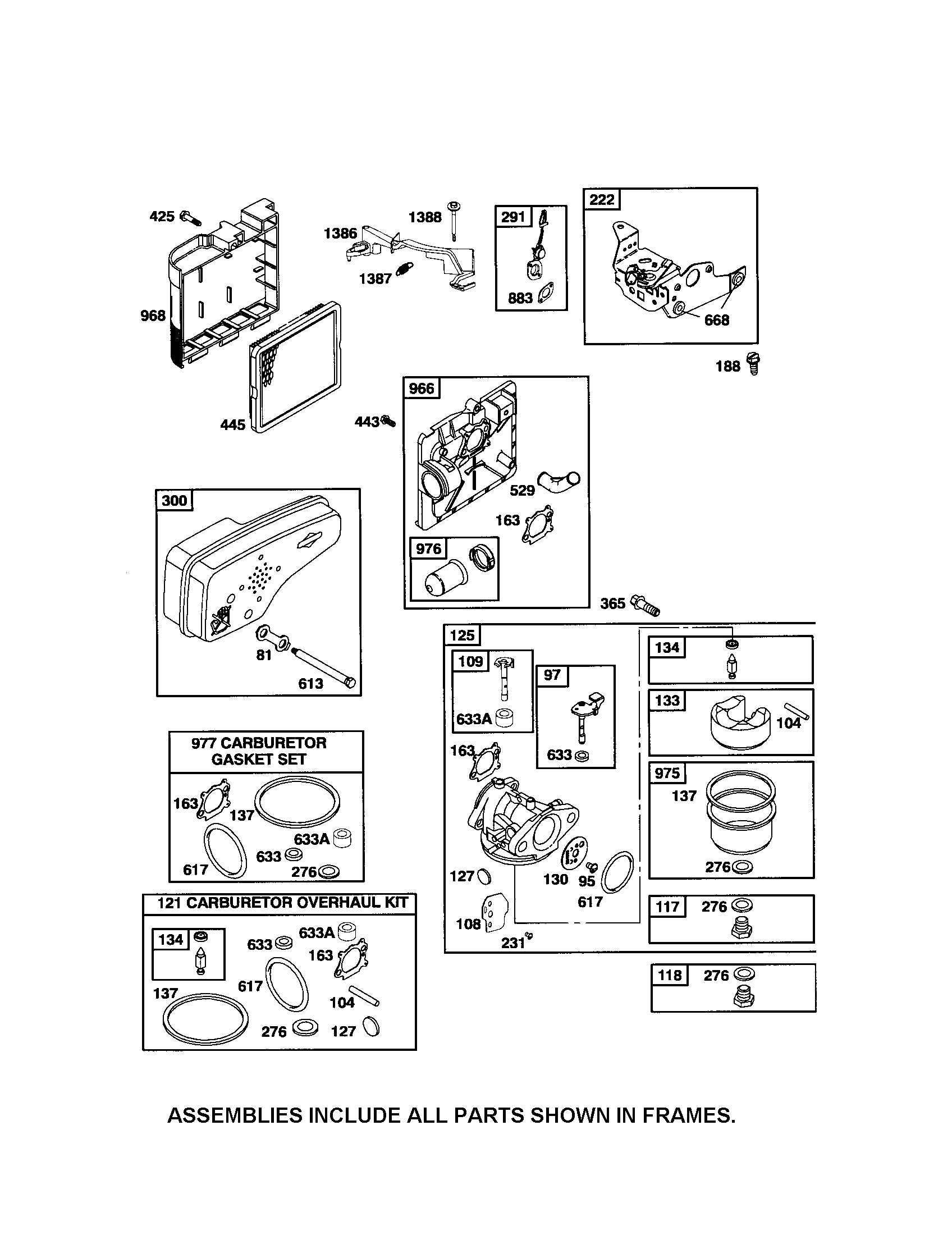

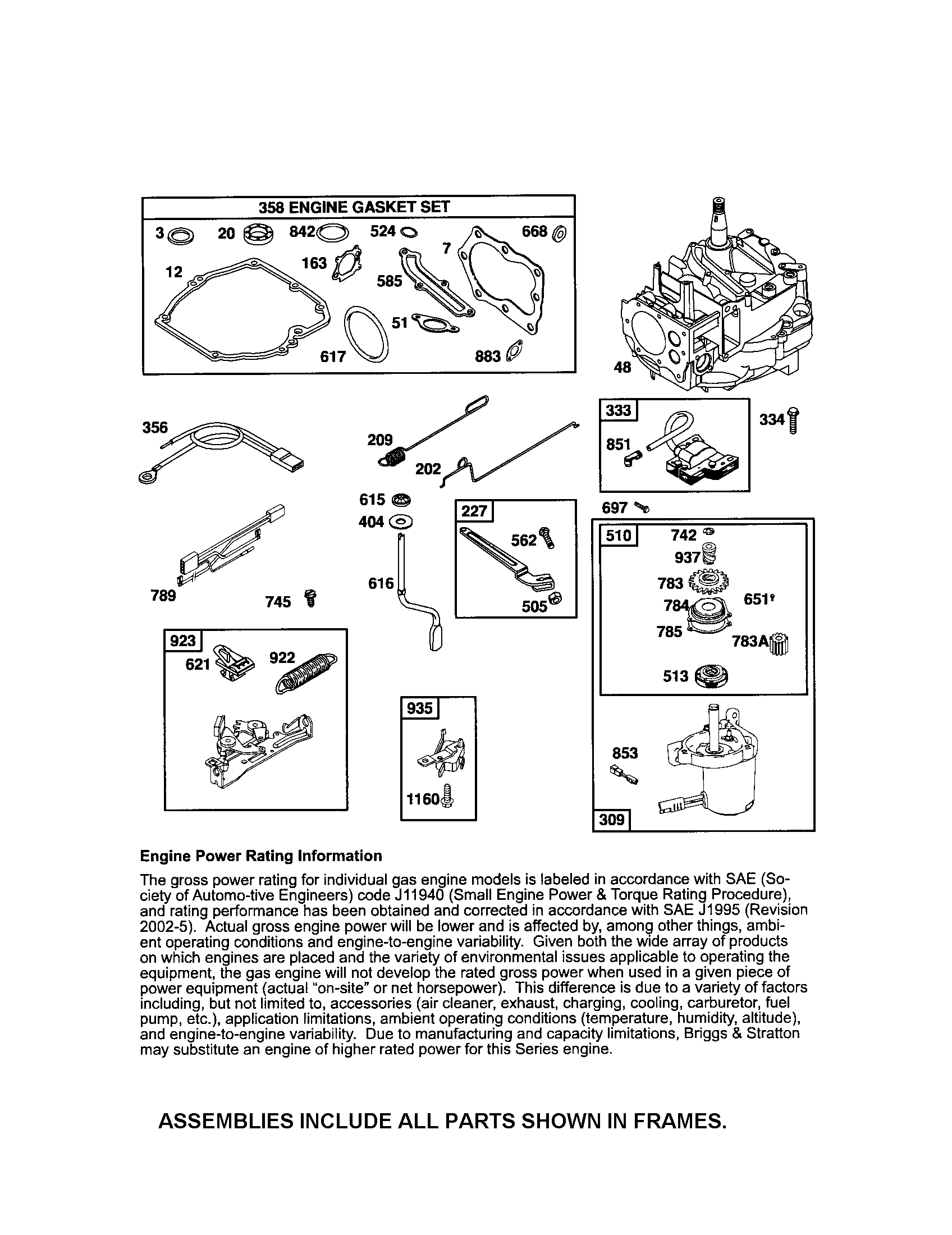

  View engine

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 283 parts  |
Lawn Mower Hex Flange Nut 409149
#25

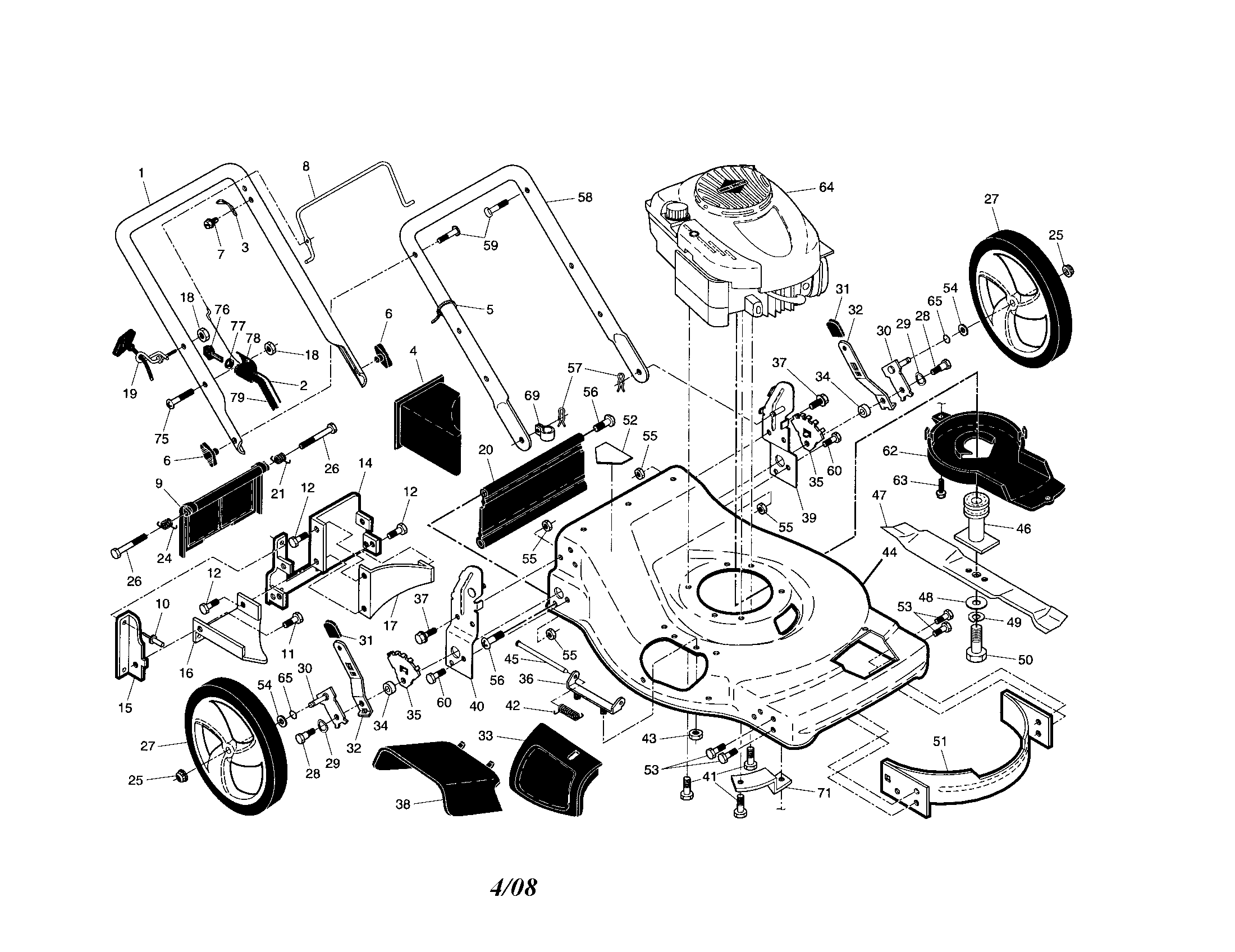

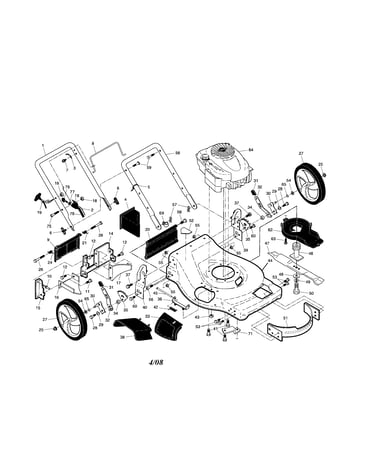

Engine/housing/handle diagram

Lawn mower hex flange nut

Part #409149

Replaced by #532409149

?
Manufacturer substitution
This part replaces 409149. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.68 |
18% OFF Phone Price : $5.68
In Stock
Lawn & Garden Equipment Nut 409148
#9

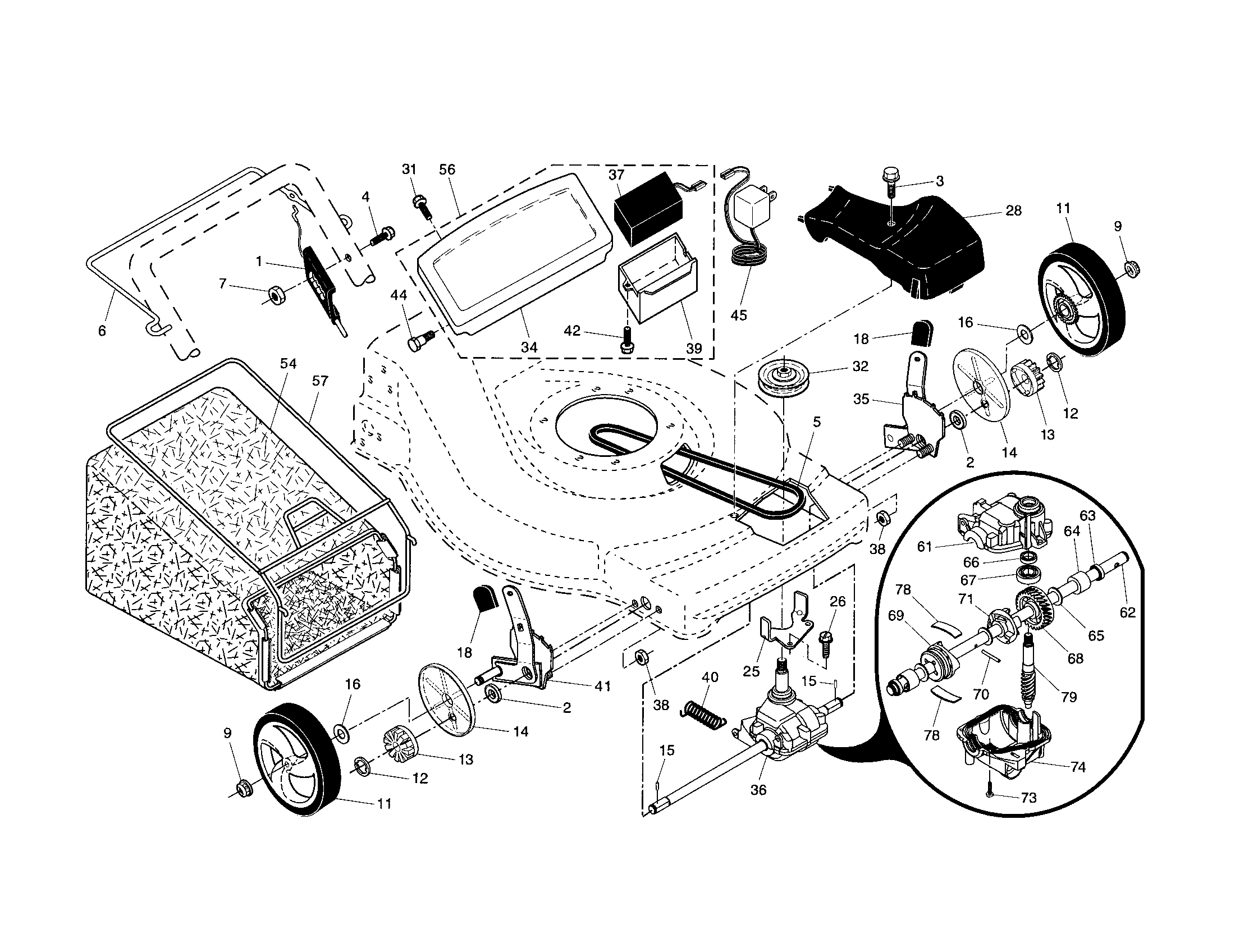

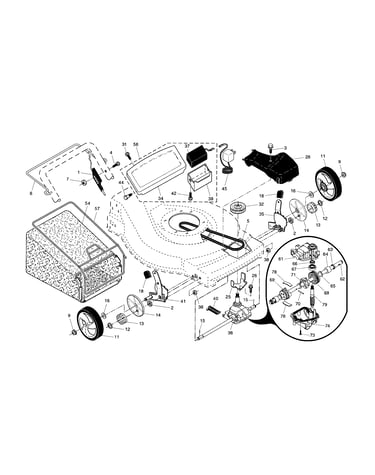

Drive control/gear case/wheels diagram

Lawn & garden equipment nut

Part #409148

Replaced by #532409149

?
Manufacturer substitution
This part replaces 409148. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.68 |
18% OFF Phone Price : $5.68
In Stock
Lawn Mower 22-in Deck Mulching Blade 406713
#47

Engine/housing/handle diagram

Lawn mower 22-in deck mulching blade

Part #406713

Replaced by #532406713

?
Manufacturer substitution
This part replaces 406713. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$12.71 |
36% OFF Was : $20.00
In Stock
Lawn Mower Rear Skirt (replaces 188987, 189008, 532413160, 5324131-60) 413160
#20

Engine/housing/handle diagram

Lawn mower rear skirt (replaces 188987, 189008, 532413160, 5324131-60)

Part #413160

BEST SELLER
$8.60 |
28% OFF Was : $12.00
In Stock
Hndl.knob.bl 189713X428
#6

Engine/housing/handle diagram

Hndl.knob.bl

Part #189713X428

Replaced by #532185577

?
Manufacturer substitution
This part replaces 189713X428. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.09 |
24% OFF Phone Price : $4.09
In Stock
Lawn Mower Battery Charger 190097
#45

Drive control/gear case/wheels diagram

Lawn mower battery charger

Part #190097

Replaced by #597186301

?
Manufacturer substitution
This part replaces 190097. Substitute parts can look different from the original.
BEST SELLER
$28.78 |
17% OFF Phone Price : $34.78
In Stock
Poulan Lawn Mower Ground Drive Belt, 3/8 X 33-3/16-in (replaces 532196857, 5321968-57) 196857
#5

Drive control/gear case/wheels diagram

Poulan lawn mower ground drive belt, 3/8 x 33-3/16-in (replaces 532196857, 5321968-57)

Part #196857

BEST SELLER

Get free shipping with Automatic Reorder

$19.51 |
9% OFF Phone Price : $21.51
In Stock
Handle Bolt 191574
#59

Engine/housing/handle diagram

Handle bolt

Part #191574

Replaced by #532191574

?
Manufacturer substitution
This part replaces 191574. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.89 |
26% OFF Phone Price : $3.89
In Stock
Lock Nut 751592
#55

Engine/housing/handle diagram

Lock nut

Part #751592

Replaced by #73930600

?
Manufacturer substitution
This part replaces 751592. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Bearing 191039
#2

Drive control/gear case/wheels diagram

Bearing

Part #191039

Replaced by #421836

?
Manufacturer substitution
This part replaces 191039. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.37 |
16% OFF Phone Price : $6.37
In Stock
