Model # RS25J500DSR/AA-01 Official Samsung refrigerator

Here are the diagrams and repair parts for Official Samsung RS25J500DSR-AA-01 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

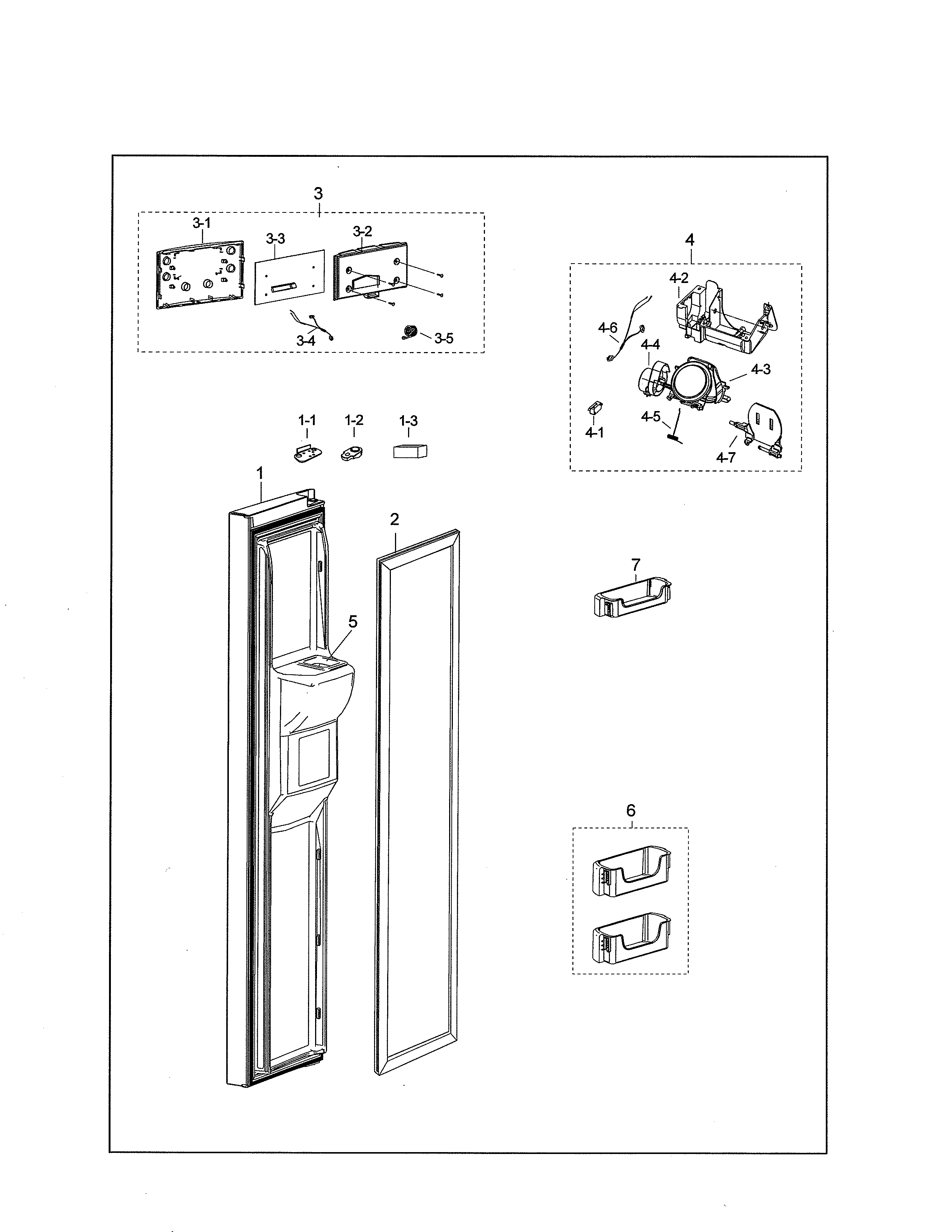

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 209 parts  |

Filtr Dryr DA62-04309B
#20

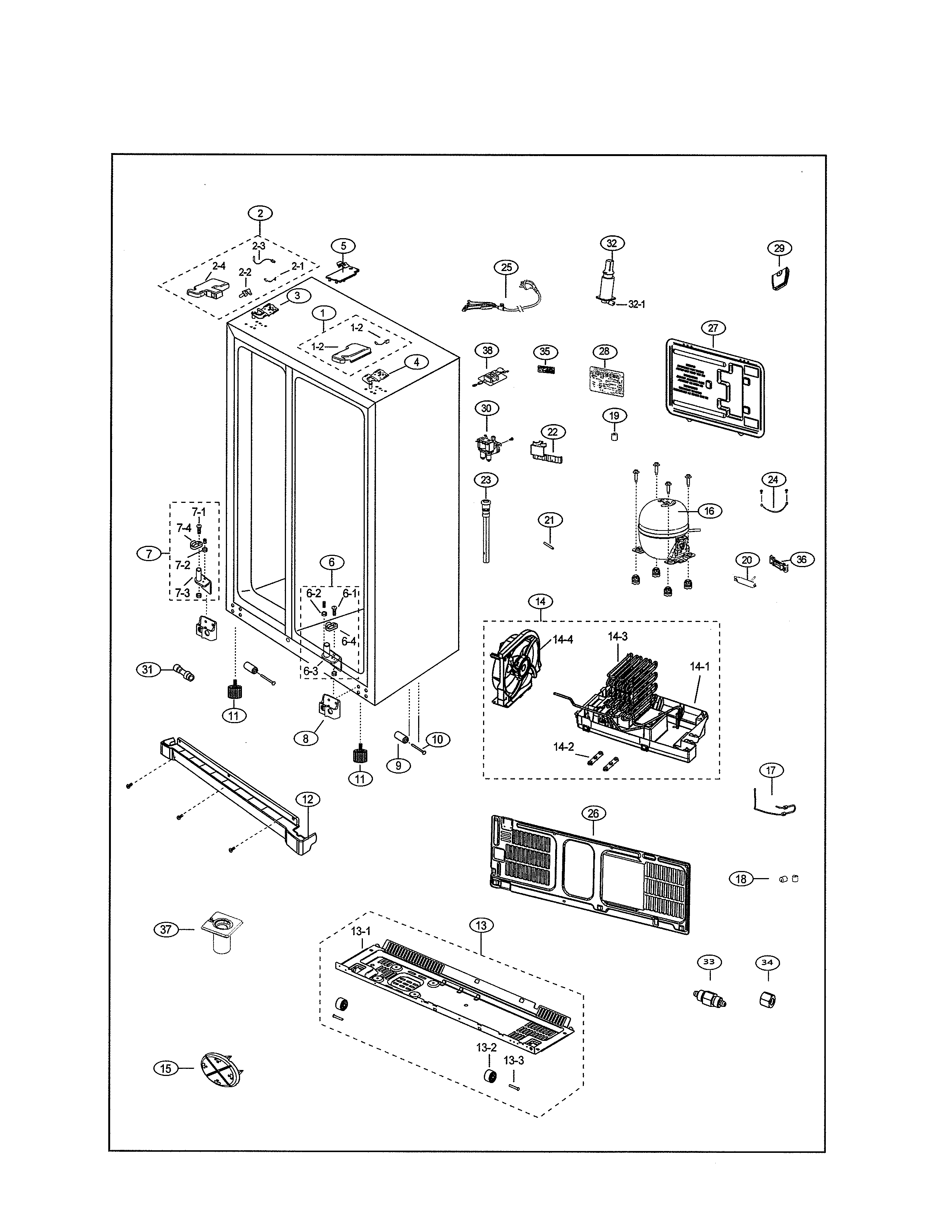

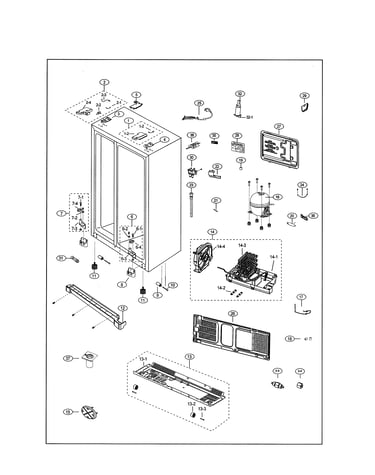

Cabinet diagram

Filtr dryr

Part #DA62-04309B

Replaced by #DA81-06006B

?
Manufacturer substitution
This part replaces DA62-04309B. Substitute parts can look different from the original.
BEST SELLER
In Stock
Refrigerator Ice Maker Assembly DA97-08059A
#10

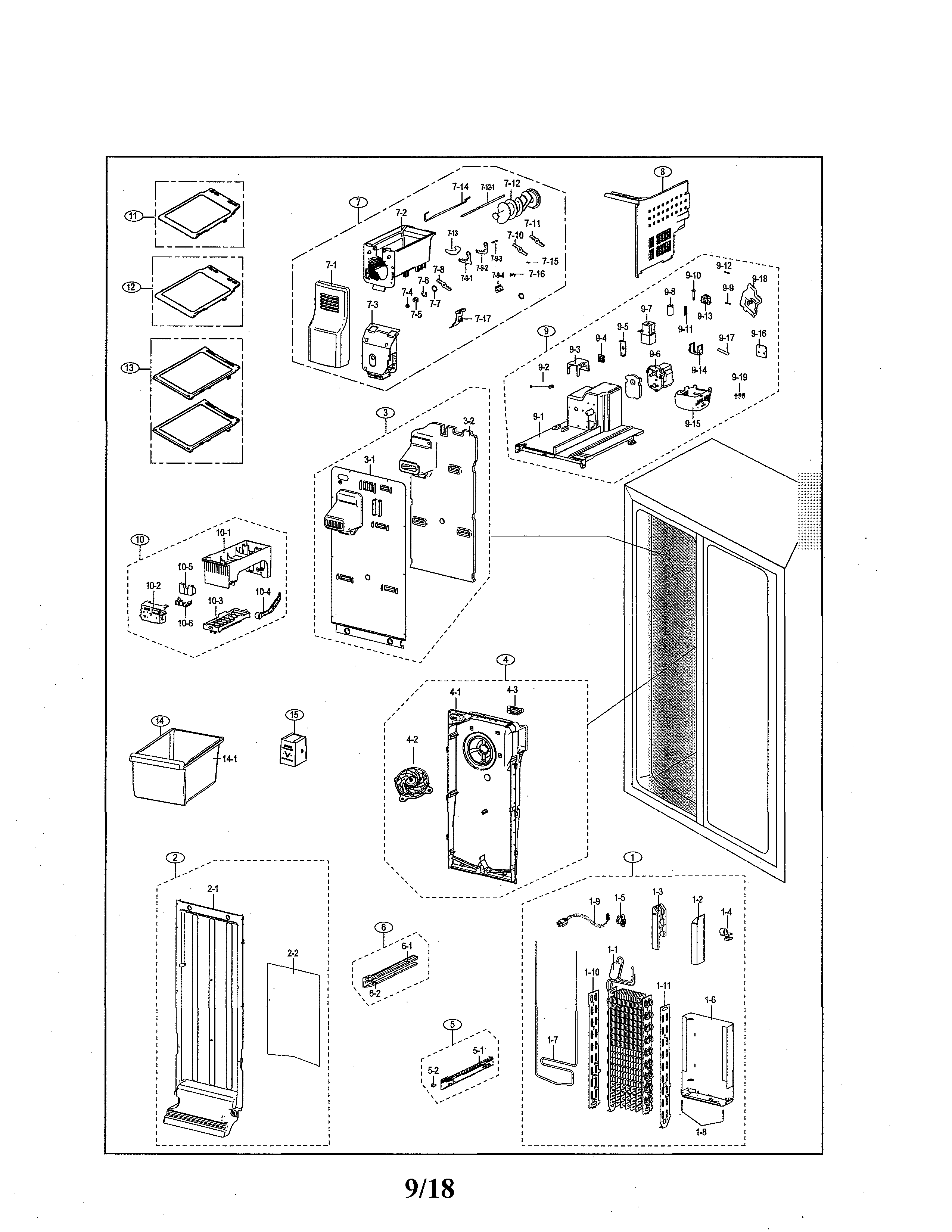

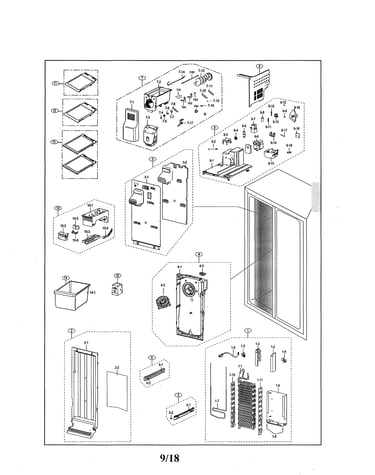

Freezer diagram

Refrigerator ice maker assembly

Part #DA97-08059A

BEST SELLER
$180.40
5% OFF Phone Price : $190.40
In Stock
Refrigerator Condenser Fan Motor Assembly DA97-15765C
#14-4

Cabinet diagram

Refrigerator condenser fan motor assembly

Part #DA97-15765C

BEST SELLER
$162.55
6% OFF Phone Price : $172.55
In Stock
Refrigerator Water Inlet Valve (replaces Da62-02291d) DA62-02360B
#30

Cabinet diagram

Refrigerator water inlet valve (replaces da62-02291d)

Part #DA62-02360B

BEST SELLER
$121.83
8% OFF Phone Price : $131.83
In Stock
Refrigerator Temperature Sensor (replaces Da32-10104f, Da32-10104g) DA32-10109W
#1-9

Freezer diagram

Refrigerator temperature sensor (replaces da32-10104f, da32-10104g)

Part #DA32-10109W

BEST SELLER
$32.95
13% OFF Phone Price : $37.95
In Stock
Refrigerator Crisper Drawer (replaces Da61-05548a, Da61-05548d, Da97-08693a) DA97-08693B
#4

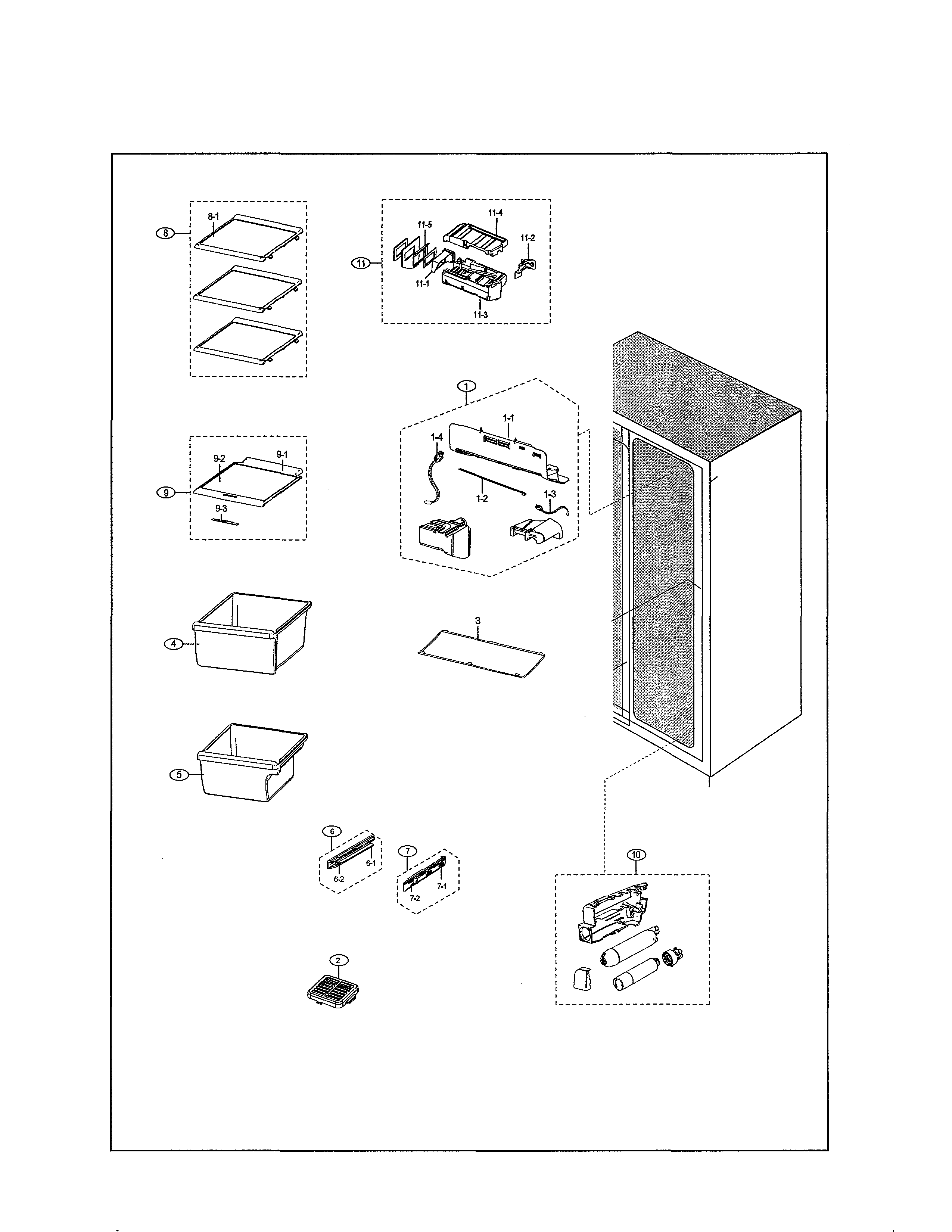

Refrigerator diagram

Refrigerator crisper drawer (replaces da61-05548a, da61-05548d, da97-08693a)

Part #DA97-08693B

BEST SELLER
$131.71
7% OFF Phone Price : $141.71
In Stock
Refrigerator Door Handle Mounting Screw DA61-11161A
#6-1

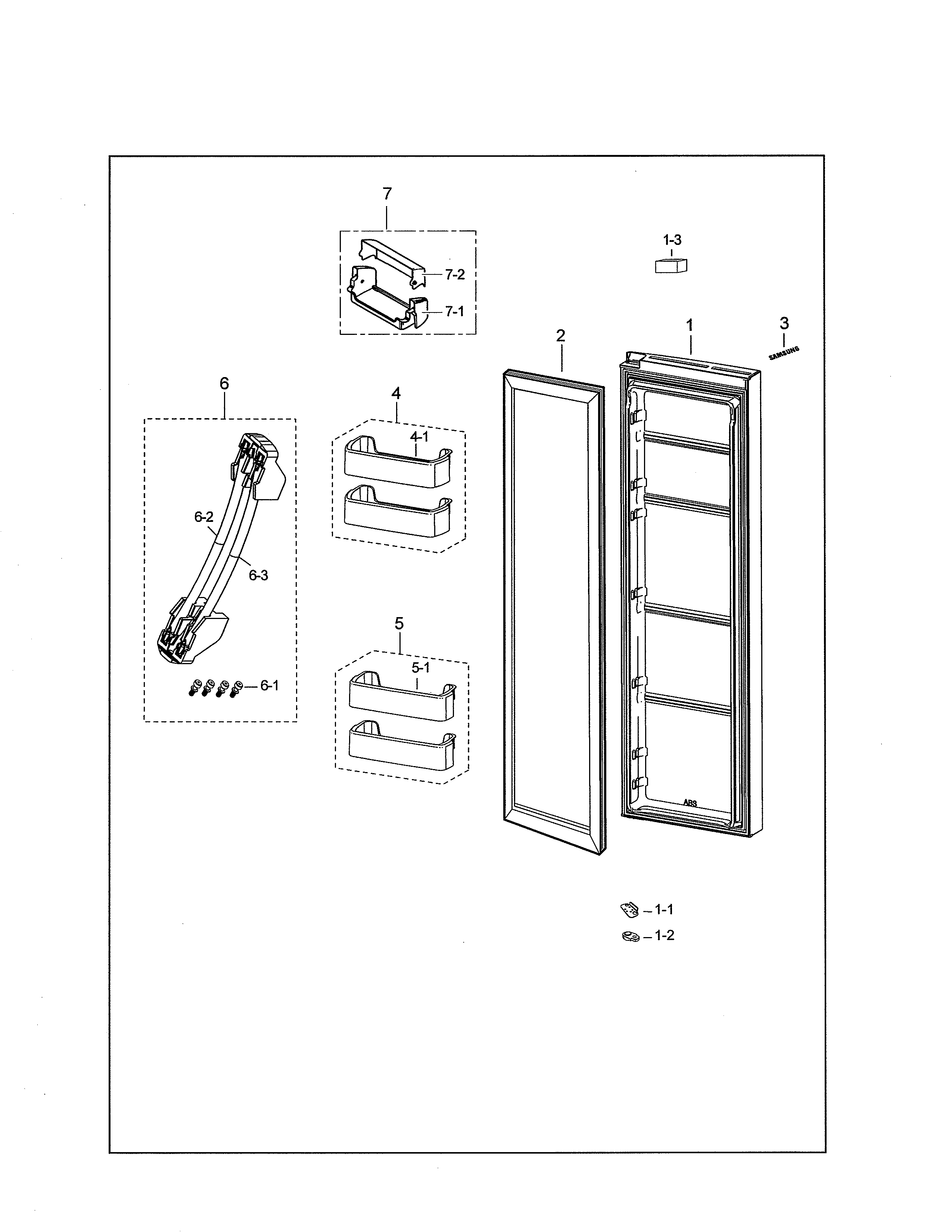

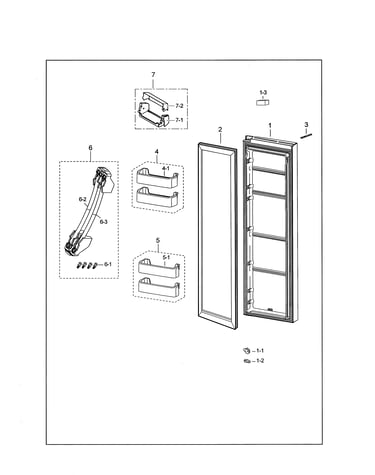

Refrigerator door diagram

Refrigerator door handle mounting screw

Part #DA61-11161A

BEST SELLER
This item is not returnable
$4.71
18% OFF Phone Price : $5.71
In Stock
Refrigerator Freezer Air Duct Cover And Fan Assembly DA97-16668A
#4

Freezer diagram

Refrigerator freezer air duct cover and fan assembly

Part #DA97-16668A

BEST SELLER
$142.47
7% OFF Phone Price : $152.47
In Stock
Refrigerator Power Cord 3903-000796
#25

Cabinet diagram

Refrigerator power cord

Part #3903-000796

Replaced by #3903-001003

?
Manufacturer substitution
This part replaces 3903-000796. Substitute parts can look different from the original.
BEST SELLER
$53.11
9% OFF Phone Price : $58.11
In Stock
Refrigerator Roller DA61-04703A
#13-2

Cabinet diagram

Refrigerator roller

Part #DA61-04703A

$8.43
11% OFF Phone Price : $9.43
In Stock
