Craftsman 917289472 tractor Parts

For Craftsman lawn tractor model 917289472, the operator’s manual identifies it as a 26.0 HP tractor with a low-emission gasoline engine (electric start). For the exact engine make, model, and service specs, use the 917289472 owner's manual.

From the manual for this Craftsman riding mower/tractor, we can rely on these model-specific details:

• Rated power: 26.0 HP (as rated by the engine manufacturer)
• Starting system: electric start
• Engine type: low-emission engine (operates differently than older designs)
• Equipment type: front-engine lawn tractor

On most Craftsman tractors, the engine manufacturer and model information is shown in one or more of these places:

• Engine ID label on the blower housing (top/front of engine)
• Label near the valve cover or starter
• Sticker on the frame under the hood
• Engine section of the 917289472 owner's manual (specifications and maintenance pages)

Craftsman tractors often share the same tractor model family but use different engines across production runs. Matching the engine’s model/type code prevents ordering the wrong air filter, spark plug, fuel parts, or starter components.

Last updated: February 2026

On Craftsman tractor model 917289472, the model number does not contain the build year; you identify the year by decoding the product serial number on the tractor’s ID label, then matching that date format to the serial number sequence shown in your 917289472 owner's manual.

Look for a product ID label in one of these common spots:

• Under the seat pan or on the seat bracket
• On the rear fender pan (near the seat)
• On the frame rail near the engine
• Near the transaxle area on the chassis

Many Craftsman riding mowers use a date-coded serial number where a group of digits represents the month, day, and year. A common pattern you may see is:

• First 2 digits: month
• Next 2 digits: day
• Next 2 digits: year (last two digits)

If your serial number begins with 072811, that decodes to July 28, 2011.

Knowing the build year helps us match the correct parts and diagrams for wear items like deck hardware, steering components, and electrical parts. It is especially useful when ordering items tied to production changes.

• Use the full serial number, not just the first 6 digits
• Write down the full model number (917289472) from the same label
• If the label is worn, take a clear photo and copy characters exactly (0 vs O, 1 vs I)

Last updated: February 2026

On a Craftsman riding lawn tractor like model 917289472, the model number is typically printed on a product ID label under the seat or on the frame near the rear wheels. Use that exact number when ordering parts or checking specifications in the 917289472 owner's manual.

Check these common label locations first:

• Under the seat pan (lift the seat and look on the metal pan or frame)
• On the rear fender or near the rear wheel area
• On the frame rail under the hood area (near the engine compartment)
• Near the transaxle area on the frame
• On the mower deck shell (sometimes a separate deck tag)

Most Craftsman tractor ID labels include more than one identifier. Here is what to capture before you shop for parts:

• Write the model number exactly as shown, including dots or dashes if present
• Take a clear photo of the entire label for reference
• If the label is worn, gently clean it; avoid solvents that can remove printing
• Match parts by model number first, then confirm by part description and diagram callout

Craftsman tractors often share similar looks across years, but parts like the PTO switch, starter solenoid, deck components, and transaxle hardware can vary by model. Using 917289472 ensures you get the right fit and wiring or mounting style.

Last updated: February 2026

Replacing the engine on a Craftsman riding lawn tractor like model 917289472 typically costs $600 to $2,500 installed (engine plus labor). The biggest price drivers are the engine brand/horsepower, whether the wiring and fuel system need updates, and shop labor time.

• Engine (new): $400 to $1,800
• Labor: $200 to $700 (often 4 to 8 hours)
• Common add-ons: $0 to $300 (battery cables, fuel line/filter, belts, hardware)

Engine replacement is usually worth it when the tractor is otherwise in good shape (deck, transaxle, steering) and you want several more seasons of service.

Consider repair or replacement of the tractor instead if you also have:

• Loss of drive or hydrostatic issues (transaxle repairs can be expensive)
• A badly worn mower deck shell or mandrel area
• Multiple electrical problems (interlock switches, harness damage)

Even with a “drop-in” engine, we often see a few related items needed to finish the job reliably:

• Fresh oil and correct oil level after the first warm-up
• New spark plug and in-line fuel filter (many tractors call for seasonal fuel filter replacement)
• Battery and cable condition check (weak cables can mimic starter problems)

If your tractor is clicking or cranking slowly, confirm the starting circuit first; a failed solenoid is a common fix on riding mowers. The model 917289472 parts list includes the lawn tractor starter solenoid 582042802.

A correct estimate helps you decide between an engine swap and investing that money into other high-wear systems like the mower deck, belts, and drive components. It also prevents repeat failures caused by neglected fuel, cooling, or electrical issues.

For model-specific specifications and service procedures, use the 917289472 owner’s manual.

Last updated: February 2026

Zero-turn mowers and front-engine lawn tractors share many mowing-deck and engine parts, but a true zero-turn adds lap-bar steering and dual hydro drives. For Craftsman model 917289472 (a front-engine lawn tractor with a steering wheel), focus on the deck, drive, steering, and safety-interlock components shown in the 917289472 owner's manual.

These are the major systems you will see on most zero-turn riders:

• Engine and fuel system: air filter, spark plug, fuel tank, fuel lines
• Cutting deck: blades, deck belt, idler pulleys, spindles (mandrels), deck shell
• Steering controls: lap bars, linkages, dampers
• Drive system: dual hydro pumps or dual transaxles, drive belts, bypass (freewheel) levers
• Safety interlocks: seat switch, PTO switch, brake/park switch
• Chassis and running gear: frame, caster wheels (front), drive tires (rear)

Your Craftsman 917289472 uses a steering wheel and a single rear transaxle, not lap bars and dual hydro drives. These are common service areas on this tractor style:

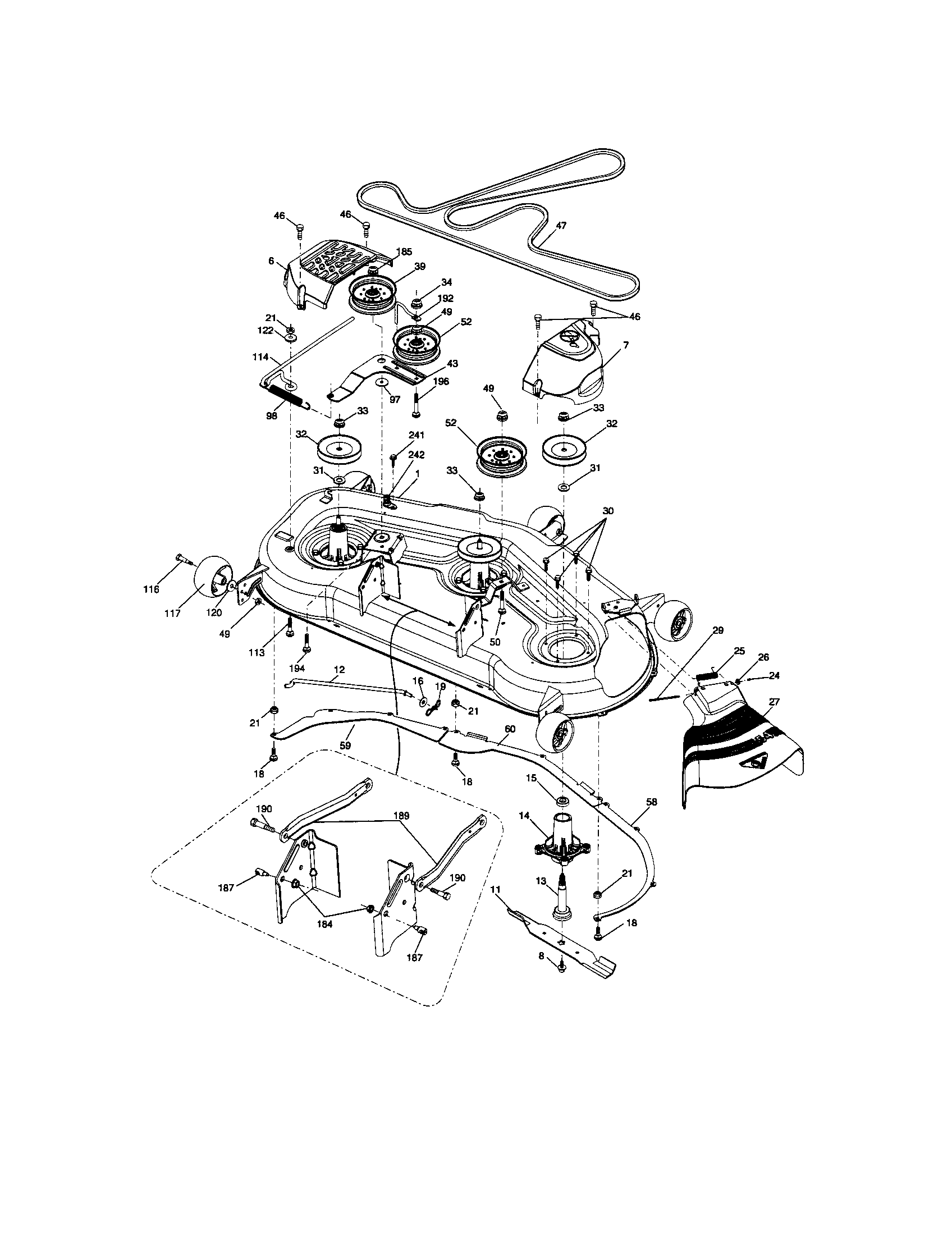

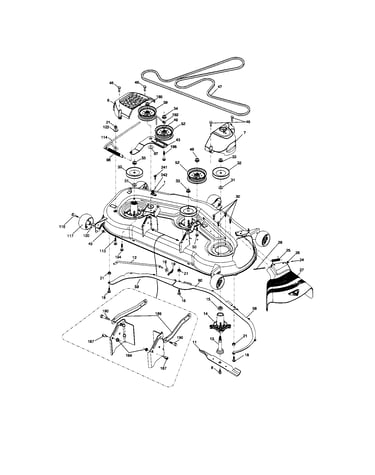

• Mower deck belt routing, idlers, and spindle (mandrel) wear
• Electric PTO clutch engagement and PTO switch operation
• Starting circuit parts (battery cables, solenoid)

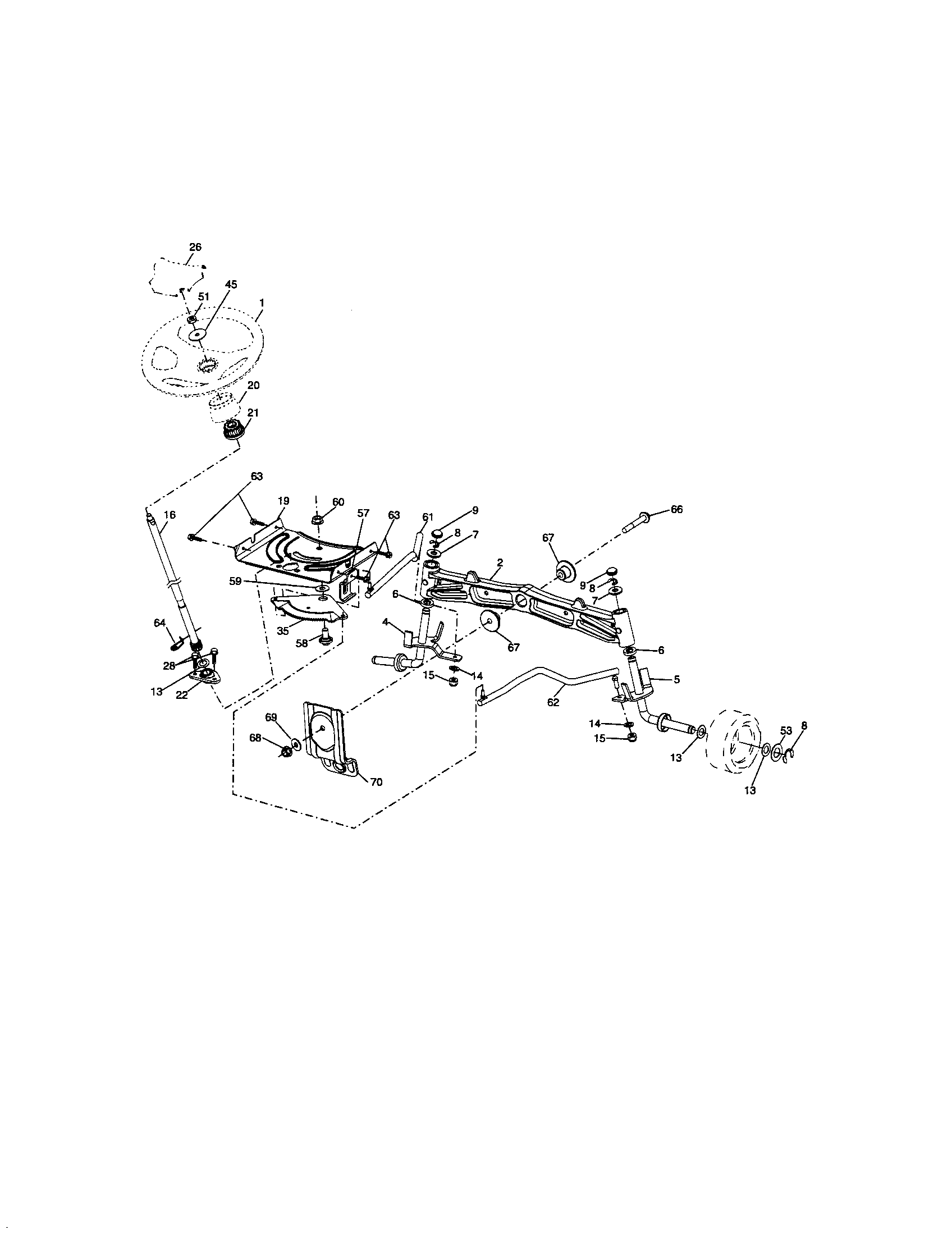

• Steering linkage and front axle components

Identifying whether you have a zero-turn or a front-engine tractor prevents ordering the wrong drive and steering parts. Deck components (belt, mandrels, idlers) are often similar across both styles, but steering and drive systems are not.

Last updated: February 2026
