Kenmore
Side-By-Side Refrigerator

Model # 79551319014 Official Kenmore refrigerator

Here are the diagrams and repair parts for Official Kenmore 79551319014 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

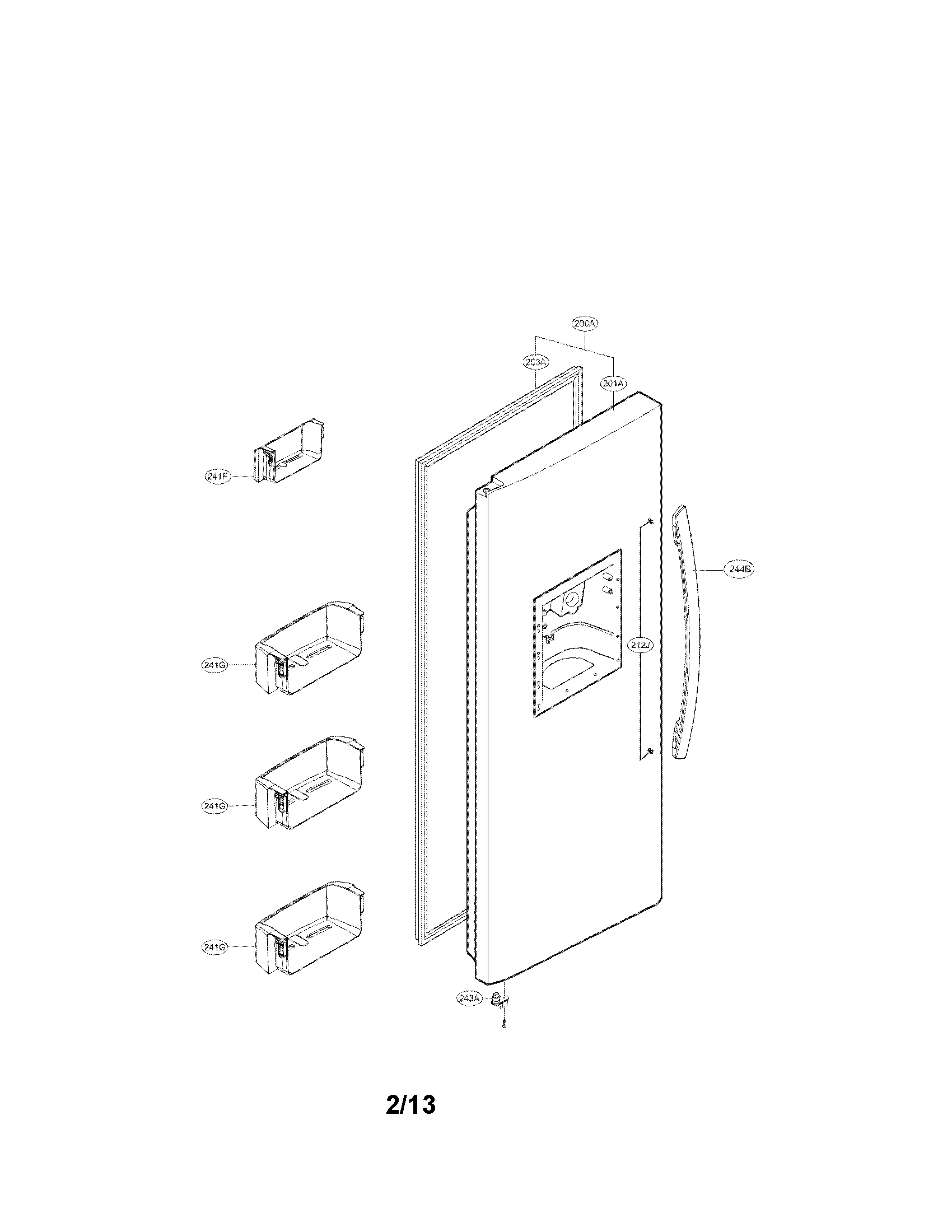

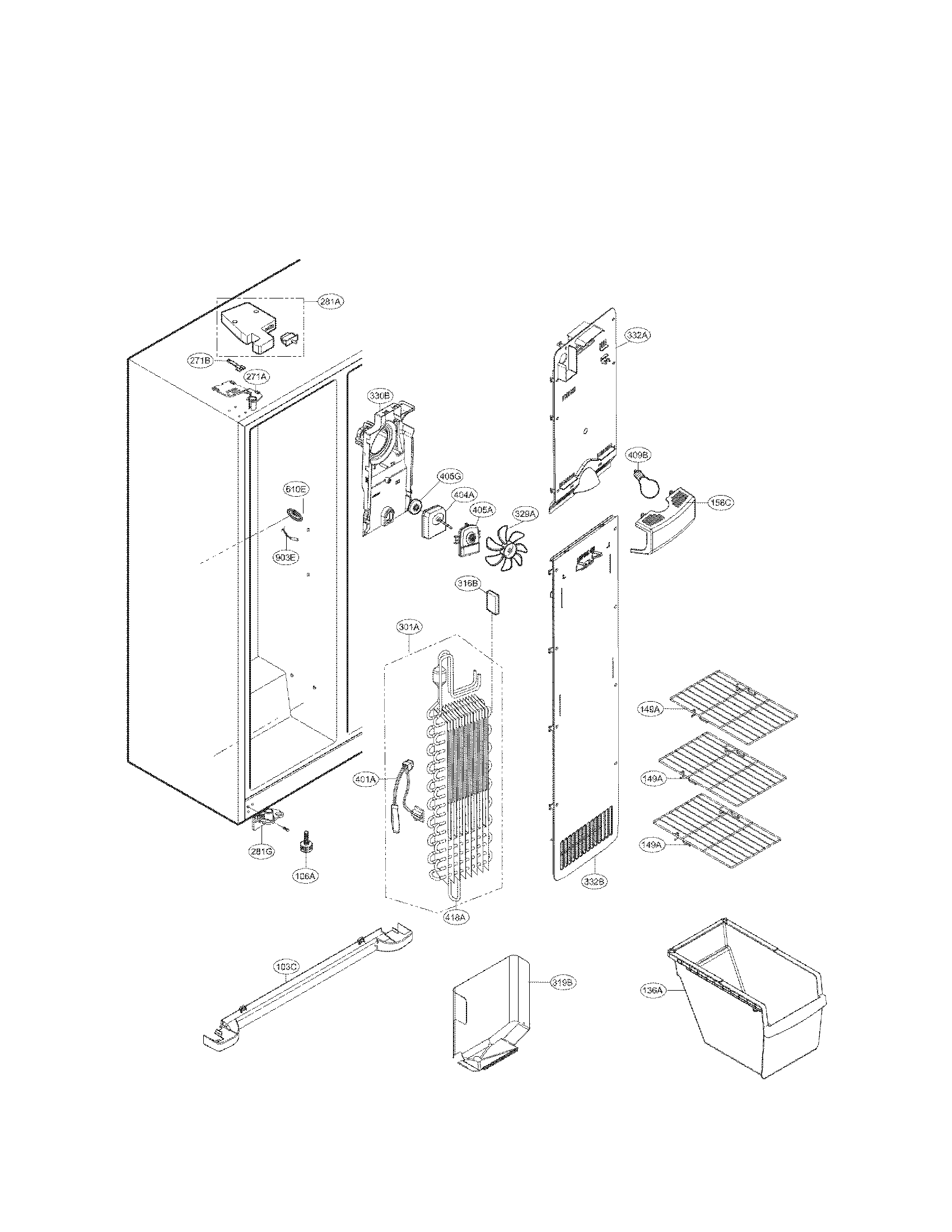

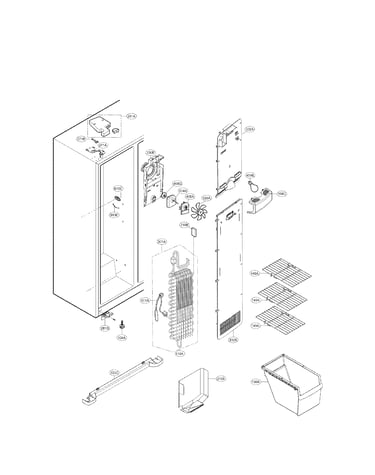

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 133 parts  |

Refrigerator Filter Dryer 5851JA2007E
#317A

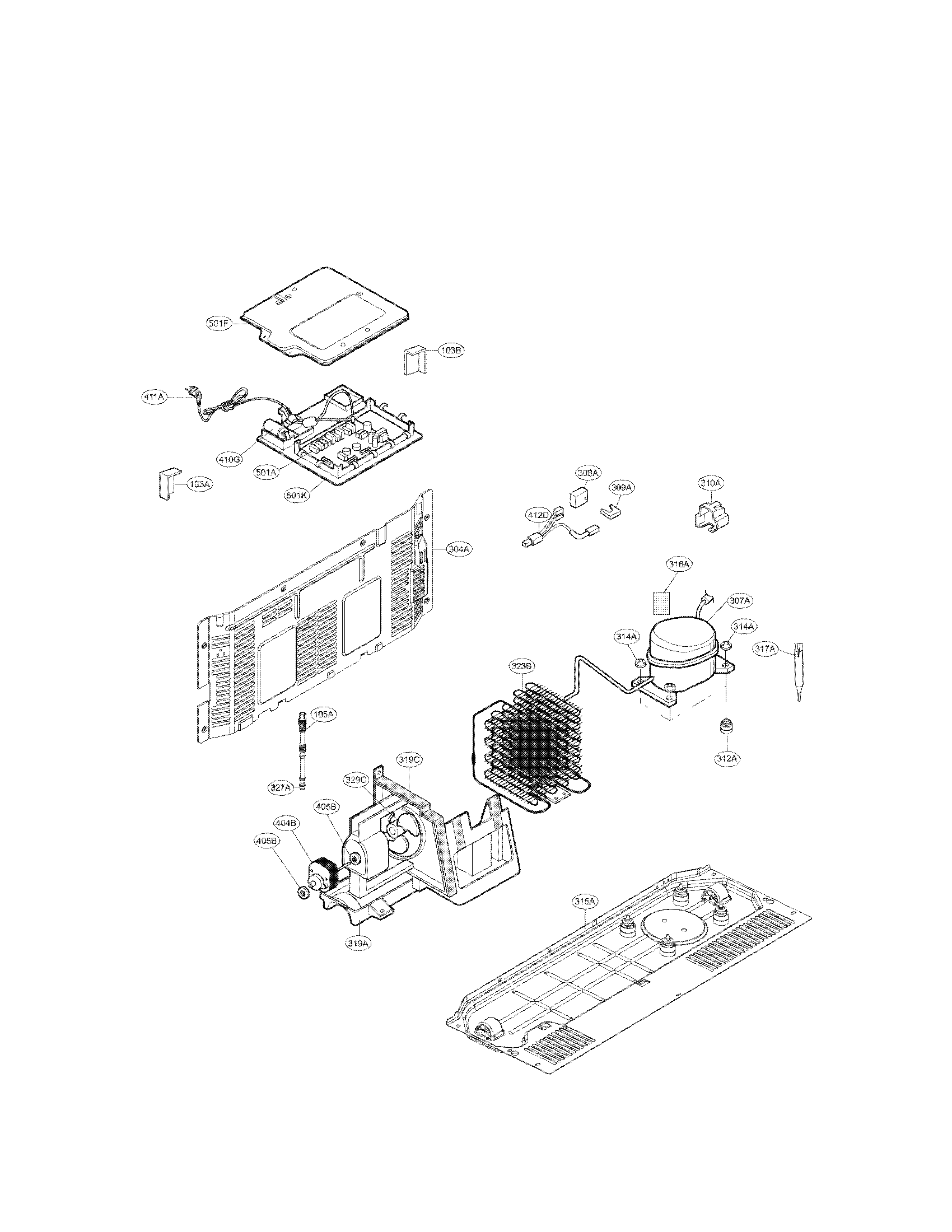

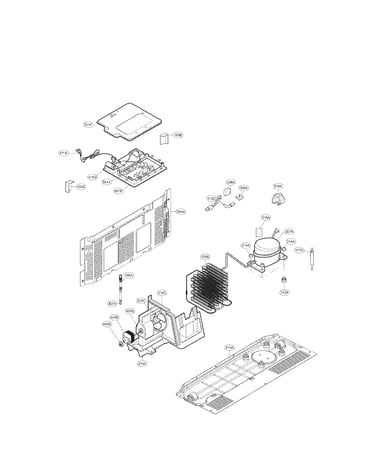

Mechanical compartment parts diagram

Refrigerator filter dryer

Part #5851JA2007E

Replaced by #ADH73150210

?
Manufacturer substitution
This part replaces 5851JA2007E. Substitute parts can look different from the original.
BEST SELLER
$71.39
7% OFF Phone Price : $76.39
In Stock
Refrigerator Water Filter ADQ72910907
#611A

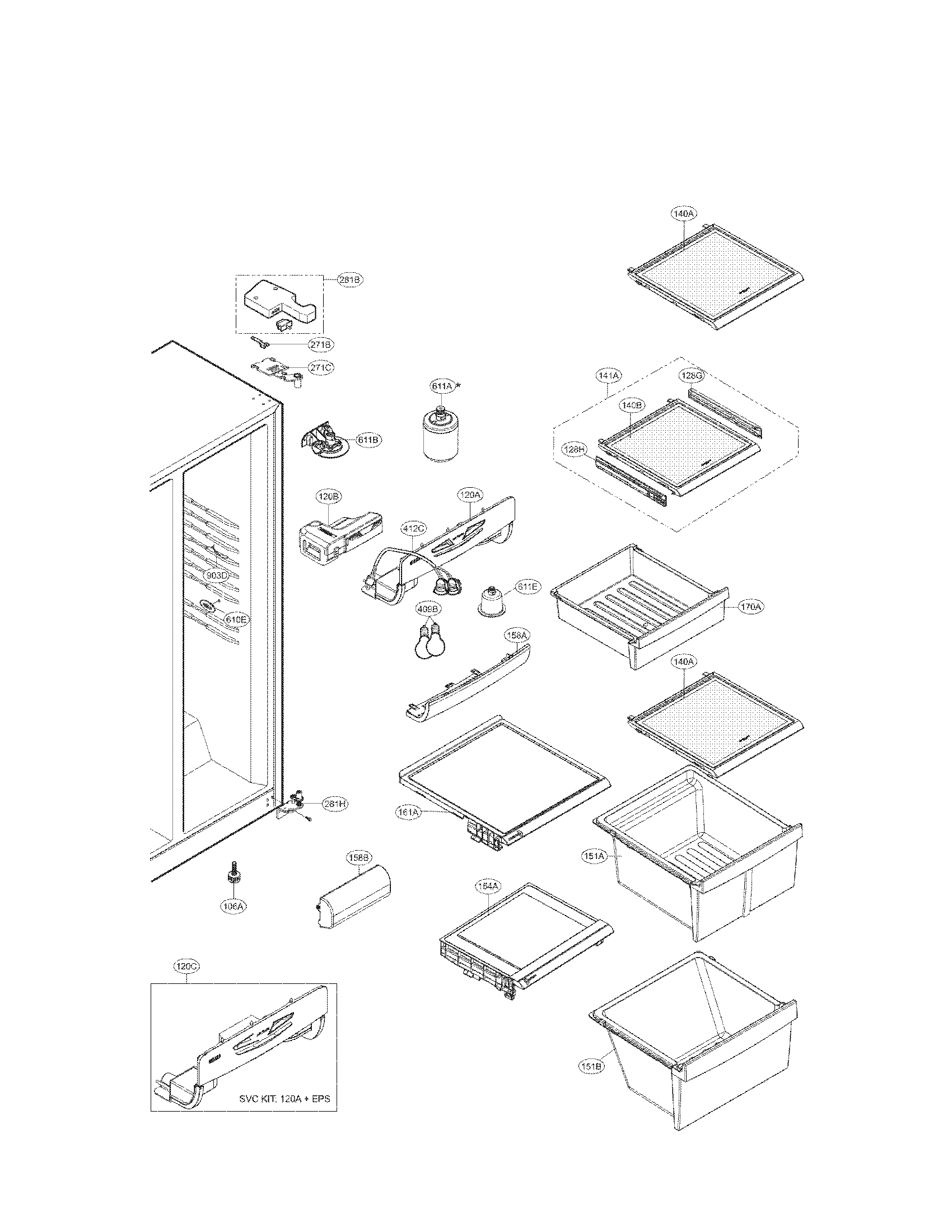

Refrigerator compartment parts diagram

Refrigerator water filter

Part #ADQ72910907

Replaced by #ADQ72910902

?
Manufacturer substitution
This part replaces ADQ72910907. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

In Stock
Refrigerator Auger Motor EAU59551201
#405H

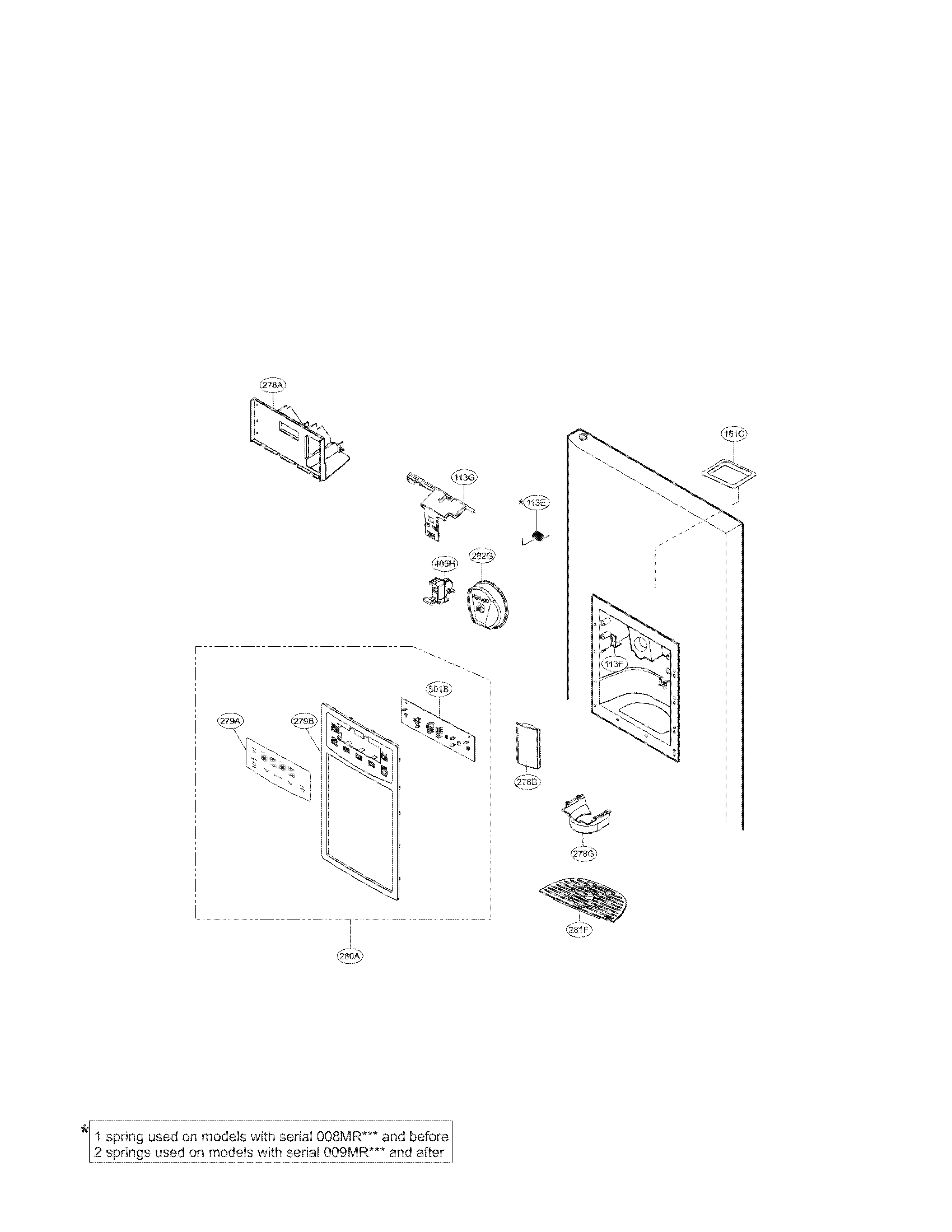

Dispenser parts diagram

Refrigerator auger motor

Part #EAU59551201

Replaced by #EAU59551204

?
Manufacturer substitution
This part replaces EAU59551201. Substitute parts can look different from the original.
BEST SELLER
$56.54
8% OFF Phone Price : $61.54
In Stock
Refrigerator Drain Tube (replaces 5251ja3003a, 5251ja3003e) 5251JA3003D
#105A

Mechanical compartment parts diagram

Refrigerator drain tube (replaces 5251ja3003a, 5251ja3003e)

Part #5251JA3003D

BEST SELLER
$10.58
16% OFF Phone Price : $12.58
In Stock
Refrigerator Water Tube Fitting MCD61866802
#621B

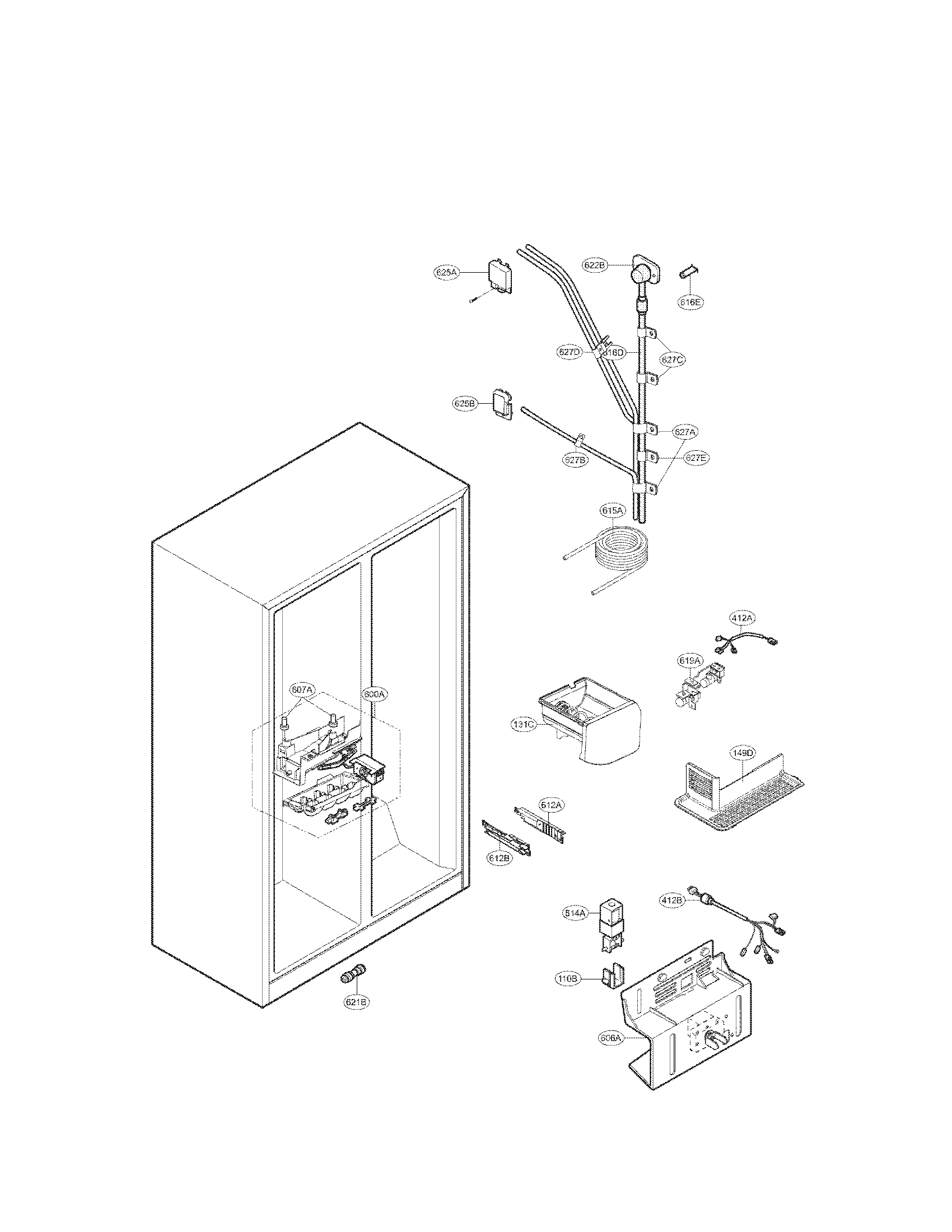

Ice and water parts diagram

Refrigerator water tube fitting

Part #MCD61866802

Replaced by #4932JA3002C

?
Manufacturer substitution
This part replaces MCD61866802. Substitute parts can look different from the original.
BEST SELLER
$16.21
11% OFF Phone Price : $18.21
In Stock
Refrigerator Sensor 6500JK1003A
#903D

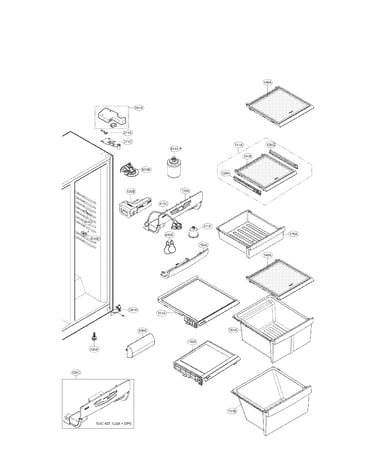

Refrigerator compartment parts diagram

Refrigerator sensor

Part #6500JK1003A

Replaced by #6500JB2001B

?
Manufacturer substitution
This part replaces 6500JK1003A. Substitute parts can look different from the original.
BEST SELLER
$25.02
17% OFF Phone Price : $30.02
In Stock
Refrigerator Door Bin MAN61844401
#241J

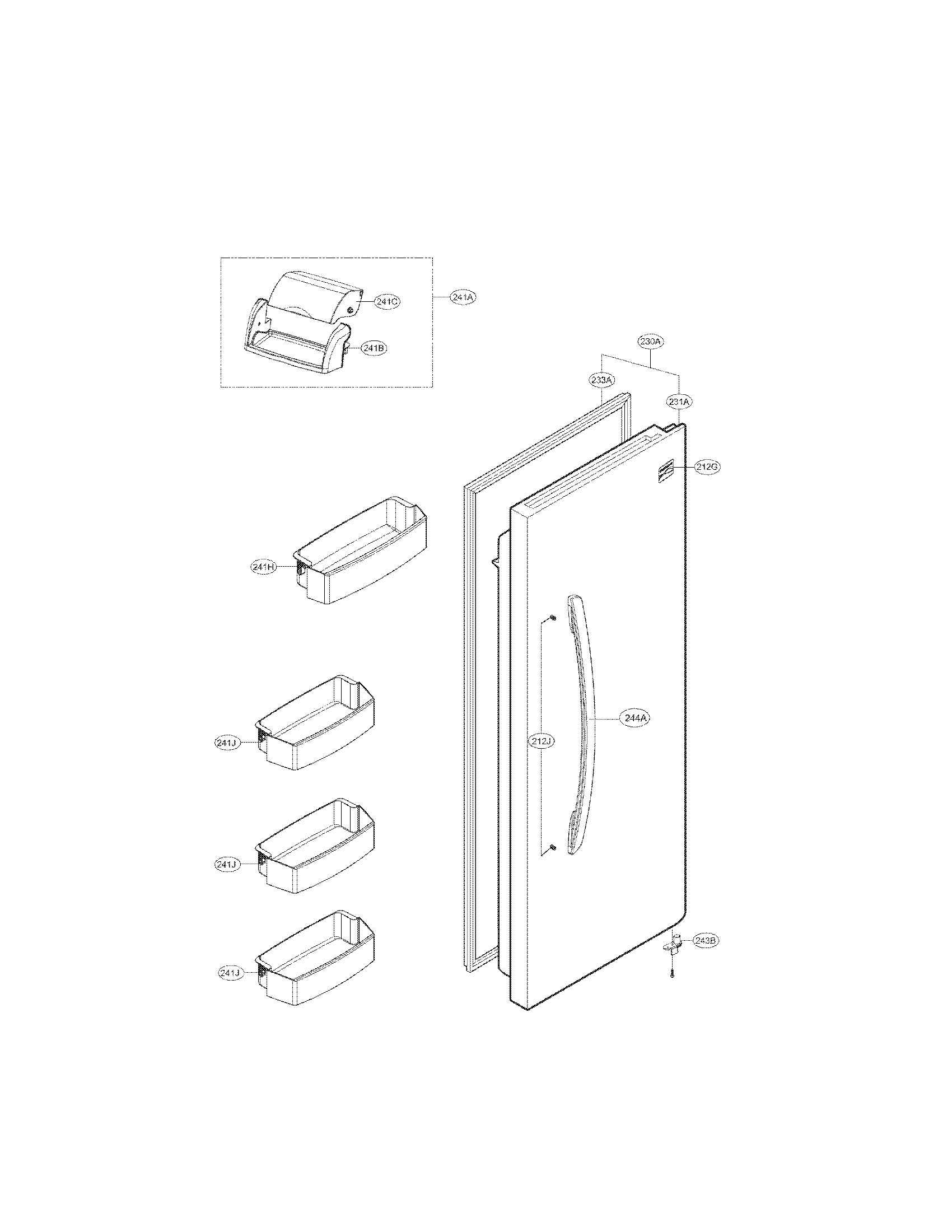

Refrigerator door parts diagram

Refrigerator door bin

Part #MAN61844401

BEST SELLER
$81.40
6% OFF Phone Price : $86.40
In Stock
Refrigerator Drawer Slide Rail, Left MEA40002602
#128H

Refrigerator compartment parts diagram

Refrigerator drawer slide rail, left

Part #MEA40002602

BEST SELLER
$32.09
13% OFF Phone Price : $37.09
In Stock
Refrigerator Door Hinge 4621JA3002H
#243B

Refrigerator door parts diagram

Refrigerator door hinge

Part #4621JA3002H

Replaced by #AJC34211602

?
Manufacturer substitution
This part replaces 4621JA3002H. Substitute parts can look different from the original.
BEST SELLER
$16.41
11% OFF Phone Price : $18.41
In Stock
Refrigerator Compressor Mount Retainer Clip (replaces 4620ja3015e, Mjb61877901) 4620JA3015A
#314A

Mechanical compartment parts diagram

Refrigerator compressor mount retainer clip (replaces 4620ja3015e, mjb61877901)

Part #4620JA3015A

$6.64
13% OFF Phone Price : $7.64
In Stock
