Kenmore Elite 66515912001 dishwasher Parts

Kenmore Elite dishwasher model 66515912001 is made for Kenmore by Whirlpool. The 665 prefix is the key identifier; it’s the manufacturing source code used on many Kenmore dishwashers that were built by Whirlpool.

How to confirm it on your dishwasher

Use these quick checks to match the model and prefix:

• Look for the model tag on the tub frame (inside the door, along the side).
• Confirm the full model number reads 66515912001.
• Verify the prefix is 665 (the first three digits).
• Match your model to the list shown in the owner's manual.
• Keep the model number handy when ordering parts like a door seal, inlet valve, or drain hose.

What the 665 prefix means (and why it matters)

Kenmore is a brand name; different manufacturers built Kenmore appliances over the years. For dishwashers, the 665 prefix points to Whirlpool-built units, which helps when you’re:

• Identifying compatible replacement parts
• Following Kenmore 665-series troubleshooting steps
• Looking up error code definitions and resets

Quick reference table

What you’re checking	What you should see	Why it matters
Brand on the door	Kenmore Elite	Brand name sold under Kenmore
Model number	66515912001	Identifies the exact dishwasher
Prefix	665	Indicates Whirlpool-built platform

Related troubleshooting help

If you’re trying to match an error code or symptom to this platform, use our Kenmore 665 model dishwasher error codes guide; it’s organized around the same 665-series design family.

Why it matters

Knowing Whirlpool built the 665-series platform helps you choose the right repair approach and the right parts the first time, especially for common issues like leaking at the door, fill problems, or draining problems.

Last updated: February 2026

Water standing in the bottom of your Kenmore Elite dishwasher model 66515912001 almost always means the unit is not draining fully at the end of the cycle. We focus first on simple drain-path blockages (filter area, drain hose, air gap) and then on drain components such as the pump and float system; see the owner's manual for model-specific checks.

Quick checks that fix most “standing water” complaints

• Confirm the cycle is actually complete; some cycles pause while heating water.
• Cancel and drain (if your control panel has that option), then listen for the drain motor.
• Check the sink drain for slow draining; a clogged house drain can cause backup.
• Inspect and clean the drain air gap (if your installation uses one); the manual recommends checking it anytime the dishwasher is not draining well.
• Look under the overfill protection float (front right of the tub) and remove anything that blocks it from moving up and down.

Parts to inspect on model 66515912001

If the drain path is clear but water still remains, these parts are common suspects:

• Drain hose: kinks, pinches, or internal blockage (see dishwasher drain hose 8269144A).

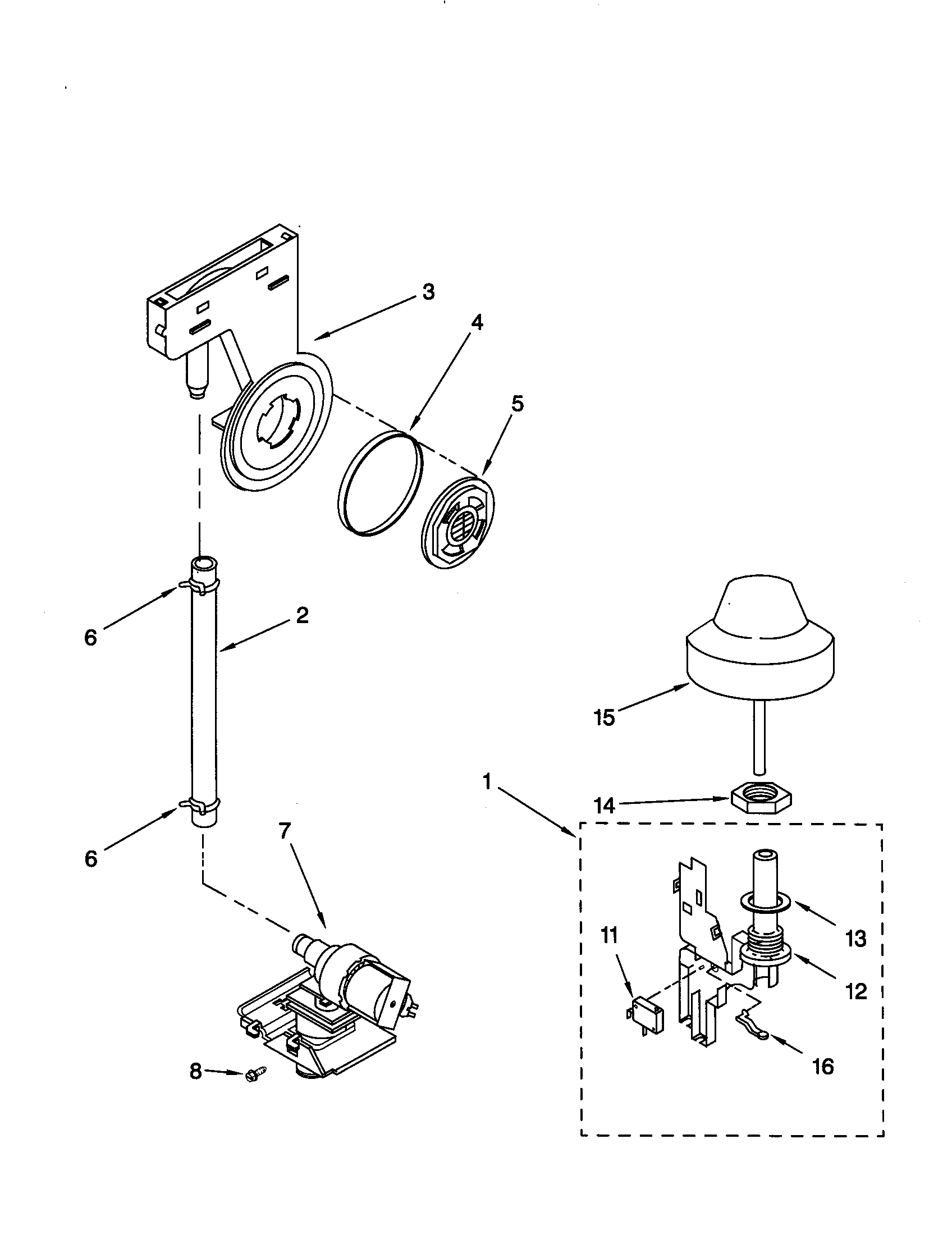

• Float/overfill system: debris under the float can prevent normal operation (see switch 8193506 and gasket-fla WP8531743 if you find leaks or a damaged seal at the float base).

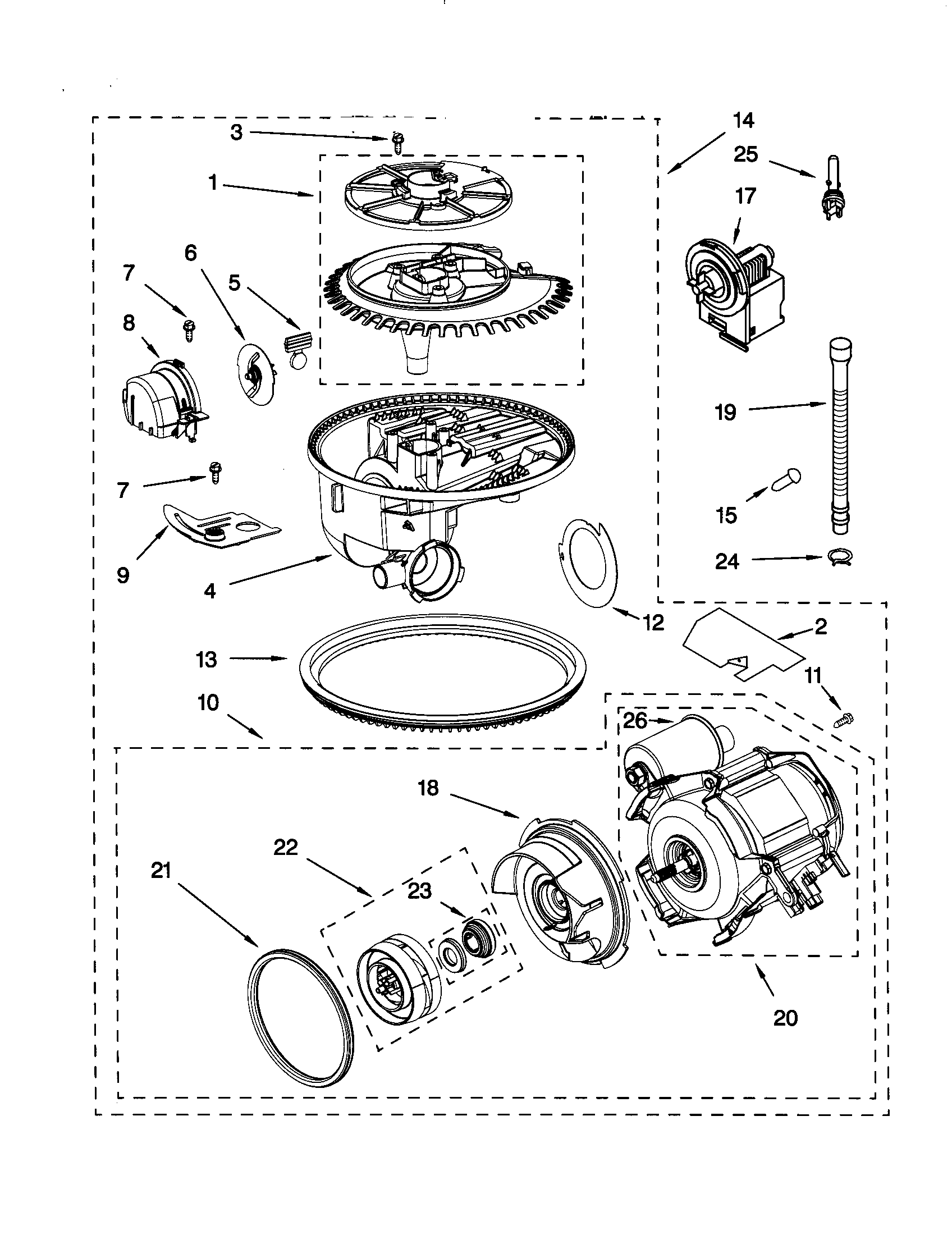

• Pump/motor area: obstructions can stop draining or circulation (see dishwasher pump and motor assembly W10782773 if the motor is noisy, seized, or not moving water).

Symptom	Most likely cause	What we do first
Water remains after cycle ends	Drain restriction	Clean filter area, check hose routing, clean air gap
Humming but no draining	Pump jam or failing motor	Check for debris at pump inlet, then test/replace pump
Intermittent draining	Float sticking or partial clog	Free the float, clear debris, re-test

Why it matters

Standing water can redeposit food soil, cause odor, and lead to poor wash performance. Restoring proper drainage protects the pump, improves drying, and keeps cycles consistent.

Last updated: February 2026

Common problems on the Kenmore Elite 66515912001 dishwasher include not starting, not filling, running too long, poor drying, drainage complaints (water left in the tub), odors, and leaks. Many of these trace back to door-latch issues, water supply problems, loading and detergent choices, or worn seals and hoses; our owner's manual troubleshooting steps help pinpoint the cause.

Most common symptoms and what usually causes them

• Won’t start or stops mid-cycle: door not fully latched, wrong cycle selection, tripped breaker or blown fuse, motor overload reset
• Won’t fill: water shut-off valve closed, overfill protection float stuck
• Runs too long: incoming water not hot enough, built-in heating delays while water reaches target temperature
• Poor drying: no rinse aid, plastics holding water, air-dry selected, overloading that blocks drainage
• Water left in the tub: cycle not complete, drain path restriction
• Leaks: worn door seal, loose or cracked drain hose, vent gasket seepage

Quick checks we recommend first (fast, no tools)

• Confirm the door closes tightly and latches.
• Verify the cycle you selected matches the load.
• Check the home breaker/fuse, then restart the cycle.
• Make sure the water shut-off valve is fully open.
• Press the overfill float down to ensure it moves freely.
• Use fresh, lump-free detergent and avoid overfilling.

Parts that commonly solve these problems on model 66515912001

Symptom	Common part to inspect/replace	What it affects
Leaking at the door	Dishwasher door seal W10542314	Door-to-tub seal integrity
Not draining or slow drain	Dishwasher drain hose 8269144A	Drain flow to disposer/standpipe
Not filling or weak fill	Inlet valve WP8531669	Water entering the dishwasher
Door won’t start cycle	Dishwasher door switch WP8269209	Safety interlock for operation

Why it matters

Catching the root cause early prevents repeat wash failures, reduces detergent residue and odors, and helps protect the kitchen floor and cabinets from moisture damage.

Last updated: February 2026

Your Kenmore Elite dishwasher model is printed on the model and serial number label located on the inside edge of the dishwasher door opening. On model 66515912001, the label is shown in the Parts and Features section of the owner's manual.

Where to find the model number label

Look for a paper or metal rating label in one of these common spots:

• Along the inner left side of the door frame (most common)
• Along the inner right side of the door frame
• On the top edge of the tub opening (visible when the door is open)
• Near the front frame behind the door seal area

What the model number looks like

Kenmore Elite dishwasher model numbers in this series typically start with 665 and may be shown with a dot after 665.

How it may appear on the label	What it means
665.15912001	Same model as 66515912001
66515912001	Full model number (no dot)
665.15912 (partial)	Series prefix; use the full number for parts

Why it matters

We use the full model number to match the correct parts list, diagrams, and repair instructions for your exact dishwasher. Even small differences within the 665 series can change which racks, seals, or switches fit.

Tip for ordering the right parts

When you write the model number down, also record the serial number from the same label. If you are replacing common fitment-sensitive items, match by model first, then confirm the part:

• Dishwasher wheel 8194001 for rack roller issues
• Dishwasher door seal W10542314 for door-edge leaks
• Dishwasher door switch WP8269209 if the unit will not run with the door closed

Last updated: February 2026

Yes, it’s usually worth repairing a Kenmore Elite dishwasher like model 66515912001 when the problem is a common wear item (rack wheels, door seals, drain hose, inlet valve) and the unit otherwise cleans well and doesn’t leak. If repairs are frequent or the tub is damaged, replacement is the better long-term value.

Quick way to decide (repair vs. replace)

Use these checkpoints first; they match the most common real-world failure patterns for this dishwasher type.

• Repair when the issue is isolated (leak at the door, won’t drain, won’t fill, rack won’t roll).
• Repair when you can fix it with one or two parts and basic tools.
• Replace when multiple major symptoms stack up (poor wash + leaks + repeated no-start issues).
• Replace when the stainless tub or inner door panel is rusted through or physically damaged.
• Either way, confirm warranty coverage and what’s included before paying for parts or labor (see the owner's manual).

Warranty coverage that can change the math

Your 66515912001 documentation includes these key warranty buckets (coverage depends on purchase date and proper installation/operation):

Item	Typical coverage described in the manual	Why it matters
Whole dishwasher	1 year	Makes early repairs a clear “yes.”
Electronic control and power supply board	2 years	Helps if you’re chasing control-related failures.
Stainless tub and inner door panel (leaks from rust-through)	Life of the dishwasher (on stainless tub models)	A tub leak is a replacement-level cost without coverage.
Upper/lower dishracks (rust)	Limited 5 years (parts)	Rack rust can be addressed without replacing the dishwasher.
Ultra Wash wash system parts	Limited 2 years (parts)	Can reduce cost for pump/motor related repairs.

Common repairs that are often worth it

These are frequent, targeted fixes that typically restore normal operation:

• Door leaking: replace the dishwasher door seal W10542314.
• Not draining or slow drain: inspect/replace the dishwasher drain hose 8269144A and check for clogs.
• Not filling: test/replace the inlet valve WP8531669.

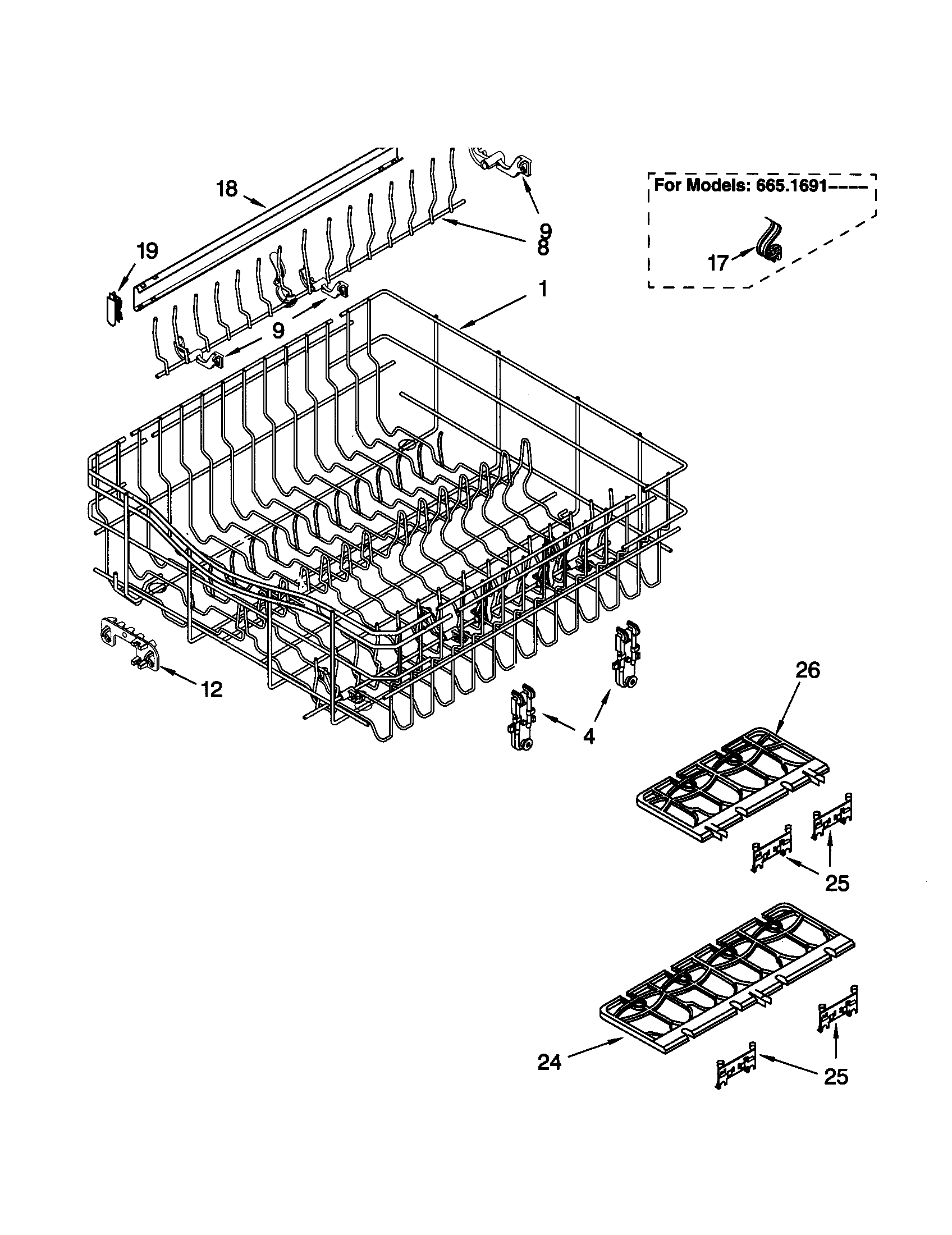

• Upper rack problems: check the dishwasher wheel 8194001 and the dishwasher dishrack slide rail stop, upper WP8565925.

Why it matters

A focused repair keeps your kitchen setup intact, avoids reinstall work, and reduces waste. For the Kenmore Elite 66515912001, many failures are part-level (seal, hose, valve, rack hardware) rather than “replace the whole dishwasher” problems.

Last updated: February 2026
