Craftsman
Front-Engine Lawn Tractor

Model # 917276905 Official Craftsman tractor

Here are the diagrams and repair parts for Official Craftsman 917276905 tractor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

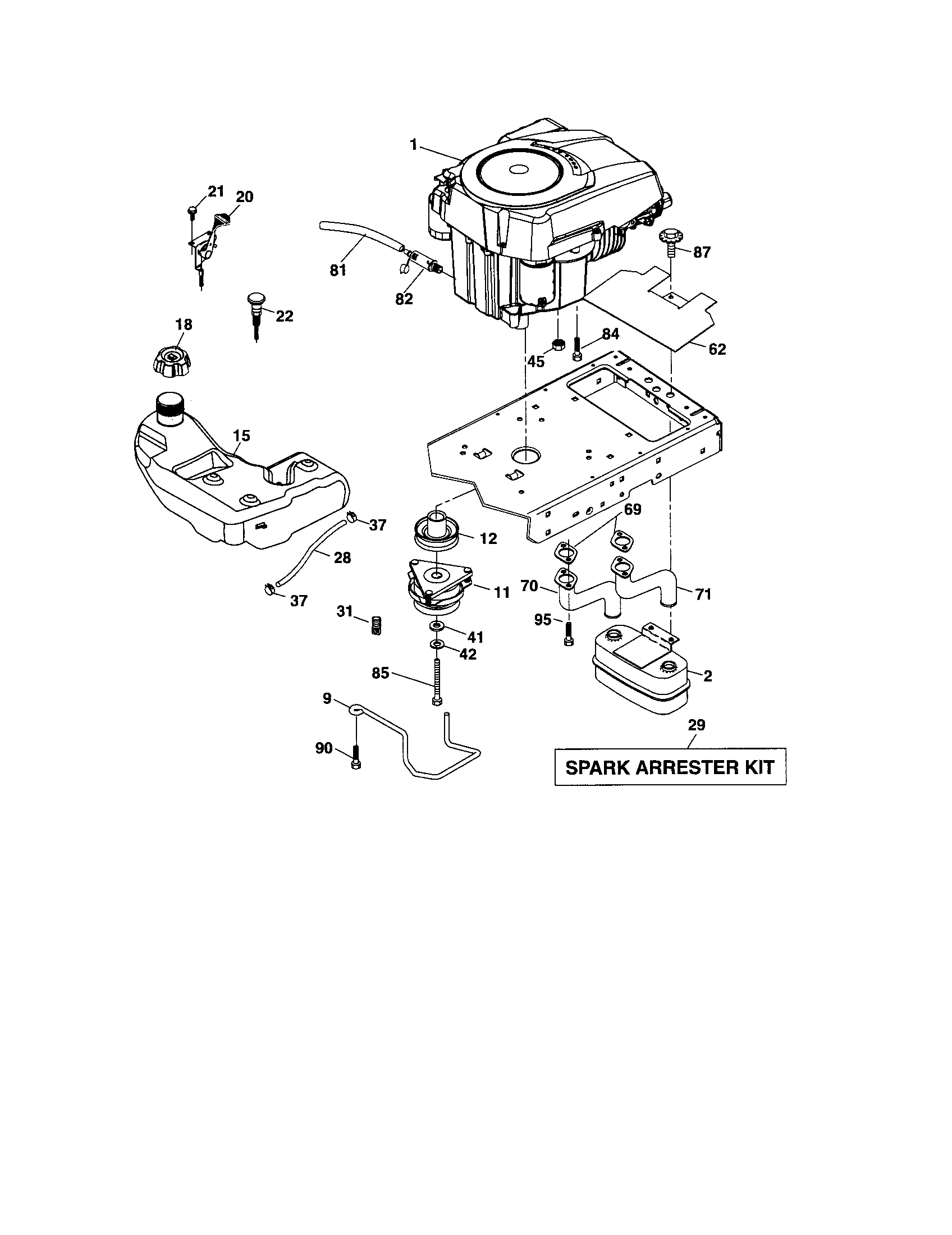

  View engine

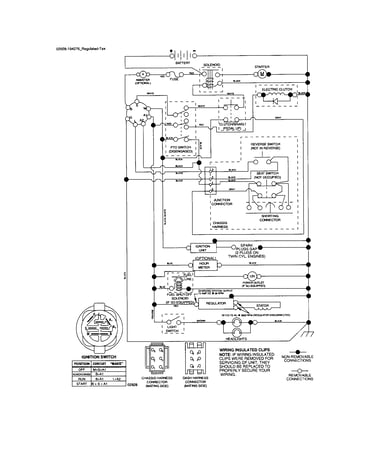

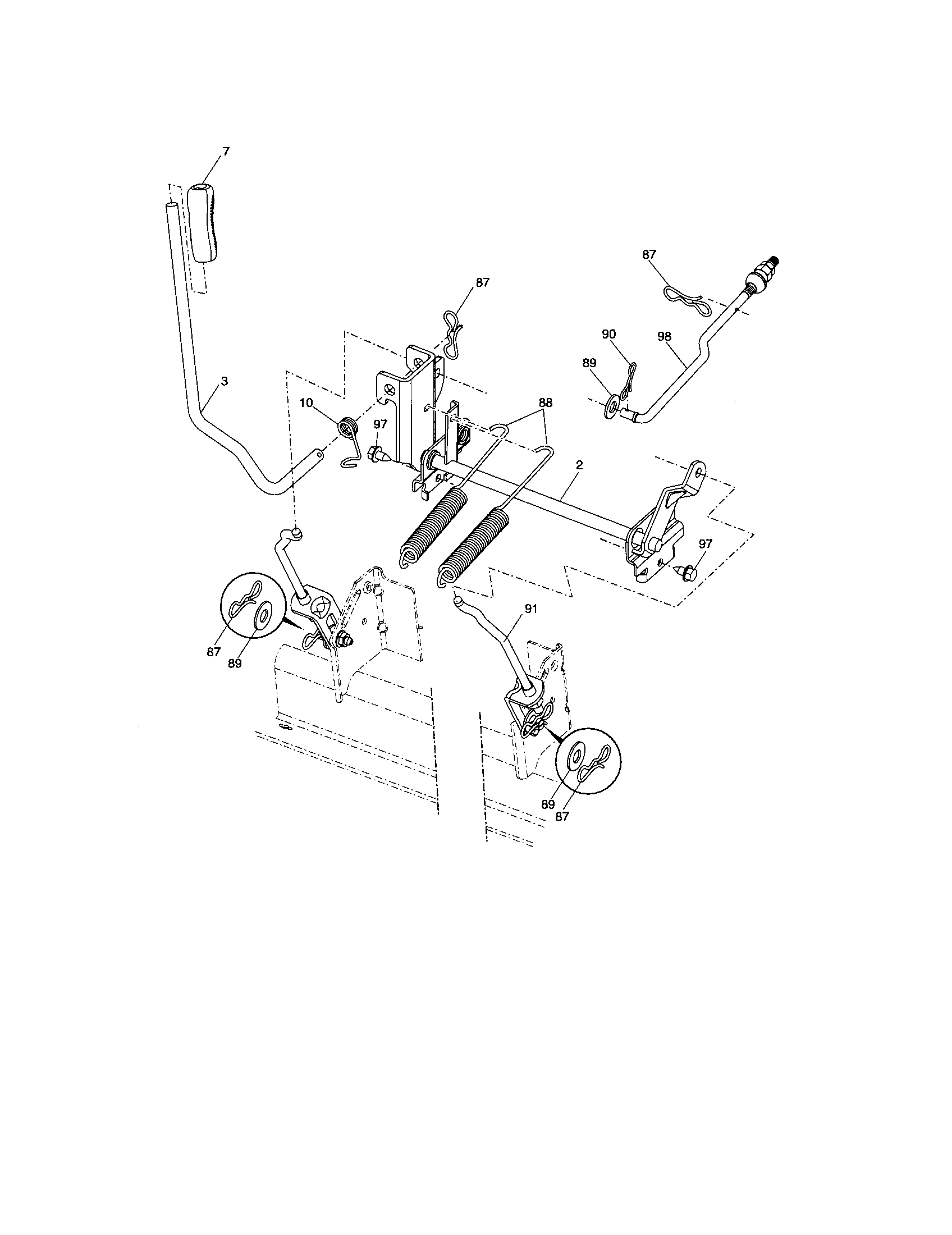

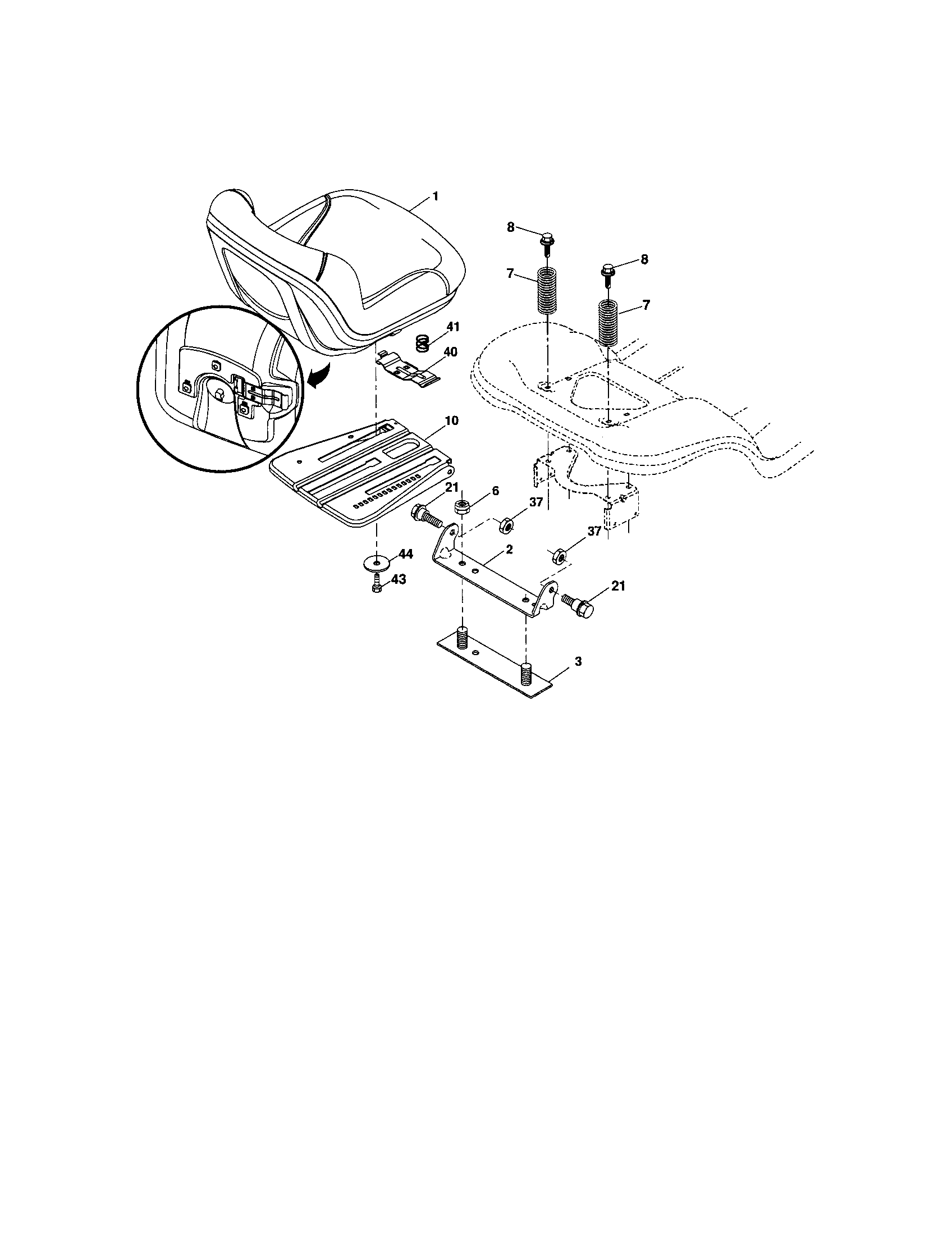

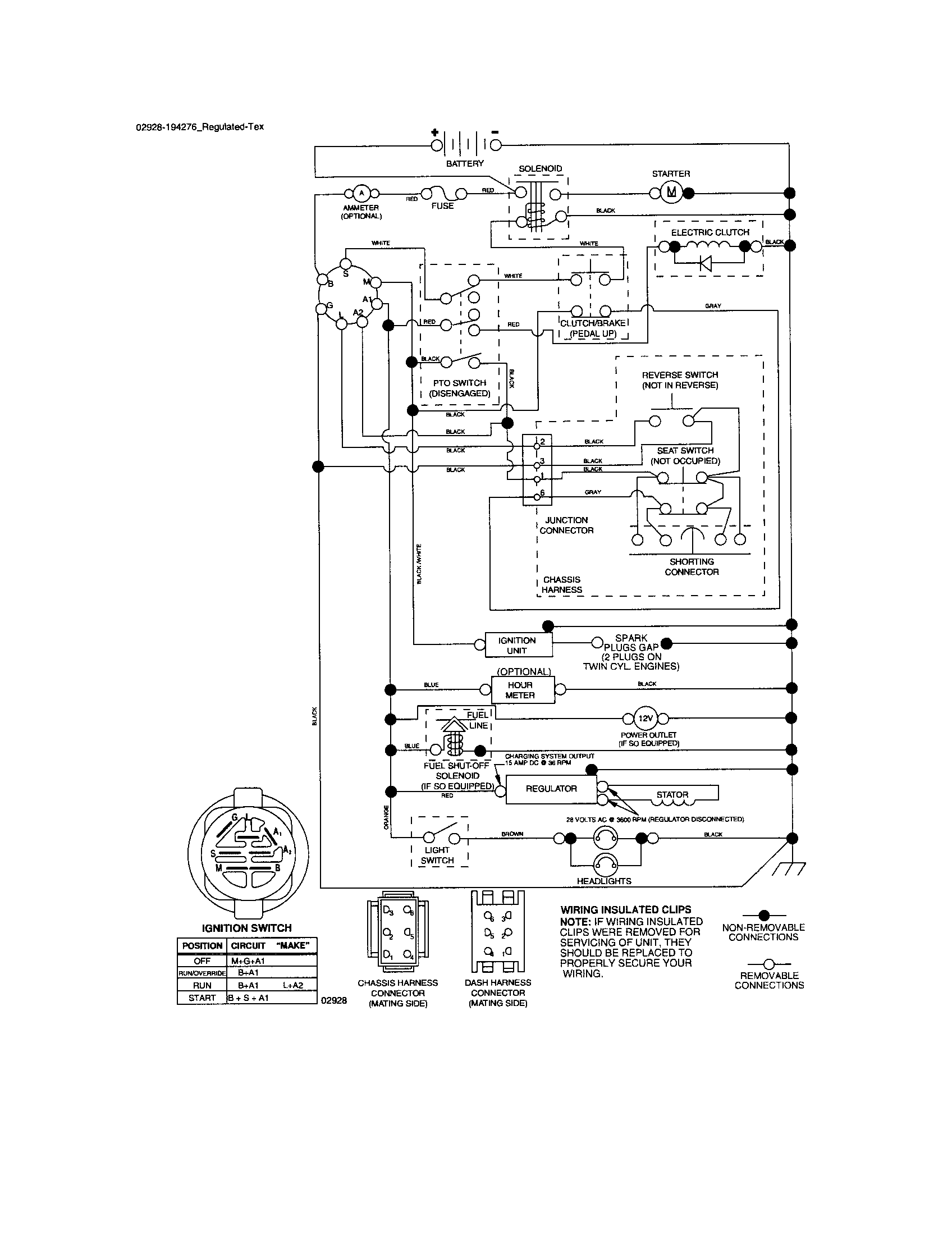

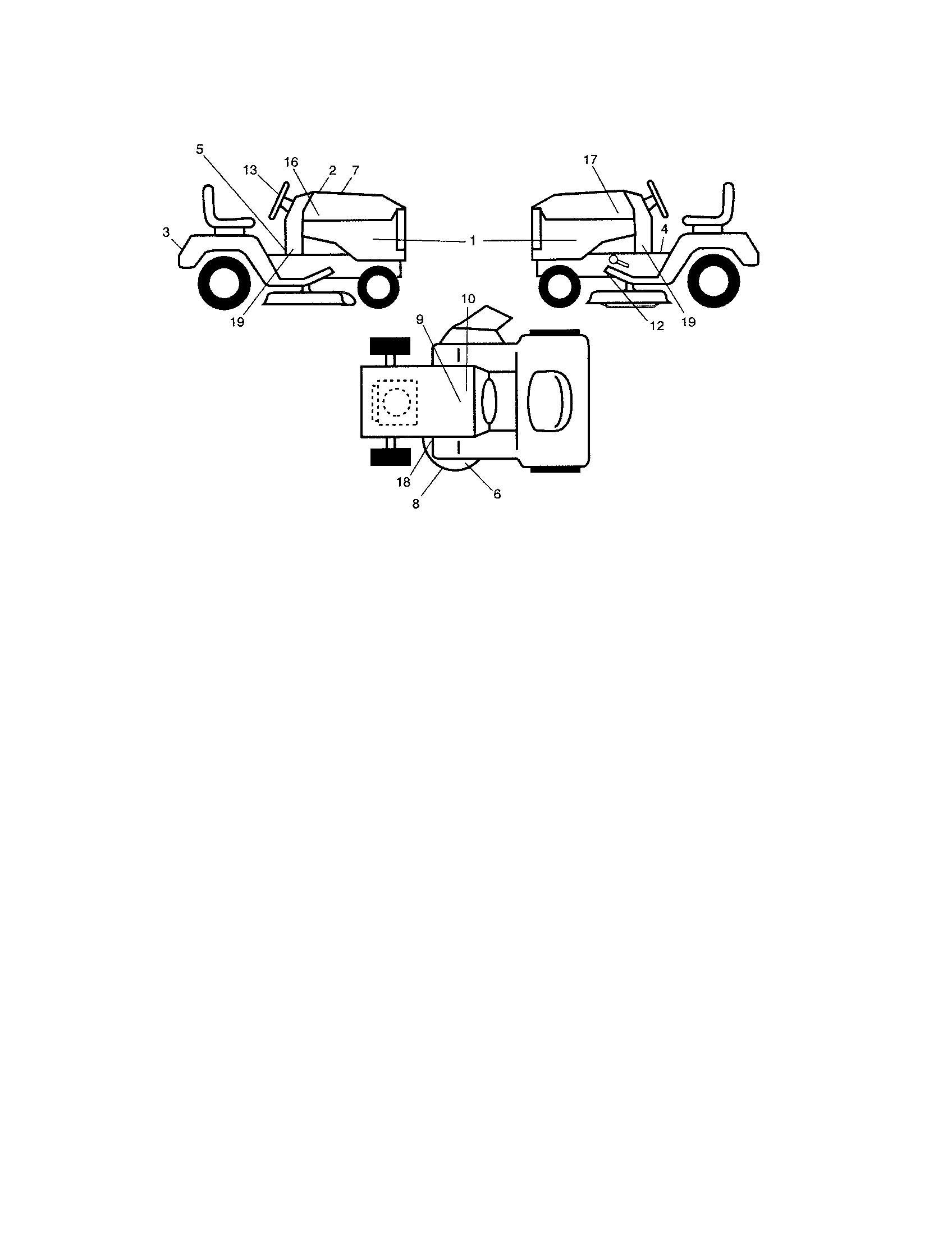

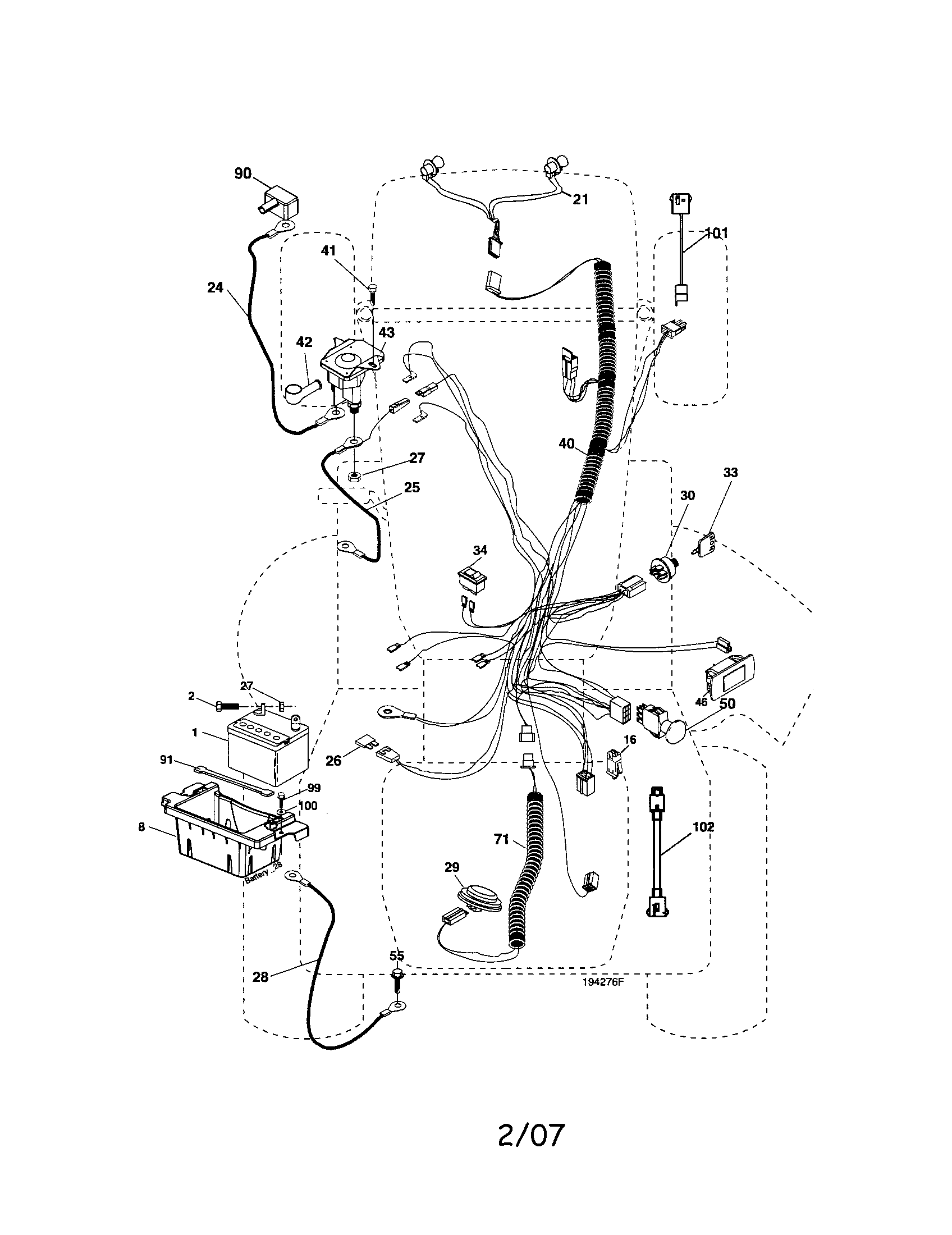

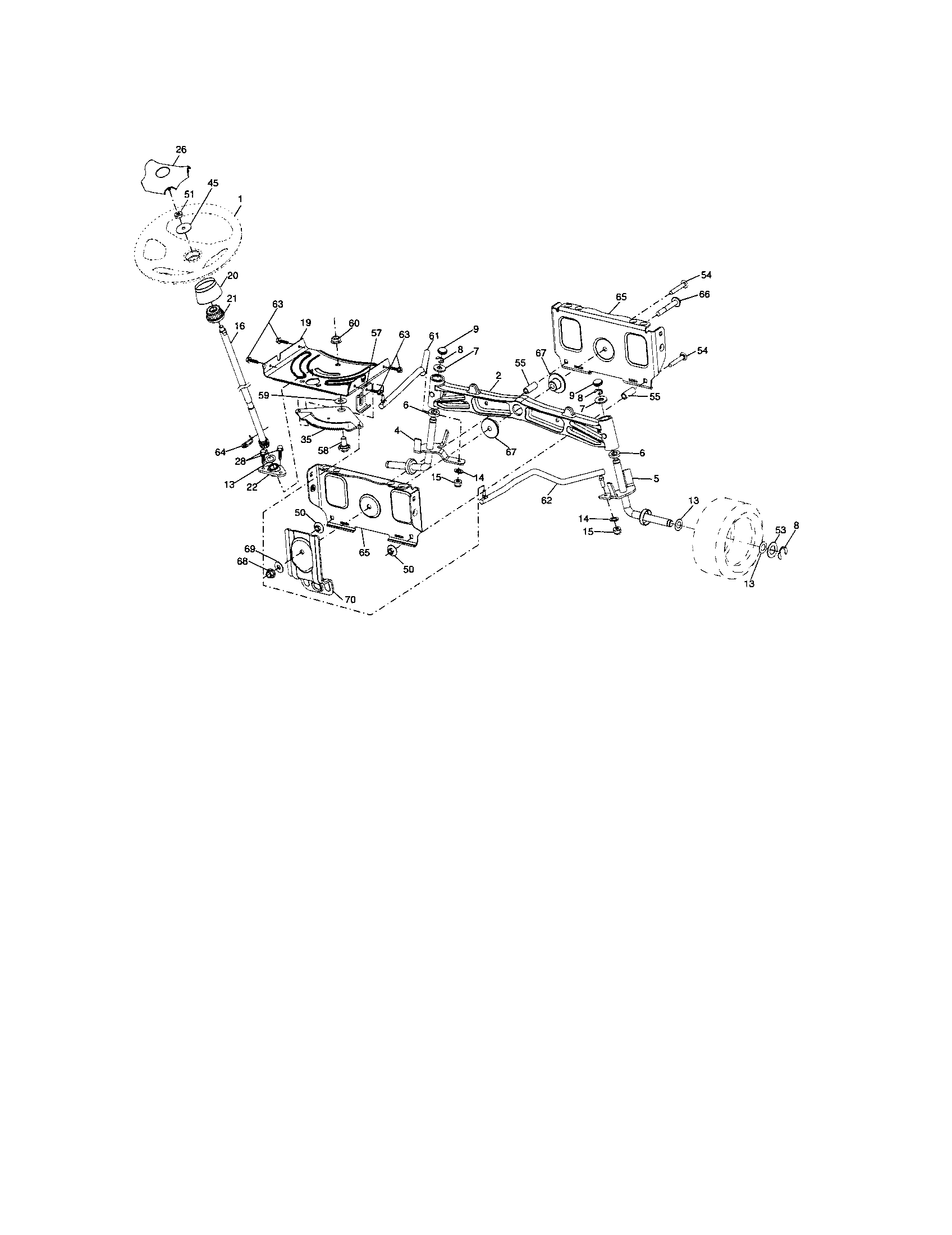

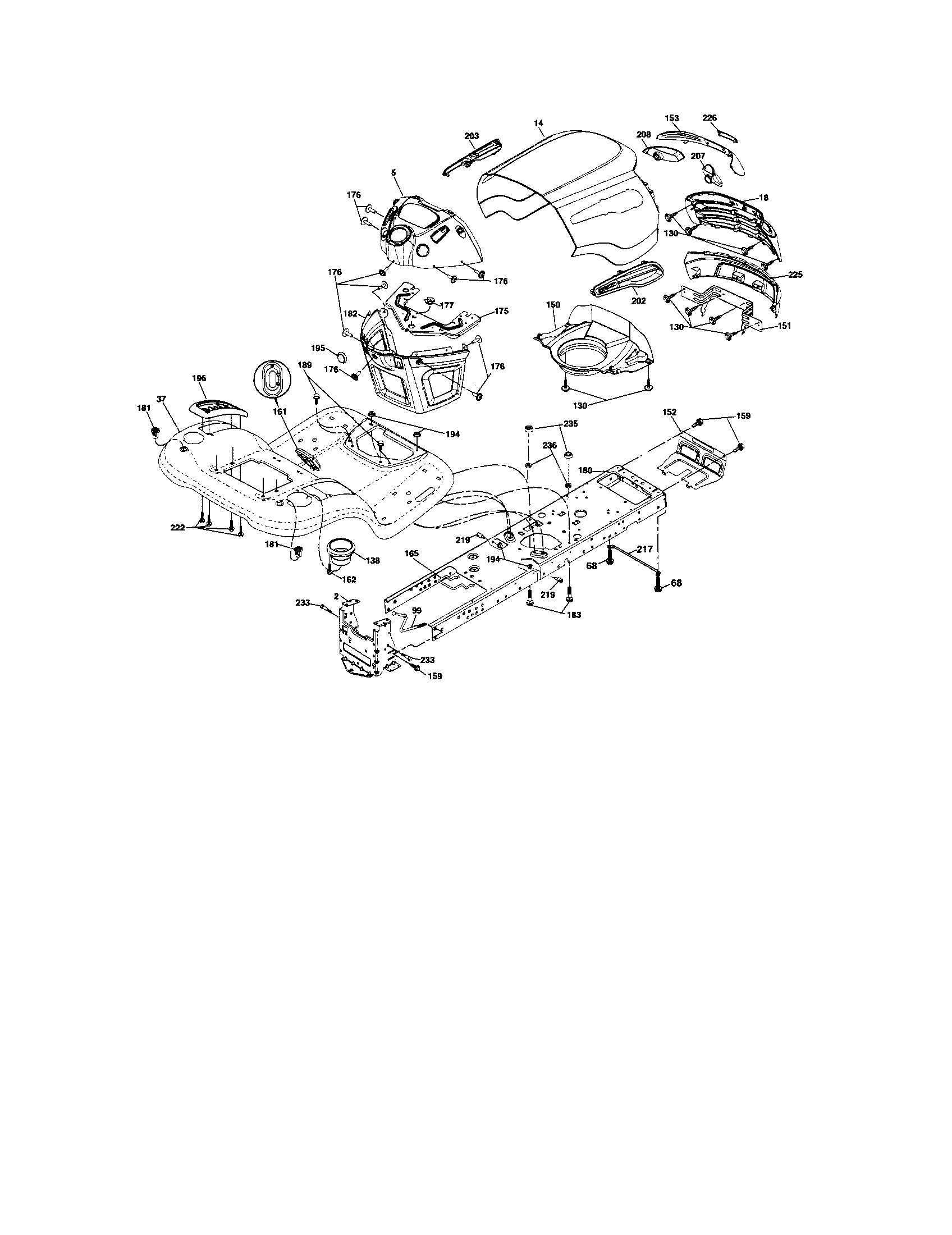

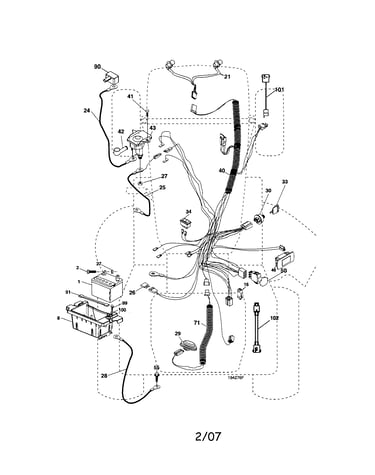

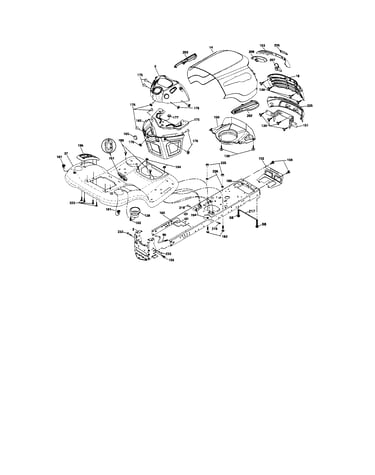

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 491 parts  |
Lawn Tractor Mandrel Housing 187281
#14

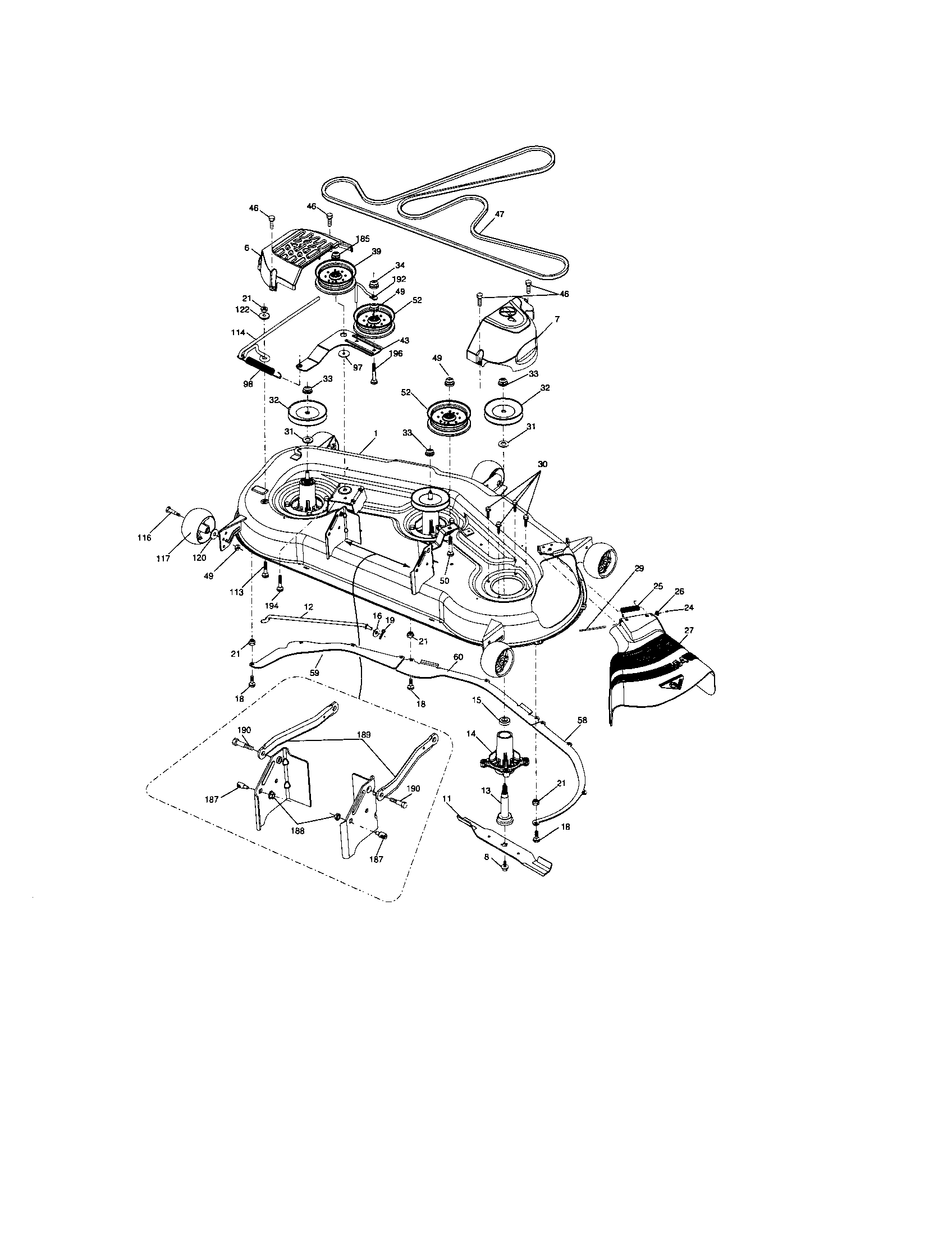

Mower deck diagram

Lawn tractor mandrel housing

Part #187281

Replaced by #587819701

?
Manufacturer substitution
This part replaces 187281. Substitute parts can look different from the original.
BEST SELLER
$46.13 |
12% OFF Phone Price : $52.13
In Stock
Lawn Tractor Ground Drive Or Blade Drive Belt, 1/2 X 92-2/5-in (replaces 108310x, 130969ms, 24684, 532108310, 532130969, 5321309-69) 130969
#56

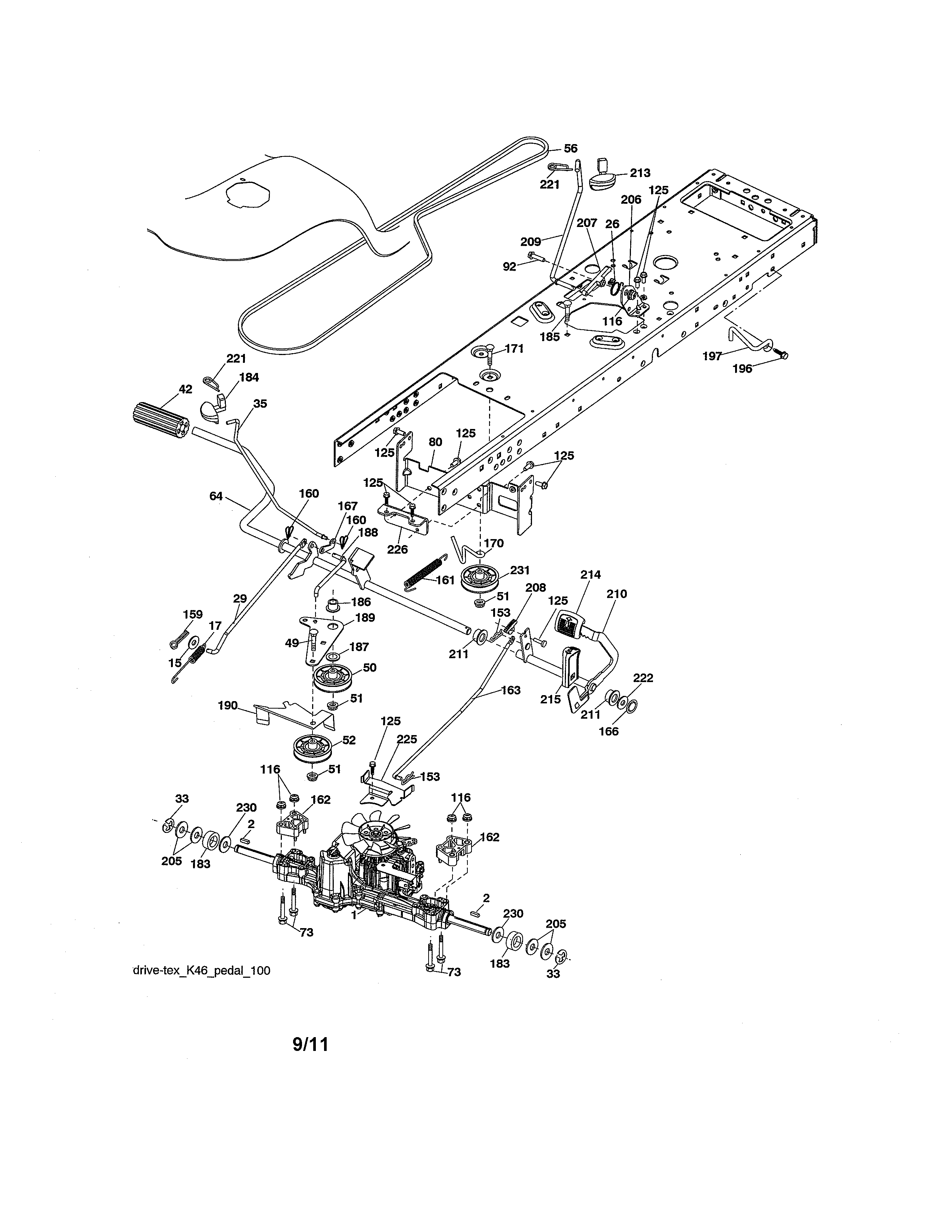

Ground drive diagram

Lawn tractor ground drive or blade drive belt, 1/2 x 92-2/5-in (replaces 108310x, 130969ms, 24684, 532108310, 532130969, 5321309-69)

Part #130969

Replaced by #592855201

?
Manufacturer substitution
This part replaces 130969. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable

Get free shipping with Automatic Reorder

$30.85 |
16% OFF Phone Price : $36.85
In Stock
Lawn Tractor Blade Drive Belt, 5/8 X 148-5/8-in 196103
#47

Mower deck diagram

Lawn tractor blade drive belt, 5/8 x 148-5/8-in

Part #196103

Replaced by #587686701

?
Manufacturer substitution
This part replaces 196103. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$50.75 |
11% OFF Phone Price : $56.75
In Stock
Lock Nut 73900600
Lock nut

Part #73900600

Replaced by #532409149

?
Manufacturer substitution
This part replaces 73900600. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Lawn Tractor Bolt 173984
#30

Mower deck diagram

Lawn tractor bolt

Part #173984

Replaced by #584953901

?
Manufacturer substitution
This part replaces 173984. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Lawn Tractor Blade Idler Pulley (replaces 197379, 532196106) 196106
#52

Mower deck diagram

Lawn tractor blade idler pulley (replaces 197379, 532196106)

Part #196106

BEST SELLER
$24.78 |
19% OFF Phone Price : $30.78
In Stock
Lawn Tractor Mandrel Pulley (replaces 153535, 153535ms, 153535wa, 153535x431, 177865, 532173436, 5321734-36, 539112171, 577203105) 173436
#32

Mower deck diagram

Lawn tractor mandrel pulley (replaces 153535, 153535ms, 153535wa, 153535x431, 177865, 532173436, 5321734-36, 539112171, 577203105)

Part #173436

BEST SELLER
$16.43 |
11% OFF Phone Price : $18.43
Back Order
Husqvarna Lawn Tractor Ground Drive Fixed Idler Pulley (replaces 532194326) 194326
#52

Ground drive diagram

Husqvarna lawn tractor ground drive fixed idler pulley (replaces 532194326)

Part #194326

BEST SELLER
$13.74 |
13% OFF Phone Price : $15.74
In Stock
Husqvarna Lawn Tractor Ground Drive Idler Pulley (replaces 532194327) 194327
#50

Ground drive diagram

Husqvarna lawn tractor ground drive idler pulley (replaces 532194327)

Part #194327

BEST SELLER
$12.13 |
14% OFF Phone Price : $14.13
In Stock
Lawn Tractor Gauge Wheel 174873
#117

Mower deck diagram

Lawn tractor gauge wheel

Part #174873

Replaced by #589527301

?
Manufacturer substitution
This part replaces 174873. Substitute parts can look different from the original.
BEST SELLER
$11.98 |
14% OFF Phone Price : $13.98
Back Order
