Magic Chef
Built-In Microwave

Model # MCO165UW Official Magic Chef microwave

Here are the diagrams and repair parts for Official Magic Chef MCO165UW microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 61 parts  |
Main Pcb PKMPMSF200
#B04

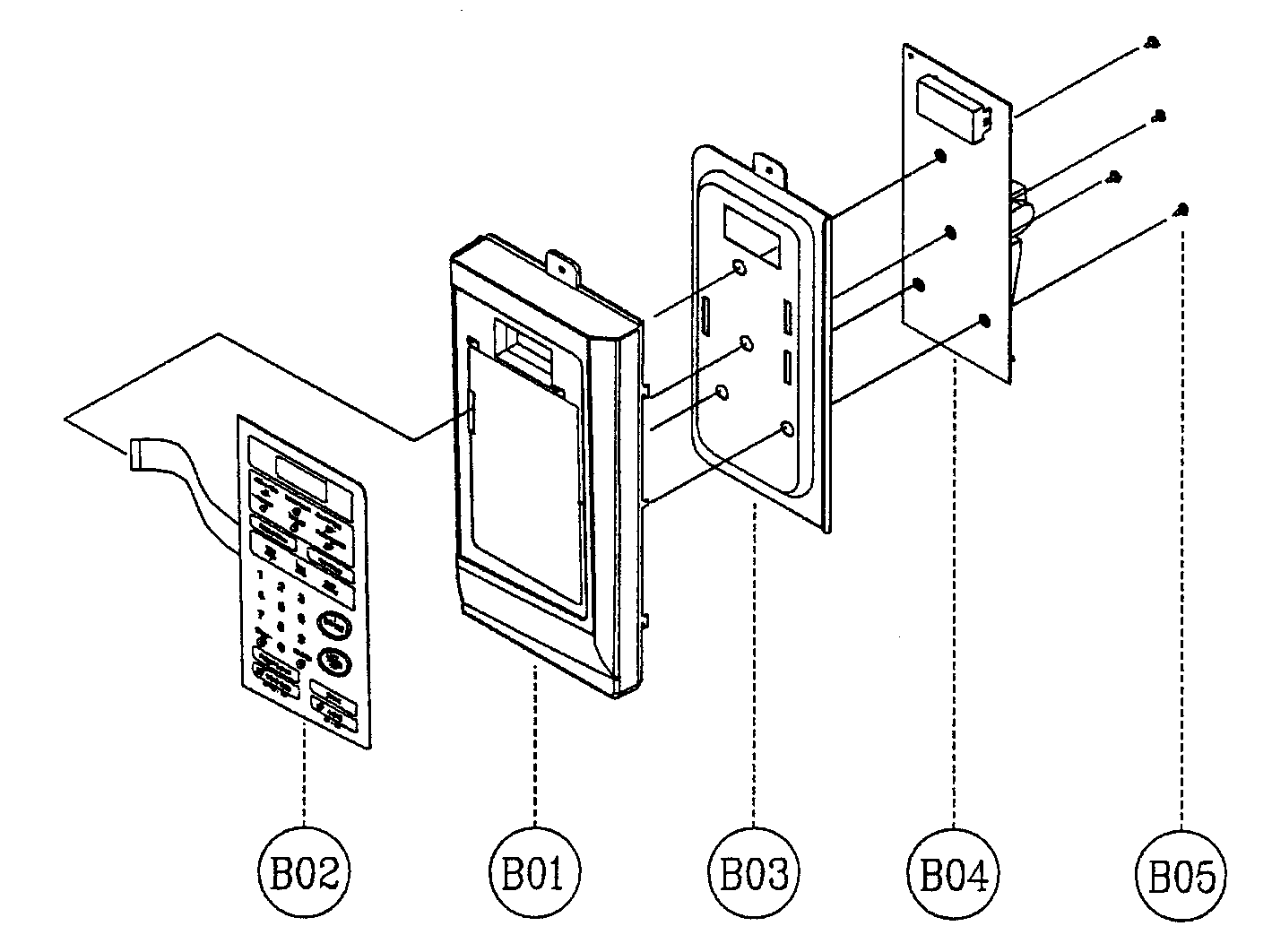

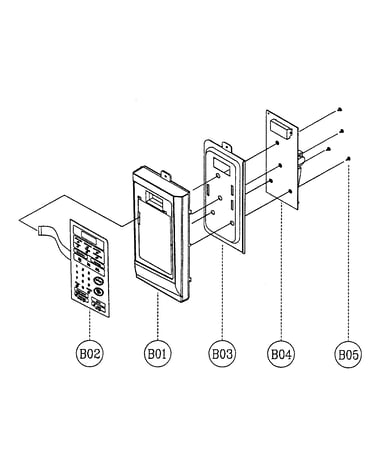

Control panel diagram

Main pcb

Part #PKMPMSF200

The manufacturer no longer makes this part, and there's no substitute part

Microwave Turntable Tray Support 3512517500
#A76

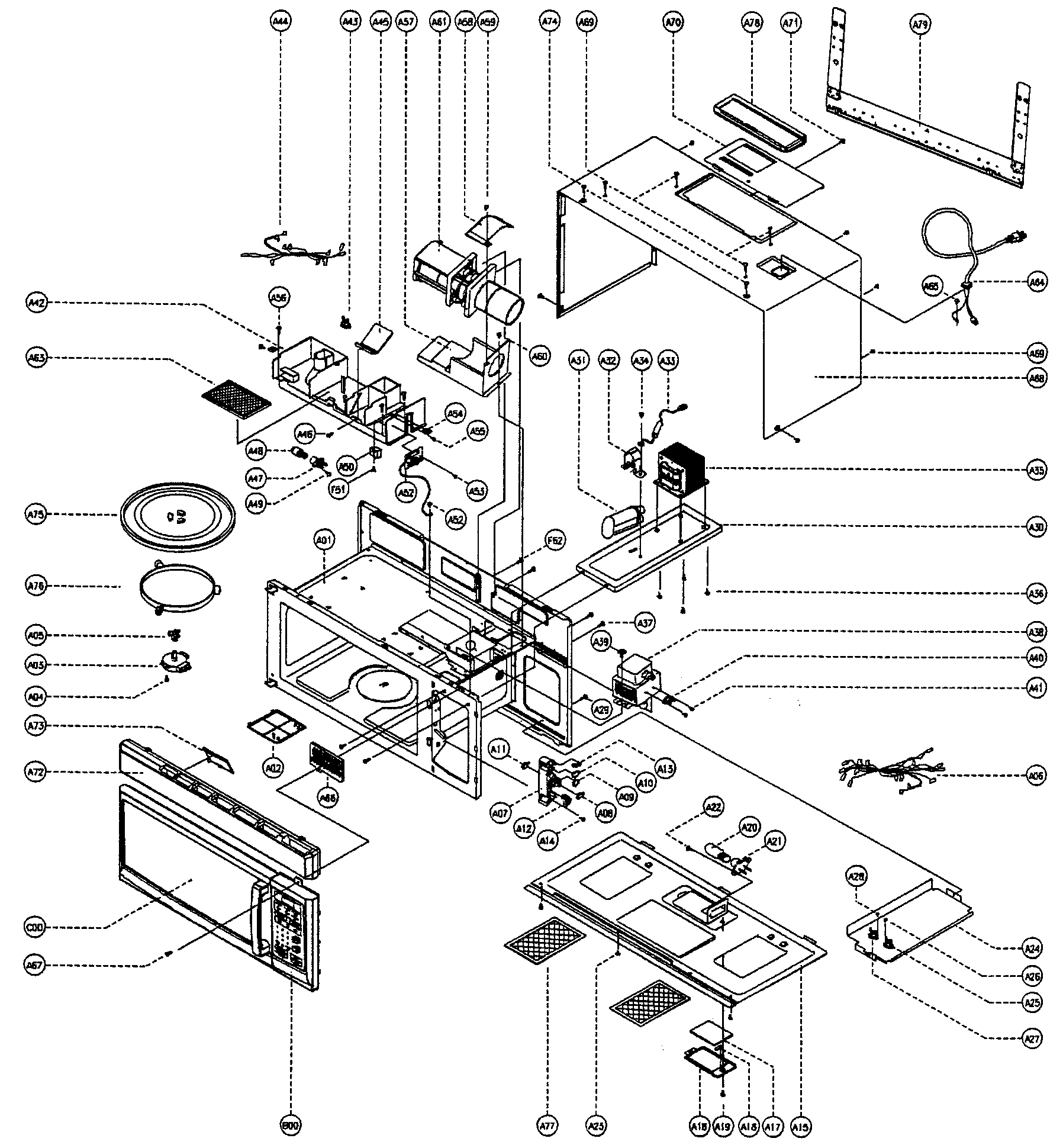

Total assy diagram

Microwave turntable tray support

Part #3512517500

The manufacturer no longer makes this part, and there's no substitute part

Trans Hv 3518122600
#A35

Total assy diagram

Trans hv

Part #3518122600

The manufacturer no longer makes this part, and there's no substitute part

Microwave Glass Turntable Tray 3517203500
#A75

Total assy diagram

Microwave glass turntable tray

Part #3517203500

The manufacturer no longer makes this part, and there's no substitute part

Microwave High-voltage Capacitor 3518301100
#A50

Total assy diagram

Microwave high-voltage capacitor

Part #3518301100

The manufacturer no longer makes this part, and there's no substitute part

Microwave Air Guide Baseplate 3512526200
#A42

Total assy diagram

Microwave air guide baseplate

Part #3512526200

The manufacturer no longer makes this part, and there's no substitute part

Microwave Touch Switch Membrane 3518572120W
#B02

Control panel diagram

Microwave touch switch membrane

Part #3518572120W

The manufacturer no longer makes this part, and there's no substitute part

Microwave Vent Grille 3512400620W
#A72

Total assy diagram

Microwave vent grille

Part #3512400620W

The manufacturer no longer makes this part, and there's no substitute part

Case Fan-t 3511101200
#A58

Total assy diagram

Case fan-t

Part #3511101200

The manufacturer no longer makes this part, and there's no substitute part

Ac Power Cord 35113U5W88
#A64

Total assy diagram

Ac power cord

Part #35113U5W88

The manufacturer no longer makes this part, and there's no substitute part
