Model # 900112650 Official Craftsman trim saw

Here are the diagrams and repair parts for Official Craftsman 900112650 trim saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 33 parts  |

Cover 152734-00
#5

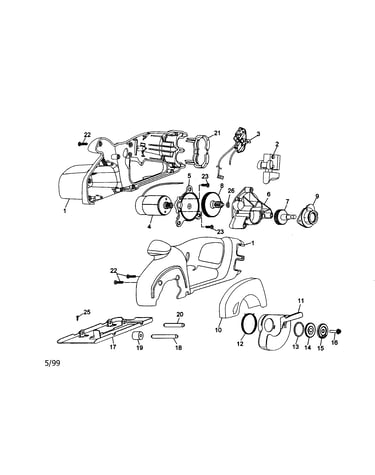

7.2 volt cordless circular diagram

Cover

Part #152734-00

The manufacturer no longer makes this part, and there's no substitute part

Clamshell 152729-01
#1

7.2 volt cordless circular diagram

Clamshell

Part #152729-01

The manufacturer no longer makes this part, and there's no substitute part

Cap 152730-00
#9

7.2 volt cordless circular diagram

Cap

Part #152730-00

The manufacturer no longer makes this part, and there's no substitute part

Screw 381913-00
#23

7.2 volt cordless circular diagram

Screw

Part #381913-00

The manufacturer no longer makes this part, and there's no substitute part

Rip Fence 87118-00

#NI

All parts diagram

Rip fence

Part #87118-00

The manufacturer no longer makes this part, and there's no substitute part

Guard 152710-01
#11

7.2 volt cordless circular diagram

Guard

Part #152710-01

The manufacturer no longer makes this part, and there's no substitute part

Roll Pin 99212-28
#20

7.2 volt cordless circular diagram

Roll pin

Part #99212-28

The manufacturer no longer makes this part, and there's no substitute part

Gear Case 152733-00
#6

7.2 volt cordless circular diagram

Gear case

Part #152733-00

The manufacturer no longer makes this part, and there's no substitute part

Bumper 152722-00
#19

7.2 volt cordless circular diagram

Bumper

Part #152722-00

The manufacturer no longer makes this part, and there's no substitute part

Ring 152740-00
#13

7.2 volt cordless circular diagram

Ring

Part #152740-00

The manufacturer no longer makes this part, and there's no substitute part
