Maytag MDG3000AWW washer/dryer Parts

To estimate the age of your Maytag dryer, use the serial number date code: the first letter in the code indicates the year, and the second letter indicates the month. On model MDG3000AWW, you’ll find the model and serial tag in the lower center of the door opening; see the MDG3000AWW owner's manual.

Where to find the serial number on MDG3000AWW

The identification tag is on a data plate inside the dryer door opening.

• Open the dryer door
• Look at the lower center of the door opening
• Write down the model number and serial number exactly
• Keep it with your purchase receipt for service and parts matching

How to read the Maytag serial date code

Maytag uses letters to encode the manufacture date.

• 1st letter = year
• 2nd letter = month
• The remaining characters identify the production sequence

Example

If your serial number ends with LA:

Code position	Example	Meaning
1st letter	L	Year code
2nd letter	A	Month code

Why it matters

Knowing the manufacture month and year helps us match the correct Maytag dryer parts (like a thermostat, gas igniter, or drum belt) and confirm which version of a component your dryer uses.

Last updated: February 2026

To open a Maytag MDG3000AWW (3000 series/Neptune-style) dryer for service, we typically remove the top first, then the front panel so you can access the drum, belt, idler area, and burner/igniter components. Follow the cabinet access steps and safety notes in the MDG3000AWW owner's manual.

Before you start (safety and setup)

• Unplug the dryer (or switch off the breaker) before removing any panels.
• If it is a gas dryer, shut off the gas supply valve.
• Pull the dryer forward so you can work from the front and sides.
• Protect the floor; the cabinet edges can scratch.
• Keep screws grouped by location so reassembly is straightforward.

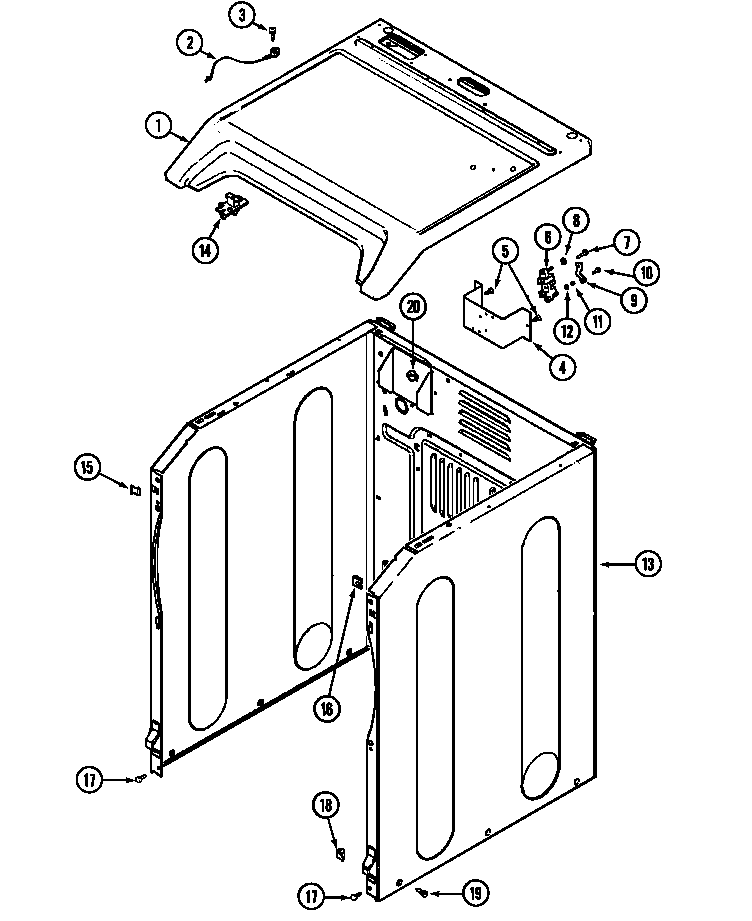

Typical way to open the cabinet (top, then front)

1. Remove the top panel: Most Maytag dryers of this design release the top after removing fasteners at the rear or releasing spring clips near the front edge.

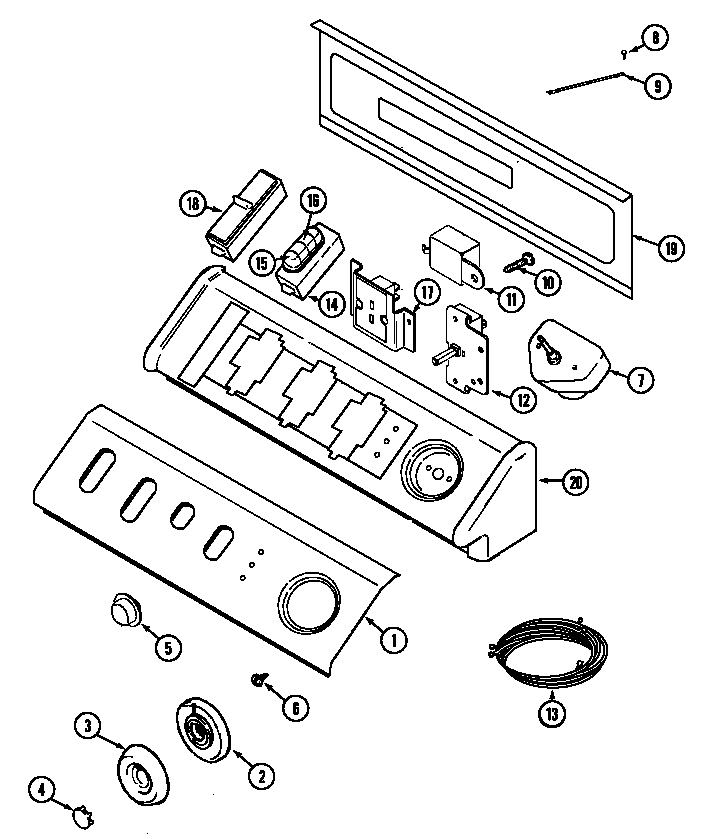

2. Remove the control console (if needed): Some repairs require loosening the console to free the front panel.

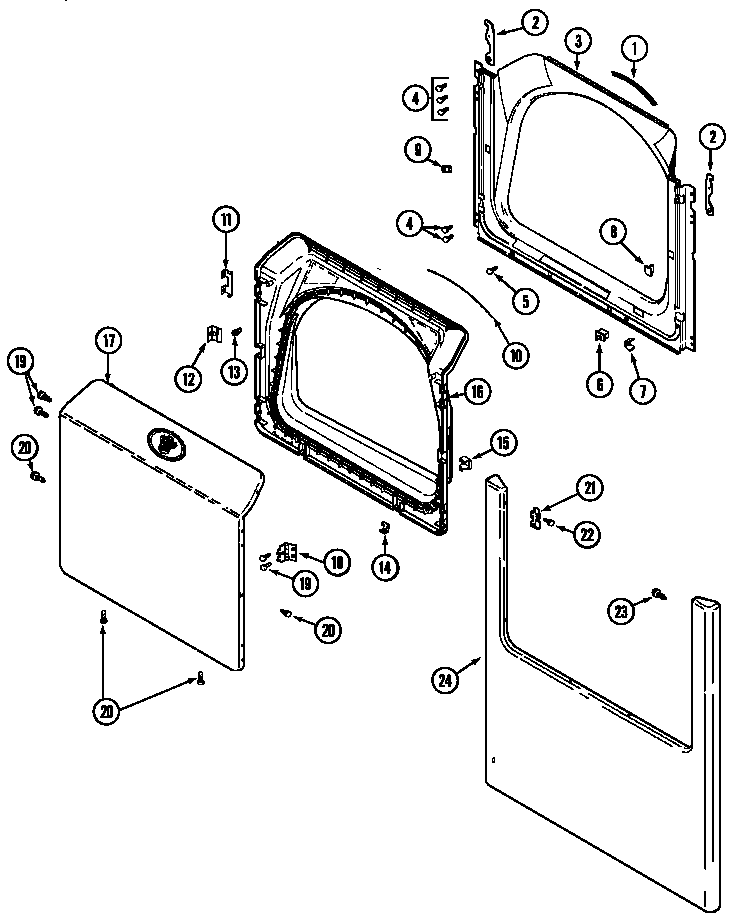

3. Remove the front panel: After the top is up, remove the screws holding the front panel, then lift and pull the panel forward.
4. Disconnect door switch wiring (if present): Support the panel so the harness is not strained.

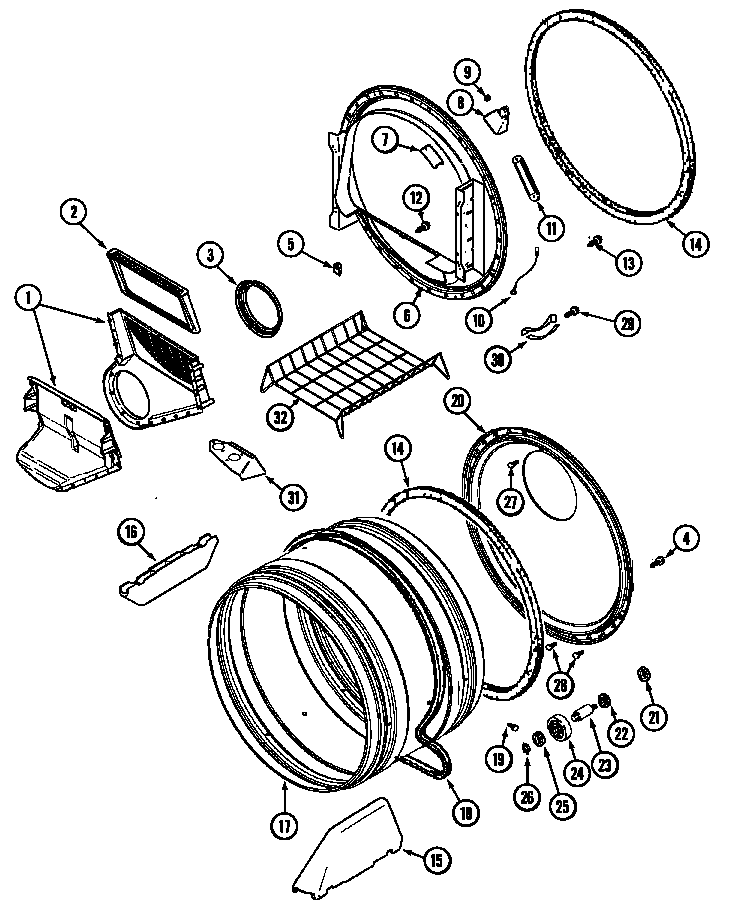

5. Access internal components: With the front off, you can reach the drum support, belt path, blower housing, and heat system.

What you can reach once it is open

Area you need	What you usually remove	Example part for MDG3000AWW
Drum and belt path	Front panel (and sometimes drum)	Belt, tumble WP33002535
Drum support/noise points	Front panel, drum (as needed)	Roller w/bea 12001541
Heat system (gas models)	Front panel, lower access area	Gas igniter 4391996

Why it matters

Opening the cabinet the right way prevents bent panels, broken console tabs, and pinched wiring. It also makes it easier to diagnose common symptoms like no heat (igniter, coils, sensor) or squealing/thumping (belt, rollers, bearing).

Last updated: February 2026

To reset a Maytag MDG3000AWW (3000 series) dryer, we recommend doing a simple power reset: unplug the dryer (or switch the breaker off) for 1 minute, then restore power and press Start with the door fully closed. This clears many control glitches and restores normal operation.

Quick reset steps (safe and effective)

• Turn the dryer OFF.
• Unplug the power cord (or turn the dryer breaker OFF).
• Wait 60 seconds.
• Restore power.
• Close the door firmly, then press Start.
• If the cycle was interrupted by opening the door, press Start again after closing it (this is normal operation).

If the dryer still will not respond

These checks fix the most common “won’t start” situations that look like a control problem.

• Confirm the door is fully shut; the dryer will not run with the door open.
• Try a different cycle (for example, Time Dry/Air Fluff) to rule out a cycle-selection issue.
• Check the house breaker; electric dryers can appear to have power even when one leg is tripped.

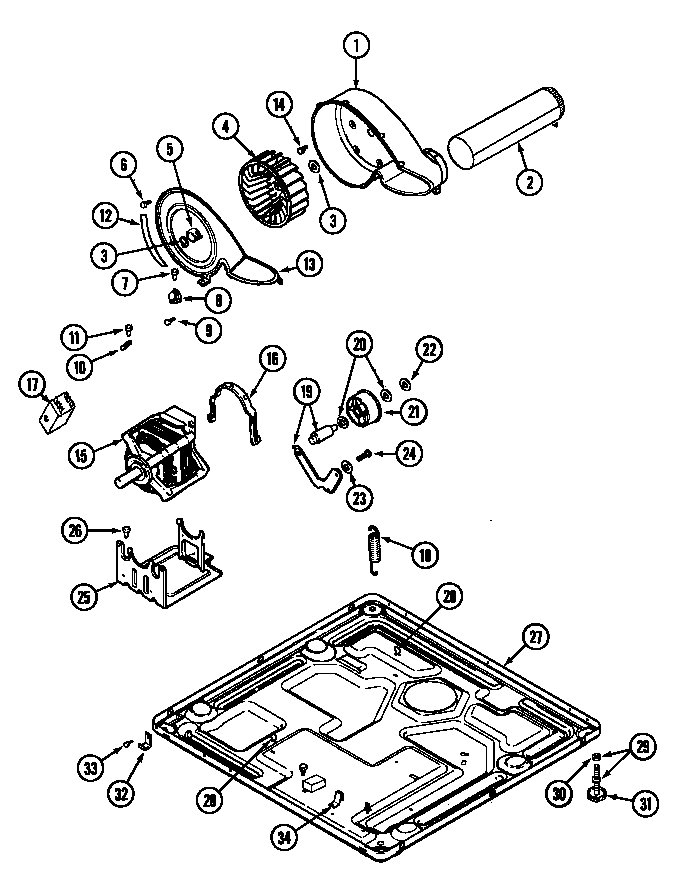

• If the drum light works but the motor will not run, inspect for a blown thermal fuse or wiring issue.
• If the dryer runs but has no heat (gas model), ignition components such as the gas igniter 4391996 and gas sensor WP338906 are common diagnostic starting points.

What “reset” does (and does not) do

Action	What it helps	What it will not fix
Power reset (unplug 1 minute)	Frozen display, unresponsive buttons, interrupted cycle	Failed motor, broken belt, open thermal fuse, failed gas ignition parts
Pressing Start after door opens	Resumes the cycle normally	Door switch failure or latch problems

Why it matters

A reset is the fastest way to clear a temporary control lockup without replacing parts. If the dryer still will not start after a reset, the next step is checking the door switch circuit, power supply, and key components like the motor and belt using the procedures in the MDG3000AWW owner’s manual.

Last updated: February 2026

The Maytag MDG3000AWW dryer has a 7.0 cu. ft. drum capacity. This is the interior drum volume used for load sizing, drying performance comparisons, and choosing the right cycle settings for bulky items.

How to use the 7.0 cu. ft. capacity day to day

• Dry one full washer load at a time; avoid packing items tightly
• For bulky loads (comforters, jackets), dry fewer items and use a higher heat setting if allowed
• If items come out damp, reduce load size and confirm strong airflow at the exhaust
• Use sensor cycles for mixed loads; use timed dry for small loads or touch-ups
• Clean the lint screen before every load to maintain airflow

Capacity vs. load size (quick guide)

What you are drying	Typical load approach in a 7.0 cu. ft. dryer	What to watch for
Everyday mixed laundry	One washer load	Items should tumble freely
Towels/jeans	Medium load	Longer dry time if overloaded
Bulky bedding	Smaller load	Poor tumbling causes damp spots

Why it matters

Correct load sizing prevents long dry times, overheating, and wrinkles. It also reduces wear on drive parts like the belt and drum support components.

Helpful reference

For cycle selection, operating tips, and where to find the model and serial tag in the door opening, use the MDG3000AWW manual.

Last updated: February 2026

The most common Maytag dryer problem is poor drying or no heat caused by restricted airflow (a clogged lint screen or vent). On the Maytag MDG3000AWW, airflow issues can also lead to overheating symptoms and heat-system shutdowns, so venting and lint removal are the first checks; see the MDG3000AWW owner's manual.

Most common issues we see (and what they look like)

• Airflow restriction: long dry times, hot cabinet, burning smell, weak exhaust outside
• No heat or intermittent heat (gas models): dryer tumbles but clothes stay damp
• Drum not turning: motor runs but no tumble, or the dryer stops shortly after starting
• Loud rumbling/squealing: worn drum support parts
• Timer or cycle behavior complaints: on sensor cycles, the timer can advance slowly early in the cycle and faster as clothes dry (normal operation)

Quick checks before replacing parts

1. Clean the lint screen completely (wash with mild soap if it has residue).
2. Inspect and clear the vent path: behind the dryer, wall duct, and exterior hood.
3. Run a timed heat cycle and confirm strong airflow at the outside vent.
4. Verify the dryer is level and the load is not overpacked.
5. If you suspect an electrical issue, use safe testing practices from how to use a multimeter to test electrical parts video.

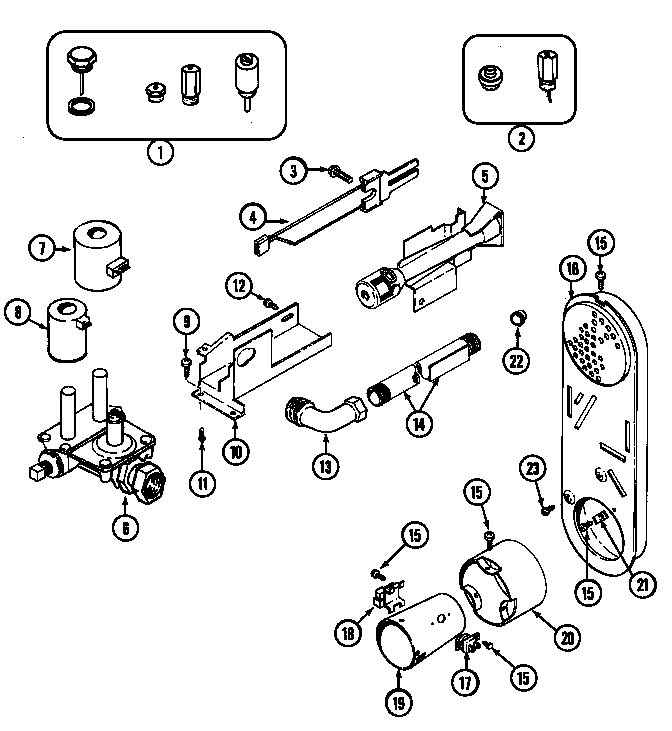

Parts that commonly fix “no heat” or “poor heat” on MDG3000AWW

Symptom	Common cause	Example part for this model
Igniter glows then shuts off, or heat is inconsistent	Weak gas valve coils	Second coil 279834
Burner does not stay lit	Flame sensing issue	Gas sensor WP338906
Temperature swings, overheating, or cycling oddly	Thermostat not regulating	Thermostat WP3387134

Why it matters

A dryer depends on steady airflow to carry moisture out. When lint or venting restricts airflow, drying performance drops and the heating system runs hotter than designed, which can trigger heat-related failures and repeated shutdowns.

Last updated: February 2026

A Maytag dryer typically lasts 10 to 15 years in normal home use. With consistent lint and vent cleaning and a few common wear-part replacements, many Maytag dryers, including model MDG3000AWW, run reliably for 15 years or more.

What affects dryer lifespan the most

• Airflow: a clogged lint screen or restricted vent overheats the dryer and shortens component life.
• Load size: chronic overloading strains the drum support system and drive belt.
• Heat system health (gas models): weak ignition or cycling issues increase run time and wear.
• Leveling and vibration: an unlevel dryer accelerates roller and bearing wear.
• Small objects in the drum: coins, buttons, and screws can damage seals and rollers.

Maintenance schedule we recommend

Task	How often	Why it matters
Clean lint screen	Every load	Keeps airflow strong and drying times short
Inspect and clean vent duct	Every 6 to 12 months	Prevents overheating and long cycles
Check leveling and feet	At install, then yearly	Reduces vibration and drum wear
Listen for new noises (thumps, squeals)	Monthly	Catches roller, belt, or bearing wear early

Parts that commonly extend the life of a dryer

If your MDG3000AWW still heats and runs but is noisy, slow, or inconsistent, these are common “keep it going” repairs:

• Belt, tumble WP33002535 (drum not turning, slipping, squealing)
• Roller w/bea 12001541 (thumping or rumbling)
• Dryer drum bearing kit 306508 (squeal or drag at the rear)
• Thermostat WP3387134 (overheating or poor temperature control)
• Second coil 279834 (gas burner lights then shuts off, or heat is intermittent)

Why it matters

Once a dryer starts taking longer to dry, it usually runs hotter and longer than it should. That extra heat and run time speeds up wear on the belt, drum support rollers, thermostat, and gas ignition components, so fixing airflow and small failures early helps the dryer reach its full 10 to 15 year lifespan.

For model-specific operating and care guidance, follow the maintenance and “before you call” tips in the MDG3000AWW owner's manual.
