Model # WA48H7400AW/A2-00 Official Samsung washer

Here are the diagrams and repair parts for Official Samsung WA48H7400AW-A2-00 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 148 parts  |
Washer Drain Pump Assembly (replaces Dc97-17349b) DC97-17366A
#4-7

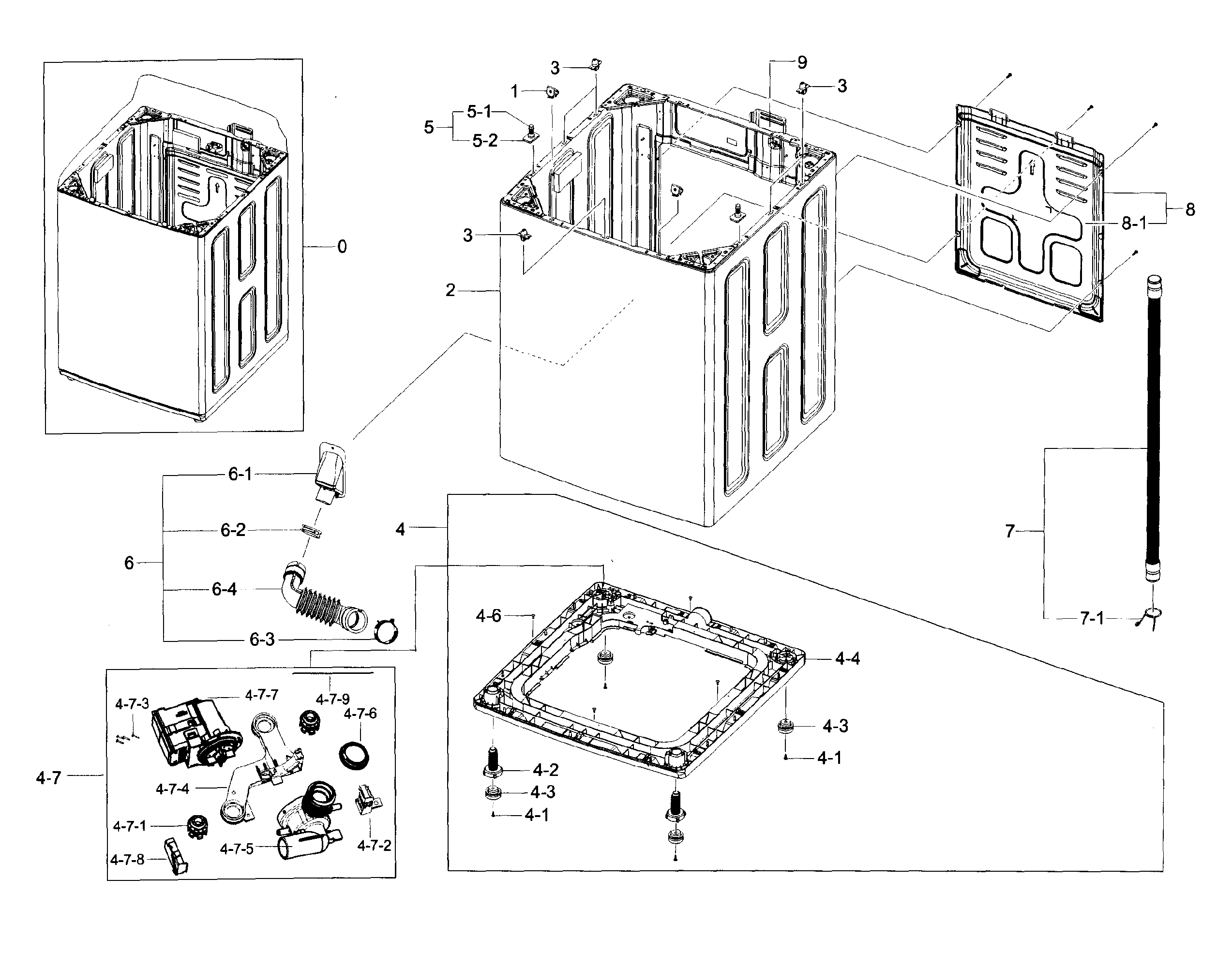

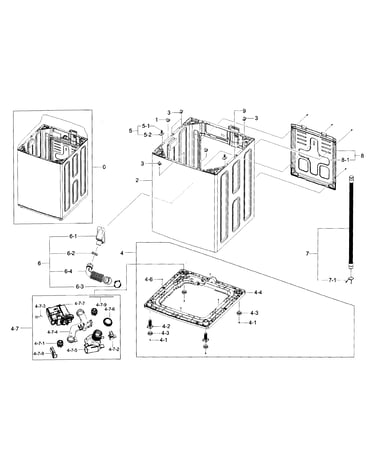

Frame assy diagram

Washer drain pump assembly (replaces dc97-17349b)

Part #DC97-17366A

Replaced by #DC97-19289F

?
Manufacturer substitution
This part replaces DC97-17366A. Substitute parts can look different from the original.
BEST SELLER
$65.76 |
9% OFF Was : $72.66
In Stock
Washer Door Lock Assembly DC34-00025A
#2

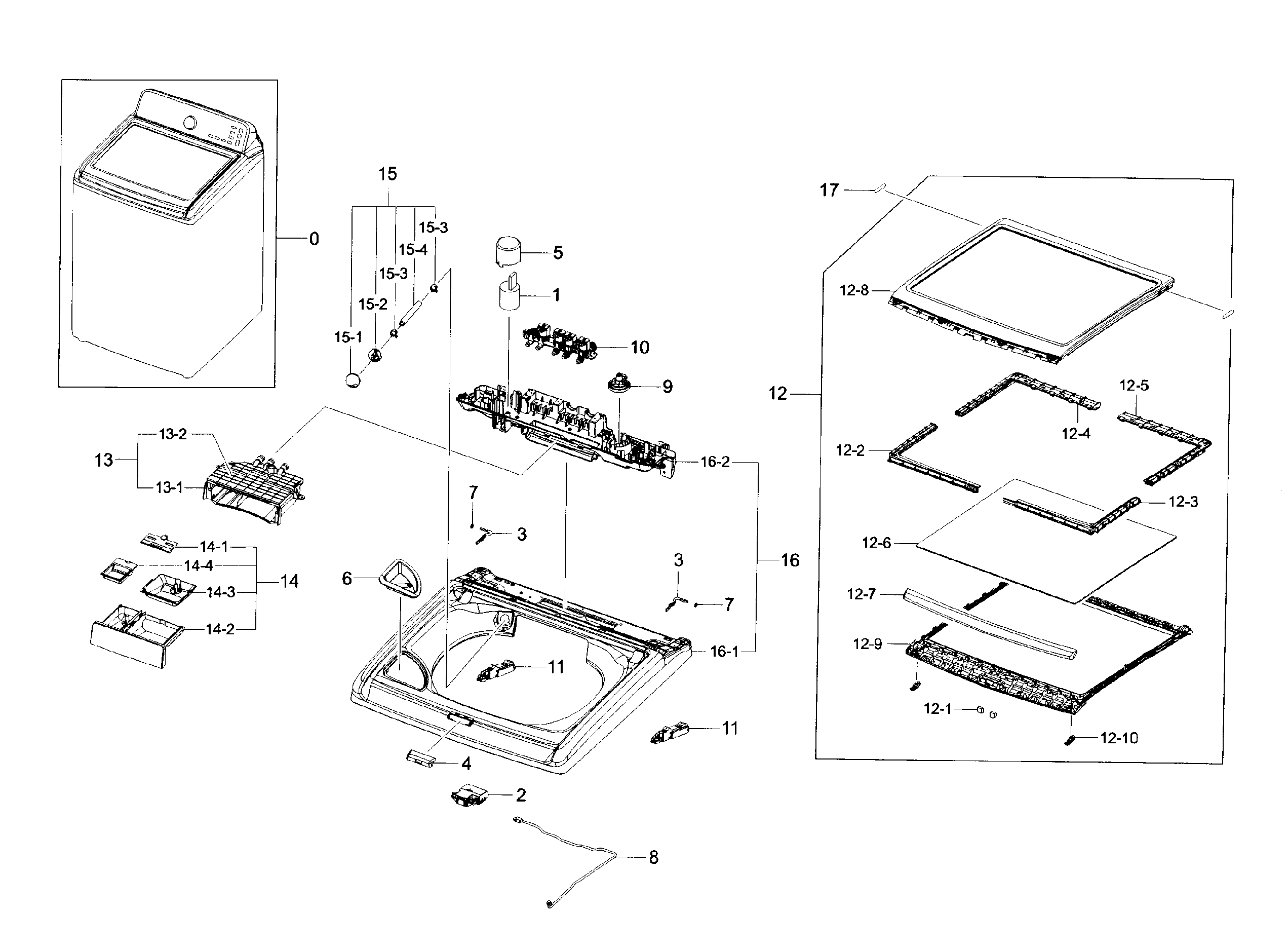

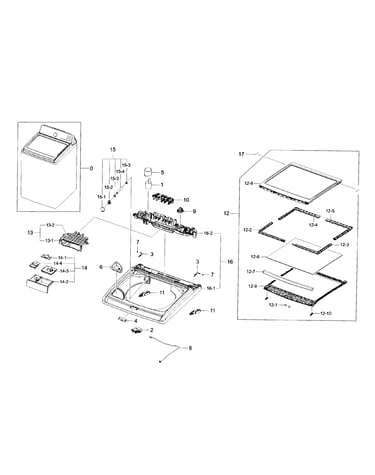

Cover top diagram

Washer door lock assembly

Part #DC34-00025A

Replaced by #DC34-00025E

?
Manufacturer substitution
This part replaces DC34-00025A. Substitute parts can look different from the original.
BEST SELLER
$127.32 |
9% OFF Phone Price : $139.32
In Stock
Washer Drain Pump DC31-00054D
#4-77

Frame assy diagram

Washer drain pump

Part #DC31-00054D

BEST SELLER
$60.18 |
9% OFF Phone Price : $66.18
In Stock
Washer Nut DC61-00201A
#5-1

Frame assy diagram

Washer nut

Part #DC61-00201A

BEST SELLER
This item is not returnable
$3.64 |
22% OFF Phone Price : $4.64
In Stock
Washer Clutch DC31-00090B
#1-3

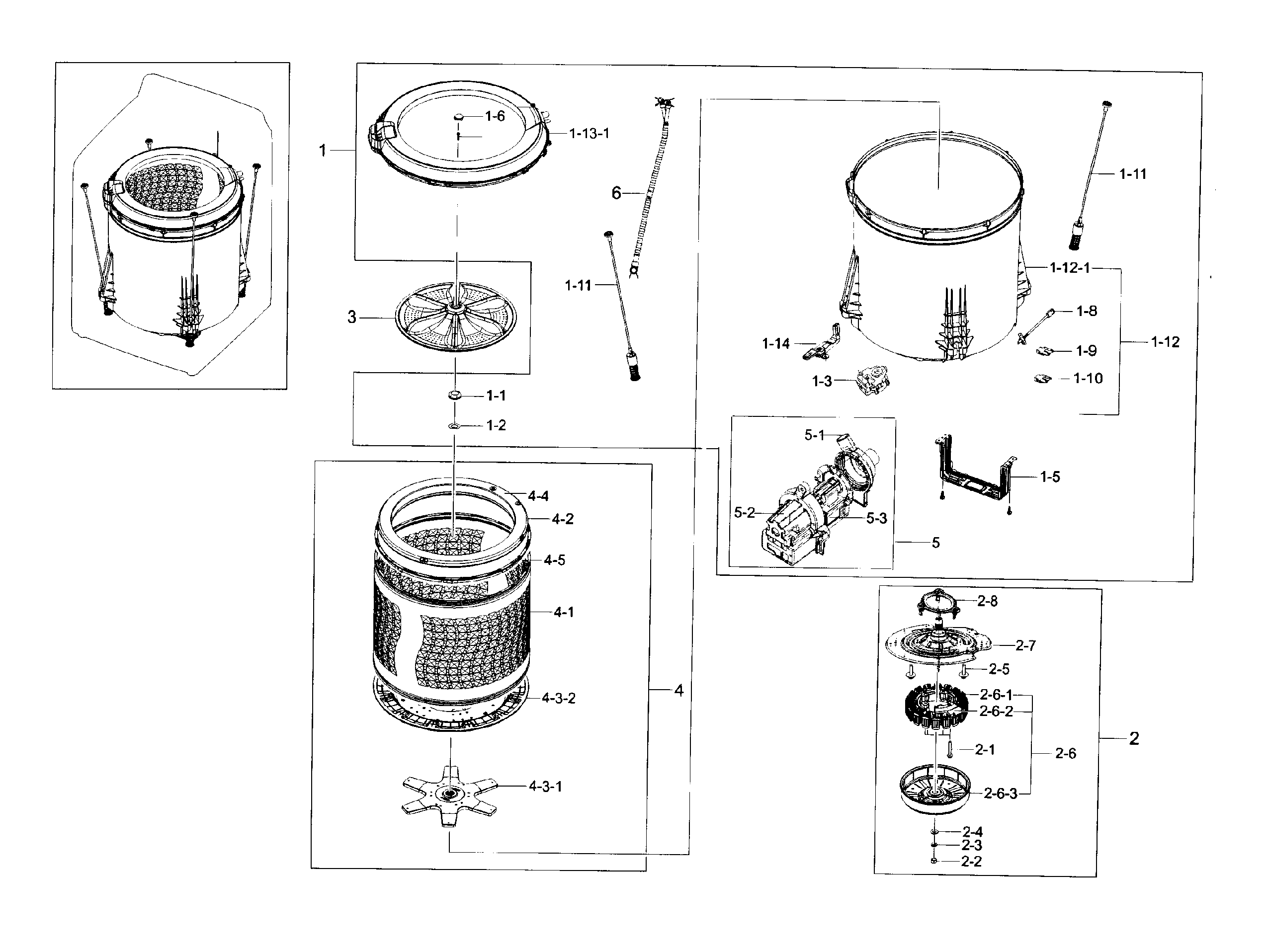

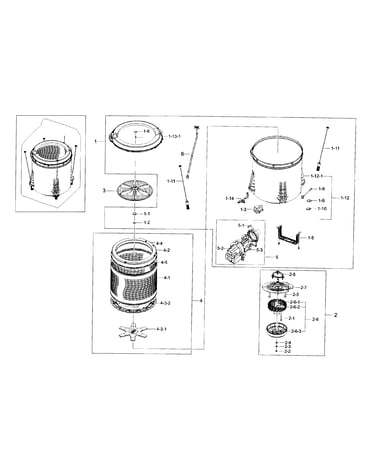

Tub parts diagram

Washer clutch

Part #DC31-00090B

BEST SELLER
$78.66 |
7% OFF Phone Price : $84.66
In Stock
Washer Vibration Sensor DC93-00278B
Washer vibration sensor

Part #DC93-00278B

BEST SELLER
$86.95 |
6% OFF Phone Price : $92.95
In Stock
Washer Thermistor (replaces Dc90-10128h) DC90-10128N
#1-8

Tub parts diagram

Washer thermistor (replaces dc90-10128h)

Part #DC90-10128N

BEST SELLER
$43.26 |
12% OFF Phone Price : $49.26
In Stock
Washer Damper DC97-05280S
#1-11

Tub parts diagram

Washer damper

Part #DC97-05280S

BEST SELLER
$33.07 |
15% OFF Phone Price : $39.07
In Stock
Washer Drain Pump DC97-16778A
#5

Tub parts diagram

Washer drain pump

Part #DC97-16778A

BEST SELLER
$130.88 |
8% OFF Phone Price : $142.88
In Stock
Washer Water-level Pressure Switch DC96-01703H
#9

Cover top diagram

Washer water-level pressure switch

Part #DC96-01703H

$66.71 |
8% OFF Phone Price : $72.71
In Stock
