How much does it cost to replace a riding lawn mower engine?
For a Craftsman riding tractor like model 917289270, a complete engine replacement typically runs $260 to $1,800 installed, depending on the engine, labor rates, and whether related items (battery, belts, wiring) also need service. Use the 917289270 owner's manual to confirm your engine specs and service guidance.
What drives the total cost
- Engine type and horsepower (OEM-equivalent vs. aftermarket)
- Labor time (riding tractors commonly take several hours)
- Extra parts found during teardown (belts, pulleys, wiring, fuel filter)
- Shop supplies (oil, filter, fuel line clamps)
- Pickup and delivery (if you do not transport the tractor)
Quick cost breakdown (typical ranges)
| Cost item | Typical range | Notes |
|---|---|---|
| Engine (part only) | $200 to $1,400 | Biggest variable; depends on exact engine spec |
| Labor | $60 to $500 | Based on local hourly rate and time |
| Fluids and tune-up items | $20 to $120 | Oil, spark plug, fuel filter, air filter |
| “While you’re in there” parts | $0 to $200+ | Belts, idlers, battery cables, etc. |
Before you replace the engine, rule out common no-start causes
Many “bad engine” symptoms are actually starting or safety-circuit issues. Check these first:
- Battery charge and cable connections (clean and tight)
- Starter solenoid operation (a common click-no-crank cause); see lawn tractor starter solenoid 582042802
- Safety interlock switches (seat, brake, PTO)
- Fuel delivery (stale fuel, clogged fuel filter)
- Spark plug condition and correct gap (listed in the manual’s product specifications)
Why it matters
An engine swap is one of the highest-cost repairs on a riding mower. A short diagnostic check can prevent replacing a good engine when the real issue is a solenoid, wiring, or a safety interlock problem.
Last updated: February 2026
Is it worth replacing a lawn mower engine?
Replacing the engine on your Craftsman 917289270 front-engine lawn tractor is worth it when the tractor’s deck, steering, and transmission are in solid shape and you want more years of reliable mowing. If the tractor has widespread wear or multiple major problems, putting that money toward a replacement is the better value.
Quick decision checklist
- The mower deck is structurally sound (no major rust-through or cracks)
- The tractor still cuts evenly after basic maintenance (blade, deck leveling, cleaning)
- You can source the correct engine and any required pulleys, wiring, or mounting hardware
- The total engine-swap cost stays well below the cost of a comparable new riding mower
- You are comfortable with DIY mechanical work or plan to use a service shop
What to inspect before you buy an engine
Use the 917289270 owner’s manual to guide safe inspection and maintenance habits (for example, never adjust or repair with the engine running, and keep debris buildup cleared).
Focus on these high-impact areas:
- Deck and mandrels: Excess vibration, noise, or poor discharge can point to mandrel or pulley issues.
- Blades and belt drive: Worn blades or a worn deck belt can mimic “low power” symptoms.
- Cooling and airflow: Dirty cooling fins or blocked screens can overheat and damage an engine.
- Fuel system basics: Seasonal fuel filter replacement and tune-up items can restore performance.
Common “engine problem” symptoms that are actually deck-related
| Symptom | Often caused by | Typical fix |
|---|---|---|
| Poor discharge or clumping | Wet grass, deck buildup, wrong blade | Clean deck, mow dry grass, install correct blade |
| Vibration while mowing | Bent blade, loose hardware, mandrel wear | Replace blade, tighten fasteners, inspect mandrels |
| Blades stop under load | Worn belt, frozen idler/mandrel | Replace belt, service pulleys/mandrels |
If you’re chasing cut-quality problems, replacing a worn blade is often the first win; the lawn tractor 42-in deck high-lift blade 532138971 is one of the model-matched blade options listed for this tractor.
Why it matters
An engine swap can extend the life of a good Craftsman tractor, but it only pays off when the rest of the machine is safe and mechanically sound. Fixing deck, blade, and belt issues first prevents spending engine money on a tractor that still will not mow well.
Last updated: February 2026
What Craftsman lawnmower do I have?
For a Craftsman riding mower like model 917289270, the fastest way to identify what you have is to match the model number and product identification label on the tractor to the model listed in your 917289270 owner's manual. On this tractor family, the manual identifies the unit as Model No. 917.28927 (same model series as 917289270).
Where to find the model number on the tractor
Check these common ID-label locations on Craftsman front-engine lawn tractors:
- Under the seat (lift the seat and look on the underside area)
- On the frame near the seat mounting area
- Under the hood near the engine compartment (less common)
- On the rear frame near the hitch/drawbar area
How to confirm you have the right model
Use this quick checklist to make sure you are reading the correct number:
- Write down the full model number exactly as shown (all digits matter)
- Look for a second line that may show a “Model No.” with a dot format (example: 917.28927)
- Compare your number to the model shown on the manual cover
- Use the model number (not the engine brand) when selecting belts, blades, and deck parts
| What you see on the label | What it means | What to do next |
|---|---|---|
| 917289270 | Full Craftsman model number | Use this to match parts diagrams and parts |
| 917.28927 | Manual series format | Confirms you are in the correct manual family |
| Engine model/type | Engine identification only | Use for engine-specific tune-up parts |
Why it matters
Parts like a deck belt, blade, mandrel, or starter solenoid must match the tractor model and deck configuration. Using the correct model number prevents ordering the wrong 42-inch deck blade or drive belt.
If you are troubleshooting a no-start condition while identifying the tractor, the riding lawn mower engine clicks but doesnt turn over video is a good next step.
Last updated: February 2026
What are the parts of a lawn mower engine?
A Craftsman front-engine lawn tractor like model 917289270 uses the same core engine systems as most riding mowers: fuel delivery, air intake, ignition, starting, lubrication, and exhaust. Your exact layout and service points are shown in the 917289270 owner's manual.
Main engine systems (what they do)
- Fuel system: fuel tank, fuel lines, fuel filter (if equipped), carburetor
- Air intake: air filter and intake housing to keep dirt out of the engine
- Ignition system: ignition coil and spark plug to create spark
- Starting system: starter motor/solenoid and battery (electric start tractors)
- Lubrication: crankcase, oil fill, oil drain, and internal oiling components
- Cooling and exhaust: engine shrouds/fins, muffler, and heat shielding
Common related tractor controls (not engine parts, but affect engine operation)
Your 917289270 includes controls that directly interact with engine operation:
- Ignition switch (start/stop)
- Throttle control (engine speed)
- Brake pedal and parking brake (often required to start)
- Attachment clutch lever (engages mower deck drive)
Quick reference: engine parts vs. deck drive parts
| Area | Examples | What you notice when there’s a problem |
|---|---|---|
| Engine (power) | carburetor, spark plug, ignition coil, air filter | hard starting, stalling, rough running |
| Deck drive (cutting) | belt, idler pulleys, mandrels, blades | blades will not spin, poor cut quality |
Why it matters
Knowing which system you are dealing with helps you troubleshoot faster. For example, if the engine runs but the blades do not turn, the issue is usually in the deck drive system (belt, idler, mandrel), not the engine itself.
Safety note before inspecting anything
Before you inspect or service around the engine or deck, we follow the same basic steps used in the manual: set the parking brake, disengage the attachment clutch, turn the key to STOP, let all moving parts stop, and disconnect the spark plug wire.
Last updated: February 2026
What engine does Craftsman riding mower use?

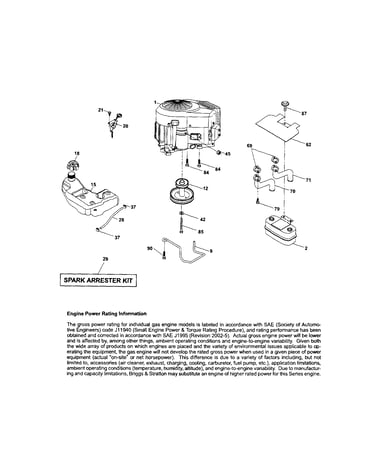

For Craftsman model 917289270, the operator’s manual identifies it as a 24.0 HP lawn tractor with a low-emission engine (horsepower rated by the engine manufacturer). For the exact engine make and model (such as Briggs & Stratton or Kohler), use the engine ID information shown in the 917289270 owner's manual.
How to identify the exact engine on your 917289270
We recommend confirming the engine brand and model from the engine’s ID label, then matching that to parts and service information.
- Lift the hood and locate the engine ID sticker or metal tag (often on the blower housing, valve cover, or near the starter)
- Write down the engine model, type, and code (or spec number)
- Compare those numbers to the engine section in the 917289270 owner's manual
- Use the engine ID to buy the correct tune-up parts (spark plug, air filter, oil filter)
- If you are ordering deck or drive parts, verify your deck size and belt routing first
Common engine ID fields (what they mean)
| Label field | What it tells you | Why you need it |
|---|---|---|
| Model | Engine family | Identifies the correct parts list |
| Type / Spec | Exact configuration | Ensures correct carburetor, ignition, and governor parts |
| Code / Serial | Build date and run | Helps match service bulletins and revisions |
Why it matters
Craftsman tractors can share the same tractor model number while using different engine variants over production runs. Using the engine ID prevents ordering the wrong ignition parts or fuel system components, and it also helps when diagnosing no-start or hard-start issues.
Related parts you might replace during engine or deck service

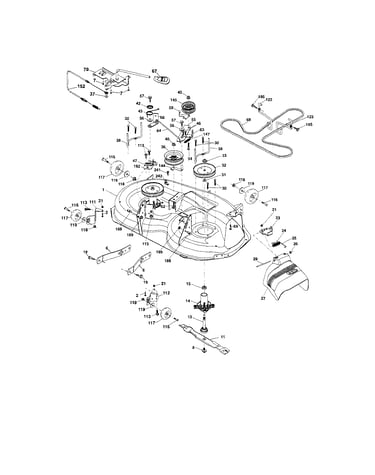

If you are also servicing the mower deck on this 42-inch tractor, these model-matched parts are commonly replaced together:
- Husqvarna lawn tractor belt, 1/2 x 101-1/6-in 592855001 (blade drive or ground drive belt depending on routing)
- Lawn tractor drive belt 532125907 (ground drive belt)
- Lawn tractor mandrel housing 587819701 (spindle/mandrel assembly support)
Last updated: February 2026
What year is my Craftsman mower serial number lookup?
On Craftsman riding mowers like model 917289270, the serial number does not reliably encode the build year in a simple “MMDDYY” pattern. The most accurate way to identify the year is to use the model and product identification label information and cross-reference it with the identification guidance in the 917289270 owner's manual.
Where to find the model and serial number
On most Craftsman front-engine lawn tractors, the product identification label is typically found:
- Under the seat pan or on the seat deck
- On the rear fender area near the seat
- On the frame rail (left or right side)
- Near the engine compartment on the chassis
Write down both the model number (917289270) and the full serial number exactly as shown.
How to determine the year (what works best)
Use this order because it avoids guessing based on number patterns:
- Confirm the model number matches 917289270 on the ID label.
- Record the serial number and any additional codes on the label.
- Check the identification and specifications sections in the 917289270 owner's manual.
- If you need parts-based confirmation, compare your tractor’s deck and drive configuration to common wear items such as the lawn tractor drive belt 532125907 and blade/deck parts.
Quick check: why “first 6 digits = date” often fails
Some online videos describe a 6-digit date code format, but Craftsman tractors were produced across multiple suppliers and label formats. That means the same-looking serial number can follow different coding rules depending on the production run.
Parts-based clues that can help narrow it down
When the year is unclear, matching by configuration is often faster than decoding:
| What you compare | What it helps confirm |
|---|---|
| Deck size (often 42-inch on this series) | Blade and belt family |
| Blade style (mulching vs high-lift vs 3-in-1) | Correct blade type |
| Drive belt routing and length | Correct ground drive belt |
Common examples for this model family include the lawn tractor 42-in deck high-lift blade 532138971 and the 3-in-1 blade, 42-in 532422719.
Why it matters
The correct year and configuration prevent ordering the wrong Craftsman parts (belts, blades, mandrel components) and help ensure safe fit and proper deck performance.
Last updated: February 2026
