Craftsman 917272761 lawn tractor Parts

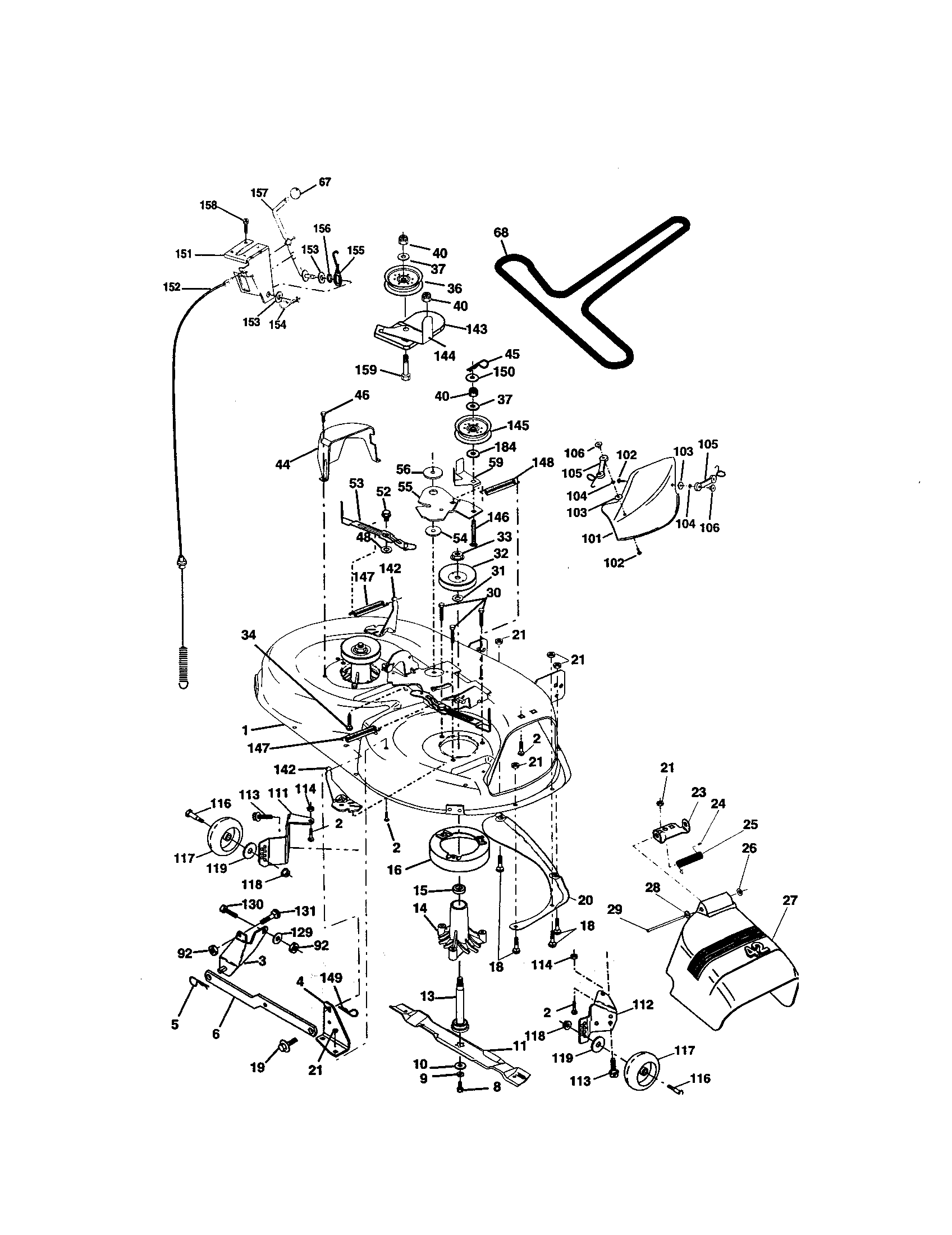

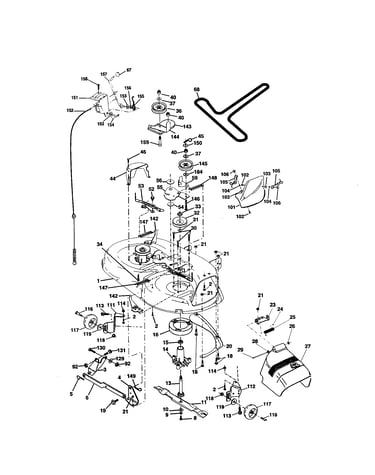

The most common issues we see on the Craftsman 917272761 lawn tractor involve the mower deck cutting system (blades, idlers, mandrels), drive performance (belt wear or slipping), and starting or no-start problems (key switch and basic fuel delivery). Use the owner's manual for model-specific adjustment points and maintenance intervals.

• Uneven cut or poor bagging: dull/bent blades, deck not level, worn mandrel bearings
• Loud deck noise or vibration: damaged blade, failing mandrel, loose hardware
• Blades will not engage or slip: worn idler pulley, weak idler spring, belt routing/tension issue

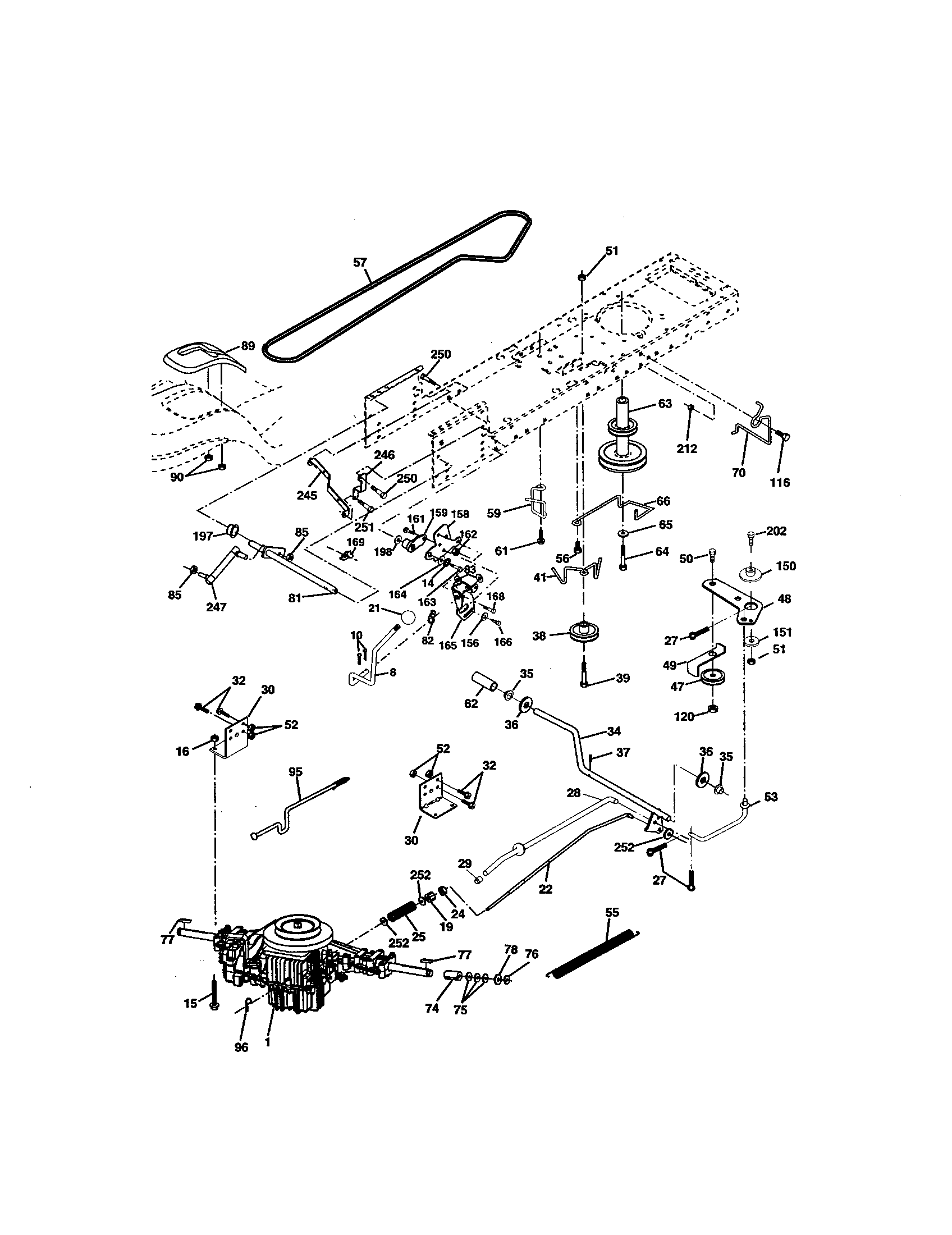

• Tractor will not move or loses drive: worn ground drive belt, pulley wear, linkage adjustment
• No-start or intermittent start: worn key, loose battery cables, stale fuel, safety switch issues

If your symptoms match, these are frequently replaced wear items for this model:

• Park on level ground; set parking brake; remove the key and disconnect the spark plug wire.
• Inspect blades for bends, cracks, and heavy nicks; replace as a set if damaged.
• Spin each mandrel by hand (belt off if possible); roughness or play indicates wear.
• Check belt routing and pulley alignment; a misrouted belt can mimic a bad idler.
• Confirm deck level and tire pressure; both affect cut quality.

Deck and belt issues can quickly damage pulleys, mandrels, and the mower housing; catching wear early keeps the Craftsman 917272761 cutting cleanly and prevents bigger repairs.

Last updated: March 2026

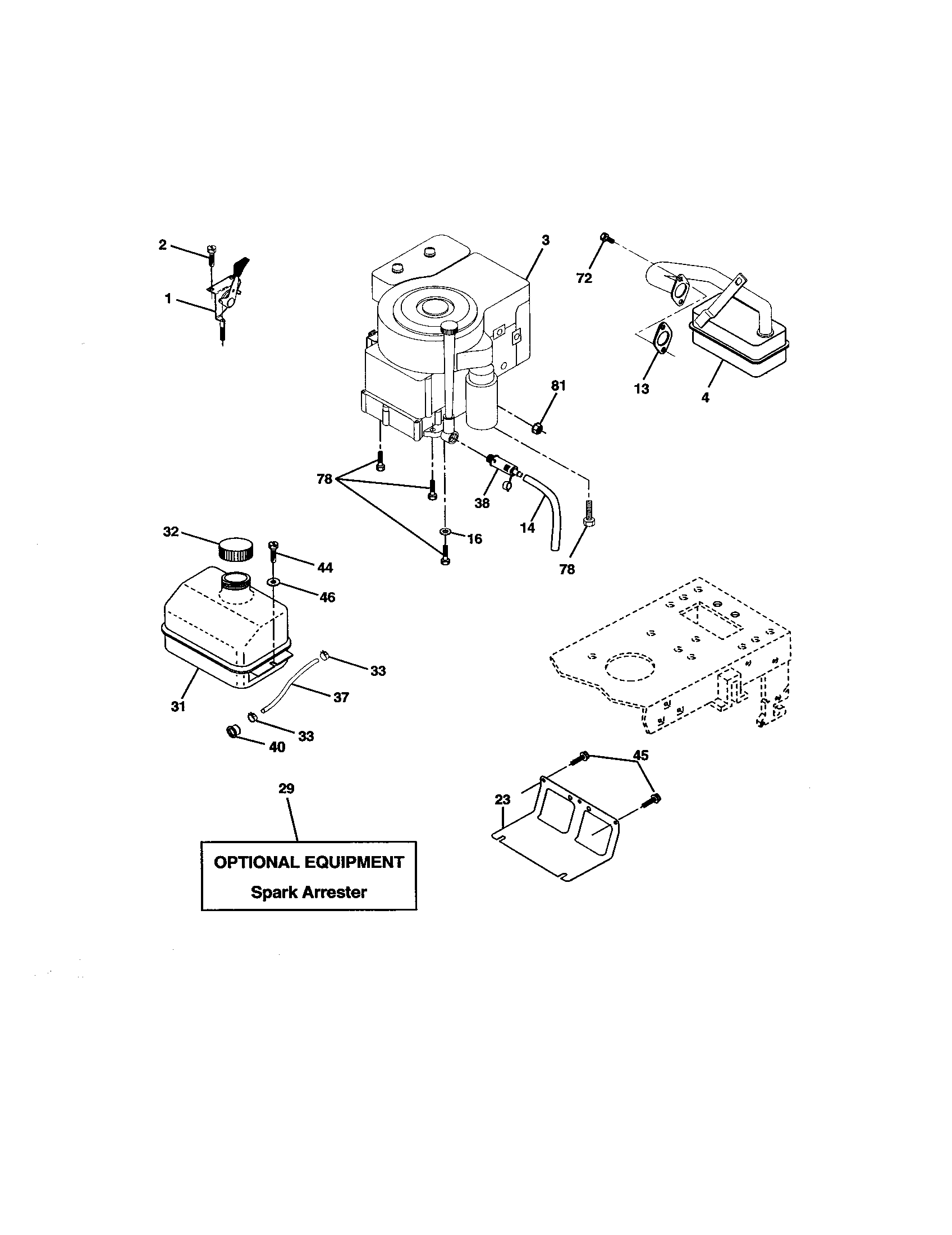

On the Craftsman lawn tractor model 917272761, the engine is made up of core internal components (like the cylinder, piston, crankshaft, and valves) plus supporting systems (fuel, ignition, lubrication, cooling, and exhaust) that let it start, run smoothly, and deliver power to the drivetrain and mower deck. For model-specific maintenance and safety steps, use the 917272761 owner’s manual.

• Cylinder block and cylinder head: form the combustion chamber and support valves
• Piston, piston rings, and connecting rod: convert combustion pressure into motion
• Crankshaft and bearings: turn piston motion into rotating power
• Camshaft, valves, and valve train: control air-fuel intake and exhaust flow
• Lubrication system (oil, oil passages, oil pump on many engines): reduces wear and heat
• Fuel system (tank, fuel line, carburetor or injection): delivers fuel to the engine
• Ignition system (spark plug, ignition coil, wiring): creates spark at the right time
• Air intake and filtration (air filter, intake tube): keeps dirt out of the engine
• Exhaust system (muffler): routes exhaust and reduces noise

Knowing the engine “building blocks” helps you troubleshoot faster. For example, power loss under load can point to fuel/air delivery, ignition, or mechanical compression issues, while unusual noise often points to bearings, valves, or lubrication problems.

Your 917272761 owner’s manual lists key operating and maintenance specs (such as oil type/capacity and spark plug details). Following those specs is the best way to protect internal engine parts from premature wear.

Last updated: January 2026

The Craftsman lawn tractor model 917272761 uses a gas-powered, low-emission internal combustion engine and is rated at 18.0 HP in the owner’s documentation. For the exact engine manufacturer and engine model number, we use the identification labels on the engine itself (the tractor model number alone does not uniquely identify the engine). See the 917272761 owner’s manual for the model-specific specifications and maintenance basics.

We recommend checking the engine shroud or valve cover for the engine ID label. Common label locations are on top of the blower housing or near the starter.

• Look for an engine model / type / code (often three fields)
• Record the numbers exactly as shown (including dashes)
• Use the engine ID to match the correct air filter, spark plug, carburetor parts, and tune-up items
• If the label is dirty, wipe it clean before writing the numbers down
• If the label is missing, the engine ID is sometimes stamped into the metal near the muffler or valve cover

The 917272761 owner’s manual lists these key specs for this tractor:

The engine make and model determine the correct maintenance parts and settings (especially the air filter style, spark plug cross-reference, and carburetor configuration). Using the tractor model number 917272761 gets you the right chassis and deck parts; using the engine ID gets you the right engine parts.
