Model # MFW9600SQ1 Official Maytag washer

Here are the diagrams and repair parts for Official Maytag MFW9600SQ1 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

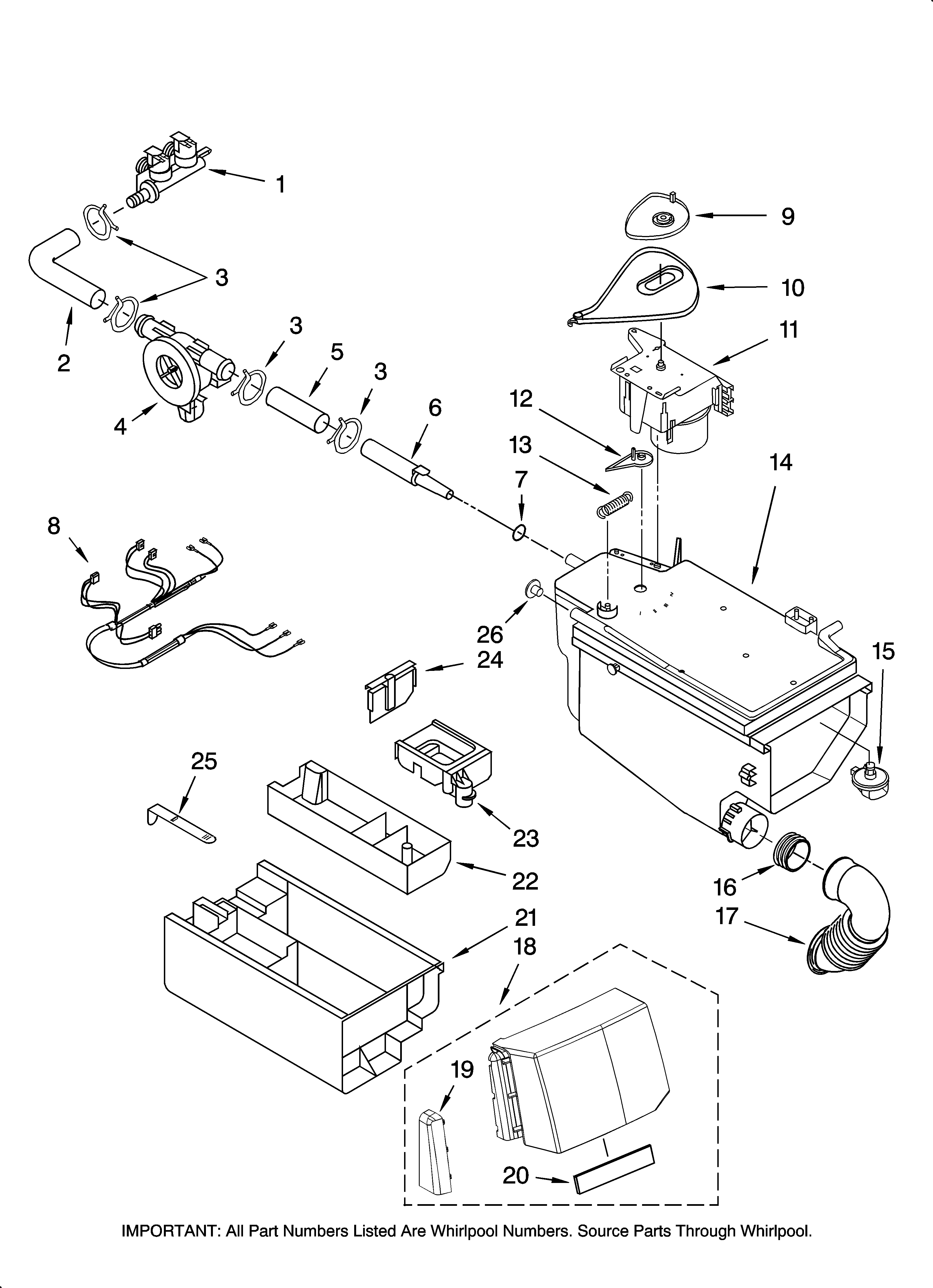

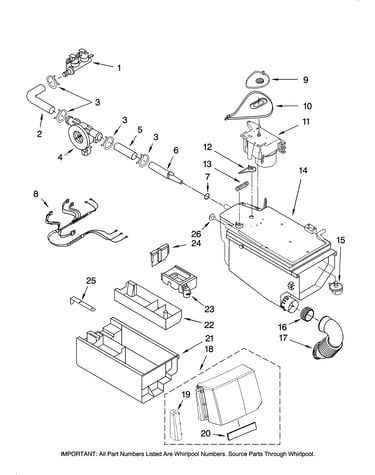

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 153 parts  |

Pump 8182821
#7

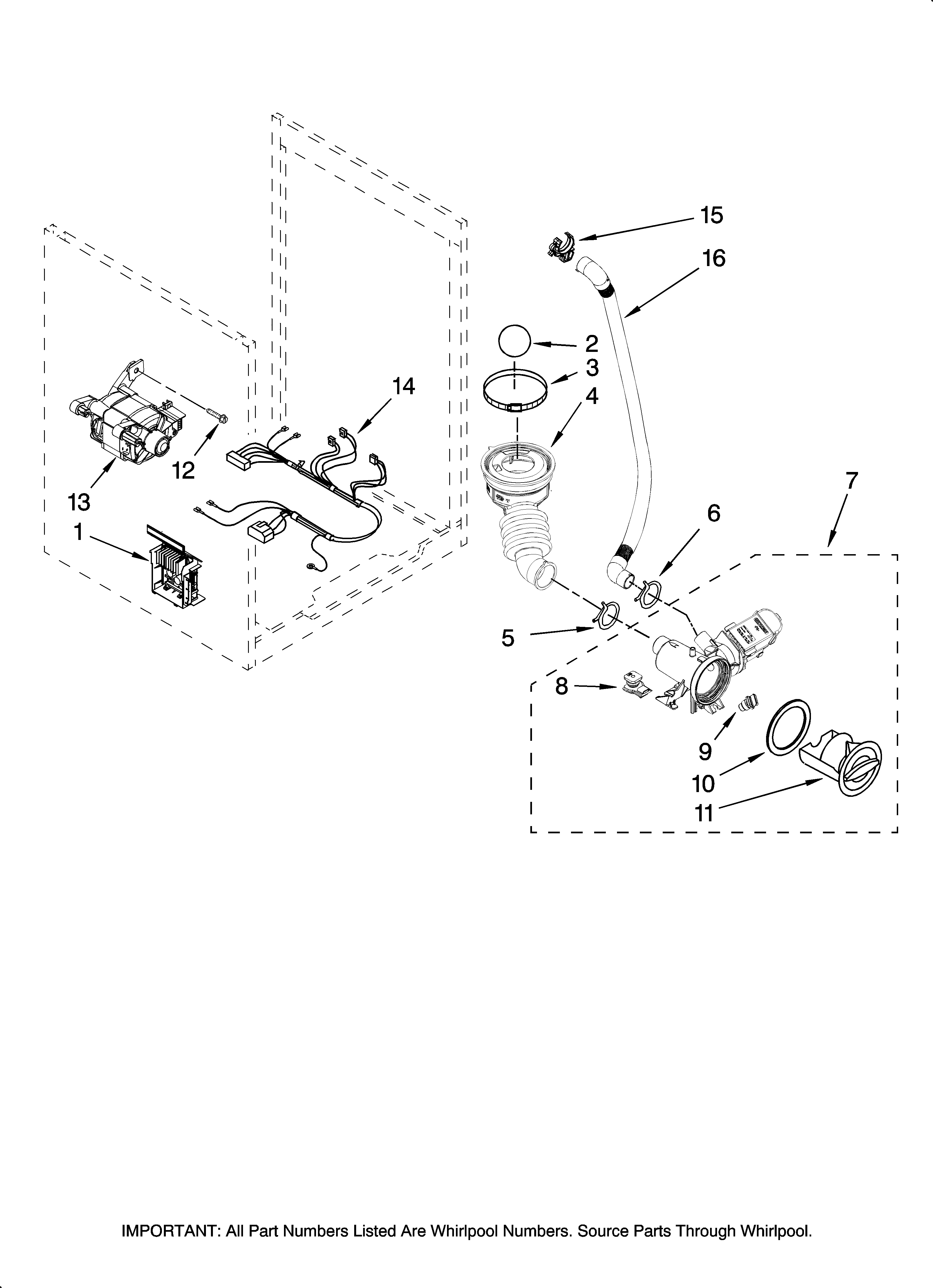

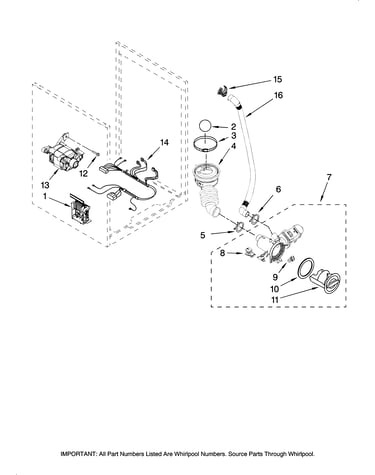

Pump and motor parts, optional parts (not included) diagram

Pump

Part #8182821

Replaced by #280187

?
Manufacturer substitution
This part replaces 8182821. Substitute parts can look different from the original.
BEST SELLER
$143.49
7% OFF Phone Price : $153.49
In Stock
Washer Door Boot 8182119
#2

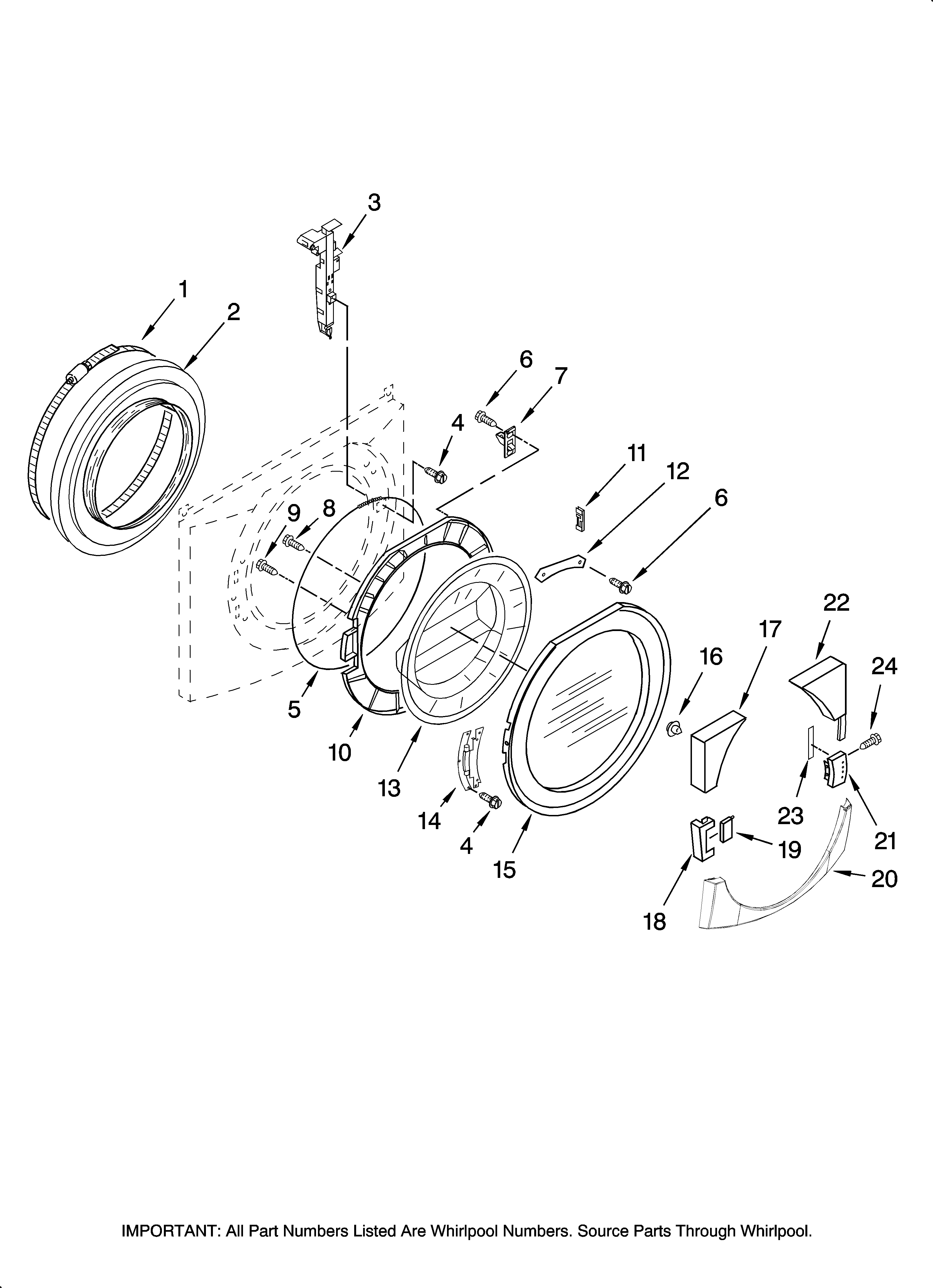

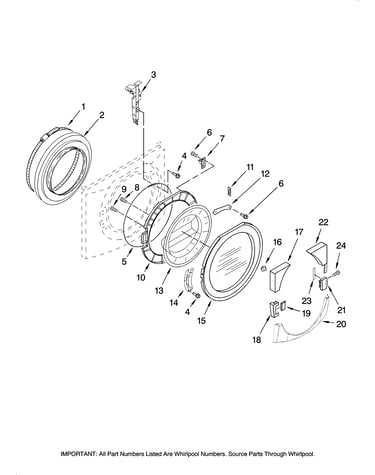

Door and latch parts diagram

Washer door boot

Part #8182119

Replaced by #WP8182119

?
Manufacturer substitution
This part replaces 8182119. Substitute parts can look different from the original.
BEST SELLER
$158.20
6% OFF Phone Price : $168.20
In Stock
Appliance Touch-up Paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, W10813125, Y058028) 72017
#NI

Pump and motor parts, optional parts (not included) diagram

Appliance touch-up paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, w10813125, y058028)

Part #72017

BEST SELLER
$8.29
11% OFF Phone Price : $9.29
In Stock
Belt 8183269
#3

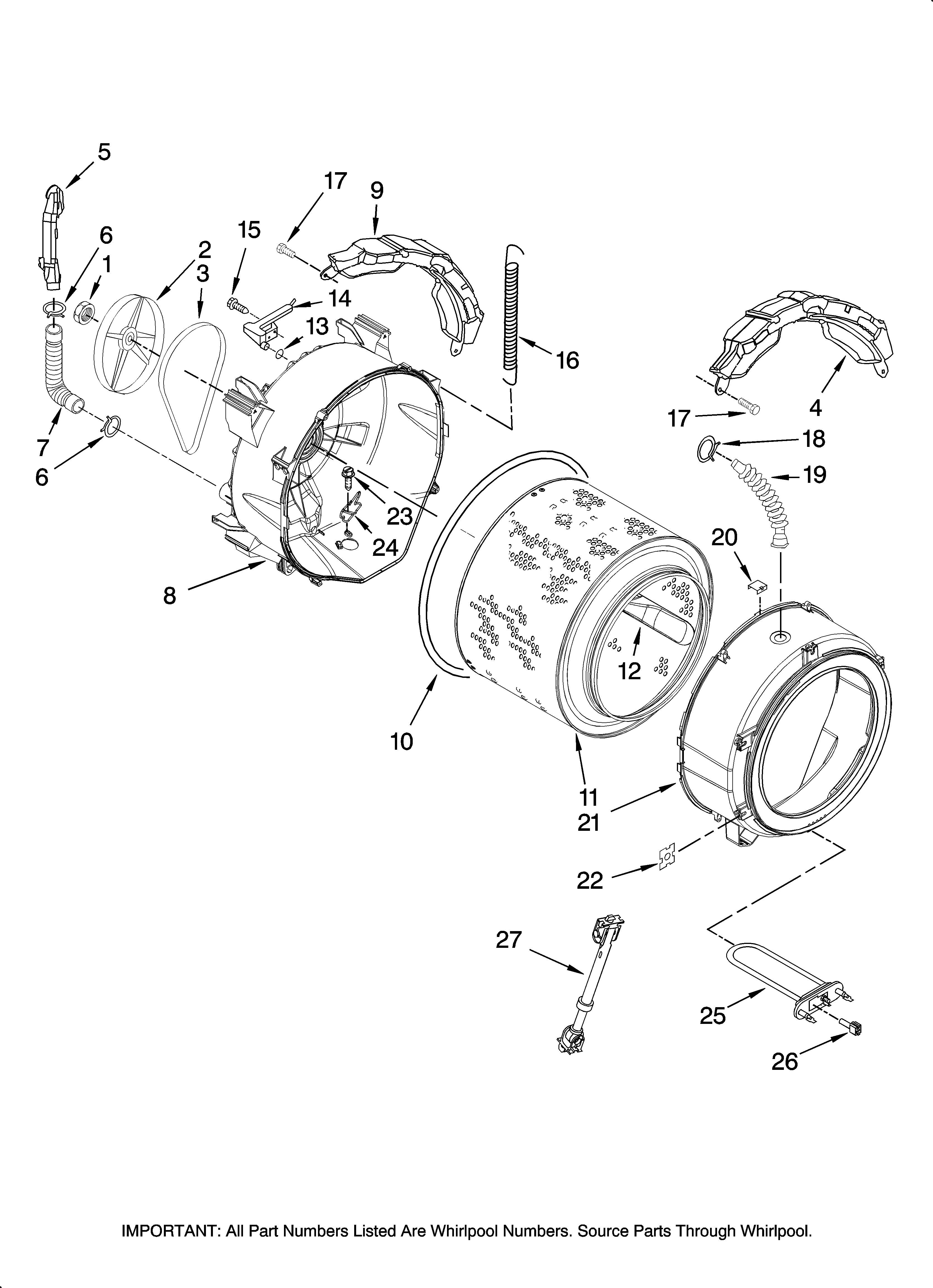

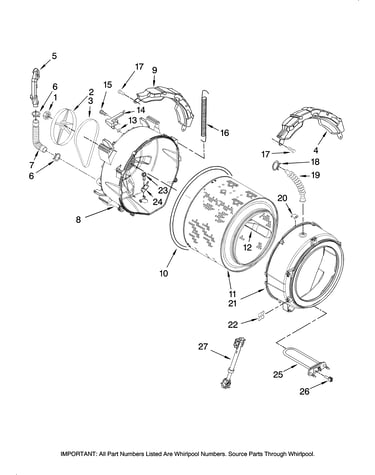

Tub and basket parts diagram

Belt

Part #8183269

Replaced by #WPW10388414

?
Manufacturer substitution
This part replaces 8183269. Substitute parts can look different from the original.
BEST SELLER
$36.08
39% OFF MSRP : $59.00
In Stock
Washer Door Boot Spring Clamp 8182211
#5

Door and latch parts diagram

Washer door boot spring clamp

Part #8182211

Replaced by #W10902779

?
Manufacturer substitution
This part replaces 8182211. Substitute parts can look different from the original.
BEST SELLER
$23.34
22% OFF MSRP : $30.00
In Stock
Washer Tub-to-pump Hose 8181732
#4

Pump and motor parts, optional parts (not included) diagram

Washer tub-to-pump hose

Part #8181732

Replaced by #WPW10467168

?
Manufacturer substitution
This part replaces 8181732. Substitute parts can look different from the original.
BEST SELLER
$27.22
18% OFF MSRP : $33.00
In Stock
Screw 8181756
#12

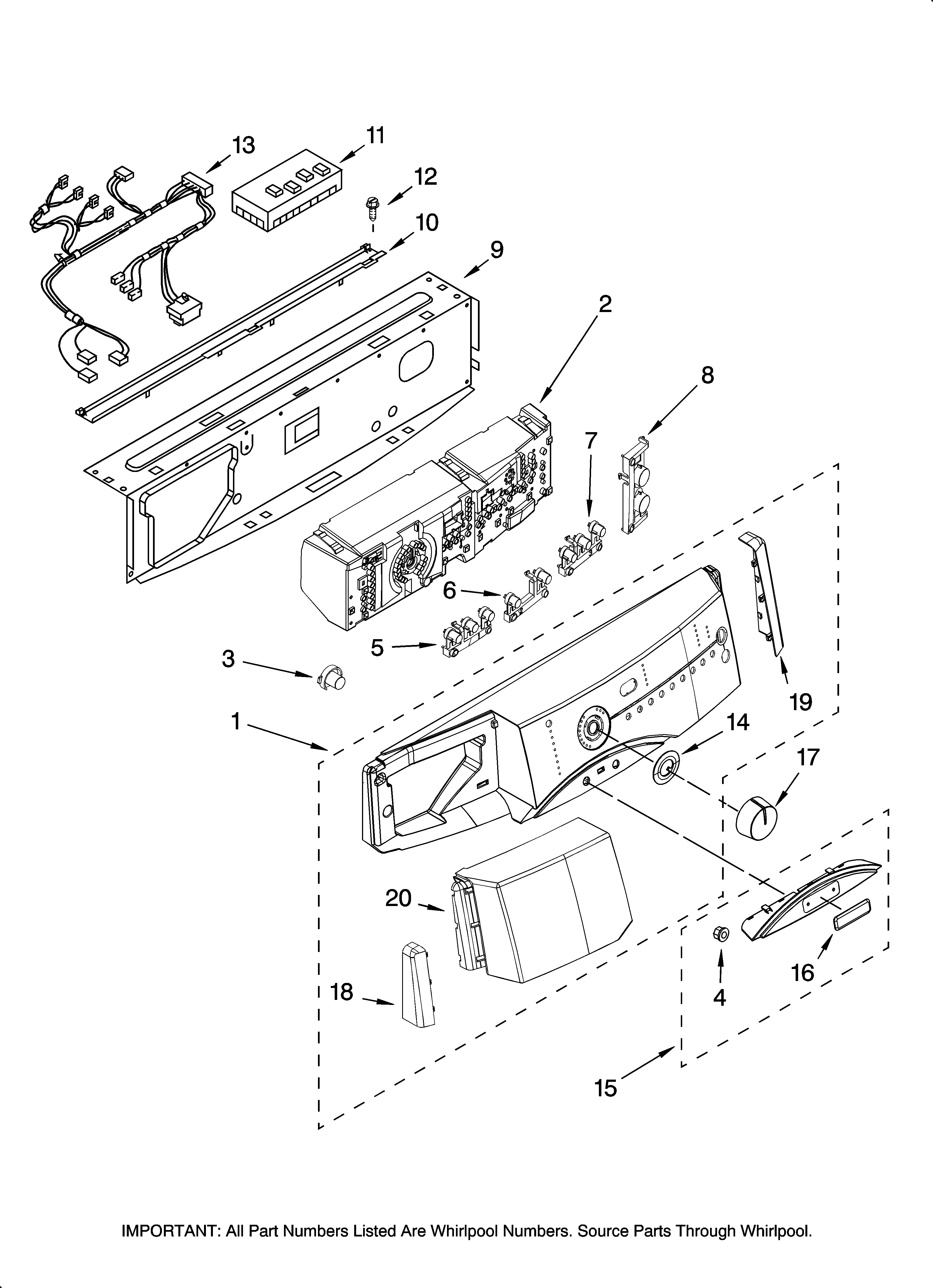

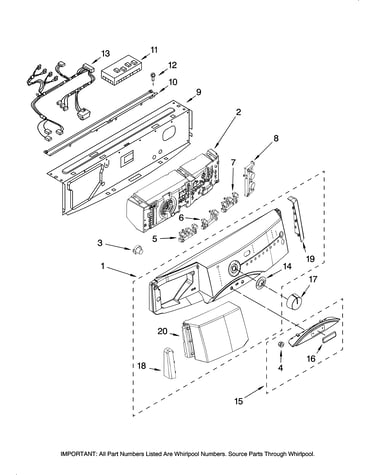

Control panel parts diagram

Screw

Part #8181756

Replaced by #WP488729

?
Manufacturer substitution
This part replaces 8181756. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39
19% OFF Phone Price : $5.39
In Stock
Screw 8181828
#28

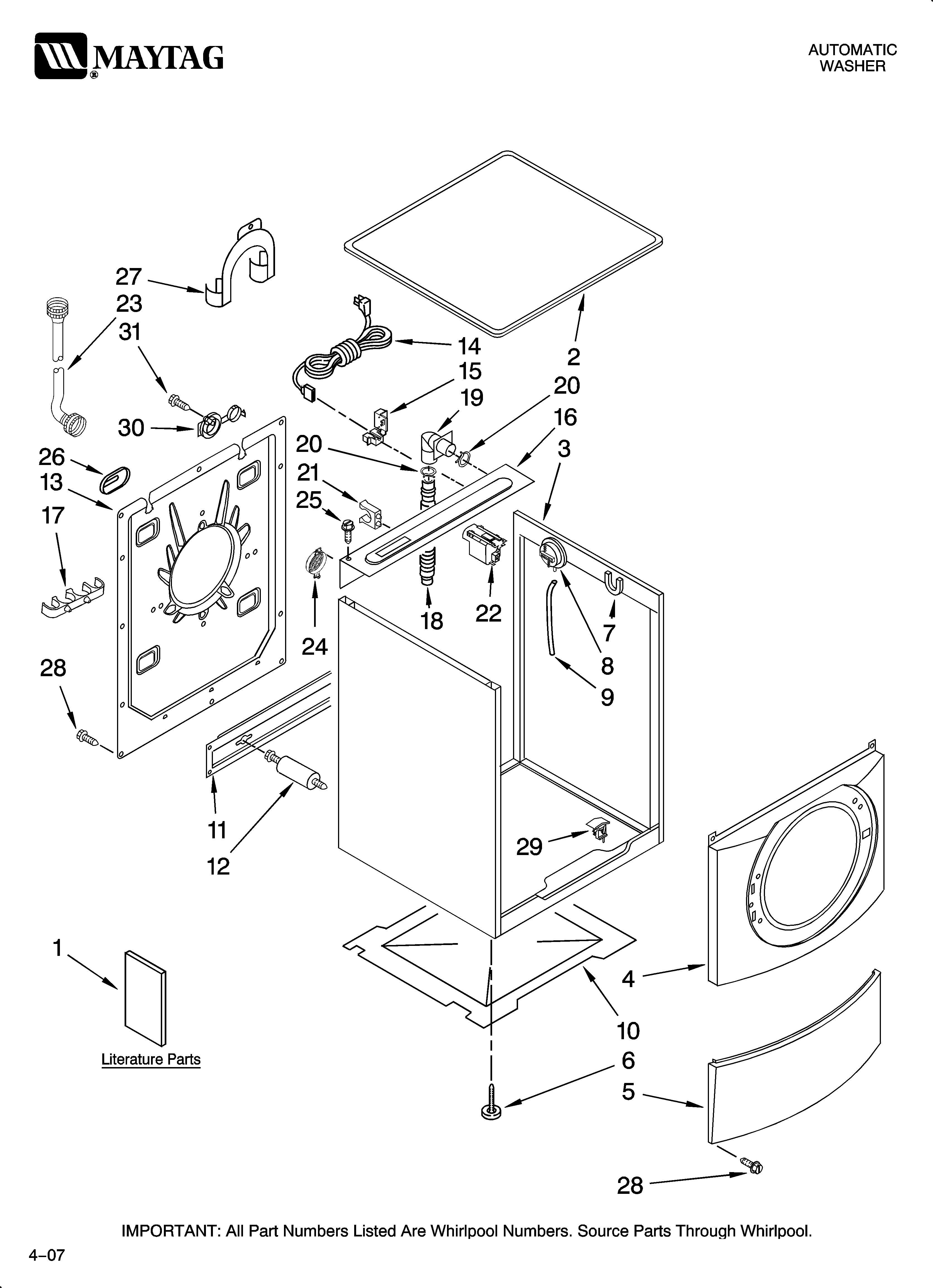

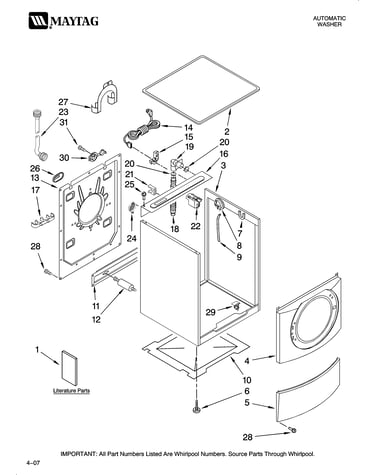

Top and cabinet parts diagram

Screw

Part #8181828

Replaced by #WP488729

?
Manufacturer substitution
This part replaces 8181828. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39
19% OFF Phone Price : $5.39
In Stock
Outer Tub 8181665
#21

Tub and basket parts diagram

Outer tub

Part #8181665

Replaced by #W10772607

?
Manufacturer substitution
This part replaces 8181665. Substitute parts can look different from the original.
BEST SELLER
$265.23
$10.00 OFF Phone Price : $275.23
In Stock
Fill Hose 8182792
#23A

Top and cabinet parts diagram

Fill hose

Part #8182792

Replaced by #WP89503

?
Manufacturer substitution
This part replaces 8182792. Substitute parts can look different from the original.
BEST SELLER
$14.49
12% OFF Phone Price : $16.49
In Stock
