Kenmore 41781042000 dryer Parts

On Kenmore dryer model 41781042000, the model and serial number are printed on an identification plate on the left side of the door opening (inside the door area on the cabinet frame). Confirm the full model number before ordering parts or using troubleshooting steps in the 41781042000 owner's manual.

• Open the dryer door and look along the left inner door opening for the ID plate.
• Wipe dust off the label; use a flashlight to read small print.
• Write down both the model number and serial number; they are often listed together.
• Take a photo of the label so you can zoom in later.
• Match the model number exactly (for example, 41781042000) when searching parts.

Most Kenmore dryers use a small sticker or metal plate that includes:

• Model number
• Serial number
• Electrical ratings (volts/amps)
• Sometimes a manufacturing code

Kenmore dryers can look similar across different series, but parts like a drum belt, door switch, thermostat, or heating element can vary by model. Using the exact model number helps us match the correct replacement part the first time.

Last updated: February 2026

To troubleshoot your Kenmore dryer 41781042000, we start with the symptom (won’t start, won’t heat, noisy, or long dry times) and check the easiest causes first: power, door closure, airflow, and cycle settings. Then we test common failure parts like the start switch, thermostats, and heating element.

• Confirm the dryer has full power (electric dryers typically need 240V; a tripped breaker can leave you with only 120V).
• Make sure the door fully latches; inspect the catch and strike alignment.
• Clean the lint screen and check for a crushed or clogged vent.
• Try a timed dry cycle to rule out sensor or control-cycle issues.
• Listen for motor hum (points to a jammed drum, belt issue, or motor problem).

• Unplug the dryer (and shut off gas if you have a gas version of this platform).
• Remove lint buildup inside the cabinet while you are in there.
• Check the belt for cracks, glazing, or slack.
• For heat issues, continuity-test the heating element and thermostats with a multimeter.

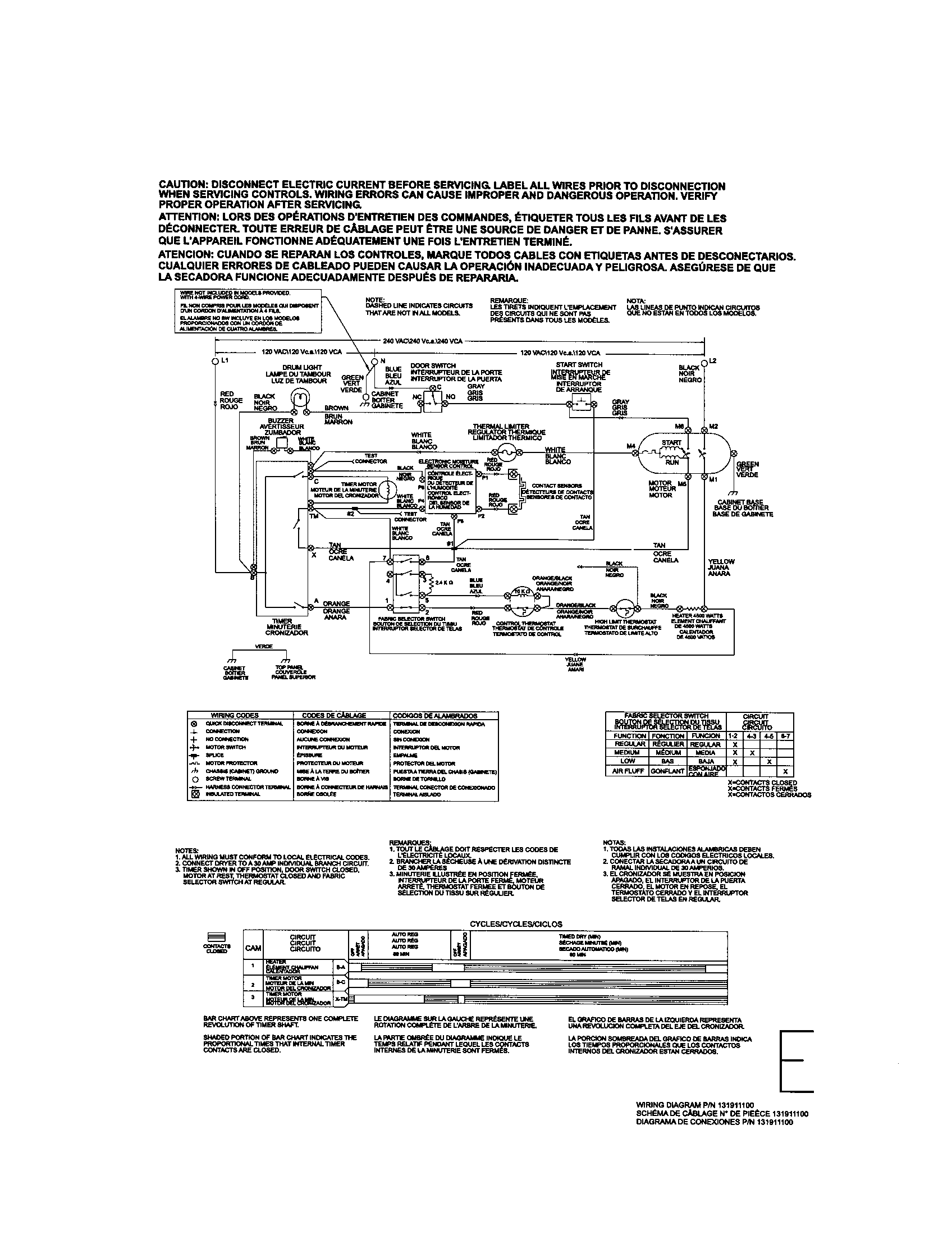

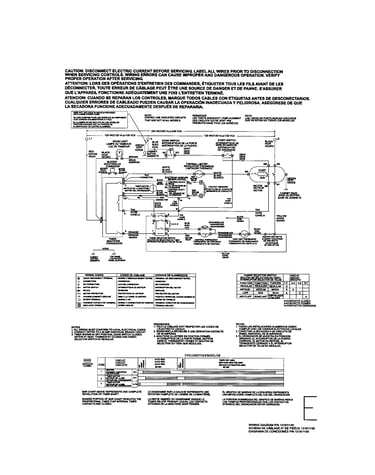

For panel access, wiring diagrams, and the correct disassembly order for model 41781042000, follow the owner's manual. If your dryer displays a code or beeps in a pattern, use Kenmore 417 model dryer error codes to match the code to the right checks.

Most “no heat” and “stops mid-cycle” complaints trace back to airflow. Fixing vent restrictions first prevents repeat thermostat failures and reduces dry time and energy use.

Last updated: March 2026

A Kenmore dryer like model 41781042000 typically lasts 10 to 13 years with normal household use and regular vent cleaning. Lifespan depends most on airflow (venting), load size, and how quickly worn drum-support and drive parts are replaced.

• Restricted venting (long dry times, overheating, repeated thermal cutoffs)
• Overloading (extra strain on the drum, belt, and bearings)
• Worn drum support (squealing, thumping, metal-on-metal wear)
• Heat system stress (cycling thermostat and high-limit thermostat working harder)
• Maintenance habits (lint filter and vent cleaning schedule)

• Clean the lint screen every load.
• Inspect and clean the vent ducting at least yearly.
• Keep loads to a reasonable size; avoid packing the drum tight.
• Stop using the dryer if you hear persistent squealing or grinding; address drum support early.
• Follow the care and cleaning guidance in the owner's manual.

A dryer can run for years past its average lifespan, but restricted airflow and ignored bearing or belt wear quickly turn into overheating, poor drying performance, and bigger repairs. Preventive maintenance costs less than repeated heat-related failures.

Last updated: March 2026
