Model # JVM1440BD003 Official GE microwave

Here are the diagrams and repair parts for Official GE JVM1440BD003 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 100 parts  |

Switch-micro WB24X10038
#29

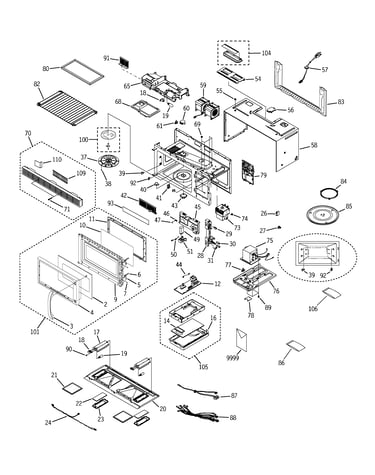

Microwave diagram

Switch-micro

Part #WB24X10038

Replaced by #WB24X829

?
Manufacturer substitution
This part replaces WB24X10038. Substitute parts can look different from the original.
BEST SELLER
$33.20
13% OFF Phone Price : $38.20
In Stock
Micro-switch WB24X10075
#30

Microwave diagram

Micro-switch

Part #WB24X10075

Replaced by #WB24X830

?
Manufacturer substitution
This part replaces WB24X10075. Substitute parts can look different from the original.
BEST SELLER
$27.94
15% OFF Phone Price : $32.94
In Stock
Fuse Cartridge WB27X10474
#47

Microwave diagram

Fuse cartridge

Part #WB27X10474

Replaced by #WB27X10928

?
Manufacturer substitution
This part replaces WB27X10474. Substitute parts can look different from the original.
BEST SELLER
$9.73
9% OFF Phone Price : $10.73
In Stock
Microwave High-voltage Diode (replaces Wb27x608) WB27X1160
#50

Microwave diagram

Microwave high-voltage diode (replaces wb27x608)

Part #WB27X1160

BEST SELLER
$84.28
6% OFF Phone Price : $89.28
In Stock
Microwave Door Interlock Switch Lever (replaces Wb6x10128) WB06X10128
#31

Microwave diagram

Microwave door interlock switch lever (replaces wb6x10128)

Part #WB06X10128

BEST SELLER
$7.88
11% OFF Phone Price : $8.88
In Stock
Magnetron WB27X10475
#73

Microwave diagram

Magnetron

Part #WB27X10475

Replaced by #WB27X10017

?
Manufacturer substitution
This part replaces WB27X10475. Substitute parts can look different from the original.
BEST SELLER
$215.70
$10.00 OFF Phone Price : $225.70
In Stock
Microwave High-voltage Capacitor (replaces Wb27x598) WB27X10240
#49

Microwave diagram

Microwave high-voltage capacitor (replaces wb27x598)

Part #WB27X10240

BEST SELLER
$89.57
5% OFF Phone Price : $94.57
In Stock
Microwave Door Handle (replaces Wb15x10083) WB15X10022
#3

Microwave diagram

Microwave door handle (replaces wb15x10083)

Part #WB15X10022

BEST SELLER
$40.22
11% OFF Phone Price : $45.22
In Stock
Microwave Turntable Motor WB26X10038
#43

Microwave diagram

Microwave turntable motor

Part #WB26X10038

$54.53
10% OFF Was : $60.59
In Stock
Microwave Thermal Cut-off (replaces Wb20x141, Wb27x10670) WB27X10195
#61

Microwave diagram

Microwave thermal cut-off (replaces wb20x141, wb27x10670)

Part #WB27X10195

$24.89
17% OFF Phone Price : $29.89
In Stock
