Model # RMIP33 Official Broan pro-style insert

Here are the diagrams and repair parts for Official Broan RMIP33 pro-style insert, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide

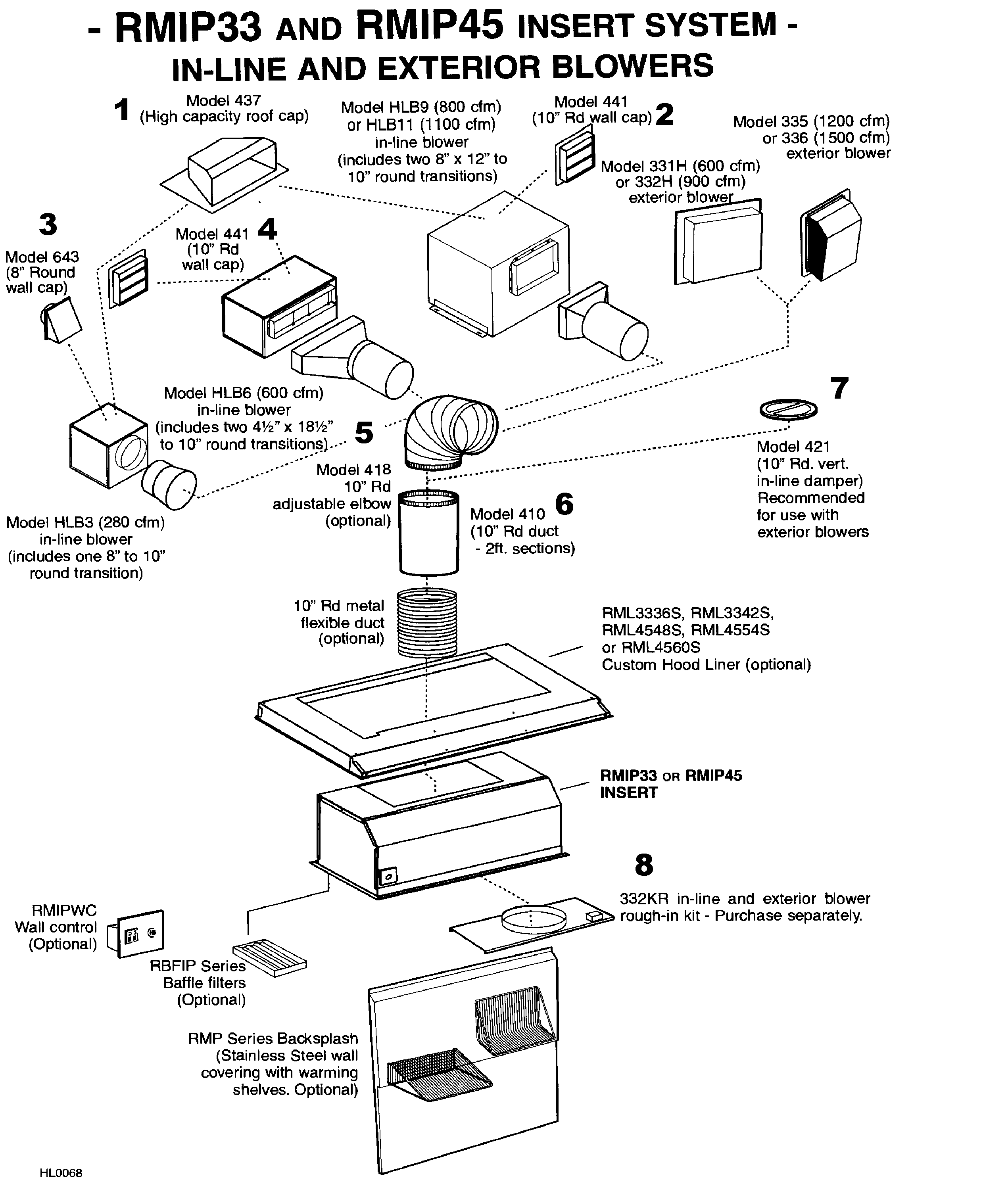

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 32 parts |

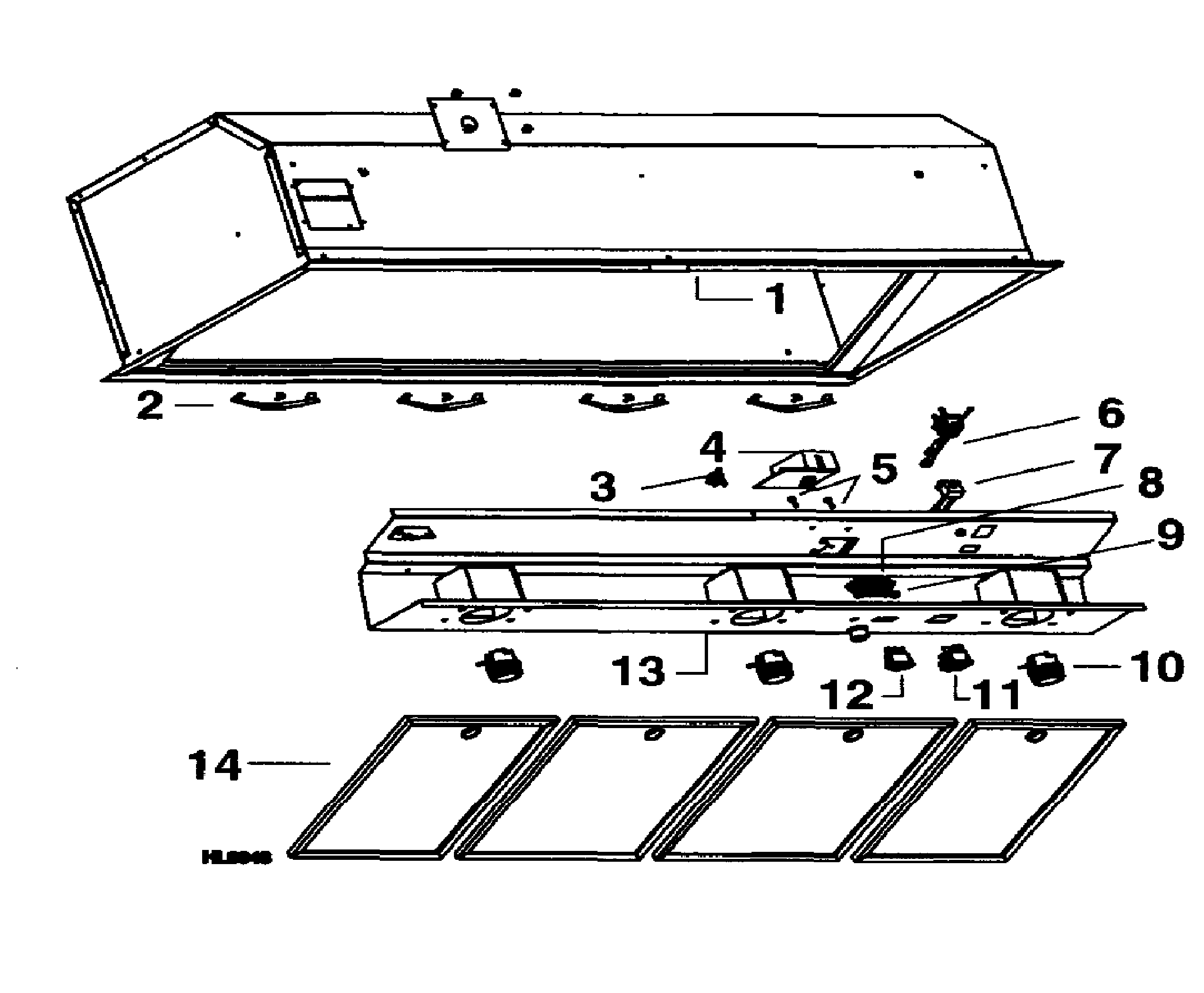

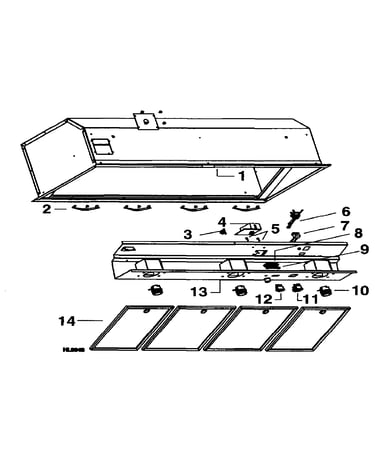

Range hood diagram

Broan range hood fan speed control kit (replaces v03501)

Part #SV03501

$78.34 |

6% OFF Phone Price : $83.34

In Stock

Qty

Range hood diagram

Broan range hood heat sensor

Part #SV03435

This item is not returnable

$28.00

In Stock

Qty

#12

Range hood diagram

Range hood fan switch

Part #SV03503

This item is not returnable

$18.09 |

10% OFF Phone Price : $20.09

In Stock

Qty

Range hood diagram

Connector

Part #SV02772

$13.29

In Stock

Qty

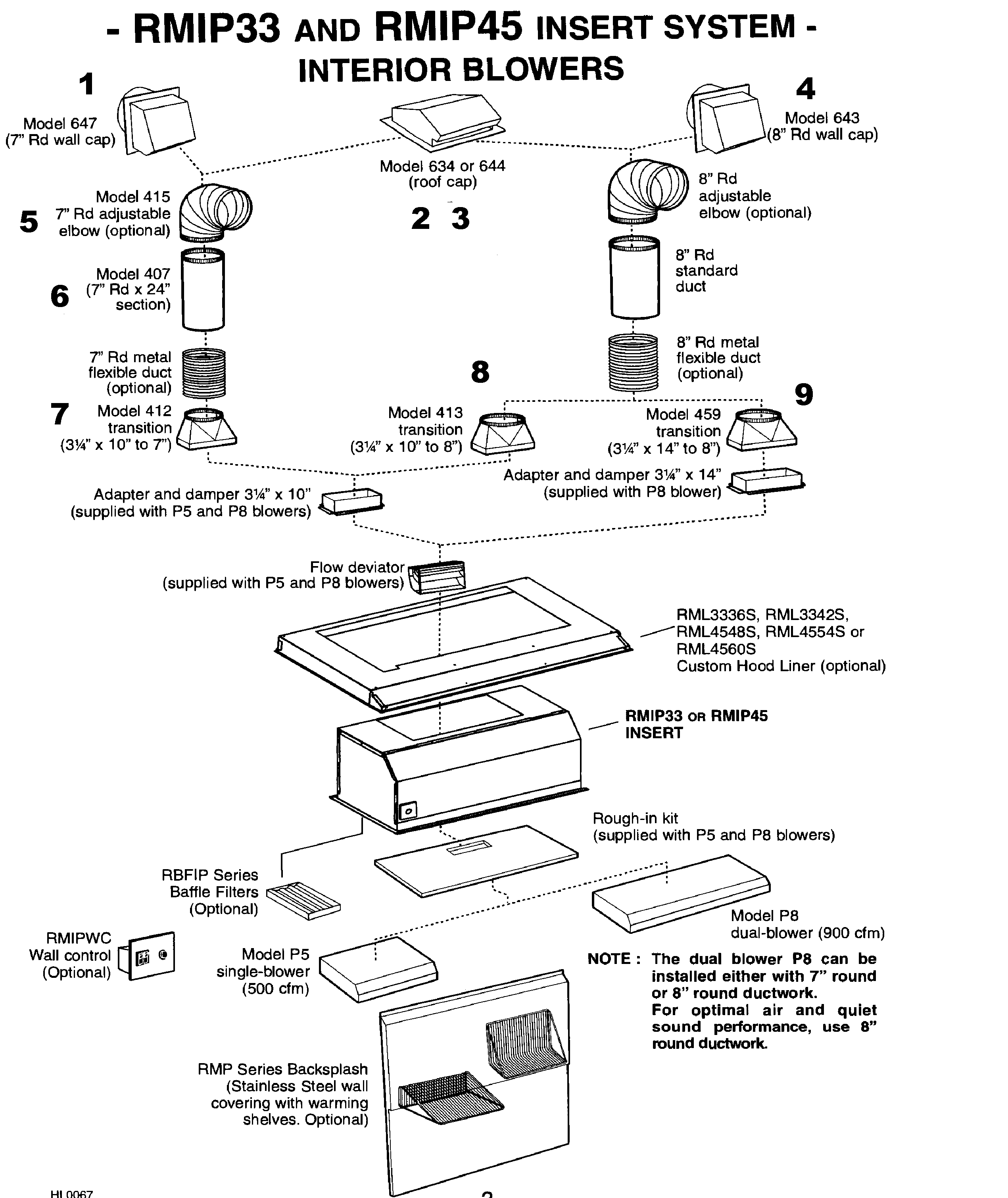

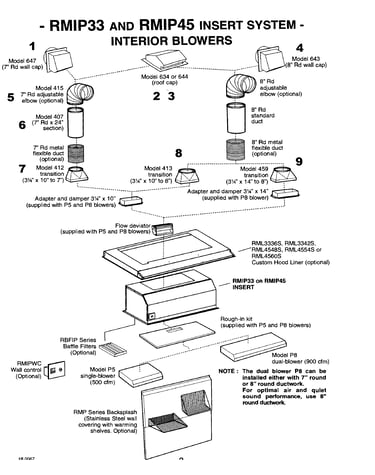

Interior blowers diagram

Range hood vent duct, 7-in

Part #407

$25.88

In Stock

Qty

Range Hood Control Switch Button SV03504

#13

Range hood diagram

Range hood control switch button

Part #SV03504

$25.71

In Stock

Qty

Range hood diagram

Range hood motor wire harness

Part #SV02773

$21.08

In Stock

Qty

Range hood diagram

Lock nut

Part #SV00673

$7.83

In Stock

Qty

#11

Range hood diagram

Range hood light switch

Part #SV03502

$11.73

In Stock

Qty

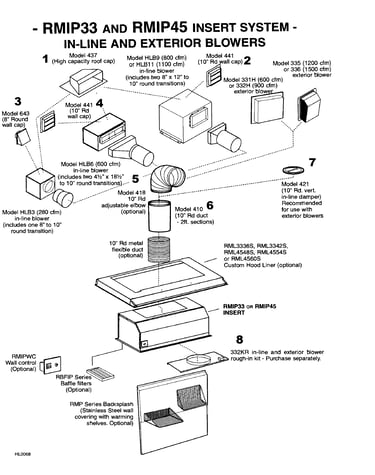

Wall cap

Part #441

$122.42

In Stock

Qty
