Model # WFW9750WW01 Official Whirlpool washer

Here are the diagrams and repair parts for Official Whirlpool WFW9750WW01 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

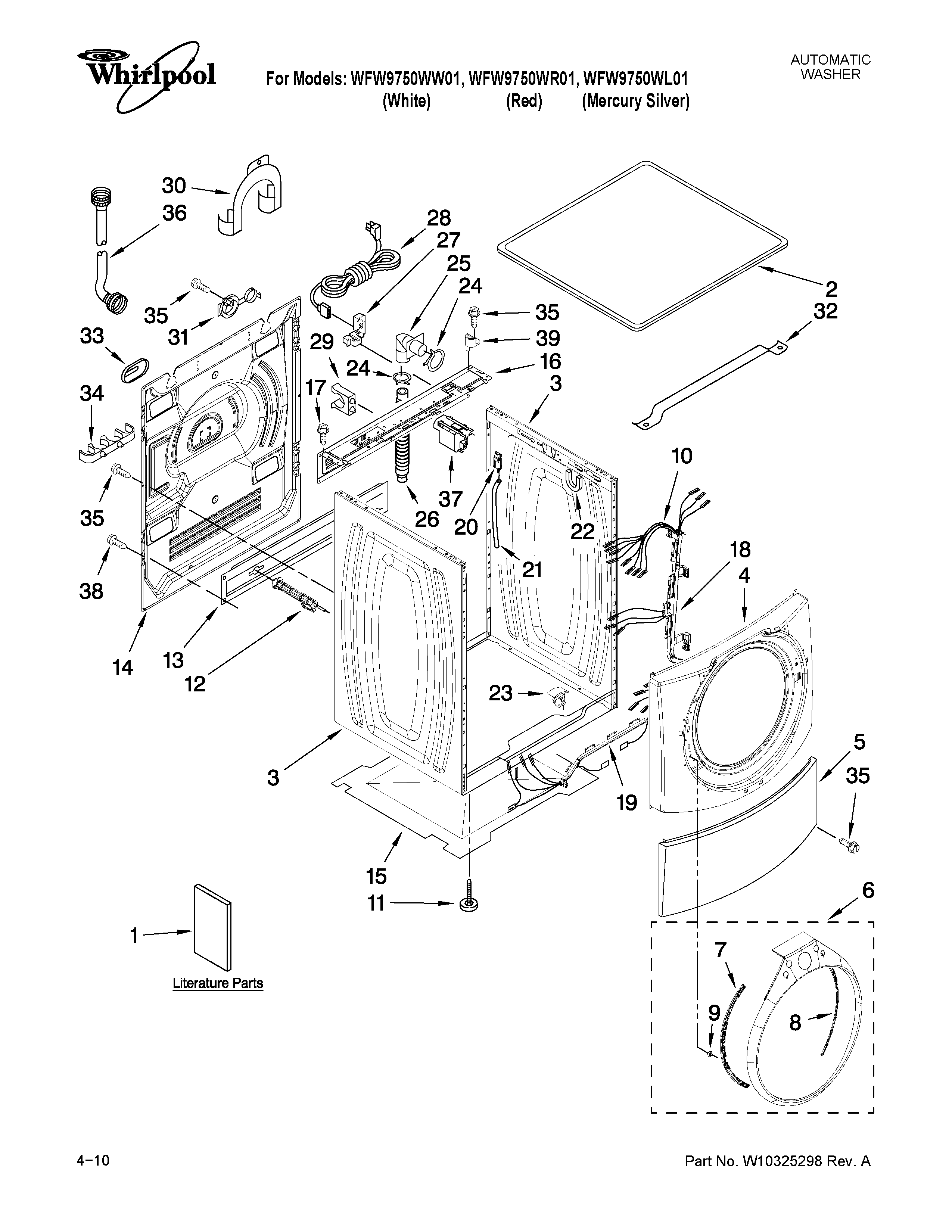

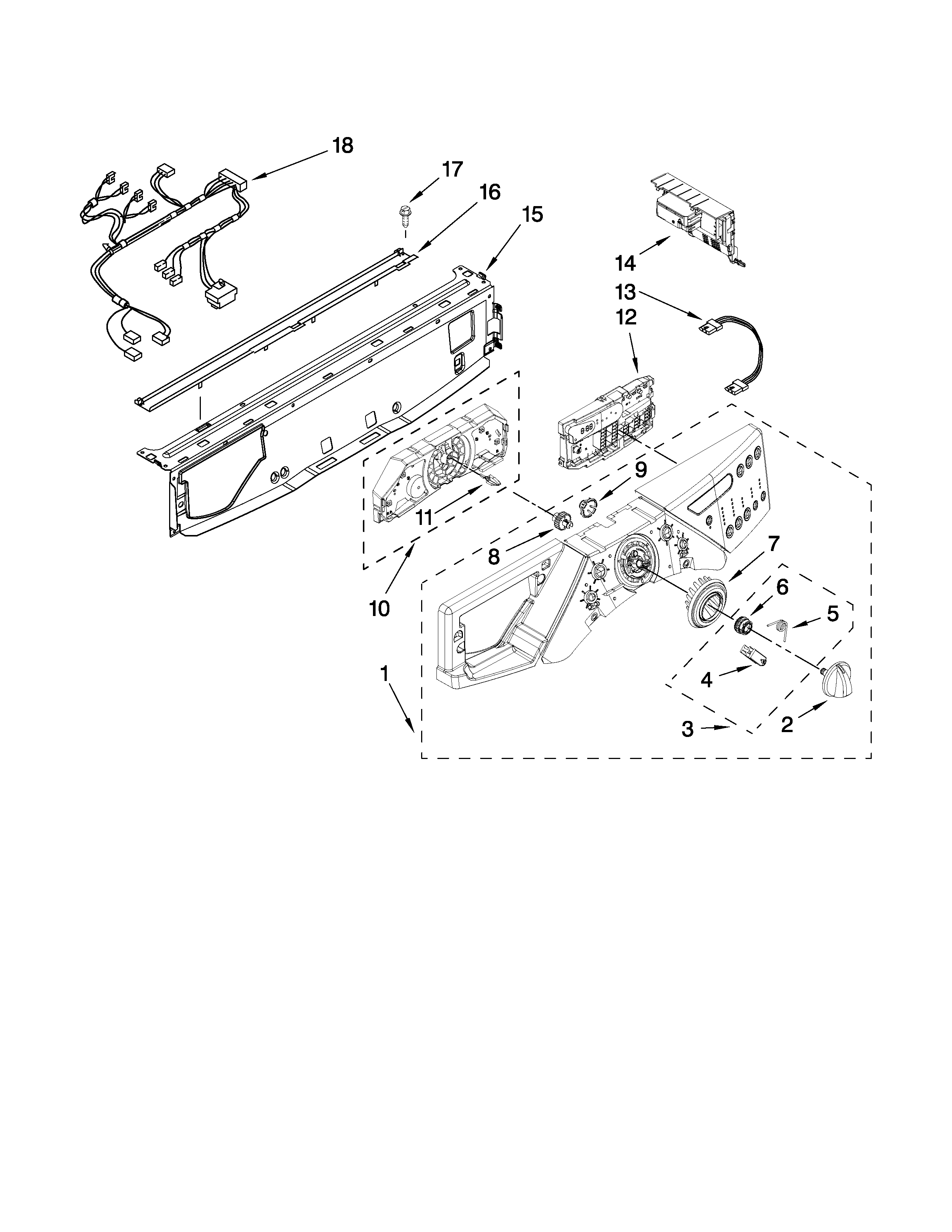

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 176 parts  |
Affresh Washer Cleaner, 3-pack (replaces 18001080, 77109, W10135699a) W10135699
#NI

Optional parts (not included) diagram

Affresh washer cleaner, 3-pack (replaces 18001080, 77109, w10135699a)

Part #W10135699

BEST SELLER

Get free shipping with Automatic Reorder

$12.27 |
44% OFF MSRP : $22.00
In Stock
Water Pump 8182819
#7

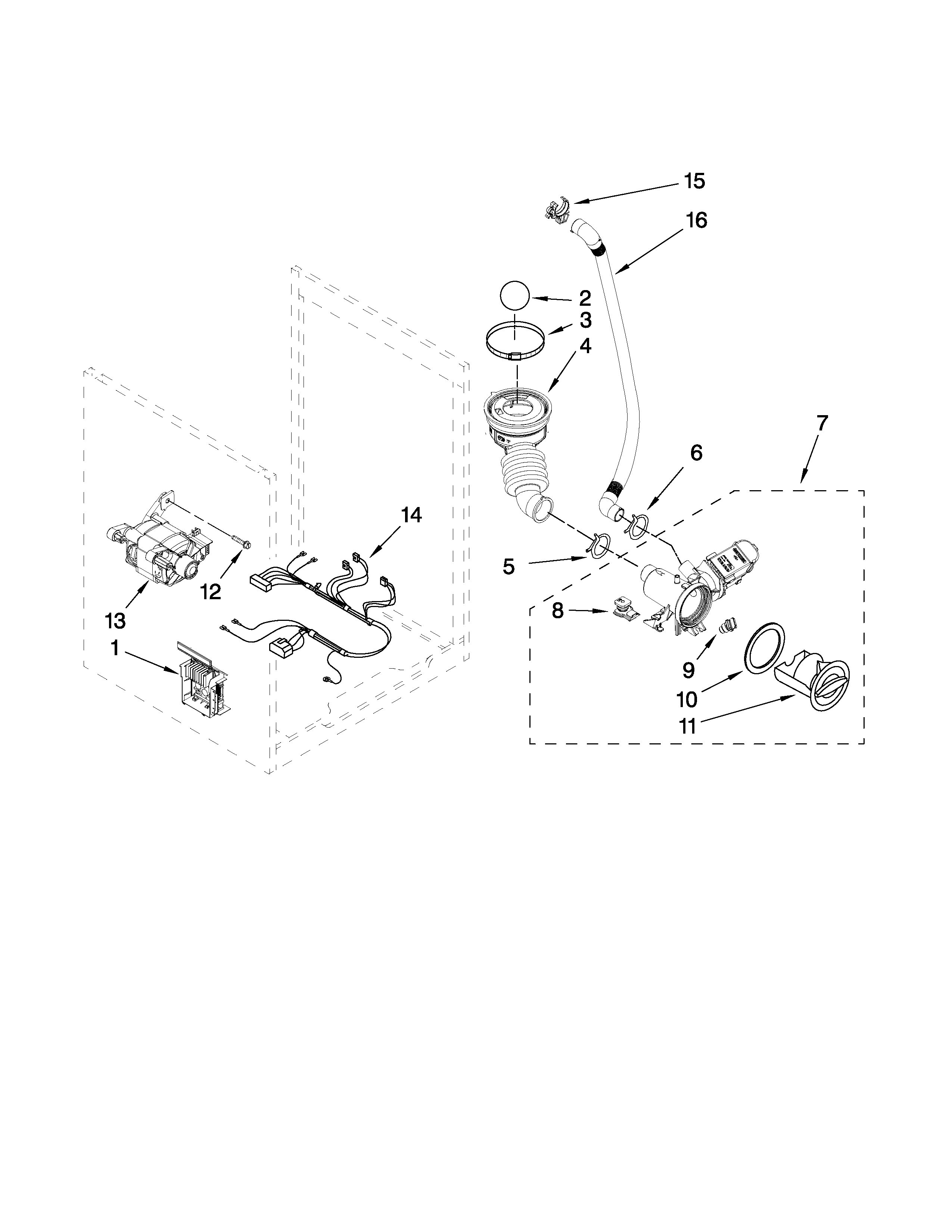

Pump and motor parts diagram

Water pump

Part #8182819

Replaced by #280187

?
Manufacturer substitution
This part replaces 8182819. Substitute parts can look different from the original.
BEST SELLER
$143.49 |
7% OFF Phone Price : $153.49
In Stock
Washer Door Boot 8182119
#2

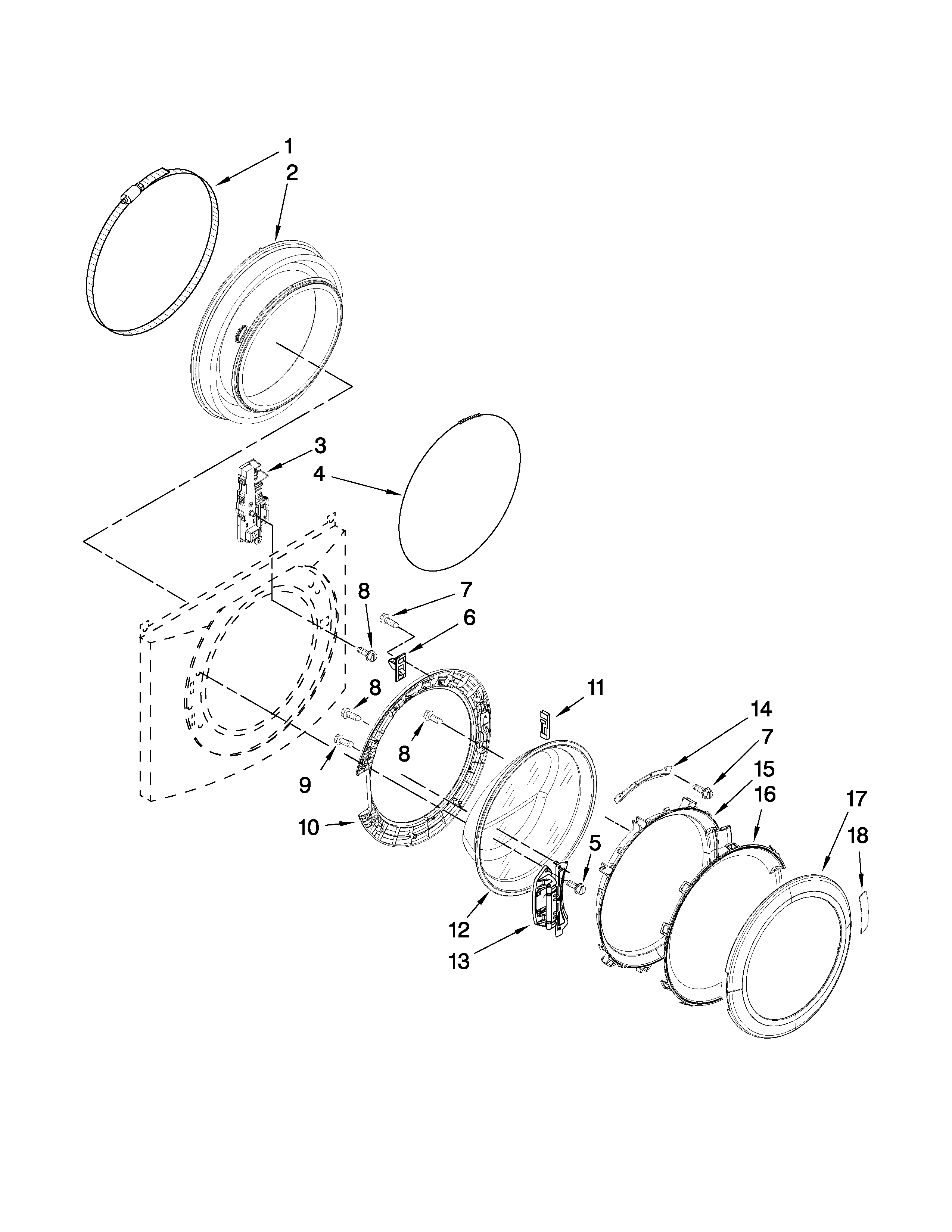

Door and latch parts diagram

Washer door boot

Part #8182119

Replaced by #WP8182119

?
Manufacturer substitution
This part replaces 8182119. Substitute parts can look different from the original.
BEST SELLER
$158.20 |
6% OFF Phone Price : $168.20
In Stock
Washer Door Lock 8183270
#3

Door and latch parts diagram

Washer door lock

Part #8183270

Replaced by #WP8183270

?
Manufacturer substitution
This part replaces 8183270. Substitute parts can look different from the original.
BEST SELLER
$104.19 |
39% OFF MSRP : $170.00
In Stock
Flow Meter 8181696
#4

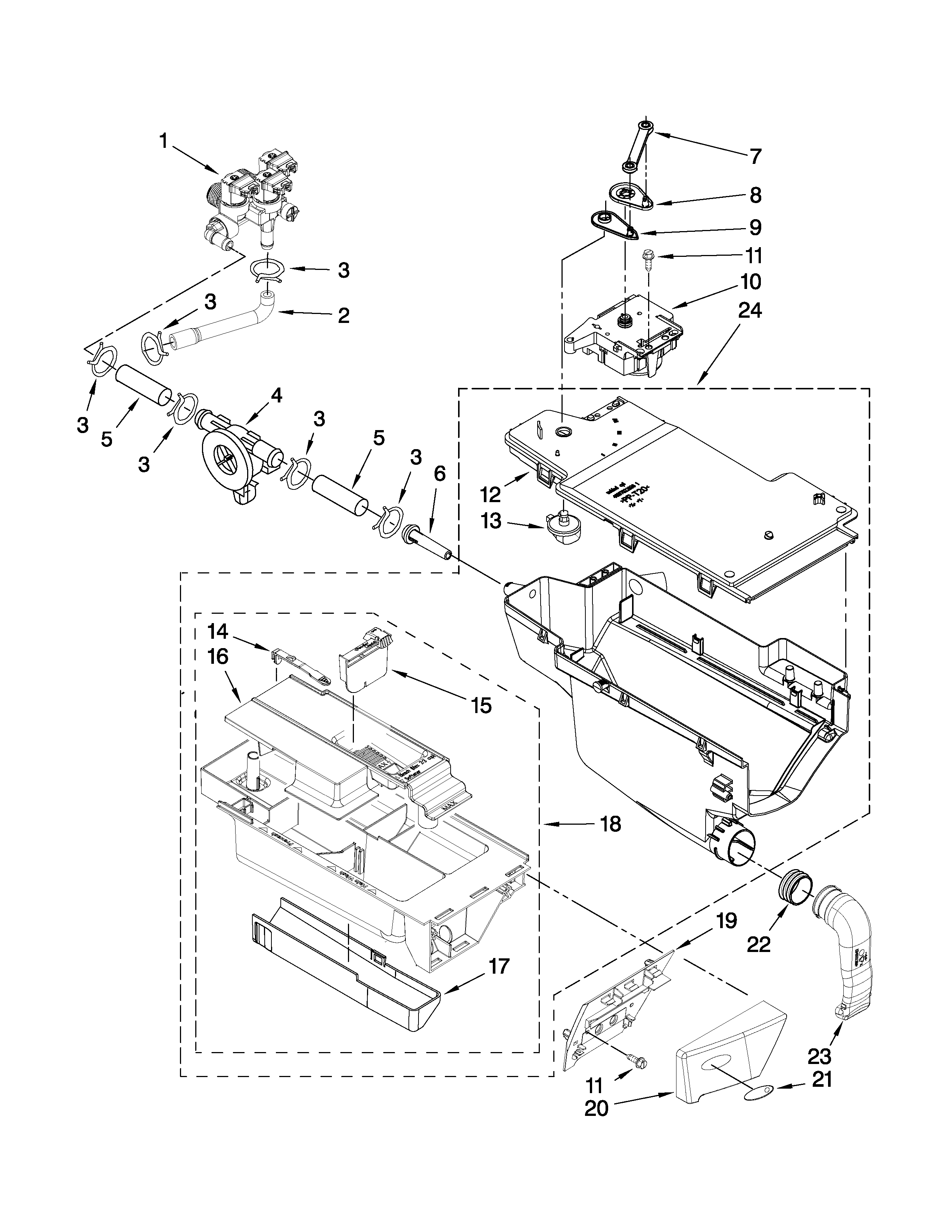

Dispenser parts diagram

Flow meter

Part #8181696

Replaced by #WPW10110225

?
Manufacturer substitution
This part replaces 8181696. Substitute parts can look different from the original.
BEST SELLER
$74.14 |
24% OFF MSRP : $98.00
In Stock
Washer Drive Belt 8181670
#3

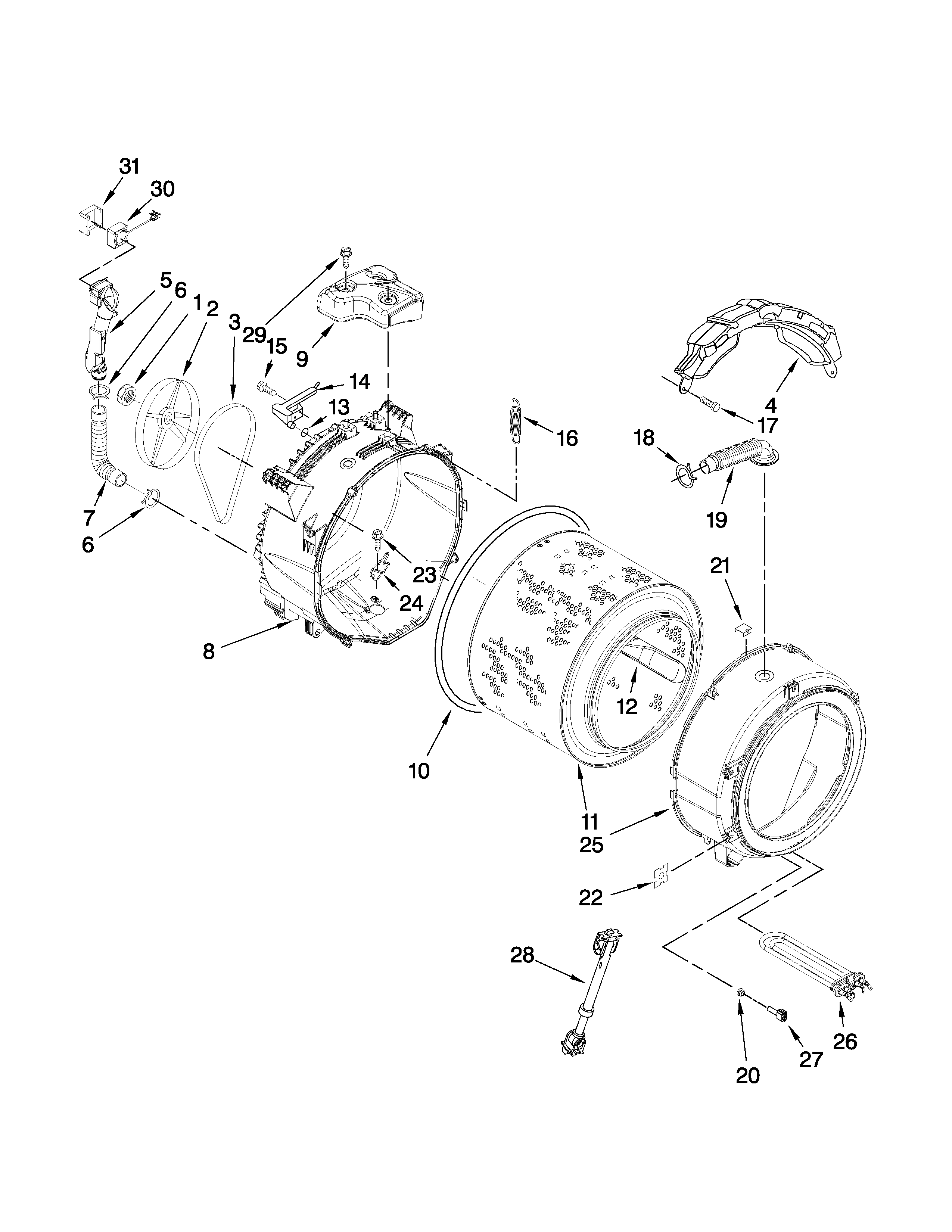

Tub and basket parts diagram

Washer drive belt

Part #8181670

Replaced by #WPW10388414

?
Manufacturer substitution
This part replaces 8181670. Substitute parts can look different from the original.
BEST SELLER
$36.08 |
39% OFF MSRP : $59.00
In Stock
Washer Tub Gasket 8181673
#10

Tub and basket parts diagram

Washer tub gasket

Part #8181673

Replaced by #WP8181673

?
Manufacturer substitution
This part replaces 8181673. Substitute parts can look different from the original.
BEST SELLER
$27.35 |
24% OFF MSRP : $36.00
In Stock
Washer Door Boot Spring Clamp 8182210
#1

Door and latch parts diagram

Washer door boot spring clamp

Part #8182210

Replaced by #WP8182210

?
Manufacturer substitution
This part replaces 8182210. Substitute parts can look different from the original.
BEST SELLER
$25.44 |
31% OFF MSRP : $37.00
In Stock
Washer Door Boot Spring Clamp 8182211
#4

Door and latch parts diagram

Washer door boot spring clamp

Part #8182211

Replaced by #W10902779

?
Manufacturer substitution
This part replaces 8182211. Substitute parts can look different from the original.
BEST SELLER
$23.34 |
22% OFF MSRP : $30.00
In Stock
Washer Fill Hose, 2-pack (replaces 12001894, 4392907, 4392907r, 80034, 80034p, 8212487, 8212487ip) 8212487RP
#NI

Optional parts (not included) diagram

Washer fill hose, 2-pack (replaces 12001894, 4392907, 4392907r, 80034, 80034p, 8212487, 8212487ip)

Part #8212487RP

BEST SELLER
$23.18 |
51% OFF MSRP : $47.00
In Stock
