Craftsman
Front-Engine Lawn Tractor

Model # 917276906 Official Craftsman tractor

Here are the diagrams and repair parts for Official Craftsman 917276906 tractor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

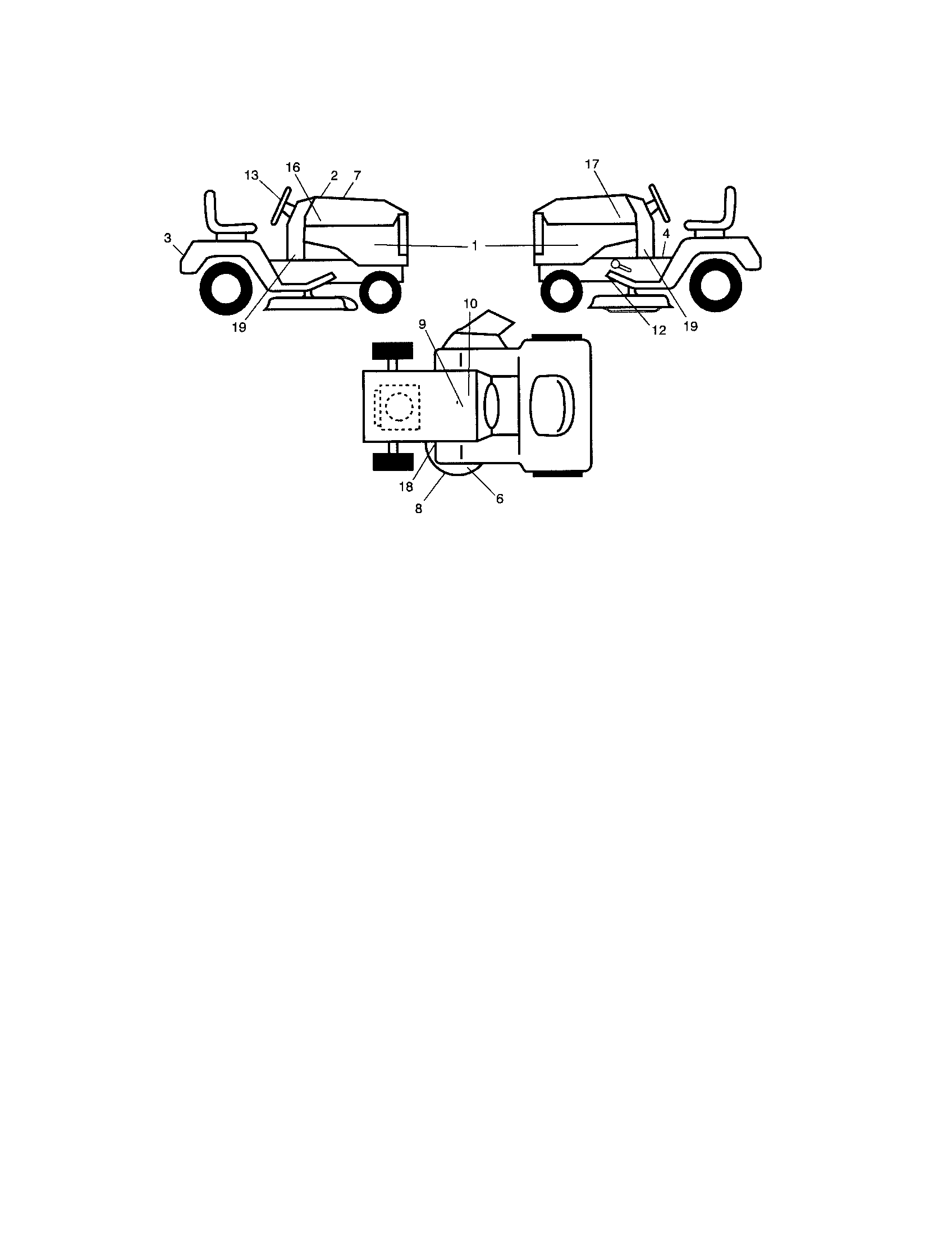

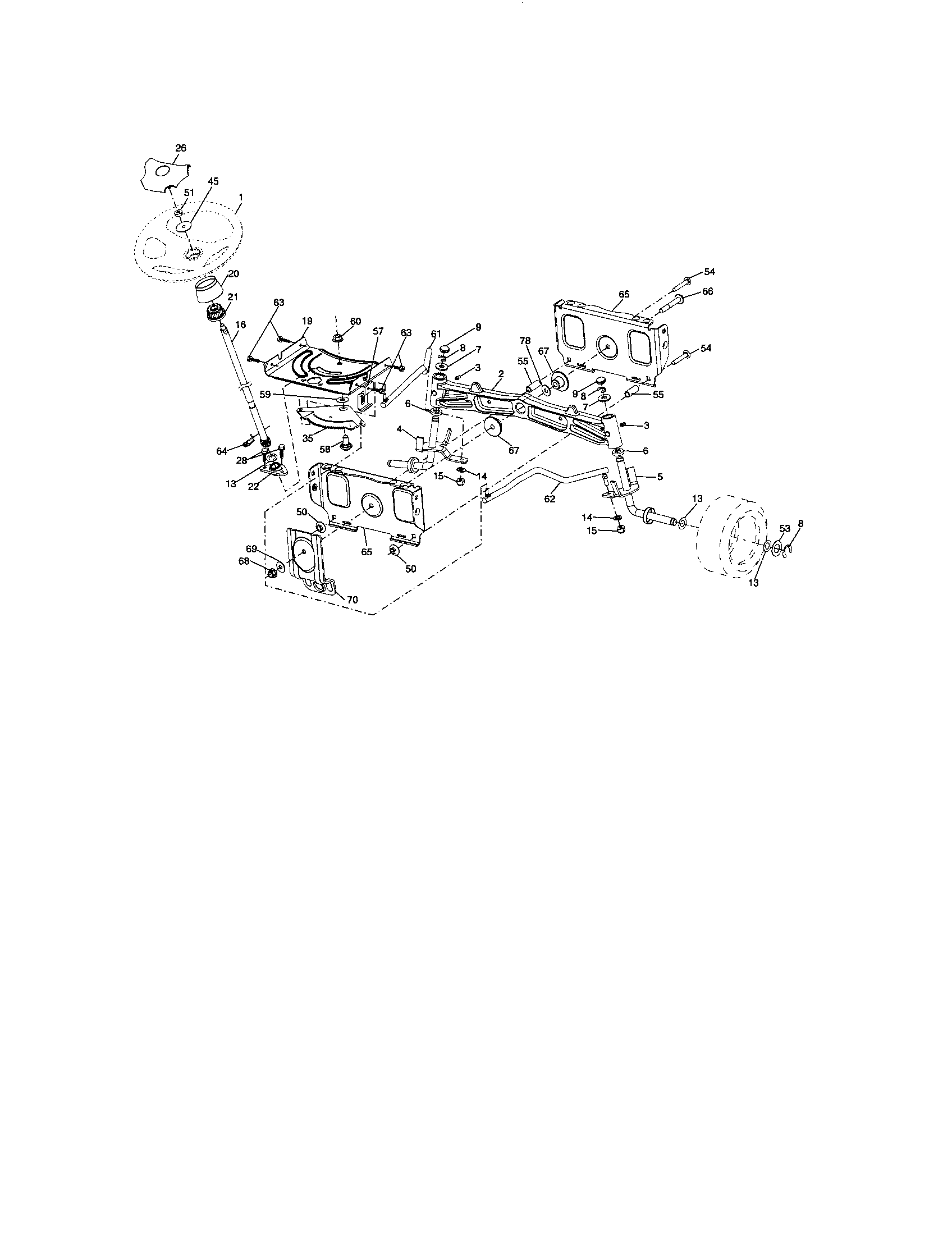

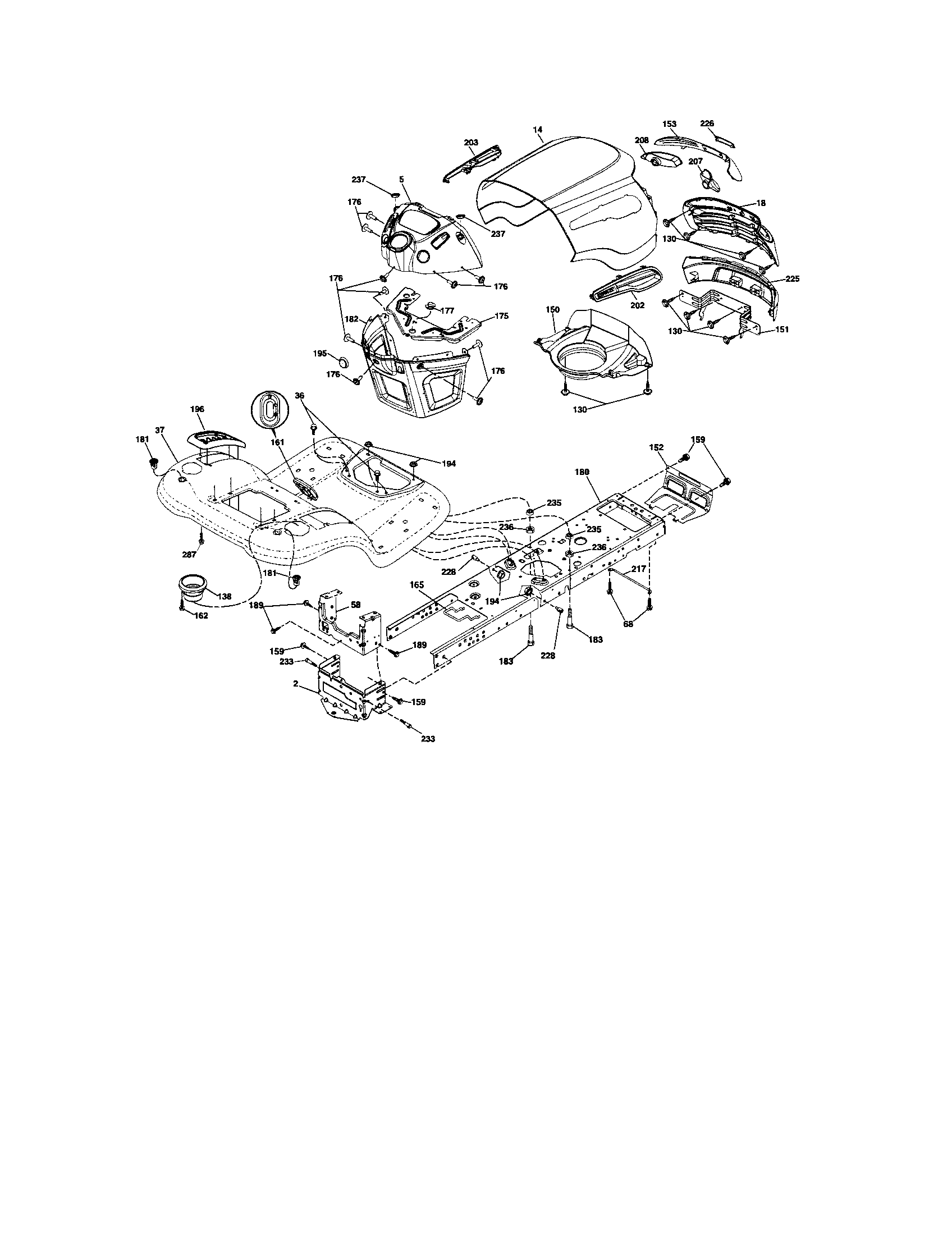

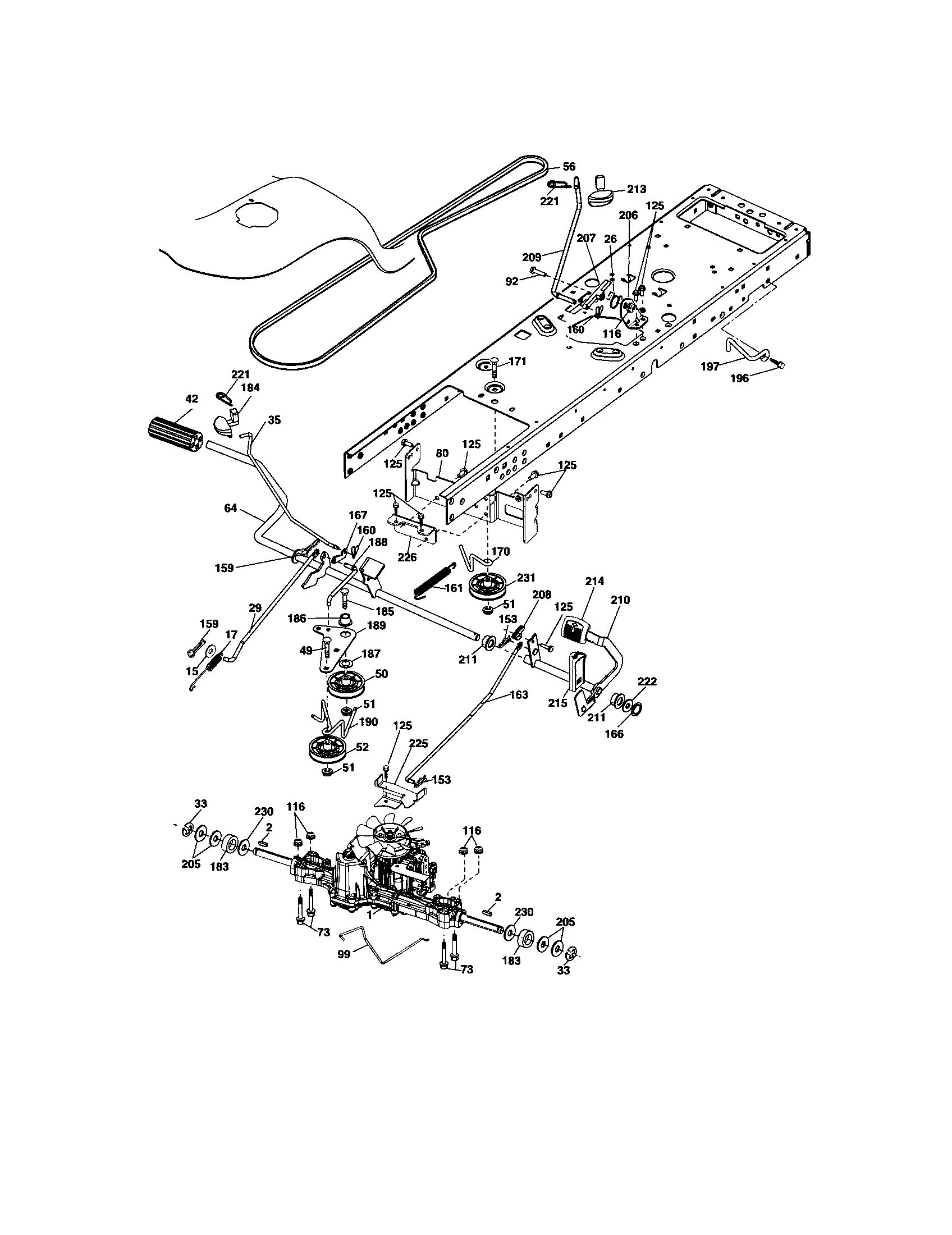

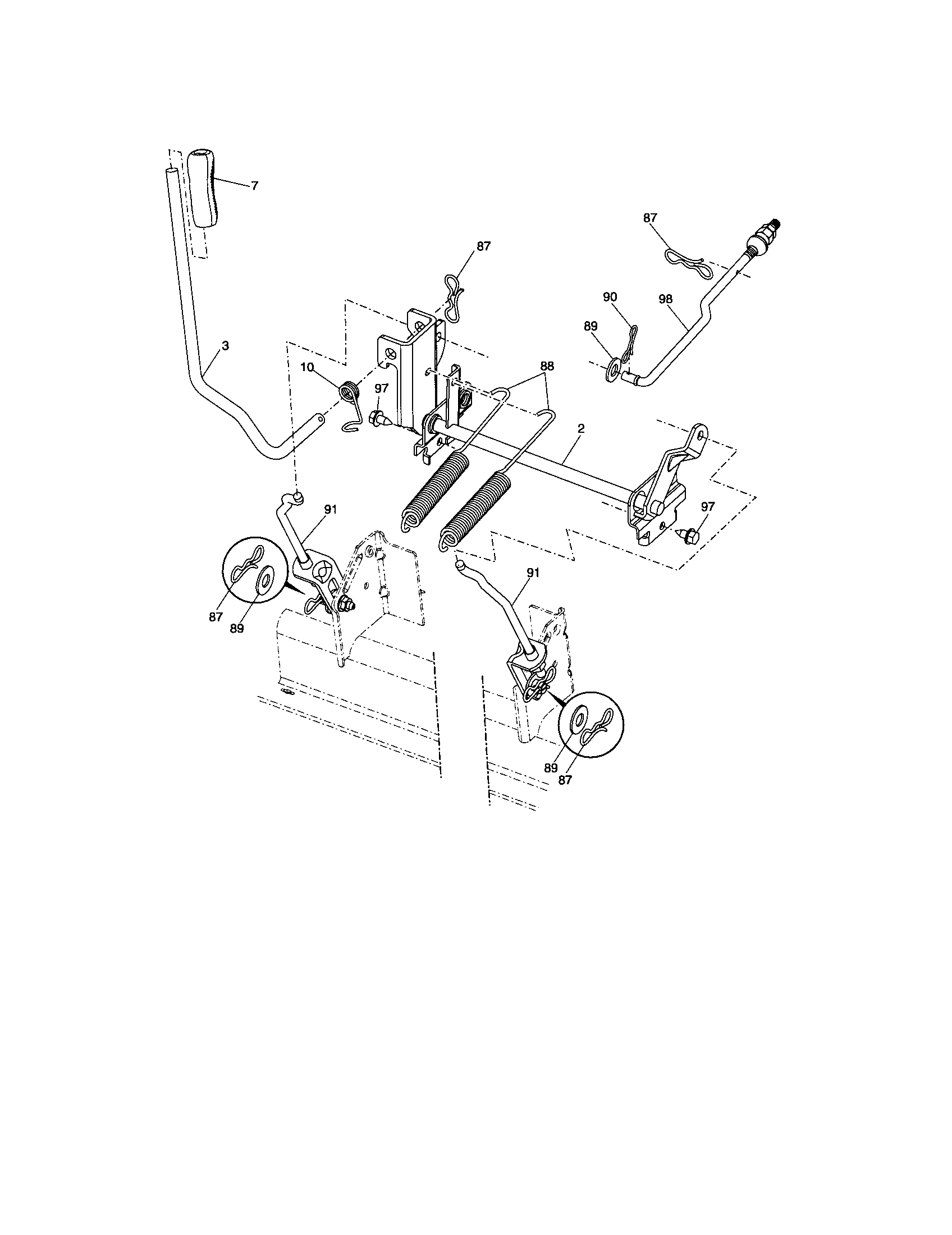

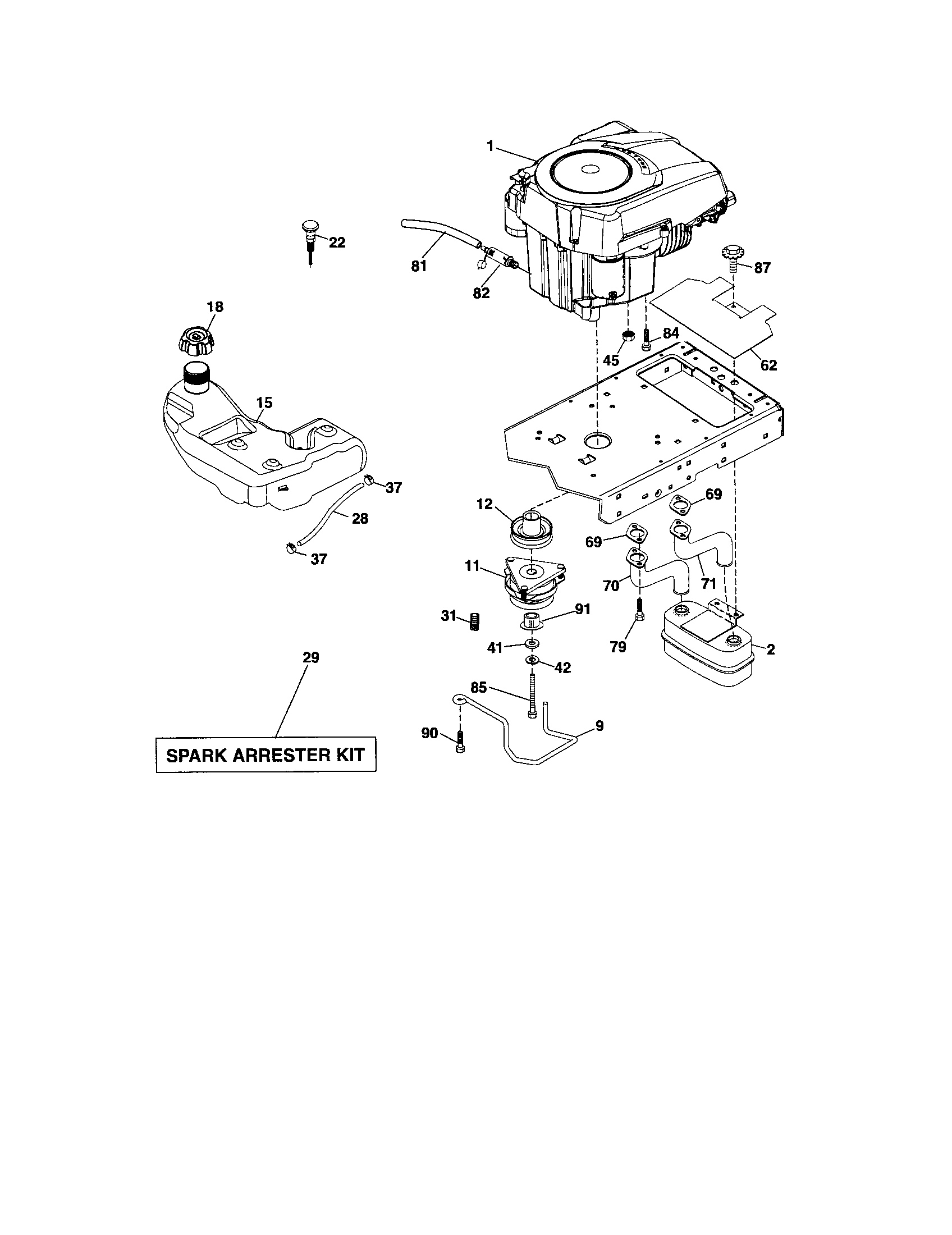

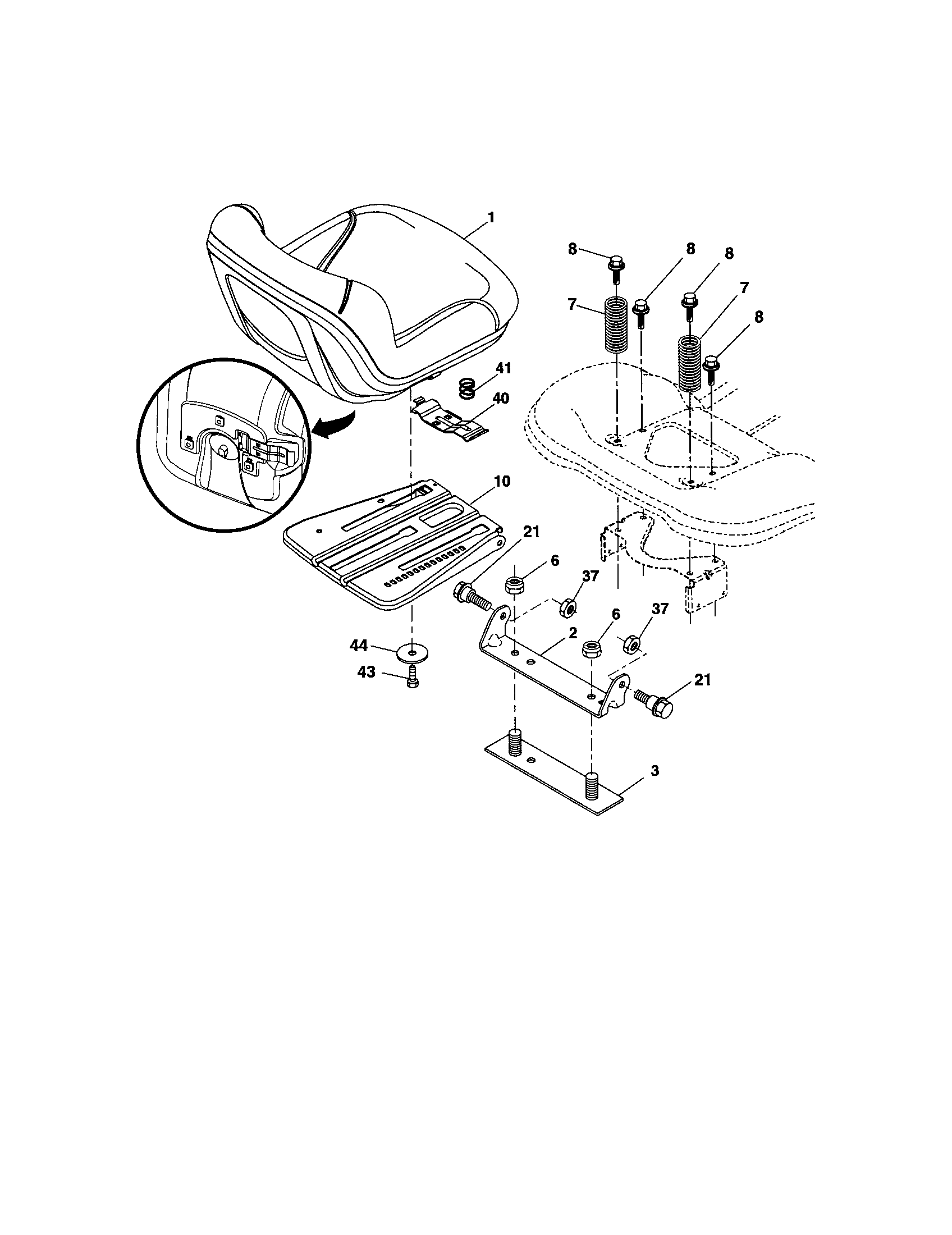

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 497 parts  |

Lawn Tractor Hub Cap 104757X645
#8

Wheels and tires diagram

Lawn tractor hub cap

Part #104757X645

Replaced by #532104757

?
Manufacturer substitution
This part replaces 104757X645. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31
16% OFF Phone Price : $6.31
In Stock
Lawn Tractor Blade Drive Belt, 5/8 X 148-5/8-in 196103
#47

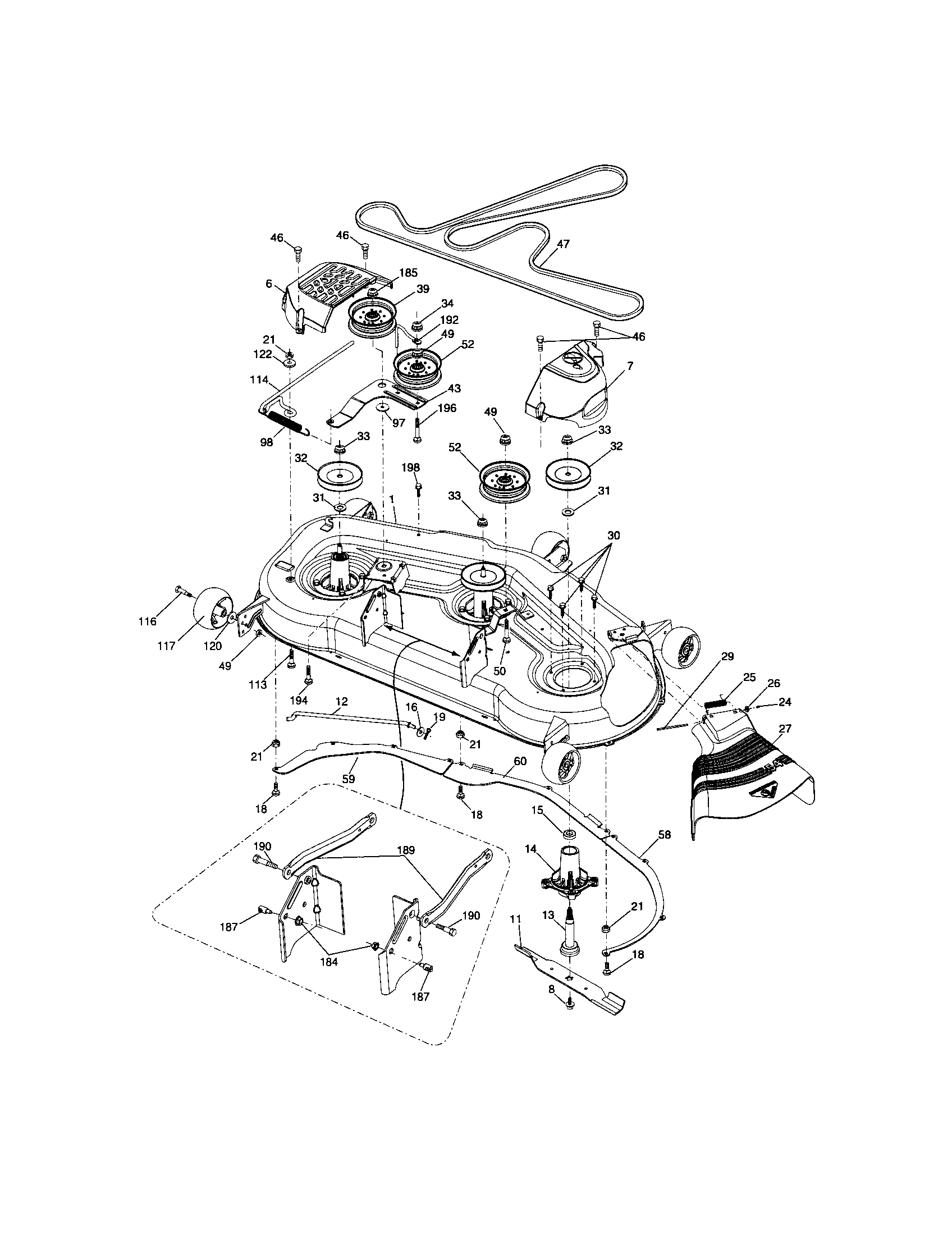

Mower deck diagram

Lawn tractor blade drive belt, 5/8 x 148-5/8-in

Part #196103

Replaced by #587686701

?
Manufacturer substitution
This part replaces 196103. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$55.53
10% OFF Phone Price : $61.53
In Stock
Lock Nut 73900600
Lock nut

Part #73900600

Replaced by #532409149

?
Manufacturer substitution
This part replaces 73900600. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31
16% OFF Phone Price : $6.31
In Stock
Lawn Tractor Bolt 173984
#30

Mower deck diagram

Lawn tractor bolt

Part #173984

Replaced by #584953901

?
Manufacturer substitution
This part replaces 173984. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31
16% OFF Phone Price : $6.31
In Stock
Lawn Tractor Starter Solenoid 192507
#43

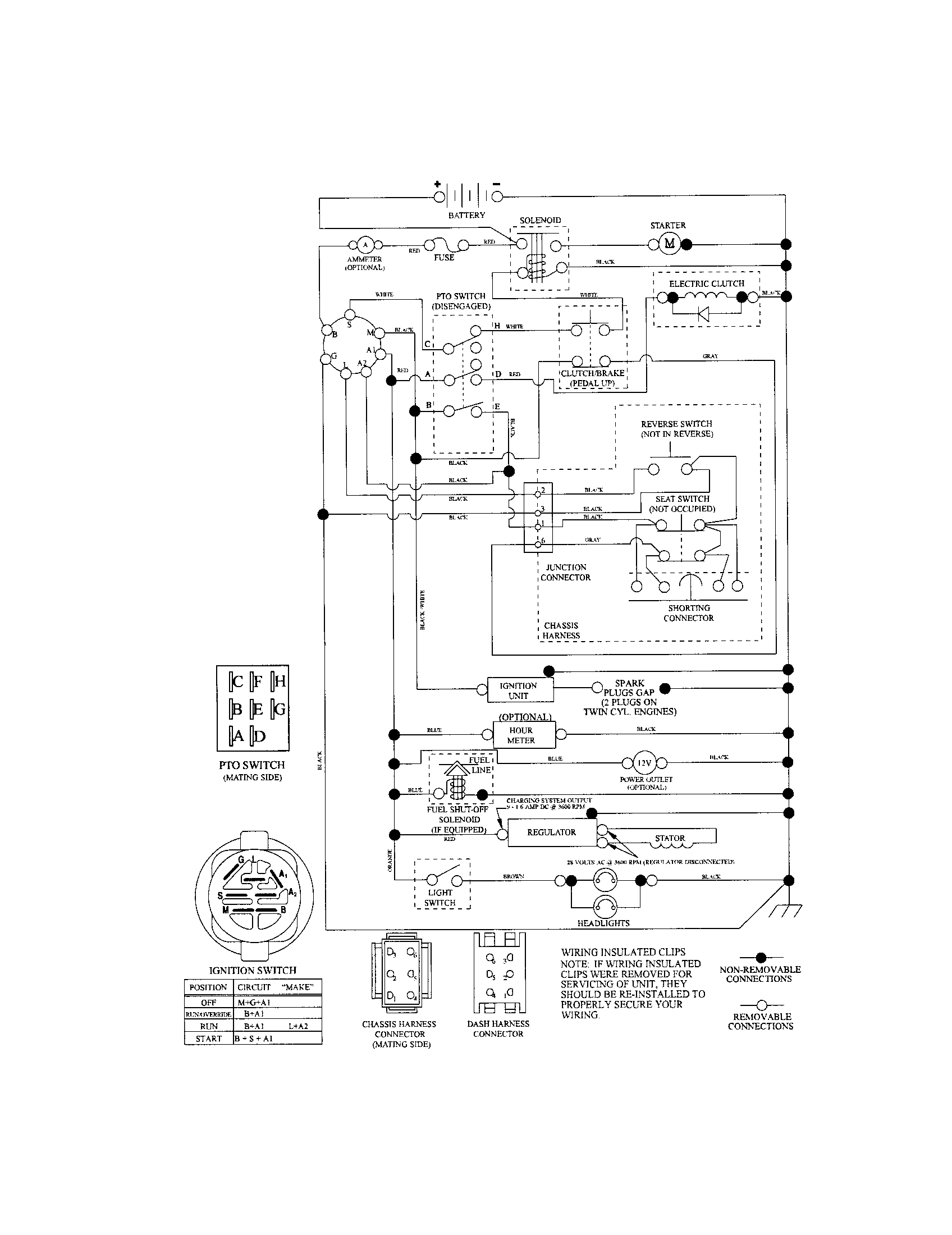

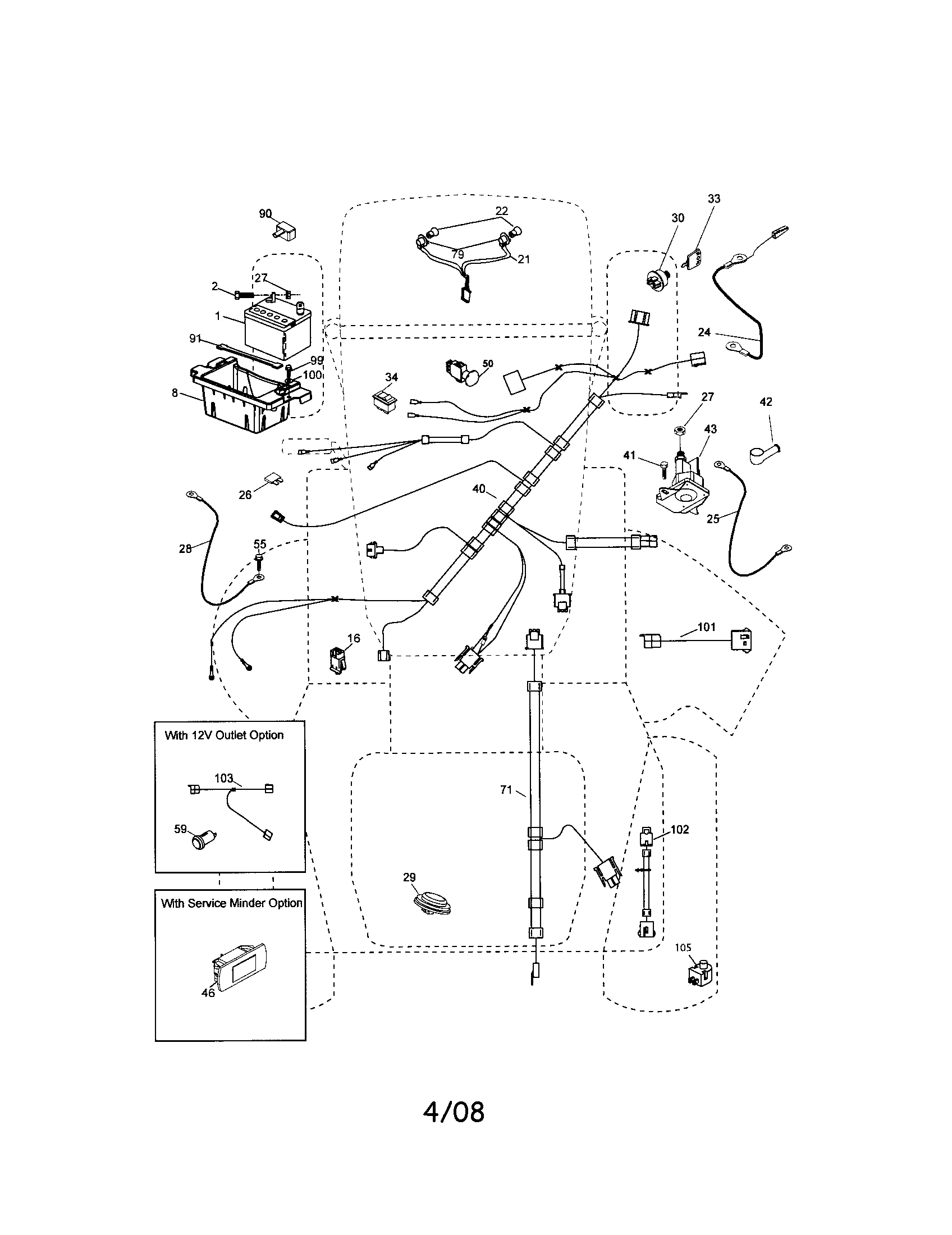

Electrical diagram

Lawn tractor starter solenoid

Part #192507

Replaced by #582042802

?
Manufacturer substitution
This part replaces 192507. Substitute parts can look different from the original.
BEST SELLER
$30.64
16% OFF Phone Price : $36.64
In Stock
Switch.pto 174652
#50

Electrical diagram

Switch.pto

Part #174652

Replaced by #582107601

?
Manufacturer substitution
This part replaces 174652. Substitute parts can look different from the original.
BEST SELLER
$30.76
16% OFF Phone Price : $36.76
In Stock
Lawn Tractor Deflector Shield Hinge Rod 131491
#29

Mower deck diagram

Lawn tractor deflector shield hinge rod

Part #131491

Replaced by #595297001

?
Manufacturer substitution
This part replaces 131491. Substitute parts can look different from the original.
BEST SELLER
$7.05
12% OFF Phone Price : $8.05
In Stock
Lawn Tractor Flange Nut 400234
#33

Mower deck diagram

Lawn tractor flange nut

Part #400234

Replaced by #596134801

?
Manufacturer substitution
This part replaces 400234. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31
16% OFF Phone Price : $6.31
In Stock
Washer, 13/32 X 1-1/4 X 12 19132012
#120

Mower deck diagram

Washer, 13/32 x 1-1/4 x 12

Part #19132012

Replaced by #596134901

?
Manufacturer substitution
This part replaces 19132012. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.98
20% OFF Phone Price : $4.98
In Stock
Rim Assembly, Front 106732X645
#3

Wheels and tires diagram

Rim assembly, front

Part #106732X645

Replaced by #532106732

?
Manufacturer substitution
This part replaces 106732X645. Substitute parts can look different from the original.
BEST SELLER
$78.96
7% OFF Phone Price : $84.96
In Stock
