Craftsman
Gas Snowblower

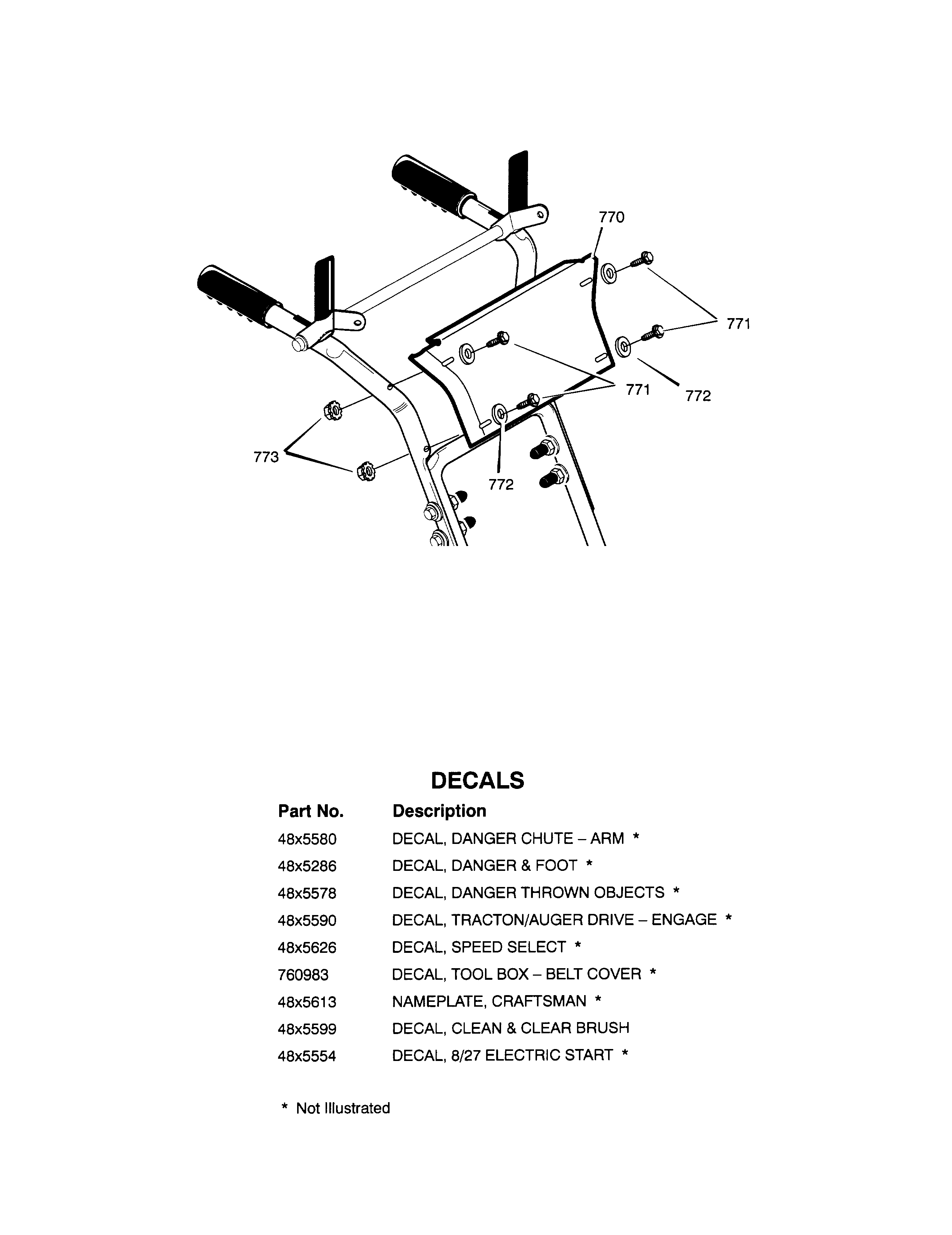

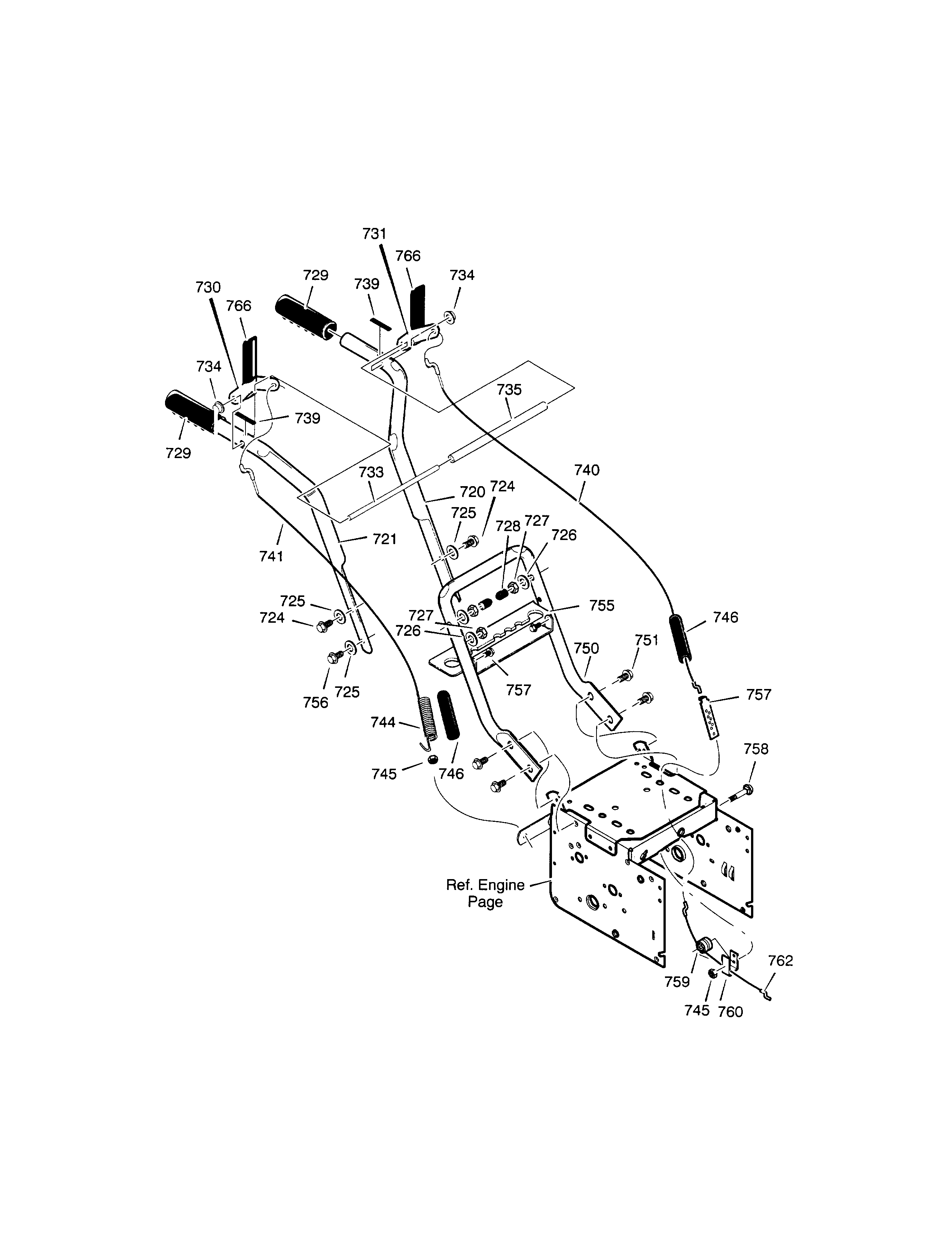

Model #536881800 Craftsman gas snow thrower

Here are the diagrams and repair parts for Craftsman 536881800 gas snow thrower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

    Showing 10 of 357 parts

    Snowblower Ground Drive Belt, 3/8 x 33-1/16-in#10

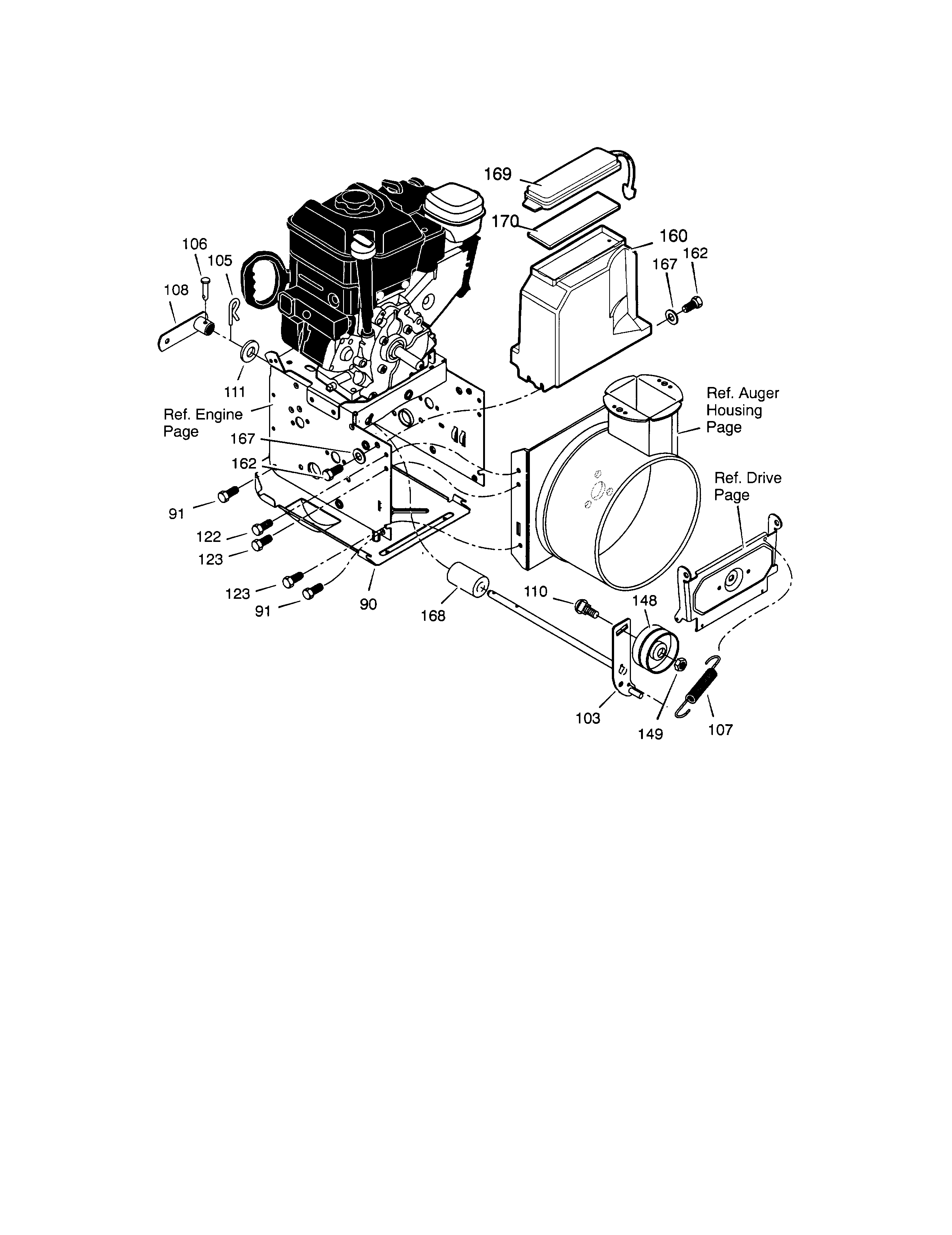

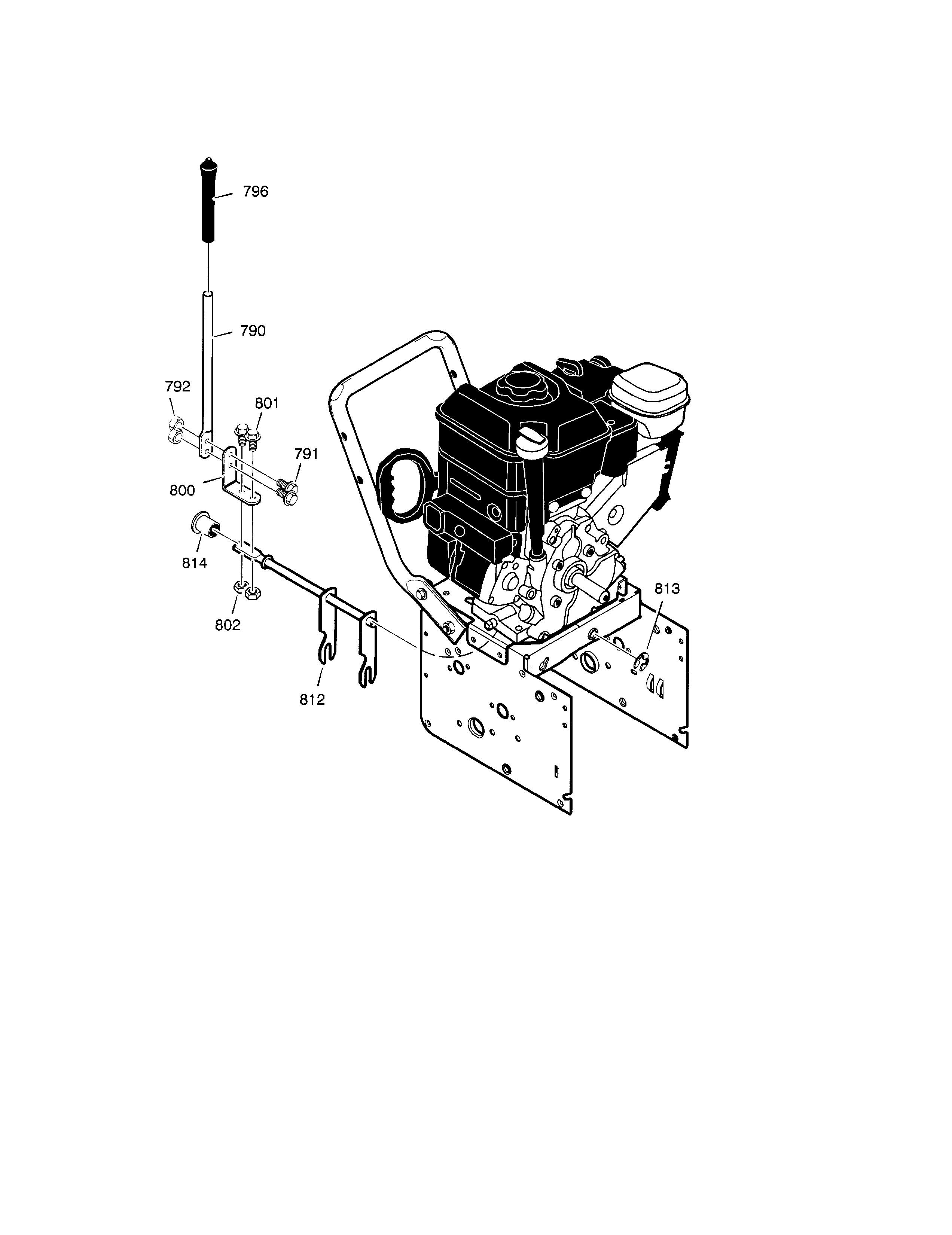

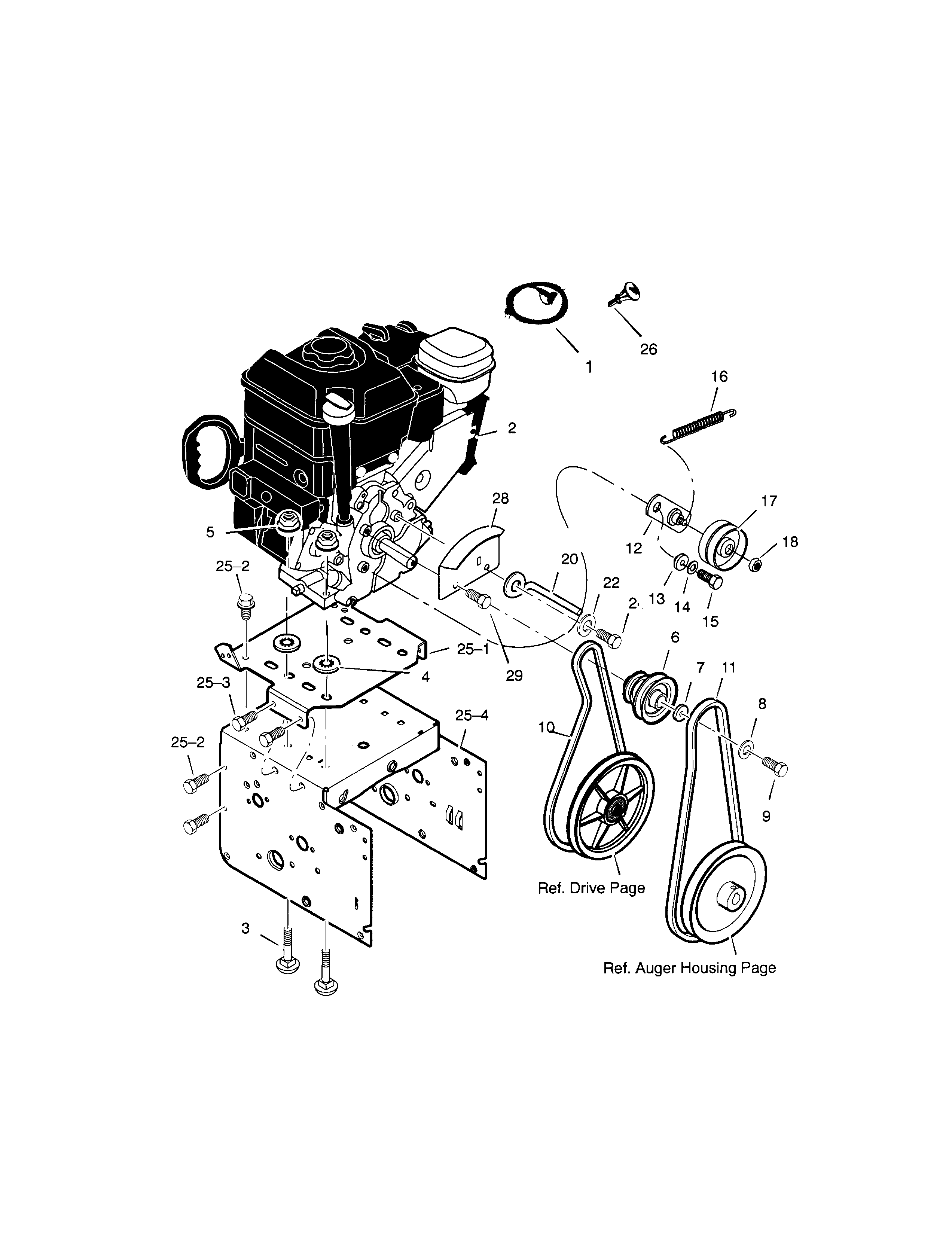

    Engine Diagram

    Snowblower drive belt

    Part #579932
    Replaced by #1733324SM
    ?
    Manufacturer substitution
    This part replaces 579932. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $17.69 |
    12% OFF
    MSRP: $20.00
    Snowblower Chute and Deflector#600

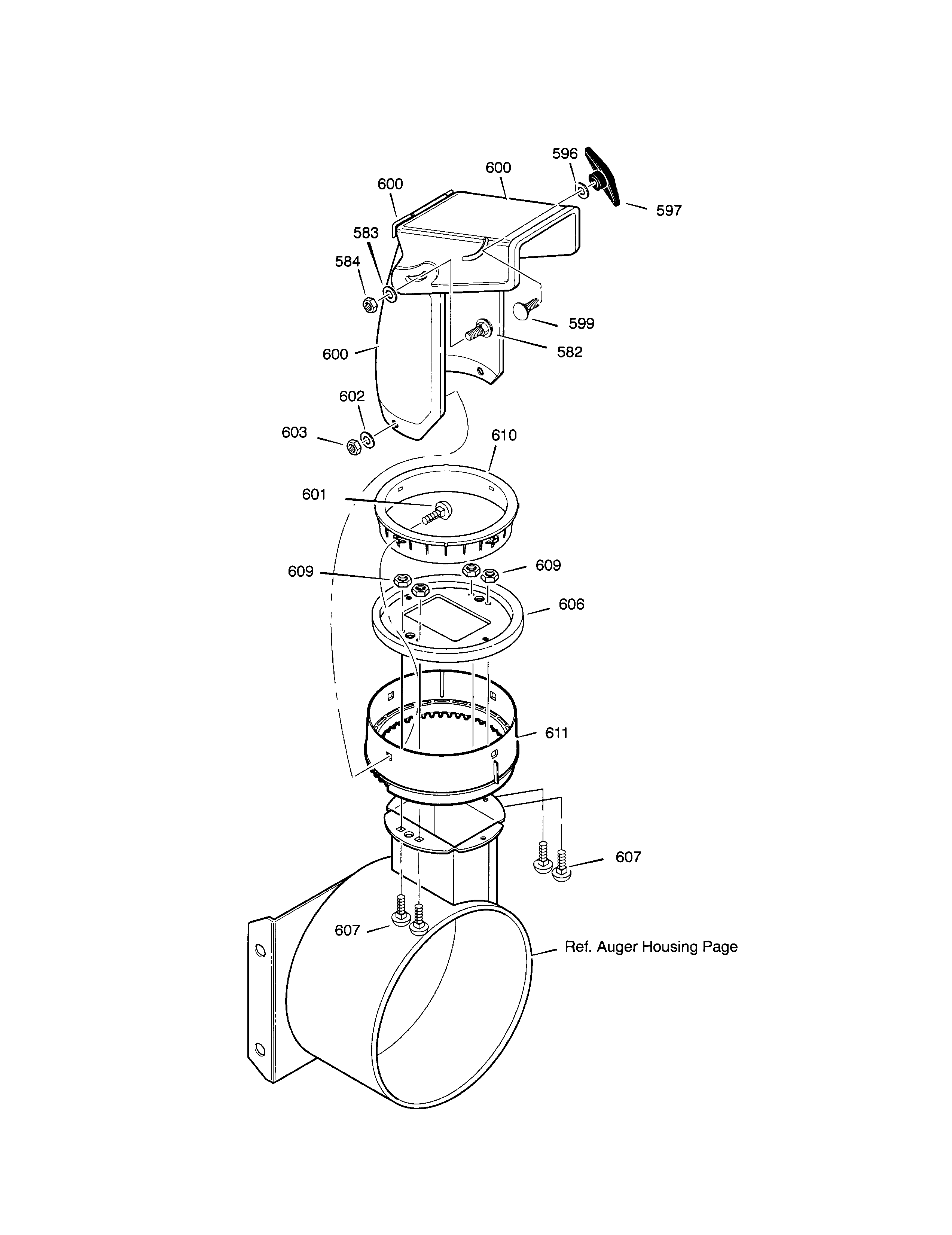

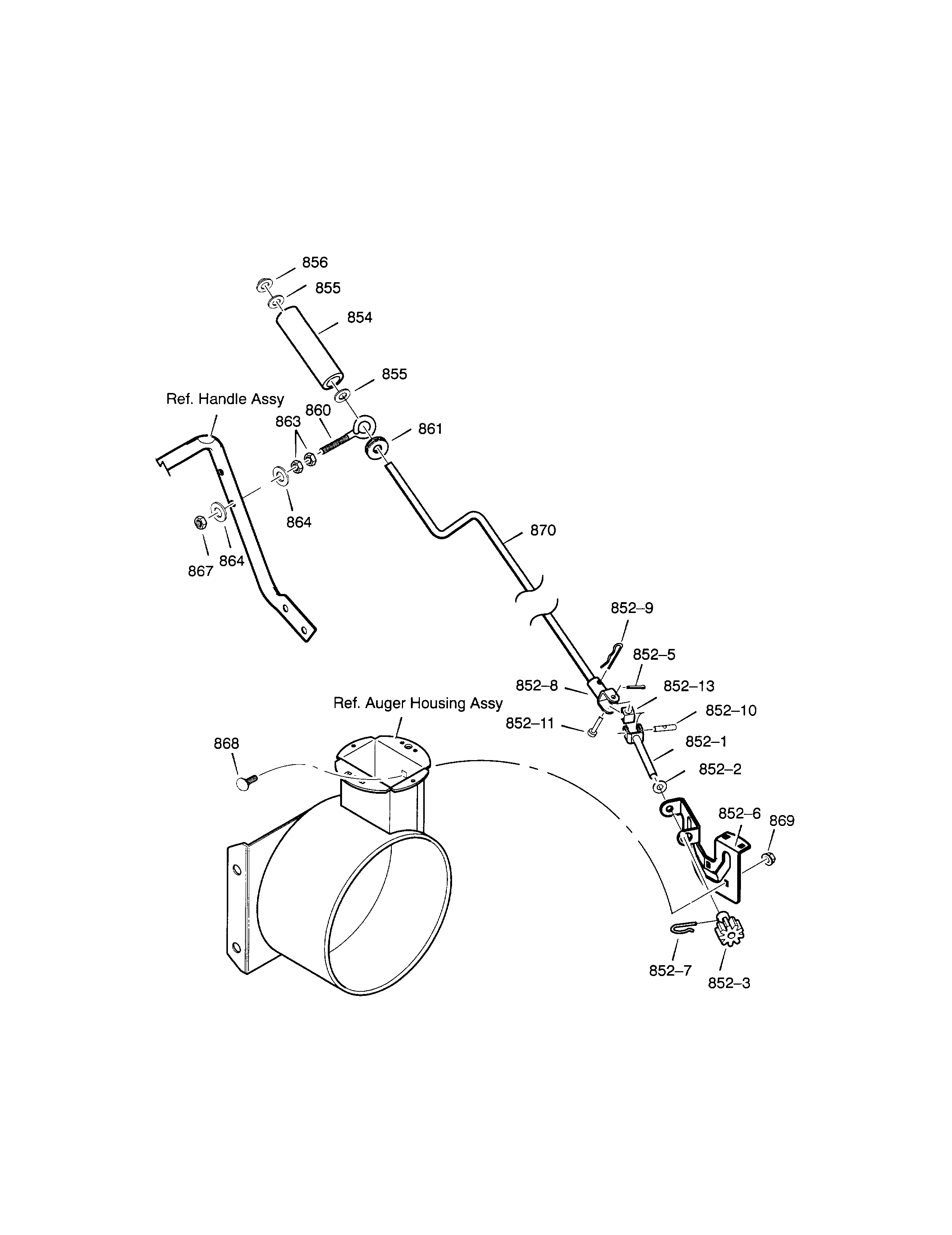

    Discharge chute Diagram

    Up assembly

    Part #762222
    Replaced by #762222MA
    ?
    Manufacturer substitution
    This part replaces 762222. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $48.59 |
    20% OFF
    MSRP: $61.00
    Snowblower Friction Wheel Assembly#212

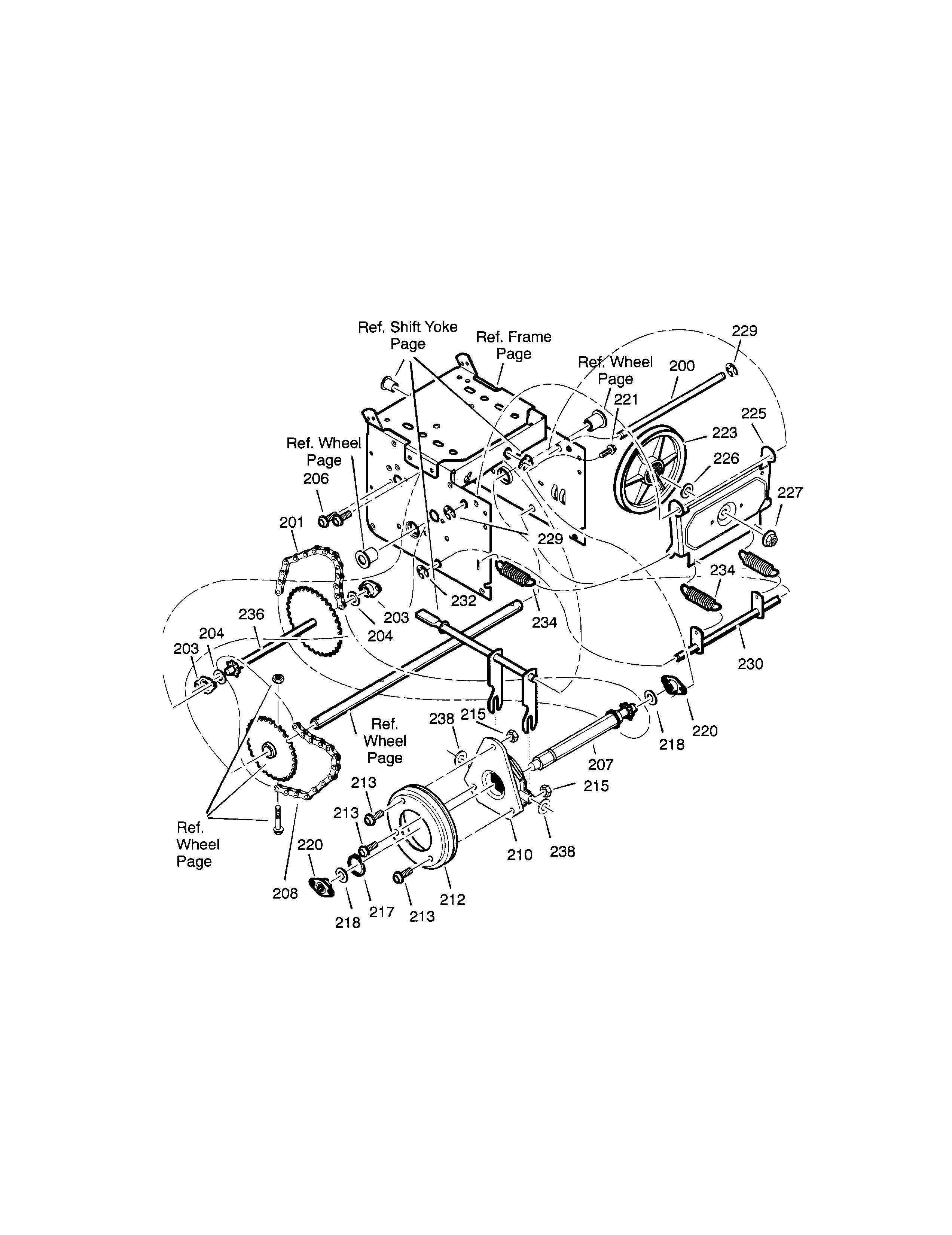

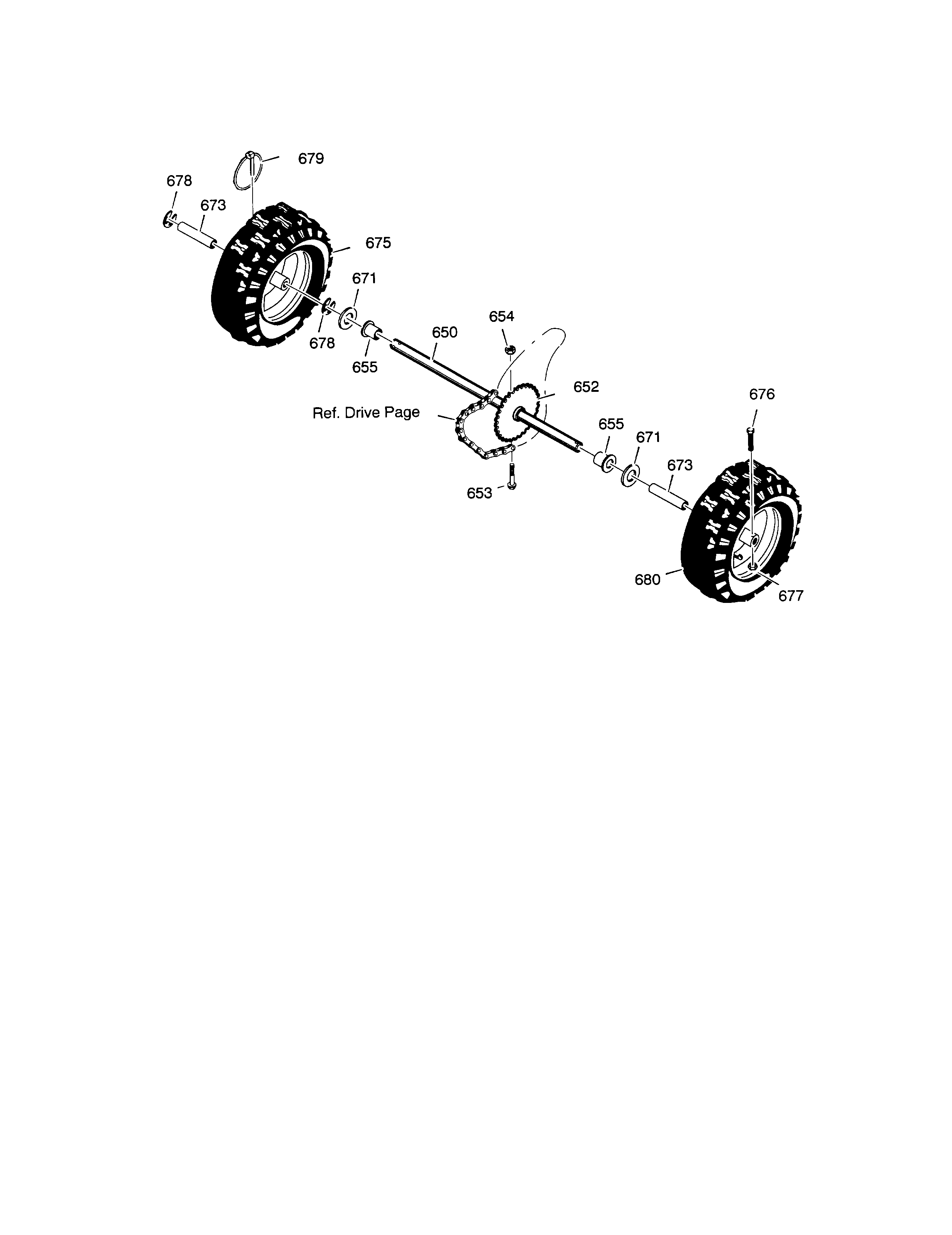

    Drive Diagram

    Friction wheel

    Part #1501435
    Replaced by #1501435MA
    ?
    Manufacturer substitution
    This part replaces 1501435. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $25.79 |
    8% OFF
    MSRP: $28.00
    Snowblower Shear Pin Set#NI

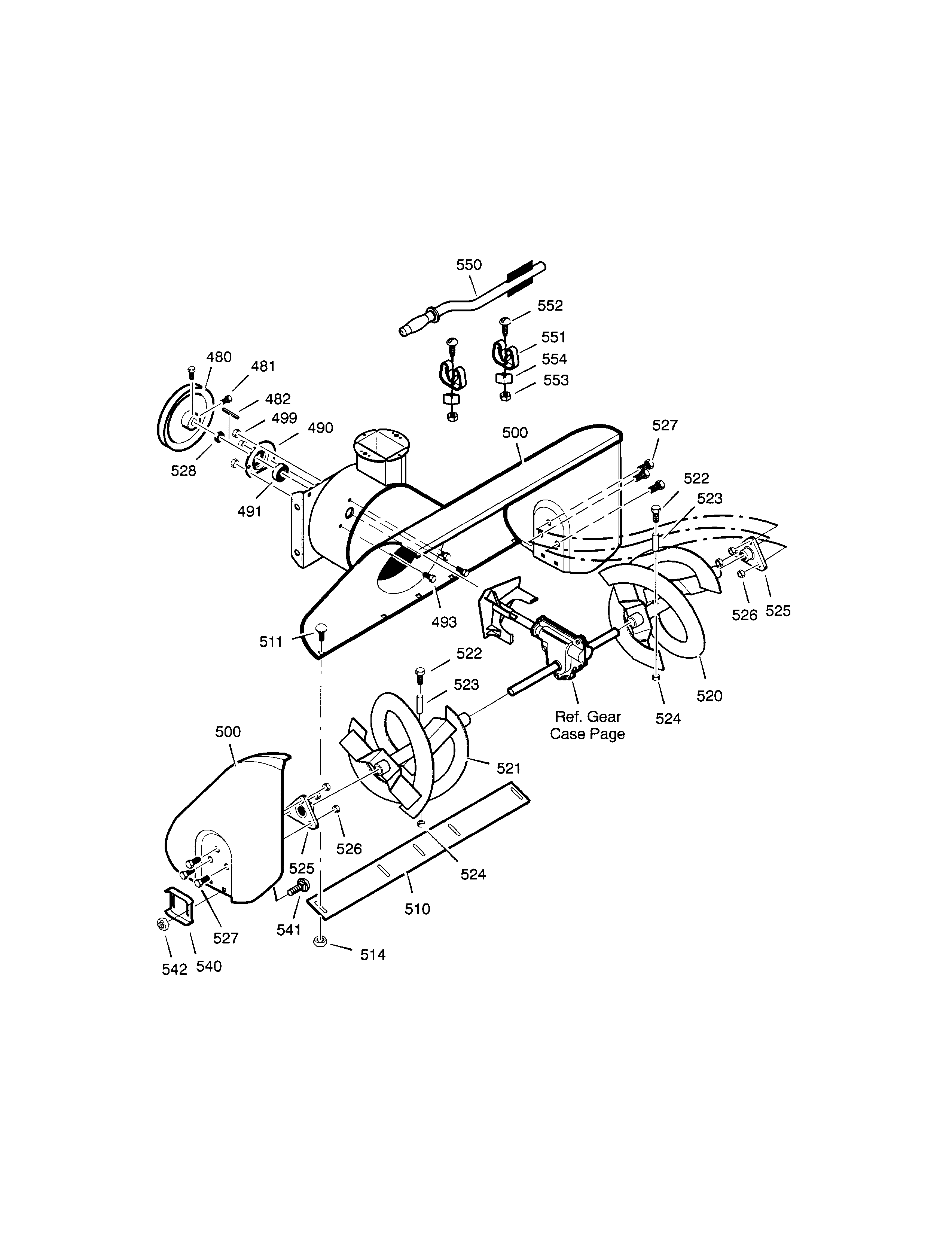

    Auger housing Diagram

    Kit shearbol

    Part #1501227
    Replaced by #1501227MA
    ?
    Manufacturer substitution
    This part replaces 1501227. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable

    Get free shipping with Automatic Reorder

    In Stock
    $5.89 |
    12% OFF
    MSRP: $6.70
    Snowblower Screw#522

    Auger housing Diagram

    Snowblower shear bolt

    Part #9524
    Replaced by #703057
    ?
    Manufacturer substitution
    This part replaces 9524. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    In Stock
    $4.69 |
    23% OFF
    MSRP: $6.10
    Snowblower Auger Shear Bolt Sleeve#523

    Auger housing Diagram

    1/4" spacer

    Part #3943
    Replaced by #703058
    ?
    Manufacturer substitution
    This part replaces 3943. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    In Stock
    $6.49 |
    15% OFF
    MSRP: $7.60
    Snowblower Spring#234

    Drive Diagram

    Extension spring

    Part #165X112
    Replaced by #1736469YP
    ?
    Manufacturer substitution
    This part replaces 165X112. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    In Stock
    $5.89 |
    20% OFF
    MSRP: $7.40
    Snowblower Ball Bearing#491

    Auger housing Diagram

    Ball bearing

    Part #1501389
    Replaced by #1705897SM
    ?
    Manufacturer substitution
    This part replaces 1501389. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    In Stock
    $7.29 |
    21% OFF
    MSRP: $9.20
    Snowblower Nut

    See All Related Diagrams

    Lock nut

    Part #73826
    Replaced by #703251
    ?
    Manufacturer substitution
    This part replaces 73826. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    In Stock
    $3.89 |
    22% OFF
    MSRP: $5.00
    Snowblower Auger Worm Gear#315

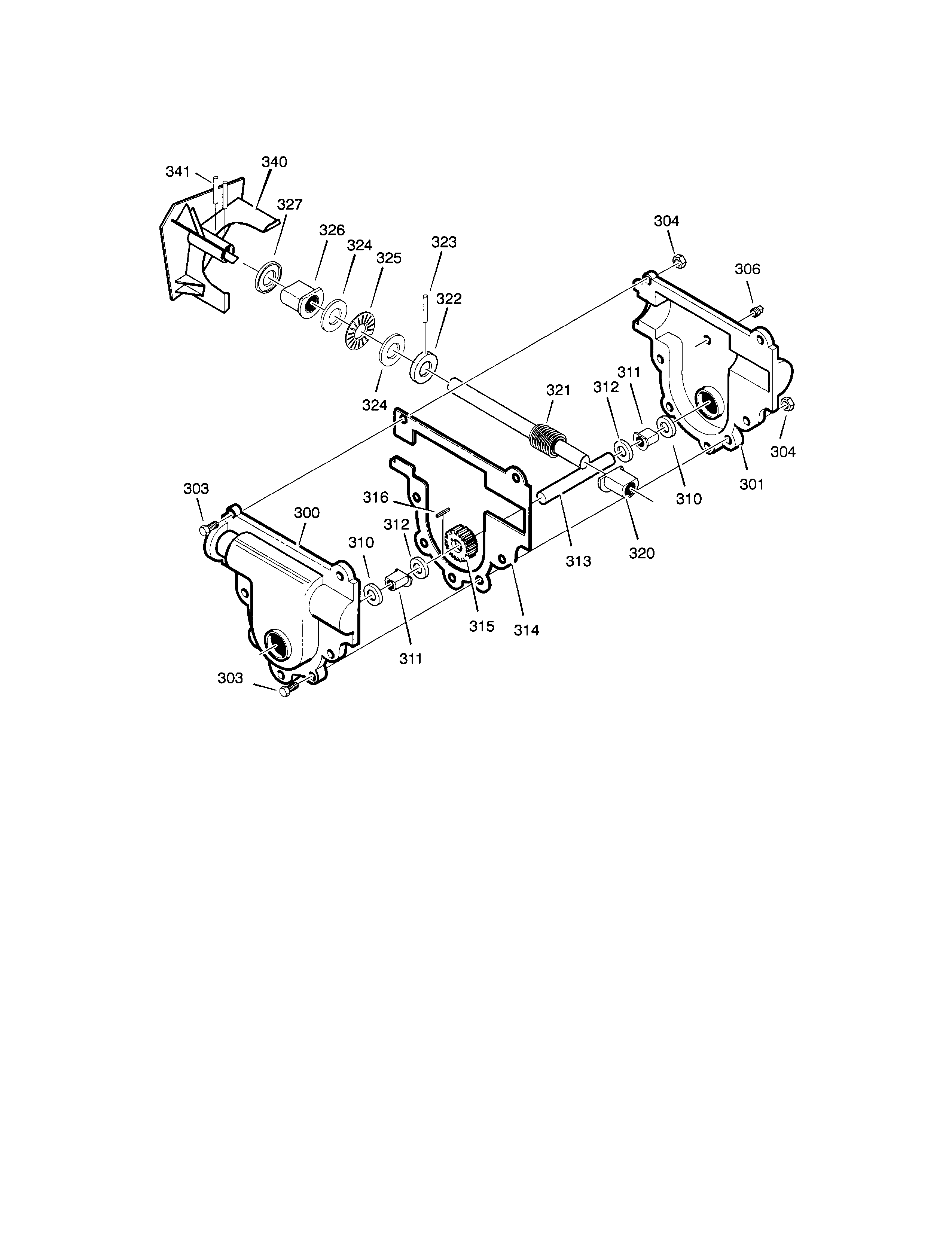

    Gear case Diagram

    Worm gear

    Part #51405
    Replaced by #51405MA
    ?
    Manufacturer substitution
    This part replaces 51405. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $86.89 |
    7% OFF
    MSRP: $93.00
