Model #LDG7500AAW Maytag washer/dryer

Here are the diagrams and repair parts for Maytag LDG7500AAW washer/dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

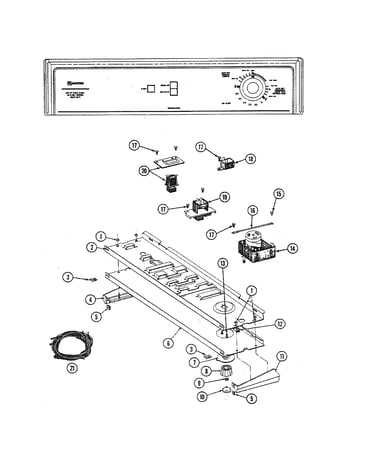

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profile

    Showing 10 of 150 parts

    Dryer Door Latch Kit

    #7

    Door Diagram

    $9.39

    In Stock

    Label Instruction

    #21A

    Door Diagram

    Label instruction

    Part #314941
    This item is not returnable
    $5.99

    In Stock

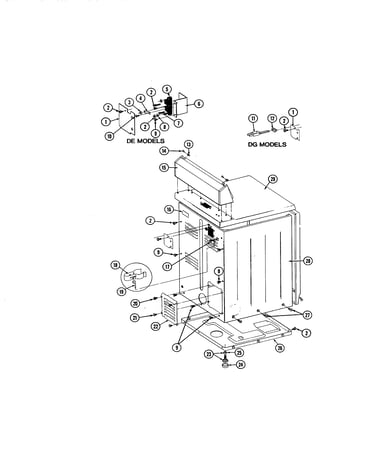

    Cabinet Screw

    #15

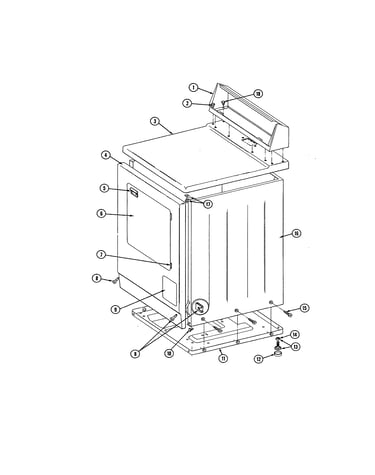

    Cabinet - front Diagram

    Cabinet screw

    Part #213007
    $10.19

    In Stock

    Ground Wire Screw

    #13

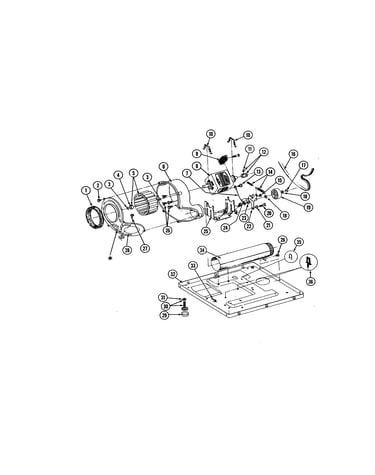

    Motor drive Diagram

    Ground wire screw

    Part #910343
    This item is not returnable
    $2.16

    In Stock

    Dryer Drum Bearing Kit

    #28

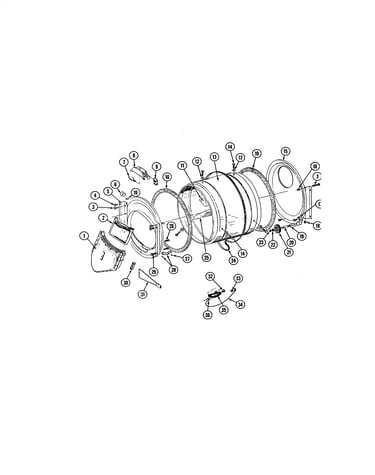

    Tumbler Diagram

    $14.99

    Back Order

    Dryer Operating Thermostat

    #3

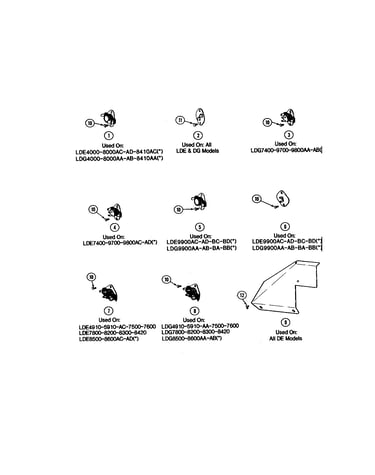

    Thermostats Diagram

    Dryer operating thermostat

    Part #WP3387134
    ?
    Manufacturer substitution
    This part replaces 306910. Substitute parts can look different from the original.
    This part replaces 306910
    $16.99

    In Stock

    Dryer Idler Arm Spacer

    #24

    Motor drive Diagram

    Dryer idler arm spacer

    Part #WPW10116756
    ?
    Manufacturer substitution
    This part replaces 313582. Substitute parts can look different from the original.
    This part replaces 313582
    $20.99 |
    16% OFF MSRP:$25.00

    In Stock

    Dryer High-Limit Thermostat

    #21

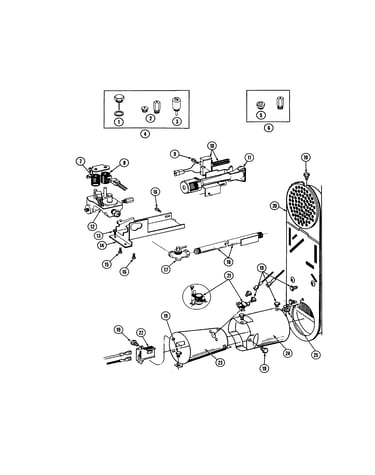

    Gas valve Diagram

    Dryer high-limit thermostat

    Part #WP303395
    ?
    Manufacturer substitution
    This part replaces 303395. Substitute parts can look different from the original.
    This part replaces 303395
    $18.99 |
    17% OFF MSRP:$22.89

    In Stock

    Dryer Lint Screen

    #2

    Tumbler Diagram

    Dryer lint screen

    Part #WP33002970
    ?
    Manufacturer substitution
    This part replaces 307107. Substitute parts can look different from the original.
    This part replaces 307107
    $11.99

    In Stock

    Dryer Screw

    #15

    Motor drive Diagram

    Dryer screw

    Part #WPW10116751
    ?
    Manufacturer substitution
    This part replaces 312961. Substitute parts can look different from the original.
    This part replaces 312961
    This item is not returnable
    $3.29

    In Stock
