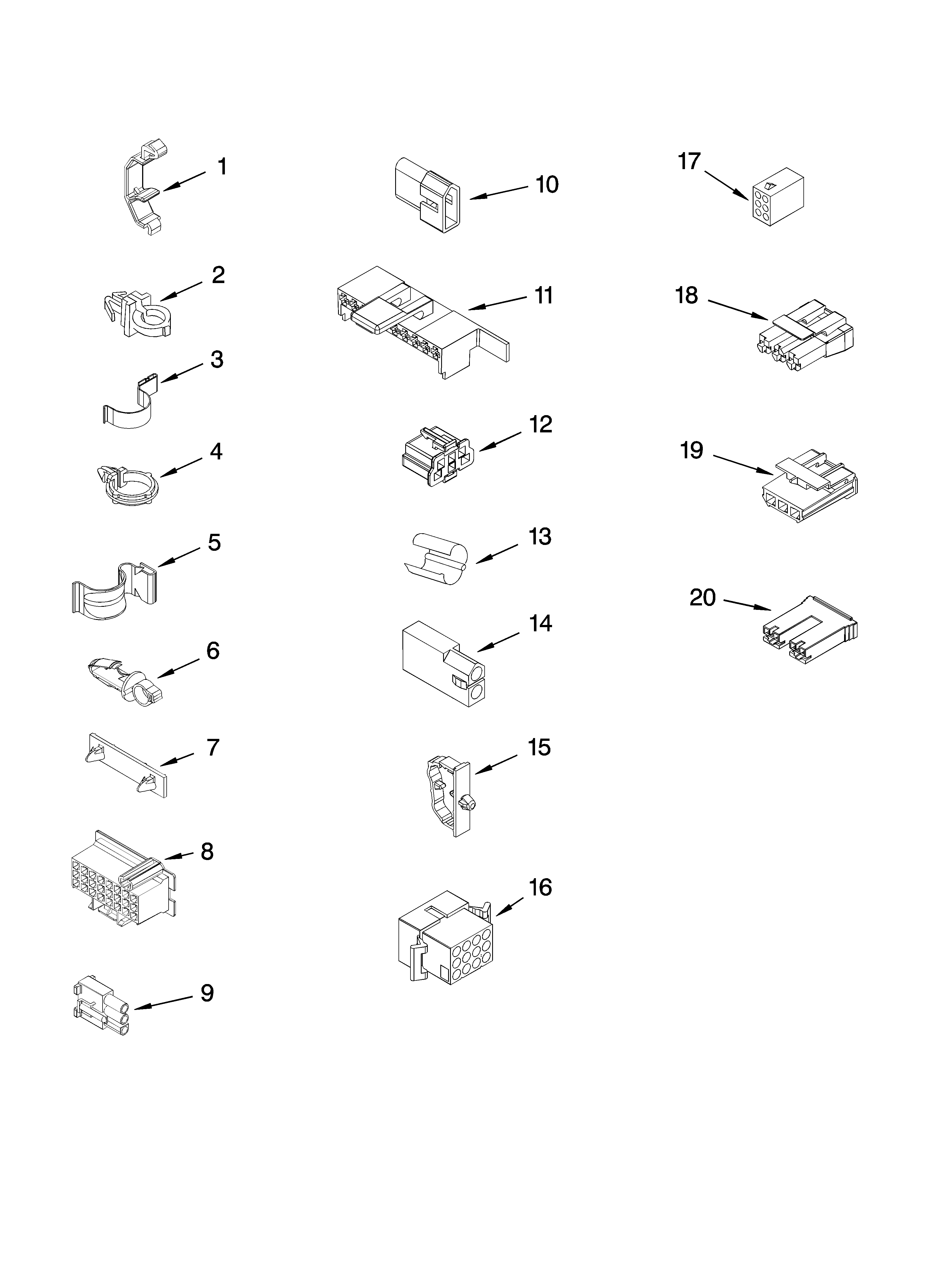

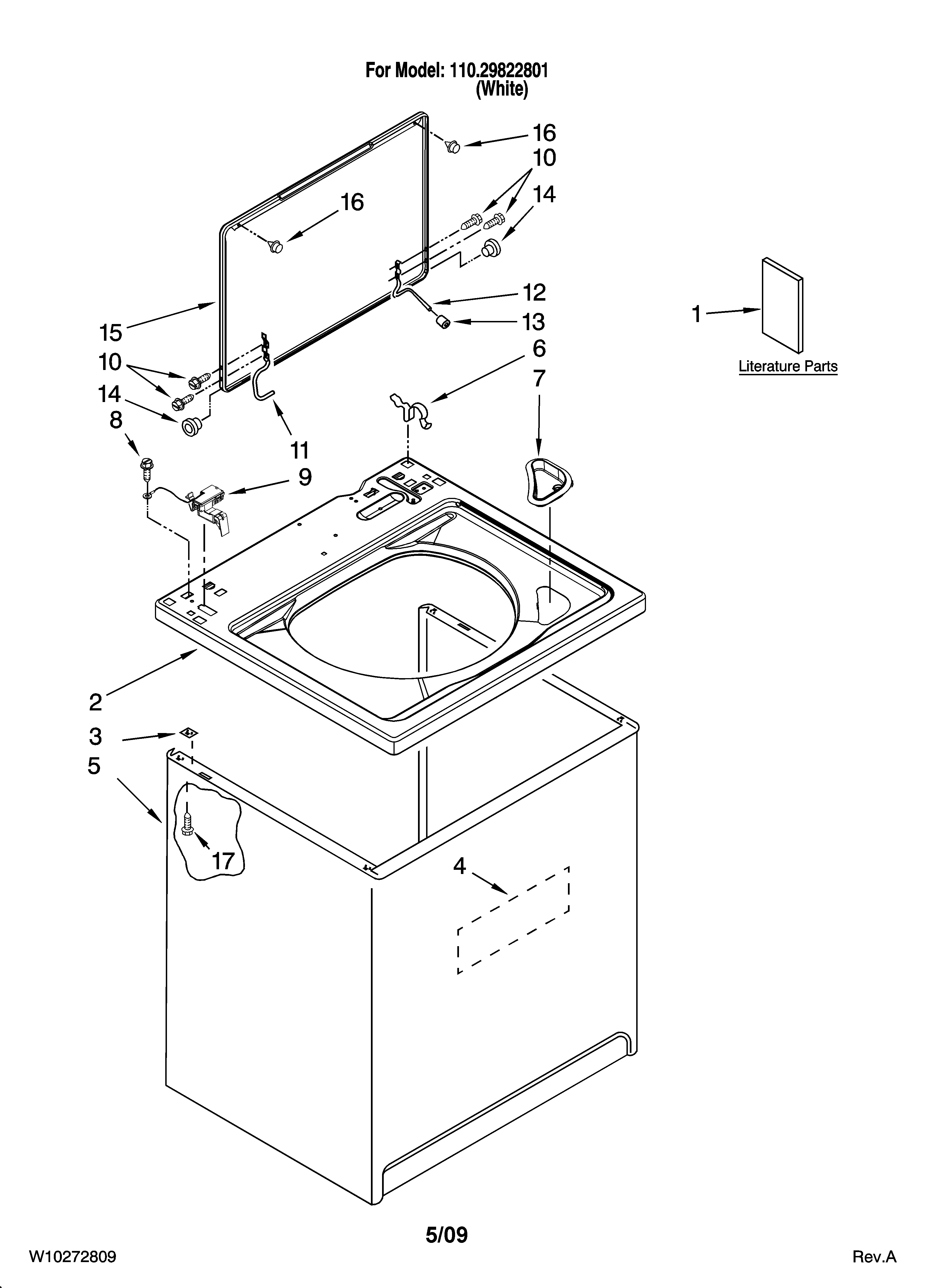

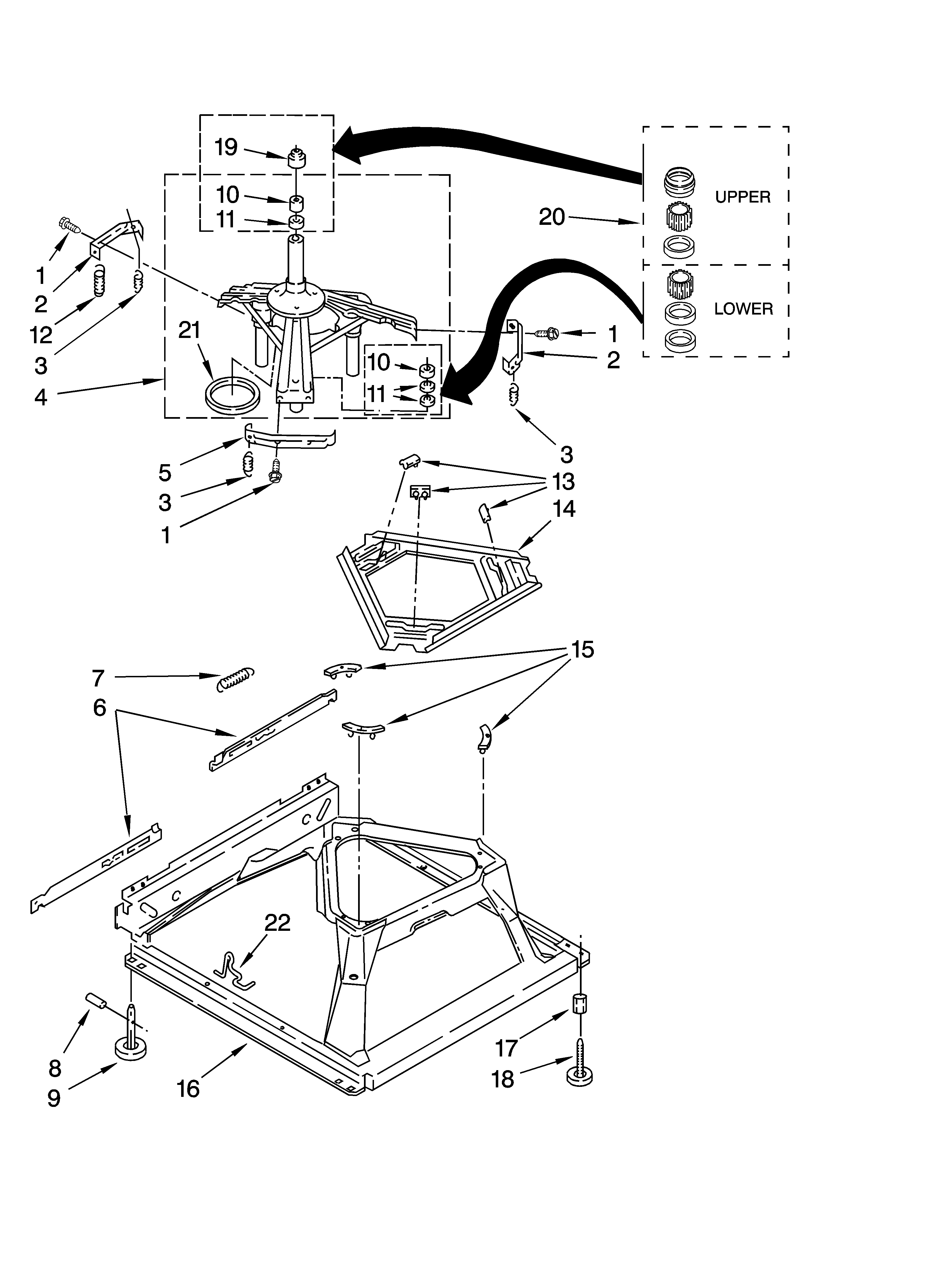

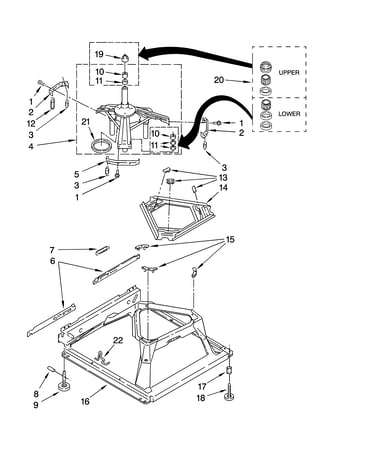

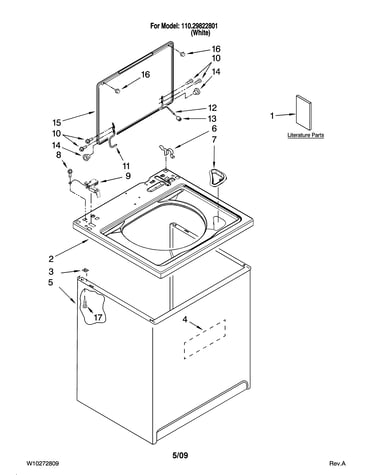

Model #11029822801 Kenmore washer
Here are the diagrams and repair parts for Kenmore 11029822801 washer, as well as links to manuals and error code tables, if available.
There are a couple of ways to find the part or diagram you need:
- Click a diagram to see the parts shown on that diagram.
- In the search box below, enter all or part of the part number or the part’s name.
Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.
We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.
For DIY troubleshooting advice and repair guides, visit our repair help section.
Showing 10 of 221 parts
#NI

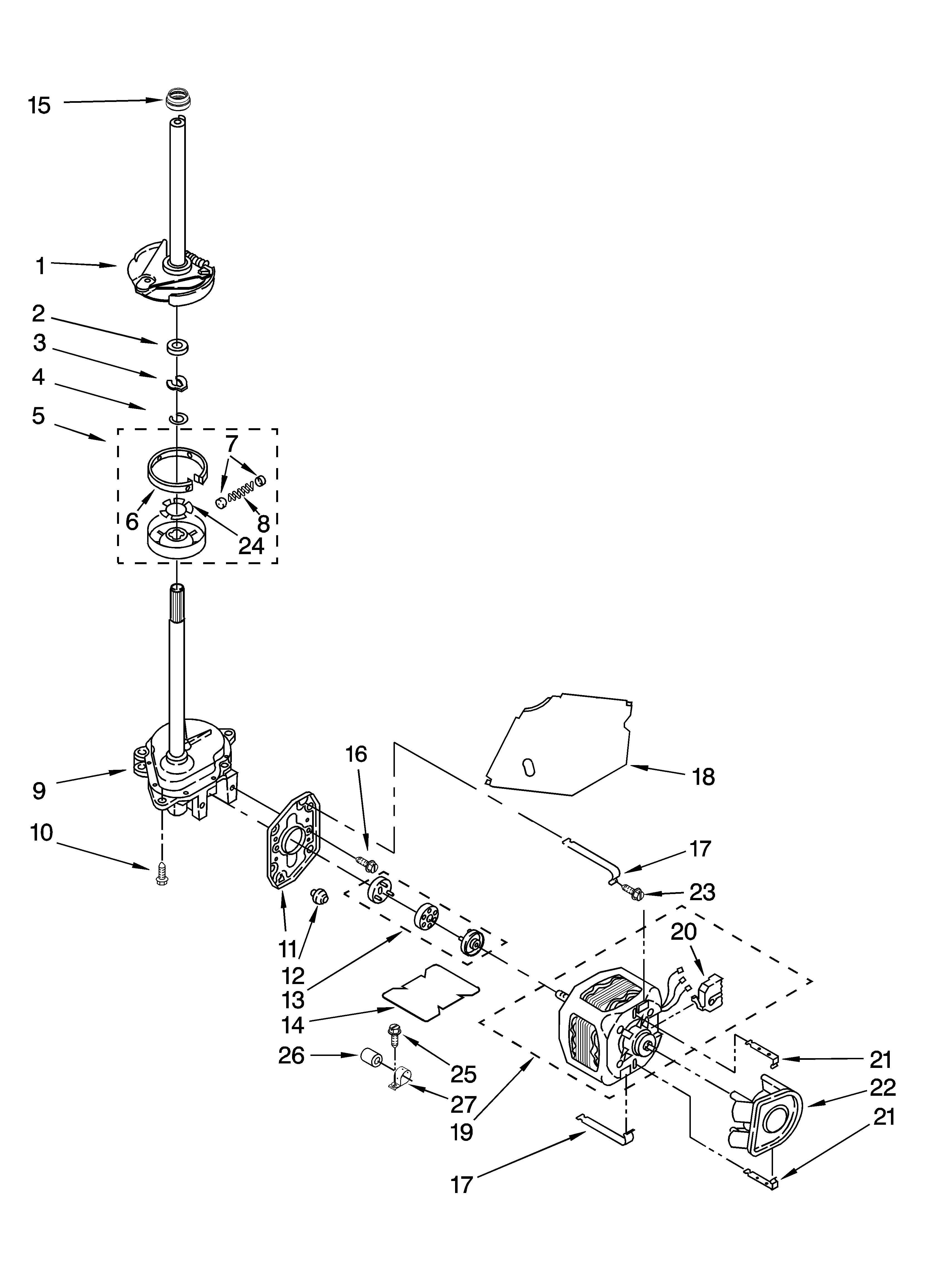

Gearcase parts Diagram
In Stock
#NI
Gearcase parts Diagram
Appliance spray paint (white)
In Stock
#NI
Gearcase parts Diagram
Washer fill hose, 2-pack
In Stock
#NI
Gearcase parts Diagram
Washer fill hose set
In Stock
#NI
Gearcase parts Diagram
Washer fill hose set
In Stock
#NI
Gearcase parts Diagram
Washer gear case oil
In Stock
#2

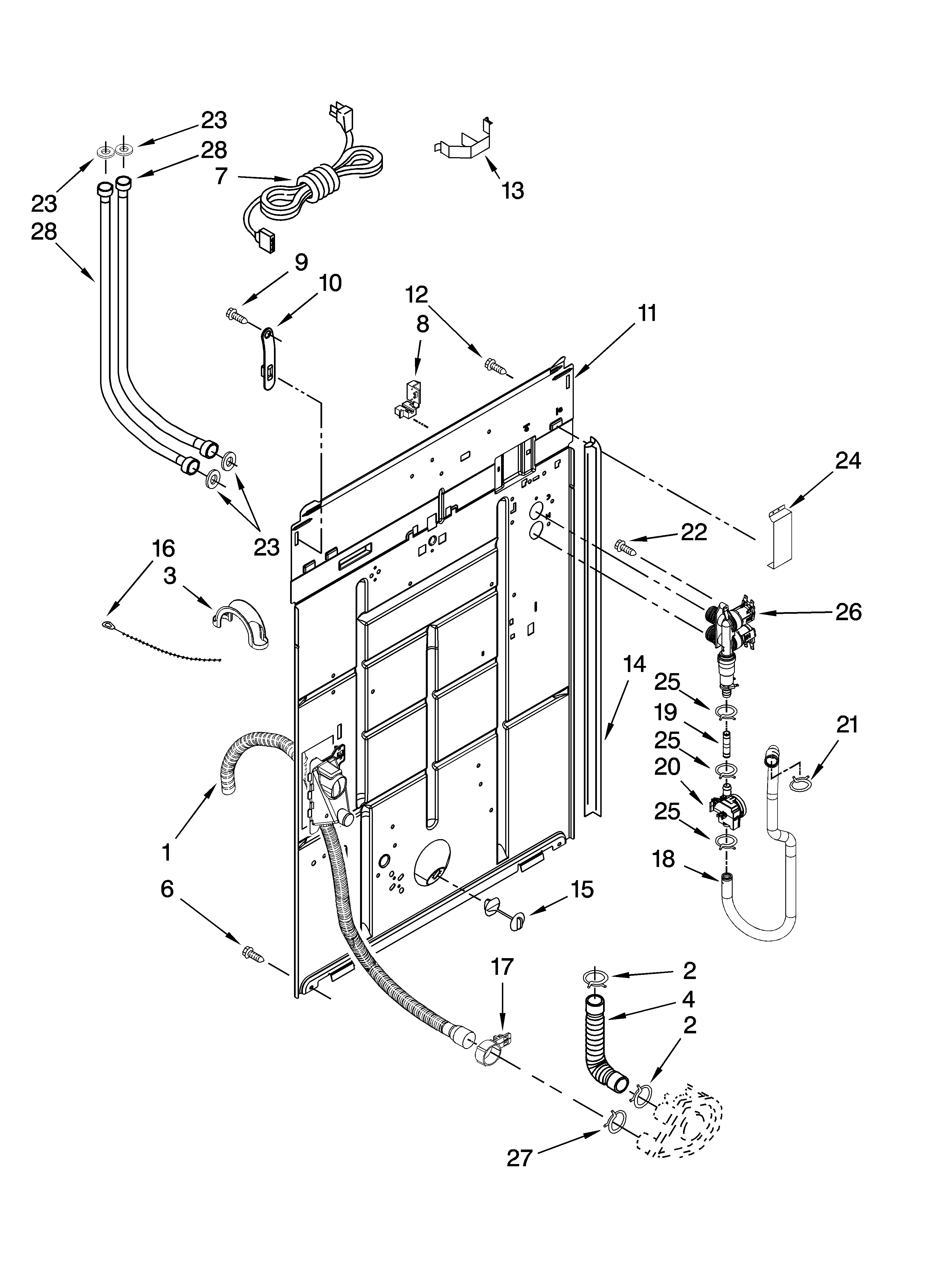

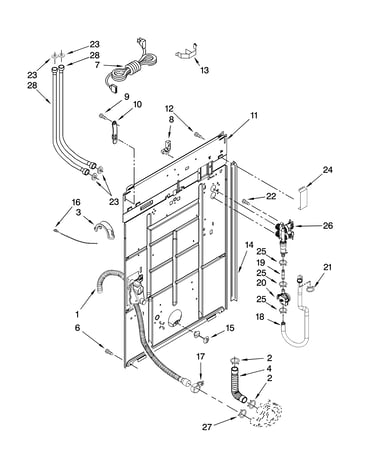

Rear panel parts Diagram
In Stock
#15

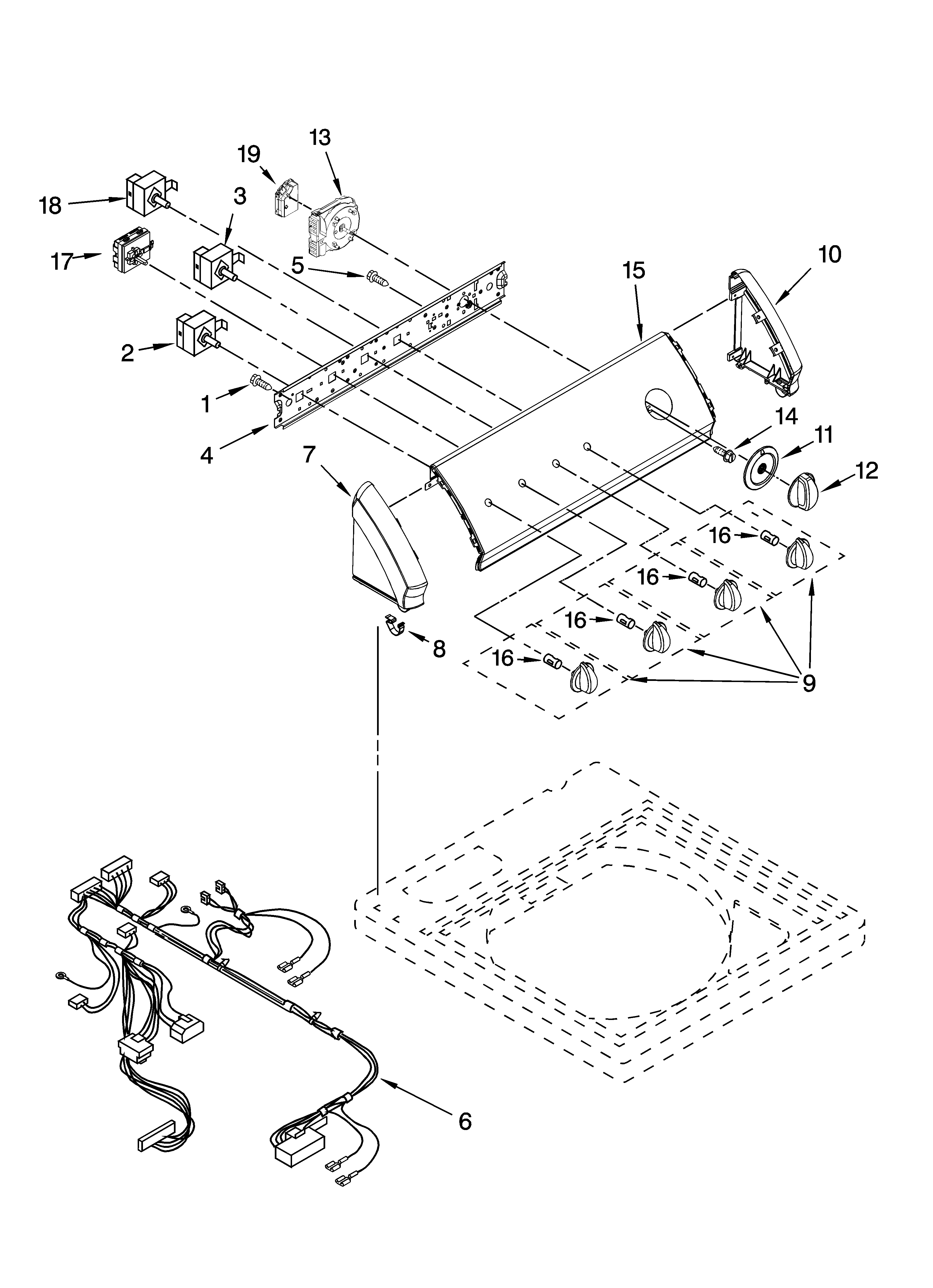

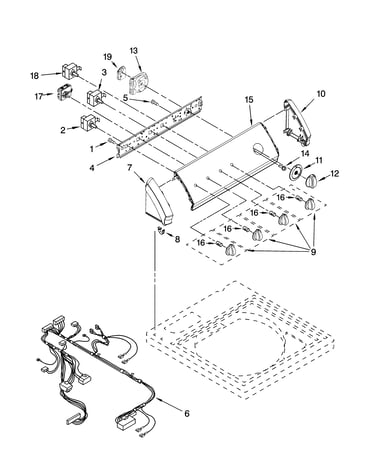

Control panel parts Diagram
Washer control panel
In Stock
#21

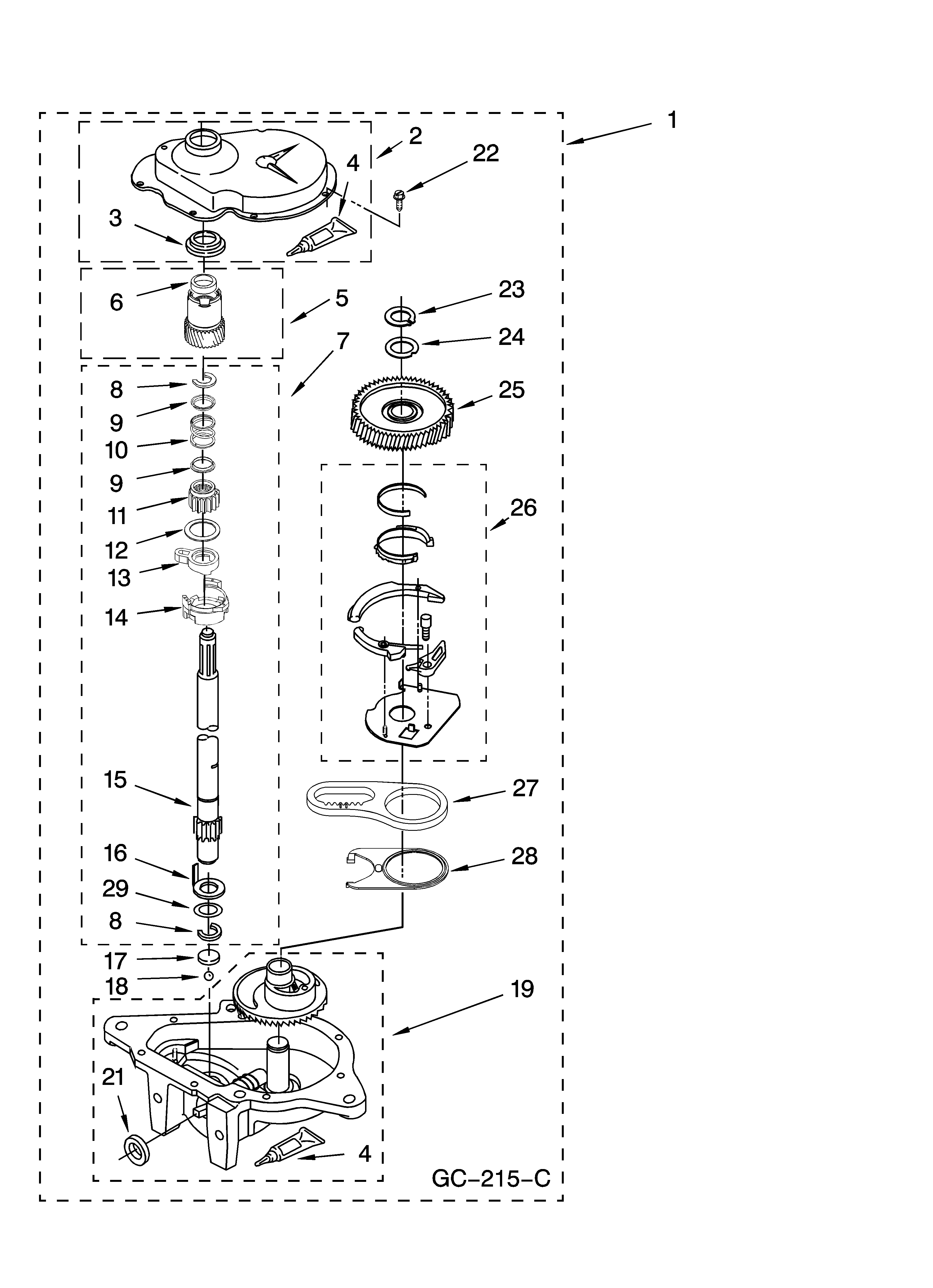

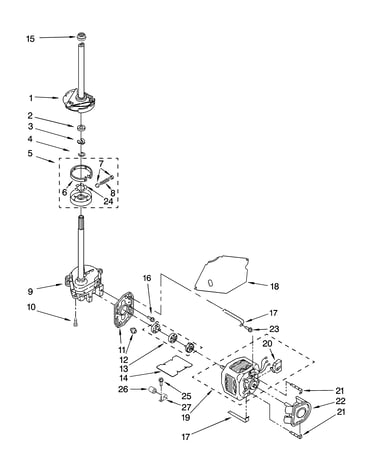

Gearcase parts Diagram
Washer gear case oil seal
In Stock
#22

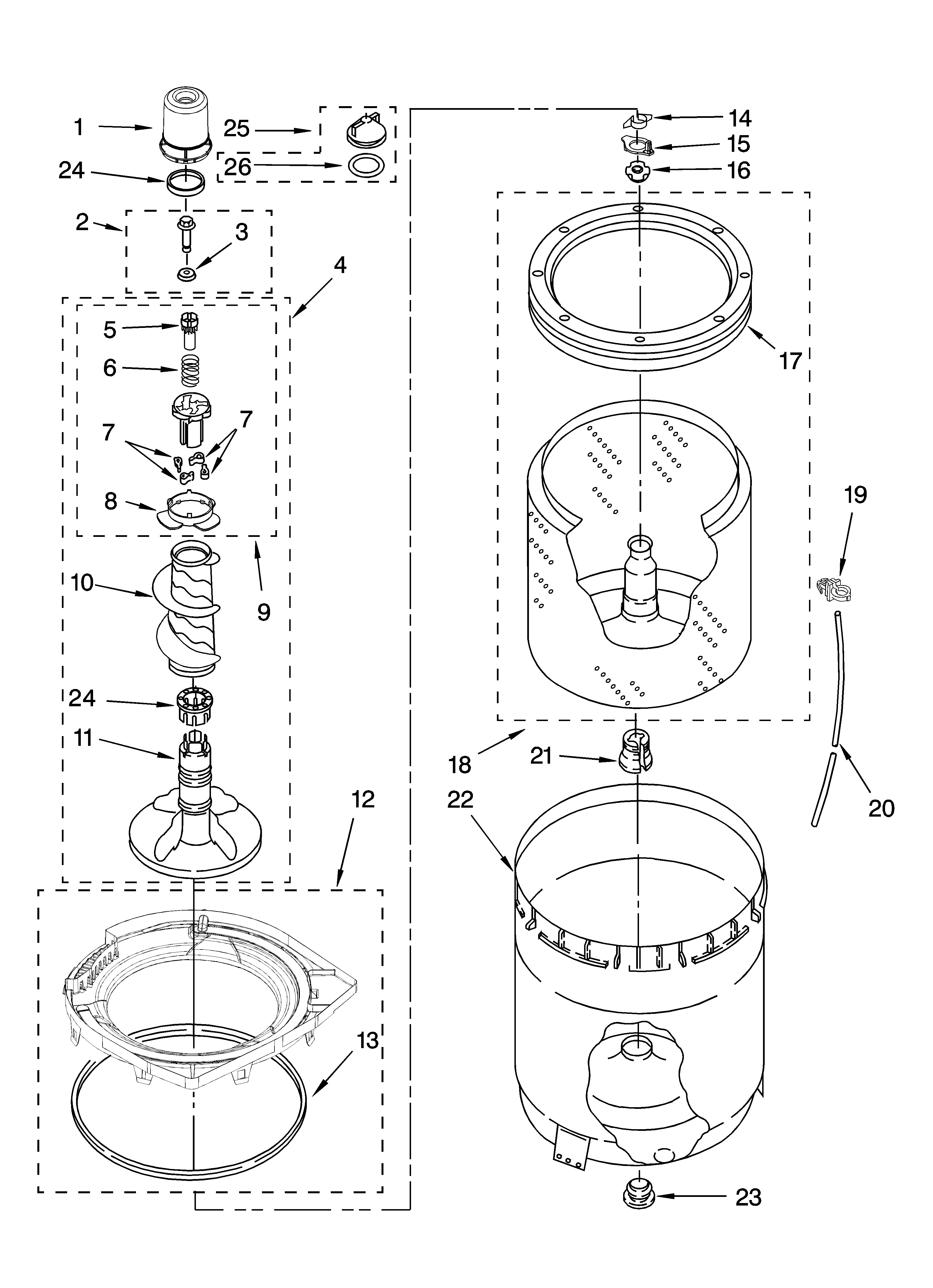

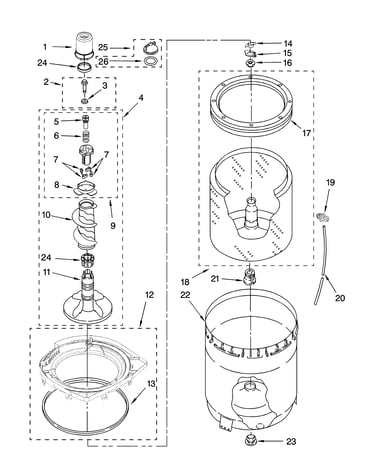

Agitator, basket and tub parts Diagram
Washer outer tub
Part #63849
The manufacturer no longer makes this part, and there's no substitute part
