Model #917250810 Official Craftsman lawn tractor
Here are the diagrams and repair parts for Craftsman 917250810 lawn tractor, as well as links to manuals and error code tables, if available.
There are a couple of ways to find the part or diagram you need:
- Click a diagram to see the parts shown on that diagram.
- In the search box below, enter all or part of the part number or the part’s name.
Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.
We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.
For DIY troubleshooting advice and repair guides, visit our repair help section.

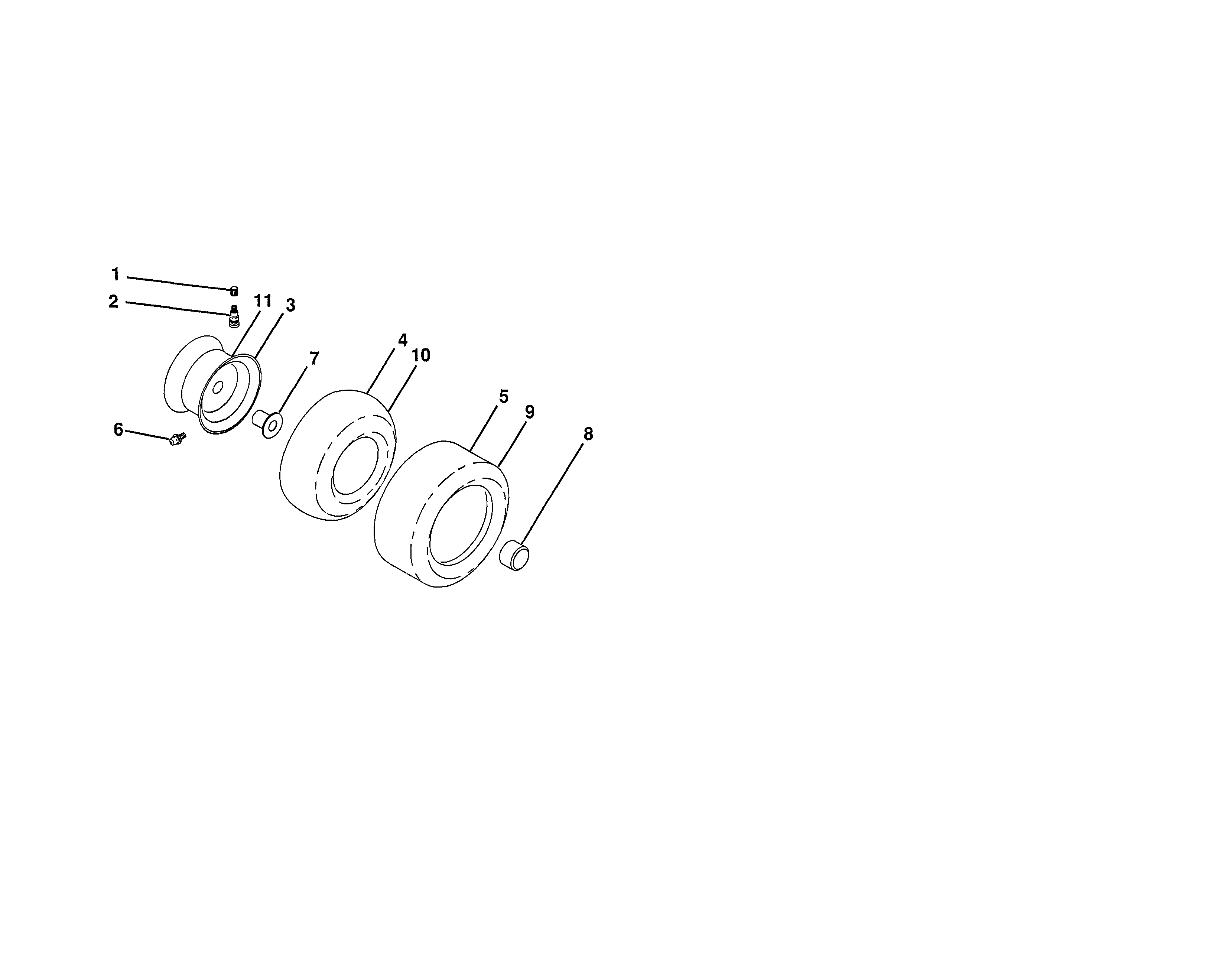

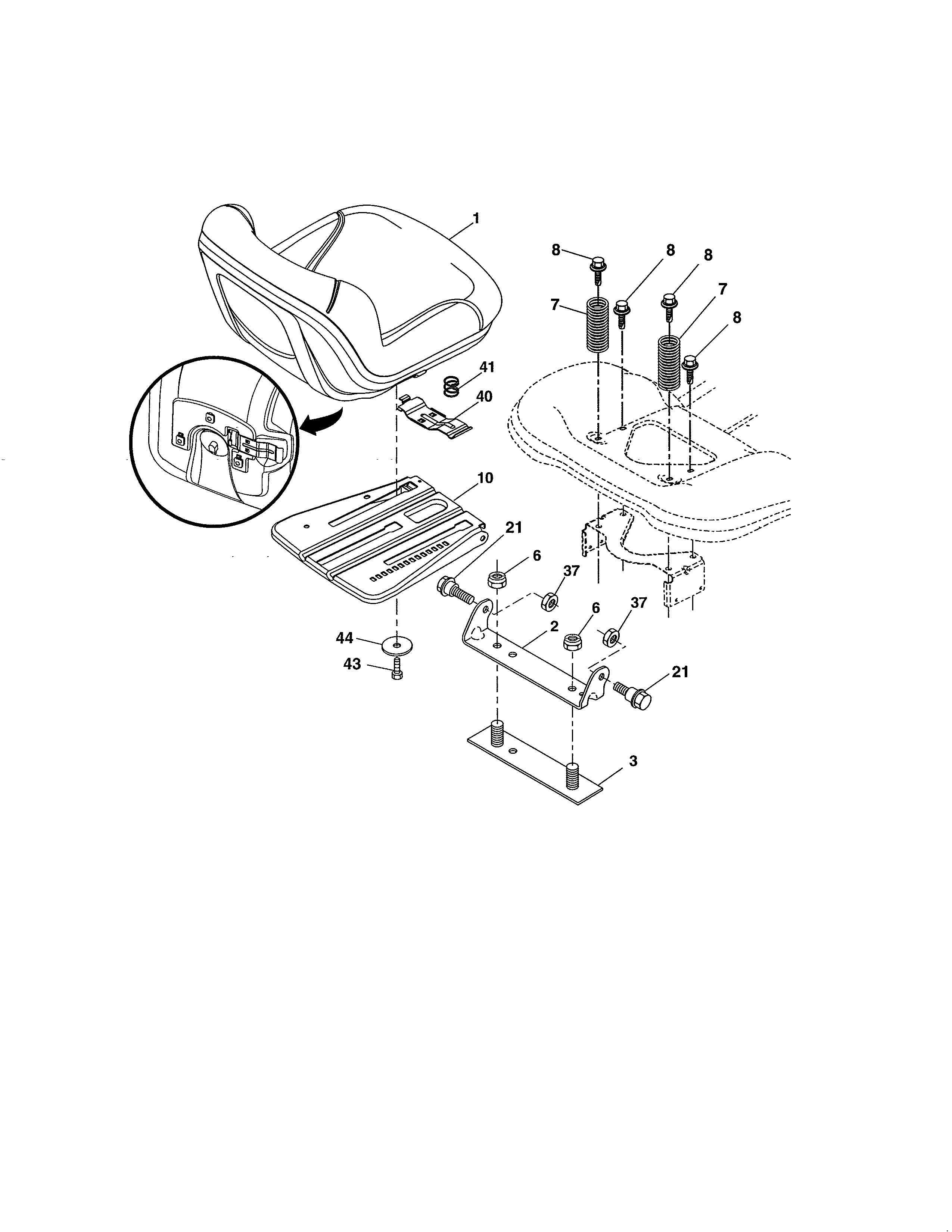

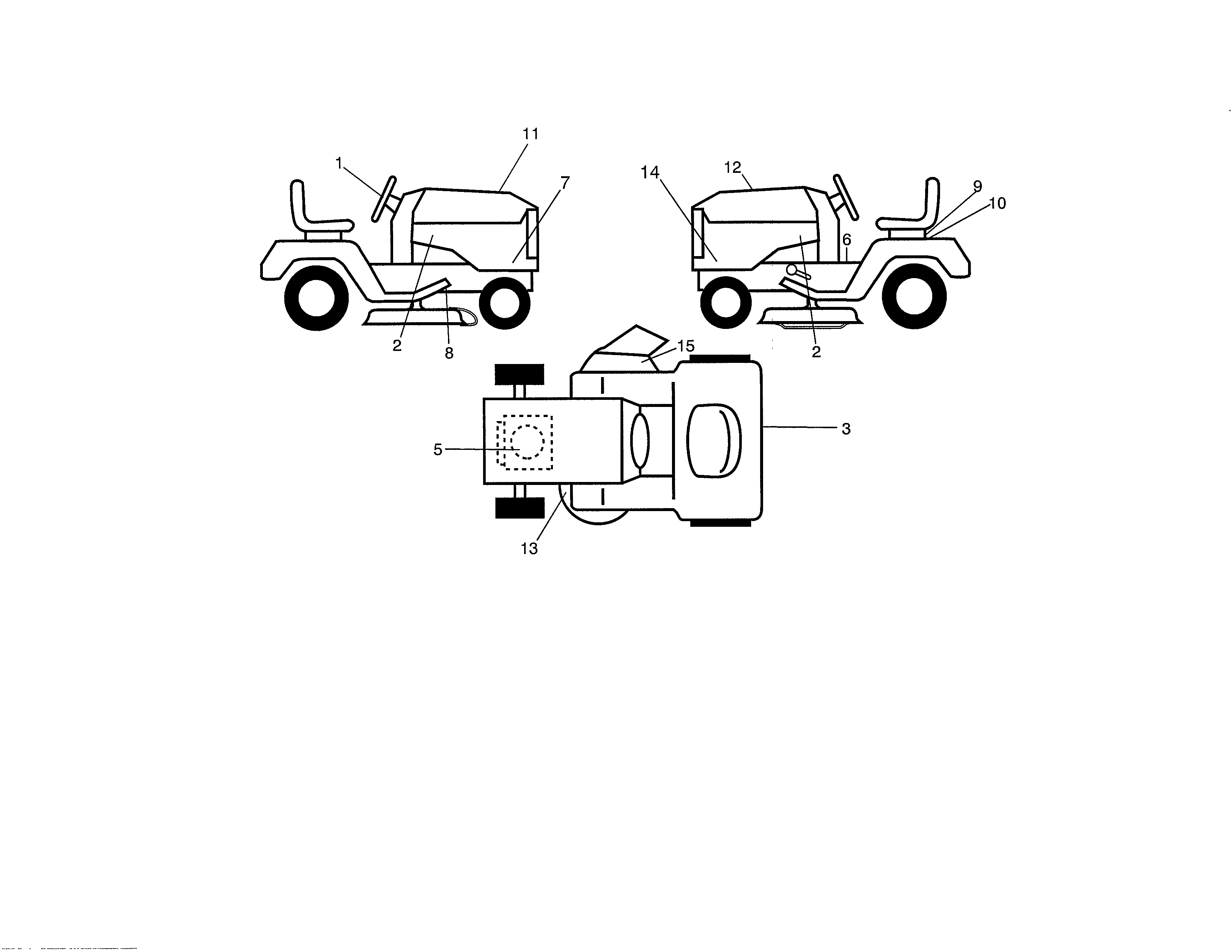

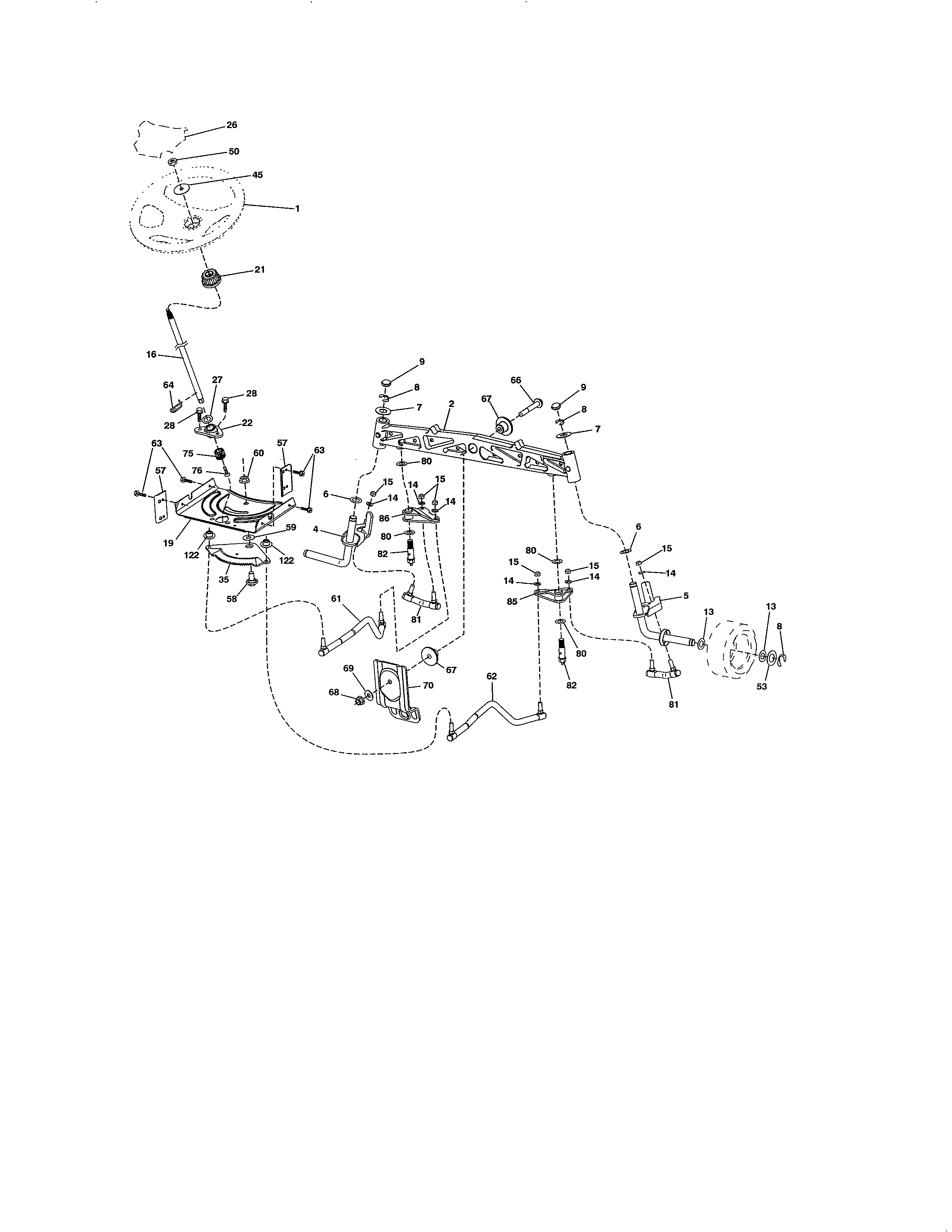

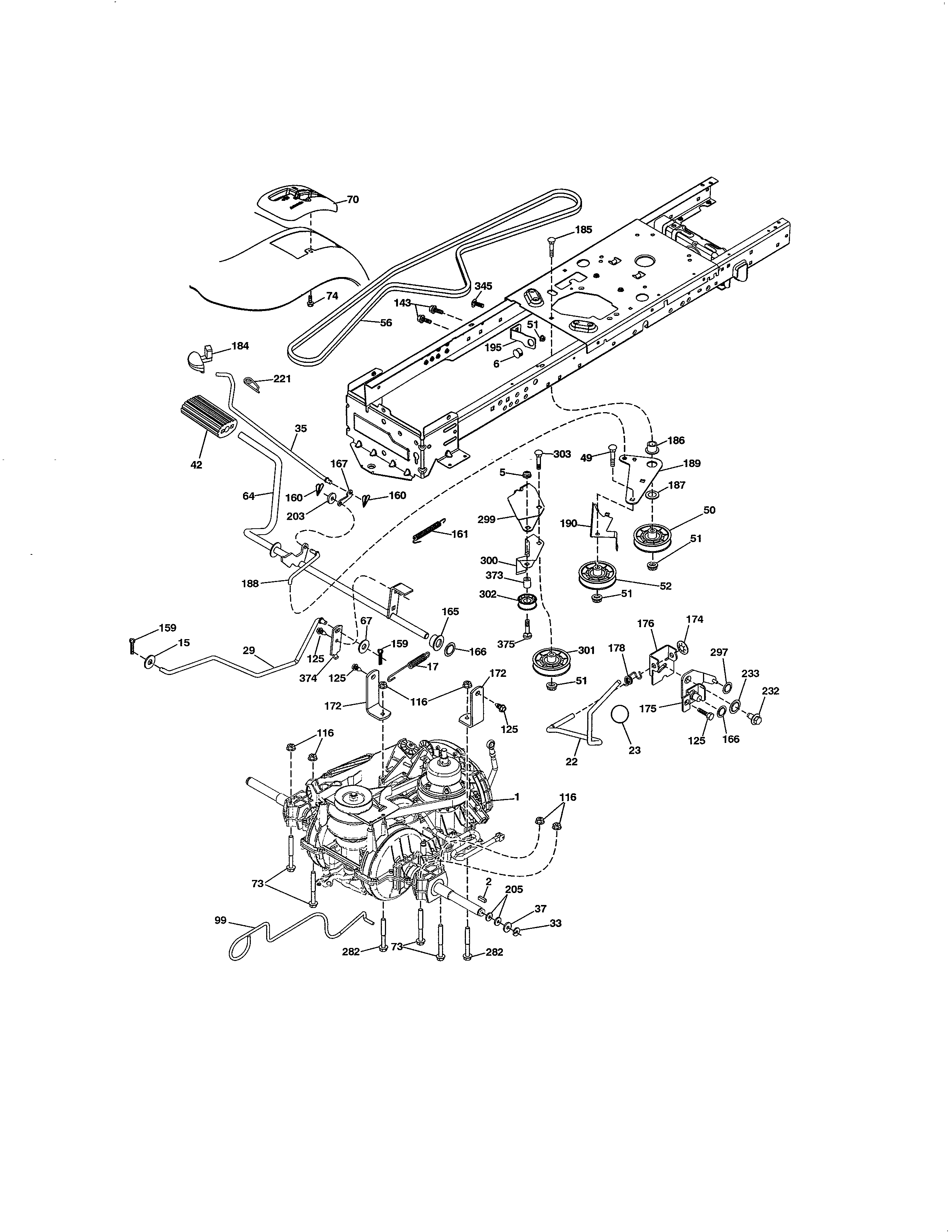

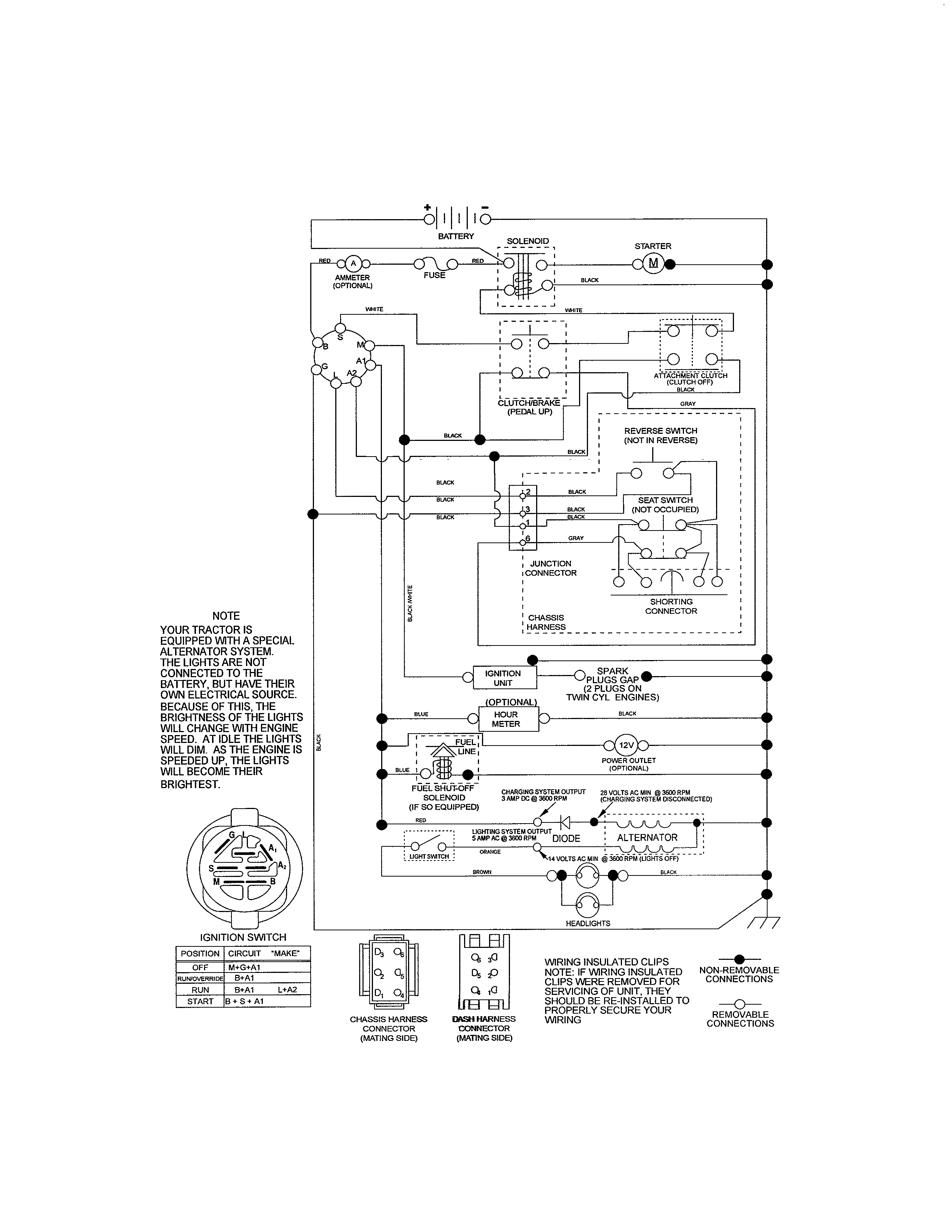

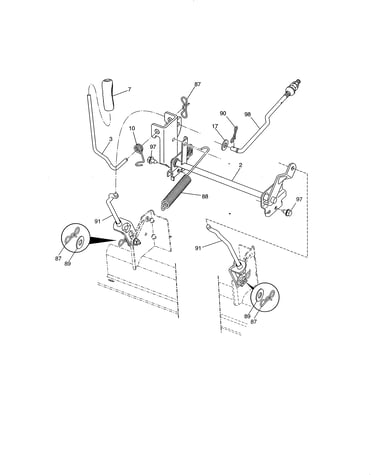

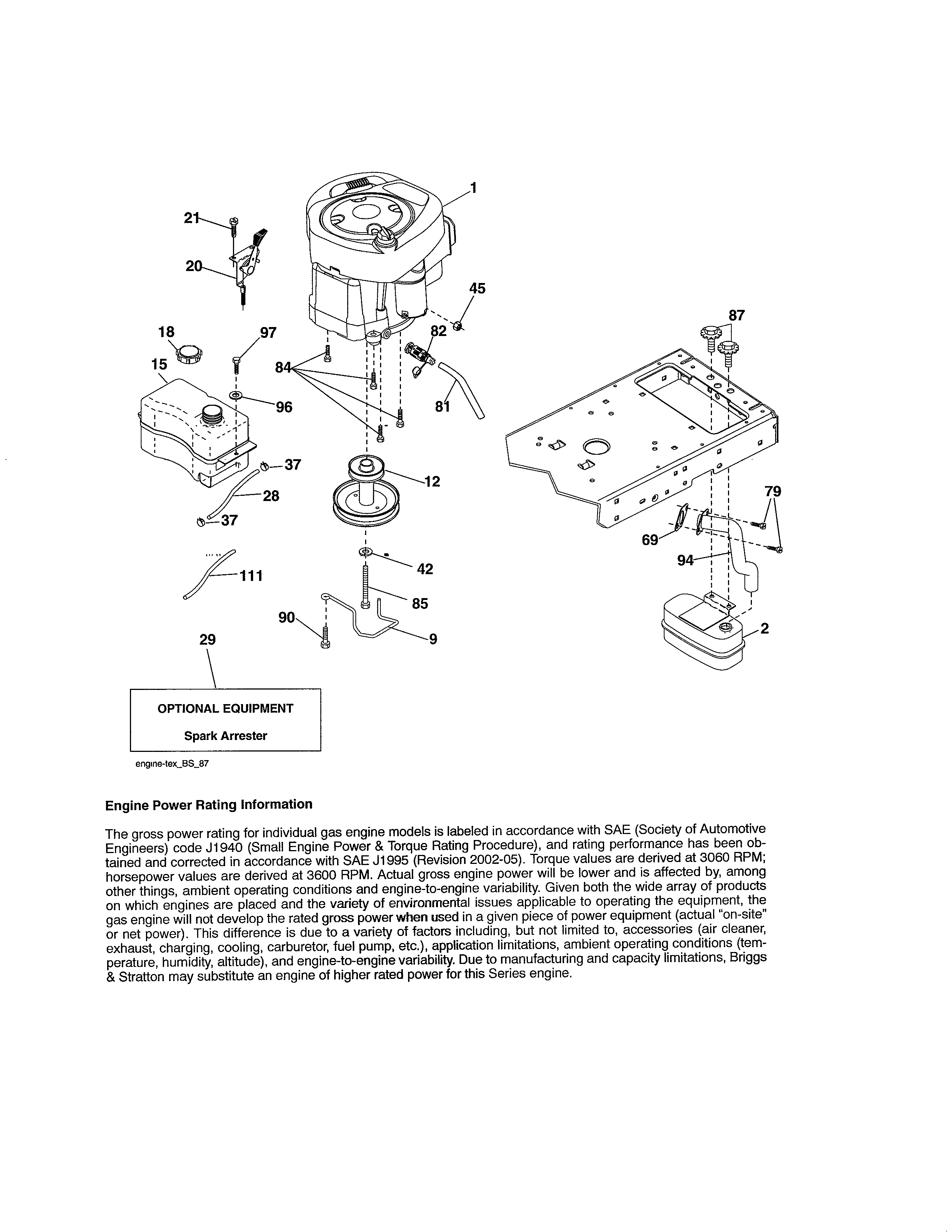

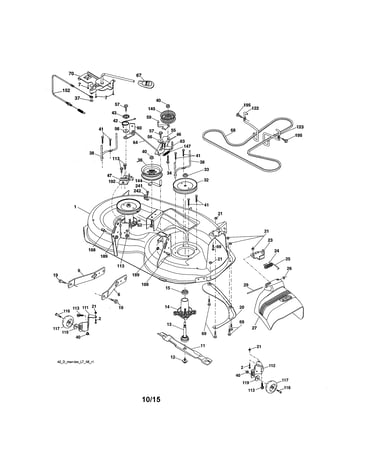

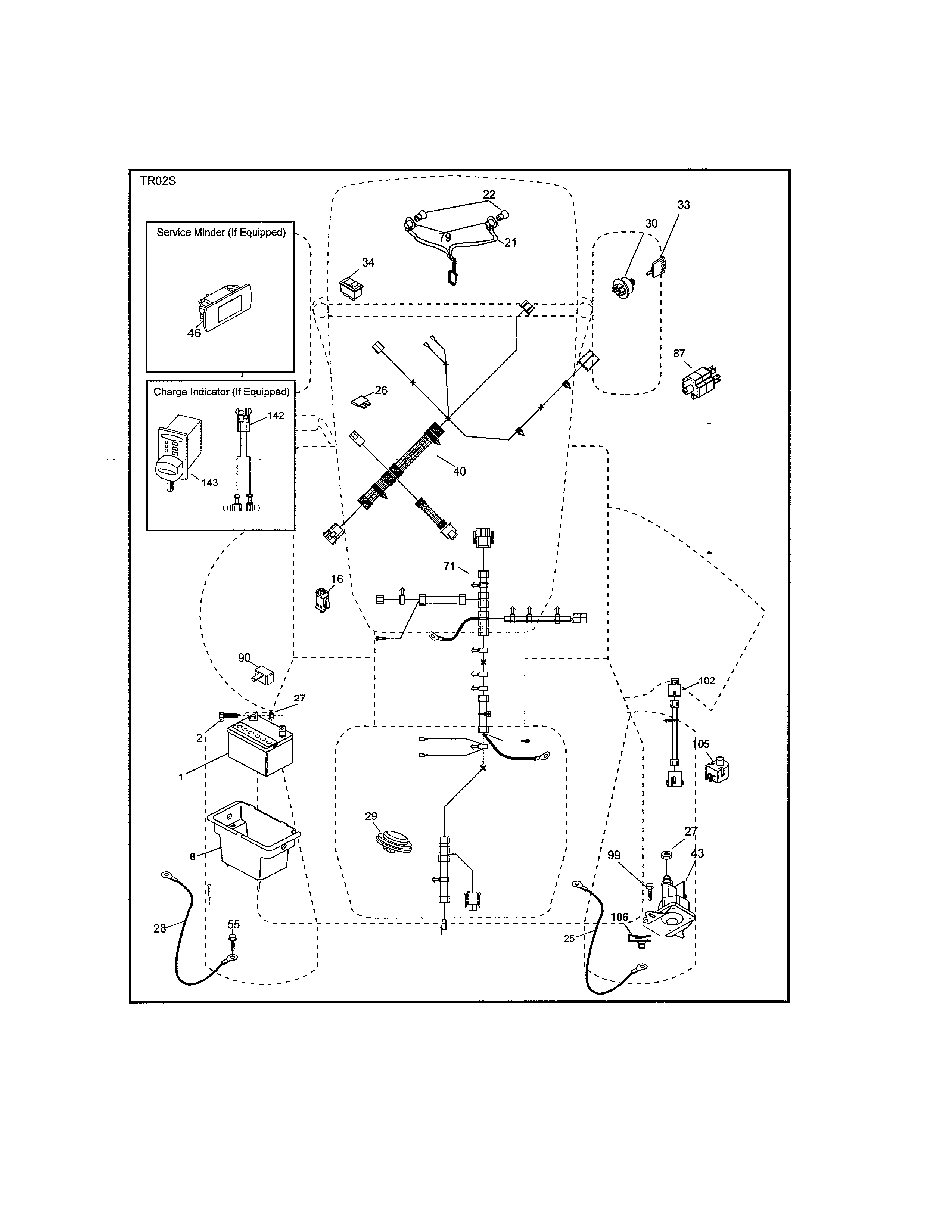

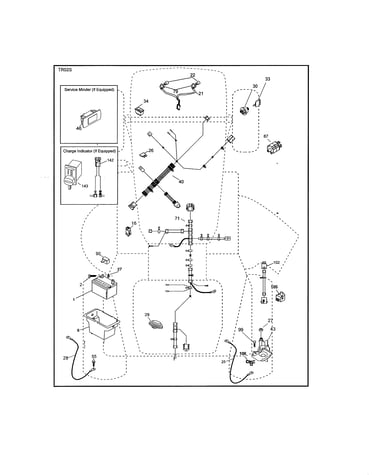

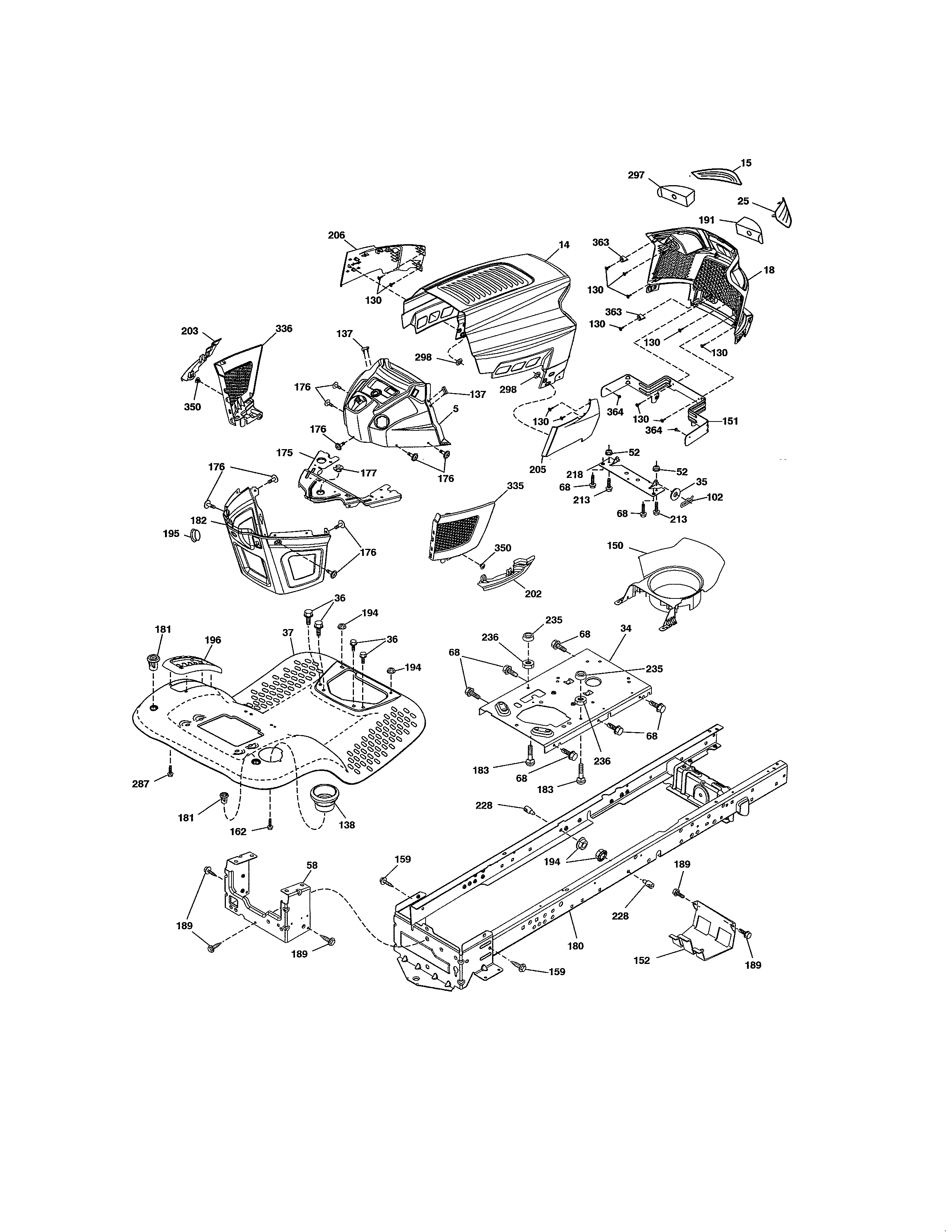

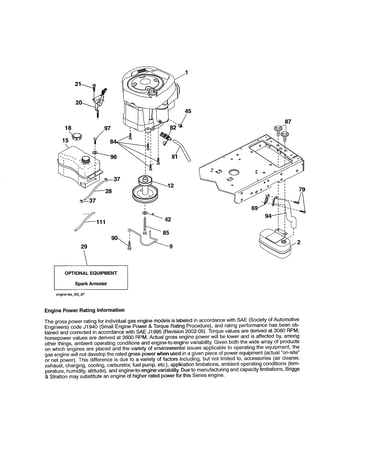

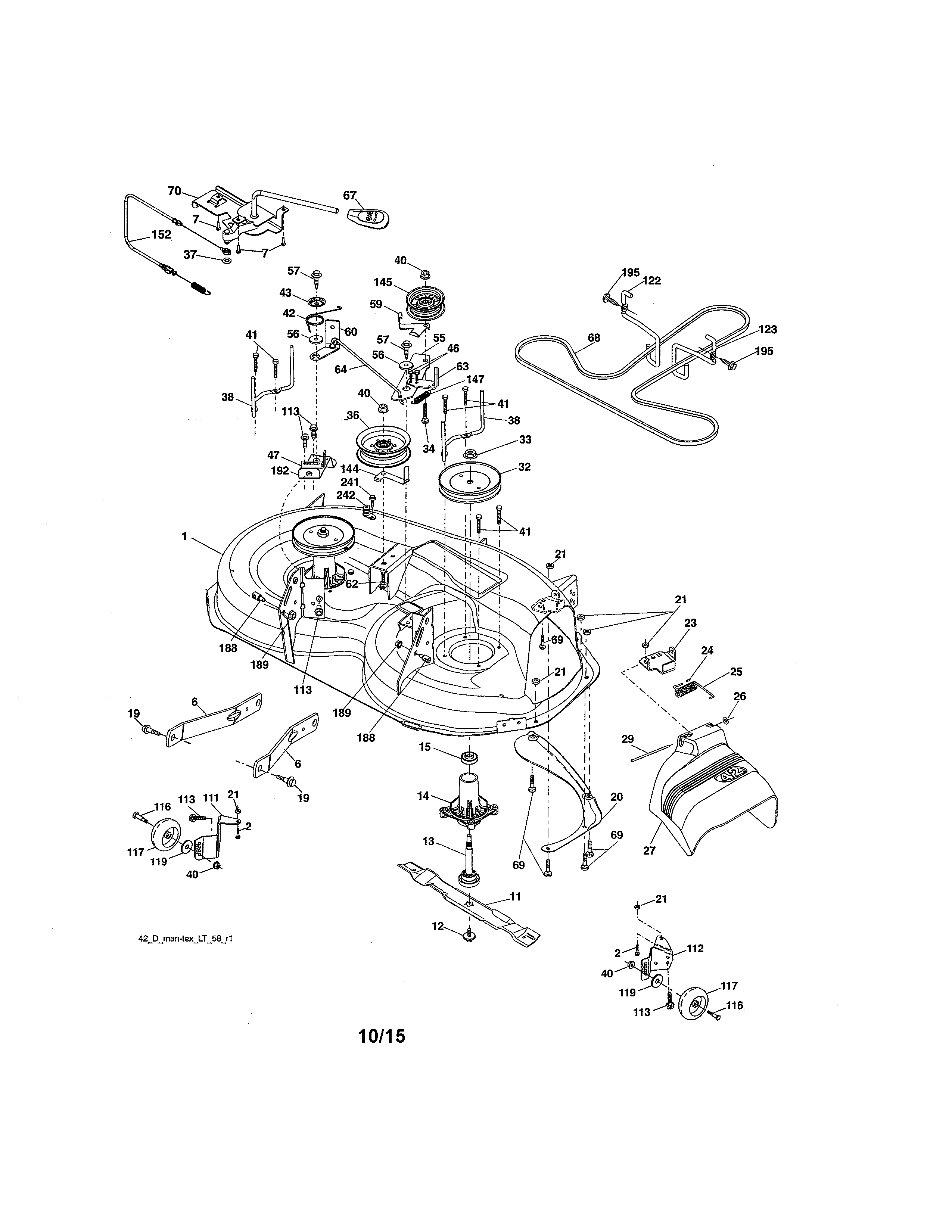

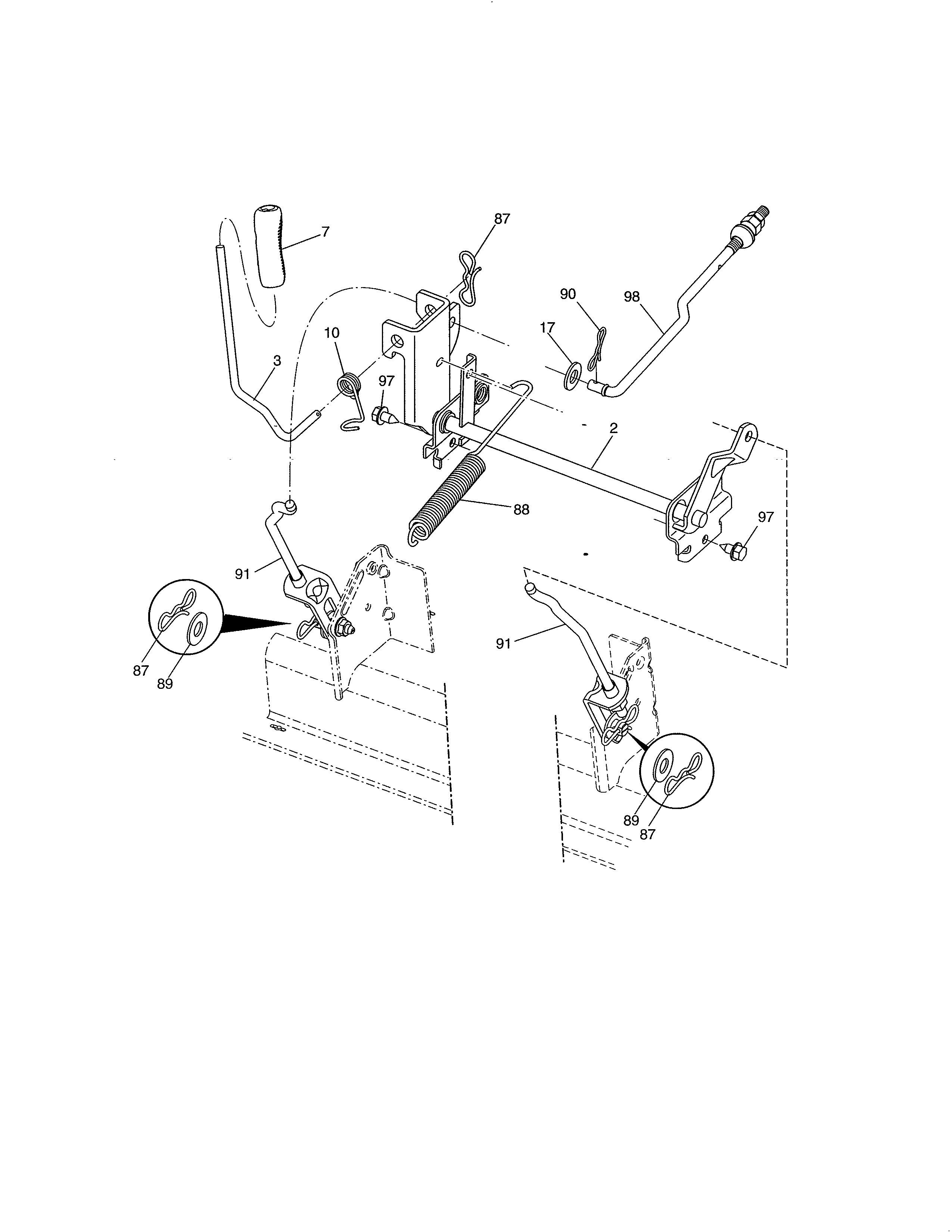

Model Diagram and Schematics
Search within this model
?
This is the number corresponding to the part on the diagram / schematic
Parts List
Showing 10 of 573 parts
#(NI)
All parts Diagram
Lawn mower mandrel assembly
Part #587253301
Replaced by #587819701
?
Manufacturer substitution
This part replaces 587253301. Substitute parts can look different from the original.
In Stock
$36.07 |
31% OFF
MSRP: $52.50
Lawn tractor mandrel housing
Part #187281
Replaced by #587819701
?
Manufacturer substitution
This part replaces 187281. Substitute parts can look different from the original.
In Stock
$36.07 |
31% OFF
MSRP: $52.50
3-in-1 blade, 42-in
Part #424752
Replaced by #422719
?
Manufacturer substitution
This part replaces 424752. Substitute parts can look different from the original.
Get free shipping with Automatic Reorder
In Stock
$14.69 |
12% OFF
Phone Price: $16.69
Lawn tractor belt, 1/2 x 101-1/6-in
Part #197253
Replaced by #592855001
?
Manufacturer substitution
This part replaces 197253. Substitute parts can look different from the original.
Get free shipping with Automatic Reorder
Back Order
$27.58 |
15% OFF
Phone Price: $32.58
Lawn tractor axle cap
Part #104757X428
Replaced by #532104757
?
Manufacturer substitution
This part replaces 104757X428. Substitute parts can look different from the original.
This item is not returnable
In Stock
$3.04 |
25% OFF
Phone Price: $4.04
In Stock
$3.70 |
21% OFF
Phone Price: $4.70
Lawn tractor starter solenoid
Part #192507
Replaced by #582042802
?
Manufacturer substitution
This part replaces 192507. Substitute parts can look different from the original.
In Stock
$13.01 |
32% OFF
MSRP: $19.00
Lawn mower pivot link, right
Part #436887
Replaced by #597069702
?
Manufacturer substitution
This part replaces 436887. Substitute parts can look different from the original.
In Stock
$12.64 |
14% OFF
Phone Price: $14.64
Lawn tractor ignition switch
Part #193350
Replaced by #532193350
?
Manufacturer substitution
This part replaces 193350. Substitute parts can look different from the original.
In Stock
$13.81 |
25% OFF
MSRP: $18.51
Lawn mower drag link, right
Part #436885
Replaced by #597069902
?
Manufacturer substitution
This part replaces 436885. Substitute parts can look different from the original.
Back Order
$25.06 |
17% OFF
Phone Price: $30.06
Recommended maintenance parts and accessories
In Stock
$2.28
In Stock
$9.69 |
9% OFF
Phone Price: $10.69
Symptoms common to all riding mowers & tractors
Main causes: worn or broken blade belt, broken belt idler pulley, blade clutch cable failure, bad PTO switch, damaged mandrel pulleys
Main causes: damaged cutting blade, worn deck pulley, damaged mandrel pulley, loose fasteners on mower deck components
Main causes: faulty battery, bad alternator
Main causes: unlevel mower deck, dull or damaged cutting blades, worn mandrel pulleys, bent mower deck, engine needs tune up
Main causes: worn or broken ground drive belt, bad seat switch, transaxle freewheel control engaged, transaxle failure, dirty carburetor
Main causes: engine overfilled with oil, leaky head gasket or sump gasket, damaged carburetor seals, cracked fuel pump, broken fuel line
Main causes: shift lever needs adjustment, neutral control needs adjustment
Main causes: damaged tie rods, bent or worn wheel spindle, worn front axle, damaged sector gear assembly
Main causes: punctured tire or inner tube, leaky valve stem, damaged wheel rim
